2023.5+ Harley-Davidson 2-Speaker Plug and Play Audio System | DS18
Vendor:DS18 Motorcycle Audio2023.5+ HARLEY-DAVIDSON PLUG-AND-PLAY AUDIO 2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | DS18 Upgrade a compatible 2023.5 and newer Harley-Davidson Road Glide or Street Glide with a complete two-speaker audio system built around a DS18 four-channel amplifier, two high-output hybrid fairing speakers, NAV-TV factory A2B integration and the primary power and installation components required for the system. Select Road Glide or Street Glide before ordering so the correct motorcycle configuration can be supplied. Two amplifier channels power the included front speakers, while two channels remain available for a properly matched future rear-speaker upgrade. Check Motorcycle Fitment See Everything Included Complete Two-Speaker Audio System Road Glide and Street Glide options Designed for compatible late-model Harley A2B systems DS18 ION1600.4D four-channel Class-D amplifier 240 watts RMS × 4 channels at 4 ohms Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers 150 watts RMS per included speaker 4-ohm nominal impedance per speaker Built-in 1-inch titanium compression drivers NAV-TV ZEN-H A2B factory-radio integration 4-AWG amplifier power wiring Half-inch speaker spacers included Two amplifier channels available for expansion Complete 2-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package combines the amplifier, two front fairing speakers, factory A2B signal interface, amplifier power wiring and speaker-spacing components required to build a high-output two-speaker audio system in a compatible late-model Harley-Davidson Road Glide or Street Glide. The included DS18 PRO-HY6.4MSL speakers combine a shallow 6.5-inch midrange driver with a built-in 1-inch titanium compression driver. This hybrid design produces both midrange and high-frequency output from each fairing speaker location. The DS18 ION1600.4D supplies four full-range amplifier channels. Two channels operate the included front speakers. The remaining channels can support a properly matched rear-speaker pair after the required speakers, wiring, mounting components and amplifier setup are added. Plug-and-play clarification: The NAV-TV interface provides plug-and-play factory A2B signal integration. The complete installation still requires amplifier power wiring, speaker mounting, proper cable routing and measured gain and crossover setup. Road Glide and Street Glide Fitment Road Glide Option Select Road Glide for a compatible late-model sharknose-fairing motorcycle using the factory Harley-Davidson A2B audio platform. Road Glide fairing configuration Two front fairing speakers Half-inch speaker spacers NAV-TV A2B integration Street Glide Option Select Street Glide for a compatible late-model batwing-fairing motorcycle using the factory Harley-Davidson A2B audio platform. Street Glide fairing configuration Two front fairing speakers Half-inch speaker spacers NAV-TV A2B integration Exact model verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, A2B configuration and existing audio equipment before ordering. Not every motorcycle described broadly as 2023.5+ uses identical factory audio hardware or fairing geometry. Current Plug-and-Play Kit Lead Time The current listed fulfillment time for this plug-and-play system is approximately 5–10 business days. Build time may vary with component availability and motorcycle configuration. Everything Included in the Audio System DS18 ION1600.4D Amplifier One compact four-channel full-range Class-D amplifier rated for 240 watts RMS × 4 at 4 ohms, 400 watts RMS × 4 at 2 ohms and 800 watts RMS × 2 bridged at 4 ohms. Two DS18 PRO-HY6.4MSL Speakers One pair of 6.5-inch shallow hybrid speakers with 4-ohm impedance, 150-watt RMS power handling and built-in 1-inch titanium compression drivers. NAV-TV ZEN-H A2B Interface One factory A2B interface that converts the compatible Harley radio signal into eight channels of 5-volt analog RCA output for aftermarket amplifier integration. 4-AWG Amplifier Power Kit Heavy-gauge power and ground wiring with the primary connections and protection hardware required for the amplifier installation. Half-Inch Speaker Spacers Speaker-spacing components provide additional mounting clearance for the DS18 hybrid speakers in the applicable front fairing locations. Road Glide or Street Glide Configuration The selected Shopify variant identifies which motorcycle and fairing configuration the system is being prepared for. Two-speaker system: Rear speakers, saddlebag speaker adapters, speaker lids, rear-speaker wiring, rear grilles and a rear mounting system are not included unless separately added to the order. Speaker Impedance and Amplifier Channel Configuration Front-Left Speaker One PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated ION1600.4D amplifier channel. Front-Right Speaker The second PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated amplifier channel. Two Available Channels Two amplifier channels remain available for a compatible future rear-speaker pair after the required mounting and wiring components are installed. Included Speaker Count Two speakers / one pair Speaker Impedance 4Ω per speaker Speaker Power Handling 150W RMS / 300W maximum per speaker Amplifier Output at 4Ω 240W RMS per channel Front-Left Channel One PRO-HY6.4MSL speaker at 4Ω Front-Right Channel One PRO-HY6.4MSL speaker at 4Ω Loaded Amplifier Channels Two Available Amplifier Channels Two Bridging Required No Output must be limited correctly: The ION1600.4D can produce more continuous power at 4 ohms than each included speaker is rated to handle. Correct gain, high-pass crossover and maximum clean output settings are required. DS18 ION1600.4D Four-Channel Amplifier The ION1600.4D is a compact full-range Class-D amplifier that delivers substantial output from a motorcycle-friendly chassis. High-level and RCA inputs, variable crossovers, protection circuits and a clipping indicator support flexible system integration and measured setup. 240W × 4 at 4Ω Published four-channel output for compatible 4-ohm speaker systems. 400W × 4 at 2Ω Available for separately designed compatible 2-ohm speaker systems. 800W × 2 Bridged Published bridged output into properly configured 4-ohm loads. Adjustable Crossovers Low-pass, high-pass and full-range modes support system-specific frequency control. Clip Indicator Power, protection and clipping indicators assist with safe amplifier setup. Compact Chassis The small amplifier footprint helps conserve installation space on a motorcycle. Amplifier Model DS18 ION1600.4D Amplifier Type Four-channel full-range Class-D amplifier Output at 4Ω 240W RMS × 4 channels Output at 2Ω 400W RMS × 4 channels Bridged Output at 4Ω 800W RMS × 2 channels Frequency Response 10Hz–20kHz Signal-to-Noise Ratio Greater than 95dB Efficiency at 4Ω 88% Damping Factor 210 Total Harmonic Distortion 0.01% Input Range 0.2–6V Crossover Modes LPF / HPF / FULL Crossover Range 40Hz–2kHz Minimum Impedance 2Ω stereo / 4Ω bridged Power Input Terminal 4-AWG Published External Fuse 140A Cooling Fan Yes Dimensions 7.32 × 4.72 × 2 inches / 186 × 120 × 52mm Fuse and wiring verification: Confirm that the supplied 4-AWG power kit, fuse holder and installed fuse match the amplifier’s published current and protection requirements before operating the system. DS18 PRO-HY6.4MSL Hybrid Fairing Speakers Each PRO-HY6.4MSL combines a shallow 6.5-inch midrange loudspeaker with a built-in 1-inch titanium compression driver. This two-way hybrid arrangement provides both midrange projection and high-frequency output from one speaker assembly. 150W RMS Each included speaker is rated for 150 watts RMS and 300 watts maximum. 4-Ohm Impedance Each speaker presents a nominal 4-ohm load to its dedicated amplifier channel. Hybrid Two-Way Design A built-in titanium compression driver supplies high-frequency output without a separate tweeter location. Shallow Mounting Depth The 2.82-inch mounting depth supports tight motorcycle fairing installations. IP65 Rated Water-resistant construction and a protected grille support powersports use. 140Hz High-Pass Reference DS18 publishes 140Hz as the recommended high-pass crossover reference. Speaker Model DS18 PRO-HY6.4MSL Quantity Included Two speakers / one pair Nominal Size 6.5 inches / 165.1mm Nominal Impedance 4Ω per speaker Power Handling 150W RMS / 300W maximum per speaker Sensitivity 93dB, 1W / 1m Frequency Response 100Hz–20kHz Recommended High-Pass Crossover 140Hz Speaker Design Two-way shallow hybrid loudspeaker Midrange Voice Coil 1.5 inches / 38.6mm Compression Driver 1-inch titanium diaphragm with neodymium magnet Cone Material Water-resistant treated paper Weather Rating IP65 Front Mount Cutout 5.6 inches / 142mm Mounting Depth 2.82 inches / 72mm Protective Grille Included with each speaker Check fairing clearance: Half-inch spacers are included, but additional pod modification, magnet-cap clearance work or other installation adjustments may still be required depending on the exact motorcycle and factory enclosure. NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H converts the compatible factory Harley-Davidson A2B radio signal into eight channels of analog RCA output for the DS18 amplifier and future system expansion. Eight Analog Outputs Supplies eight channels of low-level analog RCA output at up to 5 volts RMS. Factory Control Retention Retains compatible factory volume, balance, fader and radio EQ functions. Direct A2B Integration Interfaces directly with the compatible factory A2B data and audio system. Designed for compatible late-model Harley A2B audio systems Eight-channel analog RCA output Up to 5-volt RMS output Factory volume retention Factory balance and fader retention Factory EQ preset retention where supported No replacement aftermarket radio required No built-in system DSP: This package uses the standard ZEN-H interface and the conventional DS18 ION1600.4D amplifier. Advanced equalization, time alignment and output limiting require a separately added compatible DSP. Power Wiring and Speaker Installation 4-AWG Amplifier Wiring The included power kit supplies the heavy-gauge power and ground foundation required for the ION1600.4D amplifier. Half-Inch Speaker Spacers The supplied spacers provide additional fairing clearance for the shallow hybrid speakers. Disconnect the motorcycle battery before installation. Mount the amplifier securely with adequate ventilation. Install appropriate fuse protection close to the battery. Protect wiring from steering movement, heat and sharp edges. Use clean and secure battery and chassis connections. Confirm speaker depth and spacer clearance before assembly. Verify speaker polarity before reinstalling the fairing. Inspect battery and charging-system condition before high-output use. Gain and Crossover Setup Proper setup is critical because the ION1600.4D can produce more continuous power at 4 ohms than each included PRO-HY6.4MSL is rated to handle. Connect one front speaker to each of two amplifier channels. Do not bridge the amplifier channels for the included speakers. Configure the active channels for high-pass operation. Use 140Hz as the manufacturer’s published high-pass reference. Adjust the final crossover for the fairing and desired output. Set gain using measured clean output rather than by ear. Do not use amplifier gain as a volume control. Monitor the clipping indicator during setup. Reduce output immediately if distortion or mechanical noise occurs. Professional setup recommended: Incorrect gain or crossover settings can damage the speakers even when the system appears to play normally at moderate volume. Future Rear-Speaker Expansion Two unused amplifier channels and additional NAV-TV RCA outputs provide a path for a future rear-speaker upgrade. Rear expansion must be designed around compatible speaker impedance, RMS power handling, mounting depth, wiring and crossover requirements. Already Available Two unused amplifier channels Additional NAV-TV RCA outputs Four-channel amplifier crossover controls 4-AWG amplifier power foundation Required for Expansion Compatible rear speakers Saddlebag lids, adapters or speaker pods Rear-speaker wiring and connectors Correct impedance and RMS-power matching Final crossover and gain setup Rear equipment is not included: This remains a two-speaker audio system until compatible rear speakers, mounting components and wiring are purchased and installed. Complete System Specifications System Type Two-speaker plug-and-play motorcycle audio system Motorcycle Options Road Glide or Street Glide Vehicle Application Compatible 2023.5 and newer Harley-Davidson A2B applications Amplifier DS18 ION1600.4D four-channel Class-D amplifier Amplifier Output at 4Ω 240W RMS × 4 channels Included Speakers Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers Speaker Impedance 4Ω per speaker Speaker Power Handling 150W RMS / 300W maximum per speaker Loaded Amplifier Channels Two channels at 4Ω each Available Amplifier Channels Two Factory Signal Interface NAV-TV ZEN-H A2B interface NAV-TV Output Eight-channel analog RCA at up to 5V RMS Power Wiring 4-AWG amplifier power installation kit Speaker Spacers Half-inch spacers included Built-In DSP No Rear Speakers Included No Shopify Option Choose Road Glide or Street Glide Current Listed Lead Time Approximately 5–10 business days Fitment and Ordering Notes Submit complete motorcycle information: Confirm the year, exact model, trim, Road Glide or Street Glide fairing, factory radio, factory amplifier, A2B configuration and current speaker setup before ordering. Select Road Glide or Street Glide before adding the kit to the cart. The package includes two front fairing speakers. Each included speaker has a nominal 4-ohm impedance. Two amplifier channels remain available for future expansion. The package uses NAV-TV factory A2B integration. The amplifier does not include built-in DSP. Half-inch speaker spacers are included. Additional fairing modification may still be required. Correct gain and high-pass crossover setup are required. Rear speakers and rear mounting components are not included. Professional installation and system setup are recommended. Best For Compatible 2023.5+ Harley-Davidson audio upgrades 2024+ Road Glide front-speaker upgrades 2024+ Street Glide front-speaker upgrades Factory Skyline radio and A2B audio integration High-output two-speaker fairing systems Riders planning to add saddlebag speakers later Professional motorcycle audio installations Related Motorcycle Audio Categories 2023.5+ Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Motorcycle Amplifiers Signal and Amplifier Support Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Motorcycle Audio Batteries Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries 2023.5+ Harley 2-Speaker Audio System FAQ How many speakers are included? The system includes two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers for the front fairing. What impedance are the included speakers? Each included speaker has a nominal impedance of 4 ohms. How much power can each speaker handle? Each PRO-HY6.4MSL is rated for 150 watts RMS and 300 watts maximum. How much power does the amplifier produce at 4 ohms? The ION1600.4D produces up to 240 watts RMS on each of its four channels at 4 ohms. Is the amplifier too powerful for the speakers? The amplifier can produce more continuous power than each speaker is rated to handle. It can be used safely when gain, high-pass crossover and maximum clean output are configured correctly. Are all four amplifier channels used? No. Two channels power the supplied speakers. Two channels remain available for a compatible future rear-speaker pair. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley A2B signal into analog RCA outputs that can be connected to the aftermarket amplifier. Does the NAV-TV interface retain factory controls? It retains compatible factory volume, balance, fader and supported EQ functions while integrating the aftermarket amplifier. Does this package include DSP? No. The standard ZEN-H interface and ION1600.4D amplifier do not provide advanced system DSP. A compatible external processor can be added when equalization, time alignment or output limiting is needed. Are the speakers weather resistant? Yes. The speakers are IP65 rated and use water-resistant cones and protective grille cloth. They should not be described as submersible. Can rear speakers be added later? Yes. The two unused amplifier channels can power a properly matched rear-speaker pair after the required speakers, wiring, mounting hardware and system setup are added. Are speaker spacers included? Yes. The package includes half-inch spacers to provide additional fairing speaker clearance. Will the speakers fit without modification? Fitment depends on the motorcycle and factory speaker enclosure. Additional spacing, pod modification or clearance work may still be required. Are saddlebag speakers included? No. This is a two-speaker system. Rear speakers, saddlebag mounting parts and rear-speaker wiring must be purchased separately. How long does the kit take to fulfill? The current listed lead time is approximately 5–10 business days, subject to component availability and motorcycle configuration. Need Help Matching This 2023.5+ Harley Audio System? Garage Bagger Stereo can help verify Road Glide or Street Glide fitment, speaker impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring, and factory A2B signal integration before installation. Installation Services Request a Custom Build -
Sale2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada / SounDigital
Vendor:SounDigital XP Series2023.5+ CVO / 2024+ ROAD GLIDE & STREET GLIDE 2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System Upgrade a compatible late-model Harley-Davidson with two high-output Cicada Audio pro coaxial horn speakers, a compact SounDigital four-channel amplifier, NAV-TV factory A2B integration and the primary amplifier power wiring required for installation. Choose the 4-ohm CHX65.4 version for a bridged two-speaker system or the 2-ohm CHX65.2 version for a stereo configuration that leaves two amplifier channels available for a properly matched future rear-speaker upgrade. Compare 2Ω and 4Ω Options See Everything Included Complete Two-Speaker Audio System Compatible late-model Harley A2B applications Road Glide and Street Glide fitment support Cicada CHX65.2 or CHX65.4 speaker pair 300 watts RMS per speaker Built-in coaxial horn tweeters External 12dB passive crossovers SounDigital XP 800.4 four-channel amplifier Up to 400 watts RMS × 2 bridged at 4Ω Up to 200 watts RMS × 4 at 2Ω NAV-TV ZEN-H A2B integration Cicada Audio OFC amplifier power wiring All-weather motorcycle speaker construction Complete 2-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package combines a pair of Cicada Audio CHX65 pro coaxial horn speakers, a SounDigital XP 800.4 amplifier, NAV-TV ZEN-H factory signal integration and an amplifier power kit into one late-model Harley-Davidson audio system. Each CHX65 combines a Carbon Matrix Composite mid-bass cone with an aluminum-diaphragm horn tweeter. The supplied external crossover divides the signal between the mid-bass and tweeter sections while optional resistor packs allow the tweeter output to be reduced when required. The product is offered with either 2-ohm or 4-ohm speakers. The correct option depends on whether the system will remain a high-output two-speaker configuration or be expanded into a four-speaker system. Plug-and-play clarification: The NAV-TV interface provides plug-and-play integration with a compatible factory A2B audio system. The complete installation still requires amplifier mounting, battery wiring, fuse protection, crossover mounting, speaker wiring and proper gain and crossover setup. Harley-Davidson Fitment 2023.5+ Harley CVO Intended for compatible late-production CVO motorcycles using the Skyline infotainment and factory A2B audio platform. 2024+ Road Glide Supports compatible redesigned Road Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements. 2024+ Street Glide Supports compatible redesigned Street Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements. Exact motorcycle verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, A2B configuration and existing audio modifications before ordering. Choose the Correct Speaker Impedance 4Ω CHX65.4 Configuration The two 4-ohm speakers are designed to use the SounDigital amplifier’s bridged channel pairs. One speaker connects to channels 1/2 and the other connects to channels 3/4. Two CHX65.4 speakers 4Ω nominal impedance per speaker 300W RMS per speaker Up to 400W RMS available per bridged channel pair All four amplifier channels are used Best for a dedicated high-output two-speaker system 2Ω CHX65.2 Configuration Each 2-ohm speaker connects to its own amplifier channel. Two amplifier channels remain available for a compatible future rear-speaker pair. Two CHX65.2 speakers 2Ω nominal impedance per speaker 300W RMS per speaker Up to 200W RMS available per active channel Two amplifier channels remain available Best for planned four-speaker expansion 4Ω Variant Speaker Model Cicada Audio CHX65.4 4Ω Amplifier Layout Two bridged channel pairs 4Ω Available Output 400W RMS × 2 bridged 2Ω Variant Speaker Model Cicada Audio CHX65.2 2Ω Amplifier Layout One speaker per amplifier channel 2Ω Available Output 200W RMS per active channel Unused Channels with 4Ω Variant None Unused Channels with 2Ω Variant Two 4Ω output must be limited: The amplifier can produce more bridged power than each CHX65.4 is rated to handle continuously. Correct gain, crossover and maximum clean-output setup are required. Everything Included in the Audio System Cicada CHX65 Speaker Pair One matched pair of 6.5-inch pro coaxial horn speakers in the selected 2-ohm or 4-ohm configuration. External Passive Crossovers Two custom 12dB vented crossover networks divide the amplifier output between each mid-bass cone and horn tweeter. Tweeter Attenuation Resistors Optional -3dB and -6dB resistor packs allow the high-frequency output to be reduced when required by the installation or tuning. SounDigital XP 800.4 Amplifier One compact full-range four-channel Class-D amplifier capable of stereo or bridged operation. NAV-TV ZEN-H A2B Interface Factory A2B interface supplying eight channels of analog RCA output for aftermarket amplifier integration. Cicada Audio OFC Power Kit Amplifier power and ground wiring with battery-side terminals, amplifier-side termination and fuse protection. Confirm the current physical bundle: Verify amplifier mounting, speaker spacers, adapter rings, RCA wiring and model-specific hardware before releasing the order. These parts are not listed in the original bundle description. Cicada Audio CHX65 Pro Coaxial Horn Speakers The CHX65 is designed for riders who need strong vocal projection, detailed high-frequency output and an all-weather speaker construction suitable for open-air motorcycle use. 300W RMS Each speaker is rated for 300 watts RMS and 600 watts maximum. Coaxial Horn Design A high-output mid-bass cone and horn tweeter share one compact basket. All-Weather Construction Waterproofing and UV protection support motorcycle installations. Carbon Matrix Cone The lightweight, rigid cone is engineered for efficient projection. Neodymium Motor The compact N35SH motor reduces weight while maintaining output. External Crossover The supplied 12dB network protects and filters the horn tweeter. Available Models CHX65.2 and CHX65.4 Quantity Included Two speakers / one pair Speaker Size 6.5 inches Available Impedance 2Ω or 4Ω per speaker Power Handling 300W RMS / 600W maximum per speaker Mid-Bass Voice Coil 2 inches / 51mm Tweeter Voice Coil 1.4 inches / 35.56mm Cone Carbon Matrix Composite Tweeter Diaphragm Aluminum Crossover External 12dB vented passive crossover Tweeter Attenuation Optional -3dB and -6dB resistor packs Magnet Neodymium Sensitivity 92dB Frequency Response 70Hz–20kHz ±4dB Mounting Depth 2.64 inches / 67mm Mounting Diameter 5.67 inches / 144mm Protect the external crossovers: Mount both crossover networks where they remain secure, ventilated and protected from direct water exposure, steering movement and sharp edges. SounDigital XP 800.4 Four-Channel Amplifier The SounDigital XP 800.4 is a compact full-range Class-D amplifier that can operate four stereo channels or two bridged channel pairs. Its flexible layout supports both CHX65 impedance options. 132W × 4 at 4Ω Four-channel output for compatible 4-ohm stereo applications. 200W × 4 at 2Ω Ideal for the 2-ohm speaker option and planned four-speaker systems. 400W × 2 Bridged High-output bridged configuration for the 4-ohm speaker option. Full-Range Operation Supports the frequency range required by coaxial horn speakers. Variable Crossovers Adjustable high-pass and low-pass filtering from 45Hz to 850Hz. Compact Installation The small chassis supports space-conscious motorcycle installations. Amplifier Model SounDigital XP 800.4 Amplifier Type Four-channel full-range Class-D amplifier Output at 4Ω 132W RMS × 4 Output at 2Ω 200W RMS × 4 Bridged Output at 4Ω 400W RMS × 2 Operating Voltage 9V–16V Music Current Draw 35A Maximum Current Draw 70A Recommended Fuse 40A Frequency Response 5Hz–34kHz Signal-to-Noise Ratio 91dB High-Pass Crossover 45Hz–850Hz Low-Pass Crossover 45Hz–850Hz THD + Noise 0.1% at 10% rated power Published Power Cable Recommendation 7-AWG Published Speaker Cable Recommendation 15-AWG Dimensions 5.7 × 4.4 × 2 inches / 14.5 × 11.3 × 5.1cm NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the SounDigital amplifier while retaining supported factory audio controls. Eight RCA Outputs Provides eight channels of low-level analog audio output. Up to 5V RMS Supplies a strong preamplifier signal for compatible equipment. Factory Control Retention Retains supported volume, fader, balance, chimes and EQ presets. Standard ZEN-H configuration: The standard ZEN-H provides A2B conversion but does not include the professional eight- channel DSP found in the ZEN-H PRO. Add an external DSP when advanced equalization, time alignment or limiting is required. Power Wiring and Electrical Requirements The original bundle lists a Cicada Audio OFC 8-gauge power kit. The power and ground wiring must be installed with secure terminals, short protected routing and the correct fuse near the battery. Disconnect the motorcycle battery before installation. Mount the fuse holder close to the positive battery connection. Use a clean, secure power and ground connection. Protect wiring from heat, steering movement and sharp edges. Confirm the final fuse value before powering the amplifier. Verify cable size against the amplifier, cable length and installation. Inspect battery and charging-system condition before high-output use. Power-cable verification: The bundle currently lists an 8-AWG kit, while current SounDigital documentation lists 7-AWG as the XP 800.4 recommendation. Confirm the final cable and fuse configuration before installation or fulfillment. Installation Instructions and Resources Speaker and Crossover Setup Cicada Coaxial Horn Speaker Manual Speaker Polarity Check Fairing and A2B Installation Road Glide Fairing Removal Street Glide Fairing Removal A2B T-Harness Installation Guide Professional Installation Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Amplifier Installation Parts Complete System Specifications System Type Two-speaker plug-and-play motorcycle audio system Primary Applications 2023.5+ CVO and compatible 2024+ Road Glide or Street Glide Speaker Options Cicada CHX65.2 or CHX65.4 Speaker Count Two speakers / one pair Speaker Power Handling 300W RMS / 600W maximum per speaker Amplifier SounDigital XP 800.4 4Ω Variant Configuration 400W RMS × 2 bridged 2Ω Variant Configuration 200W RMS per active stereo channel Factory Signal Interface NAV-TV ZEN-H A2B interface ZEN-H Output Eight analog RCA channels at up to 5V RMS Power Wiring Cicada Audio OFC 8-AWG power and ground kit Built-In DSP No Rear Speakers Included No Shopify Variants Choose 2Ω or 4Ω speakers Fitment and Ordering Notes Submit complete motorcycle information: Confirm the year, model, trim, factory radio, factory amplifier, A2B configuration, desired speaker impedance and future rear-speaker plans. Select the 2Ω or 4Ω speaker option before adding the kit to the cart. The package includes two front fairing speakers. The 4Ω version uses both bridged amplifier channel pairs. The 2Ω version uses two individual amplifier channels. The 2Ω configuration leaves two channels available for expansion. The external passive crossovers must be installed and protected. The NAV-TV ZEN-H supplies factory A2B signal integration. The system does not include built-in DSP. Confirm speaker depth, grille clearance and fairing fitment. Confirm amplifier mounting hardware before installation. Correct gain and high-pass crossover setup are required. Professional installation and tuning are recommended. Related Motorcycle Audio Categories Late-Model Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Shop Cicada Audio Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada and SounDigital 2-Speaker System FAQ How many speakers are included? The system includes one pair of Cicada CHX65 6.5-inch pro coaxial horn speakers. Can I choose 2-ohm or 4-ohm speakers? Yes. The product includes separate CHX65.2 and CHX65.4 Shopify variants. Which option is best for a two-speaker system? The 4-ohm version can use the amplifier’s two bridged channel pairs for a dedicated high-output two-speaker configuration. Which option is best when adding rear speakers later? The 2-ohm version uses one amplifier channel per front speaker and leaves two channels available for a compatible rear-speaker pair. How much power do the CHX65 speakers handle? Each CHX65.2 or CHX65.4 is rated for 300 watts RMS and 600 watts maximum. How much power does the amplifier produce? The XP 800.4 produces 132 watts RMS × 4 at 4 ohms, 200 watts RMS × 4 at 2 ohms or 400 watts RMS × 2 bridged at 4 ohms. Are crossovers included? Yes. Each speaker uses an external 12dB crossover with optional tweeter-attenuation resistor packs. Does the system include factory A2B integration? Yes. The package includes the standard NAV-TV ZEN-H A2B interface. Does the ZEN-H include DSP? No. The standard ZEN-H converts the factory A2B signal to analog RCA output but does not include the DSP functions found in the ZEN-H PRO. Is the power kit included? Yes. The original bundle lists a Cicada Audio OFC 8-gauge amplifier power and ground kit. Are rear speakers included? No. This is a two-speaker system. Rear speakers, mounting components and rear-speaker wiring must be purchased separately. Are the speakers weather resistant? Yes. Cicada describes the CHX65 series as an all-weather design with waterproofing and UV protection. Is professional installation recommended? Yes. The system requires A2B integration, amplifier power wiring, secure crossover placement, correct impedance configuration and measured gain and crossover setup. Need Help Matching This Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, 2-ohm or 4-ohm impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring, crossover placement and factory A2B signal integration before installation. Installation Services Request a Custom BuildSale -
2023.5+ Harley-Davidson 2-Speaker Audio System | Ground Zero / SounDigital
Vendor:SounDigital XP Series2023.5 CVO / 2024+ HARLEY-DAVIDSON AUDIO 2023.5+ Harley-Davidson 2-Speaker Audio System | Ground Zero / SounDigital Upgrade a compatible late-model Harley-Davidson fairing with a complete two-speaker system built around Ground Zero GZCF 6.5SPL-NEO coaxial speakers, a SounDigital XP 800.4 amplifier, NAV-TV factory A2B integration and motorcycle-ready OFC power wiring. The included 4-ohm speakers operate from two individual amplifier channels, providing clean front-fairing output while preserving two amplifier channels for a properly matched future expansion. See Everything Included View Channel Configuration Complete Front Fairing System Compatible late-model Harley-Davidson applications Ground Zero GZCF 6.5SPL-NEO speaker pair 6.5-inch two-way coaxial construction 4-ohm impedance per speaker 100 watts RMS per speaker Neodymium speaker motors Integrated 1.1-inch Mylar tweeters GBS weather treatment for motorcycle use SounDigital XP 800.4 four-channel amplifier NAV-TV ZEN-H factory A2B integration Cicada Audio HDPG8K OFC power kit Factory-amplifier replacement configuration Two amplifier channels available for expansion Ground Zero and SounDigital Harley Audio Upgrade This Garage Bagger Stereo package combines the primary components required to replace the active factory-amplifier signal path and power a new pair of high-efficiency fairing speakers from the factory Harley-Davidson infotainment system. The Ground Zero GZCF 6.5SPL-NEO is a compact two-way coaxial speaker that combines a fiber-reinforced paper cone, high-excursion surround, neodymium motor and integrated Mylar tweeter in one 6.5-inch speaker assembly. The SounDigital XP 800.4 supplies four amplified channels. In the standard two-speaker configuration, one channel powers the left speaker and one channel powers the right speaker. The remaining two channels can support a properly matched future rear-speaker upgrade. Plug-and-play clarification: The A2B interface and integration hardware simplify connection to the factory radio. The installation still requires fairing removal, factory-amplifier removal or bypass, amplifier mounting, battery wiring, speaker installation and proper gain and crossover setup. Harley-Davidson Fitment 2023.5 CVO Models Intended for compatible late-production CVO motorcycles using the redesigned infotainment and factory A2B audio architecture. 2024+ Road Glide Supports compatible redesigned Road Glide motorcycles after confirming the factory radio, amplifier, speaker mounting and fairing-clearance requirements. 2024+ Street Glide Supports compatible redesigned Street Glide motorcycles after confirming the factory radio, amplifier, speaker mounting and fairing-clearance requirements. Exact fitment verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, factory speaker locations and existing audio modifications before ordering. Everything Included in the Audio System Ground Zero GZCF 6.5SPL-NEO Pair Two 6.5-inch, 4-ohm coaxial speakers rated for 100 watts RMS and 250 watts maximum per speaker. Garage Bagger Stereo Weather Treatment The included speaker pair receives added weather treatment for motorcycle fairing use before shipment. SounDigital XP 800.4 Amplifier One compact four-channel full-range amplifier providing up to 132 watts RMS per channel at 4 ohms. NAV-TV ZEN-H A2B Interface Converts the compatible factory Harley-Davidson A2B signal into low-level analog RCA outputs for the aftermarket amplifier. Cicada Audio HDPG8K Power Kit OFC 8-AWG amplifier power and ground installation kit configured for Harley-Davidson motorcycle audio installations. Factory-Amplifier Replacement Configuration The system is designed for an installation in which the stock amplifier is removed or bypassed from the active signal path. Confirm installation hardware: Verify the appropriate amplifier rack, speaker adapters, output wiring, RCA connections and model-specific mounting hardware required for the exact motorcycle. Amplifier and Speaker Configuration Front Speaker Channels One 4-ohm Ground Zero speaker operates from one amplifier channel. Two amplifier channels power the complete left and right fairing speaker pair. Future Expansion Channels Two amplifier channels remain available for a properly matched pair of rear, lid or lower-fairing speakers. Speaker Count Two speakers / one pair Speaker Model Ground Zero GZCF 6.5SPL-NEO Speaker Impedance 4Ω per speaker Speaker Power Handling 100W RMS / 250W maximum per speaker Amplifier Output at 4Ω 132W RMS × 4 Front Channels Used Two Available Amplifier Channels Two Bridged Operation Required No Output setup required: The amplifier has more available continuous power than each speaker’s RMS rating. Set gain, high-pass filtering and maximum clean output using proper test equipment. Ground Zero GZCF 6.5SPL-NEO Coaxial Speakers The GZCF 6.5SPL-NEO is engineered for efficient full-range output from a compact 6.5-inch platform. Its integrated tweeter eliminates the need for a separate fairing-mounted high-frequency driver. 100W RMS Each speaker handles 100 watts RMS and 250 watts maximum. 4-Ohm Impedance The fixed 4-ohm load works with one individual XP 800.4 channel. 93 dB Efficiency High efficiency supports strong output from practical motorcycle amplifier power. Neodymium Motor Compact high-energy motor construction reduces depth and weight. Integrated Mylar Tweeter A 1.1-inch coaxial tweeter reproduces upper-frequency detail from the same speaker location. GBS Weather Treatment The speaker pair is treated by Garage Bagger Stereo for motorcycle fairing use. Speaker Model GZCF 6.5SPL-NEO Quantity Included Two speakers / one pair Speaker Type Two-way coaxial loudspeaker Nominal Diameter 6.5 inches / 165 mm Nominal Impedance 4Ω per speaker Power Handling 100W RMS / 250W maximum per speaker Efficiency 93 dB Frequency Response 70 Hz–20 kHz Main Cone Fiber-reinforced pressed-paper cone Surround High-excursion waved textile surround Motor High-efficiency neodymium motor Basket Resonance-resistant steel basket Tweeter 1.1-inch / 28 mm Mylar tweeter Internal Crossover 6 dB per octave high-pass filtering Crossover Frequency 5 kHz Mounting Diameter 5.71 inches / 145 mm Mounting Depth 2.68 inches / 68 mm Verify fairing clearance: Confirm the mounting diameter, speaker depth, factory enclosure, grille clearance and any required adapter or spacer before installation. SounDigital XP 800.4 Four-Channel Amplifier The XP 800.4 is a compact full-range amplifier designed to provide four independently amplified channels from a motorcycle-friendly chassis. 132W × 4 at 4Ω Published output for the included Ground Zero speaker load. 200W × 4 at 2Ω Supports compatible future 2-ohm speaker configurations. 400W × 2 Bridged Bridged power is available for properly matched 4-ohm applications, but is not required for this speaker pair. Full-Range Response Wide frequency response supports coaxial, component and mid-bass motorcycle speakers. Adjustable Crossovers Variable high-pass and low-pass controls support speaker protection. Compact Chassis The small amplifier footprint supports fairing-based installation. Amplifier Model SounDigital XP 800.4 Amplifier Type Four-channel full-range amplifier Power at 4Ω 132W RMS × 4 Power at 2Ω 200W RMS × 4 Bridged Power at 4Ω 400W RMS × 2 Operating Voltage 9V–16V Music Current Draw 35A Maximum Current Draw 70A Published Recommended Fuse 40A Frequency Response 5 Hz–34 kHz Signal-to-Noise Ratio 91 dB High-Pass Crossover 45 Hz–850 Hz Low-Pass Crossover 45 Hz–850 Hz THD + Noise 0.1% at 10% rated power Published Power-Cable Recommendation 7-AWG OFC Published Speaker-Cable Recommendation 15-AWG Dimensions Approximately 5.7 × 4.4 × 2 inches Power wiring verification: Confirm the final power cable, ground cable, fuse holder and installed fuse against current SounDigital guidance before powering the amplifier. NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H allows the compatible factory Harley-Davidson radio to supply low-level audio to the SounDigital amplifier without replacing the factory infotainment system. A2B Signal Conversion Converts the compatible factory digital audio signal into analog RCA outputs. Eight RCA Channels Provides up to eight analog output channels for aftermarket audio equipment. Factory Control Retention Retains supported volume, balance, fader, chimes, voice calls and factory EQ functions. Interface NAV-TV ZEN-H Manufacturer SKU NTV-KIT1021 Factory Input Harley-Davidson A2B digital audio Analog Outputs Eight RCA channels Maximum RCA Output Up to 5V RMS ZEN-H clarification: This package uses the standard NAV-TV ZEN-H for factory A2B conversion. It does not include the additional processing functions of the ZEN-H PRO. Power Wiring and Electrical Setup The included Cicada Audio HDPG8K provides an OFC power and ground foundation for the amplifier installation. Disconnect the motorcycle battery before installation. Install primary fuse protection close to the positive battery terminal. Use secure, corrosion-resistant battery and ground connections. Protect wiring from steering movement, heat and sharp edges. Keep signal wiring separated from high-current power wiring. Confirm charging-system and battery condition before high-output use. Verify the final cable size and fuse configuration before powering the amplifier. Electrical verification required: The included bundle lists an 8-AWG Cicada Audio power kit, while SounDigital publishes a 7-AWG minimum recommendation. Verify the completed installation against current amplifier requirements. Gain and Crossover Setup Connect one 4-ohm Ground Zero speaker to each front amplifier channel. Do not bridge the included speaker pair in the standard configuration. Configure protective high-pass filtering for both front speakers. Set gain using measured clean output rather than by ear. Limit amplifier output to the speakers’ continuous-power capability. Confirm left and right speaker polarity before reinstalling the fairing. Do not use amplifier gain as a volume control. Reduce output immediately if distortion or mechanical noise occurs. Professional setup recommended: Correct gain, high-pass filtering and output-voltage settings protect the speakers and improve long-term reliability. Installation Instructions and Resources Ground Zero Speaker Information Ground Zero GZCF 6.5SPL-NEO Owner’s Manual Speaker Polarity Check Fairing and A2B Installation Road Glide Fairing Removal Street Glide Fairing Removal Late-Model Harley A2B T-Harness Installation Guide Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Complete System Specifications System Type Two-speaker late-model Harley-Davidson fairing audio system Primary Applications Compatible 2023.5 CVO and 2024+ Road Glide or Street Glide Speakers Two Ground Zero GZCF 6.5SPL-NEO coaxial speakers Speaker Impedance 4Ω per speaker Speaker Power Handling 100W RMS / 250W maximum per speaker Amplifier SounDigital XP 800.4 Amplifier Output at 4Ω 132W RMS × 4 Front Amplifier Channels Used Two Available Amplifier Channels Two Factory Signal Integration NAV-TV ZEN-H A2B interface Power Wiring Cicada Audio HDPG8K OFC installation kit Speaker Treatment Garage Bagger Stereo weather treatment Factory Amplifier Removed or bypassed from the active signal path Rear Speakers Included No Shopify Variants None Fitment and Ordering Notes Submit complete motorcycle information: Confirm the motorcycle year, exact model, trim, factory radio, factory amplifier, speaker locations and current audio modifications. The system includes two fixed 4-ohm Ground Zero speakers. Each front speaker uses one individual amplifier channel. The standard configuration does not bridge the speakers. Two amplifier channels remain available for compatible expansion. Rear speakers and rear mounting components are not included. Verify speaker mounting diameter and depth before installation. Verify the correct Road Glide or Street Glide amplifier rack. Confirm all required adapters and speaker-output wiring. Verify the final power cable and fuse configuration. Correct gain and high-pass setup are required. Professional installation and tuning are strongly recommended. Current Shipping Promotion Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply. Related Motorcycle Audio Categories Late-Model Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Motorcycle Speakers Motorcycle Amplifiers Amplifier and Signal Support Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Motorcycle Audio Batteries Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Ground Zero and SounDigital Audio System FAQ Which speakers are included? The package includes one pair of Ground Zero GZCF 6.5SPL-NEO 6.5-inch two-way coaxial speakers. What impedance are the speakers? Each included speaker has a nominal impedance of 4 ohms. How much power does each speaker handle? Each speaker is rated for 100 watts RMS and 250 watts maximum. Are the speakers weatherproof? Garage Bagger Stereo supplies the speakers with added weather treatment for motorcycle fairing use. Which amplifier is included? The system includes the SounDigital XP 800.4 four-channel amplifier. How much power does the amplifier produce at 4 ohms? The XP 800.4 produces 132 watts RMS per channel at 4 ohms. Are the front speakers bridged? No. The standard configuration uses one individual amplifier channel for each 4-ohm front speaker. Are two amplifier channels still available? Yes. Two channels remain available for a properly matched future speaker expansion. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the SounDigital amplifier. Does the stock amplifier remain active? No. This package is designed for a factory-amplifier replacement installation in which the stock amplifier is removed or bypassed from the active audio path. Are rear speakers included? No. Rear speakers, wiring and mounting components must be selected separately. Is professional installation recommended? Yes. The installation requires A2B signal integration, factory amplifier removal or bypass, battery wiring, amplifier mounting and measured gain and crossover setup. Need Help Matching This Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, 4-ohm impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring and factory A2B signal integration before installation. Installation Services Request a Custom Build -
Cicada Audio 24FLXCXX-4X2SG 500W 2-Speaker System for 2024+ Street Glide
Vendor:Cicada AudioCOMPLETE 2024+ STREET GLIDE FRONT AUDIO SYSTEM Cicada Audio 24FLXCXX-4X2SG 500W 2-Speaker Audio System The Cicada Audio 24FLXCXX-4X2SG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Street Glide motorcycles. It combines a compact four-channel amplifier, two high-efficiency 2-ohm Pro Coaxial speakers, factory A2B radio integration, Street Glide-specific mounting hardware and a rear-output harness for future system expansion. See Everything Included View Speaker Load Front Audio with Rear Expansion Support Designed for compatible 2024+ Street Glide motorcycles FLX500.4 compact four-channel Class-D amplifier 125 watts RMS × 4 channels at 2Ω Two CXX65.2 6.5-inch Pro Coaxial speakers Both included speakers are 2Ω Street Glide fairing grilles included NAV-TV ZEN-H A2B factory-radio integration Street Glide amplifier rack included 8-AWG amplifier power kit included Rear-output harness included for future expansion 24FLXCXX-4X2SG Complete System Overview This Cicada Audio package upgrades the two factory Street Glide fairing speaker locations while installing the four-channel amplifier, power wiring, A2B interface and output wiring needed for a larger system. One pair of CXX65.2 6.5-inch Pro Coaxial speakers installs behind the included Cicada-branded Street Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel. The FLX500.4 provides four amplified channels. The supplied configuration uses two channels for the front speaker pair, while the included 24HDRO harness prepares the other two channels for a separately purchased rear-speaker upgrade. Standard Non-DSP System Configuration FLX500.4 Power Amplifier This package uses the standard FLX500.4 four-channel amplifier. It delivers compact Class-D power but does not include an integrated digital signal processor. NAV-TV ZEN-H A2B Integration The included ZEN-H interface extracts the factory digital A2B audio signal and connects it directly to the Cicada amplifier through the included vehicle-specific harness. No built-in DSP: This package does not provide DSP equalization, time alignment or digital output limiting. Those functions require a separately purchased compatible digital signal processor. Speaker Impedance and Amplifier Channel Load Front Left: 2Ω One CXX65.2 speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load. Front Right: 2Ω The second CXX65.2 speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load. Rear Channels: Available No rear speakers are included. The remaining two amplifier channels can power a properly matched future rear-speaker system. Included Speaker Count Two speakers / one pair Included Speaker Model CXX65.2 Speaker Impedance 2Ω per speaker Supplied Configuration One 2Ω speaker on each of two amplifier channels Remaining Amplifier Channels Two channels available for compatible rear-speaker expansion Supplied system load: Only two amplifier channels are loaded by the included speakers. Each loaded channel operates at a nominal 2 ohms. Rear-speaker impedance must be matched correctly before connecting additional speakers. Everything Included in the Complete System FLX500.4 — Four-Channel Amplifier One compact Class-D amplifier rated for 125 watts RMS × 4 channels at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. CXX65.2 — 6.5" Pro Coaxial Speakers One pair of 2-ohm CXX65.2 speakers for the Street Glide fairing. Each speaker is rated for 100 watts RMS and uses a Kevlar cone, integrated PEI tweeter and built-in 6dB crossover. 24CHDSGG — Street Glide Fairing Grilles One pair of Cicada Audio-branded aluminum fairing grilles designed specifically for compatible 2024 and newer Street Glide motorcycles. 24HDAR-SG — Street Glide Amplifier Rack Black-anodized aluminum amplifier rack that uses compatible factory amplifier mounting locations and includes predrilled FLX mounting points and installation hardware. HDPG8K — 8-AWG Amplifier Power Kit Includes six-foot power and ground cables with black braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and 60-, 80- and 100-amp fuses. 24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned, positive-locking Molex connections. 24HDRO — Rear Output Speaker Harness Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for future rear-speaker installation. Rear-speaker ready: The rear-output harness and two additional amplifier channels are included. Rear speakers, speaker lids, saddlebag adapters and rear mounting hardware are sold separately. FLX500.4 Amplifier Power 125W × 4 at 2Ω The amplifier produces up to 125 watts RMS on each of its four channels when operating at 2 ohms and 14.4 volts. 95W × 4 at 4Ω The amplifier also supports four-channel operation with compatible 4-ohm speakers. 250W × 2 Bridged The published bridged configuration is 250 watts RMS × 2 into compatible 4-ohm loads. Wide Input Range The 0.2V–12V gain range supports compatible factory-radio interfaces, aftermarket radios and external signal processors. Flexible Crossovers Selectable LPF, FULL and HPF modes provide 20Hz–20kHz adjustment with selectable 6, 12, 24 or 48dB-per-octave slopes. Compact Motorcycle Chassis The small aluminum chassis installs on the included Street Glide amplifier rack without consuming unnecessary fairing space. FLX500.4 Amplifier Specifications Amplifier Model FLX500.4 Amplifier Type Four-channel Class-D amplifier without built-in DSP Output at 4Ω 95W RMS × 4 channels at 14.4V Output at 2Ω 125W RMS × 4 channels at 14.4V Bridged Output at 4Ω 250W RMS × 2 channels at 14.4V Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Recommended Fuse 50A Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Crossover Modes LPF / FULL / HPF Crossover Range 20Hz–20,000Hz Crossover Slopes 6 / 12 / 24 / 48dB per octave Dimensions with Brackets 5.2 × 4.9 × 2.0 inches / 131 × 125 × 51mm Chassis Dimensions 4.0 × 4.9 × 2.0 inches / 104 × 125 × 51mm CXX65.2 Street Glide Fairing Speakers Speaker Model CXX65.2 Quantity Two speakers / one pair Speaker Type 6.5-inch high-performance Pro Coaxial speaker Nominal Impedance 2Ω per speaker Power Handling 100W RMS / 200W maximum per speaker Mid-Bass Voice Coil 1.4 inches / 35mm Tweeter Voice Coil 1 inch / 25mm Cone Kevlar Tweeter Dome PEI Magnet Neodymium Built-In Crossover 6dB Sensitivity 93dB Frequency Response 55Hz–20kHz ±3dB Mounting Depth 2.26 inches / 57mm Mounting Diameter 5.43 inches / 138mm Warranty Two-year manufacturer warranty Rear-Speaker-Ready System Design The FLX500.4 provides four amplifier channels, but the supplied system includes only the two front fairing speakers. Cicada includes the 24HDRO harness so a compatible rear-speaker pair can be added without replacing the amplifier or rebuilding the factory-radio interface. Included for Expansion Two additional amplifier channels 24HDRO rear-output harness Factory-style harness connections Long speaker-wire leads for saddlebag routing Not Included Rear saddlebag speakers Saddlebag speaker adapters Cut-in speaker-lid hardware Rear speaker grilles or pods Expansion planning: Added rear speakers must be compatible with the FLX500.4 amplifier’s supported impedance, available output and crossover configuration. Factory A2B Radio Integration The NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The included Cicada harness routes that signal directly into the FLX500.4 through correctly pinned Molex connections. Designed for compatible 2024+ Harley-Davidson A2B systems No cutting or splicing of the factory signal harness Positive-locking automotive-grade connections Direct integration with compatible Cicada Audio amplifiers Compact routing inside the Street Glide fairing Standard non-DSP system configuration Installation and System Setup Mount the amplifier securely on the included 24HDAR-SG rack. Use the included HDPG8K power and ground wiring kit. Use a correctly rated fuse installed near the battery connection. Use the included A2B interface and Cicada amplifier harness. Confirm speaker mounting depth and grille clearance before assembly. Set the amplifier high-pass filters for the CXX65.2 speakers. Set amplifier gain using clean measured output. Do not exceed the 100-watt RMS rating of the front speakers. Secure all wiring against vibration, heat and sharp edges. Professional installation and system setup are recommended. Complete System Specifications Complete System SKU 24FLXCXX-4X2SG Vehicle Application Compatible 2024 and newer Harley-Davidson Street Glide Amplifier FLX500.4 four-channel amplifier without built-in DSP Amplifier Output at 2Ω 125W RMS × 4 channels at 14.4V Included Speaker Count Two Pro Coaxial speakers Included Speakers Two CXX65.2 6.5-inch speakers Speaker Impedance 2Ω per included speaker Loaded Amplifier Channels Two channels at 2Ω each Rear Amplifier Channels Available for compatible future speakers Factory-Radio Interface NAV-TV ZEN-H A2B interface with Cicada harness Built-In DSP No Front Grilles 24CHDSGG Street Glide fairing grilles Power Wiring HDPG8K 8-AWG power and ground installation kit Rear Output Wiring 24HDRO plug-and-play harness Amplifier Rack 24HDAR-SG Street Glide amplifier rack Rear Speakers Included No Saddlebag Mounting Kit Included No Shopify Variants None Fitment and Ordering Notes Verify fitment: Confirm the exact Street Glide year, trim, factory radio, factory amplifier configuration, fairing speaker locations and electrical system before ordering. Designed for compatible 2024 and newer Street Glide motorcycles. The package includes two 2-ohm front speakers. The package does not include selectable speaker impedance options. Two amplifier channels power the included front speaker pair. The remaining two channels are available for future expansion. The rear-output harness is included. Rear speakers and saddlebag mounting components are not included. No saddlebag cutting is required for the supplied front-only system. Future rear installation requirements depend on the selected mounting system. The amplifier does not include built-in DSP. Professional installation and system setup are recommended. Best For Compatible 2024+ Street Glide front-speaker upgrades Riders starting with a two-speaker amplified system Factory A2B radios requiring aftermarket amplifier integration Efficient 2-ohm Pro Coaxial motorcycle speakers Systems using a compact standard four-channel amplifier Riders planning to add compatible rear speakers later Professional Street Glide audio installations Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers System Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXCXX-4X2SG FAQ What impedance are the included speakers? Both included CXX65.2 speakers have a nominal impedance of 2 ohms. How many speakers are included? The system includes two 6.5-inch CXX65.2 Pro Coaxial speakers for the Street Glide fairing. What load does the amplifier see? Each included speaker connects to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load. Are all four amplifier channels used? No. The supplied system uses two channels for the front speakers. The remaining two channels are available for a compatible rear-speaker upgrade. How much power does the amplifier produce? The FLX500.4 produces 125 watts RMS × 4 at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. How much power can the speakers handle? Each CXX65.2 speaker is rated for 100 watts RMS and 200 watts maximum. Amplifier gain must be set correctly to protect the speakers. Does the amplifier include a DSP? No. The FLX500.4 is a standard four-channel amplifier without an integrated digital signal processor. Does the system integrate with the factory A2B radio? Yes. The package includes a NAV-TV ZEN-H A2B interface and Cicada Audio direct-connect amplifier harness. Are Street Glide fairing grilles included? Yes. The package includes the Cicada Audio 24CHDSGG aluminum fairing grille pair. Is the amplifier rack included? Yes. The package includes the 24HDAR-SG Street Glide amplifier rack and its mounting hardware. Is rear-speaker wiring included? Yes. The 24HDRO rear-output harness is included for a future rear-speaker upgrade. Are rear speakers included? No. Rear speakers and the required saddlebag mounting components must be purchased separately. Do the saddlebags need to be cut for this system? No saddlebag modification is required for the supplied front-only system. A future rear-speaker installation may require cutting or other modification depending on the selected mounting solution. Need Help Planning Your Street Glide System? Submit your Street Glide year, trim, factory audio package and future rear-speaker plans so Garage Bagger Stereo can verify fitment, electrical requirements and the correct expansion components for your motorcycle. Installation Services Request a Custom Build -
Cicada Audio 24FLXCXX-4X2RG 500W 2-Speaker System for 2024+ Road Glide
Vendor:Cicada AudioCOMPLETE 2024+ ROAD GLIDE FRONT AUDIO SYSTEM Cicada Audio 24FLXCXX-4X2RG 500W 2-Speaker Audio System The Cicada Audio 24FLXCXX-4X2RG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Road Glide motorcycles. It combines a compact four-channel amplifier, two high-efficiency 2-ohm Pro Coaxial speakers, factory A2B radio integration and Road Glide-specific installation components. The supplied system uses two amplifier channels for the front speaker pair. Two additional channels and the included rear-output harness remain available for a properly matched future rear-speaker upgrade. See Everything Included View Speaker Load Front Audio with Rear Expansion Support Designed for compatible 2024+ Road Glide motorcycles FLX500.4 compact four-channel Class-D amplifier 125 watts RMS × 4 channels at 2Ω Two CXX65.2 6.5-inch Pro Coaxial speakers Both included speakers are 2Ω Road Glide fairing grilles included NAV-TV ZEN-H A2B factory-radio integration Road Glide amplifier rack included 8-AWG amplifier power kit included Rear-output harness included for future expansion 24FLXCXX-4X2RG Complete System Overview This Cicada Audio package upgrades the two factory Road Glide fairing speaker locations while installing the amplifier, power wiring, A2B interface and vehicle-specific mounting hardware needed for a complete front audio system. One pair of CXX65.2 6.5-inch Pro Coaxial speakers installs behind the included Cicada-branded Road Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel. The FLX500.4 provides four amplified channels. The supplied system uses two channels for the front speakers, while the 24HDRO harness supports future expansion to compatible rear speakers. Standard Non-DSP System Configuration FLX500.4 Power Amplifier This package uses the standard FLX500.4 four-channel Class-D amplifier. It delivers compact, efficient power but does not contain an integrated digital signal processor. NAV-TV ZEN-H A2B Integration The included interface kit converts the compatible factory A2B audio signal and connects it to the Cicada amplifier through purpose-built locking harness connections. No built-in DSP: The FLX500.4 does not provide digital equalization, time alignment or DSP limiting. Those functions require a separately purchased compatible processor when the system design calls for advanced tuning. Speaker Impedance and Amplifier Channel Load Front Left: 2Ω One CXX65.2 speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load. Front Right: 2Ω The second CXX65.2 speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load. Rear Channels: Available No rear speakers are included. The remaining two amplifier channels can power a properly matched future rear-speaker system. Included Speaker Count Two speakers / one pair Included Speaker Model CXX65.2 Speaker Impedance 2Ω per speaker Supplied Configuration One 2Ω speaker on each of two amplifier channels Remaining Amplifier Channels Two channels available for compatible rear-speaker expansion Supplied system load: Only two amplifier channels are loaded by the included speakers. Each loaded channel operates at a nominal 2 ohms. Rear-speaker impedance must be matched correctly before connecting additional speakers. Everything Included in the Complete System FLX500.4 — Four-Channel Amplifier One compact Class-D amplifier rated for 125 watts RMS × 4 channels at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. CXX65.2 — 6.5" Pro Coaxial Speakers One pair of 2-ohm CXX65.2 speakers for the Road Glide fairing. Each speaker is rated for 100 watts RMS and uses a Kevlar cone, PEI dome tweeter and built-in 6dB crossover. 24CHDRGG — Road Glide Fairing Grilles One pair of Cicada Audio-branded powder-coated steel grilles designed for compatible 2024 and newer Harley-Davidson Road Glide fairings. 24HDAR-RG — Road Glide Amplifier Rack Black-anodized aluminum amplifier rack that uses compatible OEM mounting locations and includes predrilled FLX amplifier mounting points and installation hardware. HDPG8K — 8-AWG Amplifier Power Kit Includes six-foot power and ground cables, braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder. 24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned locking Molex connections. 24HDRO — Rear Output Speaker Harness Plug-and-play rear-output harness with factory-style connectors, short extensions and longer speaker-wire leads for future rear-speaker installation. Rear-speaker ready: The rear-output harness and two additional amplifier channels are included. Rear speakers, saddlebag speaker adapters, speaker lids and cut-in hardware are sold separately. FLX500.4 Amplifier Power 125W × 4 at 2Ω The amplifier produces up to 125 watts RMS on each of its four channels when operating at 2 ohms and 14.4 volts. 95W × 4 at 4Ω It also supports four-channel operation with compatible 4-ohm speakers when the system is designed around that channel load. 250W × 2 Bridged The published bridged configuration is 250 watts RMS × 2 into compatible 4-ohm loads. Wide Input Range The 0.2V–12V gain range supports compatible factory interfaces, aftermarket radios, processors and high-output preamplifiers. Flexible Crossovers Selectable LPF, FULL and HPF modes provide 20Hz–20kHz adjustment with selectable 6, 12, 24 or 48dB-per-octave slopes. Compact Motorcycle Chassis The compact aluminum chassis installs on the included Road Glide amplifier rack without consuming unnecessary fairing space. FLX500.4 Amplifier Specifications Amplifier Model FLX500.4 Amplifier Type Four-channel Class-D amplifier without built-in DSP Output at 4Ω 95W RMS × 4 channels at 14.4V Output at 2Ω 125W RMS × 4 channels at 14.4V Bridged Output at 4Ω 250W RMS × 2 channels at 14.4V Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Recommended Amplifier Fuse 50A according to current amplifier specifications Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 THD + Noise 0.1% at 2Ω per channel at 10% rated power Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Crossover Modes LPF / FULL / HPF Crossover Range 20Hz–20,000Hz Crossover Slopes 6 / 12 / 24 / 48dB per octave Dimensions with Brackets 5.2 × 4.9 × 2.0 inches / 131 × 125 × 51mm Chassis Dimensions 4.0 × 4.9 × 2.0 inches / 104 × 125 × 51mm CXX65.2 Road Glide Fairing Speakers Speaker Model CXX65.2 Quantity Two speakers / one pair Speaker Type 6.5-inch high-performance Pro Coaxial speaker Nominal Impedance 2Ω per speaker Power Handling 100W RMS / 200W maximum per speaker Mid-Bass Voice Coil 1.4 inches / 35mm Tweeter Voice Coil 1 inch / 25mm Cone Kevlar Tweeter Dome PEI Magnet N45H neodymium Built-In Crossover 6dB Sensitivity 93dB Frequency Response 55Hz–20kHz ±3dB Mounting Depth 2.26 inches / 57mm Mounting Diameter 5.43 inches / 138mm Weather Protection Rain or Shine all-weather design with UV-protected surfaces Warranty Two-year manufacturer warranty Road Glide-Specific Hardware 24CHDRGG Fairing Grilles The included powder-coated steel grilles are shaped for compatible 2024 and newer Road Glide fairings and feature Cicada Audio-branded emblems. 24HDAR-RG Amplifier Rack The black-anodized aluminum rack uses compatible OEM amplifier mounting locations and includes predrilled holes for FLX-style amplifiers. Factory A2B Radio Integration The NAV-TV ZEN-H interface extracts the compatible factory digital A2B audio signal. The included Cicada harness routes that signal directly into the FLX500.4 through correctly pinned locking connections. Designed for compatible 2024+ Harley-Davidson A2B systems No cutting or splicing of the factory signal harness Positive-locking automotive-grade connections Direct integration with compatible Cicada Audio amplifiers Compact routing inside the Road Glide fairing Standard non-DSP system configuration Rear-Speaker-Ready System Design The FLX500.4 provides four amplifier channels, but the supplied package includes only two front fairing speakers. The included 24HDRO harness prepares the system for compatible rear speakers without replacing the original amplifier or rebuilding the factory-radio interface. Included for Expansion Two additional amplifier channels 24HDRO rear-output harness Factory-style harness connections Extended speaker-wire leads for rear routing Not Included Rear saddlebag speakers Saddlebag speaker adapters Cut-in speaker-lid hardware Rear speaker grilles or pods Expansion planning: Added rear speakers must be compatible with the FLX500.4 amplifier’s supported impedance, available output and crossover configuration. Power Wiring and Fuse Selection Included HDPG8K Power Kit The supplied kit includes six-foot 8-AWG power and ground cables, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder. Amplifier Fuse Specification Cicada’s current FLX500.4 specification recommends a 50-amp fuse for the amplifier. Verify the fuse before installation: Cicada currently lists 60-, 80- and 100-amp fuses with the HDPG8K kit while the FLX500.4 page recommends 50 amps. Do not automatically install a larger supplied fuse. Confirm the correct fuse value and wire protection with current Cicada guidance. Complete System Specifications Complete System SKU 24FLXCXX-4X2RG Vehicle Application Compatible 2024 and newer Harley-Davidson Road Glide Amplifier FLX500.4 four-channel amplifier without built-in DSP Amplifier Output at 2Ω 125W RMS × 4 channels at 14.4V Included Speaker Count Two Pro Coaxial speakers Included Speakers Two CXX65.2 6.5-inch speakers Speaker Impedance 2Ω per included speaker Loaded Amplifier Channels Two channels at 2Ω each Rear Amplifier Channels Available for compatible future speakers Factory-Radio Interface NAV-TV ZEN-H A2B interface with Cicada harness Built-In DSP No Front Grilles 24CHDRGG Road Glide fairing grilles Power Wiring HDPG8K 8-AWG power and ground installation kit Rear Output Wiring 24HDRO plug-and-play harness Amplifier Rack 24HDAR-RG Road Glide amplifier rack Rear Speakers Included No Saddlebag Mounting Kit Included No Shopify Variants None Fitment and Ordering Notes Verify fitment: Confirm the exact Road Glide year, trim, factory radio, factory amplifier configuration, fairing speaker locations and electrical system before ordering. Designed for compatible 2024 and newer Road Glide motorcycles. The package includes two 2-ohm front speakers. No selectable speaker-impedance variants are required. Two amplifier channels power the included front speaker pair. The remaining two channels are available for future expansion. The rear-output harness is included. Rear speakers and saddlebag mounting components are not included. No saddlebag cutting is required for the supplied front-only system. Future rear installation requirements depend on the selected mounting system. The amplifier does not include built-in DSP. Professional installation and system setup are recommended. Best For Compatible 2024+ Road Glide front-speaker upgrades Riders starting with a two-speaker amplified system Factory A2B radios requiring aftermarket amplifier integration Efficient 2-ohm Pro Coaxial motorcycle speakers Systems using a compact standard four-channel amplifier Riders planning to add compatible rear speakers later Professional Road Glide audio installations Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers System Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXCXX-4X2RG FAQ What impedance are the included speakers? Both included CXX65.2 speakers have a nominal impedance of 2 ohms. How many speakers are included? The system includes two 6.5-inch CXX65.2 Pro Coaxial speakers for the Road Glide fairing. What load does the amplifier see? Each included speaker connects to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load. Are all four amplifier channels used? No. The supplied system uses two channels for the front speakers. The remaining two channels are available for a compatible rear-speaker upgrade. How much power does the amplifier produce? The FLX500.4 produces 125 watts RMS × 4 at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. How much power can the included speakers handle? Each CXX65.2 speaker is rated for 100 watts RMS and 200 watts maximum. Amplifier gain must be set correctly to protect the speakers. Does the amplifier include a DSP? No. The FLX500.4 is a standard four-channel amplifier without an integrated digital signal processor. Does the system integrate with the factory A2B radio? Yes. The package includes the NAV-TV ZEN-H A2B interface and Cicada Audio direct-connect amplifier harness. Are Road Glide fairing grilles included? Yes. The package includes the Cicada Audio 24CHDRGG powder-coated steel fairing grille pair. Is the amplifier rack included? Yes. The package includes the 24HDAR-RG Road Glide amplifier rack and its mounting hardware. Is rear-speaker wiring included? Yes. The 24HDRO rear-output harness is included for a future rear-speaker upgrade. Are rear speakers included? No. Rear speakers and their saddlebag mounting components must be purchased separately. Do the saddlebags need to be cut for this system? No saddlebag modification is required for the supplied front-only system. A future rear-speaker installation may require cutting or other modification depending on the selected mounting solution. What fuse should be used? Cicada’s current FLX500.4 specifications recommend a 50-amp fuse, but the included HDPG8K kit is listed with larger fuse values. Verify the correct final fuse with current Cicada guidance before installation. Need Help Planning Your Road Glide System? Garage Bagger Stereo can help verify Road Glide fitment, speaker impedance selection, amplifier matching, mounting clearance, power and speaker wiring, crossover setup and factory A2B signal integration before installation. Installation Services Request a Custom Build -
2023.5+ Harley-Davidson 4-Speaker Plug-and-Play Audio System | DS18 / Cerwin-Vega
Vendor:DS18 Motorcycle Audio2023.5+ HARLEY FOUR-SPEAKER AUDIO SYSTEM 2023.5+ Harley-Davidson 4-Speaker Plug-and-Play Audio System Upgrade a compatible late-model Harley-Davidson Road Glide or Street Glide with a complete front-and-rear audio package built around a DS18 four-channel amplifier, DS18 hybrid fairing speakers, Cerwin-Vega 6×9 saddlebag speakers and NAV-TV factory A2B integration. The system includes the primary signal integration, power wiring, rear-speaker wiring, front-speaker spacing and saddlebag lid conversion components needed to create a matched four-speaker motorcycle audio system. See Everything Included View Speaker Configuration Complete Front and Rear System Compatible Road Glide and Street Glide applications DS18 ION1600.4D four-channel Class-D amplifier Two DS18 PRO-HY6.4MSL 6.5-inch front speakers Two Cerwin-Vega ST692CX2 6×9 rear speakers Four dedicated amplifier channels NAV-TV ZEN-H factory A2B integration Cerwin-Vega saddlebag lid cut-in kit Cicada Audio 24HDRO rear-output harness 4-AWG amplifier power wiring Half-inch front-speaker spacers Typical listed lead time of 5–10 business days Complete 4-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package creates a complete front-and-rear audio system for compatible 2023.5 and newer Harley-Davidson Touring motorcycles. Two DS18 hybrid speakers upgrade the front fairing, while two Cerwin-Vega Stroker 6×9 speakers add high-output rear audio through the factory saddlebag lids. The DS18 ION1600.4D supplies one dedicated amplifier channel to each speaker. The front speakers operate at a nominal 4-ohm load, and the rear speakers operate at a nominal 2-ohm load. The NAV-TV ZEN-H converts the compatible factory A2B audio signal into analog RCA outputs for the aftermarket amplifier. The Cicada Audio 24HDRO harness routes the rear amplifier output toward the saddlebags using factory-style connections. Plug-and-play does not mean cutting-free: The factory A2B signal interface and rear-output wiring use plug-and-play connections. Both compatible factory saddlebag lids must still be permanently cut to install the included Cerwin-Vega 6×9 speaker system. Road Glide and Street Glide Fitment Road Glide Applications Designed for compatible late-model Road Glide motorcycles equipped with the supported factory Harley-Davidson A2B audio platform. Road Glide sharknose fairing Two front 6.5-inch speaker locations Factory A2B radio integration Factory-style rear speaker output routing Street Glide Applications Designed for compatible late-model Street Glide motorcycles equipped with the supported factory Harley-Davidson A2B audio platform. Street Glide batwing fairing Two front 6.5-inch speaker locations Factory A2B radio integration Factory-style rear speaker output routing Verify the exact motorcycle: Confirm the year, model, trim, factory radio, factory amplifier, A2B configuration, saddlebag type, electrical locks and existing audio modifications before ordering. The 2023.5 designation primarily applies to the late-production CVO platform, while standard Road Glide and Street Glide applications begin with the redesigned 2024 platform. Everything Included in the Audio System DS18 ION1600.4D Amplifier One compact four-channel full-range Class-D amplifier rated for 240 watts RMS × 4 at 4 ohms and 400 watts RMS × 4 at 2 ohms. Two DS18 PRO-HY6.4MSL Speakers Two 6.5-inch, 4-ohm shallow hybrid fairing speakers with built-in titanium compression drivers and 150-watt RMS power handling. NAV-TV ZEN-H A2B Interface Factory A2B interface providing eight channels of analog RCA output for aftermarket amplifier integration. 4-AWG Amplifier Power Kit Heavy-gauge power and ground wiring with the primary terminals, fuse protection and installation hardware required for the amplifier. Half-Inch Front-Speaker Spacers Spacing components provide additional clearance for the DS18 hybrid speakers inside compatible factory fairing enclosures. Cerwin-Vega 6×9 Cut-In Lid Kit Saddlebag lid conversion system with adapters, protective grilles, cutting templates, plug-and-play wiring and required installation hardware. Two Cerwin-Vega ST692CX2 Speakers Two 2-ohm Stroker 6×9 two-way coaxial speakers with titanium-dome tweeters and 125-watt RMS power handling. Cicada Audio 24HDRO Harness Plug-and-play rear-output speaker harness with factory-style connectors, extensions and braided protective sheathing. Confirm current package contents: Review the active Shopify bundle and fulfillment notes before releasing the order if any amplifier wiring, spacers, brackets or lid-kit hardware have been substituted. Speaker Impedance and Amplifier Channel Configuration Front Fairing Channels Each DS18 PRO-HY6.4MSL front speaker presents a nominal 4-ohm load to its assigned amplifier channel. Rear Saddlebag Channels Each Cerwin-Vega ST692CX2 rear speaker presents a nominal 2-ohm load to its assigned amplifier channel. Channel 1 Front-left PRO-HY6.4MSL — 4Ω Channel 2 Front-right PRO-HY6.4MSL — 4Ω Channel 3 Rear-left ST692CX2 — 2Ω Channel 4 Rear-right ST692CX2 — 2Ω Amplifier Output at 4Ω 240W RMS per channel Amplifier Output at 2Ω 400W RMS per channel Front Speaker Rating 150W RMS per speaker Rear Speaker Rating 125W RMS per speaker Unused Amplifier Channels None Channel output must be limited carefully: The amplifier can produce substantially more continuous power than either included speaker model is rated to handle. Configure the front and rear channel pairs independently and set gain with measured clean output. DS18 ION1600.4D Four-Channel Amplifier The ION1600.4D is a compact full-range Class-D amplifier with selectable high-pass, low-pass and full-range operation. It includes low-level and high-level inputs, power and protection indicators, a clipping indicator and multiple electrical protection circuits. 240W × 4 at 4Ω Published output for the included 4-ohm front speaker channels. 400W × 4 at 2Ω Published output capability for the included 2-ohm rear channels. 800W × 2 Bridged Published bridged output into compatible 4-ohm loads. Adjustable Filtering Selectable LPF, HPF and full-range modes with variable crossover control. Clip Indicator Visual clipping indication assists with measured gain configuration. Compact Chassis Small dimensions support installation in space-conscious motorcycle builds. Model DS18 ION1600.4D Amplifier Type Four-channel full-range Class-D amplifier Output at 4Ω 240W RMS × 4 Output at 2Ω 400W RMS × 4 Bridged Output at 4Ω 800W RMS × 2 Frequency Response 10Hz–20kHz Signal-to-Noise Ratio Greater than 95dB Efficiency at 4Ω 88% Damping Factor 210 Total Harmonic Distortion 0.01% Input Range 0.2–6V Crossover Modes LPF / HPF / FULL Crossover Range 40Hz–2kHz Minimum Impedance 2Ω stereo / 4Ω bridged Power Input 4-AWG Published External Fuse 140A Cooling Fan Yes Dimensions 7.32 × 4.72 × 2 inches / 186 × 120 × 52mm Power-kit verification: Confirm that the supplied cable, fuse holder and final fuse value meet the ION1600.4D requirements before operating the system. DS18 PRO-HY6.4MSL Front Fairing Speakers Each PRO-HY6.4MSL combines a shallow 6.5-inch midrange loudspeaker with a built-in 1-inch titanium compression driver. This hybrid design provides midrange projection and high-frequency output from a single fairing speaker location. Speaker Model DS18 PRO-HY6.4MSL Quantity Two speakers / one pair Nominal Size 6.5 inches / 165.1mm Nominal Impedance 4Ω per speaker Power Handling 150W RMS / 300W maximum per speaker Sensitivity 93dB, 1W / 1m Frequency Response 100Hz–20kHz Recommended High-Pass Crossover 140Hz Compression Driver 1-inch titanium diaphragm with neodymium magnet Cone Water-resistant treated paper Weather Rating IP65 Mounting Cutout 5.6 inches / 142mm Mounting Depth 2.82 inches / 72mm Check fairing clearance: Half-inch spacers are included, but pod modification, magnet-cap clearance work or additional spacing may still be required depending on the exact motorcycle and enclosure. Cerwin-Vega ST692CX2 Rear Saddlebag Speakers The rear system uses two Cerwin-Vega Stroker 6×9 two-way coaxial speakers. Each driver combines a polypropylene woofer cone with a titanium-dome tweeter and an internal crossover. Speaker Model Cerwin-Vega ST692CX2 Quantity Two speakers / one pair Speaker Size 6×9 inches Speaker Design Two-way coaxial speaker with titanium-dome tweeter Nominal Impedance 2Ω per speaker Power Handling 125W RMS / 250W maximum per speaker Sensitivity 90.5dB, 1W / 1m Frequency Response 45Hz–20kHz Woofer Cone Polypropylene Tweeter Diaphragm Titanium Internal Crossover Included Water Resistance IPX5 Mounting Depth 4.25 inches / 107.9mm Rear-channel output warning: The amplifier can produce up to 400 watts RMS per channel at 2 ohms, while each rear speaker is rated for 125 watts RMS. Rear gain and output voltage must be limited correctly. NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H allows the factory Harley-Davidson head unit to feed aftermarket amplifiers through low-level analog RCA outputs while retaining supported factory controls. Eight RCA Outputs Provides eight channels of low-level analog audio output. Up to 5V RMS Supplies a strong low-level signal for compatible amplifiers. Factory Control Retention Retains supported volume, fader, balance, chimes and EQ presets. No system DSP is included: The standard ZEN-H and ION1600.4D do not provide advanced equalization, time alignment or output limiting. A compatible external DSP can be added when those functions are required. Cerwin-Vega Saddlebag Lid Conversion The cut-in lid system converts compatible factory saddlebag lids into 6×9 rear-speaker locations without requiring replacement painted lids. Cutting Templates Left and right templates support more accurate lid modification. Speaker Adapters Adapters secure the Cerwin-Vega 6×9 speakers to the modified lids. Protective Grilles Included grilles protect the speakers and complete the visible installation. Remove and inspect both saddlebag lids before cutting. Confirm the left and right template orientation. Check speaker depth and electrical-lock clearance. Confirm hinge, tether and weather-seal clearance. Route the 24HDRO wiring before final lid assembly. Protect and seal all cut edges after modification. Verify speaker polarity before reinstalling the lids. Permanent cutting required: Cutting both factory saddlebag lids is irreversible. Professional installation is recommended when the installer is not experienced with late-model Harley-Davidson lid conversions. Cicada Audio 24HDRO Rear-Speaker Harness The 24HDRO routes aftermarket rear-speaker output into compatible late-model Harley-Davidson saddlebags with factory-style connections. Compatible with supported 2024 and newer Harley-Davidson models Main harness with factory-style connectors Two short extensions and two longer speaker leads Color-coded wiring for easier identification Braided black protective sheathing No cutting or splicing of the compatible factory rear-output harness Gain, Crossover and Speaker Protection The amplifier has considerably more available power than the included front and rear speakers require. Proper setup is mandatory. Connect one speaker to each amplifier channel. Do not bridge any channels for the supplied four-speaker layout. Configure the front channels for high-pass operation. Use 140Hz as the published front-speaker high-pass reference. Configure an appropriate high-pass crossover for the rear 6×9 speakers. Set the front and rear gain controls independently. Use measured clean output voltage rather than setting gain by ear. Do not use amplifier gain as a volume control. Monitor the clipping indicator during setup. Reduce output immediately if distortion or mechanical noise occurs. Professional setup strongly recommended: Incorrect gain or crossover settings can damage the speakers quickly because of the amplifier’s available output. Complete System Specifications System Type Four-speaker front-and-rear plug-and-play audio system Vehicle Application Compatible 2023.5+ Harley-Davidson Road Glide and Street Glide Amplifier DS18 ION1600.4D four-channel Class-D amplifier Front Speakers Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers Front Impedance 4Ω per speaker Rear Speakers Two Cerwin-Vega ST692CX2 6×9 coaxial speakers Rear Impedance 2Ω per speaker Loaded Amplifier Channels All four channels Factory Signal Interface NAV-TV ZEN-H A2B interface Rear Speaker Wiring Cicada Audio 24HDRO plug-and-play harness Power Wiring 4-AWG amplifier power installation kit Front Speaker Spacers Half-inch spacers included Rear Mounting System Cerwin-Vega 6×9 saddlebag lid cut-in kit Built-In DSP No Saddlebag Cutting Required Yes Typical Listed Lead Time Approximately 5–10 business days Fitment and Ordering Notes Submit complete motorcycle information: Confirm the year, exact model, trim, factory radio, factory amplifier, A2B configuration, saddlebag type and current audio modifications. The system includes two front and two rear speakers. The front speakers are 4 ohms each. The rear speakers are 2 ohms each. All four amplifier channels are used. The factory signal interface is plug-and-play on compatible applications. The rear-output harness is plug-and-play on compatible applications. Both factory saddlebag lids require permanent cutting. Half-inch front-speaker spacers are included. Additional fairing clearance work may still be required. The system does not include built-in DSP. Correct front and rear gain settings are mandatory. Professional installation and setup are strongly recommended. Best For Compatible 2023.5+ Harley-Davidson complete audio upgrades 2024+ Road Glide front-and-rear speaker systems 2024+ Street Glide front-and-rear speaker systems Factory Skyline radio and A2B integration Four-channel amplified motorcycle audio systems Factory saddlebag lid conversions Professional Harley-Davidson audio installations Related Motorcycle Audio Categories 2023.5+ Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Motorcycle Amplifiers Amplifier and Signal Support Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Motorcycle Audio Batteries Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries 2023.5+ Harley 4-Speaker Audio System FAQ How many speakers are included? Four speakers are included: two DS18 6.5-inch hybrid fairing speakers and two Cerwin-Vega 6×9 saddlebag speakers. What impedance are the front speakers? Each DS18 front speaker has a nominal impedance of 4 ohms. What impedance are the rear speakers? Each Cerwin-Vega rear speaker has a nominal impedance of 2 ohms. Are all four amplifier channels used? Yes. Two channels power the front speakers and two channels power the rear speakers. How much power does the amplifier produce? The ION1600.4D produces 240 watts RMS × 4 at 4 ohms, 400 watts RMS × 4 at 2 ohms or 800 watts RMS × 2 bridged at 4 ohms. Why is careful gain setup required? The amplifier can produce more continuous power than the included speakers are rated to handle. Front and rear gain settings must be configured independently and limited to safe clean output. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the aftermarket amplifier. Does the package include DSP? No. The standard ZEN-H and ION1600.4D do not provide advanced digital signal processing. Does the factory signal wiring need to be cut? The compatible NAV-TV A2B connection does not require cutting the primary factory signal wiring. Is rear-speaker wiring included? Yes. The system includes the Cicada Audio 24HDRO plug-and-play rear-output speaker harness. Do the saddlebag lids need to be cut? Yes. Both compatible factory saddlebag lids must be permanently cut for the Cerwin-Vega 6×9 installation. Are front-speaker spacers included? Yes. Half-inch front-speaker spacers are included. Are the speakers weather resistant? The DS18 front speakers are IP65 rated, and the Cerwin-Vega rear speakers are rated IPX5. Neither should be described as submersible. How long does the kit take to fulfill? The current listed lead time is approximately 5–10 business days, subject to component availability and motorcycle configuration. Need Help Matching This 4-Speaker Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, front and rear speaker impedance selection, amplifier matching, fairing and saddlebag mounting, power and speaker wiring, and factory A2B signal integration before installation. Installation Services Request a Custom Build -
2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada
Vendor:Cicada Audio2023.5+ CVO / 2024+ ROAD GLIDE & STREET GLIDE 2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada Build a high-output front fairing audio system with two Cicada Audio CHX65.4 pro coaxial horn speakers, a bridged FLX1000.4 amplifier, NAV-TV factory A2B integration and motorcycle-ready power and speaker-output wiring. Each 4-ohm speaker operates from one bridged amplifier channel pair. This configuration uses all four amplifier channels to deliver a dedicated high-output two-speaker system for compatible late-model Harley-Davidson Road Glide, Street Glide and CVO motorcycles. See Everything Included View Bridged Configuration High-Output Fairing Audio Compatible 2023.5+ CVO and 2024+ Touring applications Road Glide and Street Glide fitment support Two Cicada Audio CHX65.4 speakers 4-ohm impedance per speaker 300 watts RMS per speaker Carbon Matrix Composite mid-bass cones Integrated aluminum-diaphragm horn tweeters External 12dB passive crossovers Cicada Audio FLX1000.4 amplifier Two bridged amplifier channel pairs NAV-TV factory A2B integration 4-AWG OFC power and ground wiring Bridged-output Molex speaker harness Complete 2-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package combines the speakers, amplifier, factory-radio interface, power wiring and bridged-output connections required to create a serious two-speaker fairing system in a compatible late-model Harley-Davidson motorcycle. Each Cicada Audio CHX65.4 combines a high-output 6.5-inch mid-bass driver with a coaxially mounted horn tweeter. The external passive crossover divides the signal between the mid-bass and high-frequency sections while optional attenuation resistors allow the tweeter level to be reduced when required. The FLX1000.4 is configured as two bridged amplifier channels. Channels 1 and 2 operate one CHX65.4, while channels 3 and 4 operate the second speaker. The included RCA Y-adapters distribute the left and right input signals across the required amplifier input pairs. Plug-and-play clarification: The NAV-TV interface and HDFRBoM speaker harness simplify factory integration. The installation still requires amplifier mounting, battery wiring, fuse protection, secure crossover placement, speaker clearance verification and measured gain and crossover setup. Harley-Davidson Fitment 2023.5+ CVO Intended for compatible late-production Harley-Davidson CVO motorcycles using the Skyline infotainment and factory A2B audio platform. 2024+ Road Glide Supports compatible redesigned Road Glide motorcycles after confirming the factory radio, amplifier configuration, fairing clearance and speaker mounting requirements. 2024+ Street Glide Supports compatible redesigned Street Glide motorcycles after confirming the factory radio, amplifier configuration, fairing clearance and speaker mounting requirements. Exact motorcycle verification required: Confirm the year, model, trim, factory radio, factory amplifier, A2B configuration, factory speaker grilles and existing audio modifications before ordering. Everything Included in the Audio System Cicada Audio CHX65.4 Speaker Pair Two 6.5-inch, 4-ohm pro coaxial horn speakers rated for 300 watts RMS and 600 watts maximum per speaker. External Passive Crossovers Two custom 12dB crossover networks divide each amplifier signal between the mid-bass cone and horn tweeter. Tweeter Attenuation Resistors Optional -3dB and -6dB resistor packs allow the high-frequency output to be reduced when required by the motorcycle or tuning. Cicada Audio FLX1000.4 Amplifier One compact four-channel Class-D amplifier configured as two bridged outputs for the included 4-ohm speakers. NAV-TV A2B Processor Factory A2B audio interface providing analog RCA output for the aftermarket Cicada Audio amplifier while retaining supported factory radio controls. Cicada Audio 4-AWG OFC Power Kit Heavy-gauge amplifier power and ground wiring with the primary battery-side and amplifier-side installation components. Two All-Male RCA Y-Adapters The two adapters distribute the left and right front signals across the amplifier input channels required for bridged operation. Cicada Audio HDFRBoM Harness Bridged left and right amplifier-output harness with factory-style Molex speaker connections. The exact harness length supplied may depend on the final motorcycle configuration. Review the physical package before fulfillment: Confirm the NAV-TV processor model, HDFRBoM harness length, amplifier rack, speaker adapters and fairing-specific mounting hardware included with the active Shopify product. Bridged Amplifier and Speaker Configuration Left Speaker One 4-ohm CHX65.4 speaker connects to the bridged output from amplifier channels 1 and 2. Right Speaker The second 4-ohm CHX65.4 speaker connects to the bridged output from amplifier channels 3 and 4. Speaker Count Two speakers / one pair Speaker Model Cicada Audio CHX65.4 Speaker Impedance 4Ω per speaker Speaker Power Handling 300W RMS / 600W maximum per speaker Left Speaker Output Amplifier channels 1 and 2 bridged Right Speaker Output Amplifier channels 3 and 4 bridged Published Bridged Output at 12.5V 461W RMS × 2 at 4Ω Published Bridged Output at 14.4V 530W RMS × 2 at 4Ω Unused Amplifier Channels None Rear-Speaker Expansion Requires an additional amplifier or system redesign Output must be limited: The FLX1000.4 can produce more bridged continuous power than each CHX65.4 is rated to handle. Set the gain, high-pass crossover and maximum clean output using proper test equipment. Cicada Audio CHX65.4 Pro Coaxial Horn Speakers The CHX65.4 is designed for riders who need strong vocal projection, detailed high-frequency output and reliable performance in an open-air motorcycle environment. 300W RMS Each speaker is rated for 300 watts RMS and 600 watts maximum. 4-Ohm Impedance Each speaker presents the correct nominal load for one bridged FLX1000.4 channel pair. Coaxial Horn Design The mid-bass cone and horn tweeter share one compact motorcycle speaker basket. Carbon Matrix Cone The lightweight, rigid cone is engineered for efficient mid-bass and vocal projection. All-Weather Construction Waterproofing and UV protection support fairing and powersports installation. External Crossover The supplied 12dB network filters and protects the integrated horn tweeter. Speaker Model CHX65.4 Quantity Included Two speakers / one pair Nominal Size 6.5 inches Nominal Impedance 4Ω per speaker Power Handling 300W RMS / 600W maximum per speaker Mid-Bass Voice Coil 2 inches / 51mm Tweeter Voice Coil 1.4 inches / 35.56mm Cone Material Carbon Matrix Composite Tweeter Diaphragm Aluminum Crossover External 12dB vented passive crossover Tweeter Attenuation Optional -3dB and -6dB resistor packs Magnet N35SH neodymium Sensitivity 92dB Frequency Response 70Hz–20kHz ±4dB Mounting Depth 2.64 inches / 67mm Mounting Diameter 5.67 inches / 144mm Warranty Two years through Cicada Audio Verify fairing clearance: Confirm speaker depth, factory grille clearance, pod geometry, crossover location and any required adapter or spacer before installation. Cicada Audio FLX1000.4 Four-Channel Amplifier The FLX1000.4 is a compact four-channel Class-D amplifier with flexible stereo and bridged operation. In this package, all four channels are combined into two high-output bridged channels. 168W × 4 at 4Ω Published four-channel output at 14.4 volts for compatible stereo systems. 254W × 4 at 2Ω Published four-channel output at 14.4 volts into compatible 2-ohm loads. 530W × 2 Bridged Published bridged output at 14.4 volts into compatible 4-ohm speakers. Adjustable Crossovers Selectable high-pass, full-range and low-pass operation supports system-specific filtering. Compact Chassis The six-inch-long amplifier body supports space-conscious motorcycle installations. Motorcycle Voltage Range The amplifier operates across an 8- to 16-volt electrical range. Amplifier Model Cicada Audio FLX1000.4 Amplifier Type Four-channel Class-D power amplifier Output at 4Ω / 12.5V 150W RMS × 4 Output at 4Ω / 14.4V 168W RMS × 4 Output at 2Ω / 12.5V 220W RMS × 4 Output at 2Ω / 14.4V 254W RMS × 4 Bridged Output at 4Ω / 12.5V 461W RMS × 2 Bridged Output at 4Ω / 14.4V 530W RMS × 2 Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB Damping Factor 200 Total Efficiency 79% Operating Voltage 8V–16V Music Current Draw 60A Maximum Current Draw 116A Published Recommended Fuse 120A Crossover Modes Low-pass / full-range / high-pass Crossover Range 30Hz–300Hz Crossover Slope 12dB per octave Input Sensitivity 0.2V–12V Turn-On Options Remote or DC signal sensing Dimensions 6 × 4.9 × 2 inches / 152 × 124 × 51mm NAV-TV Factory A2B Signal Integration The NAV-TV A2B processor allows a compatible factory Harley-Davidson head unit to supply clean analog audio to the Cicada amplifier while retaining supported factory audio controls. Factory A2B Conversion Converts the digital factory audio signal into low-level analog amplifier inputs. Eight Analog Outputs Provides up to eight RCA output channels for compatible aftermarket audio equipment. Factory Control Retention Retains supported factory volume, balance, fader, chimes and radio EQ functions. Confirm the processor model: The active bundle should identify the exact NAV-TV A2B processor supplied so the customer knows whether standard interface or additional DSP functions are included. RCA, Bridged Output and Power Wiring Two RCA Y-Adapters Split the front left and right RCA signals across the amplifier inputs needed for the two bridged channel pairs. HDFRBoM Output Harness Routes the left and right bridged amplifier outputs through factory-style Molex speaker connections. 4-AWG OFC Power Kit Supplies the heavy-gauge power and ground foundation required by the FLX1000.4 amplifier. Disconnect the motorcycle battery before installation. Install fuse protection close to the positive battery terminal. Use secure battery, ground and amplifier connections. Protect wiring from steering movement, heat and sharp edges. Keep signal wiring separated from high-current power wiring. Confirm RCA Y-adapter routing before setting amplifier gain. Verify bridged speaker polarity before reinstalling the fairing. Inspect battery and charging-system condition before high-output use. Fuse verification: Cicada publishes a 120-amp recommended fuse for the FLX1000.4. Confirm the final power kit, fuse holder and installed fuse match the current amplifier requirements. Gain, Crossover and Speaker Protection Proper setup is mandatory because the bridged FLX1000.4 has substantially more available continuous power than each included CHX65.4 requires. Connect one speaker to each designated bridged output pair. Do not connect a speaker below 4 ohms to either bridged output. Install both supplied external speaker crossovers. Configure both bridged channel pairs for high-pass operation. Select a protective high-pass point appropriate for the fairing. Set both channel-pair gains using measured clean output voltage. Do not use the amplifier gain controls as volume controls. Confirm left and right RCA input routing before final setup. Verify speaker polarity and crossover connections. Reduce output immediately if distortion or mechanical noise occurs. Professional setup strongly recommended: Incorrect bridged wiring, gain structure or crossover settings can damage the speakers or amplifier. Installation Instructions and Resources Speaker and Crossover Setup Cicada Coaxial Horn Speaker Manual Speaker Polarity Check Fairing and A2B Installation Road Glide Fairing Removal Street Glide Fairing Removal Late-Model Harley T-Harness Installation Guide Installation Planning Motorcycle Amplifier Installation Parts Professional Motorcycle Audio Installation Request a Custom Audio Build Complete System Specifications System Type Bridged two-speaker plug-and-play motorcycle audio system Primary Applications 2023.5+ CVO and compatible 2024+ Road Glide or Street Glide Speakers Two Cicada Audio CHX65.4 pro coaxial horn speakers Speaker Impedance 4Ω per speaker Speaker Power Handling 300W RMS / 600W maximum per speaker Amplifier Cicada Audio FLX1000.4 Amplifier Configuration Two bridged 4-ohm outputs Published Bridged Power Up to 530W RMS × 2 at 14.4V Factory Signal Integration NAV-TV Harley-Davidson A2B processor RCA Input Distribution Two all-male RCA Y-adapters Speaker Output Harness Cicada Audio HDFRBoM bridged-output harness Power Wiring Cicada Audio OFC 4-AWG power and ground kit External Crossovers Two 12dB passive crossover networks Unused Amplifier Channels None Rear Speakers Included No Shopify Variants None Fitment and Ordering Notes Submit complete motorcycle information: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, A2B configuration, fairing style and current audio modifications. The system includes two 4-ohm CHX65.4 speakers. Both amplifier channel pairs operate in bridged mode. All four amplifier channels are used. Rear speakers are not included. Future rear expansion requires an additional amplifier or system redesign. The external passive crossovers must be installed and protected. Verify fairing speaker depth and grille clearance. Verify amplifier mounting space before installation. Confirm the exact NAV-TV A2B processor included. Confirm the HDFRBoM harness length supplied with the kit. Correct bridged wiring, gain and high-pass setup are mandatory. Professional installation and tuning are strongly recommended. Current Shipping Promotion Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply. Related Motorcycle Audio Categories Late-Model Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Shop Cicada Audio Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada FLX1000.4 2-Speaker System FAQ How many speakers are included? The system includes two Cicada Audio CHX65.4 6.5-inch pro coaxial horn speakers. What impedance are the speakers? Each included CHX65.4 speaker has a nominal impedance of 4 ohms. How are the speakers connected to the amplifier? One speaker connects to amplifier channels 1 and 2 bridged. The second connects to channels 3 and 4 bridged. How much power does the amplifier produce when bridged? The FLX1000.4 is rated for up to 530 watts RMS × 2 into 4-ohm loads at 14.4 volts. How much power can each CHX65.4 handle? Each speaker is rated for 300 watts RMS and 600 watts maximum. Why must the amplifier output be limited? The amplifier can produce more bridged continuous power than each speaker is rated to handle. Correct gain, crossover and output-voltage settings are required. Are passive crossovers included? Yes. The pair includes two external 12dB passive crossover networks and optional tweeter-attenuation resistor packs. What do the RCA Y-adapters do? They distribute the left and right A2B processor outputs across the amplifier input channels required for bridged operation. What does the HDFRBoM harness do? It routes the left and right bridged amplifier output into factory-style Molex speaker connections. Does the system integrate with the factory Harley radio? Yes. The included NAV-TV A2B processor is used to connect the compatible factory audio system to the aftermarket amplifier. Are rear speakers included? No. This is a dedicated two-speaker front fairing system. Can rear speakers be added to the same amplifier? Not in the supplied bridged configuration because all four amplifier channels are being used. Rear expansion requires an additional amplifier or a redesigned channel configuration. Are the speakers weather resistant? Yes. Cicada describes the CHX65 series as an all-weather design with waterproofing and UV protection. Is professional installation recommended? Yes. The system requires A2B signal integration, bridged amplifier wiring, external crossover placement, heavy-gauge power wiring and measured amplifier setup. Need Help Matching This Cicada Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, 4-ohm impedance selection, amplifier matching, fairing speaker and amplifier mounting, power and speaker wiring, crossover placement and factory A2B signal integration before installation. Installation Services Request a Custom Build -
Cicada Audio 24FLXPCH-4X2SG 700W DSP 2-Speaker System for 2024+ Street Glide
Vendor:Cicada AudioCOMPLETE 2024+ STREET GLIDE FRONT AUDIO SYSTEM Cicada Audio 24FLXPCH-4X2SG 700W DSP 2-Speaker System The Cicada Audio 24FLXPCH-4X2SG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Street Glide motorcycles. It combines a four-channel amplifier with built-in DSP, two high-efficiency 2-ohm Coaxial Horn speakers, factory A2B radio integration, Street Glide-specific mounting components and a rear-output harness for future system expansion. See Everything Included View Speaker Load Front System with Rear Expansion Support Designed for compatible 2024+ Street Glide motorcycles FLX700.4PRO amplifier with built-in six-channel DSP 175 watts RMS × 4 channels at 2Ω Two CH65.2C 6.5-inch Coaxial Horn speakers Both included speakers are 2Ω Street Glide fairing grilles included NAV-TV ZEN-H A2B factory-radio integration Street Glide amplifier rack included 6-AWG amplifier power kit included Rear-output harness included for future expansion 24FLXPCH-4X2SG Complete System Overview This Cicada Audio package upgrades the two factory Street Glide fairing speaker locations while establishing the amplifier, DSP, power wiring and signal-integration foundation needed for a larger four-channel system. One pair of CH65.2C 6.5-inch Coaxial Horn speakers installs behind the included Cicada-branded Street Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel. The included FLX700.4PRO provides four amplified DSP channels. The base package uses two channels for the front speakers, while the included 24HDRO harness prepares the system for a separately purchased rear-speaker upgrade. Speaker Impedance and Amplifier Channel Load Front Left: 2Ω One CH65.2C speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load. Front Right: 2Ω The second CH65.2C speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load. Rear Channels: Available No rear speakers are included. The other two amplified channels can support a properly matched future rear-speaker system. Included Speaker Count Two speakers / one pair Included Speaker Model CH65.2C Speaker Impedance 2Ω per speaker Base Configuration One 2Ω speaker on each of two amplifier channels Unused Amplified Channels Two channels available for compatible rear-speaker expansion Base-system load: Only two amplifier channels are loaded by the included system. Each loaded channel operates at a nominal 2 ohms. Rear-speaker impedance must be matched correctly before using the other two channels. Everything Included in the Complete System FLX700.4PRO — Four-Channel DSP Amplifier One compact Class-D amplifier producing up to 175 watts RMS × 4 channels at 2 ohms. It includes a six-channel DSP with four internally amplified channels and two processed pass-through outputs. CH65.2C — 6.5" Coaxial Horn Speakers One pair of 2-ohm Larry Frederick Classic Coaxial Horn speakers for the Street Glide fairing. Each speaker is rated for 250 watts RMS and includes an external 12dB crossover. 24CHDSGG — Street Glide Fairing Grilles One pair of Cicada Audio-branded, powder-coated steel fairing grilles designed for compatible 2024 and newer Street Glide motorcycles. 24HDAR-SG — Street Glide Amplifier Rack Black-anodized aluminum amplifier mounting rack that uses compatible OEM amplifier locations and includes predrilled FLX mounting points and installation hardware. HDPG6K — 6-AWG Amplifier Power Kit Includes six-foot power and ground cables with braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and multiple fuse values. 24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned locking Molex connections. 24HDRO — Rear Output Speaker Harness Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for future rear-speaker installation. Rear-speaker ready: The rear-output harness is included, but rear speakers, saddlebag speaker mounting parts and a saddlebag lid cut-in kit are not included with 24FLXPCH-4X2SG. FLX700.4PRO Amplifier and DSP 175W × 4 at 2Ω The amplifier produces up to 175 watts RMS on each of four channels when operating at 2 ohms and 14.4 volts. 120W × 4 at 4Ω It also supports four-channel operation with compatible 4-ohm speakers for systems designed around that channel load. 350W × 2 Bridged The published bridged configuration is 350 watts RMS × 2 into compatible 4-ohm loads. Six-Channel DSP Four DSP channels feed the internal amplifier, while two additional processed channels provide pass-through outputs for expansion. Bluetooth and USB-C Bluetooth audio streaming and USB-C computer connectivity support audio playback and compatible PC-based DSP configuration. Compact Motorcycle Chassis The micro-sized aluminum chassis is designed for limited fairing and rack space while using conformal-coated circuitry for protection. FLX700.4PRO Amplifier Specifications Amplifier Model FLX700.4PRO Amplifier Type Four-channel Class-D amplifier with built-in DSP Output at 4Ω 120W RMS × 4 channels at 14.4V Output at 2Ω 175W RMS × 4 channels at 14.4V Bridged Output at 4Ω 350W RMS × 2 channels at 14.4V DSP Channels Six total: four amplified and two pass-through Bluetooth Audio Included PC DSP Connection USB-C Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Recommended Fuse 50A Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Dimensions with Brackets 5.3 × 4.9 × 2.0 inches / 134 × 125 × 51mm Chassis Dimensions 4.1 × 4.9 × 2.0 inches / 104 × 125 × 51mm CH65.2C Front Fairing Speakers Speaker Model CH65.2C Quantity Two speakers / one pair Speaker Type 6.5-inch Larry Frederick Classic Coaxial Horn Nominal Impedance 2Ω per speaker Power Handling 250W RMS / 500W maximum per speaker Mid-Bass Voice Coil 2 inches / 51mm Tweeter Voice Coil 1.4 inches / 36mm Tweeter Dome Aluminum Cone Water-resistant treated paper Magnet N35SH neodymium External Crossover 12dB at 4kHz Sensitivity 96.4dB, 1W / 1M Frequency Response 75Hz–20kHz ±5dB Mounting Depth 3.0 inches / 76.2mm Mounting Diameter 5.7 inches / 145.5mm Warranty Two-year manufacturer warranty Rear-Speaker-Ready System Design The FLX700.4PRO is a four-channel amplifier, but the base package includes only the two front fairing speakers. Cicada includes the 24HDRO harness so compatible rear speakers can be added later without replacing the original amplifier or rebuilding the complete signal path. Included for Expansion Two additional amplified channels 24HDRO rear-output harness Factory-style harness connections Long speaker-wire leads for saddlebag routing Not Included Rear saddlebag speakers Saddlebag lid speaker adapters Cut-in speaker-lid hardware Rear speaker grilles or pods Expansion planning: Any added rear speakers must be compatible with the amplifier’s supported impedance, available power, crossover configuration and overall electrical system. Factory A2B Radio Integration The NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The included Cicada harness then routes that signal directly into the FLX700.4PRO through correctly pinned Molex connections. Designed for compatible 2024+ Harley-Davidson A2B systems No cutting or splicing of the factory signal harness Positive-locking automotive-grade connectors Direct connection to compatible Cicada Audio amplifiers Compact routing inside the Street Glide fairing DSP processing handled by the FLX700.4PRO amplifier System distinction: The included ZEN-H is the non-DSP interface configuration. The digital signal processing, tuning, crossovers and channel control are provided by the FLX700.4PRO. Installation and System Setup Mount the amplifier securely on the included 24HDAR-SG rack. Use the included HDPG6K power and ground wiring kit. Install the correctly rated fuse near the battery connection. Use the included A2B interface and Cicada amplifier harness. Install the CH65.2C crossovers according to the system layout. Confirm 3.0 inches of speaker mounting depth before final assembly. Configure DSP crossovers and output levels for the CH65.2C speakers. Set amplifier gain and limiters using clean measured output. Secure all wiring against vibration, heat and sharp edges. Professional installation and DSP tuning are strongly recommended. Complete System Specifications Complete System SKU 24FLXPCH-4X2SG Vehicle Application Compatible 2024 and newer Harley-Davidson Street Glide Amplifier FLX700.4PRO four-channel amplifier with built-in DSP Amplifier Output at 2Ω 175W RMS × 4 channels at 14.4V Included Speaker Count Two Coaxial Horn speakers Included Speakers Two CH65.2C 6.5-inch speakers Speaker Impedance 2Ω per included speaker Base Loaded Channels Two amplifier channels at 2Ω each Rear Amplified Channels Available for compatible future speakers Factory-Radio Interface NAV-TV ZEN-H A2B interface with Cicada harness Front Grilles 24CHDSGG Street Glide fairing grilles Power Wiring HDPG6K 6-AWG power and ground kit Rear Output Wiring 24HDRO plug-and-play harness Amplifier Rack 24HDAR-SG Street Glide amplifier rack Rear Speakers Included No Saddlebag Lid Kit Included No Shopify Variants None Fitment and Ordering Notes Verify fitment: Confirm the exact Street Glide year, trim, factory radio, factory amplifier configuration, fairing speaker location and electrical system before ordering. Designed for compatible 2024 and newer Street Glide motorcycles. The package includes two 2-ohm front speakers. The package does not include selectable speaker impedance options. Two amplifier channels power the included front speaker pair. The remaining amplified channels are available for future expansion. The rear-output harness is included. Rear speakers and saddlebag mounting components are not included. DSP configuration, crossover setup and output limiting are required. Professional installation and tuning are strongly recommended. Best For Compatible 2024+ Street Glide front-speaker upgrades Riders starting with a two-speaker amplified system Factory A2B radios requiring aftermarket amplifier integration High-efficiency 2-ohm Coaxial Horn speakers Systems requiring built-in DSP tuning and crossover control Riders planning to add rear speakers later Professional Street Glide audio installations Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers System Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXPCH-4X2SG FAQ What impedance are the included speakers? Both included CH65.2C speakers have a nominal impedance of 2 ohms. How many speakers are included? The system includes two 6.5-inch CH65.2C Coaxial Horn speakers for the Street Glide fairing. What load does the amplifier see? Each included speaker is connected to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load. Are all four amplifier channels used? No. The base package uses two amplified channels for the two front speakers. The other two channels remain available for a compatible rear-speaker upgrade. How much power does the amplifier produce? The FLX700.4PRO produces up to 175 watts RMS × 4 at 2 ohms or 120 watts RMS × 4 at 4 ohms when supplied with 14.4 volts. Does the amplifier include a DSP? Yes. The FLX700.4PRO includes a six-channel DSP with four amplified channels and two processed pass-through channels. Why does the package use a non-DSP ZEN-H interface? The ZEN-H interface extracts the factory A2B signal. DSP processing is then performed inside the FLX700.4PRO amplifier. Are Street Glide fairing grilles included? Yes. The package includes the Cicada Audio 24CHDSGG powder-coated steel fairing grille pair. Is the amplifier rack included? Yes. The package includes the 24HDAR-SG Street Glide amplifier rack and its mounting hardware. Is rear-speaker wiring included? Yes. The 24HDRO rear-output harness is included for future rear-speaker expansion. Are rear speakers included? No. The system is rear-speaker ready, but rear speakers and their saddlebag mounting components must be purchased separately. Does the system require tuning? Yes. The amplifier DSP, crossover frequencies, equalization, limiters and gain structure must be configured for the included speakers and any future rear-speaker expansion. Need Help Planning Your Street Glide System? Submit your Street Glide year, trim, factory audio package and future rear-speaker plans so Garage Bagger Stereo can verify fitment, electrical requirements and the correct expansion components for your motorcycle. Installation Services Request a Custom Build -
Cicada Audio 24FLXPCH-4X2RG 700W DSP 2-Speaker System for 2024+ Road Glide
Vendor:Cicada AudioCOMPLETE 2024+ ROAD GLIDE FRONT AUDIO SYSTEM Cicada Audio 24FLXPCH-4X2RG 700W DSP 2-Speaker System The Cicada Audio 24FLXPCH-4X2RG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Road Glide motorcycles. It combines a four-channel amplifier with built-in DSP, two high-efficiency 2-ohm Coaxial Horn speakers, factory A2B radio integration, Road Glide-specific mounting components and a rear-output harness for future system expansion. See Everything Included View Speaker Load Front Audio with Rear Expansion Support Designed for compatible 2024+ Road Glide motorcycles FLX700.4PRO amplifier with built-in six-channel DSP 175 watts RMS × 4 channels at 2Ω Two CH65.2C 6.5-inch Coaxial Horn speakers Both included speakers are 2Ω Road Glide fairing grilles included NAV-TV ZEN-H A2B factory-radio integration Road Glide amplifier rack included 6-AWG amplifier power kit included Rear-output harness included for future expansion 24FLXPCH-4X2RG Complete System Overview This Cicada Audio package upgrades the two factory Road Glide fairing speaker locations while establishing the amplifier, DSP, power wiring and A2B signal-integration foundation needed for a future four-channel audio system. One pair of CH65.2C 6.5-inch Coaxial Horn speakers installs behind the included Cicada-branded Road Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel. The included FLX700.4PRO provides four amplified DSP channels. The supplied package uses two channels for the front speakers, while the included 24HDRO harness prepares the system for a separately purchased rear-speaker upgrade. Speaker Impedance and Amplifier Channel Load Front Left: 2Ω One CH65.2C speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load. Front Right: 2Ω The second CH65.2C speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load. Rear Channels: Available No rear speakers are supplied. The remaining two amplified channels can support a properly matched future rear-speaker system. Included Speaker Count Two speakers / one pair Included Speaker Model CH65.2C Speaker Impedance 2Ω per speaker Supplied Configuration One 2Ω speaker on each of two amplifier channels Remaining Amplified Channels Two channels available for compatible rear-speaker expansion Supplied system load: Only two amplifier channels are loaded by the included speakers. Each loaded channel operates at a nominal 2 ohms. Any future rear speakers must be matched to the amplifier’s supported impedance and available output. Everything Included in the Complete System FLX700.4PRO — Four-Channel DSP Amplifier One compact Class-D amplifier producing up to 175 watts RMS × 4 channels at 2 ohms. It includes a six-channel DSP with four internally amplified channels and two processed pass-through outputs. CH65.2C — 6.5" Coaxial Horn Speakers One pair of 2-ohm Larry Frederick Classic Coaxial Horn speakers for the Road Glide fairing. Each speaker is rated for 250 watts RMS and includes an external 12dB crossover. 24CHDRGG — Road Glide Fairing Grilles One pair of Cicada Audio-branded, powder-coated steel fairing grilles engineered for compatible 2024 and newer Road Glide motorcycles. 24HDAR-RG — Road Glide Amplifier Rack Black-anodized aluminum amplifier mounting rack that uses compatible OEM amplifier mounting locations and includes predrilled FLX mounting points and installation hardware. HDPG6K — 6-AWG Amplifier Power Kit Includes six-foot power and ground cables with braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and multiple fuse values. 24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned locking Molex connections. 24HDRO — Rear Output Speaker Harness Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for future rear-speaker installation. Rear-speaker ready: The rear-output harness is included, but rear speakers, saddlebag speaker adapters, speaker lids and cut-in mounting components are not included with 24FLXPCH-4X2RG. FLX700.4PRO Amplifier and DSP 175W × 4 at 2Ω The amplifier produces up to 175 watts RMS on each of four channels when operating at 2 ohms and 14.4 volts. 120W × 4 at 4Ω It also supports four-channel operation with compatible 4-ohm speakers for systems designed around that channel load. 350W × 2 Bridged The published bridged configuration is 350 watts RMS × 2 into compatible 4-ohm loads. Six-Channel DSP Four DSP channels feed the internal amplifier, while two additional processed channels provide pass-through outputs for expansion. Bluetooth and USB-C Bluetooth audio streaming and USB-C computer connectivity support compatible playback and PC-based DSP configuration. Compact Motorcycle Chassis The micro-sized aluminum chassis is designed for limited fairing space and uses conformal-coated circuitry for added protection against moisture and vibration. FLX700.4PRO Amplifier Specifications Amplifier Model FLX700.4PRO Amplifier Type Four-channel Class-D amplifier with built-in DSP Output at 4Ω 120W RMS × 4 channels at 14.4V Output at 2Ω 175W RMS × 4 channels at 14.4V Bridged Output at 4Ω 350W RMS × 2 channels at 14.4V DSP Channels Six total: four amplified and two pass-through Bluetooth Audio Included PC DSP Connection USB-C Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Recommended Fuse 50A Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Dimensions with Brackets 5.3 × 4.9 × 2.0 inches / 134 × 125 × 51mm Chassis Dimensions 4.1 × 4.9 × 2.0 inches / 104 × 125 × 51mm CH65.2C Road Glide Fairing Speakers Speaker Model CH65.2C Quantity Two speakers / one pair Speaker Type 6.5-inch Larry Frederick Classic Coaxial Horn Nominal Impedance 2Ω per speaker Power Handling 250W RMS / 500W maximum per speaker Mid-Bass Voice Coil 2 inches / 51mm Tweeter Voice Coil 1.4 inches / 36mm Tweeter Dome Aluminum Cone Water-resistant treated paper Magnet N35SH neodymium External Crossover 12dB at 4kHz Sensitivity 96.4dB, 1W / 1M Frequency Response 75Hz–20kHz ±5dB Mounting Depth 3.0 inches / 76.2mm Mounting Diameter 5.7 inches / 145.5mm Warranty Two-year manufacturer warranty Road Glide-Specific Hardware 24CHDRGG Fairing Grilles The included powder-coated steel grilles are shaped for compatible 2024 and newer Road Glide fairings and feature Cicada Audio-branded emblems. 24HDAR-RG Amplifier Rack The black-anodized aluminum rack mounts at compatible factory amplifier locations and includes predrilled holes for Cicada FLX-style amplifiers. Rear-Speaker-Ready System Design The FLX700.4PRO is a four-channel amplifier, but this package includes only the two front fairing speakers. Cicada includes the 24HDRO harness so compatible rear speakers can be added later without replacing the original amplifier or rebuilding the complete signal path. Included for Expansion Two additional amplified channels 24HDRO rear-output harness Factory-style harness connections Long speaker-wire leads for rear routing Not Included Rear saddlebag speakers Saddlebag speaker adapters Cut-in speaker-lid hardware Rear speaker grilles or pods Expansion planning: Added rear speakers must be compatible with the amplifier’s supported impedance, available power, DSP channel configuration and overall motorcycle electrical system. Factory A2B Radio Integration The NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The included Cicada harness then routes that signal directly into the FLX700.4PRO through correctly pinned Molex connections. Designed for compatible 2024+ Harley-Davidson A2B systems No cutting or splicing of the factory signal harness Positive-locking automotive-grade connectors Direct connection to compatible Cicada Audio amplifiers Compact routing inside the Road Glide fairing DSP processing handled by the FLX700.4PRO amplifier System distinction: The included ZEN-H is the non-DSP interface configuration. Digital signal processing, equalization, crossovers and channel control are performed inside the FLX700.4PRO. Installation and System Setup Mount the amplifier securely on the included 24HDAR-RG rack. Use the included HDPG6K power and ground wiring kit. Install the correctly rated fuse near the battery connection. Use the included A2B interface and Cicada amplifier harness. Install the CH65.2C crossovers according to the system layout. Confirm the required speaker depth before final fairing assembly. Configure DSP crossovers and output levels for the CH65.2C speakers. Set amplifier gain and limiters using clean measured output. Secure all wiring against vibration, heat and sharp edges. Professional installation and DSP tuning are strongly recommended. Complete System Specifications Complete System SKU 24FLXPCH-4X2RG Vehicle Application Compatible 2024 and newer Harley-Davidson Road Glide Amplifier FLX700.4PRO four-channel amplifier with built-in DSP Amplifier Output at 2Ω 175W RMS × 4 channels at 14.4V Included Speaker Count Two Coaxial Horn speakers Included Speakers Two CH65.2C 6.5-inch speakers Speaker Impedance 2Ω per included speaker Loaded Amplifier Channels Two channels at 2Ω each Rear Amplified Channels Available for compatible future speakers Factory-Radio Interface NAV-TV ZEN-H A2B interface with Cicada harness Front Grilles 24CHDRGG Road Glide fairing grilles Power Wiring HDPG6K 6-AWG power and ground kit Rear Output Wiring 24HDRO plug-and-play harness Amplifier Rack 24HDAR-RG Road Glide amplifier rack Rear Speakers Included No Saddlebag Mounting Kit Included No Shopify Variants None Fitment and Ordering Notes Verify fitment: Confirm the exact Road Glide year, trim, factory radio, factory amplifier configuration, fairing speaker location and electrical system before ordering. Designed for compatible 2024 and newer Road Glide motorcycles. The package includes two 2-ohm front speakers. The package does not include selectable speaker impedance options. Two amplifier channels power the included front speaker pair. The remaining amplified channels are available for future expansion. The rear-output harness is included. Rear speakers and saddlebag mounting components are not included. No saddlebag cutting is required for the supplied front-only system. Future rear installation requirements depend on the selected mounting system. DSP configuration, crossover setup and output limiting are required. Professional installation and tuning are strongly recommended. Best For Compatible 2024+ Road Glide front-speaker upgrades Riders starting with a two-speaker amplified system Factory A2B radios requiring aftermarket amplifier integration High-efficiency 2-ohm Coaxial Horn speakers Systems requiring built-in DSP tuning and crossover control Riders planning to add rear speakers later Professional Road Glide audio installations Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers System Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXPCH-4X2RG FAQ What impedance are the included speakers? Both included CH65.2C speakers have a nominal impedance of 2 ohms. How many speakers are included? The system includes two 6.5-inch CH65.2C Coaxial Horn speakers for the Road Glide fairing. What load does the amplifier see? Each included speaker is connected to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load. Are all four amplifier channels used? No. The supplied package uses two amplified channels for the front speakers. The other two channels remain available for a compatible rear-speaker upgrade. How much power does the amplifier produce? The FLX700.4PRO produces up to 175 watts RMS × 4 at 2 ohms, 120 watts RMS × 4 at 4 ohms or 350 watts RMS × 2 bridged at 4 ohms. Does the amplifier include a DSP? Yes. The FLX700.4PRO includes a six-channel DSP with four amplified channels and two processed pass-through channels. Why does the package use a non-DSP ZEN-H interface? The ZEN-H interface extracts the factory A2B signal. DSP processing is then performed inside the FLX700.4PRO amplifier. Are Road Glide fairing grilles included? Yes. The package includes the Cicada Audio 24CHDRGG powder-coated steel fairing grille pair. Is the amplifier rack included? Yes. The package includes the 24HDAR-RG Road Glide amplifier rack and mounting hardware. Is rear-speaker wiring included? Yes. The 24HDRO rear-output harness is included for future rear-speaker expansion. Are rear speakers included? No. The system is rear-speaker ready, but rear speakers and their saddlebag mounting components must be purchased separately. Do the saddlebags need to be cut for this two-speaker kit? No saddlebag modification is required for the supplied front-only system. A future rear-speaker upgrade may require cutting or other modification depending on the selected mounting solution. Does the system require tuning? Yes. The amplifier DSP, crossover frequencies, equalization, limiters and gain structure must be configured for the included speakers and any future rear-speaker expansion. Need Help Planning Your Road Glide System? Submit your Road Glide year, trim, factory audio package and future rear-speaker plans so Garage Bagger Stereo can verify fitment, electrical requirements and the correct expansion components for your motorcycle. Installation Services Request a Custom Build -
2023.5+ CVO / 2024+ Road Glide 2-Speaker DSP Audio System | Cicada
Vendor:Cicada Audio2023.5+ CVO / 2024+ ROAD GLIDE AUDIO 2023.5+ CVO / 2024+ Road Glide 2-Speaker DSP Audio System | Cicada Upgrade a compatible late-model Harley-Davidson Road Glide with a complete front component audio system built around Cicada Audio 24CXK65.2RG speakers, the current FLX1400.4PRO four-channel DSP amplifier, NAV-TV factory A2B integration and motorcycle-ready 4-AWG power wiring. The system places two high-output 6.5-inch mid-bass drivers and two shallow horn tweeters in the Road Glide fairing. The amplifier’s integrated six-channel DSP provides crossover control, equalization, output management and system-expansion capability. See Everything Included View Component Layout Complete Road Glide Fairing System Road Glide-specific component speaker system Cicada 24CXK65.2RG component kit Two 2-ohm 6.5-inch mid-bass drivers Two 4-ohm shallow horn tweeters External 12dB passive crossovers FLX1400.4PRO four-channel DSP amplifier 350 watts RMS × 4 at 2 ohms Six DSP channels: four amplified and two pass-through Bluetooth audio streaming USB-C computer-based DSP tuning DIALD app-compatible configuration NAV-TV ZEN-H factory A2B integration Cicada HDPG4K 4-AWG power kit Complete Road Glide DSP Audio System This Garage Bagger Stereo package combines a Road Glide-specific Cicada component speaker system, a high-power DSP amplifier, factory A2B integration and heavy-gauge amplifier wiring into one complete front-fairing audio upgrade. The 24CXK65.2RG uses two 2-ohm mid-bass drivers for strong vocal and mid-bass output. Two separate shallow ring-radiator horn tweeters provide high-frequency projection through Road Glide-specific locations. The current FLX1400.4PRO supplies four amplified DSP channels plus two DSP-controlled pass-through channels. Two amplified channels operate the front component system, leaving two amplified channels and two pass-through outputs available for properly designed expansion. Component-system clarification: This is described as a two-speaker system because it uses two primary 6.5-inch fairing speaker positions. The complete component system contains four individual drivers: two mid-bass speakers and two tweeters. Road Glide Fitment 2023.5 CVO Road Glide Verify the exact motorcycle, fairing, factory radio, factory amplifier and A2B configuration before ordering for a late-production CVO Road Glide. 2024+ Road Glide The 24CXK65.2RG speaker package is designed around compatible redesigned 2024 and newer Road Glide factory speaker locations. Road Glide configuration: This system uses the Road Glide-specific 24CXK65.2RG component kit. It is not the Street Glide speaker configuration. Confirm the exact year, model and trim before ordering. Everything Included in the Audio System Cicada 24CXK65.2RG Component Kit One Road Glide-specific component speaker package with two 2-ohm 6.5-inch mid-bass drivers and two 4-ohm shallow horn tweeters. External Passive Crossovers Two custom 12dB crossover networks filter and protect the shallow horn tweeters. Tweeter Attenuation Resistors Resistor options allow the high-frequency output to be reduced by 3dB or 6dB when required by the installation and final tuning. Cicada FLX1400.4PRO DSP Amplifier One current-generation four-channel Class-D amplifier with six DSP channels, Bluetooth streaming, USB-C tuning and DIALD software support. NAV-TV ZEN-H A2B Interface Factory A2B interface that converts the compatible Harley-Davidson digital audio signal into analog outputs for the Cicada amplifier. Cicada HDPG4K Power Kit 4-AWG power and ground wiring with battery terminals, amplifier ferrules, remote wiring and waterproof Mini-ANL fuse protection. Confirm package hardware: Verify the Road Glide amplifier rack, A2B-to-amplifier harness, speaker-output wiring and required mounting hardware included with the active Shopify bundle. Front Component Speaker Layout Left Fairing Position One 2-ohm 6.5-inch mid-bass driver One 4-ohm shallow horn tweeter One external passive crossover One dedicated amplified DSP channel Right Fairing Position One 2-ohm 6.5-inch mid-bass driver One 4-ohm shallow horn tweeter One external passive crossover One dedicated amplified DSP channel Primary Speaker Positions Two Road Glide fairing locations Mid-Bass Drivers Two 2Ω 6.5-inch drivers Tweeters Two 4Ω shallow horn tweeters Total Individual Drivers Four Amplified Front Channels Two Available Amplified Channels Two Available DSP Pass-Through Channels Two Component wiring: Install each mid-bass driver, tweeter and passive crossover according to the supplied Cicada component speaker instructions. Do not connect either tweeter directly to an unfiltered amplifier output. Cicada 24CXK65.2RG Component Speaker Kit The 24CXK65.2RG is engineered for compatible 2024 and newer Road Glide factory speaker locations. Carbon Matrix Composite cones, neodymium motors and aluminum shallow horn tweeters provide high-output performance in a compact motorcycle-ready package. 250W RMS Mid-Bass Each 6.5-inch mid-bass driver handles 250 watts RMS. 200W RMS Tweeters Each tweeter handles 200 watts RMS through the correct crossover. Road Glide Fitment Designed around compatible late-model Road Glide locations. Carbon Matrix Cones Lightweight cone construction supports efficient projection. Neodymium Motors Compact high-strength motors reduce weight while maintaining output. All-Weather Design Motorcycle-ready materials support fairing installation. Component Kit 24CXK65.2RG Application Compatible 2024+ Harley-Davidson Road Glide Mid-Bass Size 6.5 inches Mid-Bass Impedance 2Ω per driver Mid-Bass Power 250W RMS / 500W maximum per driver Mid-Bass Voice Coil 2 inches / 51mm Mid-Bass Cone Carbon Matrix Composite Mid-Bass Sensitivity 94dB, 1W / 1m Mid-Bass Response 70Hz–20kHz ±3dB Mid-Bass Mounting Depth 2.64 inches / 67mm Mid-Bass Mounting Diameter 5.67 inches / 144mm Tweeter Size One inch Tweeter Impedance 4Ω per tweeter Tweeter Power 200W RMS / 400W maximum per tweeter Tweeter Diaphragm Aluminum Tweeter Sensitivity 107dB, 1W / 1m Tweeter Response 2kHz–20kHz ±3dB Passive Crossover External 12dB crossover at 7kHz Tweeter Attenuation Optional -3dB and -6dB resistor settings Cicada FLX1400.4PRO 350W × 4-Channel DSP Amplifier The current FLX1400.4PRO combines four high-power amplified channels with six-channel DSP processing. Four DSP channels feed the built-in amplifier outputs, while two additional DSP channels provide pass-through outputs for future equipment. 225W × 4 at 4Ω Four-channel output at 14.4 volts into 4-ohm loads. 350W × 4 at 2Ω Four-channel output for the included 2-ohm mid-bass system. 700W × 2 Bridged Bridged output into compatible 4-ohm loads. Six-Channel DSP Four amplified DSP channels plus two pass-through channels. Bluetooth Streaming Stream audio directly through the amplifier’s Bluetooth input. USB-C Tuning Connect a computer for detailed DIALD DSP configuration. Amplifier Model Cicada Audio FLX1400.4PRO Amplifier Type Four-channel Class-D amplifier with six-channel DSP DSP Architecture Four amplified channels and two pass-through channels Output at 4Ω / 14.4V 225W RMS × 4 Output at 2Ω / 14.4V 350W RMS × 4 Bridged Output at 4Ω / 14.4V 700W RMS × 2 Frequency Response 20Hz–20kHz ±3dB THD + Noise 0.1% at 2Ω per channel and 10% rated power Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Efficiency 80% DSP Crossover Modes High-pass / band-pass / low-pass DSP Crossover Range 20Hz–20kHz DSP Crossover Slopes 6, 12, 24 or 48dB per octave Input Sensitivity 12V–0.2V Bluetooth Audio Included Computer Connection USB-C DSP Software DIALD PC and app-based configuration iOS App Compatibility Yes Operating Voltage 9V–16V Music Current Draw 70A Maximum Current Draw 150A Recommended Fuse 100A Turn-On Options Remote / DC / VOX Power Input 4-AWG Speaker Outputs 12-AWG busbar-style connections Dimensions With Brackets 8.26 × 4.9 × 2 inches / 210 × 125 × 51mm Chassis Dimensions 7.1 × 4.9 × 2 inches / 180 × 125 × 51mm Warranty Two years through Cicada Audio Speaker protection required: The amplifier produces more continuous power at 2 ohms than each included mid-bass driver is rated to handle. Use correct high-pass filtering, gain structure and DSP output limiting. NAV-TV ZEN-H Factory A2B Integration The ZEN-H allows the compatible factory Harley-Davidson radio to feed the Cicada DSP amplifier without replacing the factory infotainment system. Factory A2B Conversion Converts the compatible factory signal into analog outputs. Eight Output Channels Supports the front system and properly planned future expansion. Factory Control Retention Retains supported factory audio controls and radio operation. DSP clarification: The standard ZEN-H provides the A2B signal conversion. The FLX1400.4PRO supplies the system’s DSP processing, Bluetooth streaming and tuning functions. Power Wiring and Fuse Protection The Cicada HDPG4K supplies the heavy-gauge power and ground foundation required for the FLX1400.4PRO installation. Power Kit Cicada Audio HDPG4K Power Cable 4-AWG OFC cable Ground Cable 4-AWG OFC cable Fuse Holder Waterproof Mini-ANL Amplifier Recommended Fuse 100A Fuse selection: Use the supplied 100-amp fuse only after confirming that the complete wiring, fuse holder, terminals and installation comply with current Cicada guidance for the FLX1400.4PRO. DSP Setup and Component Protection Install both passive tweeter crossovers correctly. Do not connect either tweeter directly to unfiltered amplifier output. Configure protective high-pass filtering for both front channels. Set gain using measured clean output rather than by ear. Use DSP output limiting to protect the mid-bass drivers. Use equalization to correct fairing-specific response issues. Use time alignment to improve left-to-right arrival timing. Confirm tweeter polarity and attenuation before final assembly. Reduce output immediately if distortion or mechanical noise occurs. Professional tuning recommended: Final crossover, equalization, time alignment, gain and limiting settings depend on the motorcycle, installation and intended listening level. Installation Instructions and Resources Speaker Installation Cicada Speaker and Crossover Installation Speaker Polarity Check Road Glide and A2B Installation Road Glide Fairing Removal Late-Model Harley T-Harness Installation Motorcycle Amplifier Installation Parts Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Complete System Specifications System Type Two-position Road Glide component system with DSP amplifier Primary Applications Compatible 2023.5 CVO Road Glide and 2024+ Road Glide Component Speaker Kit Cicada Audio 24CXK65.2RG Mid-Bass Drivers Two 6.5-inch 2Ω drivers Tweeters Two one-inch 4Ω shallow horn tweeters Amplifier Cicada Audio FLX1400.4PRO Amplifier Output at 2Ω 350W RMS × 4 at 14.4V DSP Channels Six total: four amplified and two pass-through Amplified Front Channels Used Two Available Amplified Channels Two Available DSP Pass-Through Channels Two Factory Signal Integration NAV-TV ZEN-H A2B interface Power Wiring Cicada Audio HDPG4K 4-AWG installation kit Built-In Amplifier DSP Yes Bluetooth Audio Streaming Yes USB-C DSP Tuning Yes Rear Speakers Included No Fitment and Ordering Notes Submit complete motorcycle information: Confirm the motorcycle year, exact Road Glide model, trim, factory radio, factory amplifier, A2B configuration and current audio modifications. This product is configured for compatible Road Glide motorcycles. The speaker kit uses two 2-ohm mid-bass drivers. The speaker kit uses two 4-ohm shallow horn tweeters. Both passive crossover networks must be used. Two amplifier channels operate the front component system. Two amplified DSP channels remain available for expansion. Two additional DSP pass-through channels are available. Rear speakers and rear mounting components are not included. Verify speaker depth, grille clearance and crossover placement. Verify amplifier mounting space and rack compatibility. Correct DSP setup and output limiting are required. Professional installation and tuning are strongly recommended. Related Motorcycle Audio Categories Road Glide and Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Cicada Audio Shop Motorcycle Speakers Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada Road Glide DSP Audio System FAQ Which amplifier is included? The system includes the current Cicada Audio FLX1400.4PRO 350-watt × four-channel DSP amplifier. Is this the discontinued FLX1400.4P? No. This updated package uses the current FLX1400.4PRO amplifier. How many speakers are included? The system uses two primary fairing positions and contains two mid-bass drivers and two separate tweeters. How much power does the amplifier produce at 2 ohms? The FLX1400.4PRO produces 350 watts RMS per channel at 2 ohms and 14.4 volts. How many DSP channels does the amplifier provide? It provides six DSP channels: four amplified outputs and two pass-through outputs. Does the amplifier support Bluetooth audio? Yes. Bluetooth audio streaming is built into the FLX1400.4PRO. How is the DSP configured? The amplifier supports USB-C computer tuning and DIALD app-based configuration. Are passive tweeter crossovers included? Yes. The component kit includes external crossover networks and tweeter-attenuation resistor options. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley-Davidson A2B signal into analog outputs for the Cicada amplifier. Are all four amplified channels used? No. Two channels operate the front component system, leaving two amplified channels available for properly matched expansion. Are rear speakers included? No. Rear speakers, rear wiring and rear mounting components must be added separately. Is professional tuning recommended? Yes. Proper crossover, equalization, limiting and gain configuration are essential because the amplifier has more available output than the included mid-bass drivers require. Need Help Matching This Road Glide Audio System? Garage Bagger Stereo can help verify Road Glide fitment, component impedance selection, amplifier matching, fairing speaker and amplifier mounting, power and speaker wiring, passive crossover placement and factory A2B signal integration before installation. Installation Services Request a Custom Build -
2023.5+ CVO / 2024+ Street Glide 2-Speaker DSP Audio System | Cicada
Vendor:Cicada Audio2023.5+ CVO / 2024+ STREET GLIDE AUDIO 2023.5+ CVO / 2024+ Street Glide 2-Speaker DSP Audio System | Cicada Upgrade a compatible late-model Harley-Davidson Street Glide with a complete front component audio system built around Cicada Audio 24CXK65.2SG speakers, the current FLX1400.4PRO four-channel DSP amplifier, NAV-TV factory A2B integration and motorcycle-ready 4-AWG power wiring. The system places two high-output 6.5-inch mid-bass drivers and two shallow horn tweeters in the Street Glide fairing. The amplifier’s integrated six-channel DSP provides crossover control, equalization, output management and future system-expansion capability. See Everything Included View Component Layout Complete Street Glide Fairing System Street Glide-specific component speaker system Cicada 24CXK65.2SG component kit Two 2-ohm 6.5-inch mid-bass drivers Two 4-ohm shallow horn tweeters External 12dB passive crossovers FLX1400.4PRO four-channel DSP amplifier 350 watts RMS × 4 at 2 ohms Six DSP channels: four amplified and two pass-through Bluetooth audio streaming USB-C computer-based DSP tuning DIALD app-compatible configuration NAV-TV ZEN-H factory A2B integration Cicada HDPG4K 4-AWG power kit Complete Street Glide DSP Audio System This Garage Bagger Stereo package combines a Street Glide-specific Cicada component speaker system, a high-power DSP amplifier, factory A2B integration and heavy-gauge amplifier wiring into one complete front-fairing audio upgrade. The 24CXK65.2SG uses two 2-ohm mid-bass drivers for strong vocal and mid-bass output. Two separate shallow ring-radiator horn tweeters provide high-frequency projection from compatible Street Glide factory-designed locations. The FLX1400.4PRO supplies four amplified DSP channels plus two DSP-controlled pass-through channels. Two amplified channels operate the front component system, leaving two amplified channels and two pass-through outputs available for a properly designed future expansion. Component-system clarification: This is described as a two-speaker system because it uses two primary 6.5-inch fairing speaker positions. The complete component system contains four individual drivers: two mid-bass speakers and two tweeters. Street Glide Fitment 2023.5+ CVO Street Glide Verify the exact motorcycle, fairing, factory radio, factory amplifier and A2B configuration before ordering for a late-production CVO Street Glide. 2024+ Street Glide The 24CXK65.2SG component speaker kit is designed around compatible redesigned 2024 and newer Street Glide factory speaker locations. Street Glide configuration: This system uses the Street Glide-specific 24CXK65.2SG component kit. It is not the Road Glide speaker configuration. Confirm the exact year, model and trim before ordering. Everything Included in the Audio System Cicada 24CXK65.2SG Component Kit One Street Glide-specific component speaker package with two 2-ohm 6.5-inch mid-bass drivers and two 4-ohm shallow horn tweeters. External Passive Crossovers Two custom 12dB crossover networks filter and protect the shallow horn tweeters at the manufacturer-specified crossover frequency. Tweeter Attenuation Resistors Resistor options allow the high-frequency output to be reduced by 3dB or 6dB when required by the installation and final tuning. Cicada FLX1400.4PRO DSP Amplifier One current-generation four-channel Class-D amplifier with six DSP channels, Bluetooth streaming, USB-C tuning and DIALD software support. NAV-TV ZEN-H A2B Interface Factory A2B interface that converts the compatible Harley-Davidson digital audio signal into analog RCA outputs for the Cicada amplifier. Cicada HDPG4K Power Kit 4-AWG power and ground wiring with battery terminals, amplifier ferrules, remote wiring and waterproof Mini-ANL fuse protection. Confirm package hardware: Verify the Street Glide amplifier rack, A2B-to-amplifier harness, speaker-output wiring and required mounting hardware included with the active Shopify bundle. Front Component Speaker Layout Left Fairing Position One 2-ohm 6.5-inch mid-bass driver One 4-ohm shallow horn tweeter One external passive crossover One dedicated amplified DSP channel Right Fairing Position One 2-ohm 6.5-inch mid-bass driver One 4-ohm shallow horn tweeter One external passive crossover One dedicated amplified DSP channel Primary Speaker Positions Two Street Glide fairing locations Mid-Bass Drivers Two 2Ω 6.5-inch drivers Tweeters Two 4Ω shallow horn tweeters Total Individual Drivers Four Amplified Front Channels Two Available Amplified Channels Two Available DSP Pass-Through Channels Two Component wiring: Install each mid-bass driver, tweeter and passive crossover according to the supplied Cicada component speaker instructions. Do not connect either tweeter directly to an unfiltered amplifier output. Cicada 24CXK65.2SG Component Speaker Kit The 24CXK65.2SG is engineered for compatible 2024 and newer Street Glide factory-designed speaker locations. Carbon Matrix Composite cones, neodymium motors and aluminum shallow horn tweeters provide high-output performance in a compact motorcycle-ready package. 250W RMS Mid-Bass Each 6.5-inch mid-bass driver handles 250 watts RMS. 200W RMS Tweeters Each tweeter handles 200 watts RMS through the correct crossover. Street Glide Fitment Designed around compatible late-model Street Glide locations. Carbon Matrix Cones Lightweight cone construction supports efficient projection. Neodymium Motors Compact high-strength motors reduce weight while maintaining output. Rain or Shine Design All-weather materials support exposed fairing installations. Component Kit 24CXK65.2SG Application Compatible 2024+ Harley-Davidson Street Glide Mid-Bass Size 6.5 inches Mid-Bass Impedance 2Ω per driver Mid-Bass Power 250W RMS / 500W maximum per driver Mid-Bass Voice Coil 2 inches / 51mm Mid-Bass Cone Carbon Matrix Composite Mid-Bass Magnet N35SH neodymium Mid-Bass Sensitivity 94dB, 1W / 1m Mid-Bass Response 70Hz–20kHz ±3dB Mid-Bass Mounting Depth 2.64 inches / 67mm Mid-Bass Mounting Diameter 5.67 inches / 144mm Tweeter Size One inch Tweeter Impedance 4Ω per tweeter Tweeter Power 200W RMS / 400W maximum per tweeter Tweeter Diaphragm Aluminum Tweeter Sensitivity 107dB, 1W / 1m Tweeter Response 2kHz–20kHz ±3dB Passive Crossover External 12dB crossover at 7kHz Tweeter Attenuation Optional -3dB and -6dB resistor settings Warranty Two years through Cicada Audio Cicada FLX1400.4PRO 350W × 4-Channel DSP Amplifier The FLX1400.4PRO combines four high-power amplified channels with six-channel DSP processing. Four DSP channels feed the built-in amplifier outputs, while two additional DSP channels provide pass-through outputs for future equipment. 225W × 4 at 4Ω Four-channel output at 14.4 volts into 4-ohm loads. 350W × 4 at 2Ω Four-channel output for compatible 2-ohm speaker channels. 700W × 2 Bridged Bridged output into compatible 4-ohm loads. Six-Channel DSP Four amplified DSP channels plus two pass-through channels. Bluetooth Streaming Stream audio directly through the amplifier’s Bluetooth input. USB-C Tuning Connect a computer for detailed DIALD DSP configuration. Amplifier Model Cicada Audio FLX1400.4PRO Amplifier Type Four-channel Class-D amplifier with six-channel DSP DSP Architecture Four amplified channels and two pass-through channels Output at 4Ω / 14.4V 225W RMS × 4 Output at 2Ω / 14.4V 350W RMS × 4 Bridged Output at 4Ω / 14.4V 700W RMS × 2 Frequency Response 20Hz–20kHz ±3dB THD + Noise 0.1% at 2Ω per channel and 10% rated power Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Efficiency 80% DSP Crossover Modes High-pass / band-pass / low-pass DSP Crossover Range 20Hz–20kHz DSP Crossover Slopes 6, 12, 24 or 48dB per octave Input Sensitivity 12V–0.2V Bluetooth Audio Included Computer Connection USB-C DSP Software DIALD PC and app-based configuration iOS App Compatibility Yes Operating Voltage 9V–16V Music Current Draw 70A Maximum Current Draw 150A Recommended Fuse 100A Turn-On Options Remote / DC / VOX Power Input 4-AWG Speaker Outputs 12-AWG busbar-style connections Dimensions With Brackets 8.26 × 4.9 × 2 inches / 210 × 125 × 51mm Chassis Dimensions 7.1 × 4.9 × 2 inches / 180 × 125 × 51mm Warranty Two years through Cicada Audio Speaker protection required: The amplifier produces more continuous power at 2 ohms than each included mid-bass driver is rated to handle. Use correct high-pass filtering, gain structure and DSP output limiting. NAV-TV ZEN-H Factory A2B Integration The ZEN-H allows the compatible factory Harley-Davidson radio to feed the Cicada DSP amplifier without replacing the factory infotainment system. Eight RCA Outputs Provides eight low-level analog channels for aftermarket equipment. Up to 5V RMS Supplies a strong preamplifier signal to the Cicada amplifier. Factory Control Retention Retains supported volume, balance, fader, chimes and EQ presets. DSP clarification: The standard ZEN-H provides A2B signal conversion. The FLX1400.4PRO supplies the system’s DSP processing, Bluetooth streaming and tuning functions. Power Wiring and Fuse Protection The Cicada HDPG4K supplies the heavy-gauge power and ground foundation required for the FLX1400.4PRO installation. Power Kit Cicada Audio HDPG4K Power Cable Six-foot 4-AWG cable with protective over-braid Ground Cable Six-foot 4-AWG cable with protective over-braid Battery Connections Preinstalled ring terminals Amplifier Connections Preinstalled ferrules Remote Trigger Remote wire with Harley-Davidson plug Fuse Holder Waterproof Mini-ANL Supplied Fuse Options 60A, 80A and 100A Amplifier Recommended Fuse 100A Fuse selection: Confirm that the complete wiring, holder, terminals and supplied 100-amp fuse comply with current Cicada guidance before powering the FLX1400.4PRO. DSP Setup and Component Protection Install both passive tweeter crossovers correctly. Do not connect either tweeter directly to unfiltered amplifier output. Configure protective high-pass filtering for both front channels. Set gain using measured clean output rather than by ear. Use DSP output limiting to protect the mid-bass drivers. Use equalization to correct fairing-specific response issues. Use time alignment to improve left-to-right arrival timing. Confirm tweeter polarity and attenuation before final assembly. Reduce output immediately if distortion or mechanical noise occurs. Professional tuning recommended: Final crossover, equalization, time alignment, gain and limiting settings depend on the motorcycle, installation and intended listening level. Installation Instructions and Resources Speaker Installation Cicada Speaker and Crossover Reference Speaker Polarity Check Street Glide and A2B Installation Street Glide Fairing Removal Late-Model Harley T-Harness Installation Motorcycle Amplifier Installation Parts Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Complete System Specifications System Type Two-position Street Glide component system with DSP amplifier Primary Applications Compatible 2023.5+ CVO Street Glide and 2024+ Street Glide Component Speaker Kit Cicada Audio 24CXK65.2SG Mid-Bass Drivers Two 6.5-inch 2Ω drivers Tweeters Two one-inch 4Ω shallow horn tweeters Total Individual Drivers Four Amplifier Cicada Audio FLX1400.4PRO Amplifier Output at 2Ω 350W RMS × 4 at 14.4V DSP Channels Six total: four amplified and two pass-through Amplified Front Channels Used Two Available Amplified Channels Two Available DSP Pass-Through Channels Two Factory Signal Integration NAV-TV ZEN-H A2B interface Power Wiring Cicada Audio HDPG4K 4-AWG installation kit Built-In Amplifier DSP Yes Bluetooth Audio Streaming Yes USB-C DSP Tuning Yes Rear Speakers Included No Shopify Variants None Fitment and Ordering Notes Submit complete motorcycle information: Confirm the motorcycle year, exact Street Glide model, trim, factory radio, factory amplifier, A2B configuration and current audio modifications. This product is configured for compatible Street Glide motorcycles. The speaker kit uses two 2-ohm mid-bass drivers. The speaker kit uses two 4-ohm shallow horn tweeters. Both passive crossover networks must be used. Two amplifier channels operate the front component system. Two amplified DSP channels remain available for expansion. Two additional DSP pass-through channels are available. Rear speakers and rear mounting components are not included. Verify speaker depth, grille clearance and crossover placement. Verify amplifier mounting space and rack compatibility. Correct DSP setup and output limiting are required. Professional installation and tuning are strongly recommended. Current Shipping Promotion Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply. Related Motorcycle Audio Categories Street Glide and Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Cicada Audio Shop Motorcycle Speakers Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada Street Glide DSP Audio System FAQ Which component speaker kit is included? The system includes the Street Glide-specific Cicada Audio 24CXK65.2SG component speaker kit. Which amplifier is included? The system includes the current Cicada Audio FLX1400.4PRO 350-watt × four-channel DSP amplifier. Is this the discontinued FLX1400.4P? No. This updated package uses the current FLX1400.4PRO amplifier. How many speakers are included? The system uses two primary fairing positions and contains two mid-bass drivers and two separate tweeters. What impedance are the mid-bass drivers? Each 6.5-inch mid-bass driver has a nominal impedance of 2 ohms. What impedance are the tweeters? Each shallow horn tweeter has a nominal impedance of 4 ohms. Are passive tweeter crossovers included? Yes. The component kit includes external 12dB crossover networks and tweeter-attenuation resistor options. How much power does the amplifier produce at 2 ohms? The FLX1400.4PRO produces 350 watts RMS per channel at 2 ohms and 14.4 volts. How many DSP channels does the amplifier provide? It provides six DSP channels: four amplified outputs and two pass-through outputs. Does the amplifier support Bluetooth audio? Yes. Bluetooth audio streaming is built into the FLX1400.4PRO. How is the DSP configured? The amplifier supports USB-C computer tuning and DIALD app-based configuration. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the Cicada amplifier. Does the ZEN-H provide the system DSP? No. The standard ZEN-H performs A2B signal conversion. The FLX1400.4PRO provides the system’s DSP processing. Are all four amplified channels used? No. Two channels operate the front component system, leaving two amplified channels available for properly matched expansion. Are rear speakers included? No. Rear speakers, rear wiring and rear mounting components must be added separately. Is professional tuning recommended? Yes. Proper crossover, equalization, limiting and gain configuration are essential because the amplifier has more available output than the included mid-bass drivers require. Need Help Matching This Street Glide Audio System? Garage Bagger Stereo can help verify Street Glide fitment, component impedance selection, amplifier matching, fairing speaker and amplifier mounting, power and speaker wiring, passive crossover placement and factory A2B signal integration before installation. Installation Services Request a Custom Build -

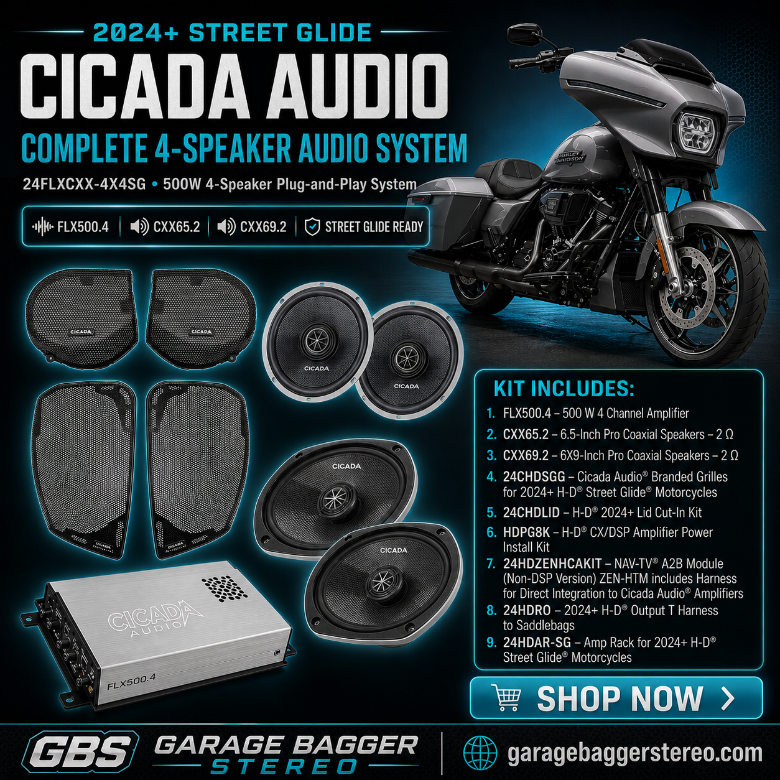

Cicada Audio 24FLXCXX-4X4SG 500W 4-Speaker System for 2024+ Street Glide
Vendor:Cicada AudioCOMPLETE 2024+ STREET GLIDE AUDIO SYSTEM Cicada Audio 24FLXCXX-4X4SG 500W 4-Speaker Audio System Build a complete amplified audio system in a compatible 2024 and newer Harley-Davidson Street Glide with four Cicada Audio Pro Coaxial speakers, factory A2B radio integration and Street Glide-specific mounting hardware. The package powers two 6.5-inch front fairing speakers and two 6×9-inch saddlebag speakers from four dedicated FLX500.4 amplifier channels. Fairing grilles, a saddlebag lid cut-in system, amplifier rack, rear-speaker wiring and power wiring are included. See Everything Included View Speaker Configuration Four-Speaker Street Glide Package Designed for compatible 2024+ Street Glide motorcycles FLX500.4 compact four-channel Class-D amplifier 125 watts RMS × 4 channels at 2 ohms Two CXX65.2 6.5-inch fairing speakers Two CXX69.2 6×9 saddlebag speakers All four included speakers are 2 ohms Street Glide fairing grilles included 2024+ saddlebag lid cut-in kit included NAV-TV ZEN-H A2B integration included 8-AWG amplifier power kit included Rear-output speaker harness included Street Glide amplifier rack included 24FLXCXX-4X4SG Complete System Overview The Cicada Audio 24FLXCXX-4X4SG combines the primary audio, integration, wiring and mounting components required for a complete four-speaker system in a compatible 2024 and newer Harley-Davidson Street Glide. Two CXX65.2 6.5-inch Pro Coaxial speakers install in the front fairing. Two CXX69.2 6×9-inch Pro Coaxial speakers install in the factory saddlebag lids using the included 24CHDLID cut-in mounting system. Every included speaker has a nominal 2-ohm impedance and connects to its own FLX500.4 amplifier channel. All four amplifier channels are used in the supplied configuration. Standard Non-DSP System Configuration FLX500.4 Power Amplifier The package uses the compact FLX500.4 four-channel Class-D amplifier. It provides conventional gain and crossover controls but does not contain an integrated digital signal processor. NAV-TV ZEN-H A2B Integration The included NAV-TV interface and Cicada harness convert the compatible factory A2B audio signal and route it into the amplifier through purpose-built locking connections. No built-in DSP: This package does not provide digital equalization, time alignment or DSP output limiting. A separate compatible processor is required when advanced system tuning is needed. Four-Channel Speaker and Amplifier Configuration Front Fairing Channels Two CXX65.2 6.5-inch speakers create the Street Glide front soundstage. Each speaker presents a nominal 2-ohm load to its own amplifier channel. Rear Saddlebag Channels Two CXX69.2 6×9-inch speakers provide the rear soundstage. Each speaker presents a nominal 2-ohm load to its own amplifier channel. Channel 1 Front-left CXX65.2 — 2Ω Channel 2 Front-right CXX65.2 — 2Ω Channel 3 Rear-left CXX69.2 — 2Ω Channel 4 Rear-right CXX69.2 — 2Ω Amplifier Output 125W RMS per channel at 2Ω Front Speaker Rating 100W RMS per CXX65.2 speaker Rear Speaker Rating 200W RMS per CXX69.2 speaker Unused Amplifier Channels None Front-speaker output control: The FLX500.4 can produce 125 watts RMS at 2 ohms, while each CXX65.2 front speaker is rated for 100 watts RMS. Gain and maximum clean output must be limited correctly to protect the front speakers. Everything Included in the Complete System FLX500.4 Four-Channel Amplifier One compact Class-D amplifier rated for 125 watts RMS × 4 at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. CXX65.2 Fairing Speaker Pair Two 2-ohm 6.5-inch Pro Coaxial speakers with Kevlar cones, PEI-dome tweeters, neodymium motors and built-in 6dB crossovers. CXX69.2 Saddlebag Speaker Pair Two 2-ohm 6×9-inch Pro Coaxial speakers rated for 200 watts RMS each and designed for high-output rear audio. 24CHDSGG Street Glide Grilles Powder-coated steel front fairing grilles with Cicada Audio-branded emblems for compatible 2024+ Street Glide motorcycles. 24CHDLID Saddlebag Lid Kit Complete 2024+ cut-in mounting system with angled top-load 6×9 baffles, steel grilles, clamping rings, gaskets, cutting templates, rain covers and crossover-storage tethers. HDPG8K 8-AWG Power Kit Six-foot power and ground cables, braided covering, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder. 24HDZENHCAKIT A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned Molex connections. 24HDRO Rear-Output Harness Plug-and-play rear-speaker harness with factory-style connectors, two short extensions and two longer leads for saddlebag routing. 24HDAR-SG Amplifier Rack Black-anodized aluminum amplifier rack using compatible OEM Street Glide mounting locations and predrilled holes for FLX amplifiers. FLX500.4 Amplifier Performance 125W × 4 at 2Ω The supplied four-speaker configuration operates all four channels at a nominal 2-ohm load. 95W × 4 at 4Ω The amplifier also supports compatible four-channel 4-ohm speaker configurations. 250W × 2 Bridged Published bridged output is 250 watts RMS × 2 into compatible 4-ohm loads. Wide Input Range The 0.2V–12V gain range supports compatible factory interfaces, aftermarket radios and external processors. Adjustable Crossovers LPF, full-range and HPF modes provide broad frequency and slope adjustment for system setup. Compact Chassis The small aluminum chassis installs on the included Street Glide rack while conserving space inside the fairing. FLX500.4 Amplifier Specifications Amplifier Model FLX500.4 Amplifier Type Four-channel Class-D amplifier without built-in DSP Output at 4Ω 95W RMS × 4 channels at 14.4V Output at 2Ω 125W RMS × 4 channels at 14.4V Bridged Output at 4Ω 250W RMS × 2 channels at 14.4V Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Published Recommended Fuse 50A Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 THD + Noise 0.1% at 2Ω per channel at 10% rated power Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Crossover Modes LPF / FULL / HPF Crossover Range 20Hz–20,000Hz Crossover Slopes 6 / 12 / 24 / 48dB per octave Dimensions with Brackets 5.2 × 4.9 × 2 inches / 131 × 125 × 51mm Chassis Dimensions 4 × 4.9 × 2 inches / 104 × 125 × 51mm CXX65.2 Front Fairing Speakers Speaker Model CXX65.2 Quantity Two speakers / one pair Speaker Type 6.5-inch high-performance Pro Coaxial driver Nominal Impedance 2Ω per speaker Power Handling 100W RMS / 200W maximum per speaker Mid-Bass Voice Coil 1.4 inches / 35mm Tweeter Voice Coil 1 inch / 25mm Cone Kevlar Tweeter Dome PEI Magnet Neodymium Built-In Crossover 6dB Sensitivity 93dB Frequency Response 55Hz–20kHz ±3dB Mounting Depth 2.26 inches / 57mm Mounting Diameter 5.43 inches / 138mm Weather Protection Rain or Shine all-weather design with UV-protected surfaces Warranty Two-year manufacturer warranty CXX69.2 Saddlebag Speakers Speaker Model CXX69.2 Quantity Two speakers / one pair Speaker Type 6×9-inch high-performance Pro Coaxial driver Nominal Impedance 2Ω per speaker Power Handling 200W RMS / 400W maximum per speaker Mid-Bass Voice Coil 2 inches / 49mm Tweeter Voice Coil 1.2 inches / 31mm Cone Kevlar Tweeter Dome PEI Magnet Neodymium Built-In Crossover 6dB Sensitivity 93dB Frequency Response 50Hz–20kHz ±3dB Mounting Depth 2.7 inches / 69mm Mounting Opening 6.4 × 9.2 inches / 163 × 234mm Weather Protection Rain or Shine all-weather design with UV-protected surfaces Warranty Two-year manufacturer warranty NAV-TV A2B Signal Integration The included 24HDZENHCAKIT uses the NAV-TV ZEN-H to integrate the compatible factory Harley-Davidson A2B signal with the FLX500.4 amplifier. Direct-fit integration for compatible 2024+ Harley A2B systems No cutting or splicing of the factory signal harness Correctly pinned Cicada amplifier connections Automotive-grade materials Positive-locking connectors Compact routing inside the Street Glide fairing DSP clarification: The supplied ZEN-H is identified as the non-DSP version, and the FLX500.4 does not contain built-in DSP. 24CHDLID Saddlebag Lid Installation The 24CHDLID system converts compatible 2024 and newer factory Harley-Davidson saddlebag lids into angled top-load 6×9-inch speaker locations. Top-Load Baffles Supports easier speaker installation and service from above the lid. Rider-Focused Angle Positions the rear speakers toward the rider for improved projection. Steel Grilles Powder-coated steel mesh protects the saddlebag speakers. Gasketed Clamp System Clamping rings and gaskets help seal the completed openings. Cutting Templates Molded templates support accurate permanent lid modification. Rain Covers and Tethers Rain covers, lid tethers and crossover pouches are included. Permanent cutting required: Both compatible factory saddlebag lids must be cut. Verify template placement, speaker clearance, electrical-lock clearance and wiring before modifying the lids. Street Glide Grilles and Amplifier Rack 24CHDSGG Fairing Grilles Powder-coated steel grilles are designed for compatible 2024+ Street Glide front speaker locations and include Cicada Audio logo emblems. 24HDAR-SG Amplifier Rack The black-anodized aluminum rack uses compatible OEM amplifier mounting locations and includes predrilled FLX amplifier mounting points and hardware. Power Wiring and Fuse Selection Included HDPG8K Power Kit Includes six-foot 8-AWG power and ground cables, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder. Published Amplifier Recommendation Cicada’s current FLX500.4 specifications list a recommended amplifier fuse value of 50 amps. Verify the final fuse: The HDPG8K kit is currently listed with 60-, 80- and 100-amp fuses, while the FLX500.4 page recommends 50 amps. Confirm the correct final fuse and wire protection with current Cicada guidance before installation. Complete System Specifications Complete System SKU 24FLXCXX-4X4SG Vehicle Application Compatible 2024 and newer Harley-Davidson Street Glide Amplifier FLX500.4 four-channel amplifier without built-in DSP Amplifier Output at 2Ω 125W RMS × 4 channels Front Speakers Two CXX65.2 6.5-inch Pro Coaxial speakers Rear Speakers Two CXX69.2 6×9-inch Pro Coaxial speakers Speaker Impedance 2Ω per speaker Loaded Amplifier Channels All four channels at 2Ω each Built-In DSP No Factory Signal Interface NAV-TV ZEN-H non-DSP A2B interface with Cicada harness Front Grilles 24CHDSGG Street Glide fairing grilles Rear Mounting System 24CHDLID 2024+ saddlebag lid cut-in kit Rear Speaker Wiring 24HDRO plug-and-play harness Power Wiring HDPG8K 8-AWG installation kit Amplifier Rack 24HDAR-SG Street Glide amplifier rack Saddlebag Cutting Required Yes Shopify Variants None Fitment and Ordering Notes Confirm the complete motorcycle configuration: Verify the Street Glide year, trim, factory radio, factory amplifier, A2B audio system, saddlebag type and electrical condition before ordering. Designed for compatible 2024 and newer Street Glide motorcycles. The package includes four 2-ohm speakers. All four amplifier channels are used. Each speaker connects to its own amplifier channel. The amplifier and A2B interface do not include DSP processing. Front Street Glide fairing grilles are included. The rear saddlebag lid cut-in system is included. Both compatible factory saddlebag lids require permanent cutting. Rear-output speaker wiring is included. Verify the final fuse value before installation. Professional installation and system setup are recommended. Best For Compatible 2024+ Street Glide complete audio upgrades Riders wanting front fairing and saddlebag speakers Factory A2B radios requiring aftermarket amplifier integration Four-channel systems using four dedicated 2-ohm loads High-efficiency Pro Coaxial motorcycle speakers Compact non-DSP amplifier installations Professional Street Glide audio builds Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXCXX-4X4SG FAQ How many speakers are included? The system includes four speakers: two CXX65.2 6.5-inch fairing speakers and two CXX69.2 6×9-inch saddlebag speakers. What impedance are the speakers? Every included speaker has a nominal impedance of 2 ohms. Are all four amplifier channels used? Yes. Two channels power the front speakers and two channels power the rear saddlebag speakers. How much power does the amplifier produce? The FLX500.4 produces 125 watts RMS × 4 at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. How much power can the front speakers handle? Each CXX65.2 is rated for 100 watts RMS and 200 watts maximum. Amplifier output must be limited correctly. How much power can the rear speakers handle? Each CXX69.2 is rated for 200 watts RMS and 400 watts maximum. Does the amplifier include DSP? No. The FLX500.4 is a standard four-channel amplifier without integrated digital signal processing. Does the NAV-TV interface include DSP? No. The package identifies the supplied ZEN-H as the non-DSP version. Are Street Glide fairing grilles included? Yes. Cicada 24CHDSGG steel fairing grilles are included. Are saddlebag speaker mounts included? Yes. The package includes the complete 24CHDLID 6×9 saddlebag lid cut-in system. Do the factory saddlebag lids need to be cut? Yes. The rear-speaker installation requires permanent cutting of both compatible factory saddlebag lids. Is rear-speaker wiring included? Yes. The 24HDRO plug-and-play rear-output harness is included. Is the Street Glide amplifier rack included? Yes. The package includes the 24HDAR-SG aluminum amplifier rack and mounting hardware. What fuse should be installed? Cicada’s FLX500.4 specifications currently recommend a 50-amp fuse, while the HDPG8K kit lists larger included fuse values. Confirm the correct final fuse with current Cicada guidance before installation. Need Help Planning Your Street Glide System? Garage Bagger Stereo can help verify Street Glide fitment, speaker impedance selection, amplifier matching, fairing and saddlebag mounting, power and speaker wiring, and factory A2B signal integration before the system is installed. Installation Services Request a Custom Build
-
2023.5+ Harley-Davidson 2-Speaker Plug and Play Audio System | DS18
Vendor:DS18 Motorcycle Audio2023.5+ HARLEY-DAVIDSON PLUG-AND-PLAY AUDIO 2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | DS18 Upgrade a compatible 2023.5 and newer Harley-Davidson Road Glide or Street Glide with a complete two-speaker audio system built around a DS18 four-channel amplifier, two high-output hybrid fairing speakers, NAV-TV factory A2B integration and the primary power and installation components required for the system. Select Road Glide or Street Glide before ordering so the correct motorcycle configuration can be supplied. Two amplifier channels power the included front speakers, while two channels remain available for a properly matched future rear-speaker upgrade. Check Motorcycle Fitment See Everything Included Complete Two-Speaker Audio System Road Glide and Street Glide options Designed for compatible late-model Harley A2B systems DS18 ION1600.4D four-channel Class-D amplifier 240 watts RMS × 4 channels at 4 ohms Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers 150 watts RMS per included speaker 4-ohm nominal impedance per speaker Built-in 1-inch titanium compression drivers NAV-TV ZEN-H A2B factory-radio integration 4-AWG amplifier power wiring Half-inch speaker spacers included Two amplifier channels available for expansion Complete 2-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package combines the amplifier, two front fairing speakers, factory A2B signal interface, amplifier power wiring and speaker-spacing components required to build a high-output two-speaker audio system in a compatible late-model Harley-Davidson Road Glide or Street Glide. The included DS18 PRO-HY6.4MSL speakers combine a shallow 6.5-inch midrange driver with a built-in 1-inch titanium compression driver. This hybrid design produces both midrange and high-frequency output from each fairing speaker location. The DS18 ION1600.4D supplies four full-range amplifier channels. Two channels operate the included front speakers. The remaining channels can support a properly matched rear-speaker pair after the required speakers, wiring, mounting components and amplifier setup are added. Plug-and-play clarification: The NAV-TV interface provides plug-and-play factory A2B signal integration. The complete installation still requires amplifier power wiring, speaker mounting, proper cable routing and measured gain and crossover setup. Road Glide and Street Glide Fitment Road Glide Option Select Road Glide for a compatible late-model sharknose-fairing motorcycle using the factory Harley-Davidson A2B audio platform. Road Glide fairing configuration Two front fairing speakers Half-inch speaker spacers NAV-TV A2B integration Street Glide Option Select Street Glide for a compatible late-model batwing-fairing motorcycle using the factory Harley-Davidson A2B audio platform. Street Glide fairing configuration Two front fairing speakers Half-inch speaker spacers NAV-TV A2B integration Exact model verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, A2B configuration and existing audio equipment before ordering. Not every motorcycle described broadly as 2023.5+ uses identical factory audio hardware or fairing geometry. Current Plug-and-Play Kit Lead Time The current listed fulfillment time for this plug-and-play system is approximately 5–10 business days. Build time may vary with component availability and motorcycle configuration. Everything Included in the Audio System DS18 ION1600.4D Amplifier One compact four-channel full-range Class-D amplifier rated for 240 watts RMS × 4 at 4 ohms, 400 watts RMS × 4 at 2 ohms and 800 watts RMS × 2 bridged at 4 ohms. Two DS18 PRO-HY6.4MSL Speakers One pair of 6.5-inch shallow hybrid speakers with 4-ohm impedance, 150-watt RMS power handling and built-in 1-inch titanium compression drivers. NAV-TV ZEN-H A2B Interface One factory A2B interface that converts the compatible Harley radio signal into eight channels of 5-volt analog RCA output for aftermarket amplifier integration. 4-AWG Amplifier Power Kit Heavy-gauge power and ground wiring with the primary connections and protection hardware required for the amplifier installation. Half-Inch Speaker Spacers Speaker-spacing components provide additional mounting clearance for the DS18 hybrid speakers in the applicable front fairing locations. Road Glide or Street Glide Configuration The selected Shopify variant identifies which motorcycle and fairing configuration the system is being prepared for. Two-speaker system: Rear speakers, saddlebag speaker adapters, speaker lids, rear-speaker wiring, rear grilles and a rear mounting system are not included unless separately added to the order. Speaker Impedance and Amplifier Channel Configuration Front-Left Speaker One PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated ION1600.4D amplifier channel. Front-Right Speaker The second PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated amplifier channel. Two Available Channels Two amplifier channels remain available for a compatible future rear-speaker pair after the required mounting and wiring components are installed. Included Speaker Count Two speakers / one pair Speaker Impedance 4Ω per speaker Speaker Power Handling 150W RMS / 300W maximum per speaker Amplifier Output at 4Ω 240W RMS per channel Front-Left Channel One PRO-HY6.4MSL speaker at 4Ω Front-Right Channel One PRO-HY6.4MSL speaker at 4Ω Loaded Amplifier Channels Two Available Amplifier Channels Two Bridging Required No Output must be limited correctly: The ION1600.4D can produce more continuous power at 4 ohms than each included speaker is rated to handle. Correct gain, high-pass crossover and maximum clean output settings are required. DS18 ION1600.4D Four-Channel Amplifier The ION1600.4D is a compact full-range Class-D amplifier that delivers substantial output from a motorcycle-friendly chassis. High-level and RCA inputs, variable crossovers, protection circuits and a clipping indicator support flexible system integration and measured setup. 240W × 4 at 4Ω Published four-channel output for compatible 4-ohm speaker systems. 400W × 4 at 2Ω Available for separately designed compatible 2-ohm speaker systems. 800W × 2 Bridged Published bridged output into properly configured 4-ohm loads. Adjustable Crossovers Low-pass, high-pass and full-range modes support system-specific frequency control. Clip Indicator Power, protection and clipping indicators assist with safe amplifier setup. Compact Chassis The small amplifier footprint helps conserve installation space on a motorcycle. Amplifier Model DS18 ION1600.4D Amplifier Type Four-channel full-range Class-D amplifier Output at 4Ω 240W RMS × 4 channels Output at 2Ω 400W RMS × 4 channels Bridged Output at 4Ω 800W RMS × 2 channels Frequency Response 10Hz–20kHz Signal-to-Noise Ratio Greater than 95dB Efficiency at 4Ω 88% Damping Factor 210 Total Harmonic Distortion 0.01% Input Range 0.2–6V Crossover Modes LPF / HPF / FULL Crossover Range 40Hz–2kHz Minimum Impedance 2Ω stereo / 4Ω bridged Power Input Terminal 4-AWG Published External Fuse 140A Cooling Fan Yes Dimensions 7.32 × 4.72 × 2 inches / 186 × 120 × 52mm Fuse and wiring verification: Confirm that the supplied 4-AWG power kit, fuse holder and installed fuse match the amplifier’s published current and protection requirements before operating the system. DS18 PRO-HY6.4MSL Hybrid Fairing Speakers Each PRO-HY6.4MSL combines a shallow 6.5-inch midrange loudspeaker with a built-in 1-inch titanium compression driver. This two-way hybrid arrangement provides both midrange projection and high-frequency output from one speaker assembly. 150W RMS Each included speaker is rated for 150 watts RMS and 300 watts maximum. 4-Ohm Impedance Each speaker presents a nominal 4-ohm load to its dedicated amplifier channel. Hybrid Two-Way Design A built-in titanium compression driver supplies high-frequency output without a separate tweeter location. Shallow Mounting Depth The 2.82-inch mounting depth supports tight motorcycle fairing installations. IP65 Rated Water-resistant construction and a protected grille support powersports use. 140Hz High-Pass Reference DS18 publishes 140Hz as the recommended high-pass crossover reference. Speaker Model DS18 PRO-HY6.4MSL Quantity Included Two speakers / one pair Nominal Size 6.5 inches / 165.1mm Nominal Impedance 4Ω per speaker Power Handling 150W RMS / 300W maximum per speaker Sensitivity 93dB, 1W / 1m Frequency Response 100Hz–20kHz Recommended High-Pass Crossover 140Hz Speaker Design Two-way shallow hybrid loudspeaker Midrange Voice Coil 1.5 inches / 38.6mm Compression Driver 1-inch titanium diaphragm with neodymium magnet Cone Material Water-resistant treated paper Weather Rating IP65 Front Mount Cutout 5.6 inches / 142mm Mounting Depth 2.82 inches / 72mm Protective Grille Included with each speaker Check fairing clearance: Half-inch spacers are included, but additional pod modification, magnet-cap clearance work or other installation adjustments may still be required depending on the exact motorcycle and factory enclosure. NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H converts the compatible factory Harley-Davidson A2B radio signal into eight channels of analog RCA output for the DS18 amplifier and future system expansion. Eight Analog Outputs Supplies eight channels of low-level analog RCA output at up to 5 volts RMS. Factory Control Retention Retains compatible factory volume, balance, fader and radio EQ functions. Direct A2B Integration Interfaces directly with the compatible factory A2B data and audio system. Designed for compatible late-model Harley A2B audio systems Eight-channel analog RCA output Up to 5-volt RMS output Factory volume retention Factory balance and fader retention Factory EQ preset retention where supported No replacement aftermarket radio required No built-in system DSP: This package uses the standard ZEN-H interface and the conventional DS18 ION1600.4D amplifier. Advanced equalization, time alignment and output limiting require a separately added compatible DSP. Power Wiring and Speaker Installation 4-AWG Amplifier Wiring The included power kit supplies the heavy-gauge power and ground foundation required for the ION1600.4D amplifier. Half-Inch Speaker Spacers The supplied spacers provide additional fairing clearance for the shallow hybrid speakers. Disconnect the motorcycle battery before installation. Mount the amplifier securely with adequate ventilation. Install appropriate fuse protection close to the battery. Protect wiring from steering movement, heat and sharp edges. Use clean and secure battery and chassis connections. Confirm speaker depth and spacer clearance before assembly. Verify speaker polarity before reinstalling the fairing. Inspect battery and charging-system condition before high-output use. Gain and Crossover Setup Proper setup is critical because the ION1600.4D can produce more continuous power at 4 ohms than each included PRO-HY6.4MSL is rated to handle. Connect one front speaker to each of two amplifier channels. Do not bridge the amplifier channels for the included speakers. Configure the active channels for high-pass operation. Use 140Hz as the manufacturer’s published high-pass reference. Adjust the final crossover for the fairing and desired output. Set gain using measured clean output rather than by ear. Do not use amplifier gain as a volume control. Monitor the clipping indicator during setup. Reduce output immediately if distortion or mechanical noise occurs. Professional setup recommended: Incorrect gain or crossover settings can damage the speakers even when the system appears to play normally at moderate volume. Future Rear-Speaker Expansion Two unused amplifier channels and additional NAV-TV RCA outputs provide a path for a future rear-speaker upgrade. Rear expansion must be designed around compatible speaker impedance, RMS power handling, mounting depth, wiring and crossover requirements. Already Available Two unused amplifier channels Additional NAV-TV RCA outputs Four-channel amplifier crossover controls 4-AWG amplifier power foundation Required for Expansion Compatible rear speakers Saddlebag lids, adapters or speaker pods Rear-speaker wiring and connectors Correct impedance and RMS-power matching Final crossover and gain setup Rear equipment is not included: This remains a two-speaker audio system until compatible rear speakers, mounting components and wiring are purchased and installed. Complete System Specifications System Type Two-speaker plug-and-play motorcycle audio system Motorcycle Options Road Glide or Street Glide Vehicle Application Compatible 2023.5 and newer Harley-Davidson A2B applications Amplifier DS18 ION1600.4D four-channel Class-D amplifier Amplifier Output at 4Ω 240W RMS × 4 channels Included Speakers Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers Speaker Impedance 4Ω per speaker Speaker Power Handling 150W RMS / 300W maximum per speaker Loaded Amplifier Channels Two channels at 4Ω each Available Amplifier Channels Two Factory Signal Interface NAV-TV ZEN-H A2B interface NAV-TV Output Eight-channel analog RCA at up to 5V RMS Power Wiring 4-AWG amplifier power installation kit Speaker Spacers Half-inch spacers included Built-In DSP No Rear Speakers Included No Shopify Option Choose Road Glide or Street Glide Current Listed Lead Time Approximately 5–10 business days Fitment and Ordering Notes Submit complete motorcycle information: Confirm the year, exact model, trim, Road Glide or Street Glide fairing, factory radio, factory amplifier, A2B configuration and current speaker setup before ordering. Select Road Glide or Street Glide before adding the kit to the cart. The package includes two front fairing speakers. Each included speaker has a nominal 4-ohm impedance. Two amplifier channels remain available for future expansion. The package uses NAV-TV factory A2B integration. The amplifier does not include built-in DSP. Half-inch speaker spacers are included. Additional fairing modification may still be required. Correct gain and high-pass crossover setup are required. Rear speakers and rear mounting components are not included. Professional installation and system setup are recommended. Best For Compatible 2023.5+ Harley-Davidson audio upgrades 2024+ Road Glide front-speaker upgrades 2024+ Street Glide front-speaker upgrades Factory Skyline radio and A2B audio integration High-output two-speaker fairing systems Riders planning to add saddlebag speakers later Professional motorcycle audio installations Related Motorcycle Audio Categories 2023.5+ Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Motorcycle Amplifiers Signal and Amplifier Support Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Motorcycle Audio Batteries Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries 2023.5+ Harley 2-Speaker Audio System FAQ How many speakers are included? The system includes two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers for the front fairing. What impedance are the included speakers? Each included speaker has a nominal impedance of 4 ohms. How much power can each speaker handle? Each PRO-HY6.4MSL is rated for 150 watts RMS and 300 watts maximum. How much power does the amplifier produce at 4 ohms? The ION1600.4D produces up to 240 watts RMS on each of its four channels at 4 ohms. Is the amplifier too powerful for the speakers? The amplifier can produce more continuous power than each speaker is rated to handle. It can be used safely when gain, high-pass crossover and maximum clean output are configured correctly. Are all four amplifier channels used? No. Two channels power the supplied speakers. Two channels remain available for a compatible future rear-speaker pair. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley A2B signal into analog RCA outputs that can be connected to the aftermarket amplifier. Does the NAV-TV interface retain factory controls? It retains compatible factory volume, balance, fader and supported EQ functions while integrating the aftermarket amplifier. Does this package include DSP? No. The standard ZEN-H interface and ION1600.4D amplifier do not provide advanced system DSP. A compatible external processor can be added when equalization, time alignment or output limiting is needed. Are the speakers weather resistant? Yes. The speakers are IP65 rated and use water-resistant cones and protective grille cloth. They should not be described as submersible. Can rear speakers be added later? Yes. The two unused amplifier channels can power a properly matched rear-speaker pair after the required speakers, wiring, mounting hardware and system setup are added. Are speaker spacers included? Yes. The package includes half-inch spacers to provide additional fairing speaker clearance. Will the speakers fit without modification? Fitment depends on the motorcycle and factory speaker enclosure. Additional spacing, pod modification or clearance work may still be required. Are saddlebag speakers included? No. This is a two-speaker system. Rear speakers, saddlebag mounting parts and rear-speaker wiring must be purchased separately. How long does the kit take to fulfill? The current listed lead time is approximately 5–10 business days, subject to component availability and motorcycle configuration. Need Help Matching This 2023.5+ Harley Audio System? Garage Bagger Stereo can help verify Road Glide or Street Glide fitment, speaker impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring, and factory A2B signal integration before installation. Installation Services Request a Custom Build -
Sale
2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada / SounDigital
Vendor:SounDigital XP Series2023.5+ CVO / 2024+ ROAD GLIDE & STREET GLIDE 2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System Upgrade a compatible late-model Harley-Davidson with two high-output Cicada Audio pro coaxial horn speakers, a compact SounDigital four-channel amplifier, NAV-TV factory A2B integration and the primary amplifier power wiring required for installation. Choose the 4-ohm CHX65.4 version for a bridged two-speaker system or the 2-ohm CHX65.2 version for a stereo configuration that leaves two amplifier channels available for a properly matched future rear-speaker upgrade. Compare 2Ω and 4Ω Options See Everything Included Complete Two-Speaker Audio System Compatible late-model Harley A2B applications Road Glide and Street Glide fitment support Cicada CHX65.2 or CHX65.4 speaker pair 300 watts RMS per speaker Built-in coaxial horn tweeters External 12dB passive crossovers SounDigital XP 800.4 four-channel amplifier Up to 400 watts RMS × 2 bridged at 4Ω Up to 200 watts RMS × 4 at 2Ω NAV-TV ZEN-H A2B integration Cicada Audio OFC amplifier power wiring All-weather motorcycle speaker construction Complete 2-Speaker Plug-and-Play System Overview This Garage Bagger Stereo package combines a pair of Cicada Audio CHX65 pro coaxial horn speakers, a SounDigital XP 800.4 amplifier, NAV-TV ZEN-H factory signal integration and an amplifier power kit into one late-model Harley-Davidson audio system. Each CHX65 combines a Carbon Matrix Composite mid-bass cone with an aluminum-diaphragm horn tweeter. The supplied external crossover divides the signal between the mid-bass and tweeter sections while optional resistor packs allow the tweeter output to be reduced when required. The product is offered with either 2-ohm or 4-ohm speakers. The correct option depends on whether the system will remain a high-output two-speaker configuration or be expanded into a four-speaker system. Plug-and-play clarification: The NAV-TV interface provides plug-and-play integration with a compatible factory A2B audio system. The complete installation still requires amplifier mounting, battery wiring, fuse protection, crossover mounting, speaker wiring and proper gain and crossover setup. Harley-Davidson Fitment 2023.5+ Harley CVO Intended for compatible late-production CVO motorcycles using the Skyline infotainment and factory A2B audio platform. 2024+ Road Glide Supports compatible redesigned Road Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements. 2024+ Street Glide Supports compatible redesigned Street Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements. Exact motorcycle verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, A2B configuration and existing audio modifications before ordering. Choose the Correct Speaker Impedance 4Ω CHX65.4 Configuration The two 4-ohm speakers are designed to use the SounDigital amplifier’s bridged channel pairs. One speaker connects to channels 1/2 and the other connects to channels 3/4. Two CHX65.4 speakers 4Ω nominal impedance per speaker 300W RMS per speaker Up to 400W RMS available per bridged channel pair All four amplifier channels are used Best for a dedicated high-output two-speaker system 2Ω CHX65.2 Configuration Each 2-ohm speaker connects to its own amplifier channel. Two amplifier channels remain available for a compatible future rear-speaker pair. Two CHX65.2 speakers 2Ω nominal impedance per speaker 300W RMS per speaker Up to 200W RMS available per active channel Two amplifier channels remain available Best for planned four-speaker expansion 4Ω Variant Speaker Model Cicada Audio CHX65.4 4Ω Amplifier Layout Two bridged channel pairs 4Ω Available Output 400W RMS × 2 bridged 2Ω Variant Speaker Model Cicada Audio CHX65.2 2Ω Amplifier Layout One speaker per amplifier channel 2Ω Available Output 200W RMS per active channel Unused Channels with 4Ω Variant None Unused Channels with 2Ω Variant Two 4Ω output must be limited: The amplifier can produce more bridged power than each CHX65.4 is rated to handle continuously. Correct gain, crossover and maximum clean-output setup are required. Everything Included in the Audio System Cicada CHX65 Speaker Pair One matched pair of 6.5-inch pro coaxial horn speakers in the selected 2-ohm or 4-ohm configuration. External Passive Crossovers Two custom 12dB vented crossover networks divide the amplifier output between each mid-bass cone and horn tweeter. Tweeter Attenuation Resistors Optional -3dB and -6dB resistor packs allow the high-frequency output to be reduced when required by the installation or tuning. SounDigital XP 800.4 Amplifier One compact full-range four-channel Class-D amplifier capable of stereo or bridged operation. NAV-TV ZEN-H A2B Interface Factory A2B interface supplying eight channels of analog RCA output for aftermarket amplifier integration. Cicada Audio OFC Power Kit Amplifier power and ground wiring with battery-side terminals, amplifier-side termination and fuse protection. Confirm the current physical bundle: Verify amplifier mounting, speaker spacers, adapter rings, RCA wiring and model-specific hardware before releasing the order. These parts are not listed in the original bundle description. Cicada Audio CHX65 Pro Coaxial Horn Speakers The CHX65 is designed for riders who need strong vocal projection, detailed high-frequency output and an all-weather speaker construction suitable for open-air motorcycle use. 300W RMS Each speaker is rated for 300 watts RMS and 600 watts maximum. Coaxial Horn Design A high-output mid-bass cone and horn tweeter share one compact basket. All-Weather Construction Waterproofing and UV protection support motorcycle installations. Carbon Matrix Cone The lightweight, rigid cone is engineered for efficient projection. Neodymium Motor The compact N35SH motor reduces weight while maintaining output. External Crossover The supplied 12dB network protects and filters the horn tweeter. Available Models CHX65.2 and CHX65.4 Quantity Included Two speakers / one pair Speaker Size 6.5 inches Available Impedance 2Ω or 4Ω per speaker Power Handling 300W RMS / 600W maximum per speaker Mid-Bass Voice Coil 2 inches / 51mm Tweeter Voice Coil 1.4 inches / 35.56mm Cone Carbon Matrix Composite Tweeter Diaphragm Aluminum Crossover External 12dB vented passive crossover Tweeter Attenuation Optional -3dB and -6dB resistor packs Magnet Neodymium Sensitivity 92dB Frequency Response 70Hz–20kHz ±4dB Mounting Depth 2.64 inches / 67mm Mounting Diameter 5.67 inches / 144mm Protect the external crossovers: Mount both crossover networks where they remain secure, ventilated and protected from direct water exposure, steering movement and sharp edges. SounDigital XP 800.4 Four-Channel Amplifier The SounDigital XP 800.4 is a compact full-range Class-D amplifier that can operate four stereo channels or two bridged channel pairs. Its flexible layout supports both CHX65 impedance options. 132W × 4 at 4Ω Four-channel output for compatible 4-ohm stereo applications. 200W × 4 at 2Ω Ideal for the 2-ohm speaker option and planned four-speaker systems. 400W × 2 Bridged High-output bridged configuration for the 4-ohm speaker option. Full-Range Operation Supports the frequency range required by coaxial horn speakers. Variable Crossovers Adjustable high-pass and low-pass filtering from 45Hz to 850Hz. Compact Installation The small chassis supports space-conscious motorcycle installations. Amplifier Model SounDigital XP 800.4 Amplifier Type Four-channel full-range Class-D amplifier Output at 4Ω 132W RMS × 4 Output at 2Ω 200W RMS × 4 Bridged Output at 4Ω 400W RMS × 2 Operating Voltage 9V–16V Music Current Draw 35A Maximum Current Draw 70A Recommended Fuse 40A Frequency Response 5Hz–34kHz Signal-to-Noise Ratio 91dB High-Pass Crossover 45Hz–850Hz Low-Pass Crossover 45Hz–850Hz THD + Noise 0.1% at 10% rated power Published Power Cable Recommendation 7-AWG Published Speaker Cable Recommendation 15-AWG Dimensions 5.7 × 4.4 × 2 inches / 14.5 × 11.3 × 5.1cm NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the SounDigital amplifier while retaining supported factory audio controls. Eight RCA Outputs Provides eight channels of low-level analog audio output. Up to 5V RMS Supplies a strong preamplifier signal for compatible equipment. Factory Control Retention Retains supported volume, fader, balance, chimes and EQ presets. Standard ZEN-H configuration: The standard ZEN-H provides A2B conversion but does not include the professional eight- channel DSP found in the ZEN-H PRO. Add an external DSP when advanced equalization, time alignment or limiting is required. Power Wiring and Electrical Requirements The original bundle lists a Cicada Audio OFC 8-gauge power kit. The power and ground wiring must be installed with secure terminals, short protected routing and the correct fuse near the battery. Disconnect the motorcycle battery before installation. Mount the fuse holder close to the positive battery connection. Use a clean, secure power and ground connection. Protect wiring from heat, steering movement and sharp edges. Confirm the final fuse value before powering the amplifier. Verify cable size against the amplifier, cable length and installation. Inspect battery and charging-system condition before high-output use. Power-cable verification: The bundle currently lists an 8-AWG kit, while current SounDigital documentation lists 7-AWG as the XP 800.4 recommendation. Confirm the final cable and fuse configuration before installation or fulfillment. Installation Instructions and Resources Speaker and Crossover Setup Cicada Coaxial Horn Speaker Manual Speaker Polarity Check Fairing and A2B Installation Road Glide Fairing Removal Street Glide Fairing Removal A2B T-Harness Installation Guide Professional Installation Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Amplifier Installation Parts Complete System Specifications System Type Two-speaker plug-and-play motorcycle audio system Primary Applications 2023.5+ CVO and compatible 2024+ Road Glide or Street Glide Speaker Options Cicada CHX65.2 or CHX65.4 Speaker Count Two speakers / one pair Speaker Power Handling 300W RMS / 600W maximum per speaker Amplifier SounDigital XP 800.4 4Ω Variant Configuration 400W RMS × 2 bridged 2Ω Variant Configuration 200W RMS per active stereo channel Factory Signal Interface NAV-TV ZEN-H A2B interface ZEN-H Output Eight analog RCA channels at up to 5V RMS Power Wiring Cicada Audio OFC 8-AWG power and ground kit Built-In DSP No Rear Speakers Included No Shopify Variants Choose 2Ω or 4Ω speakers Fitment and Ordering Notes Submit complete motorcycle information: Confirm the year, model, trim, factory radio, factory amplifier, A2B configuration, desired speaker impedance and future rear-speaker plans. Select the 2Ω or 4Ω speaker option before adding the kit to the cart. The package includes two front fairing speakers. The 4Ω version uses both bridged amplifier channel pairs. The 2Ω version uses two individual amplifier channels. The 2Ω configuration leaves two channels available for expansion. The external passive crossovers must be installed and protected. The NAV-TV ZEN-H supplies factory A2B signal integration. The system does not include built-in DSP. Confirm speaker depth, grille clearance and fairing fitment. Confirm amplifier mounting hardware before installation. Correct gain and high-pass crossover setup are required. Professional installation and tuning are recommended. Related Motorcycle Audio Categories Late-Model Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers Shop Cicada Audio Amplifier and Signal Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada and SounDigital 2-Speaker System FAQ How many speakers are included? The system includes one pair of Cicada CHX65 6.5-inch pro coaxial horn speakers. Can I choose 2-ohm or 4-ohm speakers? Yes. The product includes separate CHX65.2 and CHX65.4 Shopify variants. Which option is best for a two-speaker system? The 4-ohm version can use the amplifier’s two bridged channel pairs for a dedicated high-output two-speaker configuration. Which option is best when adding rear speakers later? The 2-ohm version uses one amplifier channel per front speaker and leaves two channels available for a compatible rear-speaker pair. How much power do the CHX65 speakers handle? Each CHX65.2 or CHX65.4 is rated for 300 watts RMS and 600 watts maximum. How much power does the amplifier produce? The XP 800.4 produces 132 watts RMS × 4 at 4 ohms, 200 watts RMS × 4 at 2 ohms or 400 watts RMS × 2 bridged at 4 ohms. Are crossovers included? Yes. Each speaker uses an external 12dB crossover with optional tweeter-attenuation resistor packs. Does the system include factory A2B integration? Yes. The package includes the standard NAV-TV ZEN-H A2B interface. Does the ZEN-H include DSP? No. The standard ZEN-H converts the factory A2B signal to analog RCA output but does not include the DSP functions found in the ZEN-H PRO. Is the power kit included? Yes. The original bundle lists a Cicada Audio OFC 8-gauge amplifier power and ground kit. Are rear speakers included? No. This is a two-speaker system. Rear speakers, mounting components and rear-speaker wiring must be purchased separately. Are the speakers weather resistant? Yes. Cicada describes the CHX65 series as an all-weather design with waterproofing and UV protection. Is professional installation recommended? Yes. The system requires A2B integration, amplifier power wiring, secure crossover placement, correct impedance configuration and measured gain and crossover setup. Need Help Matching This Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, 2-ohm or 4-ohm impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring, crossover placement and factory A2B signal integration before installation. Installation Services Request a Custom BuildSale -
2023.5+ Harley-Davidson 2-Speaker Audio System | Ground Zero / SounDigital
Vendor:SounDigital XP Series2023.5 CVO / 2024+ HARLEY-DAVIDSON AUDIO 2023.5+ Harley-Davidson 2-Speaker Audio System | Ground Zero / SounDigital Upgrade a compatible late-model Harley-Davidson fairing with a complete two-speaker system built around Ground Zero GZCF 6.5SPL-NEO coaxial speakers, a SounDigital XP 800.4 amplifier, NAV-TV factory A2B integration and motorcycle-ready OFC power wiring. The included 4-ohm speakers operate from two individual amplifier channels, providing clean front-fairing output while preserving two amplifier channels for a properly matched future expansion. See Everything Included View Channel Configuration Complete Front Fairing System Compatible late-model Harley-Davidson applications Ground Zero GZCF 6.5SPL-NEO speaker pair 6.5-inch two-way coaxial construction 4-ohm impedance per speaker 100 watts RMS per speaker Neodymium speaker motors Integrated 1.1-inch Mylar tweeters GBS weather treatment for motorcycle use SounDigital XP 800.4 four-channel amplifier NAV-TV ZEN-H factory A2B integration Cicada Audio HDPG8K OFC power kit Factory-amplifier replacement configuration Two amplifier channels available for expansion Ground Zero and SounDigital Harley Audio Upgrade This Garage Bagger Stereo package combines the primary components required to replace the active factory-amplifier signal path and power a new pair of high-efficiency fairing speakers from the factory Harley-Davidson infotainment system. The Ground Zero GZCF 6.5SPL-NEO is a compact two-way coaxial speaker that combines a fiber-reinforced paper cone, high-excursion surround, neodymium motor and integrated Mylar tweeter in one 6.5-inch speaker assembly. The SounDigital XP 800.4 supplies four amplified channels. In the standard two-speaker configuration, one channel powers the left speaker and one channel powers the right speaker. The remaining two channels can support a properly matched future rear-speaker upgrade. Plug-and-play clarification: The A2B interface and integration hardware simplify connection to the factory radio. The installation still requires fairing removal, factory-amplifier removal or bypass, amplifier mounting, battery wiring, speaker installation and proper gain and crossover setup. Harley-Davidson Fitment 2023.5 CVO Models Intended for compatible late-production CVO motorcycles using the redesigned infotainment and factory A2B audio architecture. 2024+ Road Glide Supports compatible redesigned Road Glide motorcycles after confirming the factory radio, amplifier, speaker mounting and fairing-clearance requirements. 2024+ Street Glide Supports compatible redesigned Street Glide motorcycles after confirming the factory radio, amplifier, speaker mounting and fairing-clearance requirements. Exact fitment verification required: Confirm the motorcycle year, model, trim, factory radio, factory amplifier, factory speaker locations and existing audio modifications before ordering. Everything Included in the Audio System Ground Zero GZCF 6.5SPL-NEO Pair Two 6.5-inch, 4-ohm coaxial speakers rated for 100 watts RMS and 250 watts maximum per speaker. Garage Bagger Stereo Weather Treatment The included speaker pair receives added weather treatment for motorcycle fairing use before shipment. SounDigital XP 800.4 Amplifier One compact four-channel full-range amplifier providing up to 132 watts RMS per channel at 4 ohms. NAV-TV ZEN-H A2B Interface Converts the compatible factory Harley-Davidson A2B signal into low-level analog RCA outputs for the aftermarket amplifier. Cicada Audio HDPG8K Power Kit OFC 8-AWG amplifier power and ground installation kit configured for Harley-Davidson motorcycle audio installations. Factory-Amplifier Replacement Configuration The system is designed for an installation in which the stock amplifier is removed or bypassed from the active signal path. Confirm installation hardware: Verify the appropriate amplifier rack, speaker adapters, output wiring, RCA connections and model-specific mounting hardware required for the exact motorcycle. Amplifier and Speaker Configuration Front Speaker Channels One 4-ohm Ground Zero speaker operates from one amplifier channel. Two amplifier channels power the complete left and right fairing speaker pair. Future Expansion Channels Two amplifier channels remain available for a properly matched pair of rear, lid or lower-fairing speakers. Speaker Count Two speakers / one pair Speaker Model Ground Zero GZCF 6.5SPL-NEO Speaker Impedance 4Ω per speaker Speaker Power Handling 100W RMS / 250W maximum per speaker Amplifier Output at 4Ω 132W RMS × 4 Front Channels Used Two Available Amplifier Channels Two Bridged Operation Required No Output setup required: The amplifier has more available continuous power than each speaker’s RMS rating. Set gain, high-pass filtering and maximum clean output using proper test equipment. Ground Zero GZCF 6.5SPL-NEO Coaxial Speakers The GZCF 6.5SPL-NEO is engineered for efficient full-range output from a compact 6.5-inch platform. Its integrated tweeter eliminates the need for a separate fairing-mounted high-frequency driver. 100W RMS Each speaker handles 100 watts RMS and 250 watts maximum. 4-Ohm Impedance The fixed 4-ohm load works with one individual XP 800.4 channel. 93 dB Efficiency High efficiency supports strong output from practical motorcycle amplifier power. Neodymium Motor Compact high-energy motor construction reduces depth and weight. Integrated Mylar Tweeter A 1.1-inch coaxial tweeter reproduces upper-frequency detail from the same speaker location. GBS Weather Treatment The speaker pair is treated by Garage Bagger Stereo for motorcycle fairing use. Speaker Model GZCF 6.5SPL-NEO Quantity Included Two speakers / one pair Speaker Type Two-way coaxial loudspeaker Nominal Diameter 6.5 inches / 165 mm Nominal Impedance 4Ω per speaker Power Handling 100W RMS / 250W maximum per speaker Efficiency 93 dB Frequency Response 70 Hz–20 kHz Main Cone Fiber-reinforced pressed-paper cone Surround High-excursion waved textile surround Motor High-efficiency neodymium motor Basket Resonance-resistant steel basket Tweeter 1.1-inch / 28 mm Mylar tweeter Internal Crossover 6 dB per octave high-pass filtering Crossover Frequency 5 kHz Mounting Diameter 5.71 inches / 145 mm Mounting Depth 2.68 inches / 68 mm Verify fairing clearance: Confirm the mounting diameter, speaker depth, factory enclosure, grille clearance and any required adapter or spacer before installation. SounDigital XP 800.4 Four-Channel Amplifier The XP 800.4 is a compact full-range amplifier designed to provide four independently amplified channels from a motorcycle-friendly chassis. 132W × 4 at 4Ω Published output for the included Ground Zero speaker load. 200W × 4 at 2Ω Supports compatible future 2-ohm speaker configurations. 400W × 2 Bridged Bridged power is available for properly matched 4-ohm applications, but is not required for this speaker pair. Full-Range Response Wide frequency response supports coaxial, component and mid-bass motorcycle speakers. Adjustable Crossovers Variable high-pass and low-pass controls support speaker protection. Compact Chassis The small amplifier footprint supports fairing-based installation. Amplifier Model SounDigital XP 800.4 Amplifier Type Four-channel full-range amplifier Power at 4Ω 132W RMS × 4 Power at 2Ω 200W RMS × 4 Bridged Power at 4Ω 400W RMS × 2 Operating Voltage 9V–16V Music Current Draw 35A Maximum Current Draw 70A Published Recommended Fuse 40A Frequency Response 5 Hz–34 kHz Signal-to-Noise Ratio 91 dB High-Pass Crossover 45 Hz–850 Hz Low-Pass Crossover 45 Hz–850 Hz THD + Noise 0.1% at 10% rated power Published Power-Cable Recommendation 7-AWG OFC Published Speaker-Cable Recommendation 15-AWG Dimensions Approximately 5.7 × 4.4 × 2 inches Power wiring verification: Confirm the final power cable, ground cable, fuse holder and installed fuse against current SounDigital guidance before powering the amplifier. NAV-TV ZEN-H Factory A2B Integration The NAV-TV ZEN-H allows the compatible factory Harley-Davidson radio to supply low-level audio to the SounDigital amplifier without replacing the factory infotainment system. A2B Signal Conversion Converts the compatible factory digital audio signal into analog RCA outputs. Eight RCA Channels Provides up to eight analog output channels for aftermarket audio equipment. Factory Control Retention Retains supported volume, balance, fader, chimes, voice calls and factory EQ functions. Interface NAV-TV ZEN-H Manufacturer SKU NTV-KIT1021 Factory Input Harley-Davidson A2B digital audio Analog Outputs Eight RCA channels Maximum RCA Output Up to 5V RMS ZEN-H clarification: This package uses the standard NAV-TV ZEN-H for factory A2B conversion. It does not include the additional processing functions of the ZEN-H PRO. Power Wiring and Electrical Setup The included Cicada Audio HDPG8K provides an OFC power and ground foundation for the amplifier installation. Disconnect the motorcycle battery before installation. Install primary fuse protection close to the positive battery terminal. Use secure, corrosion-resistant battery and ground connections. Protect wiring from steering movement, heat and sharp edges. Keep signal wiring separated from high-current power wiring. Confirm charging-system and battery condition before high-output use. Verify the final cable size and fuse configuration before powering the amplifier. Electrical verification required: The included bundle lists an 8-AWG Cicada Audio power kit, while SounDigital publishes a 7-AWG minimum recommendation. Verify the completed installation against current amplifier requirements. Gain and Crossover Setup Connect one 4-ohm Ground Zero speaker to each front amplifier channel. Do not bridge the included speaker pair in the standard configuration. Configure protective high-pass filtering for both front speakers. Set gain using measured clean output rather than by ear. Limit amplifier output to the speakers’ continuous-power capability. Confirm left and right speaker polarity before reinstalling the fairing. Do not use amplifier gain as a volume control. Reduce output immediately if distortion or mechanical noise occurs. Professional setup recommended: Correct gain, high-pass filtering and output-voltage settings protect the speakers and improve long-term reliability. Installation Instructions and Resources Ground Zero Speaker Information Ground Zero GZCF 6.5SPL-NEO Owner’s Manual Speaker Polarity Check Fairing and A2B Installation Road Glide Fairing Removal Street Glide Fairing Removal Late-Model Harley A2B T-Harness Installation Guide Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Complete System Specifications System Type Two-speaker late-model Harley-Davidson fairing audio system Primary Applications Compatible 2023.5 CVO and 2024+ Road Glide or Street Glide Speakers Two Ground Zero GZCF 6.5SPL-NEO coaxial speakers Speaker Impedance 4Ω per speaker Speaker Power Handling 100W RMS / 250W maximum per speaker Amplifier SounDigital XP 800.4 Amplifier Output at 4Ω 132W RMS × 4 Front Amplifier Channels Used Two Available Amplifier Channels Two Factory Signal Integration NAV-TV ZEN-H A2B interface Power Wiring Cicada Audio HDPG8K OFC installation kit Speaker Treatment Garage Bagger Stereo weather treatment Factory Amplifier Removed or bypassed from the active signal path Rear Speakers Included No Shopify Variants None Fitment and Ordering Notes Submit complete motorcycle information: Confirm the motorcycle year, exact model, trim, factory radio, factory amplifier, speaker locations and current audio modifications. The system includes two fixed 4-ohm Ground Zero speakers. Each front speaker uses one individual amplifier channel. The standard configuration does not bridge the speakers. Two amplifier channels remain available for compatible expansion. Rear speakers and rear mounting components are not included. Verify speaker mounting diameter and depth before installation. Verify the correct Road Glide or Street Glide amplifier rack. Confirm all required adapters and speaker-output wiring. Verify the final power cable and fuse configuration. Correct gain and high-pass setup are required. Professional installation and tuning are strongly recommended. Current Shipping Promotion Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply. Related Motorcycle Audio Categories Late-Model Harley Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Motorcycle Speakers Motorcycle Amplifiers Amplifier and Signal Support Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Motorcycle Audio Batteries Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Ground Zero and SounDigital Audio System FAQ Which speakers are included? The package includes one pair of Ground Zero GZCF 6.5SPL-NEO 6.5-inch two-way coaxial speakers. What impedance are the speakers? Each included speaker has a nominal impedance of 4 ohms. How much power does each speaker handle? Each speaker is rated for 100 watts RMS and 250 watts maximum. Are the speakers weatherproof? Garage Bagger Stereo supplies the speakers with added weather treatment for motorcycle fairing use. Which amplifier is included? The system includes the SounDigital XP 800.4 four-channel amplifier. How much power does the amplifier produce at 4 ohms? The XP 800.4 produces 132 watts RMS per channel at 4 ohms. Are the front speakers bridged? No. The standard configuration uses one individual amplifier channel for each 4-ohm front speaker. Are two amplifier channels still available? Yes. Two channels remain available for a properly matched future speaker expansion. What does the NAV-TV ZEN-H do? It converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the SounDigital amplifier. Does the stock amplifier remain active? No. This package is designed for a factory-amplifier replacement installation in which the stock amplifier is removed or bypassed from the active audio path. Are rear speakers included? No. Rear speakers, wiring and mounting components must be selected separately. Is professional installation recommended? Yes. The installation requires A2B signal integration, factory amplifier removal or bypass, battery wiring, amplifier mounting and measured gain and crossover setup. Need Help Matching This Harley Audio System? Garage Bagger Stereo can help verify motorcycle fitment, 4-ohm impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring and factory A2B signal integration before installation. Installation Services Request a Custom Build -
Cicada Audio 24FLXCXX-4X2SG 500W 2-Speaker System for 2024+ Street Glide
Vendor:Cicada AudioCOMPLETE 2024+ STREET GLIDE FRONT AUDIO SYSTEM Cicada Audio 24FLXCXX-4X2SG 500W 2-Speaker Audio System The Cicada Audio 24FLXCXX-4X2SG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Street Glide motorcycles. It combines a compact four-channel amplifier, two high-efficiency 2-ohm Pro Coaxial speakers, factory A2B radio integration, Street Glide-specific mounting hardware and a rear-output harness for future system expansion. See Everything Included View Speaker Load Front Audio with Rear Expansion Support Designed for compatible 2024+ Street Glide motorcycles FLX500.4 compact four-channel Class-D amplifier 125 watts RMS × 4 channels at 2Ω Two CXX65.2 6.5-inch Pro Coaxial speakers Both included speakers are 2Ω Street Glide fairing grilles included NAV-TV ZEN-H A2B factory-radio integration Street Glide amplifier rack included 8-AWG amplifier power kit included Rear-output harness included for future expansion 24FLXCXX-4X2SG Complete System Overview This Cicada Audio package upgrades the two factory Street Glide fairing speaker locations while installing the four-channel amplifier, power wiring, A2B interface and output wiring needed for a larger system. One pair of CXX65.2 6.5-inch Pro Coaxial speakers installs behind the included Cicada-branded Street Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel. The FLX500.4 provides four amplified channels. The supplied configuration uses two channels for the front speaker pair, while the included 24HDRO harness prepares the other two channels for a separately purchased rear-speaker upgrade. Standard Non-DSP System Configuration FLX500.4 Power Amplifier This package uses the standard FLX500.4 four-channel amplifier. It delivers compact Class-D power but does not include an integrated digital signal processor. NAV-TV ZEN-H A2B Integration The included ZEN-H interface extracts the factory digital A2B audio signal and connects it directly to the Cicada amplifier through the included vehicle-specific harness. No built-in DSP: This package does not provide DSP equalization, time alignment or digital output limiting. Those functions require a separately purchased compatible digital signal processor. Speaker Impedance and Amplifier Channel Load Front Left: 2Ω One CXX65.2 speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load. Front Right: 2Ω The second CXX65.2 speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load. Rear Channels: Available No rear speakers are included. The remaining two amplifier channels can power a properly matched future rear-speaker system. Included Speaker Count Two speakers / one pair Included Speaker Model CXX65.2 Speaker Impedance 2Ω per speaker Supplied Configuration One 2Ω speaker on each of two amplifier channels Remaining Amplifier Channels Two channels available for compatible rear-speaker expansion Supplied system load: Only two amplifier channels are loaded by the included speakers. Each loaded channel operates at a nominal 2 ohms. Rear-speaker impedance must be matched correctly before connecting additional speakers. Everything Included in the Complete System FLX500.4 — Four-Channel Amplifier One compact Class-D amplifier rated for 125 watts RMS × 4 channels at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. CXX65.2 — 6.5" Pro Coaxial Speakers One pair of 2-ohm CXX65.2 speakers for the Street Glide fairing. Each speaker is rated for 100 watts RMS and uses a Kevlar cone, integrated PEI tweeter and built-in 6dB crossover. 24CHDSGG — Street Glide Fairing Grilles One pair of Cicada Audio-branded aluminum fairing grilles designed specifically for compatible 2024 and newer Street Glide motorcycles. 24HDAR-SG — Street Glide Amplifier Rack Black-anodized aluminum amplifier rack that uses compatible factory amplifier mounting locations and includes predrilled FLX mounting points and installation hardware. HDPG8K — 8-AWG Amplifier Power Kit Includes six-foot power and ground cables with black braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and 60-, 80- and 100-amp fuses. 24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned, positive-locking Molex connections. 24HDRO — Rear Output Speaker Harness Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for future rear-speaker installation. Rear-speaker ready: The rear-output harness and two additional amplifier channels are included. Rear speakers, speaker lids, saddlebag adapters and rear mounting hardware are sold separately. FLX500.4 Amplifier Power 125W × 4 at 2Ω The amplifier produces up to 125 watts RMS on each of its four channels when operating at 2 ohms and 14.4 volts. 95W × 4 at 4Ω The amplifier also supports four-channel operation with compatible 4-ohm speakers. 250W × 2 Bridged The published bridged configuration is 250 watts RMS × 2 into compatible 4-ohm loads. Wide Input Range The 0.2V–12V gain range supports compatible factory-radio interfaces, aftermarket radios and external signal processors. Flexible Crossovers Selectable LPF, FULL and HPF modes provide 20Hz–20kHz adjustment with selectable 6, 12, 24 or 48dB-per-octave slopes. Compact Motorcycle Chassis The small aluminum chassis installs on the included Street Glide amplifier rack without consuming unnecessary fairing space. FLX500.4 Amplifier Specifications Amplifier Model FLX500.4 Amplifier Type Four-channel Class-D amplifier without built-in DSP Output at 4Ω 95W RMS × 4 channels at 14.4V Output at 2Ω 125W RMS × 4 channels at 14.4V Bridged Output at 4Ω 250W RMS × 2 channels at 14.4V Operating Voltage 9V–16V Music Current Draw 50A Maximum Current Draw 80A Recommended Fuse 50A Efficiency 80% Frequency Response 20Hz–20kHz ±3dB Signal-to-Noise Ratio 91dB A-weighted Damping Factor 200 Input Sensitivity 0.2V–12V Turn-On Modes REM / DC / VOX Crossover Modes LPF / FULL / HPF Crossover Range 20Hz–20,000Hz Crossover Slopes 6 / 12 / 24 / 48dB per octave Dimensions with Brackets 5.2 × 4.9 × 2.0 inches / 131 × 125 × 51mm Chassis Dimensions 4.0 × 4.9 × 2.0 inches / 104 × 125 × 51mm CXX65.2 Street Glide Fairing Speakers Speaker Model CXX65.2 Quantity Two speakers / one pair Speaker Type 6.5-inch high-performance Pro Coaxial speaker Nominal Impedance 2Ω per speaker Power Handling 100W RMS / 200W maximum per speaker Mid-Bass Voice Coil 1.4 inches / 35mm Tweeter Voice Coil 1 inch / 25mm Cone Kevlar Tweeter Dome PEI Magnet Neodymium Built-In Crossover 6dB Sensitivity 93dB Frequency Response 55Hz–20kHz ±3dB Mounting Depth 2.26 inches / 57mm Mounting Diameter 5.43 inches / 138mm Warranty Two-year manufacturer warranty Rear-Speaker-Ready System Design The FLX500.4 provides four amplifier channels, but the supplied system includes only the two front fairing speakers. Cicada includes the 24HDRO harness so a compatible rear-speaker pair can be added without replacing the amplifier or rebuilding the factory-radio interface. Included for Expansion Two additional amplifier channels 24HDRO rear-output harness Factory-style harness connections Long speaker-wire leads for saddlebag routing Not Included Rear saddlebag speakers Saddlebag speaker adapters Cut-in speaker-lid hardware Rear speaker grilles or pods Expansion planning: Added rear speakers must be compatible with the FLX500.4 amplifier’s supported impedance, available output and crossover configuration. Factory A2B Radio Integration The NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The included Cicada harness routes that signal directly into the FLX500.4 through correctly pinned Molex connections. Designed for compatible 2024+ Harley-Davidson A2B systems No cutting or splicing of the factory signal harness Positive-locking automotive-grade connections Direct integration with compatible Cicada Audio amplifiers Compact routing inside the Street Glide fairing Standard non-DSP system configuration Installation and System Setup Mount the amplifier securely on the included 24HDAR-SG rack. Use the included HDPG8K power and ground wiring kit. Use a correctly rated fuse installed near the battery connection. Use the included A2B interface and Cicada amplifier harness. Confirm speaker mounting depth and grille clearance before assembly. Set the amplifier high-pass filters for the CXX65.2 speakers. Set amplifier gain using clean measured output. Do not exceed the 100-watt RMS rating of the front speakers. Secure all wiring against vibration, heat and sharp edges. Professional installation and system setup are recommended. Complete System Specifications Complete System SKU 24FLXCXX-4X2SG Vehicle Application Compatible 2024 and newer Harley-Davidson Street Glide Amplifier FLX500.4 four-channel amplifier without built-in DSP Amplifier Output at 2Ω 125W RMS × 4 channels at 14.4V Included Speaker Count Two Pro Coaxial speakers Included Speakers Two CXX65.2 6.5-inch speakers Speaker Impedance 2Ω per included speaker Loaded Amplifier Channels Two channels at 2Ω each Rear Amplifier Channels Available for compatible future speakers Factory-Radio Interface NAV-TV ZEN-H A2B interface with Cicada harness Built-In DSP No Front Grilles 24CHDSGG Street Glide fairing grilles Power Wiring HDPG8K 8-AWG power and ground installation kit Rear Output Wiring 24HDRO plug-and-play harness Amplifier Rack 24HDAR-SG Street Glide amplifier rack Rear Speakers Included No Saddlebag Mounting Kit Included No Shopify Variants None Fitment and Ordering Notes Verify fitment: Confirm the exact Street Glide year, trim, factory radio, factory amplifier configuration, fairing speaker locations and electrical system before ordering. Designed for compatible 2024 and newer Street Glide motorcycles. The package includes two 2-ohm front speakers. The package does not include selectable speaker impedance options. Two amplifier channels power the included front speaker pair. The remaining two channels are available for future expansion. The rear-output harness is included. Rear speakers and saddlebag mounting components are not included. No saddlebag cutting is required for the supplied front-only system. Future rear installation requirements depend on the selected mounting system. The amplifier does not include built-in DSP. Professional installation and system setup are recommended. Best For Compatible 2024+ Street Glide front-speaker upgrades Riders starting with a two-speaker amplified system Factory A2B radios requiring aftermarket amplifier integration Efficient 2-ohm Pro Coaxial motorcycle speakers Systems using a compact standard four-channel amplifier Riders planning to add compatible rear speakers later Professional Street Glide audio installations Related Motorcycle Audio Categories Cicada and 2024+ Harley Audio Shop Cicada Audio 2023.5+ / 2024+ Harley Plug-and-Play Kits Shop Motorcycle Speakers System Support Motorcycle Amplifiers Motorcycle Amplifier Parts Motorcycle DSP and Signal Integration Installation Support Motorcycle Audio Installation in Taylors, SC Request a Custom Audio Build Motorcycle Audio Batteries Cicada 24FLXCXX-4X2SG FAQ What impedance are the included speakers? Both included CXX65.2 speakers have a nominal impedance of 2 ohms. How many speakers are included? The system includes two 6.5-inch CXX65.2 Pro Coaxial speakers for the Street Glide fairing. What load does the amplifier see? Each included speaker connects to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load. Are all four amplifier channels used? No. The supplied system uses two channels for the front speakers. The remaining two channels are available for a compatible rear-speaker upgrade. How much power does the amplifier produce? The FLX500.4 produces 125 watts RMS × 4 at 2 ohms, 95 watts RMS × 4 at 4 ohms or 250 watts RMS × 2 bridged at 4 ohms. How much power can the speakers handle? Each CXX65.2 speaker is rated for 100 watts RMS and 200 watts maximum. Amplifier gain must be set correctly to protect the speakers. Does the amplifier include a DSP? No. The FLX500.4 is a standard four-channel amplifier without an integrated digital signal processor. Does the system integrate with the factory A2B radio? Yes. The package includes a NAV-TV ZEN-H A2B interface and Cicada Audio direct-connect amplifier harness. Are Street Glide fairing grilles included? Yes. The package includes the Cicada Audio 24CHDSGG aluminum fairing grille pair. Is the amplifier rack included? Yes. The package includes the 24HDAR-SG Street Glide amplifier rack and its mounting hardware. Is rear-speaker wiring included? Yes. The 24HDRO rear-output harness is included for a future rear-speaker upgrade. Are rear speakers included? No. Rear speakers and the required saddlebag mounting components must be purchased separately. Do the saddlebags need to be cut for this system? No saddlebag modification is required for the supplied front-only system. A future rear-speaker installation may require cutting or other modification depending on the selected mounting solution. Need Help Planning Your Street Glide System? Submit your Street Glide year, trim, factory audio package and future rear-speaker plans so Garage Bagger Stereo can verify fitment, electrical requirements and the correct expansion components for your motorcycle. Installation Services Request a Custom Build
2023.5+ Harley Touring Audio Upgrade Paths
The 2023.5+ Harley-Davidson Touring audio platform introduced major changes compared to earlier models. Road Glide, Street Glide, Ultra, Road King, and CVO audio upgrades need the correct plug-and-play parts, speaker fitment, amplifier integration, radio signal handling, wiring, and system planning before parts are ordered.
These plug-and-play audio kits help riders upgrade current Harley bagger audio systems without guessing through random speakers, amplifiers, harnesses, DSP options, and installation parts that may not belong together.
Built for Road Glide, Street Glide, Ultra & Road King Audio
This collection is focused on 2023.5+ Harley-Davidson Touring audio upgrades, including the newest Road Glide, Street Glide, Ultra, Road King, and CVO platforms. Whether the goal is a clean speaker upgrade, a stronger amplified system, or a complete plug-and-play Harley audio build, the system needs to match the bike, the radio, the speaker locations, and the final sound goal.
Speaker Upgrade Kits
Speaker-focused plug-and-play kits are the right starting point for riders who want cleaner fairing speaker output, better clarity, and stronger performance while keeping installation simple.
Amplified Plug-and-Play Kits
Amplified kits add clean power, stronger midbass, improved control, and reduced distortion for Harley audio systems that need to play louder and cleaner at highway speed.
What’s Included in a Current Harley Plug-and-Play Kit
- Correct-fit speaker upgrade options for current Harley-Davidson fairing and lid audio locations
- Vehicle-specific wiring and harness solutions for 2023.5+ Harley Touring audio platforms
- Amplifier upgrade options for stronger output, cleaner power, and better control at speed
- DSP-ready system paths for better tuning, cleaner signal control, and more balanced Harley bagger audio
- Mounting hardware and installation parts selected around the latest Harley-Davidson Touring platform
Plug-and-Play Amplifier, DSP & Radio Upgrade Support
Many 2023.5+ Harley audio builds start with speakers, but the biggest gains usually come from matching the speakers with the right amplifier power, DSP control, and radio signal integration. If you already have speakers, plug-and-play amplifier upgrades can be the cleanest path to more output without rebuilding the whole system.
Garage Bagger Stereo helps riders choose the correct current Harley audio path before ordering, whether the build needs a speaker kit, amplifier kit, DSP upgrade, radio integration support, or a complete Road Glide, Street Glide, Ultra, or Road King plug-and-play system.
Recommended Next Steps for Your Harley Audio Build
- Shop amplifier installation parts for Harley bagger audio builds
- Shop speaker installation parts for Harley Touring audio upgrades
- Shop motorcycle coaxial speakers for Road Glide and Street Glide systems
- Shop motorcycle pro coaxial speakers for louder Harley bagger audio
- Shop motorcycle DSP for Harley-Davidson audio tuning
Need Help Choosing the Right 2023.5+ Harley Audio Kit?
Need help matching a plug-and-play kit to your 2023.5+ Harley Road Glide, Street Glide, Ultra, Road King, or CVO audio build? Call Garage Bagger Stereo or start a build consultation and we’ll help match your bike, radio, speakers, amplifier, DSP, wiring, and upgrade goal to the right Harley audio system path.
Built to Withstand the Road
DS18 speakers are designed to endure the challenges of the open road while providing exceptional sound quality. Built using durable, weatherproof materials, these speakers are engineered to resist vibrations, impacts, and exposure to the elements without compromising on audio clarity.Â
Effortless Integration with Your Bagger Motorcycle
Designed for seamless integration, DS18 speakers fit effortlessly into your motorcycle’s audio system without sacrificing space or style. With user-friendly installation and advanced connectivity options, including Bluetooth and RCA inputs, DS18 ensures you can upgrade your sound system without sacrificing functionality.
Customizable Sound for Every Rider
From deep bass to crisp highs, DS18 speakers offer the customization to match your audio preferences. Featuring advanced DSP (Digital Signal Processing) technology, these speakers allow you to fine-tune your sound system for an optimal listening experience. Whether you prefer a balanced sound or a bass-heavy setup, DS18 speakers deliver versatile solutions for your needs.
Shop DS18 Audio at Garage Bagger Stereo
Explore our wide selection of DS18 speakers and motorcycle audio accessories at Garage Bagger Stereo. Whether you’re looking for a minor upgrade or a complete overhaul, we are your trusted destination for premium motorcycle audio gear. With expert guidance and top-notch customer service, we ensure you find the perfect audio solution for your ride.
