Arc Audio PSM Pro Digital Sound Processor | Plug and Play
Vendor:Arc AudioHarley Davidson Minature Pro Digital Sound Processor Plug and Play for stock radios 14-23 Harley Davidson Models Plug and Play for stock radios and amps 23 CVO to current Harley Davidson Models The ARC Audio PSM Pro digital sound processor is a small but powerful device designed to enhance the audio quality of your car or motorcycle's sound system. It is an upgraded version of the PSM offering even better performance and 8 output channels.The PSM Pro uses advanced 32-bit DSP technology and has 296 total bands of full variable parametric equalization, open architecture crossover selection, signal delay, and phase control. This allows you to tune your audio system to your specific preferences and improve the quality of your listening experience. Processor Type Stand Alone Unit Processor Resolution 32-Bits Sample Rate 96kHz Analog Inputs 6 CH. Differential in (RCA or Speaker Level) Input Sensitivity 2V - 16V RMS Digital Inputs Coaxial Auto-sense Turn-On DC (BTL) (Uses Ch 1/2 Inputs Only) Outputs (RCA) 8-Channels Outputs Voltage (RCA) Up to 3.5V Input Impedance (RCA) 10k ohms Frequency Response 20Hz - 23.5kHz S/N Ratio 1V 1:1 86dB S/N 4V 1:1 90dB Operating Voltage 6V - 17.0V (Start Stop Compliance to 4.5V) Output Equalization 31 Band + 6 (37 Band) X 8 Parametric EQ, Highpass Shelf, Lowpass Shelf, 1st & 2nd order Allpass. (296 Total Bands Output Equalization Resolution 0.01dB dB per step +18dB / -24dB Output Signal Delay Up to 30ms per channel in .01ms increments (Fixed Point Delay) Input Signal Mixer Yes - 8-Channels In (Including Digital) x 8-Channels Out Advanced Mixer (Output Signal Mixer) Yes Easy-to-use Mixer Assistant Yes Crossovers Phase Correct AP/HP/LP/BP all channels Crossover Slopes 6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB Slopes all bands all channels Crossover Types Butterworth, Linkwitz-Riley, Bessel, Variable Q, Chebyshev (all channels all bands) Crossover selectable frequencies 10Hz - 20kHz in 0.1 Hz increments) Output Signal up mixer Yes Input Signal Equalization 12 Bands Parametric (linkable) Per Channel Input Equalization Resolution 1/10th dB per step +18dB / -24dB Input Equalization All Pass Filters Yes - Individual per input EQ band Input Signal Delay Yes - Up to 11.04ms per channel input Presets Up to 4-Presets External Remote Level Control Yes (LR1 Sold Separately) AXP WiFi control adapter card No Preset selection without controller use Yes - Optional manual trigger switches +/- for up to 4 presets (Not Included) Remote Turn-On Output Controls Turn on Output (up to 40ms), Turn-on Hold (up to 40ms), Auto-sense hold time (up to 200ms) Remote Turn-On Output On/Off lead timing control Remote on/off adjustable up to 40 seconds each Maestro AR Module interface capable Yes - Requires Maestro T-Harness, and data cable for connection. Expansion Capability PSM-Pro can be run in multiples with individual USB connections to a single PC with single operating software being used Software Interface 64 bit Windows 8, Windows 8.1 or Windows 10 Dimensions 3.75"(L) x 3.0"(W) x 1.35"(H) -
SaleCicada Audio DSP600.4D DSP 600w 4 CH Amplifier
Vendor:Cicada AudioCicada Audio DSP600.4D DSP 600w 4 CH Amplifier Product highlights: 4-channel motorcycle amplifier with digital signal processing 92 watts RMS x 4 at 4 ohms 152 watts RMS x 4 at 2 ohms 300 watts RMS x 2 bridged at 4 ohms Class D amp technology (frequency response: 20-20K Hz) DSP CONTROLLED 4 CHANNEL POWER AMPLIFIER 4 X 70 WRMS into 4 ohms @ 12.5 Vdc 4 X 92 WRMS into 4 ohms @ 14.4 Vdc 4 X 115 WRMS into 2 ohms @ 12.5 Vdc 4 X 152 WRMS into 2 ohms @ 14.4 Vdc BRIDGED MONO – 2 CHANNEL 2 X 218 WRMS into 4 ohms @ 12.5 Vdc 2 X 300 WRMS into 4 ohms @ 14.4 Vdc Frequency response – 20-20,000 +/- 3dB THD < 0.5% Operating Voltage: 8V – 16V Current Draw (Music): 40 A Current Draw (Max): 80 A Recommended Fuse (Music): 40 A Total Efficiency: 79% Damping Factor: 200 SNR: 91dB DSP Crossover HPF/LPF: 0 TO 20kHz Slope configurable 6/12/18/24/48dB DSP PEQ – 8 BANDS Q’s Adjustable from 0.05 – 20 THD + N (10% Rated Power): 0.1% Product Dimensions (Inches / Millimeters): 8.875 x 4.0 x 1.4 in / 225.4 x 103 x 36 mm Loud and clear The Cicada Audio DSP600.4D amplifier's digital signal processing produces crystal-clear high-quality sound using adaptive noise cancellation to intelligently filter out unwanted engine, wind, and road noises, allowing you to hear your music exactly like you want it to sound. This four-channel amp blasts 92 watts RMS out to each pair of speakers so you can hear and feel your music clearly while riding. Digital sound-shaping tools Controlled by Cicada Audio's AMP app via Bluetooth® on your smartphone or tablet, this amp's sound processing tools include input channel summing, gain, delay, and phase; high-pass, low-pass, and bandpass crossover filters with selectable frequencies and slopes; and 8-band parametric EQs which graphically display the resulting frequency response curves. Versatility At maximum application, the amp will put out 152 watts from each channel to four 2-ohm high-performance drivers or tweeter-woofer pairs. You can also use this amp to power a couple of subwoofers — it puts out up to 300 watts RMS to two subs when bridged. Digital signal processing (DSP) control via CA AMP app on your Bluetooth phone or tablet USB-C connection for software updates channel summing, gain, delay, phase high-pass, low-pass, bandpass crossovers with selectable frequencies and slopes 8-band parametric EQ — displays resulting frequency response curve save and recall up to 9 user settings app includes six Harley Davidson-specific EQ presets More info: preamp and speaker-level inputs signal-sensing turn-on with speaker-level input wiring, fuse, and hardware not included with the amplifier 8-gauge power and ground leads and a 40-amp fuse recommended works with a Cicada Audio HDPro4K wiring kit dimensions: 9.5"W x 1.42"H x 4.06"D warranty: 2 years MFR # DSP600.4D Item # 426DS6004D What's in the box: 4-Channel amplifier Power/ground terminal block Bluetooth adapter (installed on amp) Three 9" RCA input/output harnesses Two 8" Speaker output harnesses Four 3" strips of hook-and-loop fastener Two 8 ga. ferrules (red & black) One 18 ga. ferrule (blue) 2mm Allen key 3mm Allen key Four 5/8" screws Specifications cardSale -
SaleCicada Audio DSP88V2 Digital Sound Processor
Vendor:Cicada AudioCicada Audio DSP88V2 Harley Davidson Digital Sound Processor DSP 8 CHANNEL IN / 8 CHANNEL OUT This DSP Processor has a great “form factor” as it can sit on the radio or under the left/right bike fairing substructure. Software Phone/Tablet APP and PC APP make this small-size package a WINNER. It easily fits into the fairing of any Harley Bagger 1998 – 2024. DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT Signal Input: 8 High-Low Level Inputs Signal Output: 8 RCA Outputs Output Impedance: 200 Ohms Frequency Response: 20Hz – 20kHz +/- 0.5Db Input Voltage: 0.02V – 12V Input Impedance: 20k Ohms Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to 2 V out, etc.) THD+N: <1.0% Signal-to-Noise: >100 dBA (A-weighted) Digital Signal Processing (DSP):Speed: 147 MIPS Precision: 32-Bit Accumulators: 72-bit Digital to Analog (DAC): Precision: 24-Bit Dynamic Range: 108 dB THD+N: -98 dB Analog to Digital (ADC): Precision: 24-Bit Dynamic Range: 105 dB THD+N: -98 dB Operating Voltage: 9 – 16 VDC Crossover Frequency: Variable: 20 Hz to 10 kHz Crossover Slope: Selectable Slope: 6/12/18/24/36/48 dB/Octave EQ Frequency Controls: Selectable Q: 0.05 to 20.0 Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm) Installation Manual Windows Software Cicada Audio’s patented Bluetooth digital signal processor allows you to do DSP tuning and signal summing via the app and using the downloadable CA DSP app on your smartphone or tablet. You can upload saved system settings from one DSP88 and load it into a different DSP88v2. (Think of the possibilities!)Sale -
SaleHertz Audio S8 DSP Motorcycle/Powersports DSP
Vendor:HertzWeather Proof 8-Channel Digital Sound Processor The ultra-compact S8 DSP is the best digital sound processor for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials. The Hertz S8 DSP has many signal inputs and allows for fine tuning digital signals for the best sound output your car, motorcycle or marine audio system can produce. Small and weatherproof – the best digital sound processor for motorcycles Compact size featuring all connections on one side to be installed anywhere Anti-corrosion-treated PCB to ensure years of listening pleasure in open nature Three different application setups: Car, Motorcycle, Free placement (boat, van, pick-up) Party & Ride presets, to optimize the sound performance in all conditions Configurable with a PC, a Mac, an Android device, or an iOS device IOS/Android control APPs (Bluetooth 5.0) DRC control over app from iOS/Android devices Powerful DSP with the excellent sound quality you expect from Hertz Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS (Universal Speakers Simulator) SPDIF coaxial input (up to 24bit/96KHz) 8-channel / 4Vrms-capable RCA output channels Signal Output Active Limiter prevents clippingSale -
SaleRockford Fosgate DSR1 DSP

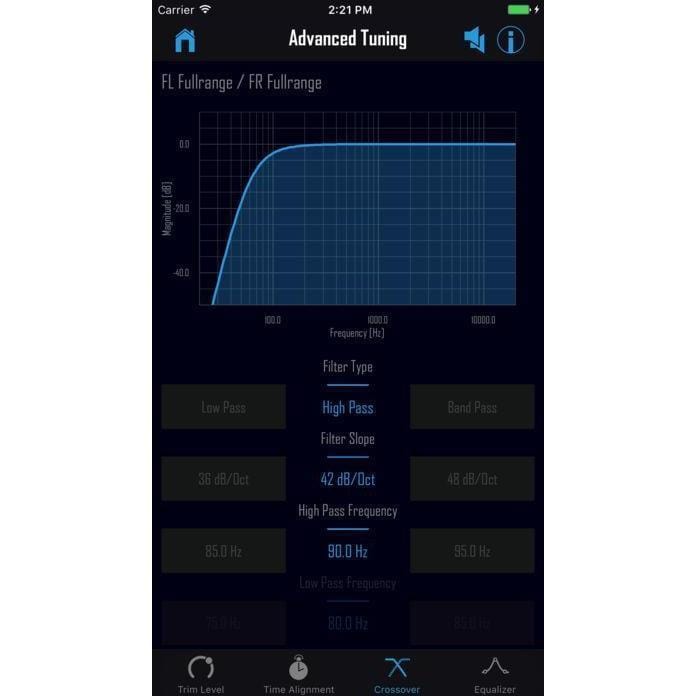

Vendor:Rockford FosgateRockford Fosgate DSR1 DSP 8-Channel Digital Sound Processor Co-developed with ADS, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable iDatalink Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using Rockford Fosgate’s proprietary 3Sixty tuning software. Digital Signal Processing with Integrated Maestro CAN Interface Four Channel Balanced Differential RCA Inputs Four Channel High Level Inputs with Signal Sense Turn On Remote turn-on in/out function with adjustable turn-on delay 18 Pin Analog Input Harness 16 Pin Analog Output Harness Micro USB Setup/Update Port Compatible with Select Maestro Vehicle T-Harnesses Auxillary RCA and SPDIF Coaxial Inputs Optional PLC2 Level Controller with Assignable Functions 245 Bands of Equalization for Aftermarket Tuning Adjustable croossovers wth selectable slope Up 10msec of delay on each channel for Time Alignment Bluetooth 4.0 Connectivity for convenient setup Interactive Tuning Interface Controlled via Android/ iOS APP CE and FCC Compliant 1 Year Standard Warranty How to install the plug and play harness and flash your Harley Davidson Download Pre-made files now for your stock radio 14 up Harley Davidson 14-18 6 Channel Out GTS Radio Channel Out 2021 2 Channel in and 6 Out We suggest using the DSR1 on all 14 and up Harley with stock radios. With the addition of the DSR1, and our NO Flash files, you no longer need to worry about what flash to use to get the best sound off the stock head unit. The DSR does all the work and provides a clean workable signal! Our complete plug and play kits for the DSR are designed to plug into the stock wiring on your bike and enable a quick and simple installation of the Rockford DSR1.Sale
-
Arc Audio PSM Pro Digital Sound Processor | Plug and Play
Vendor:Arc AudioHarley Davidson Minature Pro Digital Sound Processor Plug and Play for stock radios 14-23 Harley Davidson Models Plug and Play for stock radios and amps 23 CVO to current Harley Davidson Models The ARC Audio PSM Pro digital sound processor is a small but powerful device designed to enhance the audio quality of your car or motorcycle's sound system. It is an upgraded version of the PSM offering even better performance and 8 output channels.The PSM Pro uses advanced 32-bit DSP technology and has 296 total bands of full variable parametric equalization, open architecture crossover selection, signal delay, and phase control. This allows you to tune your audio system to your specific preferences and improve the quality of your listening experience. Processor Type Stand Alone Unit Processor Resolution 32-Bits Sample Rate 96kHz Analog Inputs 6 CH. Differential in (RCA or Speaker Level) Input Sensitivity 2V - 16V RMS Digital Inputs Coaxial Auto-sense Turn-On DC (BTL) (Uses Ch 1/2 Inputs Only) Outputs (RCA) 8-Channels Outputs Voltage (RCA) Up to 3.5V Input Impedance (RCA) 10k ohms Frequency Response 20Hz - 23.5kHz S/N Ratio 1V 1:1 86dB S/N 4V 1:1 90dB Operating Voltage 6V - 17.0V (Start Stop Compliance to 4.5V) Output Equalization 31 Band + 6 (37 Band) X 8 Parametric EQ, Highpass Shelf, Lowpass Shelf, 1st & 2nd order Allpass. (296 Total Bands Output Equalization Resolution 0.01dB dB per step +18dB / -24dB Output Signal Delay Up to 30ms per channel in .01ms increments (Fixed Point Delay) Input Signal Mixer Yes - 8-Channels In (Including Digital) x 8-Channels Out Advanced Mixer (Output Signal Mixer) Yes Easy-to-use Mixer Assistant Yes Crossovers Phase Correct AP/HP/LP/BP all channels Crossover Slopes 6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB Slopes all bands all channels Crossover Types Butterworth, Linkwitz-Riley, Bessel, Variable Q, Chebyshev (all channels all bands) Crossover selectable frequencies 10Hz - 20kHz in 0.1 Hz increments) Output Signal up mixer Yes Input Signal Equalization 12 Bands Parametric (linkable) Per Channel Input Equalization Resolution 1/10th dB per step +18dB / -24dB Input Equalization All Pass Filters Yes - Individual per input EQ band Input Signal Delay Yes - Up to 11.04ms per channel input Presets Up to 4-Presets External Remote Level Control Yes (LR1 Sold Separately) AXP WiFi control adapter card No Preset selection without controller use Yes - Optional manual trigger switches +/- for up to 4 presets (Not Included) Remote Turn-On Output Controls Turn on Output (up to 40ms), Turn-on Hold (up to 40ms), Auto-sense hold time (up to 200ms) Remote Turn-On Output On/Off lead timing control Remote on/off adjustable up to 40 seconds each Maestro AR Module interface capable Yes - Requires Maestro T-Harness, and data cable for connection. Expansion Capability PSM-Pro can be run in multiples with individual USB connections to a single PC with single operating software being used Software Interface 64 bit Windows 8, Windows 8.1 or Windows 10 Dimensions 3.75"(L) x 3.0"(W) x 1.35"(H) -
Sale
Cicada Audio DSP600.4D DSP 600w 4 CH Amplifier
Vendor:Cicada AudioCicada Audio DSP600.4D DSP 600w 4 CH Amplifier Product highlights: 4-channel motorcycle amplifier with digital signal processing 92 watts RMS x 4 at 4 ohms 152 watts RMS x 4 at 2 ohms 300 watts RMS x 2 bridged at 4 ohms Class D amp technology (frequency response: 20-20K Hz) DSP CONTROLLED 4 CHANNEL POWER AMPLIFIER 4 X 70 WRMS into 4 ohms @ 12.5 Vdc 4 X 92 WRMS into 4 ohms @ 14.4 Vdc 4 X 115 WRMS into 2 ohms @ 12.5 Vdc 4 X 152 WRMS into 2 ohms @ 14.4 Vdc BRIDGED MONO – 2 CHANNEL 2 X 218 WRMS into 4 ohms @ 12.5 Vdc 2 X 300 WRMS into 4 ohms @ 14.4 Vdc Frequency response – 20-20,000 +/- 3dB THD < 0.5% Operating Voltage: 8V – 16V Current Draw (Music): 40 A Current Draw (Max): 80 A Recommended Fuse (Music): 40 A Total Efficiency: 79% Damping Factor: 200 SNR: 91dB DSP Crossover HPF/LPF: 0 TO 20kHz Slope configurable 6/12/18/24/48dB DSP PEQ – 8 BANDS Q’s Adjustable from 0.05 – 20 THD + N (10% Rated Power): 0.1% Product Dimensions (Inches / Millimeters): 8.875 x 4.0 x 1.4 in / 225.4 x 103 x 36 mm Loud and clear The Cicada Audio DSP600.4D amplifier's digital signal processing produces crystal-clear high-quality sound using adaptive noise cancellation to intelligently filter out unwanted engine, wind, and road noises, allowing you to hear your music exactly like you want it to sound. This four-channel amp blasts 92 watts RMS out to each pair of speakers so you can hear and feel your music clearly while riding. Digital sound-shaping tools Controlled by Cicada Audio's AMP app via Bluetooth® on your smartphone or tablet, this amp's sound processing tools include input channel summing, gain, delay, and phase; high-pass, low-pass, and bandpass crossover filters with selectable frequencies and slopes; and 8-band parametric EQs which graphically display the resulting frequency response curves. Versatility At maximum application, the amp will put out 152 watts from each channel to four 2-ohm high-performance drivers or tweeter-woofer pairs. You can also use this amp to power a couple of subwoofers — it puts out up to 300 watts RMS to two subs when bridged. Digital signal processing (DSP) control via CA AMP app on your Bluetooth phone or tablet USB-C connection for software updates channel summing, gain, delay, phase high-pass, low-pass, bandpass crossovers with selectable frequencies and slopes 8-band parametric EQ — displays resulting frequency response curve save and recall up to 9 user settings app includes six Harley Davidson-specific EQ presets More info: preamp and speaker-level inputs signal-sensing turn-on with speaker-level input wiring, fuse, and hardware not included with the amplifier 8-gauge power and ground leads and a 40-amp fuse recommended works with a Cicada Audio HDPro4K wiring kit dimensions: 9.5"W x 1.42"H x 4.06"D warranty: 2 years MFR # DSP600.4D Item # 426DS6004D What's in the box: 4-Channel amplifier Power/ground terminal block Bluetooth adapter (installed on amp) Three 9" RCA input/output harnesses Two 8" Speaker output harnesses Four 3" strips of hook-and-loop fastener Two 8 ga. ferrules (red & black) One 18 ga. ferrule (blue) 2mm Allen key 3mm Allen key Four 5/8" screws Specifications cardSale -
Sale
Cicada Audio DSP88V2 Digital Sound Processor
Vendor:Cicada AudioCicada Audio DSP88V2 Harley Davidson Digital Sound Processor DSP 8 CHANNEL IN / 8 CHANNEL OUT This DSP Processor has a great “form factor” as it can sit on the radio or under the left/right bike fairing substructure. Software Phone/Tablet APP and PC APP make this small-size package a WINNER. It easily fits into the fairing of any Harley Bagger 1998 – 2024. DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT Signal Input: 8 High-Low Level Inputs Signal Output: 8 RCA Outputs Output Impedance: 200 Ohms Frequency Response: 20Hz – 20kHz +/- 0.5Db Input Voltage: 0.02V – 12V Input Impedance: 20k Ohms Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to 2 V out, etc.) THD+N: <1.0% Signal-to-Noise: >100 dBA (A-weighted) Digital Signal Processing (DSP):Speed: 147 MIPS Precision: 32-Bit Accumulators: 72-bit Digital to Analog (DAC): Precision: 24-Bit Dynamic Range: 108 dB THD+N: -98 dB Analog to Digital (ADC): Precision: 24-Bit Dynamic Range: 105 dB THD+N: -98 dB Operating Voltage: 9 – 16 VDC Crossover Frequency: Variable: 20 Hz to 10 kHz Crossover Slope: Selectable Slope: 6/12/18/24/36/48 dB/Octave EQ Frequency Controls: Selectable Q: 0.05 to 20.0 Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm) Installation Manual Windows Software Cicada Audio’s patented Bluetooth digital signal processor allows you to do DSP tuning and signal summing via the app and using the downloadable CA DSP app on your smartphone or tablet. You can upload saved system settings from one DSP88 and load it into a different DSP88v2. (Think of the possibilities!)Sale -
Sale
Hertz Audio S8 DSP Motorcycle/Powersports DSP
Vendor:HertzWeather Proof 8-Channel Digital Sound Processor The ultra-compact S8 DSP is the best digital sound processor for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials. The Hertz S8 DSP has many signal inputs and allows for fine tuning digital signals for the best sound output your car, motorcycle or marine audio system can produce. Small and weatherproof – the best digital sound processor for motorcycles Compact size featuring all connections on one side to be installed anywhere Anti-corrosion-treated PCB to ensure years of listening pleasure in open nature Three different application setups: Car, Motorcycle, Free placement (boat, van, pick-up) Party & Ride presets, to optimize the sound performance in all conditions Configurable with a PC, a Mac, an Android device, or an iOS device IOS/Android control APPs (Bluetooth 5.0) DRC control over app from iOS/Android devices Powerful DSP with the excellent sound quality you expect from Hertz Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS (Universal Speakers Simulator) SPDIF coaxial input (up to 24bit/96KHz) 8-channel / 4Vrms-capable RCA output channels Signal Output Active Limiter prevents clippingSale
