Diamond Audio NEO10001DSP — 1000W RMS Monoblock Amplifier w/ DSP
PRODUCT INFORMATION
Diamond Audio NEO10001DSP — 1000W RMS Monoblock Amplifier w/ DSP
$649.99
$649.99
Couldn't load pickup availability
Additional Payment Info
Diamond Audio NEO10001DSP — 1000W RMS Monoblock Amplifier w/ DSP
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Product Overview Video

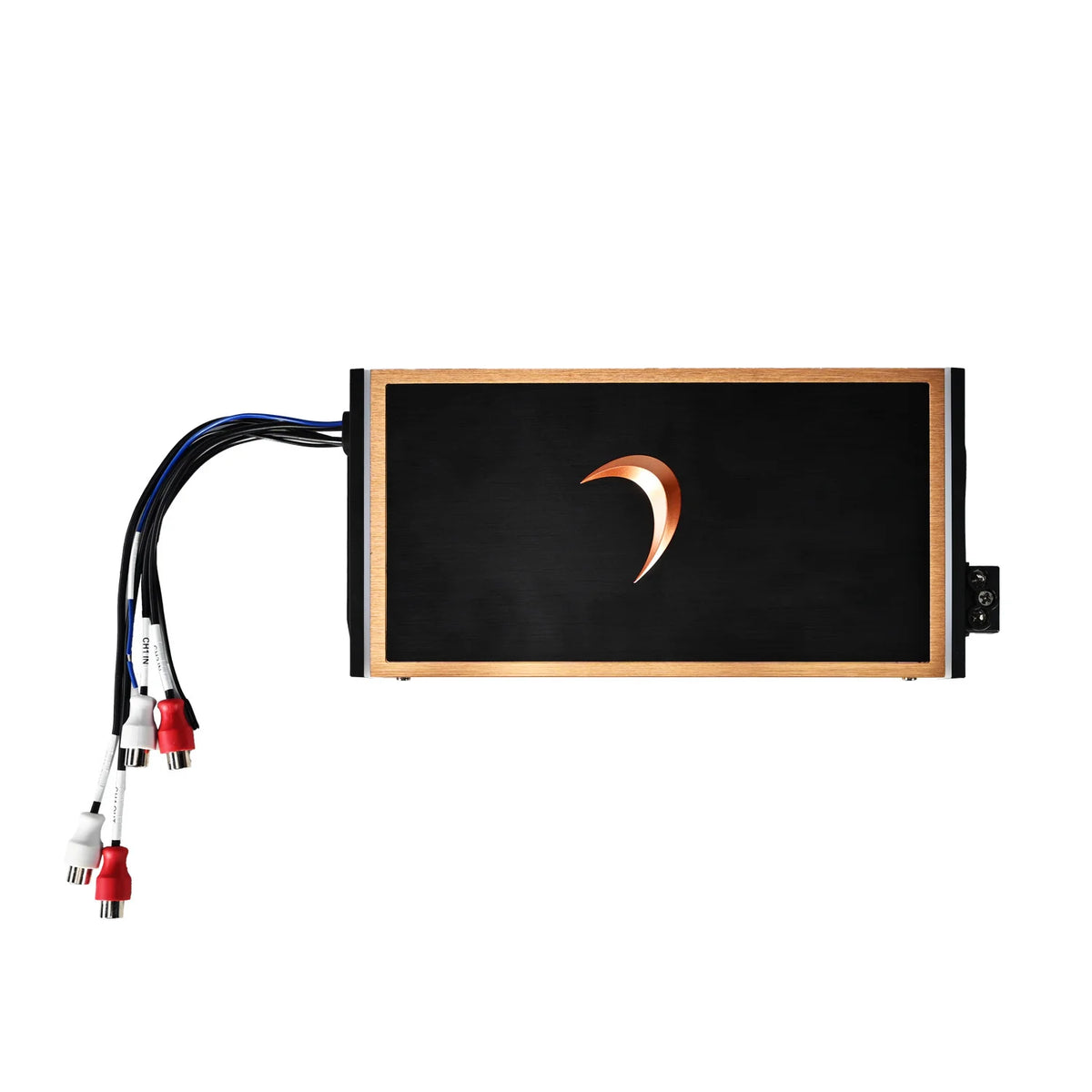

Diamond Audio NEO10001DSP 1000W RMS Monoblock Amplifier with 4CH DSP
The Diamond Audio NEO10001DSP combines dedicated monoblock power with an integrated 4-channel digital signal processor in a compact Class D chassis. Designed for subwoofer, midbass, and low-frequency applications, it delivers up to 1000 watts RMS at 1 ohm while providing precise control over EQ, crossovers, time delay, OEM integration, and system expansion.
With 600 watts RMS at 4 ohms, 800 watts RMS at 2 ohms, and 1000 watts RMS at 1 ohm, the NEO10001DSP gives motorcycle, powersports, marine, and custom-audio systems strong low-frequency output without requiring a separate standalone DSP.
Monoblock Power with Integrated DSP Control
Built for motorcycle and powersports systems that need strong low-frequency output, advanced tuning, OEM signal integration, and flexible system expansion from one compact amplifier.
Diamond Audio NEO10001DSP Key Specifications
| Model | NEO10001DSP |
| Amplifier Type | Class D 1-Channel Monoblock Amplifier with Integrated 4-Channel DSP |
| Power @ 4Ω | 600W RMS x 1 |
| Power @ 2Ω | 800W RMS x 1 |
| Power @ 1Ω | 1000W RMS x 1 |
| DSP Architecture | 4 channels total: 2 internal DSP channels + 2 RCA preamp outputs |
| Parametric EQ | 31 bands per DSP channel |
| DSP Controls | Parametric EQ, crossovers, time delay, channel linking, gain and system configuration |
| Programming | PC and Android programming support |
| Bluetooth | Built-in Bluetooth audio streaming |
| Input Sensitivity | 0.4V – 20V |
| Selectable Load Resistors | 10Ω, 20Ω, 60Ω and 20kΩ |
| Operating Voltage Range | 8V – 17V |
| RCA Preamp Outputs | 2 channels |
| Frequency Response | 10Hz – 30kHz |
| Signal-to-Noise Ratio | 95dB |
| THD & Noise | ≤0.03% |
| Dimensions | 8.8″ x 4.07″ x 1.38″ |
| Net Weight | 2.40 lbs |
| Remote Compatibility | Diamond Audio NeoDRC1 Remote Commander — sold separately |
| Construction | Marine-ready, water-resistant chassis |
Fitment warning: Verify amplifier placement, mounting clearance, wiring path, ventilation, and complete system layout before ordering or installation.
1000W RMS Dedicated Low-Frequency Power
The NEO10001DSP is built for applications that need substantial output from a single low-frequency channel. It can be used with compatible subwoofers, midbass drivers, or other low-frequency speaker configurations where high current capability and precise signal control are required.
600W RMS @ 4Ω
Provides strong output for compatible higher-impedance subwoofer and midbass configurations.
800W RMS @ 2Ω
Increased output for compatible 2-ohm low-frequency speaker systems.
1000W RMS @ 1Ω
Full rated monoblock output for compatible 1-ohm loads and high-output bass systems.
Integrated 4-Channel DSP
Although the NEO10001DSP is a monoblock amplifier, Diamond Audio integrates a 4-channel DSP platform into the chassis. Two DSP channels manage the internal amplifier signal path while two additional RCA preamp outputs can feed another amplifier or system component.
31-Band Parametric EQ
Detailed frequency adjustment allows precise control of the low-frequency response and integration with the rest of the audio system.
Crossovers and Time Delay
Configure frequency limits and timing so the low-frequency system integrates properly with fairing, pod, saddlebag, or full-range speakers.
Channel Linking
DSP channel linking simplifies adjustments when multiple outputs require coordinated tuning.
PC and Android Programming
Diamond Audio provides programming support for detailed DSP configuration and system tuning.
OEM Signal Integration
The NEO10001DSP includes several integration tools for factory audio systems where conventional low-level RCA outputs may not be available.
- High- and low-level signal input capability from 0.4V up to 20V.
- Selectable onboard 10Ω, 20Ω, 60Ω, and 20kΩ load resistors.
- 8V to 17V operating-voltage compatibility.
- DSP-based signal management for complex OEM and aftermarket system layouts.
- Two RCA preamp outputs for additional amplifier expansion.
Bluetooth Audio Streaming Built In
Diamond Audio includes Bluetooth audio streaming directly in the NEO10001DSP. Compatible devices can stream audio directly to the amplifier and DSP without requiring the source signal to originate from a conventional head unit input.
Diamond Audio also lists smartphone-control capability as part of the NEO platform, with dedicated iOS and Android app control continuing to develop separately from the amplifier's core DSP and Bluetooth functions.
Designed for Motorcycle, Marine and Powersports Systems
The NEO10001DSP uses a marine-ready, water-resistant chassis and compact form factor suited to motorcycle, powersports, marine, and custom installations where amplifier space can be limited.
Water-Resistant Chassis
Designed for demanding installations where moisture and environmental exposure must be considered.

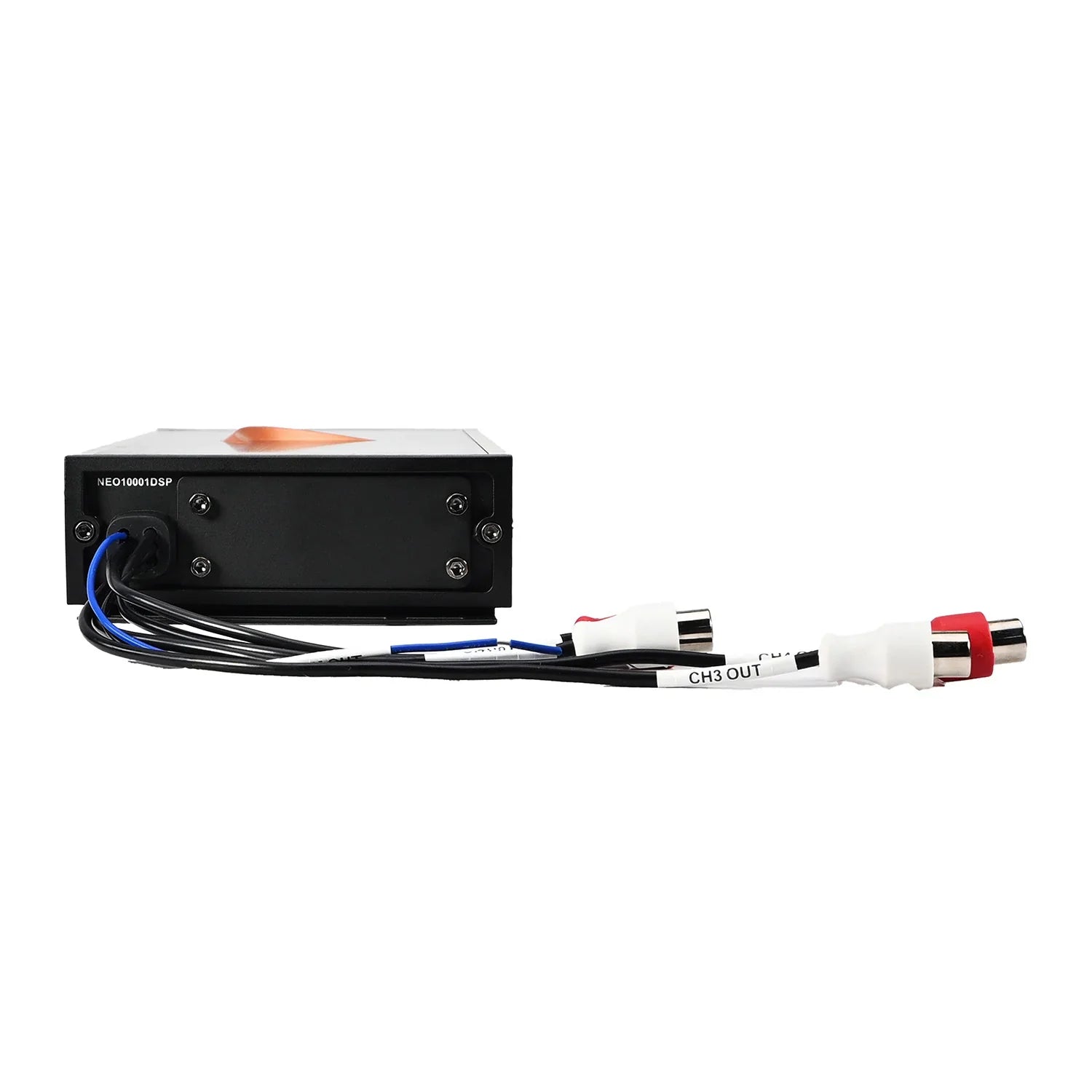

Staggered RCA Connections
Connection placement helps simplify signal-wire routing and cable management in tight installations.

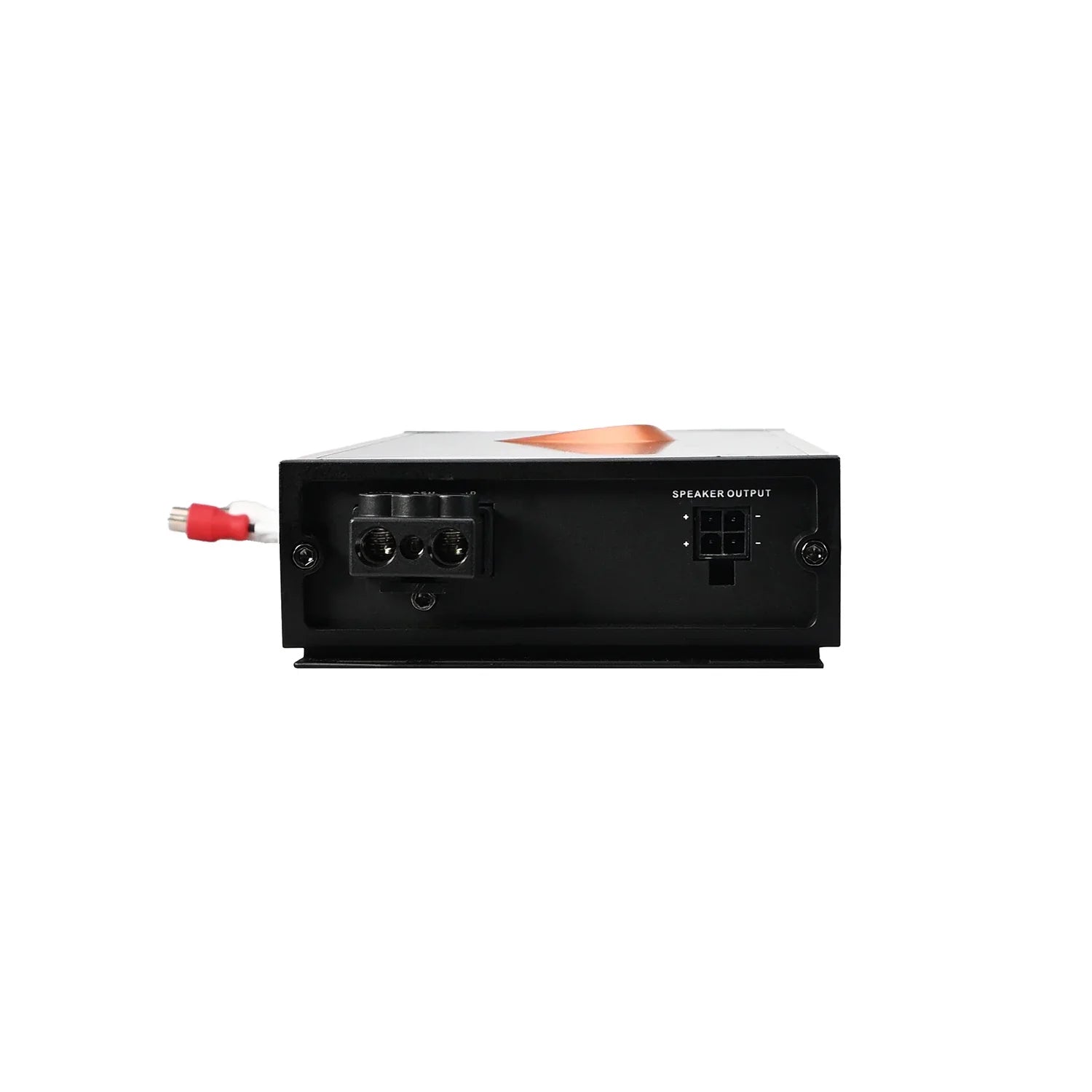

Quick-Connect Power Block
High-current removable power connections support cleaner installation and service access.
Installation and System Planning
- Verify amplifier mounting space before ordering.
- Confirm the final speaker or subwoofer impedance presented to the amplifier.
- Match amplifier output to the RMS capability of the connected driver or drivers.
- Verify the motorcycle's source-unit and factory-amplifier signal configuration.
- Determine whether high-level inputs, RCA inputs, load resistors, or an external integration interface will be used.
- Plan use of the two DSP-controlled RCA outputs if additional amplification is part of the system.
- Verify battery, charging-system, wiring, fuse, and ground capacity for the complete audio system.
- Complete DSP tuning only after the entire system is installed and operating correctly.
Need Help Designing the System?
The NEO10001DSP combines amplifier power and DSP control in one chassis, but correct impedance, signal integration, electrical capacity, crossover strategy, and system tuning still determine how well the final installation performs.
