Marine Pro Coaxial Speakers 6x9"
6x9 pro coaxial speakers at Garage Bagger Stereo from Kicker, Cicada, DB Drive, Diamond Audio and DS18, led by the Kicker KMXL69 marine horn-loaded coaxial with RGB LEDs.
THE REFERENCE STANDARD
6x9 Pro Coaxials
Six horn-loaded and high-output 6x9s from five brands.
- Kicker KMXL69 marine horn-loaded, RGB LEDs
- Cicada CH69W horn and CHX69
- DB Drive WDX69MOTO-CD, Diamond MS692NEO, DS18 PRO-ZT
Browse Collections
-
SaleCicada Audio CH69W 6x9" Pro Coaxial Horn Speaker (Pair)
Vendor:Cicada AudioCicada Audio CH69W Pro Coaxial Horn Speaker 6x9" (2Ω and 4Ω) FEATURES: Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Removable threaded horn ring for easy modification Rain or Shine™ all-weather performance design Available in 4- or 2-Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient External 12dB crossover with optional -3/-6 tweeter attenuator 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat Water-resistant treated paper cone Lightweight / rigid Maximized efficiency / super strong Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance N35SH Neodymium magnet Die-cast Aluminum custom tooled basket with Vortex Flow Venting™ Warranty: 2 years SPECIFICATIONS: 4Ω – 6X9-inch coaxial horn driver Power handling: 250W RMS/500W MAX Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: water resistant treated paper cone Magnet: Neodymium Sensitivity: 95dB Frequency response 75Hz – 20kHz +/- 3dB Mounting Depth: 3.7-inch/93mm Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mmSale -
SaleCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair) All Weather 6x9 Pro Coaxial Driver A Weatherproof Horn Cover is included on the compression driver. SPECIFICATIONS: 4Ω – 6X9-inch PRO coaxial horn driver Power handling: 400W RMS/800W MAX each Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter High-temperature design Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: Carbon Matrix Composite™ Magnet: Neodymium Sensitivity: 92dB, 1W / 1M response 46Hz – 20kHz +/- 3dB Mounting Depth: 3.75-inch/96mm Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Rain or Shine™ all-weather performance design Available in 4 or 2Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient 1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat External 12dB crossover with optional -3/-6 tweeter resistor attenuatorSale -
SaleCicada Audio CXX69 6x9" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioThe Cicada Audio CXX69 is a pair of 6x9" pro coaxial speakers, offered in 2 ohm and 4 ohm versions. A Kevlar cone, PEI tweeter dome and V8 Dispersion Guide are built for wide dispersion.Key Specs Power handling: 200W RMS / 400W MAX Voice coils: 2.0" / 49mm mid-bass, 1.2" / 31mm tweeter N45H neodymium magnets; polycarbonate basket Sensitivity: 93dB; response 50Hz-20kHz +/-3dB Built-in 6dB crossover Mounting depth 2.7" / 69mm; diameter 6.4" / 163mm x 9.2" / 234mm Two-year warranty Browse more pro coaxial speakers and Cicada Audio, or see our custom build options.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDiamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS692NEO 6x9" Pro Coaxial Neo Speakers — 2Ω or 4Ω The Diamond Audio MS692NEO is a high-output 6x9-inch horn-loaded pro coaxial speaker built for serious motorcycle, powersports, marine, and custom audio systems. Its large carbon-fiber cone, PEN high-frequency diaphragm, neodymium motor structure, and cast-aluminum basket are designed to deliver strong projection and clean output in demanding open-air environments. Available in 2-ohm and 4-ohm versions, the MS692NEO is rated at 200 watts RMS and uses a dual-voice-coil, bi-ampable architecture for advanced amplifier and DSP configurations. THE REFERENCE STANDARD 6x9" Pro Coaxial Output for High-Power Bagger Systems Built for saddlebag lids, custom rear speaker locations, and high-output motorcycle systems where projection, durability, and amplifier efficiency matter. Start a Build Consultation Call 864-334-6131 Diamond Audio MS692NEO Key Specifications Series MS NEO Speaker Size 6x9 inches Speaker Type 2-Way Horn-Loaded Pro Coaxial 2Ω Model MS692NEO2 4Ω Model MS692NEO4 Power Handling 200W RMS / 400W MAX Sensitivity 94 dB (1W/1M) Voice Coil Configuration Dual Voice Coil Bi-Ampable Yes Field-Serviceable Voice Coil Yes Voice Coil Diameter 2 inches Cone Material Carbon Fiber High-Frequency Diaphragm PEN — Polyethylene Naphthalate Motor Neodymium Basket Cast Aluminum Surround Rubber Re 3.2Ω Qms 7.368 Qes 0.597 Qts 0.552 Fs 104 Hz Vas 9 L Cms 0.148 mm/N Mms 15.6 g Sd 206.84 cm² BL 7.418 T·m Xmax 1.2 mm Mounting Depth 3.74″ (95 mm) Cutout Dimensions 8.58″ x 5.75″ (218 mm x 146 mm) Overall Dimensions 9.19″ x 6.38″ (233.5 mm x 162 mm) Overall Height 4.08″ (103.7 mm) Fitment warning: These are high-output 6x9-inch pro coaxial speakers and are not a universal drop-in replacement. Verify cutout dimensions, mounting depth, basket clearance, grille clearance, amplifier power, impedance, and complete system layout before ordering. 200W RMS 6x9" Pro Coaxial Performance The MS692NEO is designed for motorcycle audio systems where a conventional automotive 6x9 cannot provide enough projection or output. Its horn-loaded architecture increases high-frequency efficiency while the large carbon-fiber cone provides strong midrange and midbass performance. Diamond Audio's formal technical specifications rate the MS692NEO platform at 200 watts RMS and 400 watts maximum power. Built for Saddlebag and Rear Speaker Applications The 6x9 format makes the MS692NEO especially useful in Harley-Davidson saddlebag lid systems, cut-in lid conversions, custom rear speaker panels, and other fabricated locations where a high-output 6x9 pro coaxial is required. Diamond Audio also uses the MS692NEO platform in dedicated Harley-Davidson cut-in lid kits, reinforcing its intended role in high-output bagger systems. :contentReference[oaicite:1]{index=1} Carbon-Fiber Cone and Neodymium Motor The MS692NEO uses a rigid carbon-fiber cone to provide a strong, lightweight moving surface capable of maintaining control at elevated playback levels. The neodymium motor provides high magnetic strength while helping reduce overall speaker weight and motor bulk compared with conventional ferrite designs. Horn-Loaded PEN High-Frequency Driver High-frequency reproduction is handled by a PEN — polyethylene naphthalate — diaphragm incorporated into the horn-loaded coaxial architecture. The horn improves acoustic projection and efficiency, helping vocals, percussion, guitars, and upper-frequency information remain audible at highway speeds and in other open-air environments. Choose 2Ω or 4Ω The MS692NEO is available in separate 2-ohm and 4-ohm models. The correct impedance should be chosen around amplifier output, number of speakers, wiring configuration, and final load presented to each amplifier channel. 2Ω — MS692NEO2 The 2-ohm version is designed for systems that can take advantage of increased amplifier output at a lower channel impedance. 4Ω — MS692NEO4 The 4-ohm version provides additional flexibility for multi-speaker wiring and amplifier configurations requiring a higher final impedance. Dual Voice Coil and Bi-Amp Capability The MS692NEO uses a dual-voice-coil, bi-ampable architecture that allows more advanced amplifier and DSP system configurations. In a properly designed bi-amped setup, the system can provide greater control over crossover points, level, EQ, and timing than a conventional single-input coaxial configuration. System-design note: Bi-amp capability does not mean the speaker must be bi-amped. Amplifier channels, DSP configuration, crossover strategy, and wiring should be planned around the complete system. Cast-Aluminum Basket and Serviceable Design Diamond Audio uses a rigid cast-aluminum basket to support the speaker assembly and resist flex and vibration during high-output operation. The MS692NEO also uses a field-serviceable voice-coil design, providing additional serviceability for high-performance motorcycle, marine, and powersports systems. Motorcycle Audio Applications Harley-Davidson saddlebag lid speaker systems. Cut-in saddlebag lid conversions. Road Glide and Street Glide rear speaker systems. Custom 6x9 speaker panels. Tour-pack and fabricated rear speaker locations. Marine audio systems. Slingshot, UTV, and powersports installations. Custom vehicle audio systems requiring high-output 6x9 coaxials. Installation and Tuning Notes Select the 2Ω or 4Ω model based on amplifier loading and complete system design. Verify amplifier RMS output at the selected impedance. Confirm the 8.58″ x 5.75″ mounting cutout before modifying saddlebag lids or panels. Verify the full 3.74-inch mounting depth and rear motor clearance. Confirm the 9.19″ x 6.38″ overall frame dimensions and grille clearance. Determine whether the speaker will be conventionally powered or bi-amped before wiring. Use appropriate crossover protection for the installed power level and application. Secure all mounting hardware for motorcycle vibration. Protect terminals and wiring from moisture, abrasion, heat, and moving components. Complete final DSP, EQ, crossover, level, and time-alignment tuning after installation. Need Help Choosing 2Ω or 4Ω? The correct MS692NEO version depends on amplifier output, number of speakers, channel configuration, wiring method, DSP strategy, and complete system design. Garage Bagger Stereo can help determine the correct impedance and amplifier configuration before you order. Start a Build Consultation Call 864-334-6131Sale -

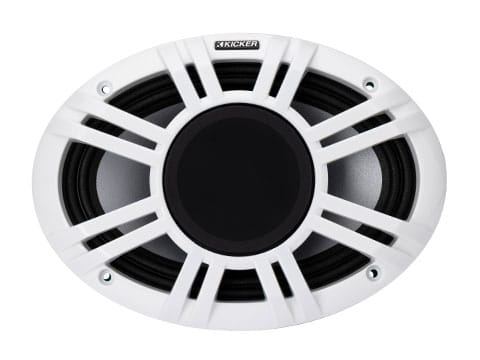

KICKER KMXL69 6x9" Marine Horn‑Loaded Coaxial Speakers w/ RGB LEDs
Vendor:KickerKICKER KMXL69 6x9" Marine Horn‑Loaded Coaxial Speakers premium marine horn‑loaded coaxial speakers with integrated RGB LED lighting. Built to REAL MARINE™ standards for long‑lasting performance on the water. Key Features Horn‑Loaded Compression Driver for long‑throw, high‑output sound Aluminum 1‑1/4″ tweeter domes with lightweight neodymium motor UV‑treated, waterproof poly/carbon‑fiber woofer cones IP66‑style build; Real Marine™ tested Integrated multi‑color RGB LED lighting White & charcoal grilles included; shallow‑mount design Specifications Woofer Size 6x9" (oval) Tweeter Size / Dome 1‑1/4" (32 mm) Aluminum Impedance 4 Ω Recommended Amplifier Power (RMS) 15–200 W Peak Power 400 W Sensitivity (1W/1m) 92 dB Frequency Response 70–20,000 Hz Cutout / Mounting Hole 5‑13/16" x 8‑9/16" (148 x 218 mm) Mounting Depth 3‑3/8" (85 mm) Crossover (rec.) 12 dB/oct high‑pass @ 80 Hz Grilles Both White & Charcoal Warranty 3 years (authorized purchase) What’s in the Box (2) speakers with white & charcoal grilles Wiring pigtails for audio and RGB Mounting hardware
Six 6x9 Pro Coaxials
The Kicker KMXL69 is titled a marine horn-loaded coaxial with RGB LEDs. The rest are performance 6x9s: the Cicada CH69W pro coaxial horn speaker and CHX69, the DB Drive WDX69MOTO-CD, the Diamond Audio MS692NEO (2Ω or 4Ω) and the DS18 PRO-ZT. Only the Kicker is titled marine here, so confirm the environment rating of the others with the manufacturer before using them on a boat.
At a Glance
| Kicker KMXL69 | Marine horn-loaded coaxial, RGB LEDs |
| Cicada CH69W | Pro coaxial horn speaker, pair |
| Cicada CHX69 | Pro coaxial, pair |
| DB Drive WDX69MOTO-CD | Pro coaxial |
| Diamond Audio MS692NEO | 2-way coaxial neo, 2Ω or 4Ω |
| DS18 PRO-ZT | Coaxial mid-range loudspeaker, sold single |
Descriptions follow the product titles.
Pairs, Singles and Amplifier Match
The DS18 PRO-ZT is sold as a single, so order two for a stereo pair. The Cicada and Kicker listings are pairs. Match impedance to your amplifier, particularly for the Diamond MS692NEO, which comes in 2Ω or 4Ω. Standard 6x9s are in the 6x9 marine coaxials and bike-specific options are in Motorcycle Pro Coaxial Speakers 6x9". Start a build consultation or call 864-334-6131.
Related Marine and Motorcycle Collections
Marine 6x9 Pro Coaxial Speakers FAQ
Which 6x9 pro speaker is titled marine?
The Kicker KMXL69 marine horn-loaded coaxial with RGB LEDs.
Is the DS18 PRO-ZT sold as a pair?
No, it is a single.
Which models come in 2Ω or 4Ω?
The Diamond Audio MS692NEO, per its title.
What is the Cicada CH69W?
A 6x9" pro coaxial horn speaker, sold as a pair.
Are these the same as the motorcycle 6x9 pro coaxials?
Some brands overlap. This store cross-posts audio, so compare against the Motorcycle Pro Coaxial Speakers 6x9" collection.
Need Help Choosing 6x9 Pro Coaxials?
Tell us about your boat or bike, the amplifier and the speaker locations, and a Garage Bagger Stereo specialist will help you pick parts that fit.
