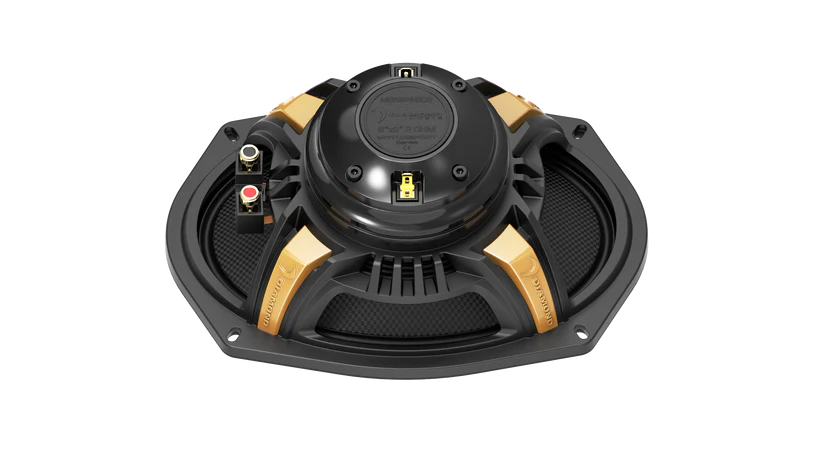

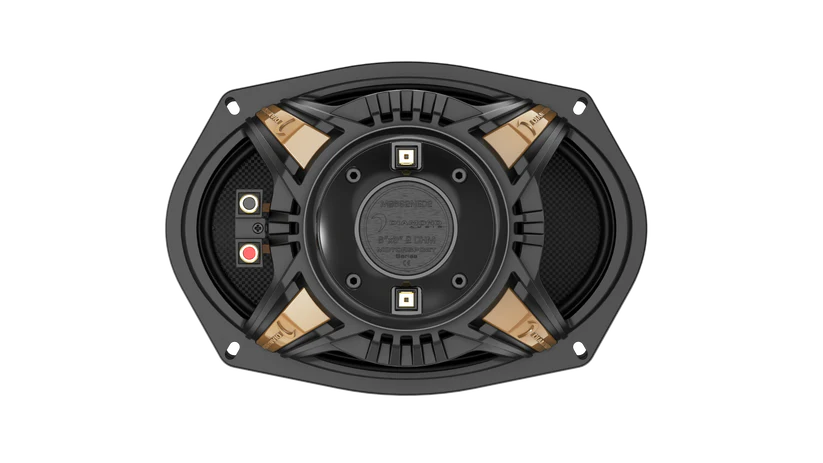

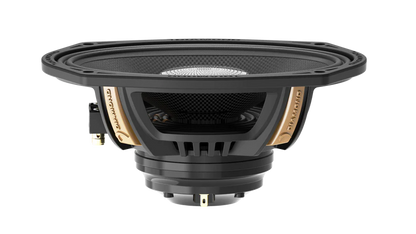

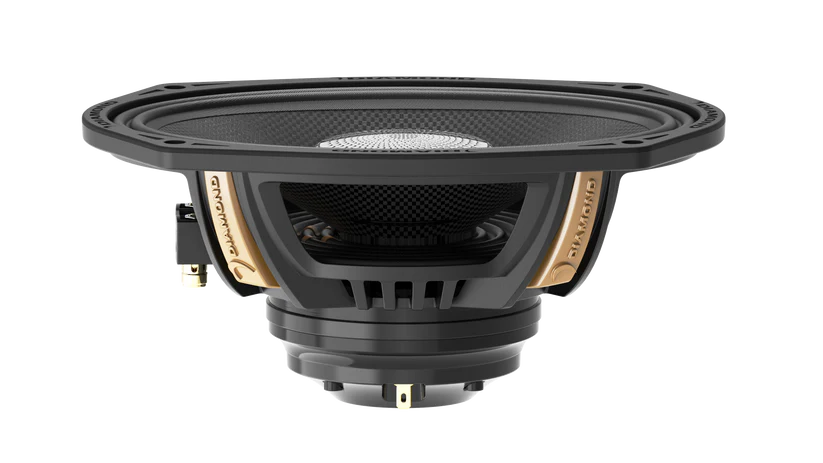

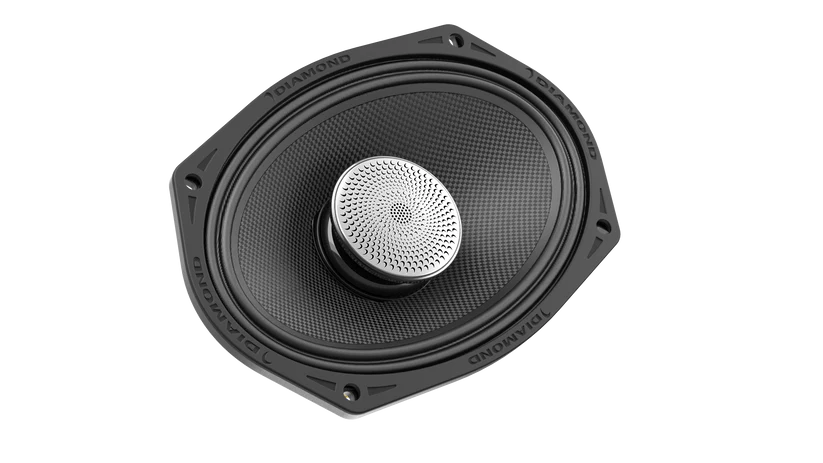

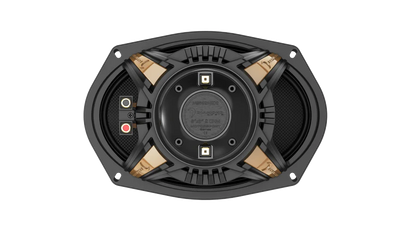

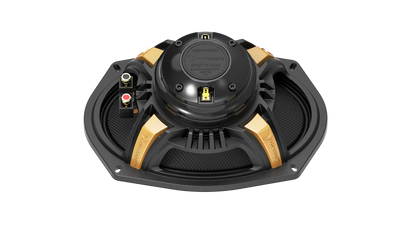

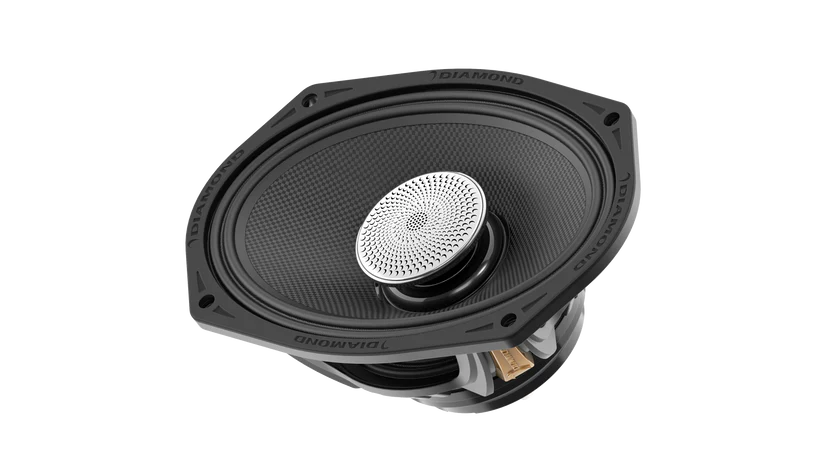

Diamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)

Diamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)

Regular price $899.99
Regular price $999.99 Sale price $899.99
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

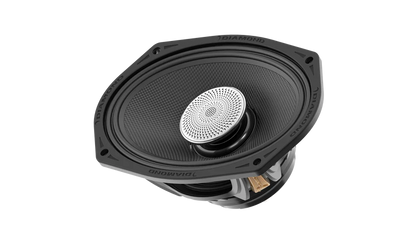

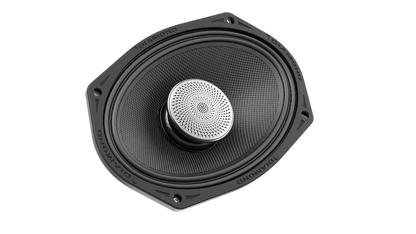

Diamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)

The Diamond Audio MS692NEO is the 6x9 inch model in the MS NEO pro coaxial series, sized for an 8.58 in x 5.75 in cutout at 3.74 in mounting depth. Choose MS692NEO2 or MS692NEO4 by the impedance your amplifier needs; both are rated 200W RMS at 94 dB sensitivity. The 6x9 format is listed for saddlebag lid systems, cut-in lid conversions and custom rear speaker panels.

MS NEO Pro Coaxial

6x9 inch horn-loaded pro coaxial with carbon-fiber cone

The 6x9 format suits saddlebag lid systems, cut-in lid conversions and custom rear speaker panels, with dual voice coils for bi-amp configurations.

  • 200W RMS / 400W MAX
  • 94 dB sensitivity
  • Cutout 8.58 in x 5.75 in
Fitment warning: These are high-output 6x9 inch pro coaxial speakers and are not a universal drop-in replacement. Verify cutout dimensions, mounting depth, basket clearance, grille clearance, amplifier power, impedance and complete system layout before ordering.

Key Product Details

SeriesMS NEO
Size6x9 inch
Type2-way horn-loaded pro coaxial
2 ohm modelMS692NEO2
4 ohm modelMS692NEO4
Power handling200W RMS / 400W MAX
Sensitivity94 dB (1W/1M)
Mounting depth3.74 in (95 mm)
Cutout8.58 in x 5.75 in (218 mm x 146 mm)

Verify cutout, depth and clearances before cutting any panel.

Choosing 2 Ohm or 4 Ohm

The speaker is available in separate 2 ohm (MS692NEO2) and 4 ohm (MS692NEO4) versions. Select the version around amplifier output, number of speakers, channel configuration, wiring method and the final impedance presented to the amplifier. Bi-amp capability does not mean the speaker must be bi-amped; wiring, amplifier channels, crossover and DSP settings should be planned around the complete system.

Saddlebag Lid and Rear Speaker Applications

The 6x9 format suits Harley-Davidson saddlebag lid systems, cut-in lid conversions, custom rear speaker panels and other fabricated locations where a high-output 6x9 pro coaxial is needed.

Installation and System Planning

Installation and tuning notes

  • Verify amplifier RMS output at the selected impedance
  • Confirm the 8.58 inch x 5.75 inch cutout before modifying saddlebag lids or panels
  • Verify the full 3.74 inch mounting depth and rear motor clearance
  • Confirm the 9.19 inch x 6.38 inch overall frame dimensions and grille clearance
  • Decide whether the speaker will be conventionally powered or bi-amped before wiring
  • Secure mounting hardware for motorcycle vibration and protect terminals and wiring from moisture, abrasion and heat
  • Complete final DSP, EQ, crossover, level and time-alignment tuning after installation

Specifications

Power handling200W RMS / 400W MAX
Sensitivity94 dB (1W/1M)
Voice coil configurationDual voice coil
Bi-ampableYes
Field-serviceable voice coilYes
Cone materialCarbon fiber
High-frequency diaphragmPEN (polyethylene naphthalate)
MotorNeodymium
BasketCast aluminum
SurroundRubber
Voice coil diameter2 inches
Re3.2 ohm
Qms7.368
Qes0.597
Qts0.552
Fs104 Hz
Vas9 L
Cms0.148 mm/N
Mms15.6 g
Sd206.84 cm²
BL7.418 T·m
Xmax1.2 mm
Mounting depth3.74 in (95 mm)
Cutout dimensions8.58 in x 5.75 in (218 mm x 146 mm)
Overall dimensions9.19 in x 6.38 in (233.5 mm x 162 mm)
Overall height4.08 in (103.7 mm)

Related Paths

MS692NEO FAQ

What power does the MS692NEO handle?

Diamond Audio rates the MS692NEO platform at 200W RMS and 400W MAX.

What are the 2 ohm and 4 ohm model numbers?

The 2 ohm model is MS692NEO2 and the 4 ohm model is MS692NEO4.

What cutout does it need?

The cutout is 8.58 inches x 5.75 inches (218 mm x 146 mm), with a mounting depth of 3.74 inches (95 mm).

Does it have to be bi-amped?

No. It uses a dual-voice-coil bi-ampable design, but bi-amping is optional and should be planned around amplifier channels, DSP and crossover strategy.

Is it a drop-in replacement for any 6x9?

No. Verify cutout, depth, basket clearance and grille clearance before ordering.

Need Help Choosing?

Tell us your bike, model year and the rest of your system and we will confirm this part fits before you order.
