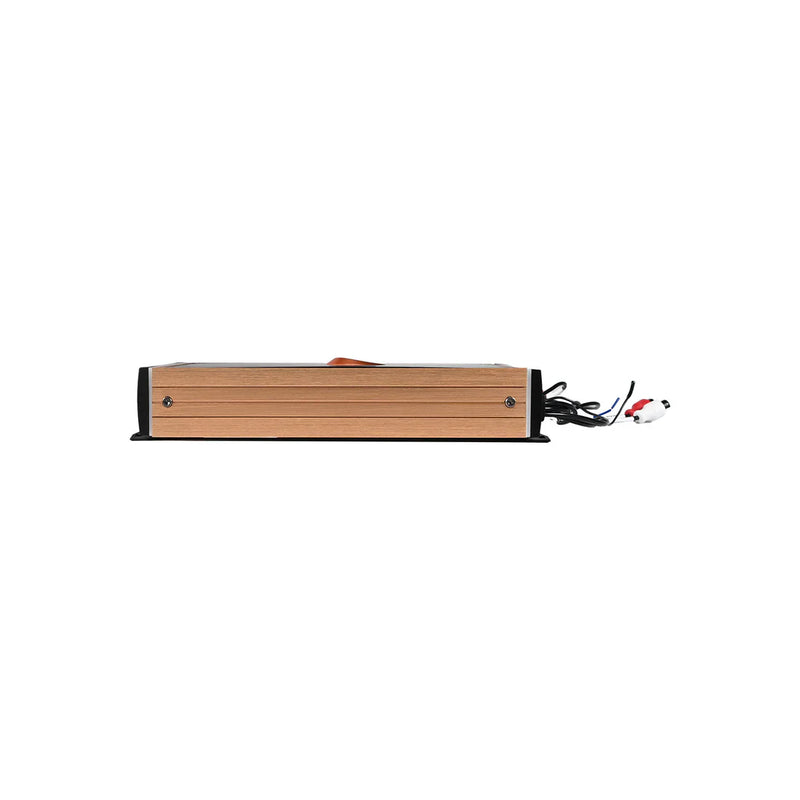

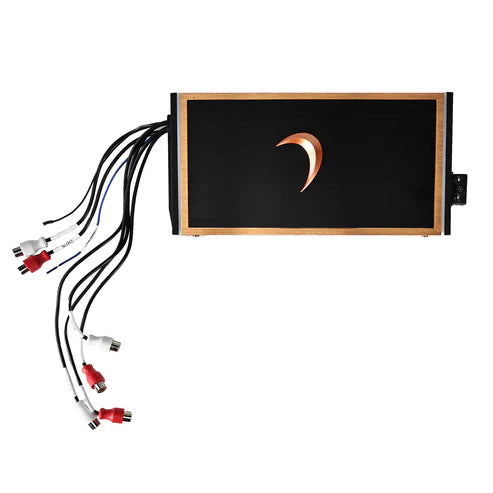

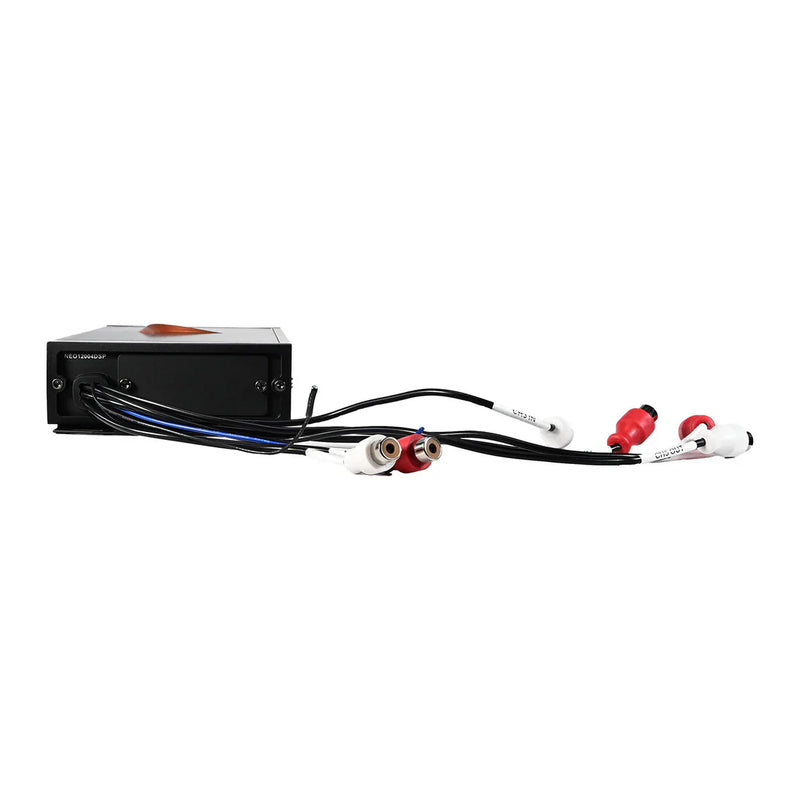

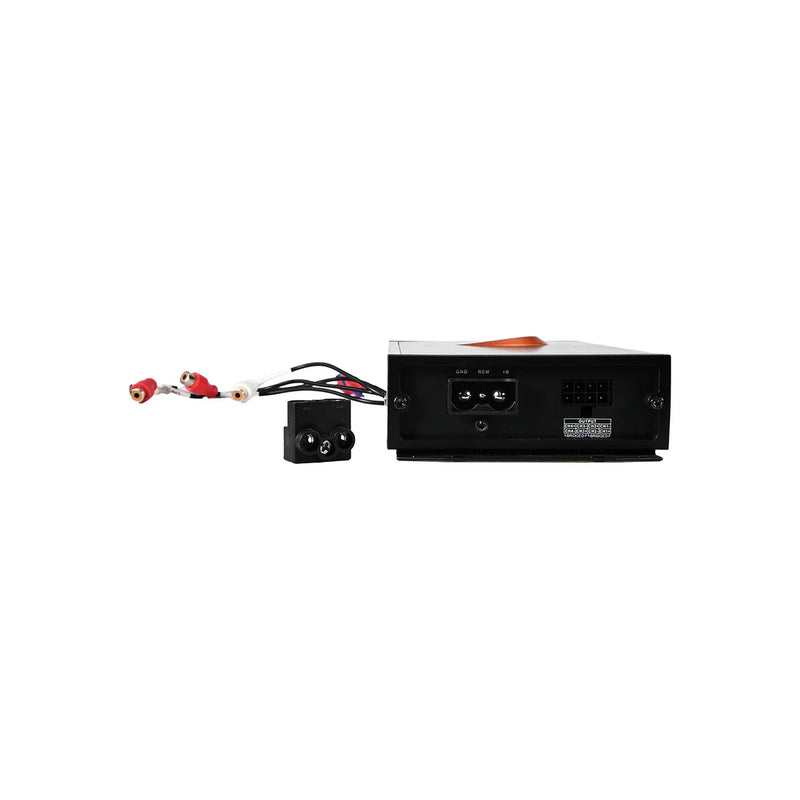

SaleDiamond Audio NEO12004DSP — 1200W RMS 4-Channel Amplifier w/ DSP
Vendor:Diamond AudioThe Diamond Audio NEO12004DSP is a Class D 4-channel amplifier with a built-in 6-channel DSP, sized for motorcycle amplifier racks. It is programmable from a PC or Android device.Key Specs Power: 150W RMS x 4 at 4 ohms, 300W RMS x 4 at 2 ohms Bridged: 600W RMS x 2 at 4 ohms DSP: 6 channels, 31-band parametric EQ per channel, crossovers, time delay, channel linking Input sensitivity: 0.4V to 20V Operating voltage: 8V to 17V Dimensions: 8.8" x 4.07" x 1.38"; weight 2.25 lbs Fitment and Installation NotesVerify mounting space, wiring path and ventilation before ordering.Related: Motorcycle Amplifiers and Diamond Audio. Need something custom? Our custom build team can help.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -

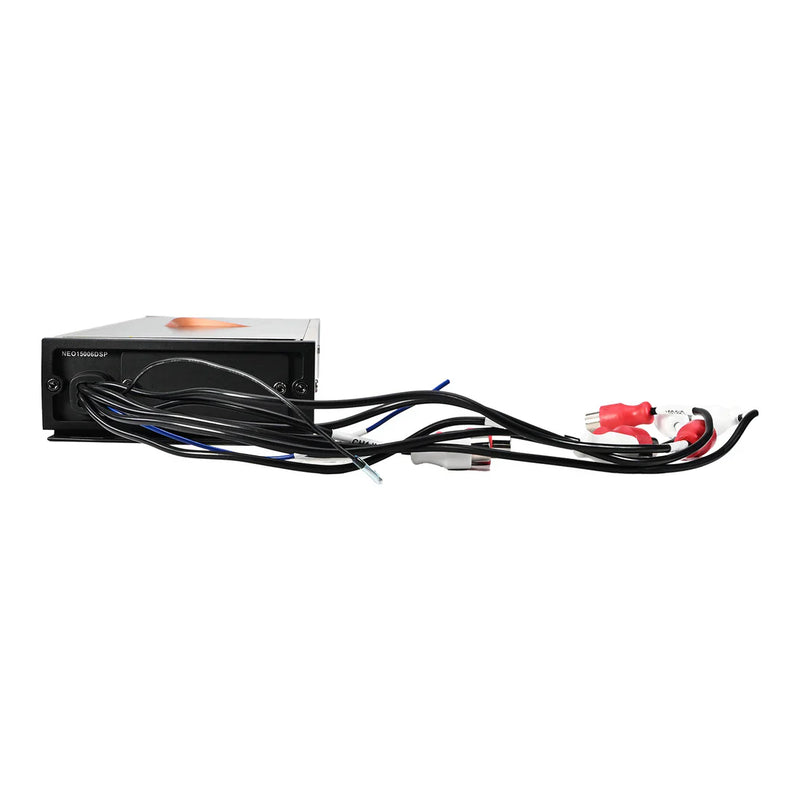

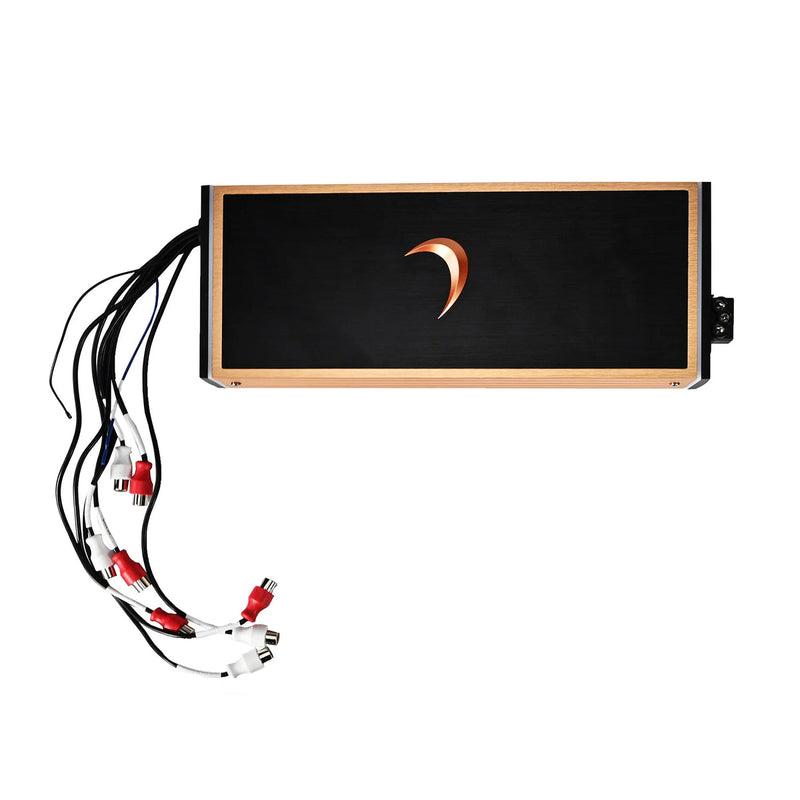

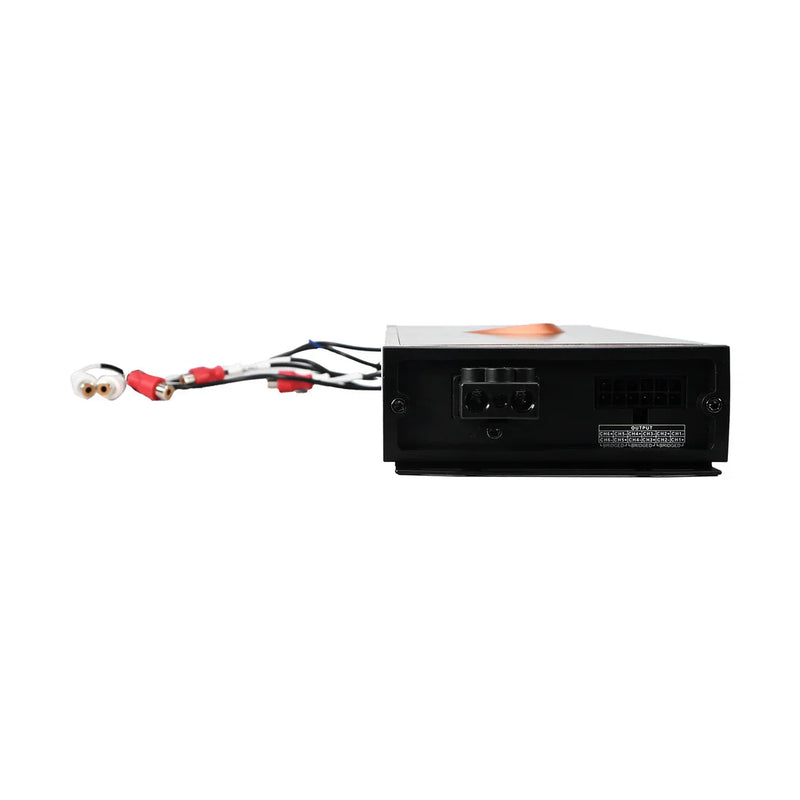

Diamond Audio NEO15006DSP — 1500W RMS 6-Channel Amplifier w/ DSP
Vendor:Diamond AudioThe Diamond Audio NEO15006DSP is a Class D 6-channel amplifier with a built-in 8-channel DSP for multi-speaker motorcycle systems. It is programmable from a PC or Android device.Key Specs Power: 150W RMS x 6 at 4 ohms, 250W RMS x 6 at 2 ohms Bridged: 500W RMS x 3 at 4 ohms DSP: 8 channels, 31-band parametric EQ per channel, crossovers, time delay, channel linking Input sensitivity: 0.4V to 20V Operating voltage: 8V to 17V Dimensions: 11.32" x 4.07" x 1.38"; weight 2.78 lbs Fitment and Installation NotesAt 11.32 inches long, this amplifier may need an oversized amplifier rack or an alternate mounting location on some motorcycles.Related: Motorcycle Amplifiers and Diamond Audio. Need something custom? Our custom build team can help.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -

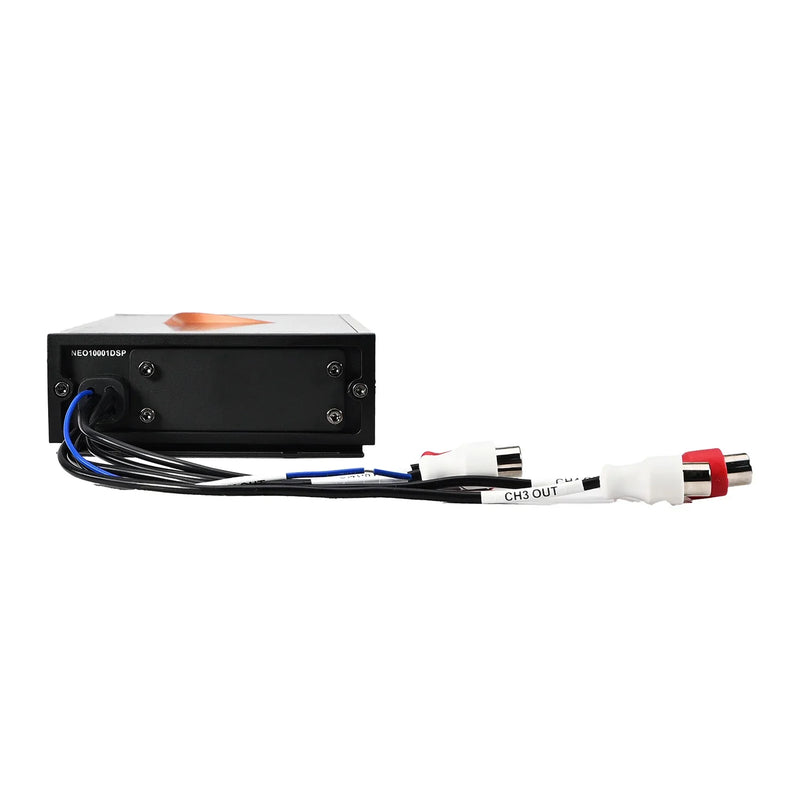

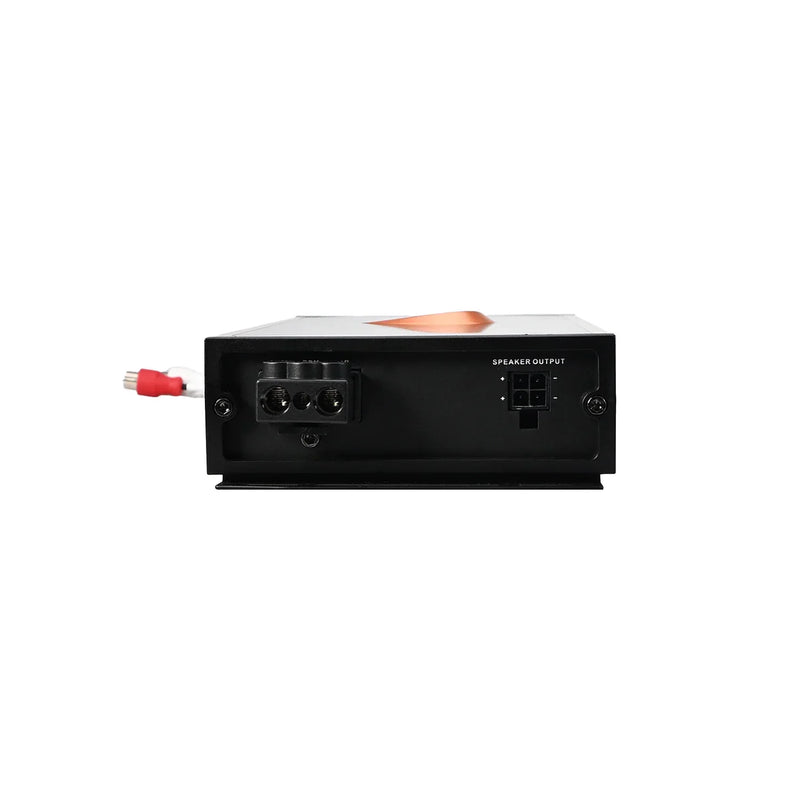

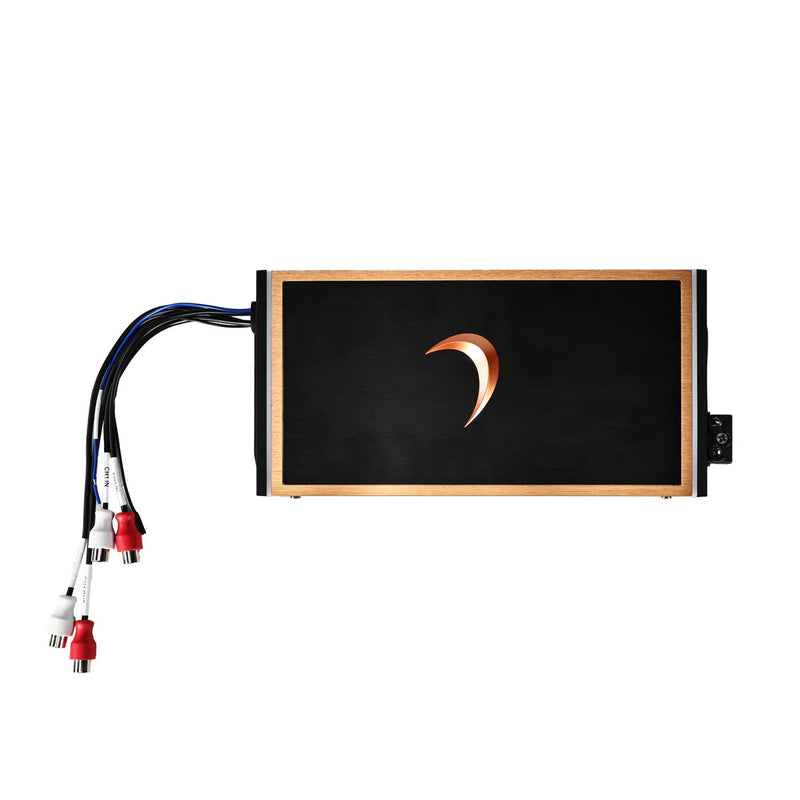

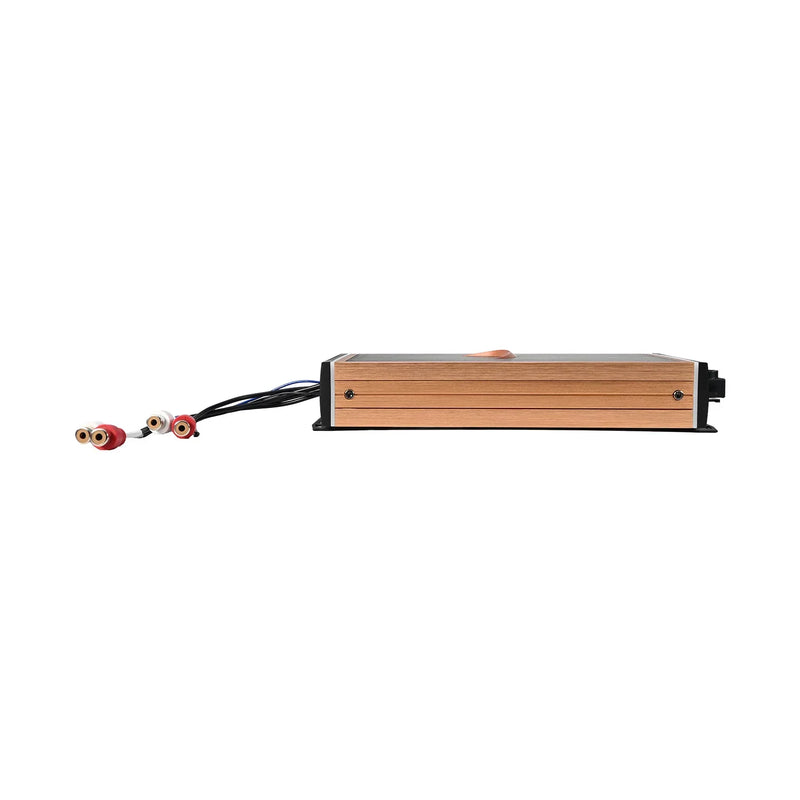

SaleDiamond Audio NEO10001DSP — 1000W RMS Monoblock Amplifier w/ DSP
Vendor:Diamond AudioThe Diamond Audio NEO10001DSP is a Class D monoblock amplifier with a built-in 4-channel DSP, made for subwoofer and midbass duty. It is programmable from a PC or Android device.Key Specs Power: 600W RMS at 4 ohms, 800W RMS at 2 ohms, 1000W RMS at 1 ohm DSP: 4 channels, 31-band parametric EQ per channel, crossovers, time delay, channel linking Input sensitivity: 0.4V to 20V Operating voltage: 8V to 17V Dimensions: 8.8" x 4.07" x 1.38"; weight 2.40 lbs Fitment and Installation NotesVerify mounting space, wiring path and ventilation before ordering.Related: Motorcycle Amplifiers and Diamond Audio. Need something custom? Our custom build team can help.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDiamond Audio DXM600.2D 2-Channel Waterproof Full Range Amplifier 600W RMS
Vendor:Diamond AudioThe Diamond Audio DXM600.2D is a 2-channel full-range Class D amplifier with an IPX67 waterproof rating. It is the compact 9.5" member of the DXM series.Key Specs Power: 300W RMS x 2 at 2 ohm; 200W RMS x 2 at 4 ohm; 600W RMS x 1 bridged at 4 ohm THD under 0.3%; S/N better than -102 dB; gain range 0.2V to 10V Selectable LPF/FULL/HPF crossover, 40 Hz to 400 Hz; bass boost 0 to 18 dB Frequency range 10 Hz to 33 kHz Fuse: 35A Size: 9.5" x 4.3" x 1.7" Fitment and Installation NotesDiamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years. Match the 11.8" or 9.5" length to your mounting space and use the fuse size above.Browse more motorcycle amplifiers and Diamond Audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDiamond Audio DXM800.4D 4-Channel Waterproof Full Range Amplifier 800W RMS
Vendor:Diamond AudioThe Diamond Audio DXM800.4D is a 4-channel full-range Class D amplifier with an IPX67 waterproof rating and selectable 2-channel or 4-channel input modes.Key Specs Power: 200W RMS x 4 at 2 ohm; 125W RMS x 4 at 4 ohm; 400W RMS x 2 bridged at 4 ohm THD under 0.3%; S/N better than -102 dB; gain range 0.2V to 10V Selectable LPF/FULL/HPF crossover, 40 Hz to 400 Hz; frequency range 10 Hz to 33 kHz Fuse: 45A Size: 11.8" x 4.3" x 1.7" Short circuit, thermal and voltage protection with LED status indicator Fitment and Installation NotesDiamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years. Match the 11.8" or 9.5" length to your mounting space and use the fuse size above.Browse more motorcycle amplifiers and Diamond Audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDiamond Audio DXM1000.6D 6-Channel Waterproof Full Range Amplifier 1000W RMS
Vendor:Diamond AudioThe Diamond Audio DXM1000.6D is a 6-channel full-range Class D amplifier with an IPX67 waterproof rating. It supports selectable 2-channel or 6-channel input modes and includes a remote bass knob.Key Specs Power: 150W RMS x 6 at 2 ohm; 100W RMS x 6 at 4 ohm; 340W RMS x 3 bridged at 4 ohm THD under 0.3%; S/N better than -96 dB; gain range 0.2V to 10V Selectable LPF/FULL/HPF crossover, 40 Hz to 400 Hz; frequency range 10 Hz to 33 kHz Fuse: 50A Size: 11.8" x 4.3" x 1.7" Class D with Direct FET output stage; short circuit, thermal and voltage protection Fitment and Installation NotesDiamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years. Match the 11.8" or 9.5" length to your mounting space and use the fuse size above.Browse more motorcycle amplifiers and Diamond Audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
Diamond Audio DXM1200.1D Waterproof Monoblock Amplifier 1200W RMS
Vendor:Diamond AudioThe Diamond Audio DXM1200.1D is a monoblock Class D subwoofer amplifier with an IPX67 waterproof rating, rated up to 1200W RMS at 1 ohm. A remote bass knob is included.Key Specs Power: 1200W RMS at 1 ohm; 800W RMS at 2 ohm; 500W RMS at 4 ohm THD under 0.3%; S/N better than -102 dB; gain range 0.2V to 10V Variable low-pass crossover 40 Hz to 250 Hz; subsonic filter 10 Hz to 55 Hz Bass boost 0 to 18 dB; selectable phase 0 to 180 degrees Fuse: 70A Size: 11.8" x 4.3" x 1.7" Fitment and Installation NotesDiamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years. Match the 11.8" or 9.5" length to your mounting space and use the fuse size above.Browse more motorcycle amplifiers and Diamond Audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -
SaleDiamond Audio HXM65FBK 6.5" 2-Way High Output Marine Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio HXM65FBK 6.5" High-Output Horn Coaxial Speakers — 2Ω or 4Ω The Diamond Audio HXM65FBK Black Series 6.5-inch horn-loaded coaxial speakers are built for high-output motorcycle, marine, and powersports audio systems where strong projection, clean midrange, and crisp high-frequency output are required. Available in both 2-ohm and 4-ohm versions, the HXM65FBK combines a rigid carbon-fiber cone, oversized 1.5-inch titanium tweeter, lightweight neodymium motor structure, and fiberglass-reinforced composite basket for serious open-air performance. THE REFERENCE STANDARD 6.5" High Output Built for Open-Air Audio Designed for motorcycles, marine systems, and powersports applications where output, projection, durability, and efficient amplifier use matter. Start a Build Consultation Call 864-334-6131 Diamond Audio HXM65FBK Key Specifications Series HXM Black Series Speaker Size 6.5 inches Speaker Type Horn-Loaded 2-Way Coaxial 2Ω Model HXM65F2BK 4Ω Model HXM65F4BK Voice Coils Single Power Handling 150W RMS / 450W MAX Sensitivity 95 dB (1W/1M) Voice Coil Diameter 2 inches Cone Material Carbon Fiber Tweeter Oversized 1.5-inch Titanium Tweeter Motor Neodymium Basket Fiberglass-Reinforced Polymer / Composite Surround Rubber Re 1.8Ω Qms 7.506 Qes 0.369 Qts 0.352 Fs 105 Hz Vas 6.172 L Cms 0.288 mm/N Mms 8.024 g Sd 122.718 cm² BL 5.068 T·m Xmax 2.75 mm Mounting Depth 2.52″ (64 mm) Cutout Diameter 5.44″ (138.06 mm) Overall Diameter 6.61″ (167.79 mm) Overall Height 3.03″ (77.02 mm) Fitment warning: Verify cutout diameter, mounting depth, grille clearance, rear clearance, speaker impedance, and amplifier compatibility before ordering. High-Output 6.5" Horn Coaxial Design The HXM65FBK combines a 6.5-inch carbon-fiber midrange cone with an oversized titanium high-frequency driver in a horn-loaded coaxial configuration. This architecture is designed to produce the projection and efficiency needed in motorcycle and other open-air audio environments. Rather than relying on a conventional automotive coaxial design, the HXM Black Series is engineered around higher acoustic output and far-field performance where wind, road, engine, and exhaust noise compete with the audio system. Carbon-Fiber Cone for Stronger Output Diamond Audio uses a rigid carbon-fiber cone to combine low moving mass with high structural stiffness. The result is a cone designed to maintain control at elevated playback levels while improving impact and projection from a compact 6.5-inch platform. Oversized 1.5-Inch Titanium Tweeter The HXM65FBK uses Diamond Audio's larger 1.5-inch titanium tweeter to increase high-frequency output and improve projection in open-air installations. The combination of the horn-loaded architecture and titanium diaphragm helps the speaker maintain high-frequency presence at speed instead of allowing the top end to disappear beneath road and wind noise. 150W RMS Power Handling Diamond Audio rates the current HXM65FBK Black Series at 150 watts RMS and 450 watts maximum power per speaker. Both 2-ohm and 4-ohm versions are available so the speaker impedance can be matched correctly to the amplifier and complete system design. 2Ω — HXM65F2BK The 2-ohm model allows compatible amplifiers to produce increased channel output and can be useful in systems designed around lower-impedance speaker loads. 4Ω — HXM65F4BK The 4-ohm version offers additional flexibility for multi-speaker wiring, amplifier channel loading, and systems designed around higher-impedance configurations. Neodymium Motor and High-Excursion Suspension A lightweight neodymium motor structure helps reduce physical size and weight while maintaining the magnetic strength required for high-output operation. Diamond Audio lists 2.75 mm of Xmax for the current HXM65FBK platform, supporting controlled cone movement and improved midbass capability from the 6.5-inch driver. Built for Motorcycle, Marine and Powersports Use The HXM Black Series is designed around marine and motorsports applications where the speaker may be exposed to moisture, heat, vibration, and UV. Carbon-fiber cone construction. Fiberglass-reinforced polymer composite basket. Rubber surround. Lightweight neodymium motor structure. Titanium high-frequency diaphragm. Designed for marine, motorcycle, motorsports, and powersports applications. Motorcycle Audio Applications The HXM65FBK is well suited to custom Harley-Davidson, Indian, Slingshot, powersports, and marine systems that require a high-output 6.5-inch coaxial speaker. Applications may include fairings, lower pods, tour packs, custom saddlebag locations, fabricated speaker panels, marine installations, and other positions designed to accept a 6.5-inch speaker. Application note: Do not assume these speakers are a direct drop-in replacement simply because the opening is listed as 6.5 inches. Verify the 5.44-inch cutout, 2.52-inch mounting depth, rear motor clearance, grille clearance, amplifier power, crossover strategy, and selected impedance before installation. Installation and Tuning Notes Select the 2Ω or 4Ω version based on the amplifier and complete system layout. Verify amplifier RMS output at the selected impedance. Confirm the 5.44-inch mounting cutout before modifying factory or aftermarket panels. Verify the full 2.52-inch mounting depth and rear motor clearance. Confirm grille and fairing clearance before final assembly. Use appropriate high-pass crossover protection for the installed power level and application. Secure mounting hardware appropriately for motorcycle vibration. Protect wiring and terminals from moisture, abrasion, heat, and moving components. Complete final EQ and crossover tuning after the complete audio system is installed. Diamond Audio HXM Black Series Manual Review the HXM Black Series installation and technical manual before installation. Download HXM Black Series Manual Need Help Choosing 2Ω or 4Ω? The correct impedance depends on amplifier output, channel configuration, number of speakers, wiring method, and the complete system design. Garage Bagger Stereo can help determine the correct version before you order. Start a Build Consultation Call 864-334-6131Sale -
SaleDiamond Audio HXM69FBK 6x9" 2-Way High Output Marine Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio HXM69FBK 6x9" 2-Way High Output Marine Speakers (2Ω or 4Ω) All Weather 6x9" Marine Speakers  SPECIFICATIONS: HXM69FBK (2Ω or 4Ω) SPEAKER SIZE - 6X9" POWER HANDLING RMS: 150 POWER HANDLING MAX: 300 SPEAKER TYPE - HORN LOADED Procoaxial OHMS (PER COIL) - 4Ω or 2Ω NUMBER OF VOICE COILS - SINGLE CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - TITANIUM BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER MAGNET TYPE - NEODYMIUM SURROUND MATERIAL - RUBBER WATER RESISTANCE - VOICE COIL DIAMETER - INCH (MM) - 2" THIELE/SMALL PARAMETERS SENSITIVITY (1W/1M): 94 RE (Ω) [SERIES]: 2 QMS: 3.759 QES: 0.471 QTS: 0.419 FS (HZ): 69 VAS (L): 23.014 CMS (MM/N): 0.343 MMS (G): 15.599 SD (M2): 217.28 BL (T*M): 5.348 XMAX (MM): 3.25 MOUNTING DEPTH: IN.(MM):3.10" (78.81MM) CUT OUT DIAMETER IN.(MM):8.51" (216.03MM) OVER ALL DIAMETER IN.(MM):9.46" (240.29MM) OVER ALL HEIGHT IN.(MM):3.58" (90.81MM) HXMF4 Series ManualSale -
SaleDiamond Audio HXM8FBK 8" 2-Way High Output Marine Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio HXM8FBK 8" High-Output Horn Coaxial Speakers — 2Ω or 4Ω The Diamond Audio HXM8FBK Black Series 8-inch horn-loaded coaxial speakers are built for high-output motorcycle, marine, and powersports systems that need strong midrange projection, crisp high-frequency output, and weather-resistant construction. Available in both 2-ohm and 4-ohm versions, the HXM8FBK combines a rigid carbon-fiber cone, oversized 1.5-inch titanium dome tweeter, neodymium motor structure, and reinforced composite basket for serious output in demanding open-air environments. THE REFERENCE STANDARD High Output Built for Open-Air Audio Designed for motorcycles, boats, and powersports systems where projection, durability, and efficient output matter. Start a Build Consultation Call 864-334-6131 Diamond Audio HXM8FBK Key Specifications Series HXM Black Series Speaker Size 8 inches Speaker Type Horn-Loaded 2-Way Coaxial 2Ω Model HXM8F2BK 4Ω Model HXM8F4BK Power Handling 175W RMS / 600W MAX Sensitivity 95 dB (1W/1M) Voice Coil 2-inch Cone Material Carbon Fiber Tweeter 1.5-inch Oversized Titanium Dome Tweeter Motor Neodymium Basket Fiberglass-Reinforced Polymer / Composite Surround Rubber Xmax 3.25 mm Fs 83 Hz Mounting Depth 3.11″ (78.9 mm) Cutout Diameter 7.02″ (178.38 mm) Overall Diameter 8.31″ (211 mm) Overall Height 3.56″ (90.32 mm) Mounting Style Flush Mount or Back Mount Environmental Protection Water spray resistant, salt-water resistant, UV stable Fitment warning: Verify mounting depth, cutout diameter, grille clearance, enclosure depth, and speaker impedance before ordering. Rigid Carbon-Fiber Cone for Increased Output The HXM8FBK Black Series uses a rigid carbon-fiber cone designed to improve output and low-frequency impact while maintaining control at higher playback levels. Carbon fiber provides a strong, lightweight cone structure that is well suited to motorcycle and powersports systems where efficiency and projection are critical. Oversized 1.5-Inch Titanium Tweeter Diamond Audio pairs the 8-inch midrange cone with an oversized 1.5-inch titanium dome tweeter to increase high-frequency output and improve projection in open-air environments. That additional high-frequency energy helps the speaker remain clear against wind, road, engine, and exhaust noise. 175W RMS High-Output Power Handling Each HXM8FBK speaker is rated for 175 watts RMS and 600 watts maximum power. The available 2-ohm and 4-ohm versions allow the system designer to match amplifier loading and channel configuration more precisely. 2Ω — HXM8F2BK The 2-ohm version can be used when the amplifier and system design benefit from a lower impedance load and increased available channel output. 4Ω — HXM8F4BK The 4-ohm version offers additional flexibility for multi-speaker wiring, bridged amplifier configurations, and systems designed around higher-impedance loads. Neodymium Motor and High-Excursion Suspension The HXM8FBK uses a lightweight neodymium motor structure paired with Diamond Audio’s maximum-Xmax suspension design. The compact motor helps reduce weight and mounting depth while maintaining the magnetic strength required for high-output performance. Diamond lists 3.25 mm of Xmax on the current 4-ohm technical specification, giving the 8-inch cone usable excursion for stronger midbass performance. Built for Motorcycle, Marine and Powersports Environments The Black Series is designed for exposed audio installations where conventional automotive speakers may not survive long-term use. Water-spray resistant construction. Salt-water resistant materials. 100% UV-stable components. High-temperature lightweight injection-molded construction. Fiberglass-reinforced composite basket. Rubber surround. Flush-mount or back-mount installation capability. Motorcycle Audio System Applications The HXM8FBK is a strong option for custom Harley-Davidson, Indian, Slingshot, powersports, and marine systems where an 8-inch coaxial speaker is needed for high-output full-range or midrange-heavy operation. Common applications include custom fairing pods, lower pods, tour-pack enclosures, saddlebag installations, custom speaker panels, marine locations, and other fabricated 8-inch speaker positions. Application note: These are high-output 8-inch speakers and should not be treated as a universal drop-in replacement. Confirm the physical opening, mounting depth, enclosure volume, grille clearance, amplifier power, crossover strategy, and impedance before installation. Installation and Tuning Notes Choose the 2Ω or 4Ω version based on amplifier loading and complete system design. Verify the amplifier's RMS output at the selected speaker impedance. Confirm the 7.02-inch cutout and 3.11-inch mounting depth before fabrication. Check rear clearance for the motor structure and speaker terminals. Use appropriate crossover protection for the intended system and power level. Secure all mounting hardware for vibration-heavy motorcycle and powersports applications. Protect wiring and terminals from moisture, abrasion, heat, and moving components. Complete final EQ and crossover tuning after the full system is installed. Diamond Audio HXM Black Series Manual Review the current Diamond Audio HXM Black Series installation and specification manual before installation. Download HXM Black Series Manual Need Help Choosing 2Ω or 4Ω? Speaker impedance should be selected around the amplifier, number of speakers, channel configuration, wiring method, and overall system design — not simply by choosing the lowest impedance available. Start a Build Consultation Call 864-334-6131Sale -
SaleDiamond Audio MS652NEO 6.5" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS652NEO 6.5" Pro Coaxial Neo Speakers — 2Ω or 4Ω The Diamond Audio MS652NEO is a 6.5-inch horn-loaded pro coaxial speaker designed for serious motorcycle, marine, powersports, and high-output vehicle audio systems. Its combination of a carbon-fiber cone, PEN high-frequency diaphragm, neodymium motor structure, and cast-aluminum basket is engineered to produce strong projection and clean output in demanding open-air environments. Available in 2-ohm and 4-ohm versions, the MS652NEO delivers 200 watts RMS of power handling with a dual-voice-coil, bi-ampable architecture that gives system builders additional flexibility when configuring amplification and DSP control. THE REFERENCE STANDARD 6.5" Pro Coaxial Output Built for the Highway Horn-loaded high-frequency projection, carbon-fiber midrange performance, and efficient neodymium motor technology for serious motorcycle audio systems. Start a Build Consultation Call 864-334-6131 Diamond Audio MS652NEO Key Specifications Series MS NEO Speaker Size 6.5 inches Speaker Type 2-Way Horn-Loaded Pro Coaxial 2Ω Model MS652NEO2 4Ω Model MS652NEO4 Power Handling 200W RMS / 400W MAX Sensitivity 93 dB (1W/1M) Voice Coil Configuration Dual Voice Coil Bi-Ampable Yes Field-Serviceable Voice Coil Yes Voice Coil Diameter 2 inches Cone Material Carbon Fiber High-Frequency Diaphragm PEN — Polyethylene Naphthalate Motor Neodymium Basket Cast Aluminum Surround Rubber Re 3.2Ω Qms 10.357 Qes 0.67 Qts 0.629 Fs 151 Hz Vas 2.756 L Cms 0.094 mm/N Mms 11.728 g Sd 143.14 cm² BL 7.289 T·m Xmax 1.2 mm Mounting Depth 3.43″ (87.13 mm) Cutout Diameter 5.63″ (143 mm) Overall Diameter 6.65″ (169 mm) Overall Height 3.79″ (96.33 mm) Fitment warning: These are high-output 6.5-inch pro coaxial speakers and are not a universal drop-in replacement. Verify cutout diameter, mounting depth, motor clearance, grille clearance, amplifier power, impedance, and complete system layout before ordering. 200W RMS High-Output Pro Coaxial Performance The MS652NEO is designed for motorcycle audio systems where a traditional automotive coaxial speaker may not provide enough output or projection. Its horn-loaded architecture increases high-frequency efficiency while the carbon-fiber cone handles the midrange and midbass frequencies required for strong open-air performance. Diamond Audio's formal technical specifications rate the MS652NEO platform at 200 watts RMS and 400 watts maximum power. Horn-Loaded Coaxial Architecture The high-frequency driver is positioned within the same overall speaker platform as the 6.5-inch cone, creating a compact coaxial system capable of delivering both midrange and high-frequency output from one mounting location. The horn-loaded high-frequency section is designed to improve projection so vocals, cymbals, guitars, and other upper-frequency information remain audible against wind, road, engine, and exhaust noise. Carbon-Fiber Cone and Neodymium Motor Diamond Audio uses a rigid carbon-fiber cone to provide a strong, lightweight moving surface capable of maintaining control at elevated playback levels. The neodymium motor provides high magnetic strength while reducing the size and weight associated with conventional ferrite magnet structures, making the platform particularly useful for motorcycle and powersports installations. PEN High-Frequency Diaphragm High-frequency reproduction is handled by a PEN — polyethylene naphthalate — diaphragm. Combined with the horn-loaded architecture, this design is intended to provide clean, efficient high-frequency output with strong forward projection. Choose 2Ω or 4Ω The MS652NEO is available in separate 2-ohm and 4-ohm configurations. The correct version should be selected based on amplifier output, number of speakers, channel configuration, wiring method, and final impedance presented to the amplifier. 2Ω — MS652NEO2 The 2-ohm version is suited to systems where the amplifier and channel configuration are designed to operate at a lower impedance and provide increased available power. 4Ω — MS652NEO4 The 4-ohm version provides greater flexibility for multi-speaker wiring and amplifier configurations where a higher final impedance is required. Dual Voice Coil and Bi-Amp Capability The MS652NEO uses a dual-voice-coil, bi-ampable architecture. This allows advanced system builders to configure the speaker differently depending on amplifier channel availability and DSP strategy. A properly designed bi-amped system can provide independent amplification and signal processing for different sections of the coaxial platform, allowing greater control over crossover points, output level, EQ, and time alignment. System-design note: Bi-amp capability does not mean the speaker must be bi-amped. Wiring, amplifier channels, crossover configuration, and DSP settings must be planned around the complete system and the selected 2Ω or 4Ω version. Cast-Aluminum Basket and Field-Serviceable Design The rigid cast-aluminum basket provides structural support and helps resist flex and vibration during high-output operation. Diamond Audio also specifies a field-serviceable voice-coil design, adding serviceability for demanding custom motorcycle, marine, and powersports systems. Built for Motorcycle and Powersports Audio With its compact 6.5-inch format, high-output architecture, and 3.43-inch mounting depth, the MS652NEO is suited to a wide range of custom motorcycle and powersports speaker locations where adequate physical clearance is available. Harley-Davidson custom audio systems. Road Glide and Street Glide fairing applications. Custom lower speaker pods. Saddlebag speaker installations. Tour-pack speaker locations. Custom fabricated speaker panels. Marine and powersports applications. Slingshot and UTV audio systems. Installation and Tuning Notes Select the 2Ω or 4Ω model based on amplifier loading and complete system design. Verify amplifier RMS output at the selected impedance. Confirm the 5.63-inch mounting cutout before modifying any factory or aftermarket panel. Verify the complete 3.43-inch mounting depth and rear motor clearance. Confirm the 6.65-inch overall diameter and grille clearance before final assembly. Determine whether the speaker will be conventionally powered or bi-amped before wiring. Use appropriate crossover protection based on amplifier power, installation location, and system goals. Secure all speaker mounting hardware for motorcycle vibration. Protect wiring and terminals from moisture, abrasion, heat, and moving components. Complete final DSP, EQ, crossover, and level tuning after the full system is installed. Diamond Audio MS NEO Coaxial Specifications Review the Diamond Audio MS NEO coaxial technical information before installation and system configuration. View MS NEO Coaxial Specifications Need Help Choosing 2Ω or 4Ω? The correct impedance depends on amplifier output, number of speakers, channel configuration, wiring method, DSP strategy, and the complete system design. Garage Bagger Stereo can help determine the correct MS652NEO version for your system. Start a Build Consultation Call 864-334-6131Sale -
SaleDiamond Audio MS652NEOS 6.5" 2-Way Coaxial Shallow Mount Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS652NEOS 6.5" Shallow-Mount Pro Coaxial Speakers — 2Ω or 4Ω The Diamond Audio MS652NEOS is the shallow-mount version of Diamond Audio's high-output 6.5-inch MS NEO pro coaxial platform. Built for motorcycle, powersports, marine, and custom audio systems where mounting depth is limited, it combines horn-loaded high-frequency projection with a rigid carbon-fiber cone and lightweight neodymium motor structure. Available in 2-ohm and 4-ohm versions, the MS652NEOS is rated at 200 watts RMS and uses a dual-voice-coil, bi-ampable architecture for advanced amplifier and DSP system configurations. THE REFERENCE STANDARD Pro Coaxial Output in a 2.74" Shallow-Mount Package Designed for tight fairings, pods, doors, and custom motorcycle installations where a full-depth 6.5-inch pro coaxial will not fit. Start a Build Consultation Call 864-334-6131 Diamond Audio MS652NEOS Key Specifications Series MS NEO Shallow Mount Speaker Size 6.5 inches Speaker Type 2-Way Horn-Loaded Pro Coaxial 2Ω Model MS652NEO2S 4Ω Model MS652NEO4S Power Handling 200W RMS / 400W MAX Sensitivity 93 dB (1W/1M) Voice Coil Configuration Dual Voice Coil Bi-Ampable Yes Field-Serviceable Voice Coil Yes Voice Coil Diameter 2 inches Cone Material Carbon Fiber High-Frequency Diaphragm PEN — Polyethylene Naphthalate Motor Neodymium Basket Cast Aluminum Surround Rubber Fs 151 Hz Mounting Depth 2.74″ (69.50 mm) Cutout Diameter 5.63″ (143 mm) Overall Diameter 6.29″ (159.68 mm) Overall Height 3.38″ (85.9 mm) Fitment warning: Shallow mount does not mean universal fitment. Verify the 5.63-inch cutout, 2.74-inch mounting depth, basket clearance, grille clearance, amplifier power, impedance, and complete system layout before ordering. 2.74" Shallow-Mount Pro Coaxial Design The biggest advantage of the MS652NEOS is its reduced installation depth. At only 2.74 inches deep, it gives system builders additional clearance in motorcycle fairings, factory speaker locations, shallow pods, doors, and custom enclosures where the standard-depth MS652NEO may not fit. The shallower chassis retains the core MS NEO architecture instead of moving to a conventional low-output automotive coaxial design. 200W RMS High-Output Pro Coaxial Performance The MS652NEOS is designed for open-air systems where projection and efficiency are critical. Diamond Audio rates the shallow-mount platform at 200 watts RMS, providing substantial power handling from a compact 6.5-inch driver. Its horn-loaded coaxial architecture helps maintain midrange and high-frequency presence against wind, road, engine, and exhaust noise. Carbon-Fiber Cone and Neodymium Motor The carbon-fiber cone provides a rigid, lightweight moving surface designed for responsive midrange and controlled midbass output at elevated playback levels. A high-efficiency neodymium motor provides strong magnetic force while helping Diamond Audio reduce the overall depth and weight of the speaker assembly. Horn-Loaded PEN High-Frequency Driver The MS652NEOS uses a PEN — polyethylene naphthalate — high-frequency diaphragm integrated into its horn-loaded coaxial architecture. The horn increases acoustic projection and efficiency, helping vocals and high-frequency information remain clear in motorcycle and other open-air listening environments. Choose 2Ω or 4Ω The MS652NEOS is available in separate 2-ohm and 4-ohm models. The correct impedance should be selected around the amplifier's output, number of speakers, channel configuration, wiring method, and final load presented to the amplifier. 2Ω — MS652NEO2S The 2-ohm shallow model is suited to systems designed to take advantage of increased amplifier output at a lower channel impedance. 4Ω — MS652NEO4S The 4-ohm shallow model provides additional flexibility for multi-speaker wiring and amplifier configurations requiring a higher final load. Dual Voice Coil and Bi-Amp Capability The MS652NEOS uses a dual-voice-coil, bi-ampable architecture that allows advanced system builders to configure amplification and DSP control around the needs of the complete system. In a properly designed bi-amped configuration, amplifier and DSP channels can provide more independent control over crossover, output level, EQ, and timing. System-design note: Bi-amp capability does not mean the speaker must be bi-amped. Wiring, amplifier channels, DSP configuration, and crossover strategy should be planned around the entire system. Built for Motorcycle and Powersports Installations The reduced mounting depth makes the MS652NEOS particularly useful in motorcycle installations where fairing, pod, enclosure, or factory-panel clearance limits the use of deeper high-output speakers. Harley-Davidson fairing speaker locations. Road Glide and Street Glide custom audio systems. Shallow lower-pod installations. Tour-pack speaker locations. Custom saddlebag speaker panels. Limited-depth fabricated enclosures. Slingshot and UTV audio systems. Marine and powersports installations. Standard MS652NEO vs MS652NEOS Shallow Mount MS652NEO Standard Depth 3.43″ MS652NEOS Shallow Depth 2.74″ Depth Reduction Approximately 0.69″ MS652NEOS Cutout 5.63″ MS652NEOS Overall Diameter 6.29″ Choose the shallow MS652NEOS when available mounting depth is the limiting factor. Do not assume the shallow version and standard version have identical external dimensions. Installation and Tuning Notes Select the 2Ω or 4Ω version based on amplifier loading and complete system design. Verify amplifier RMS output at the selected impedance. Confirm the 5.63-inch mounting cutout before modifying any panel. Verify the full 2.74-inch mounting depth and rear clearance. Confirm the 6.29-inch overall diameter and grille clearance. Determine whether the speaker will be conventionally powered or bi-amped before wiring. Use appropriate crossover protection based on amplifier power and installation location. Secure mounting hardware for motorcycle vibration. Protect wiring and terminals from moisture, heat, abrasion, and moving components. Complete final DSP, EQ, crossover, level, and time-alignment tuning after the system is installed. Diamond Audio MS NEO Coaxial Specifications Review the Diamond Audio MS NEO coaxial technical information before installation and system configuration. View MS NEO Coaxial Specifications Need Help Choosing the Correct MS NEO? The right speaker depends on mounting depth, amplifier output, impedance, number of speakers, wiring configuration, and DSP strategy. Garage Bagger Stereo can help determine whether the standard-depth or shallow MS652NEO platform is the better fit for your system. Start a Build Consultation Call 864-334-6131Sale
Key Specifications
| Application | Harley Davidson and Indian touring motorcycles |
| Category Role | System completion and installation support |
| Component Types | Adapters, wiring, power accessories, mounting hardware |
| Design Focus | Electrical integrity, fitment accuracy, reliability |
| Use Case | Staged upgrades and full custom audio builds |
| Installation Level | Professional-grade motorcycle audio systems |
Specifications summarized from manufacturer technical data. Always verify compatibility and system requirements before installation.
Motorcycle Audio Parts and Accessories
Motorcycle parts and accessories are the supporting components that allow an audio system to function correctly, reliably, and safely. This collection includes purpose-built parts selected specifically for Harley Davidson and Indian touring motorcycles, where fitment accuracy and electrical integrity matter.
These components are not optional add-ons — they are required to complete professional-grade audio installations. From signal integration to power management and mounting hardware, each item in this collection addresses a specific requirement in motorcycle audio system design.
This collection supports a wide range of system needs, including:
• Audio integration adapters and signal interfaces
• Electrical and power-management accessories
• Mounting hardware and installation components
• Model-specific fitment and interface parts
Proper accessory selection prevents noise issues, voltage instability, improper mounting, and premature component failure. These parts ensure speakers, amplifiers, DSPs, and subwoofers operate as designed within the constraints of touring motorcycle platforms.
All products in this collection are vetted for compatibility with Harley and Indian motorcycles and align with professional installation standards. This category serves as a system-completion resource for both staged upgrades and full custom audio builds.
