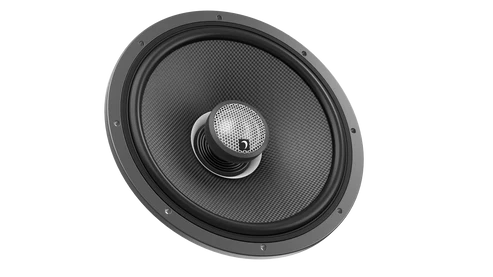

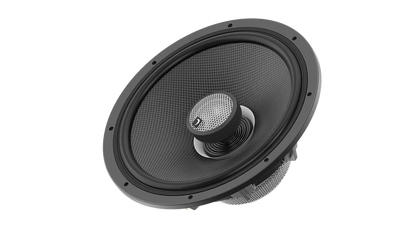

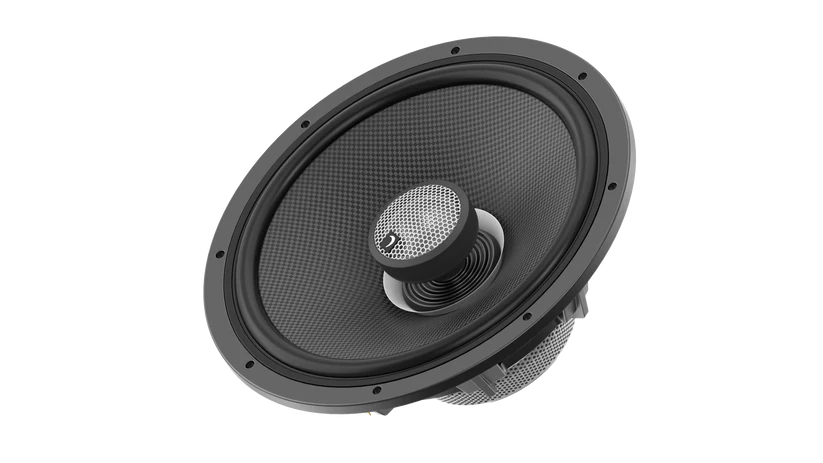

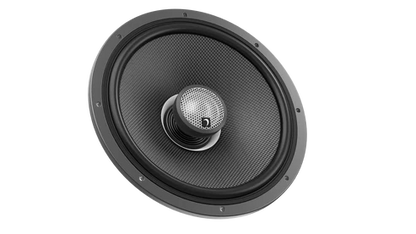

Diamond Audio HXM8FBK 8" 2-Way High Output Marine Speakers (2Ω or 4Ω)
The Diamond Audio HXM8FBK is the 8-inch size in the HXM Black Series of marine coaxial speakers, rated 175 W RMS and 600 W max per speaker. It is sold as a pair in 2Ω (HXM8F2BK) or 4Ω (HXM8F4BK) and needs a 7.02 in cutout with 3.11 in mounting depth on the 4Ω listing.
8 in coaxial with an 8.31 in overall diameter
The carbon fiber cone and oversized titanium tweeter come with 95 dB sensitivity, Xmax of 3.25 mm and Fs of 83 Hz on the 4Ω listing.
- 175 W RMS / 600 W max per speaker
- Carbon fiber cone, titanium tweeter, neodymium motor
- 7.02 in cutout, 3.11 in mounting depth (4Ω listing)
Key Product Details
| Brand | Diamond Audio |
| Series | HXM Black Series |
| Size | 8 inch coaxial |
| Impedance options | 2Ω (HXM8F2BK) or 4Ω (HXM8F4BK) |
| Sold as | Pair |
| Power | 175 W RMS / 600 W max per speaker |
| Cutout / depth | 7.02 in / 3.11 in (4Ω listing) |
| Application | Marine, per Diamond Audio listing |
Pick the impedance on the product page before adding to cart. Dimensions below come from Diamond Audio’s 4Ω listing; confirm them before cutting if you order 2Ω.
Carbon Fiber Cone and Titanium Tweeter in an 8-Inch Coaxial

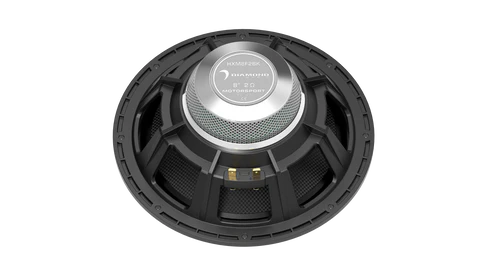

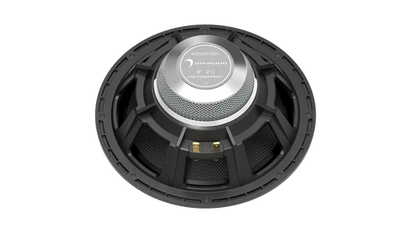

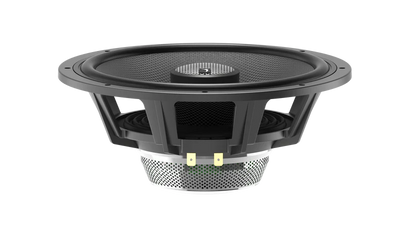

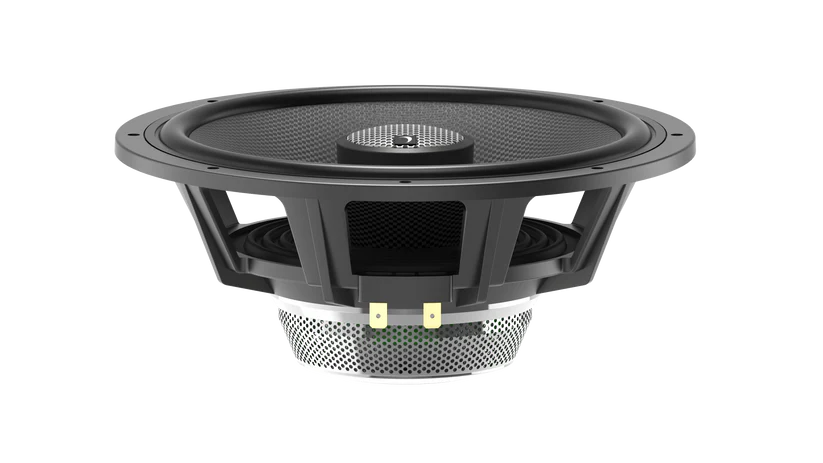

Diamond Audio lists a carbon fiber cone, titanium diaphragm (1.5-inch oversized tweeter), neodymium magnet, fiberglass-reinforced polymer basket and rubber surround.
On the 4Ω listing, sensitivity is 95 dB (1W/1M), the voice coil is 2 inches, Xmax is 3.25 mm and Fs is 83 Hz.
Choosing 2Ω or 4Ω
Diamond Audio’s pages for both versions list 175 W RMS and 600 W maximum power. The difference is the electrical load: 2Ω (HXM8F2BK) or 4Ω (HXM8F4BK).
Match the choice to your amplifier’s rated output at that impedance and the number of speakers per channel. Send us the amplifier model and we will check it.
Planning a Marine System Around an 8-Inch Coaxial
Compare your amplifier’s RMS output per channel at the chosen impedance with the speaker’s power rating, then confirm the 7.02-inch cutout and 3.11-inch mounting depth against your panel or enclosure.
Pair with a marine amplifier, add a marine subwoofer for low end, and use a marine digital sound processor for tuning.
HXM8FBK Specifications
| Model / SKU | HXM8FBK (variants: HXM8F2BK 2Ω pair, HXM8F4BK 4Ω pair) |
| Speaker size | 8 inches |
| Speaker type | Horn-loaded coaxial |
| Voice coils | Single |
| Voice coil diameter | 2 inches |
| Power handling (RMS) | 175 W |
| Power handling (max) | 600 W |
| Sensitivity (1W/1M) | 95 dB |
| Cone | Carbon fiber |
| Tweeter diaphragm | Titanium (1.5 inch oversized tweeter per Diamond Audio) |
| Motor | Neodymium |
| Basket | Fiberglass-reinforced polymer |
| Surround | Rubber |
| Re | 1.9 Ω |
| Fs | 83 Hz |
| Qts | 0.421 |
| Vas | 16.072 L |
| Xmax | 3.25 mm |
| Mounting depth | 3.11 in (78.9 mm) |
| Cutout diameter | 7.02 in (178.38 mm) |
| Overall diameter | 8.31 in (211 mm) |
| Overall height | 3.56 in (90.32 mm) |
Source: Diamond Audio HXM8F4BK product page. Thiele/Small figures and dimensions are from the 4Ω listing. Verify fitment before ordering.
Related Paths
HXM8FBK FAQ
What is the difference between the 2Ω and 4Ω HXM8FBK?
They are the same 8-inch speaker in two impedances: HXM8F2BK (2Ω) and HXM8F4BK (4Ω). Diamond Audio lists 175 W RMS and 600 W maximum power for both. Choose based on your amplifier’s load rating.
What cutout and mounting depth does it need?
On Diamond Audio’s 4Ω listing: 7.02 inch (178.38 mm) cutout diameter, 3.11 inch (78.9 mm) mounting depth, 8.31 inch (211 mm) overall diameter and 3.56 inch (90.32 mm) overall height.
How much power can it take?
Diamond Audio lists 175 W RMS and 600 W maximum power per speaker, for both the 2Ω and 4Ω versions.
What are the cone and tweeter made of?
A carbon fiber cone with a titanium diaphragm tweeter, which Diamond Audio describes as 1.5 inches and oversized. The motor is neodymium.
Is a water resistance rating listed?
Diamond Audio sells this speaker as a marine speaker, but the water-resistance field on its HXM8F4BK spec sheet is blank, so we do not quote a rating. Ask us if exposure matters for your install.
Will it fit my boat or bike?
We do not list fitment by boat or bike model on this page. Measure for the 7.02 inch cutout and 3.11 inch depth, then start a consultation and we will confirm.
