Motorcycle Pro Coaxial Speakers 6x9"
6x9 pro coaxial speakers for high-output rear positions in amplified touring audio systems.
Build It Right the First Time
Not sure which parts fit your exact bike and setup? Start with a clean, correct plan.
- Fitment confirmed for your exact bike and year
- Parts matched to your speakers and amplifier
- Build help from a GBS specialist
Browse Collections
-
SaleCerwin-Vega PH694 6x9" Pro Full-Range Coaxial Horn Speakers
Vendor:Cerwin-VegaCerwin-Vega 6x9" Pro Full-Range Coax Horn Speakers PH694 The Cerwin-Vega PH694 6x9" Pro Series horn-loaded coaxial speakers deliver powerful output, sharp high-frequency projection, and strong midbass for motorcycles and high-SPL mobile audio systems. Featuring a treated paper cone, compression horn tweeter, and rugged steel basket, the PH694 provides clear, high-efficiency sound that cuts through road and wind noise while maintaining durability under heavy use. Specifications: Speaker Type: 2-Way Full-Range Coaxial Horn SpeakerSize: 6" x 9"Power Handling (RMS): 160 wattsPower Handling (Peak): 320 wattsImpedance: 4 ohm (Single Voice Coil)Sensitivity: 101 dB (High-efficiency SPL output)Frequency Response: 80 Hz – 18,000 HzMidrange Cone Material: Treated paperTweeter Type: Horn-loaded compression driverTweeter Diaphragm: PolyimideSurround Material: Treated clothFrame/Basket: Stamped steelMagnet Type: Ferrite (Ceramic)Crossover: Internal passive networkBi-Amp Capable: YesMounting Depth: 3.9 in (approx.)Cutout Dimensions: 8.74 in x 5.98 inRecommended Use Cases:– Motorcycle audio– Powersports / side-by-side– High-SPL car audio– Outdoor/open-air vehicles– Demo builds and competition systemsSale -

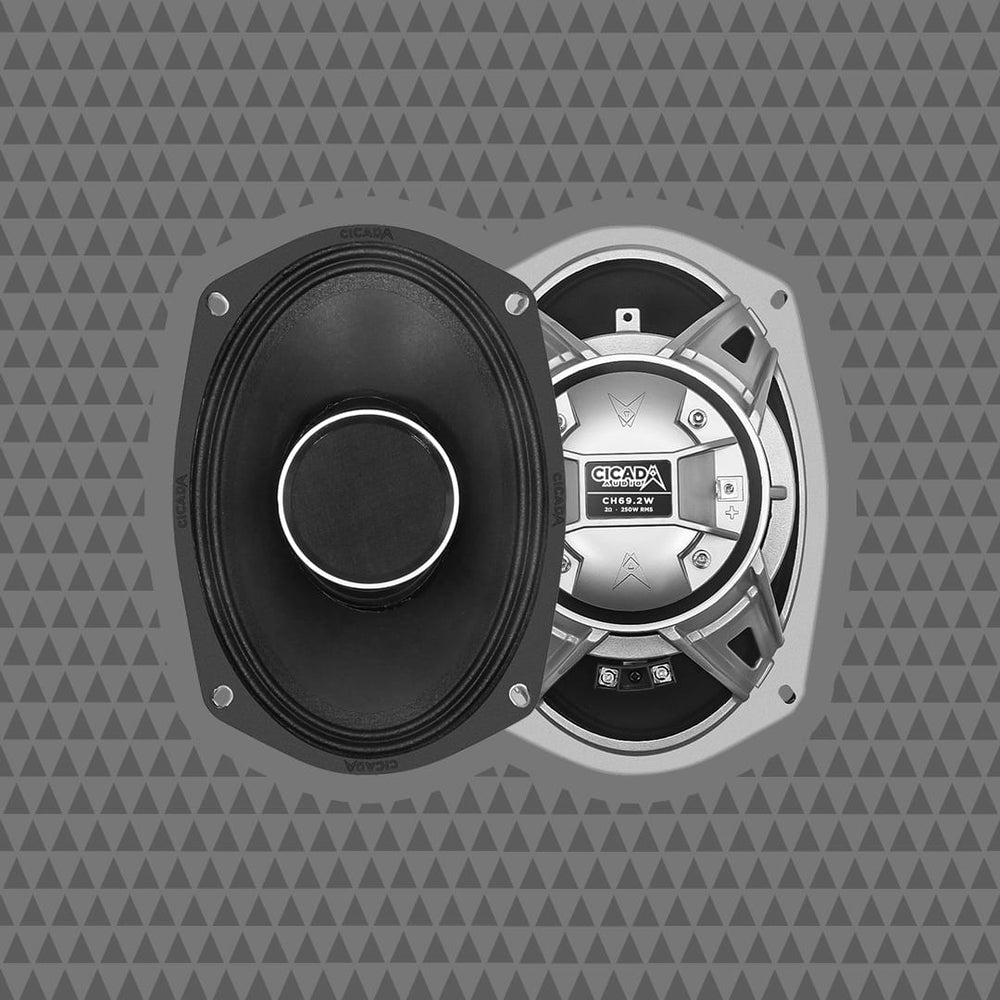

SaleCicada Audio CH69W 6x9" Pro Coaxial Horn Speaker (Pair)
Vendor:Cicada AudioCicada Audio CH69W Pro Coaxial Horn Speaker 6x9" (2Ω and 4Ω) FEATURES: Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Removable threaded horn ring for easy modification Rain or Shine™ all-weather performance design Available in 4- or 2-Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient External 12dB crossover with optional -3/-6 tweeter attenuator 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat Water-resistant treated paper cone Lightweight / rigid Maximized efficiency / super strong Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance N35SH Neodymium magnet Die-cast Aluminum custom tooled basket with Vortex Flow Venting™ Warranty: 2 years SPECIFICATIONS: 4Ω – 6X9-inch coaxial horn driver Power handling: 250W RMS/500W MAX Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: water resistant treated paper cone Magnet: Neodymium Sensitivity: 95dB Frequency response 75Hz – 20kHz +/- 3dB Mounting Depth: 3.7-inch/93mm Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mmSale -

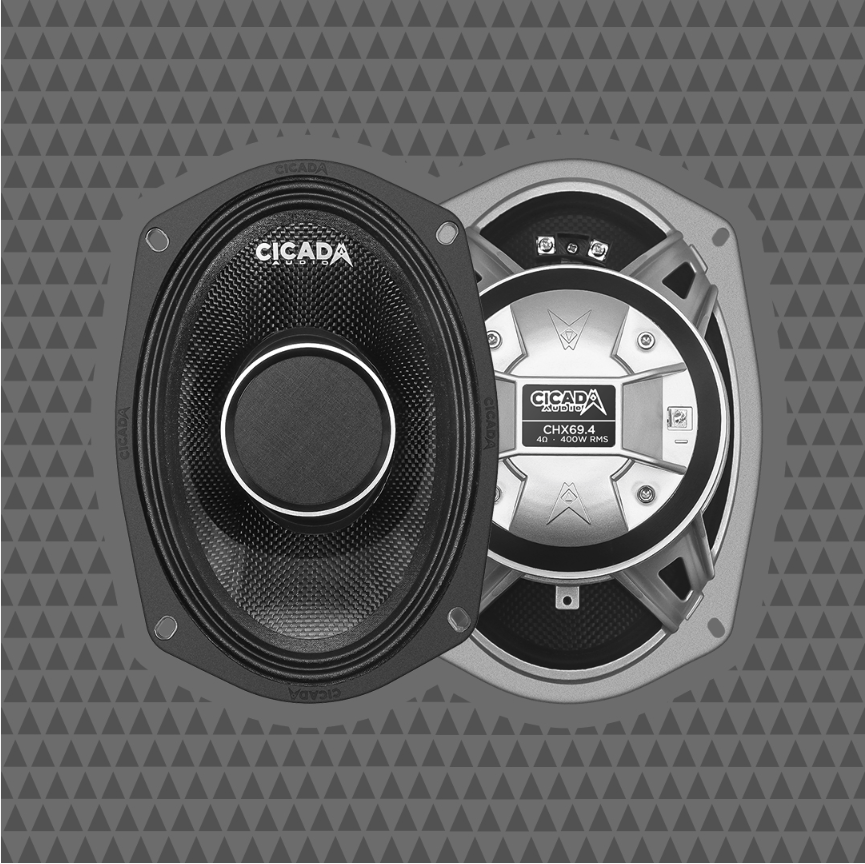

SaleCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair) All Weather 6x9 Pro Coaxial Driver A Weatherproof Horn Cover is included on the compression driver. SPECIFICATIONS: 4Ω – 6X9-inch PRO coaxial horn driver Power handling: 400W RMS/800W MAX each Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter High-temperature design Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: Carbon Matrix Composite™ Magnet: Neodymium Sensitivity: 92dB, 1W / 1M response 46Hz – 20kHz +/- 3dB Mounting Depth: 3.75-inch/96mm Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Rain or Shine™ all-weather performance design Available in 4 or 2Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient 1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat External 12dB crossover with optional -3/-6 tweeter resistor attenuatorSale -
SaleCicada Audio CXX57 5x7" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioThe Cicada Audio CXX57 is a pair of 5x7" pro coaxial speakers, a drop-in replacement for bag lid speakers in factory-designed 1998-2023 Harley-Davidson locations. It is offered in 2 ohm and 4 ohm versions and can be bi-amped for the Boom 2 system.Key Specs Power handling: 125W RMS / 250W MAX Kevlar cone, 1" PEI dome tweeter, N45H neodymium magnets Voice coils: 1.4" mid-bass, 1" tweeter Sensitivity: 89dB; response 50Hz-20kHz +/-3dB Switchable built-in 6dB crossover Mounting depth 2.23" / 56.8mm; diameter 4.84" / 123mm x 7.3" / 185mm Two-year warranty Fitment and Installation NotesOn 2014-2023 CVO models, the lid basket may require modification for direct fitment.Browse more pro coaxial speakers and Cicada Audio, or see our custom build options.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleCicada Audio CXX69 6x9" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioThe Cicada Audio CXX69 is a pair of 6x9" pro coaxial speakers, offered in 2 ohm and 4 ohm versions. A Kevlar cone, PEI tweeter dome and V8 Dispersion Guide are built for wide dispersion.Key Specs Power handling: 200W RMS / 400W MAX Voice coils: 2.0" / 49mm mid-bass, 1.2" / 31mm tweeter N45H neodymium magnets; polycarbonate basket Sensitivity: 93dB; response 50Hz-20kHz +/-3dB Built-in 6dB crossover Mounting depth 2.7" / 69mm; diameter 6.4" / 163mm x 9.2" / 234mm Two-year warranty Browse more pro coaxial speakers and Cicada Audio, or see our custom build options.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDB Drive Xpert Speakers EX69NCD
Vendor:DB DriveThe DB Drive XPERT EX69NCD is a 6x9" 2-way neodymium loudspeaker pair with a rear-loaded compression driver and an included passive crossover.Key Specs 10 neodymium ring magnet assembly; rear-mounted compression driver 1.4" (36mm) polyester tweeter diaphragm, conical HF waveguide IP52 rated paper cone, die-cast aluminum basket with radial venting Power handling: 500W, dynamic 1000W Nominal impedance 4 ohm; sensitivity 93.4dB (1W/1m); resonant frequency 78.1Hz Depth: 4.42" Fitment and Installation NotesConfirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.Browse more motorcycle pro coaxial speakers and DB Drive motorcycle audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -

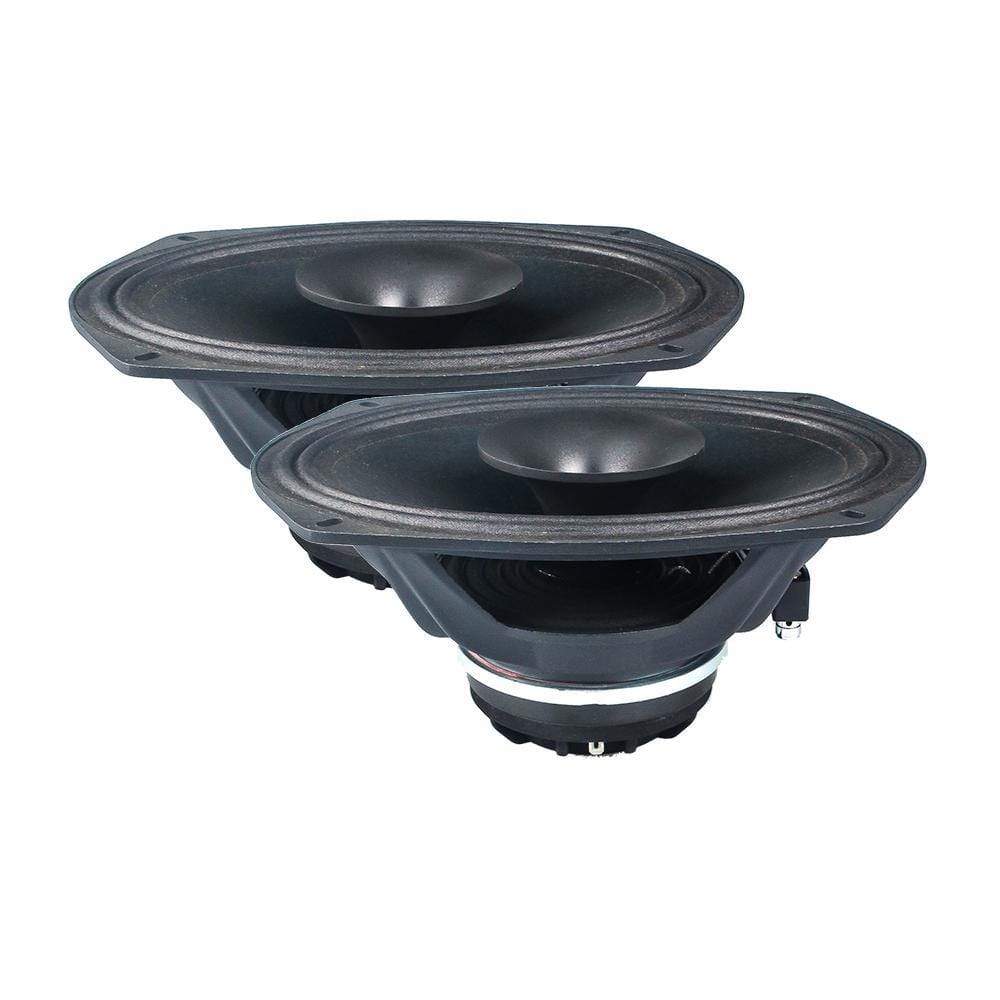

SaleDiamond Audio MP69 (2Ω and 4Ω) 6x9" Pro Coaxial Speaker
Vendor:Diamond AudioThe Diamond Audio MP69 is a 6x9" pro full-range coaxial speaker with a horn tweeter, sold in pairs in 2 ohm or 4 ohm versions for Harley-Davidson bagger audio builds.Key Specs Power handling: 150W RMS / 300W max Frequency response: 80Hz to 18kHz Sensitivity: 101 dB (1W/1M) 1.5" voice coil, neodymium magnet 12 dB/octave crossover Mounting diameter: 8.86" x 5.98" (225 x 152mm) Mounting depth: 3.99" (101.3mm) Water resistant, not waterproof Fitment and Installation NotesConfirm your lid, fairing or pod opening against the mounting diameter and depth above.Compare with other pro coaxial speakers and speaker lids.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -

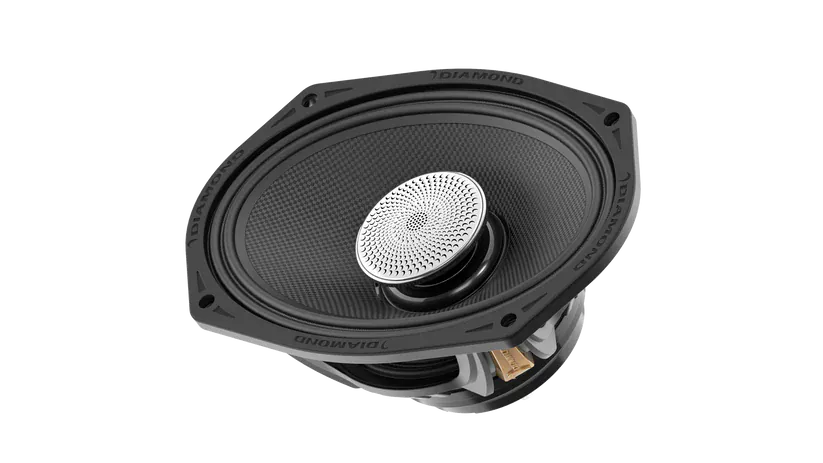

SaleDiamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS692NEO 6x9" Pro Coaxial Neo Speakers — 2Ω or 4Ω The Diamond Audio MS692NEO is a high-output 6x9-inch horn-loaded pro coaxial speaker built for serious motorcycle, powersports, marine, and custom audio systems. Its large carbon-fiber cone, PEN high-frequency diaphragm, neodymium motor structure, and cast-aluminum basket are designed to deliver strong projection and clean output in demanding open-air environments. Available in 2-ohm and 4-ohm versions, the MS692NEO is rated at 200 watts RMS and uses a dual-voice-coil, bi-ampable architecture for advanced amplifier and DSP configurations. THE REFERENCE STANDARD 6x9" Pro Coaxial Output for High-Power Bagger Systems Built for saddlebag lids, custom rear speaker locations, and high-output motorcycle systems where projection, durability, and amplifier efficiency matter. Start a Build Consultation Call 864-334-6131 Diamond Audio MS692NEO Key Specifications Series MS NEO Speaker Size 6x9 inches Speaker Type 2-Way Horn-Loaded Pro Coaxial 2Ω Model MS692NEO2 4Ω Model MS692NEO4 Power Handling 200W RMS / 400W MAX Sensitivity 94 dB (1W/1M) Voice Coil Configuration Dual Voice Coil Bi-Ampable Yes Field-Serviceable Voice Coil Yes Voice Coil Diameter 2 inches Cone Material Carbon Fiber High-Frequency Diaphragm PEN — Polyethylene Naphthalate Motor Neodymium Basket Cast Aluminum Surround Rubber Re 3.2Ω Qms 7.368 Qes 0.597 Qts 0.552 Fs 104 Hz Vas 9 L Cms 0.148 mm/N Mms 15.6 g Sd 206.84 cm² BL 7.418 T·m Xmax 1.2 mm Mounting Depth 3.74″ (95 mm) Cutout Dimensions 8.58″ x 5.75″ (218 mm x 146 mm) Overall Dimensions 9.19″ x 6.38″ (233.5 mm x 162 mm) Overall Height 4.08″ (103.7 mm) Fitment warning: These are high-output 6x9-inch pro coaxial speakers and are not a universal drop-in replacement. Verify cutout dimensions, mounting depth, basket clearance, grille clearance, amplifier power, impedance, and complete system layout before ordering. 200W RMS 6x9" Pro Coaxial Performance The MS692NEO is designed for motorcycle audio systems where a conventional automotive 6x9 cannot provide enough projection or output. Its horn-loaded architecture increases high-frequency efficiency while the large carbon-fiber cone provides strong midrange and midbass performance. Diamond Audio's formal technical specifications rate the MS692NEO platform at 200 watts RMS and 400 watts maximum power. Built for Saddlebag and Rear Speaker Applications The 6x9 format makes the MS692NEO especially useful in Harley-Davidson saddlebag lid systems, cut-in lid conversions, custom rear speaker panels, and other fabricated locations where a high-output 6x9 pro coaxial is required. Diamond Audio also uses the MS692NEO platform in dedicated Harley-Davidson cut-in lid kits, reinforcing its intended role in high-output bagger systems. :contentReference[oaicite:1]{index=1} Carbon-Fiber Cone and Neodymium Motor The MS692NEO uses a rigid carbon-fiber cone to provide a strong, lightweight moving surface capable of maintaining control at elevated playback levels. The neodymium motor provides high magnetic strength while helping reduce overall speaker weight and motor bulk compared with conventional ferrite designs. Horn-Loaded PEN High-Frequency Driver High-frequency reproduction is handled by a PEN — polyethylene naphthalate — diaphragm incorporated into the horn-loaded coaxial architecture. The horn improves acoustic projection and efficiency, helping vocals, percussion, guitars, and upper-frequency information remain audible at highway speeds and in other open-air environments. Choose 2Ω or 4Ω The MS692NEO is available in separate 2-ohm and 4-ohm models. The correct impedance should be chosen around amplifier output, number of speakers, wiring configuration, and final load presented to each amplifier channel. 2Ω — MS692NEO2 The 2-ohm version is designed for systems that can take advantage of increased amplifier output at a lower channel impedance. 4Ω — MS692NEO4 The 4-ohm version provides additional flexibility for multi-speaker wiring and amplifier configurations requiring a higher final impedance. Dual Voice Coil and Bi-Amp Capability The MS692NEO uses a dual-voice-coil, bi-ampable architecture that allows more advanced amplifier and DSP system configurations. In a properly designed bi-amped setup, the system can provide greater control over crossover points, level, EQ, and timing than a conventional single-input coaxial configuration. System-design note: Bi-amp capability does not mean the speaker must be bi-amped. Amplifier channels, DSP configuration, crossover strategy, and wiring should be planned around the complete system. Cast-Aluminum Basket and Serviceable Design Diamond Audio uses a rigid cast-aluminum basket to support the speaker assembly and resist flex and vibration during high-output operation. The MS692NEO also uses a field-serviceable voice-coil design, providing additional serviceability for high-performance motorcycle, marine, and powersports systems. Motorcycle Audio Applications Harley-Davidson saddlebag lid speaker systems. Cut-in saddlebag lid conversions. Road Glide and Street Glide rear speaker systems. Custom 6x9 speaker panels. Tour-pack and fabricated rear speaker locations. Marine audio systems. Slingshot, UTV, and powersports installations. Custom vehicle audio systems requiring high-output 6x9 coaxials. Installation and Tuning Notes Select the 2Ω or 4Ω model based on amplifier loading and complete system design. Verify amplifier RMS output at the selected impedance. Confirm the 8.58″ x 5.75″ mounting cutout before modifying saddlebag lids or panels. Verify the full 3.74-inch mounting depth and rear motor clearance. Confirm the 9.19″ x 6.38″ overall frame dimensions and grille clearance. Determine whether the speaker will be conventionally powered or bi-amped before wiring. Use appropriate crossover protection for the installed power level and application. Secure all mounting hardware for motorcycle vibration. Protect terminals and wiring from moisture, abrasion, heat, and moving components. Complete final DSP, EQ, crossover, level, and time-alignment tuning after installation. Need Help Choosing 2Ω or 4Ω? The correct MS692NEO version depends on amplifier output, number of speakers, channel configuration, wiring method, DSP strategy, and complete system design. Garage Bagger Stereo can help determine the correct impedance and amplifier configuration before you order. Start a Build Consultation Call 864-334-6131Sale -

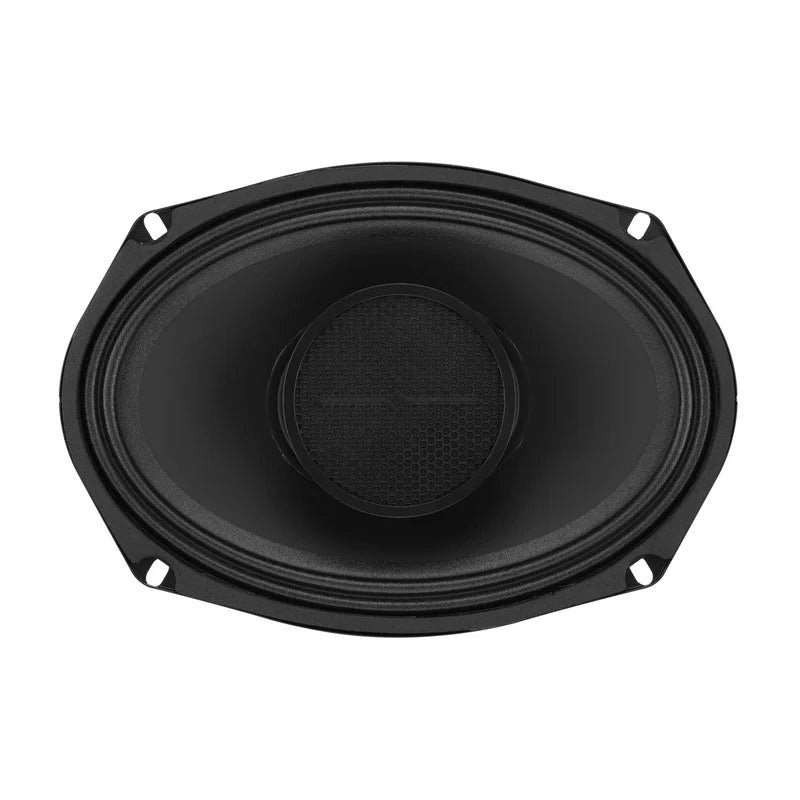

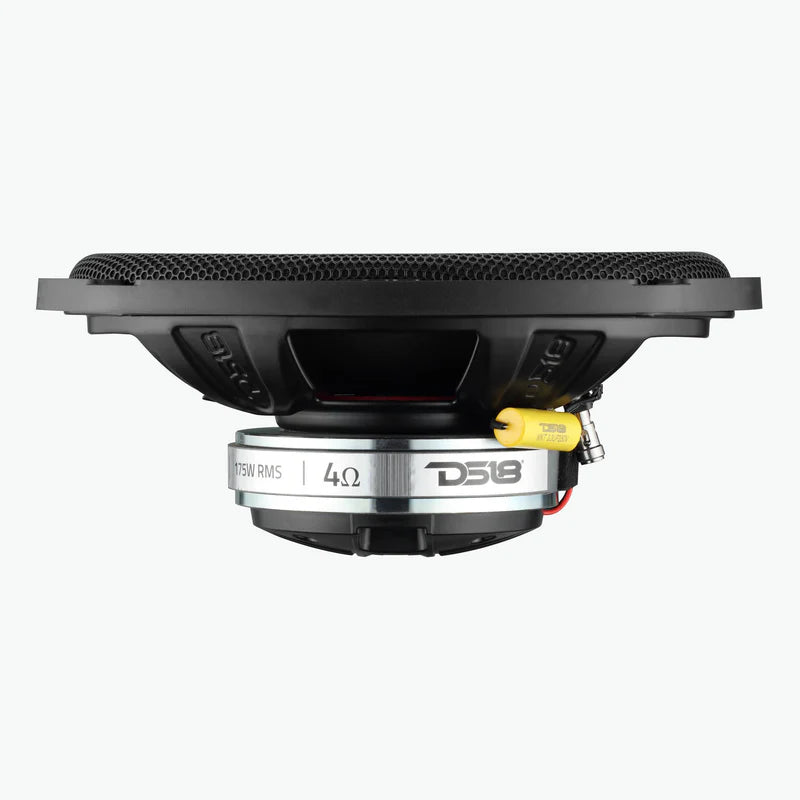

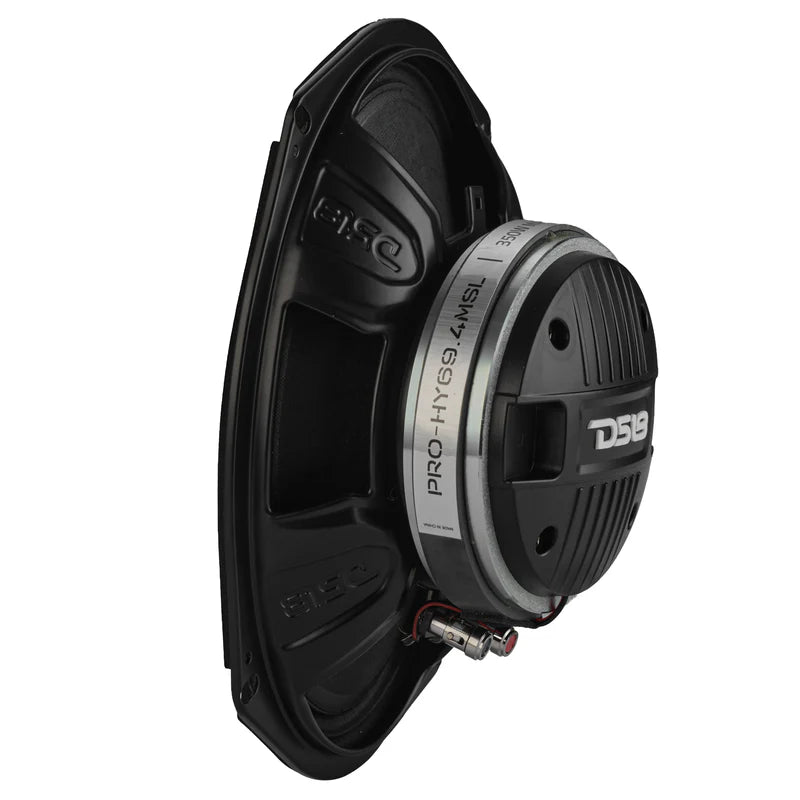

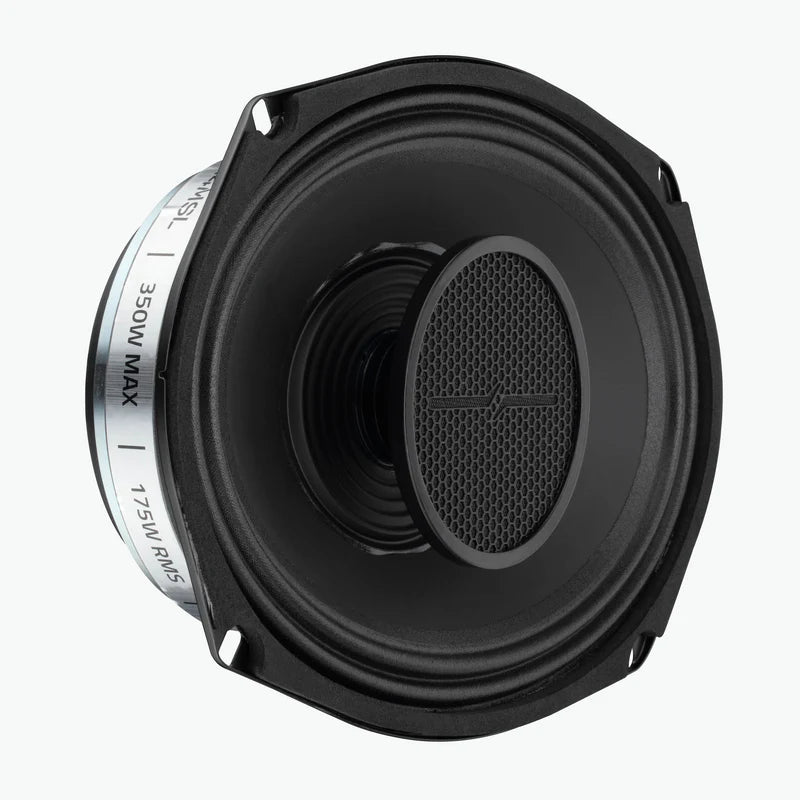

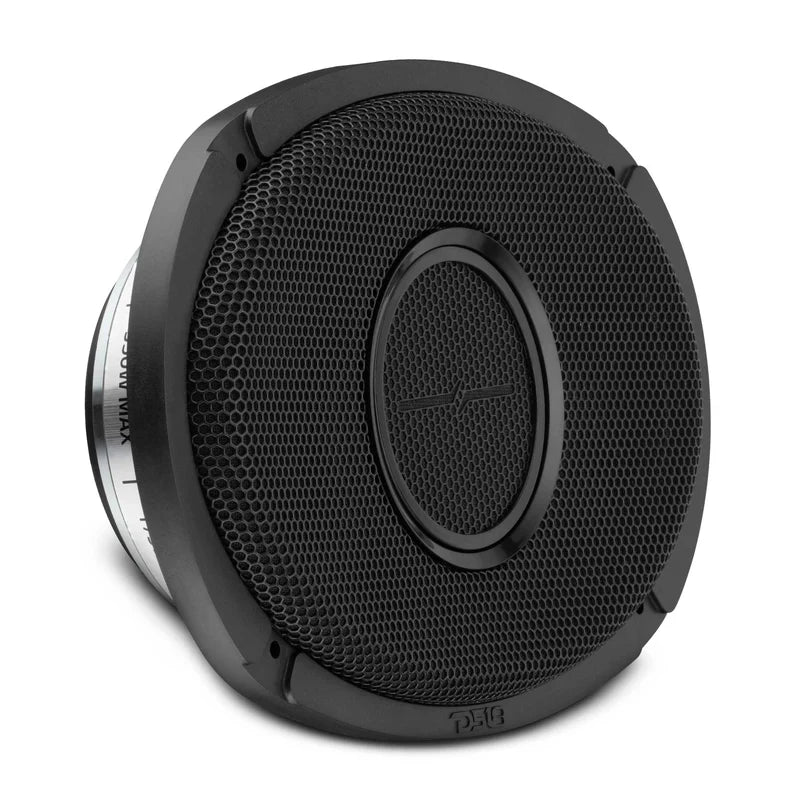

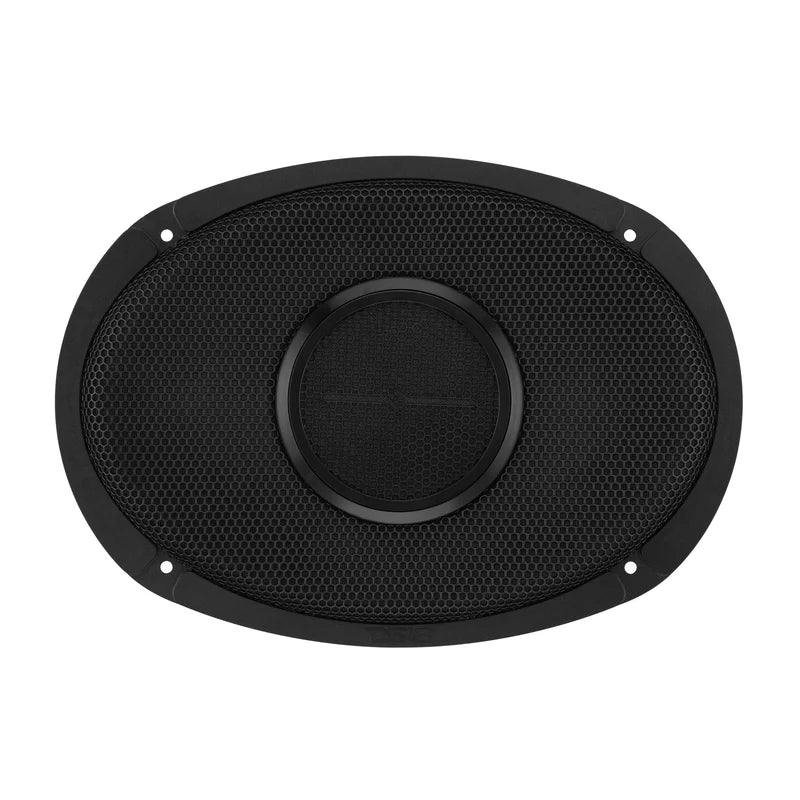

DS18 PRO-HY69 MSL 6x9" — Hybrid Slim Loudspeaker (Built-in Driver)

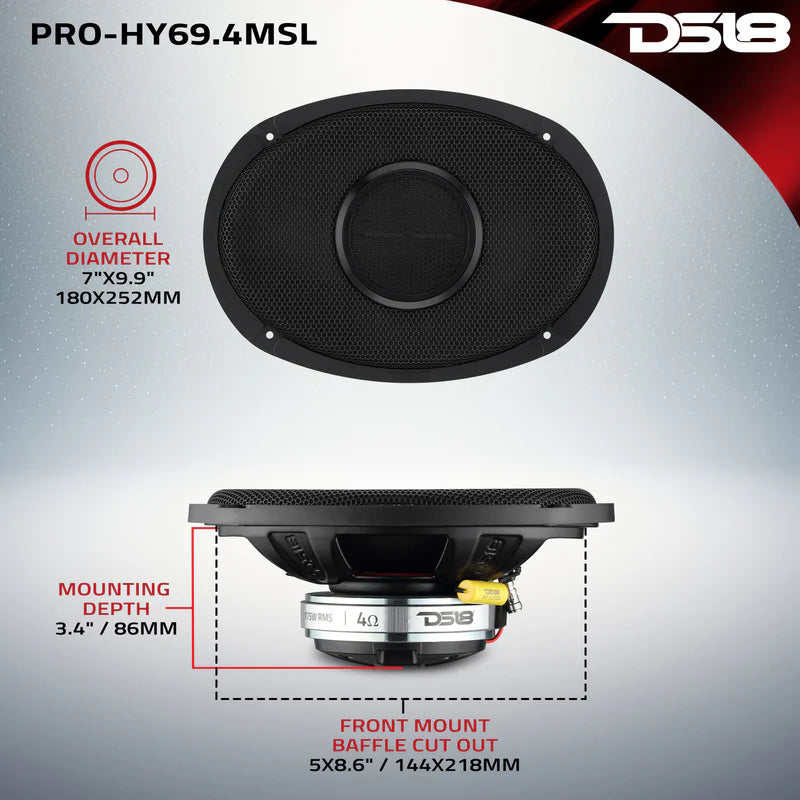

Vendor:DS18 Motorcycle AudioThe DS18 PRO-HY69MSL is a 6x9" hybrid slim loudspeaker that pairs a shallow water-resistant paper cone with a built-in 1" titanium-diaphragm compression driver. DS18 lists it for motorcycles, UTVs, Slingshots and Jeeps in fairings, pods or panels. Sold as a single speaker; 2-ohm, 4-ohm and 8-ohm versions exist.Key Specs Power handling: 175W RMS / 350W max Sensitivity: 97 dB (1W/1m) Frequency response: 60 Hz to 20 kHz; recommended high-pass crossover 80 Hz Size: 6.4" x 9.2" without grille; 3.9" overall depth; 3.4" mounting depth Baffle cutout: 5.7" x 8.6" Water-resistant paper cone, treated cloth surround, steel basket, ferrite woofer magnet, neodymium driver magnet IP65 water resistance; grille with sun and water protection cloth included Fitment and Installation NotesDS18 does not list specific motorcycle makes, models or years for this speaker. Check the cutout and the 3.4" mounting depth against your lid, fairing or pod before ordering, and select the impedance that matches your amplifier.Browse more pro coaxial motorcycle speakers and DS18 motorcycle audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.
6×9″ Pro Coaxial Speaker Videos
Key Specifications
| Speaker Size | 6×9 |
| Speaker Type | Pro Coaxial (high-sensitivity mid + tweeter) |
| Primary Use | Saddlebag lids and rear enclosures |
| Performance Focus | Higher output and stronger midbass |
| System Pairing | Dedicated rear amplification with DSP |
| Install Requirement | Correct mounting, sealing, vibration control |
Specifications summarized from manufacturer technical data. Always verify fitment, impedance, and filtering before installation.
High-Output 6×9″ Pro Coaxials for Touring Rear Audio
6×9-inch motorcycle pro coaxial speakers are designed for high-output touring audio systems where rear-stage volume and projection are required. This collection includes purpose-built pro coaxial speakers engineered specifically for Harley Davidson and Indian touring motorcycles running dedicated amplification.
Pro coaxial speakers use higher-sensitivity midrange drivers and reinforced motor structures to deliver increased output compared to standard coaxial designs. The 6×9 format provides additional cone area, allowing stronger midbass response and improved authority when mounted in saddlebag lids or rear enclosures.
These speakers are intended for amplified systems where rear speakers must remain audible and controlled at highway speeds. Proper impedance and sensitivity characteristics ensure predictable integration with aftermarket amplifiers and DSP-controlled systems.
This collection supports performance-focused applications including:
- Saddlebag lid speaker systems
- Rear fill for balanced front-and-rear staging
- High-output touring audio builds
- Multi-channel amplifier configurations
Due to their output capability, 6×9 pro coaxial speakers require proper power and signal management. DSP integration is strongly recommended to control crossover points, manage rear level, and maintain overall system balance.
This page serves as the dedicated rear-speaker performance category for riders building louder, more capable touring audio systems.
Related 6x9″ Pro Speaker Collections

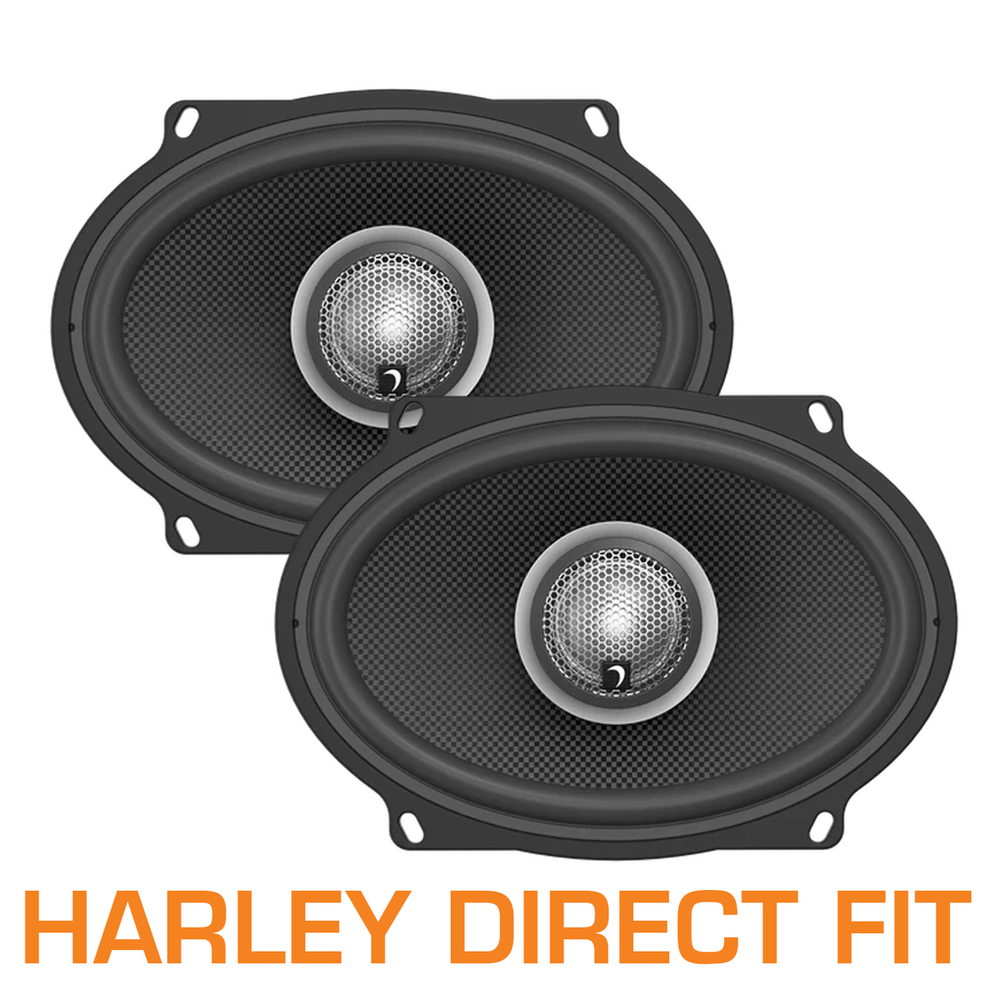

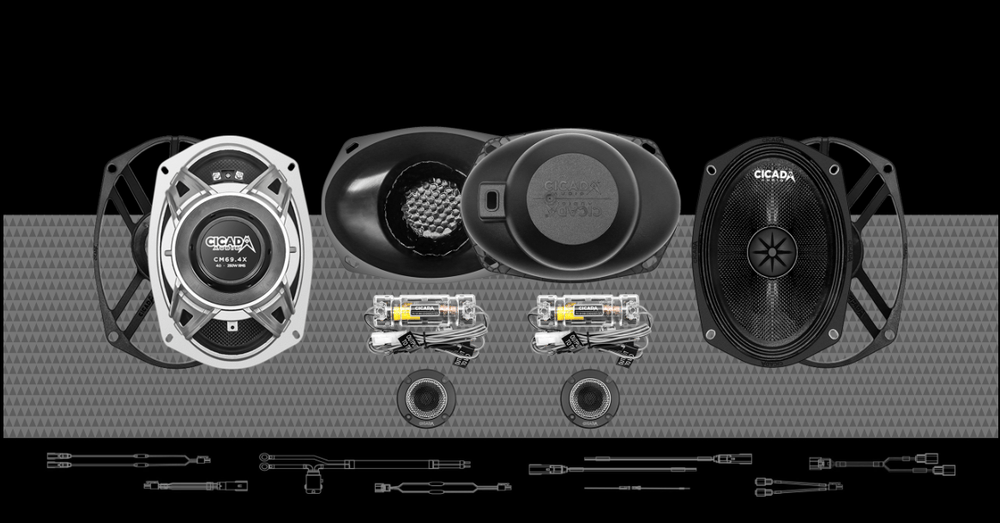

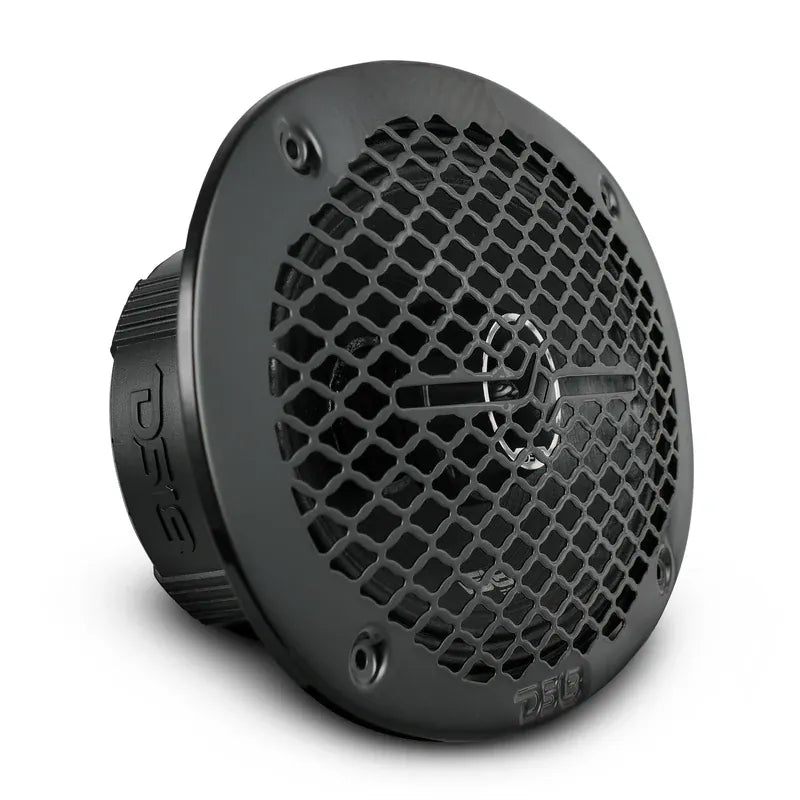

Besides pro coaxials, this collection lists the Cicada CXK69 6x9 component kit and 5x7 options such as the Diamond Audio HXM57F2BK Harley direct replacement. The Diamond Audio MP69 and MS692NEO come in more than one impedance and the DS18 PRO-ZT is sold as a single, so match impedance to your amplifier and order two for a stereo pair.
