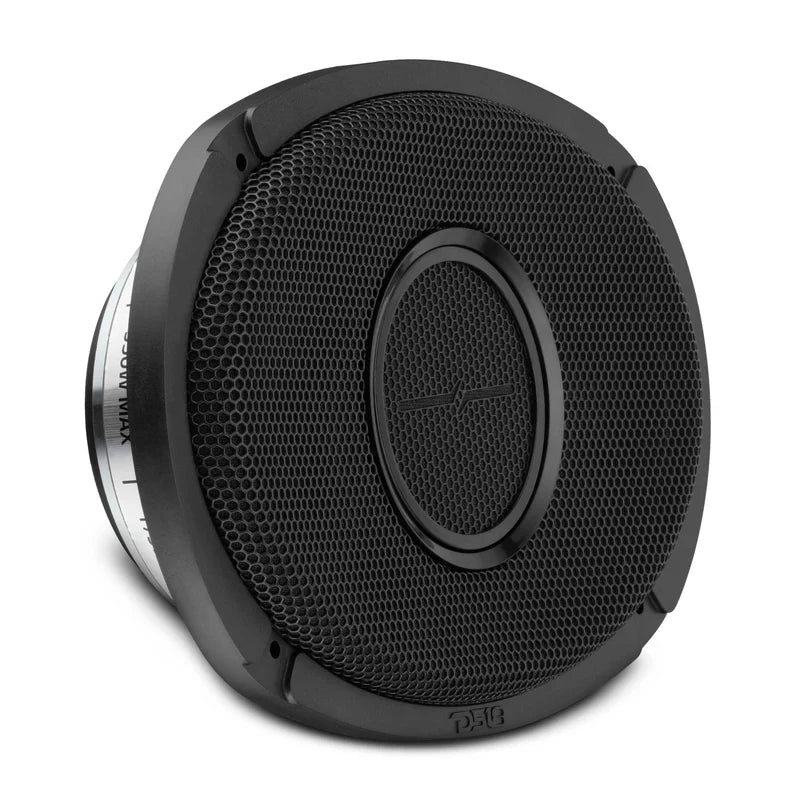

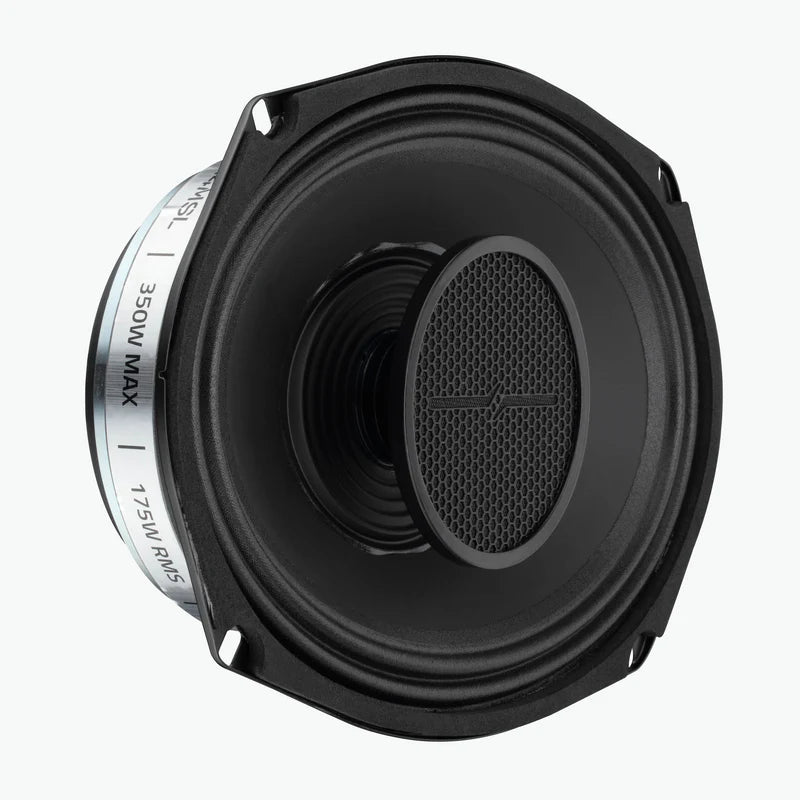

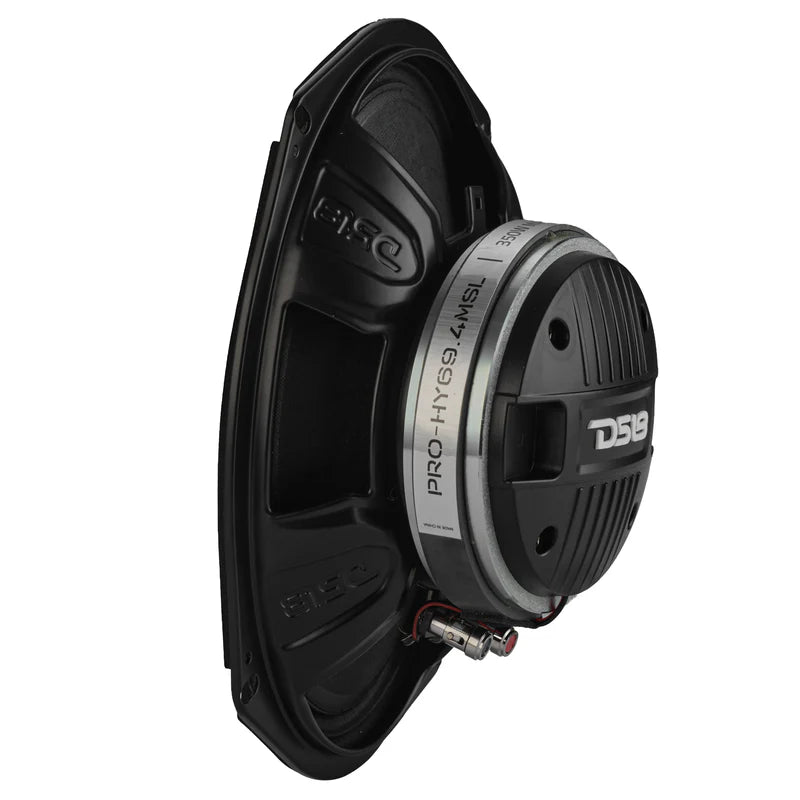

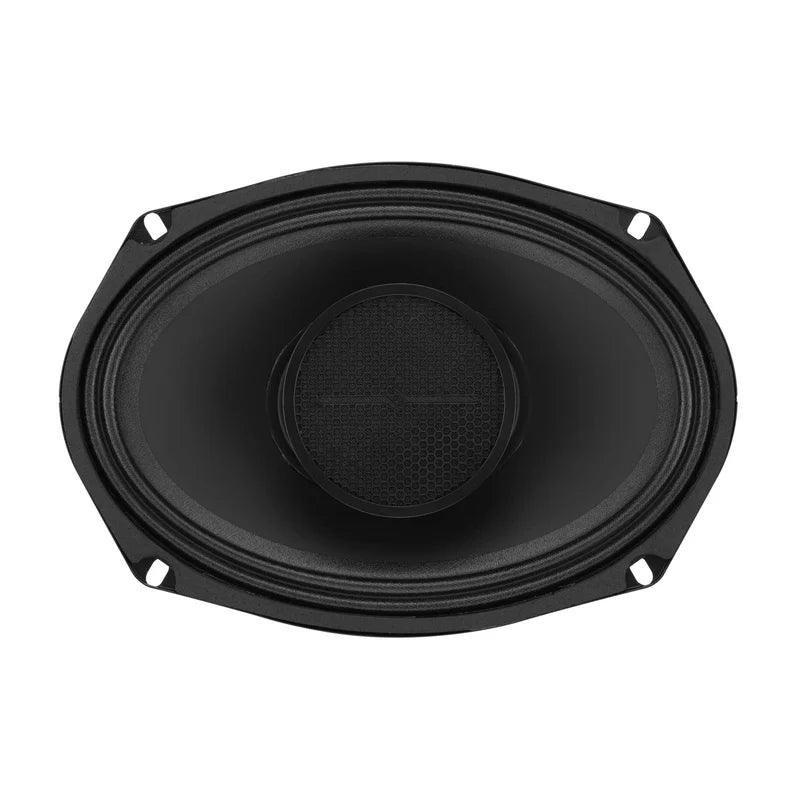

DS18 PRO-HY69 MSL 6x9" — Hybrid Slim Loudspeaker (Built-in Driver)
The DS18 PRO-HY69 MSL is the 6x9" hybrid slim loudspeaker, sold as a single in 2-ohm, 4-ohm and 8-ohm versions and rated 175W RMS / 350W max. It needs a 5.7" x 8.6" baffle cutout and 3.4" of mounting depth, and DS18 recommends an 80 Hz high-pass crossover. DS18 lists it for motorcycles, UTVs, Slingshots and Jeeps in fairings, pods or panels.
Choose 2, 4 or 8 ohm for your amplifier
Rated 175W RMS / 350W max with 97dB sensitivity, a 5.7" x 8.6" cutout and a shallow 3.4" mounting depth.
- 175W RMS / 350W max
- 97dB sensitivity
- 3.4" mounting depth
Key Product Details
| Brand | DS18 |
| Model | PRO-HY69 MSL |
| Size | 6x9" hybrid slim |
| Sold as | Single |
| Impedance versions | 2, 4 and 8 ohm |

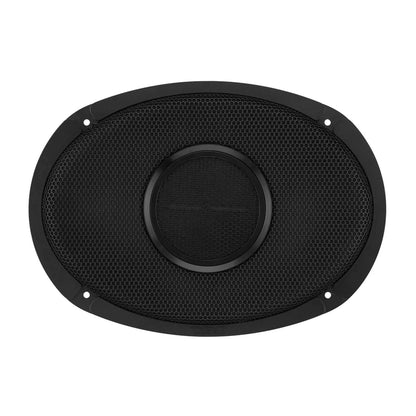

| Grille | Included, with sun and water protection cloth |
Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
Fitment
DS18 does not list specific motorcycle makes, models or years for this speaker. Check the 5.7" x 8.6" cutout and the 3.4" mounting depth against your lid, fairing or pod before ordering, and select the impedance that matches your amplifier.
Crossover
DS18 recommends an 80 Hz high-pass crossover.
Specifications
| Power handling | 175W RMS / 350W max |
| Sensitivity | 97 dB (1W/1m) |
| Frequency response | 60 Hz to 20 kHz |
| Recommended high-pass | 80 Hz |
| Size without grille | 6.4" x 9.2" |

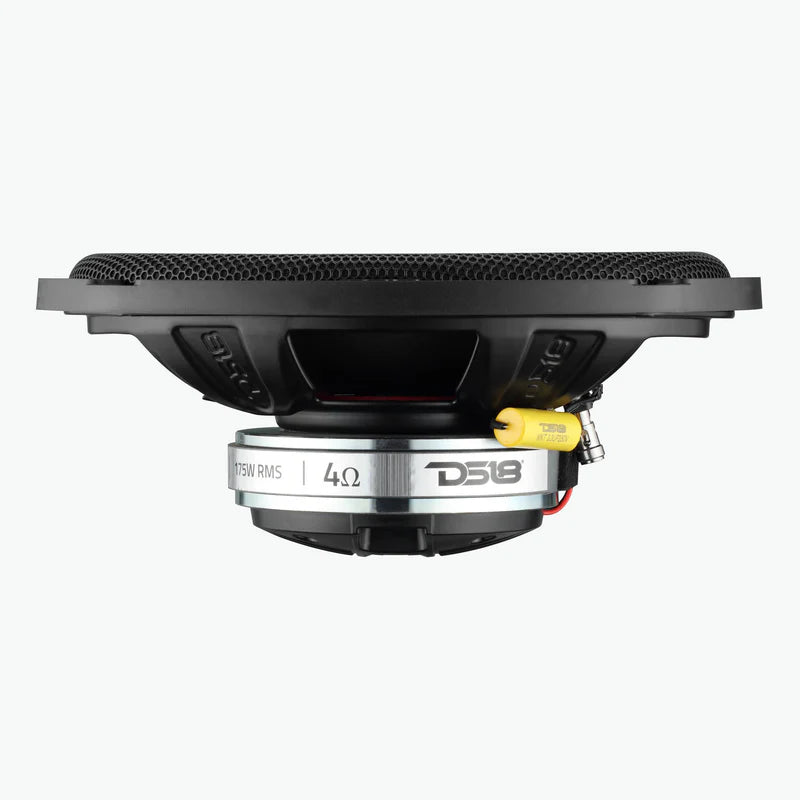

| Overall depth | 3.9" |
| Mounting depth | 3.4" |
| Baffle cutout | 5.7" x 8.6" |
| Construction | Water-resistant paper cone, treated cloth surround, steel basket, ferrite woofer magnet, neodymium driver magnet |
| Water resistance | IP65 |
Related Paths
DS18 PRO-HY69 MSL FAQ
What size is the PRO-HY69 MSL?
It is a 6x9" hybrid slim loudspeaker with a built-in 1" titanium-diaphragm compression driver, sold as a single.
What impedances are available?
2-ohm, 4-ohm and 8-ohm versions exist, so select the one that matches your amplifier.
What cutout and depth do I need?
Baffle cutout is 5.7" x 8.6" and mounting depth is 3.4".
Is a grille included?
Yes, a grille with sun and water protection cloth is included.
Which motorcycles does it fit?
DS18 does not list specific makes, models or years, so verify the cutout and depth for your location.
