Motorcycle Coaxial Speakers 8"
8 inch coaxial speakers for Harley-Davidson and Indian touring motorcycles when you want the largest cone area and the most rear output.
Build It Right the First Time
Not sure which parts fit your exact bike and setup? Start with a clean, correct plan.
- Fitment confirmed for your exact bike and year
- Parts matched to your speakers and amplifier
- Build help from a GBS specialist
Browse Collections
-

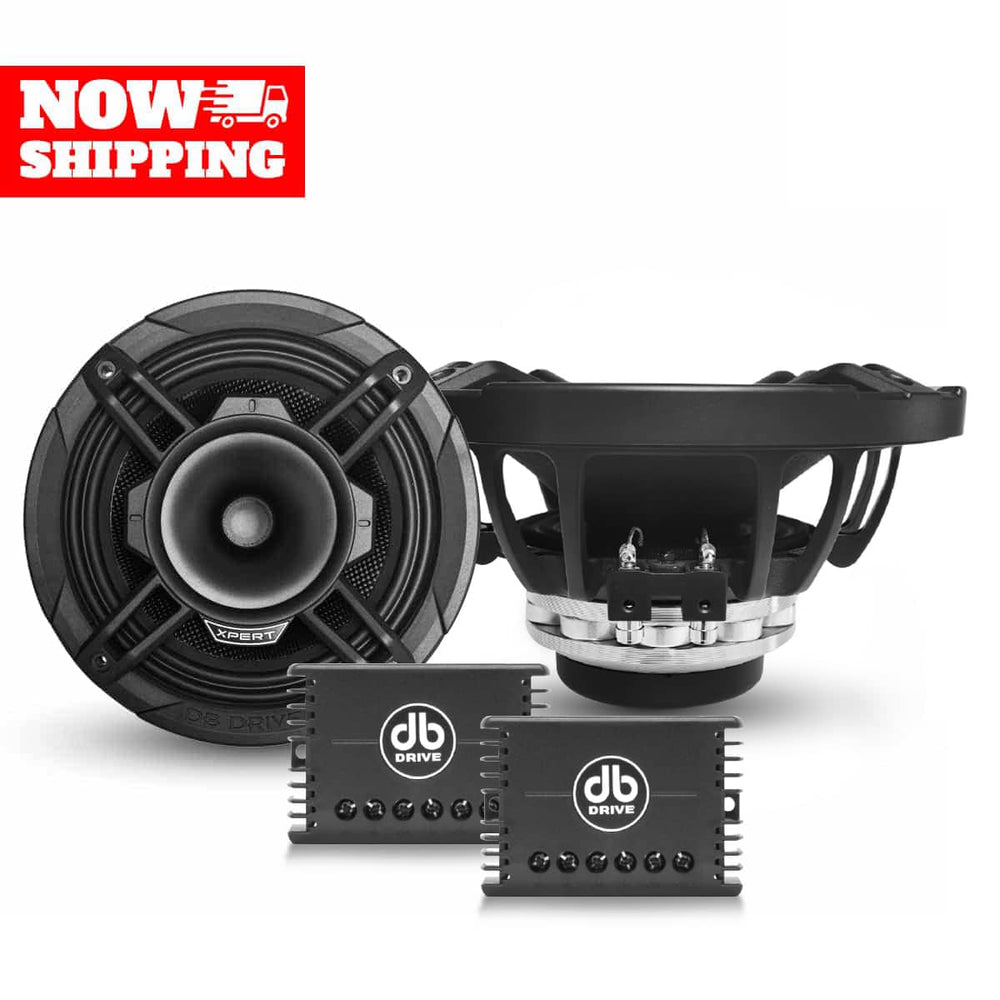

SaleDB Drive Euphoria XPERT EX8NPS-CF 8″ 2-Way NEO Carbon Fiber Point Source Loudspeaker
Vendor:DB DriveThe DB Drive Euphoria XPERT EX8NPS-CF is an 8" 2-way NEO carbon fiber point source loudspeaker with a 1" aluminum dome tweeter. It is a full-range 8" coaxial for bagger lids and bags.Key Specs 1.5" (38.1mm) voice coil, high-intensity NEO ring magnet IP65 rated carbon fiber cone, cloth surround, stamped steel basket 1" aluminum dome tweeter, protective grill Power handling: 275W, dynamic 500W Frequency response: 80Hz-19kHz; sensitivity 92.3dB (1W/1m) Nominal impedance 4 ohm; resonant frequency 62.3Hz Fitment and Installation NotesConfirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.Browse more motorcycle coaxial speakers and DB Drive motorcycle audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleDiamond Audio HXM8FBK 8" 2-Way High Output Marine Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio HXM8FBK 8" High-Output Horn Coaxial Speakers — 2Ω or 4Ω The Diamond Audio HXM8FBK Black Series 8-inch horn-loaded coaxial speakers are built for high-output motorcycle, marine, and powersports systems that need strong midrange projection, crisp high-frequency output, and weather-resistant construction. Available in both 2-ohm and 4-ohm versions, the HXM8FBK combines a rigid carbon-fiber cone, oversized 1.5-inch titanium dome tweeter, neodymium motor structure, and reinforced composite basket for serious output in demanding open-air environments. THE REFERENCE STANDARD High Output Built for Open-Air Audio Designed for motorcycles, boats, and powersports systems where projection, durability, and efficient output matter. Start a Build Consultation Call 864-334-6131 Diamond Audio HXM8FBK Key Specifications Series HXM Black Series Speaker Size 8 inches Speaker Type Horn-Loaded 2-Way Coaxial 2Ω Model HXM8F2BK 4Ω Model HXM8F4BK Power Handling 175W RMS / 600W MAX Sensitivity 95 dB (1W/1M) Voice Coil 2-inch Cone Material Carbon Fiber Tweeter 1.5-inch Oversized Titanium Dome Tweeter Motor Neodymium Basket Fiberglass-Reinforced Polymer / Composite Surround Rubber Xmax 3.25 mm Fs 83 Hz Mounting Depth 3.11″ (78.9 mm) Cutout Diameter 7.02″ (178.38 mm) Overall Diameter 8.31″ (211 mm) Overall Height 3.56″ (90.32 mm) Mounting Style Flush Mount or Back Mount Environmental Protection Water spray resistant, salt-water resistant, UV stable Fitment warning: Verify mounting depth, cutout diameter, grille clearance, enclosure depth, and speaker impedance before ordering. Rigid Carbon-Fiber Cone for Increased Output The HXM8FBK Black Series uses a rigid carbon-fiber cone designed to improve output and low-frequency impact while maintaining control at higher playback levels. Carbon fiber provides a strong, lightweight cone structure that is well suited to motorcycle and powersports systems where efficiency and projection are critical. Oversized 1.5-Inch Titanium Tweeter Diamond Audio pairs the 8-inch midrange cone with an oversized 1.5-inch titanium dome tweeter to increase high-frequency output and improve projection in open-air environments. That additional high-frequency energy helps the speaker remain clear against wind, road, engine, and exhaust noise. 175W RMS High-Output Power Handling Each HXM8FBK speaker is rated for 175 watts RMS and 600 watts maximum power. The available 2-ohm and 4-ohm versions allow the system designer to match amplifier loading and channel configuration more precisely. 2Ω — HXM8F2BK The 2-ohm version can be used when the amplifier and system design benefit from a lower impedance load and increased available channel output. 4Ω — HXM8F4BK The 4-ohm version offers additional flexibility for multi-speaker wiring, bridged amplifier configurations, and systems designed around higher-impedance loads. Neodymium Motor and High-Excursion Suspension The HXM8FBK uses a lightweight neodymium motor structure paired with Diamond Audio’s maximum-Xmax suspension design. The compact motor helps reduce weight and mounting depth while maintaining the magnetic strength required for high-output performance. Diamond lists 3.25 mm of Xmax on the current 4-ohm technical specification, giving the 8-inch cone usable excursion for stronger midbass performance. Built for Motorcycle, Marine and Powersports Environments The Black Series is designed for exposed audio installations where conventional automotive speakers may not survive long-term use. Water-spray resistant construction. Salt-water resistant materials. 100% UV-stable components. High-temperature lightweight injection-molded construction. Fiberglass-reinforced composite basket. Rubber surround. Flush-mount or back-mount installation capability. Motorcycle Audio System Applications The HXM8FBK is a strong option for custom Harley-Davidson, Indian, Slingshot, powersports, and marine systems where an 8-inch coaxial speaker is needed for high-output full-range or midrange-heavy operation. Common applications include custom fairing pods, lower pods, tour-pack enclosures, saddlebag installations, custom speaker panels, marine locations, and other fabricated 8-inch speaker positions. Application note: These are high-output 8-inch speakers and should not be treated as a universal drop-in replacement. Confirm the physical opening, mounting depth, enclosure volume, grille clearance, amplifier power, crossover strategy, and impedance before installation. Installation and Tuning Notes Choose the 2Ω or 4Ω version based on amplifier loading and complete system design. Verify the amplifier's RMS output at the selected speaker impedance. Confirm the 7.02-inch cutout and 3.11-inch mounting depth before fabrication. Check rear clearance for the motor structure and speaker terminals. Use appropriate crossover protection for the intended system and power level. Secure all mounting hardware for vibration-heavy motorcycle and powersports applications. Protect wiring and terminals from moisture, abrasion, heat, and moving components. Complete final EQ and crossover tuning after the full system is installed. Diamond Audio HXM Black Series Manual Review the current Diamond Audio HXM Black Series installation and specification manual before installation. Download HXM Black Series Manual Need Help Choosing 2Ω or 4Ω? Speaker impedance should be selected around the amplifier, number of speakers, channel configuration, wiring method, and overall system design — not simply by choosing the lowest impedance available. Start a Build Consultation Call 864-334-6131Sale -
DS18 PRO-ZT 8" Water Resistant Coaxial Mid-Range Loudspeaker (Single)
Vendor:DS18 Motorcycle AudioThe DS18 PRO-ZT8 is an 8" coaxial mid-range loudspeaker with a water-resistant cone and a built-in bullet tweeter. It is sold as a single 4-ohm speaker and includes a protective grill with a cloth shade.Key Specs Power handling: 275W RMS / 550W max Nominal impedance: 4 ohm Sensitivity: 98 dB (1W/1m) Frequency response: 65 Hz to 22 kHz; recommended high-pass crossover 80 Hz Overall diameter 8.42"; overall depth 4.44"; mounting depth 3.58" Baffle cutout: 7.13" Weight: 5.5 lb; ferrite woofer magnet, neodymium tweeter magnet, steel basket Fitment and Installation NotesDS18 does not list specific motorcycle fitment for the PRO-ZT8. Check the 7.13" cutout and 3.58" mounting depth against your opening before ordering.Browse more coaxial motorcycle speakers and DS18 motorcycle audio, or get a custom build planned around your bike.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -
Ground Zero Black Basket GZCF 8.0XSPL-NEO 8″ Coaxial Speaker
Vendor:Ground ZeroThe Ground Zero GZCF 8.0XSPL-NEO is an 8 inch 2-way coaxial speaker with a black basket, sold individually. It uses a neodymium motor and a compact motor construction.Key Specs 2-way coaxial, sold in singles Fiber-reinforced paper cone, UV-resistant and water-repellant High-excursion foamed W-surround 28 mm (1.1 in) PEI tweeter with 6 dB/oct high-pass filter Power handling 150-300 W, 4 ohm, 98 dB efficiency, 40 Hz-20 kHz Mounting depth 3.23 in; hexagon-style grill included Browse more pro coaxial speakers and coaxial speakers and Ground Zero, or ask about a custom build.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -

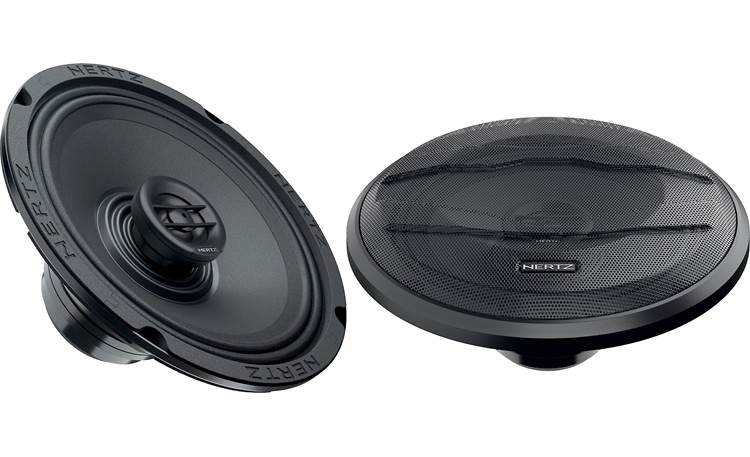

Hertz 8" SX 200 Neo Speaker (Pair)
Vendor:HertzThe Hertz SX 200 Neo is a weather-resistant 8 inch 2-way coaxial speaker from the SPL Show line, supplied as a pair with grilles. It uses a neodymium magnet and a PEI dome tweeter with a resettable protection circuit.Key Specs 4 ohm; power handling 130 W RMS / 260 W max 1-7/16 in PEI dome tweeter with resettable protection circuit Weather-resistant woofer cones; neodymium magnet Efficiency 99.5 dB; frequency response 100 Hz-20 kHz Top-mount depth 3-3/8 in Box includes two speakers, two grilles, grille putty, eight 1 in screws, eight speed clips and an owner's manual Fitment and Installation NotesA mounting template is printed on the box.Browse more pro coaxial speakers and coaxial speakers and Hertz, or ask about a custom build.Not sure what fits your bike? Start a build consultation or call 864-334-6131.
Key Specifications
| Speaker Size | 8″ |
| Speaker Type | Coaxial (midrange + tweeter) |
| Primary Use | Saddlebag lids and rear enclosures |
| Performance Focus | Maximum cone area and rear-stage output |
| System Pairing | Dedicated rear amplification with DSP control |
| Install Requirement | Correct enclosure design, sealing, and vibration control |
Specs summarized from manufacturer technical data. Always verify mounting depth, impedance, enclosure volume, and crossover requirements before installation.
High-Output 8″ Coaxial Speakers for Touring Motorcycles
8-inch motorcycle coaxial speakers are used in high-output touring audio systems where maximum cone area and rear-stage authority are required. This collection includes purpose-built 8-inch coaxial speakers engineered specifically for Harley Davidson and Indian touring motorcycles.
Compared to 6.5-inch and 6×9 formats, 8-inch coaxial speakers deliver increased midbass impact and overall volume capability when installed in properly designed saddlebag lids or rear enclosures. These speakers are intended for riders building systems that must remain audible and controlled at sustained highway speeds.
All speakers in this collection are selected for motorcycle-specific operating demands, including vibration resistance, thermal stability, and compatibility with limited mounting depth applications. Proper sensitivity and impedance ratings ensure predictable integration with aftermarket amplifiers and DSP-controlled systems.
This collection supports advanced audio configurations such as:
- High-output saddlebag lid speaker systems
- Rear-dominant touring audio builds
- Multi-amplifier systems with dedicated rear channels
- DSP-tuned systems requiring precise level control
Due to their output capability, 8-inch coaxial speakers require proper amplification and signal management. DSP integration is strongly recommended to manage crossover points, time alignment, and level matching so rear output complements the front stage rather than overpowering it.
This page serves as the top-tier rear speaker category for riders prioritizing output, authority, and full-system balance.
Related 8″ Speaker Collections
This collection lists 8″ coaxials from Cicada Audio, DB Drive, Diamond Audio, DS18, Ground Zero and Hertz. The Diamond Audio HXM8FBK comes in 2Ω or 4Ω and the DS18 PRO-ZT 8″ is sold as a single, so match impedance to your amplifier and order two for a stereo pair.
Need Help Choosing Motorcycle Coaxial Speakers 8"?
Tell us your bike, year and goals and a Garage Bagger Stereo specialist will help you pick the right parts and plan the install.
