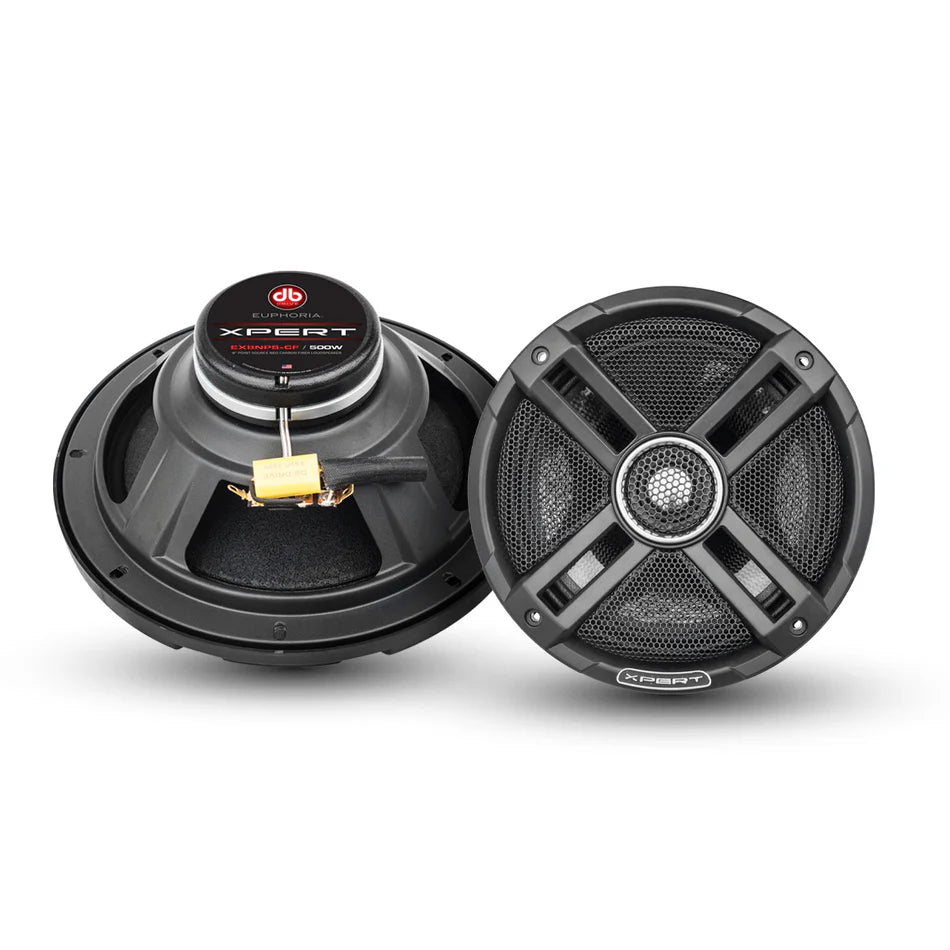

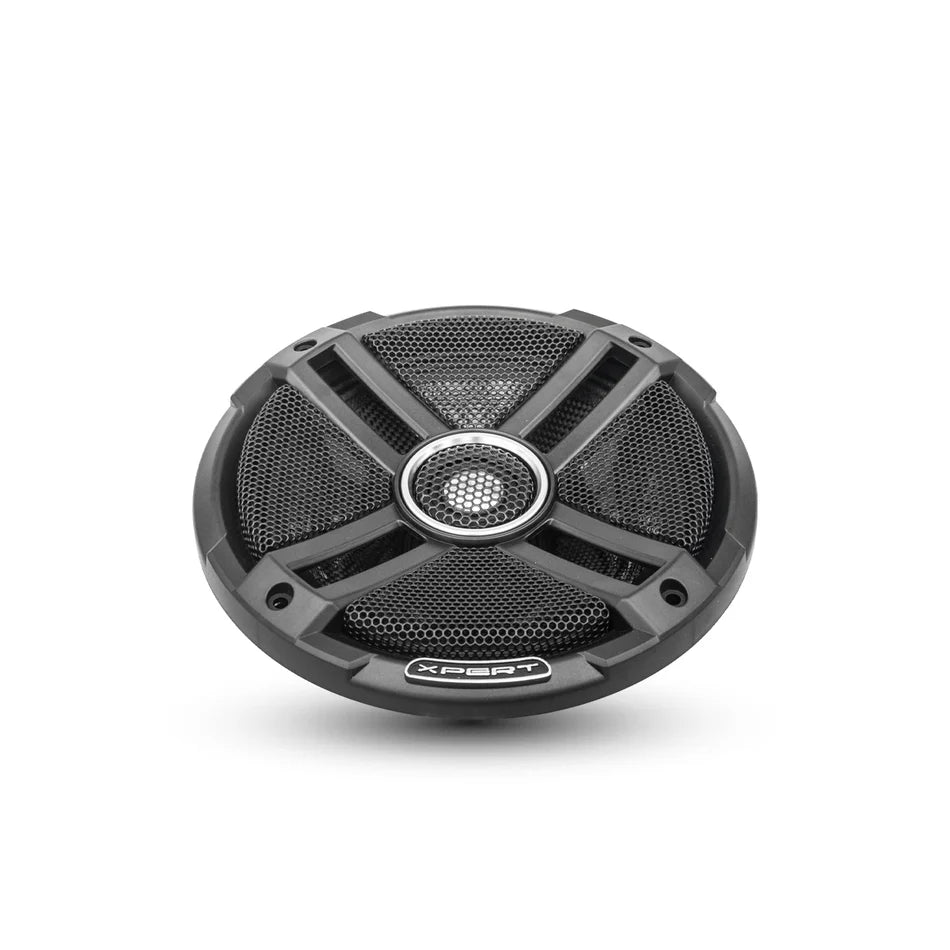

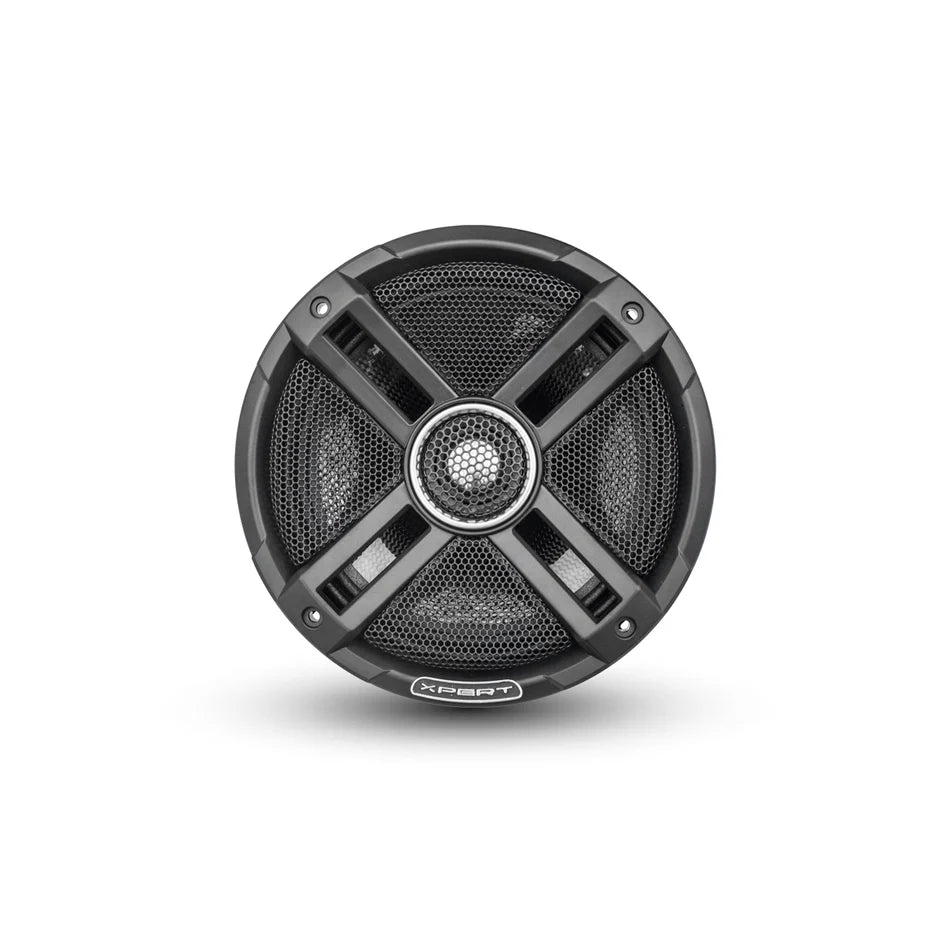

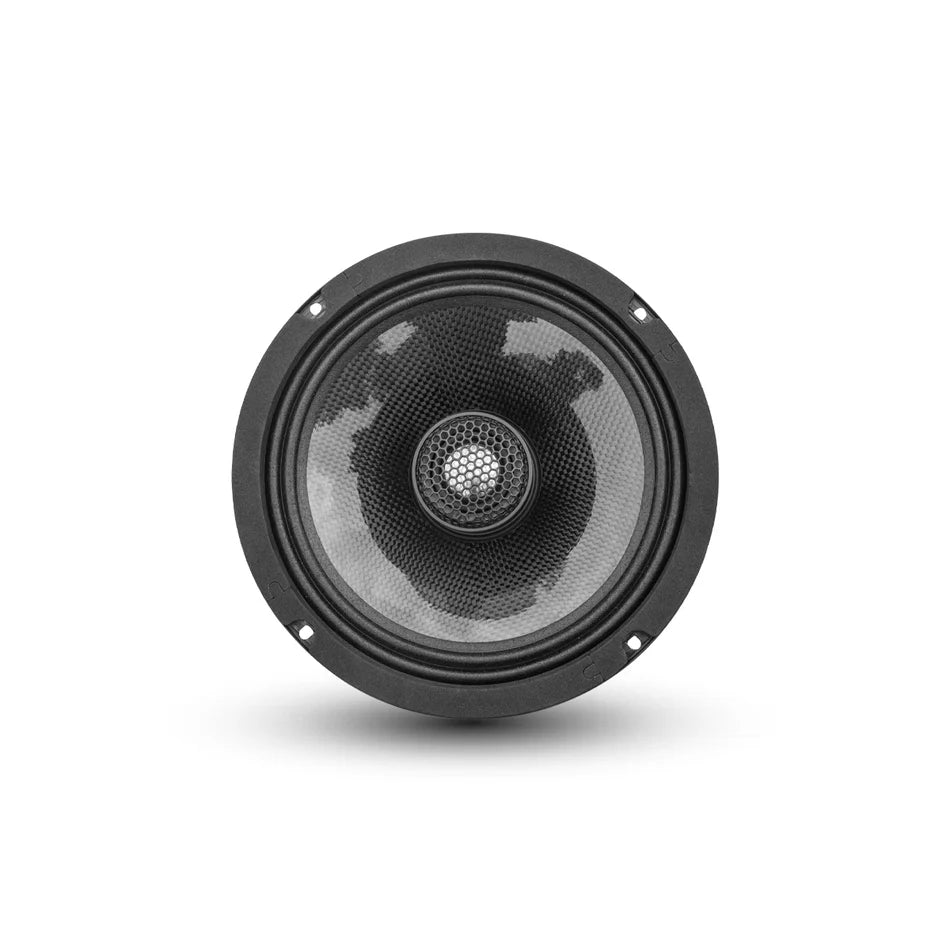

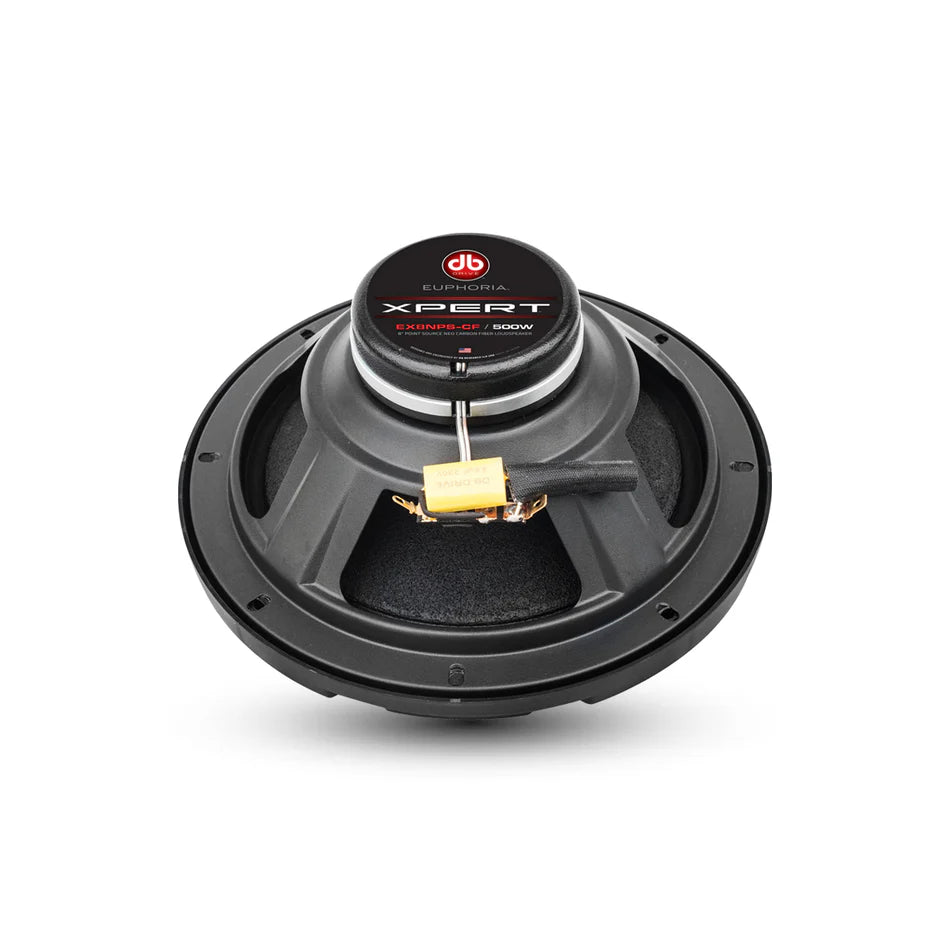

DB Drive Euphoria XPERT EX8NPS-CF 8″ 2-Way NEO Carbon Fiber Point Source Loudspeaker
The DB Drive Euphoria XPERT EX8NPS-CF is an 8" point source loudspeaker that pairs an IP65 rated carbon fiber cone with a 1" aluminum dome tweeter. What sets it apart is the 8" size with a 4 ohm nominal impedance, a 275W (500W dynamic) rating and 92.3dB sensitivity across 80Hz-19kHz.
8" point source with a 1" aluminum dome tweeter
4 ohm nominal with a protective grill, 92.3dB sensitivity and 80Hz-19kHz response.
- 275W (500W dynamic), 4 ohm
- 80Hz-19kHz; 92.3dB sensitivity
- IP65 rated carbon fiber cone
Key Product Details
| Product | DB Drive Euphoria XPERT EX8NPS-CF 8″ 2-Way NEO Carbon Fiber Point Source Loudspeaker |
| Brand | DB Drive Euphoria XPERT |
| Size | 8" |
| Type | 2-way NEO carbon fiber point source with 1" aluminum dome tweeter |
| Power handling | 275W (500W dynamic) |
| Impedance | 4 ohm nominal |
| Use | Full-range 8" coaxial for bagger lids and bags |

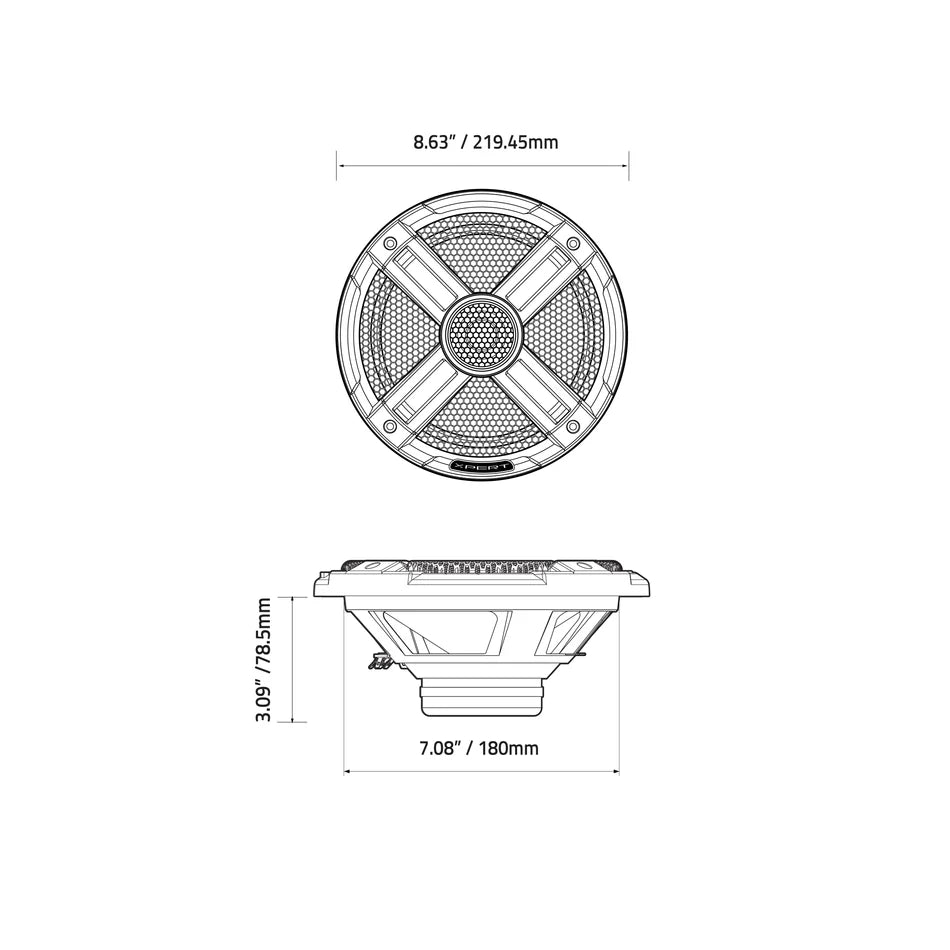

Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
System Planning
Match the amplifier channel to the 4 ohm nominal impedance and 275W rating. Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
Specifications
| Power handling | 275W (500W dynamic) |
| Nominal impedance | 4 ohm |
| Sensitivity | 92.3dB (1W/1m) |
| Frequency response | 80Hz-19kHz |
| Resonant frequency | 62.3Hz |
| Voice coil | 1.5" (38.1mm) |
| Magnet | High-intensity NEO ring magnet |
| Cone | IP65 rated carbon fiber with cloth surround |
| Tweeter | 1" aluminum dome |
| Basket | Stamped steel |
| Grill | Protective grill |
Related Paths
DB Drive EX8NPS-CF FAQ
What is the power handling of the DB Drive EX8NPS-CF?
It is rated for 275W, with 500W dynamic power handling, at 4 ohm nominal impedance.
What frequency response and sensitivity does it have?
The response is 80Hz-19kHz and sensitivity is 92.3dB (1W/1m).
What is the cone made of?
An IP65 rated carbon fiber cone with a cloth surround on a stamped steel basket.
What tweeter does it use?
A 1" aluminum dome tweeter.
Can Garage Bagger Stereo confirm fitment before I order?
Yes. Start a Build Consultation or call 864-334-6131 with your bike, model year and where the speaker will mount, and we will confirm fitment and the right parts before you order.
