Motorcycle Pro Coaxial Speakers
Pro coaxial speakers for riders who want real output: stronger midbass, more volume and better projection at speed. Shop by size for correct fitment.
THE REFERENCE STANDARD
Build It Right the First Time
Not sure which parts fit your exact bike and setup? Start with a clean, correct plan.
- Fitment confirmed for your exact bike and year
- Parts matched to your speakers and amplifier
- Build help from a GBS specialist
Browse Collections
-
Beyma PRO6CXND - 6.5" Pro Coaxial Speaker (Single)
Vendor:BeymaThe Beyma PRO6CXND is a 6.5 inch pro coaxial speaker sold as a single speaker, pairing a woofer with a compression high-frequency driver.Key Specs Nominal diameter: 165 mm (6.5 in) Nominal impedance LF/HF: 8/8 ohm Power capacity LF/HF: 200/40 W AES Program power LF/HF: 400/80 W Sensitivity LF/HF: 95/104 dB (2.83 V at 1 m) Frequency range: 82-20,000 Hz Fitment and Installation NotesSold in singles, so order one per speaker position.Browse more motorcycle coaxial speakers and motorcycle amplifiers at Garage Bagger Stereo.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -
Beyma PRO6FX240ND - 6.5" Pro Carbon Fiber Coaxial Speaker (Single)
Vendor:BeymaBeyma PRO6FX240ND 6.5" Pro Carbon Fiber Coaxial Speaker (Sold in Singles) KEY FEATURES• High power handling: 400 / 80 W Program Power (LF / HF)• High Sensitivity: 94 / 103 dB (LF / HF)• Extended controlled displacement: Xmax 5,5 mm shorting copper pad for low harmonic distortion and linear impedance• Carbon Fiber cone with High-End quality sound CONEX spider for higher resistance and consistency• Common Neodymium magnetic system for low-weight and mounting depth• Excellent off-axis response 70° conical coverage for HF dispersion control• PM4 diaphragm for natural sound Specifications Nominal Basket Diameter 6.5" / 165mm Impedance 8 ohms Low Frequency AES Power Rating 200 Watts Low Frequency Program Power 400 Watts High Frequency AES Power Rating 40 Watts High Frequency Program Power 80 Watts Frequency Response 100Hz - 20kHz High Frequency Sensitivity (1W/1m) 103dB Low Frequency Sensitivity (1W/1m) 94dB LF Voice Coil Diameter 2" / 50.8mm HF Voice Coil Diameter 1.75" / 44.4mm Recom. Crossover Frequency 2.5kHz or higher @ 12dB/oct. Voice Coil Length 14 mm Air Gap Height 7 mm X Damage (peak to peak) 26 mm BL Factor 9.1 N/A Mounting Information Overall Diameter 6.9" / 174mm Bolt Circle Diameter 6.2" / 158mm Baffle Cutout Diameter 5.71" / 145.1mm No. Of Mounting Holes 4 Volume Displaced By Driver 0.02 ft3 / .55 Liters Overall Depth 4.0" / 103.1mm Net Weight 4.2 lb. / 1.9 kg. Shipping Weight 4.6 lb. / 2.1 kg. Materials Low Frequency Woofer Basket Die-Cast Aluminum Cone Carbon Fiber Surround Two Roll Treated Cloth Voice Coil Aluminum Spider Conex Magnet Neodymium High Frequency Tweeter Diaphragm PM-4 Voice Coil Edgewound Aluminum Ribbon Voice Coil Former Kapton Magnet Neodymium Thiele-Small Parameters Resonant Frequency (fs) 100 Hz Impedance (Re) 4.6 ohms Coil Inductance (Le) .24 mH Mechanical Q (Qms) 3.5 Electrical Factor (Qes) .56 Total Q (Qts) .48 Comp. Equivalent Vol. (Vas) .14 ft3 / 4 Liters Voice Coil Overhang (Xmax) 5.5 mm Diaphragm Mass (Mms) 15 Grams Surface Area of Cone (Sd)m2 0.0135m2 Reference Efficiency .83% Displacement Volume (Vd) 74 cm3 -
Beyma PRO8CXND - 8" Pro Coaxial Speaker (Single)
Vendor:BeymaThe Beyma PRO8CXND is an 8 inch pro coaxial speaker, sold as a single speaker. It pairs a low-frequency driver with a compression high-frequency section for full-range output.Key Specs Nominal diameter: 8 in Nominal impedance: 8 ohm Power capacity LF/HF: 250/50 W AES Program power LF/HF: 500/100 W Sensitivity: 96-104 dB Frequency range: 40-20,000 Hz Fitment and Installation NotesOrder one speaker per position; it is not sold as a pair. Confirm cutout and depth for your lid or fairing before ordering.Browse more motorcycle coaxial speakers and motorcycle amplifiers at Garage Bagger Stereo.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -
Beyma PRO8FX370ND - 8" High Power Pro Coaxial Speaker (Single)
Vendor:BeymaThe Beyma PRO8FX370ND is an 8" pro coaxial speaker sold individually, pairing a carbon fiber cone woofer with a 1.4" exit compression driver on a single neodymium-magnet design for time alignment.Key Specs Impedance: 8 ohms Woofer power: 250 W AES, 500 W program Sensitivity: 97 dB (woofer), 105 dB (HF driver) Frequency response: 120 Hz to 20 kHz Waterproof carbon fiber cone, neodymium magnets Overall diameter 8.31" (211 mm), depth 5.3" (135 mm) Front mount: 7.22" (182 mm) baffle cutout, 8 holes on a 7.7" (195 mm) bolt circle Fitment and Installation NotesPlan for the 5.3" depth and a 1.2 kHz or higher crossover point when designing the lid or enclosure.Explore other pro coaxial speakers and the Beyma collection, or start a custom build.Not sure what fits your bike? Start a build consultation or call 864-334-6131. -
SaleCerwin-Vega PH694 6x9" Pro Full-Range Coaxial Horn Speakers
Vendor:Cerwin-VegaCerwin-Vega 6x9" Pro Full-Range Coax Horn Speakers PH694 The Cerwin-Vega PH694 6x9" Pro Series horn-loaded coaxial speakers deliver powerful output, sharp high-frequency projection, and strong midbass for motorcycles and high-SPL mobile audio systems. Featuring a treated paper cone, compression horn tweeter, and rugged steel basket, the PH694 provides clear, high-efficiency sound that cuts through road and wind noise while maintaining durability under heavy use. Specifications: Speaker Type: 2-Way Full-Range Coaxial Horn SpeakerSize: 6" x 9"Power Handling (RMS): 160 wattsPower Handling (Peak): 320 wattsImpedance: 4 ohm (Single Voice Coil)Sensitivity: 101 dB (High-efficiency SPL output)Frequency Response: 80 Hz – 18,000 HzMidrange Cone Material: Treated paperTweeter Type: Horn-loaded compression driverTweeter Diaphragm: PolyimideSurround Material: Treated clothFrame/Basket: Stamped steelMagnet Type: Ferrite (Ceramic)Crossover: Internal passive networkBi-Amp Capable: YesMounting Depth: 3.9 in (approx.)Cutout Dimensions: 8.74 in x 5.98 inRecommended Use Cases:– Motorcycle audio– Powersports / side-by-side– High-SPL car audio– Outdoor/open-air vehicles– Demo builds and competition systemsSale -

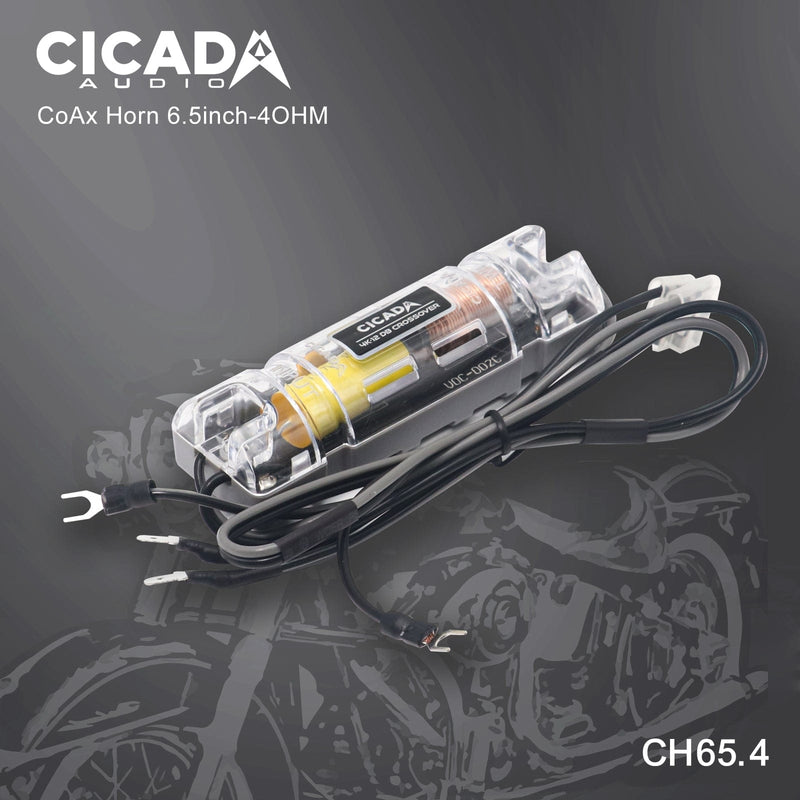

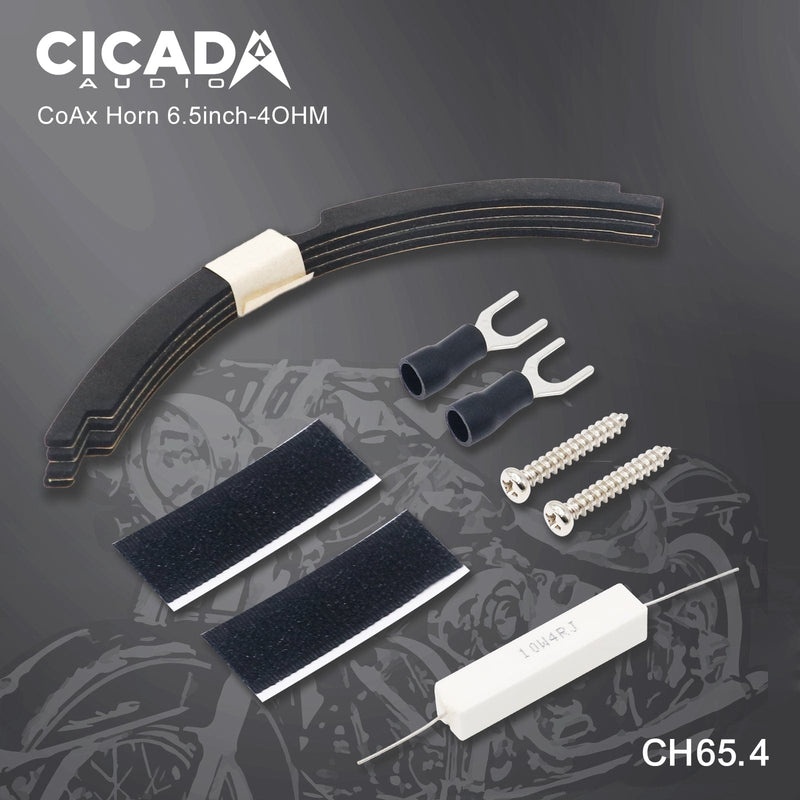

SaleCicada Audio CH65 6.5" Pro Coaxial Horn Speaker (Pair)
Vendor:Cicada AudioCicada Audio CH65 6.5" Pro Coaxial Horn Speaker Pair Cicada Audio CH65 6.5" Pro Coaxial Horn Speakers are built for Harley-Davidson baggers and high-output motorcycle audio systems that need real volume, strong projection, and cleaner sound at highway speed. The CH65 combines a powerful midbass driver with an integrated horn tweeter for loud vocals, crisp highs, aggressive open-air output, and the kind of efficiency needed for amplified Harley audio builds. Shop Cicada Audio 6.5" Pro Coax Speakers Cicada Amplifiers THE REFERENCE STANDARD High-Output 6.5" Cicada Speakers for Harley Audio Built for riders who want louder fairing speaker output, sharper vocals, stronger mids, and better projection from a 6.5" motorcycle speaker location. Start a Build Consultation Call 864-334-6131 Key Product Details Product Cicada Audio CH65 6.5" Pro Coaxial Horn Speaker Pair Current Part Numbers CH652C = 2Ω version / CH654C = 4Ω version Speaker Size 6.5" Speaker Type Pro coaxial horn speaker Sold As Pair Best For Harley-Davidson bagger audio, fairing speaker upgrades, high-output motorcycle audio systems, and amplified 6.5" speaker locations System Goal Louder vocals, stronger mids, crisp highs, better projection, and cleaner highway-speed output Always verify impedance, amplifier power, speaker pod fitment, mounting depth, wiring, and tuning before ordering for your Harley-Davidson audio build. Built for Loud Harley-Davidson Bagger Audio The Cicada CH65 is a strong choice for riders upgrading factory Harley-Davidson audio systems with aftermarket amplifier power. These speakers are made for motorcycle audio builds where basic replacement speakers are not enough and the goal is more volume, stronger clarity, and real projection while the bike is moving. If you are building a louder fairing speaker setup, a pro-audio style motorcycle system, or a high-output Harley bagger audio upgrade, the CH65 gives you the efficiency and output needed to cut through wind noise, road noise, and helmet interference. Fitment Note On 2015-2023 Road Glide models, speaker pods may require modification for proper installation. Always verify pod clearance, mounting depth, speaker location, impedance, amplifier compatibility, and final system layout before ordering. Specifications Power Handling 500 watts RMS / 1000 watts max per pair Frequency Response 75Hz–20kHz +/-5dB Magnet Structure Neodymium high-energy lightweight N35 magnet Basket Heavy-duty die-cast aluminum basket Midbass Voice Coil 2.0" high-temp voice coil Tweeter Voice Coil 1.4" aluminum diaphragm high-temp voice coil Sensitivity 94dB / 99dB average 1W/1M, 2.83V Crossover 12dB crossover with custom-tooled vented crossover case Bi-Amp Capable Horn tweeters can be run on dedicated amplifier channels Heat Control Advanced voice coil heat sink design for improved heat dissipation Speaker Control Shorting ring design for improved speaker control Mounting Depth 3.0" / 76.2mm Mounting Diameter 5.7" / 145.5mm Treatment Weather treated for motorcycle audio use Sold Pair Best Use for the Cicada CH65 The Cicada CH65 is best used in Harley-Davidson motorcycle audio builds where the goal is louder fairing speaker output, stronger vocal projection, improved clarity, and more efficient performance from a 6.5" speaker location. Amplified System Recommended These are not basic replacement speakers. The CH65 is intended for amplified motorcycle audio systems where output, control, tuning, and projection matter. Related Cicada & Motorcycle Audio Paths Build the system around the correct speaker, amplifier, DSP, wiring, and installation path. These related collections help match the CH65 with the right Harley audio upgrade direction. Shop Motorcycle 6.5" Pro Coaxial Speakers Shop Cicada Audio motorcycle speakers, amplifiers, DSP, and bagger audio upgrades Shop Cicada motorcycle amplifiers for Harley-Davidson audio builds Shop motorcycle DSP for Harley-Davidson audio tuningSale -
SaleCicada Audio CH69W 6x9" Pro Coaxial Horn Speaker (Pair)
Vendor:Cicada AudioCicada Audio CH69W Pro Coaxial Horn Speaker 6x9" (2Ω and 4Ω) FEATURES: Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Removable threaded horn ring for easy modification Rain or Shine™ all-weather performance design Available in 4- or 2-Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient External 12dB crossover with optional -3/-6 tweeter attenuator 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat Water-resistant treated paper cone Lightweight / rigid Maximized efficiency / super strong Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance N35SH Neodymium magnet Die-cast Aluminum custom tooled basket with Vortex Flow Venting™ Warranty: 2 years SPECIFICATIONS: 4Ω – 6X9-inch coaxial horn driver Power handling: 250W RMS/500W MAX Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: water resistant treated paper cone Magnet: Neodymium Sensitivity: 95dB Frequency response 75Hz – 20kHz +/- 3dB Mounting Depth: 3.7-inch/93mm Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mmSale -

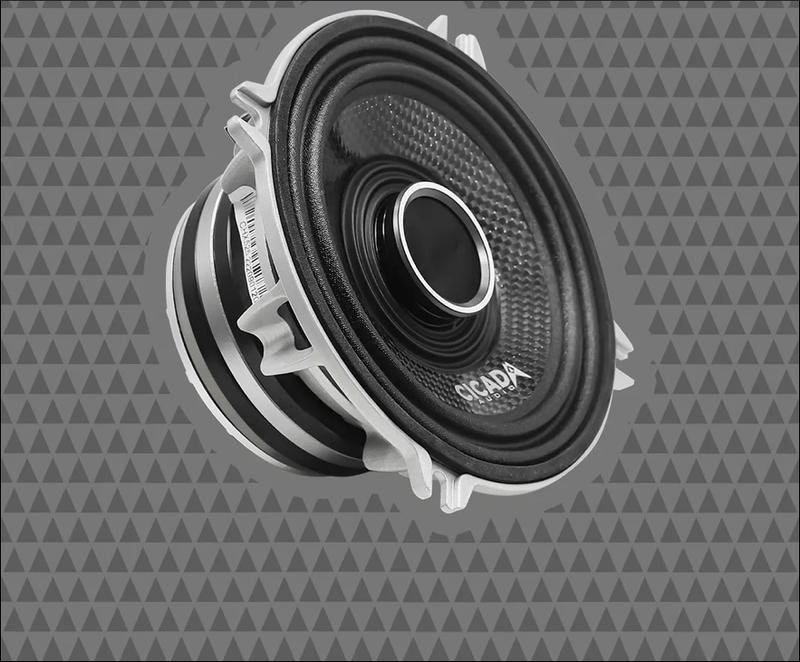

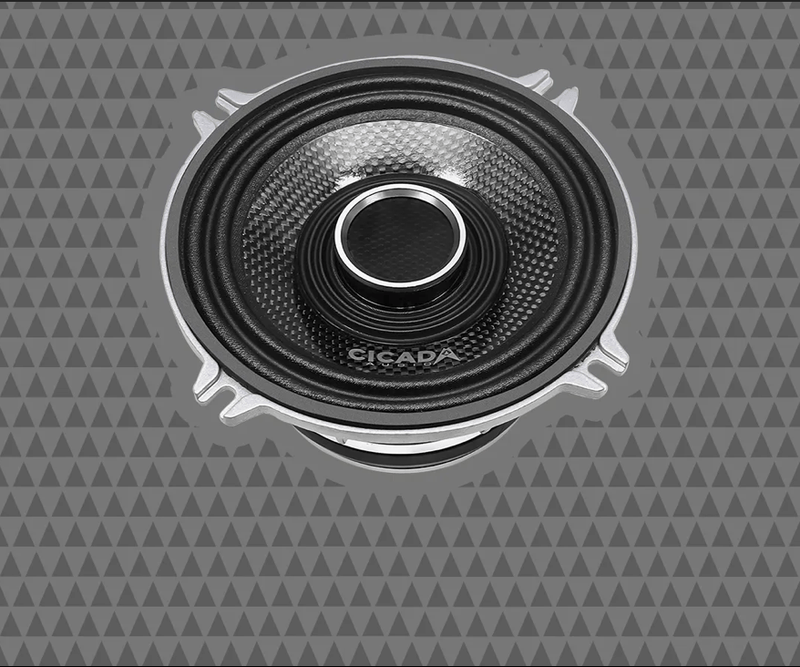

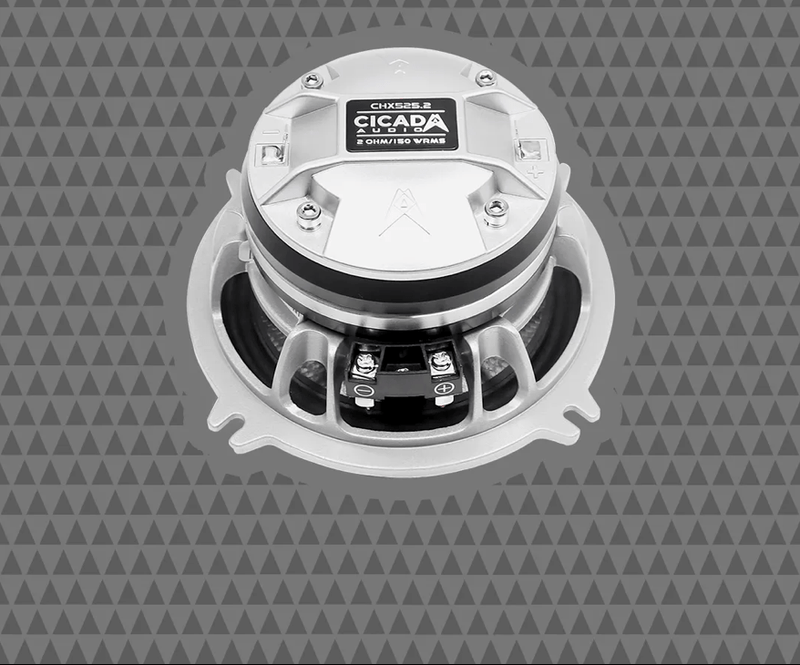

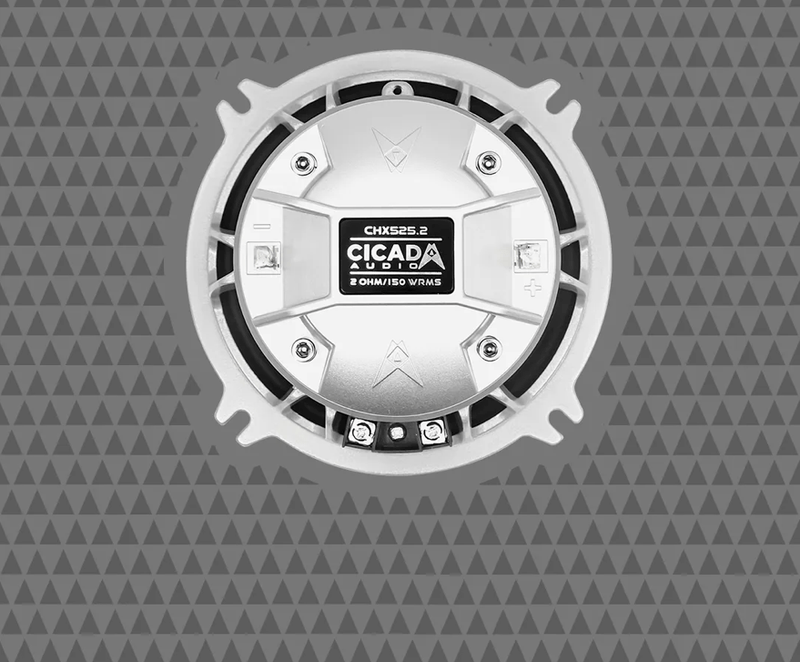

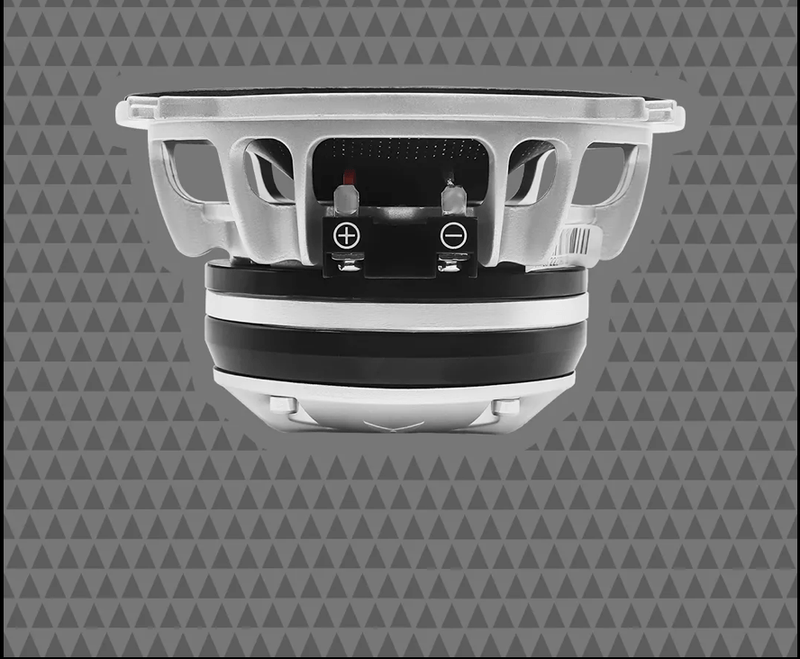

SaleCicada Audio CHX525 5.25" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioThe Cicada Audio CHX525 is a pair of 5.25" pro coaxial horn speakers, available in 2 ohm and 4 ohm versions. A Carbon Matrix Composite cone mid-bass pairs with a horn-loaded aluminum tweeter.Key Specs Power handling: 150W RMS / 300W MAX each Voice coils: 1.5" mid-bass, 1.0" tweeter Frequency response: 90Hz-20kHz +/-5dB Sensitivity: 91dB (1W/1M) 12dB external crossover Mounting depth 2.75" / 69.85mm; mounting diameter 4.66" / 118.5mm Two-year warranty Browse more pro coaxial speakers and Cicada Audio, or see our custom build options.Not sure what fits your bike? Start a build consultation or call 864-334-6131.Sale -
SaleCicada Audio CHX65 PRO 6.5" Pro Coaxial Horn Speakers (Pair)
Vendor:Cicada AudioThe Cicada Audio CHX65 PRO is a 6.5" pro coaxial horn speaker sold as a pair in 2Ω (CHX65.2PRO) or 4Ω (CHX65.4PRO), rated 300 watts RMS / 600 watts max with 92dB sensitivity. Carbon Matrix Composite cone, aluminum tweeter dome and N45SH neodymium motor External 12dB crossover at 4kHz with -3/-6dB tweeter attenuation Weatherproof: Nanofram horn cover and Rain or Shine Pro all-weather design 2.6" (67mm) mounting depth, 5.75" (145.4mm) mounting diameter Fits all 1998-Present Harley-Davidson Touring models: drop-in on 2014-2023 and 2024-Present fairings; 1998-2013 fairings require Metra 82-9601 adapter rings Tour pack: 1998-2013 requires the Speed Rings Lowers/Pak Expansion Kit; 2014-Present may need Cicada's SPACER65-0.5 1/2" spacer Three-year Cicada warrantySale -
SaleCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioCicada Audio CHX69 6x9" Pro Coaxial Speaker (Pair) All Weather 6x9 Pro Coaxial Driver A Weatherproof Horn Cover is included on the compression driver. SPECIFICATIONS: 4Ω – 6X9-inch PRO coaxial horn driver Power handling: 400W RMS/800W MAX each Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter High-temperature design Tweeter Dome: Aluminum Crossover: 12dB external custom tooled, vented, encased crossover Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover Cone: Carbon Matrix Composite™ Magnet: Neodymium Sensitivity: 92dB, 1W / 1M response 46Hz – 20kHz +/- 3dB Mounting Depth: 3.75-inch/96mm Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm Nanofram™ Horn Cover Exclusive Cicada All-Weather Design for protection from rain Rain or Shine™ all-weather performance design Available in 4 or 2Ω versions Aluminum tweeter diaphragm material Brighter sound More efficient 1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat External 12dB crossover with optional -3/-6 tweeter resistor attenuatorSale -

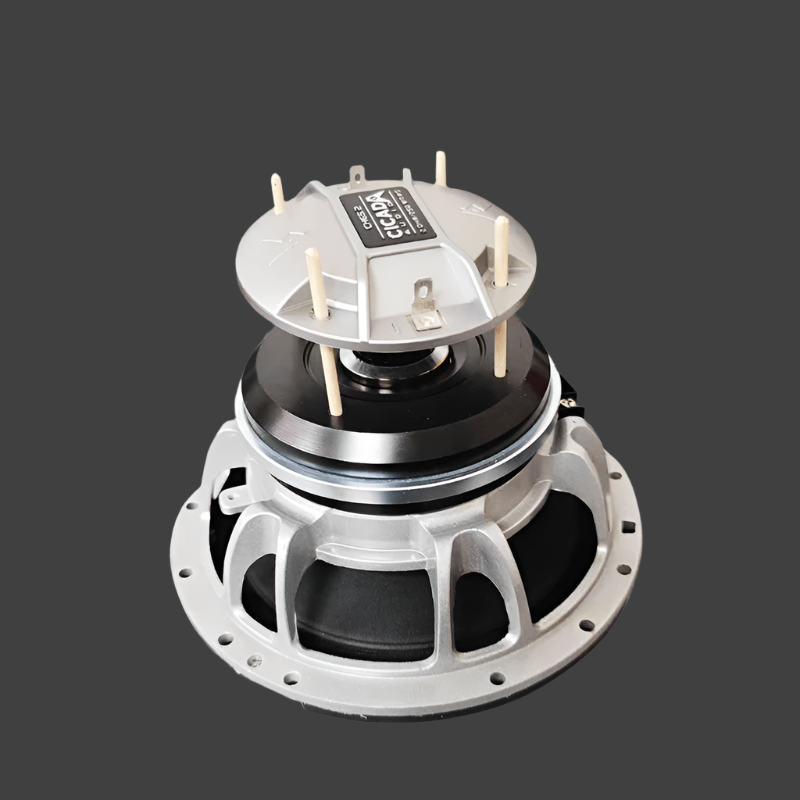

SaleCicada Audio CHX8 8" Pro Coaxial Speaker (Pair)
Vendor:Cicada AudioCicada Audio CHX8 8" Pro Coaxial Horn Speaker Pair Cicada Audio CHX8 8" Pro Coaxial Horn Speakers are built for Harley-Davidson bagger audio systems that need serious output, strong projection, and clean all-weather motorcycle sound. Designed for high-output custom Harley audio builds, the CHX8 combines an 8" pro coaxial horn driver, Carbon Matrix Composite cone, neodymium motor structure, external crossover, and horn-loaded clarity for riders who want more authority from larger speaker locations. Shop Cicada Audio Pro Coax Speakers Cicada Amplifiers THE REFERENCE STANDARD High-Output 8" Cicada Speakers for Harley Audio Built for riders who need louder vocals, stronger projection, more speaker authority, and all-weather motorcycle audio performance from an 8" speaker platform. Start a Build Consultation Call 864-334-6131 Key Product Details Product Cicada Audio CHX8 8" Pro Coaxial Horn Speaker Pair Speaker Size 8" Speaker Type Pro coaxial horn driver speaker Impedance Options 2Ω and 4Ω versions available depending on selected variant Best For Harley-Davidson bagger audio, custom speaker locations, larger fairing or pod upgrades, and high-output motorcycle audio systems System Goal Louder output, stronger projection, cleaner vocals, improved open-air sound, and all-weather Harley audio performance Sold As Pair Always verify impedance, mounting depth, mounting diameter, speaker pod clearance, amplifier power, crossover setup, wiring, and final fitment before ordering for your Harley-Davidson audio build. Built for High-Output Harley-Davidson Bagger Audio The Cicada CHX8 is designed for riders building serious Harley-Davidson motorcycle audio systems where a standard replacement speaker is not enough. With a larger 8" speaker platform, horn-loaded output, and all-weather construction, this speaker is built for custom bagger audio systems that need volume, clarity, and projection while the bike is moving. This speaker is a strong option for Harley audio builds using larger speaker locations, custom pods, advanced fairing setups, or full custom bagger systems where the goal is more authority and a stronger open-air listening experience. All-Weather Pro Coax Horn Design The CHX8 uses Cicada’s all-weather pro coaxial horn design with a weatherproof horn cover, Carbon Matrix Composite cone, neodymium magnet structure, aluminum tweeter diaphragm, and external crossover network. This construction supports strong output, clean projection, and reliable motorcycle audio performance in real riding conditions. The included Nanofram™ horn cover helps protect the compression driver, while the external 12dB crossover and optional tweeter attenuation help tune the speaker for different system goals. Specifications Speaker Size 8" pro coaxial horn driver Power Handling 400 watts RMS / 800 watts max each Frequency Response 46Hz–20kHz +/-3dB Sensitivity 92dB, 1W / 1M Midbass Voice Coil 2.5" / 64mm voice coil Tweeter Voice Coil 1.75" / 44mm OFC copper wire tweeter voice coil Tweeter Dome Aluminum tweeter diaphragm Cone Carbon Matrix Composite™ cone Magnet Neodymium magnet structure Crossover External 12dB custom-tooled, vented, encased crossover Tweeter Attenuation -3dB / -6dB heat-sink encased resistor crossover option Horn Cover Nanofram™ horn cover Weather Protection Rain or Shine™ all-weather performance design with protection for motorcycle audio use Mounting Depth 3.3" / 84mm Mounting Diameter 7.2" / 182mm Sold Pair Best Use for the Cicada CHX8 The CHX8 is best used in Harley-Davidson bagger audio builds where the goal is larger speaker output, stronger projection, more authority, and a louder open-air motorcycle audio system. Custom Fitment Required This is an 8" pro coaxial horn speaker. Always confirm the exact mounting location, pod depth, adapter requirements, grille clearance, amplifier power, and system layout before ordering. Fitment and Installation Notes The Cicada CHX8 is intended for serious motorcycle audio systems and custom Harley-Davidson bagger builds. Because this is an 8" speaker platform, fitment must be verified carefully before ordering. Confirm speaker depth, mounting diameter, pod clearance, grille clearance, wiring path, impedance, amplifier compatibility, and final system layout before installation. Some Harley-Davidson Road Glide, Street Glide, CVO, Road King, and custom bagger applications may require custom pods, adapter rings, fabrication, or system planning depending on the exact bike and speaker location. Related Cicada & Motorcycle Audio Paths Build the system around the correct speaker size, amplifier power, DSP plan, wiring, and installation parts. These related collections help match the Cicada CHX8 with the right Harley audio upgrade path. Shop Cicada Audio motorcycle speakers, amplifiers, DSP, and bagger audio upgrades Shop pro coaxial motorcycle speakers for Harley bagger audio Shop Cicada motorcycle amplifiers for Harley-Davidson audio builds Shop motorcycle DSP for Harley-Davidson audio tuning Shop motorcycle speaker installation parts Need Help Choosing the Right Cicada Speakers? Need help matching the Cicada CHX8 to your Harley-Davidson bagger audio build? Call Garage Bagger Stereo or start a build consultation and we’ll help match the speaker size, impedance, amplifier power, DSP, wiring, fabrication needs, and installation path to your bike and sound goal. Call 864-334-6131 Start a Build ConsultationSale -
SaleCicada Audio CXX4 4" Performance Coaxial Speakers | 2Ω or 4Ω – Pair
Vendor:Cicada AudioCicada Audio CXX4 4-inch performance coaxial speakers with a Kevlar cone, PEI tweeter dome and N45H neodymium magnet. Available in 2Ω or 4Ω, sold as a pair, with a two-year warranty.Sale
Key Specifications
| Speaker Type | Pro Coaxial |
| Designed For | Higher output, stronger projection at speed |
| Common Locations | Fairing, pods, lids, saddlebag builds |
| Best Results | Aftermarket amplification and DSP tuning |
| Fitment Method | Shop by size for correct mounting |
| System Pairing | Amplifiers + proper installation hardware |
Specs summarized from manufacturer technical data. Always verify fitment and mounting hardware before installation.
Best Uses for Pro Coaxial Builds
- Fairing + lids: Great for loud, balanced full-bike output.
- Fairing + bags: Strong projection and midbass support where it matters.
- Maximum output systems: Pair with correct amplification and tuning.
Shop Pro Coaxial Speakers by Size
Select your size to match your mounting location and desired output.
6x9" Pro Coaxial Speakers
Popular for lids and bag builds—strong output and midbass.
10" Pro Coaxial Speakers
Maximum cone area for high-output lid and bagger builds.
Recommended Next Steps
To get the most from pro coaxials, pair them with Motorcycle Amplifiers and the right hardware from Speaker Installation. If you want a simpler upgrade path, browse Motorcycle Coaxial Speakers.
Need Help Choosing Motorcycle Pro Coaxial Speakers?
Tell us your bike, year and goals and a Garage Bagger Stereo specialist will help you pick the right parts and plan the install.
