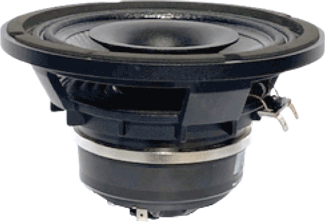

Beyma PRO6FX240ND - 6.5" Pro Carbon Fiber Coaxial Speaker (Single)

Beyma PRO6FX240ND - 6.5" Pro Carbon Fiber Coaxial Speaker (Single)

Regular price $578.00
Regular price Sale price $578.00
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

Beyma PRO6FX240ND - 6.5" Pro Carbon Fiber Coaxial Speaker (Single)

The Beyma PRO6FX240ND is a 6.5-inch coaxial with a carbon fiber cone and a PM-4 diaphragm tweeter, sold as a single. What sets it apart for planning is a 5.71" (145.1mm) baffle cutout and 4.0" (103.1mm) overall depth in a die-cast aluminum basket.

BEYMA PRO6FX240ND

6.5" Carbon Fiber Coaxial With a 5.71" Cutout

Carbon fiber cone and PM-4 HF diaphragm in a 6.9" overall diameter frame, 4.0" deep, sold as a single.

  • 400W / 80W program (LF / HF), 8 ohms
  • 94dB LF / 103dB HF sensitivity
  • Crossover at 2.5kHz or higher, 12dB/oct

Key Product Details

BrandBeyma
ModelPRO6FX240ND
Type6.5" carbon fiber coaxial speaker
Sold AsSingle
Impedance8 ohms
Power Rating (LF / HF)200W / 40W AES; 400W / 80W program
Frequency Response100Hz – 20kHz
Sensitivity (LF / HF)94dB / 103dB (1W/1m)
Recommended Crossover2.5kHz or higher at 12dB/oct
Baffle Cutout5.71" / 145.1mm
Overall Depth4.0" / 103.1mm

Specifications are as listed by the manufacturer. Verify cutout, mounting depth, impedance, crossover and amplifier match before ordering.

Mounting Notes

The PRO6FX240ND has 4 mounting holes on a 6.2" (158mm) bolt circle, a 6.9" (174mm) overall diameter and a 4.0" (103.1mm) overall depth. It displaces 0.02 ft³ (0.55 L). Check the depth behind your mounting location.

Beyma recommends a crossover of 2.5kHz or higher at 12dB/oct for the high-frequency section, with 70° conical coverage for high-frequency dispersion control.

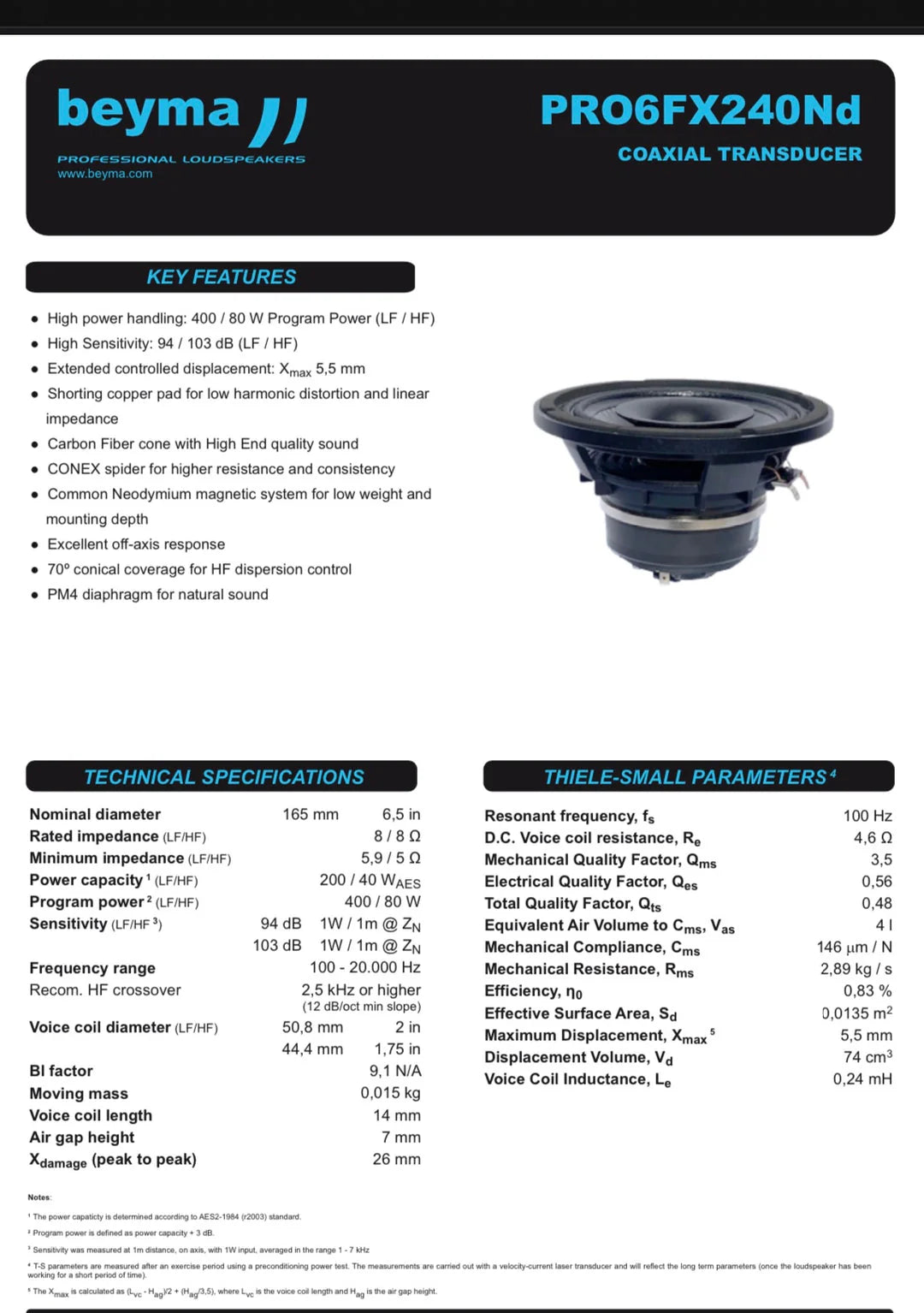

Specifications

Driver and Power

Nominal Basket Diameter6.5" / 165mm
Impedance8 ohms
LF AES Power Rating200 watts
LF Program Power400 watts
HF AES Power Rating40 watts
HF Program Power80 watts
Frequency Response100Hz – 20kHz
LF Sensitivity (1W/1m)94dB
HF Sensitivity (1W/1m)103dB
LF Voice Coil Diameter2" / 50.8mm
HF Voice Coil Diameter1.75" / 44.4mm
Recommended Crossover2.5kHz or higher at 12dB/oct
Voice Coil Length14mm
Air Gap Height7mm
X Damage (peak to peak)26mm
BL Factor9.1

Mounting and Materials

Overall Diameter6.9" / 174mm
Bolt Circle Diameter6.2" / 158mm
Baffle Cutout5.71" / 145.1mm
Number of Mounting Holes4
Volume Displaced by Driver0.02 ft³ / 0.55 L
Overall Depth4.0" / 103.1mm
Net Weight4.2 lb / 1.9 kg
LF BasketDie-cast aluminum
LF ConeCarbon fiber
LF SurroundTwo-roll treated cloth
LF Voice CoilAluminum
LF SpiderConex
LF MagnetNeodymium
HF DiaphragmPM-4
HF Voice CoilEdgewound aluminum ribbon, Kapton former
HF MagnetNeodymium

Thiele-Small Parameters

Resonant Frequency (fs)100Hz
DC Resistance (Re)4.6 ohms
Coil Inductance (Le)0.24mH
Mechanical Q (Qms)3.5
Electrical Q (Qes)0.56
Total Q (Qts)0.48
Equivalent Volume (Vas)0.14 ft³ / 4 L
Xmax5.5mm
Moving Mass (Mms)15 grams

Related Paths

Beyma PRO6FX240ND FAQ

How much power can the PRO6FX240ND handle?

The woofer is rated at 200 watts AES and 400 watts program. The tweeter is rated at 40 watts AES and 80 watts program.

What crossover does the tweeter section need?

Beyma recommends 2.5kHz or higher at 12dB/oct.

Is the PRO6FX240ND sold as a pair?

No. It is sold as a single.

What cutout and depth does it need?

The baffle cutout is 5.71" (145.1mm) with 4 mounting holes on a 6.2" (158mm) bolt circle. Overall depth is 4.0" (103.1mm).

What is it made of?

It has a carbon fiber cone, Conex spider, die-cast aluminum basket and neodymium magnets on both the woofer and the tweeter.
