Cerwin-Vega

6x9" Pro Full-Range Coax Horn Speakers

PH694

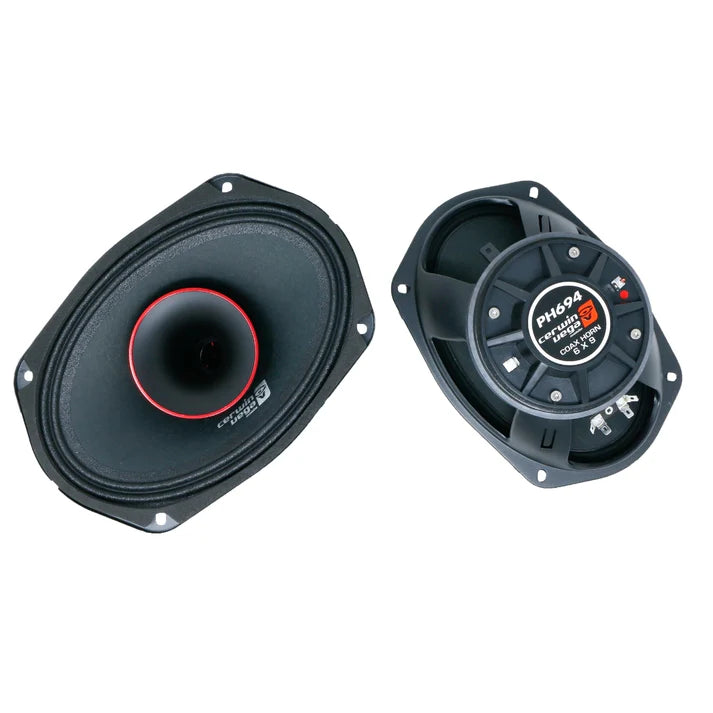

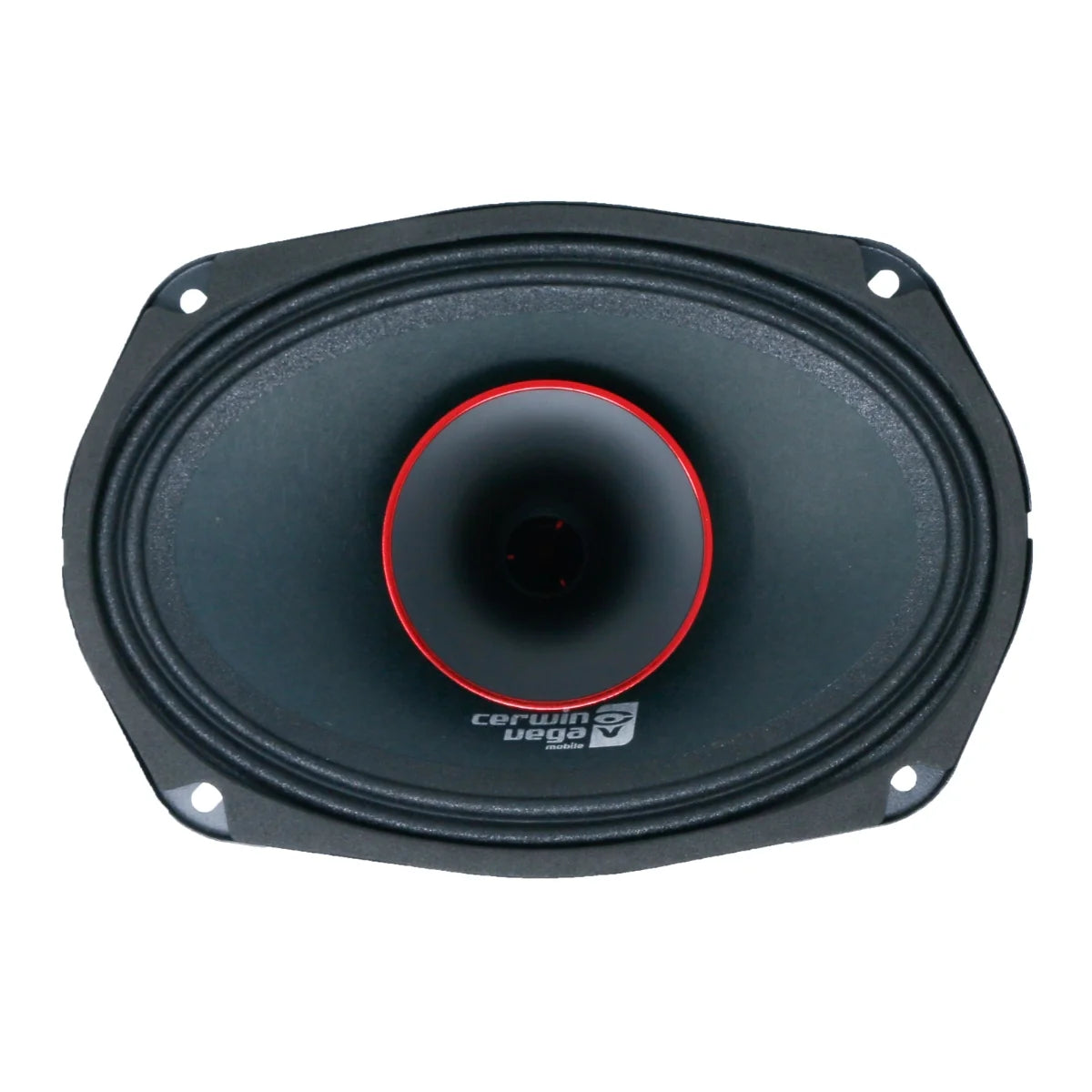

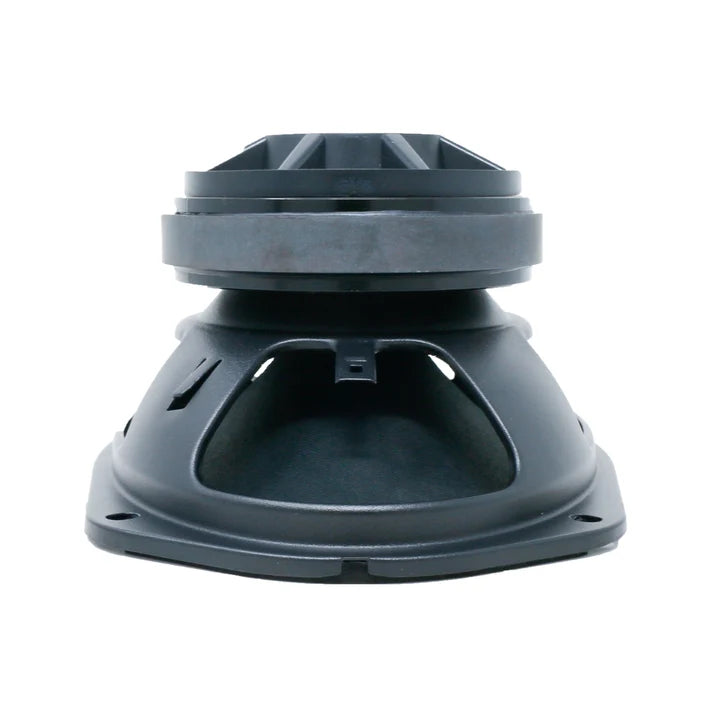

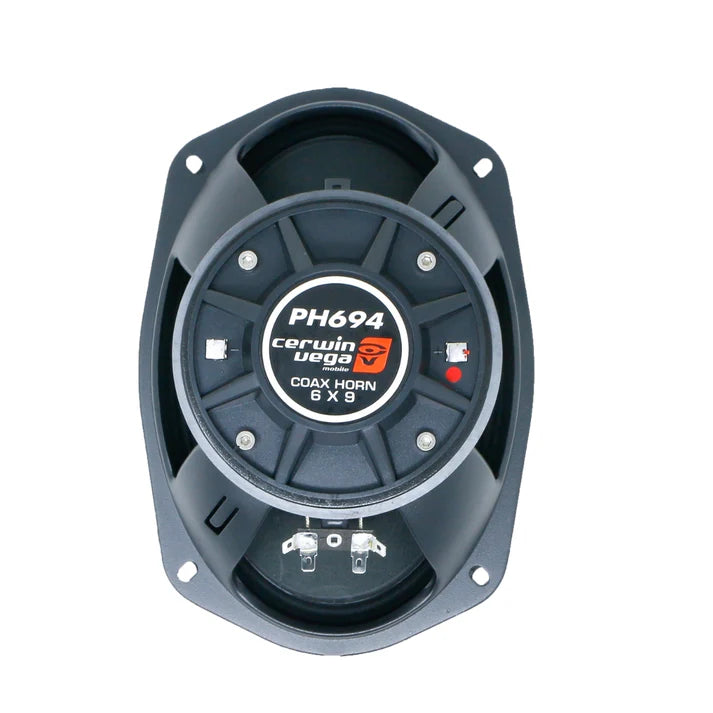

The Cerwin-Vega PH694 6x9" Pro Series horn-loaded coaxial speakers deliver powerful output, sharp high-frequency projection, and strong midbass for motorcycles and high-SPL mobile audio systems. Featuring a treated paper cone, compression horn tweeter, and rugged steel basket, the PH694 provides clear, high-efficiency sound that cuts through road and wind noise while maintaining durability under heavy use.

Specifications:

Speaker Type: 2-Way Full-Range Coaxial Horn Speaker
Size: 6" x 9"
Power Handling (RMS): 160 watts
Power Handling (Peak): 320 watts
Impedance: 4 ohm (Single Voice Coil)
Sensitivity: 101 dB (High-efficiency SPL output)
Frequency Response: 80 Hz – 18,000 Hz
Midrange Cone Material: Treated paper
Tweeter Type: Horn-loaded compression driver
Tweeter Diaphragm: Polyimide
Surround Material: Treated cloth
Frame/Basket: Stamped steel
Magnet Type: Ferrite (Ceramic)
Crossover: Internal passive network
Bi-Amp Capable: Yes

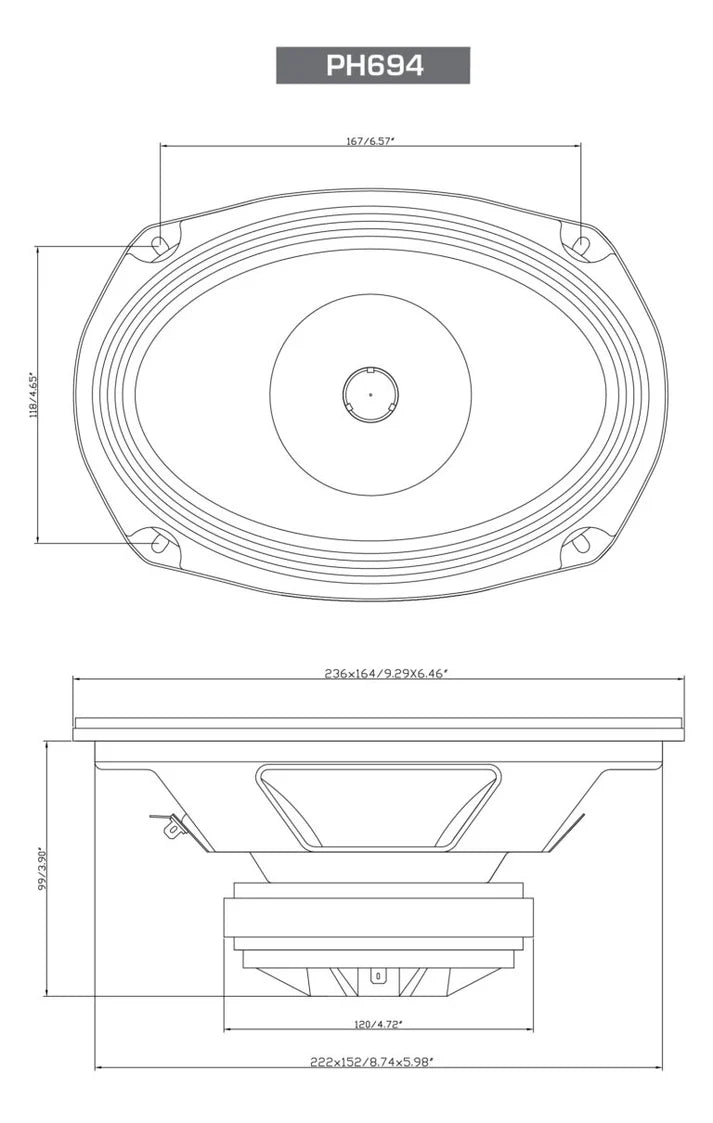

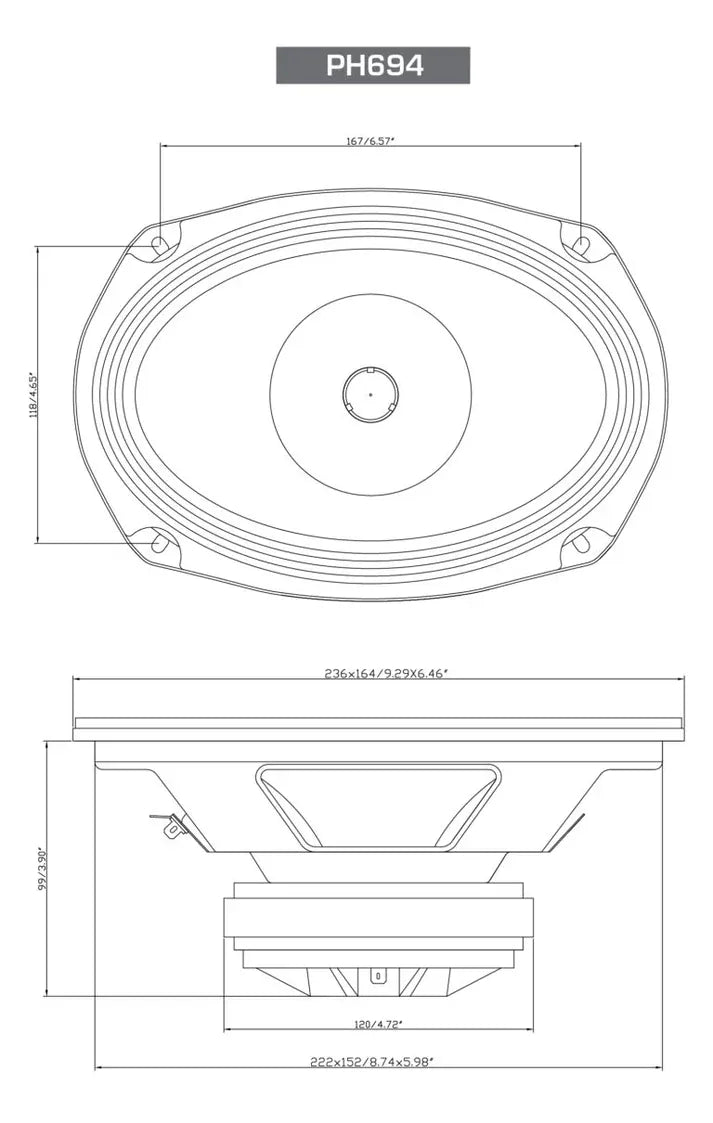

Mounting Depth: 3.9 in (approx.)
Cutout Dimensions: 8.74 in x 5.98 in
Recommended Use Cases:
– Motorcycle audio
– Powersports / side-by-side
– High-SPL car audio
– Outdoor/open-air vehicles
– Demo builds and competition systems
