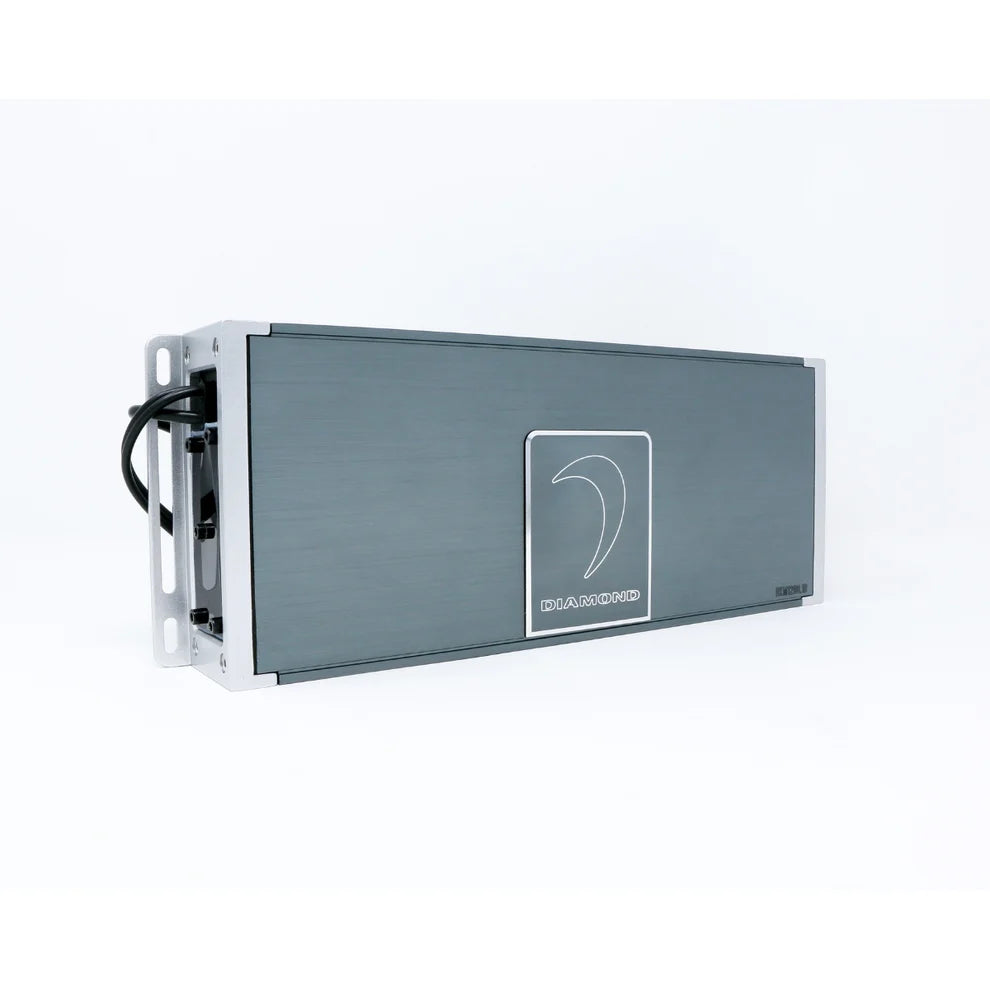

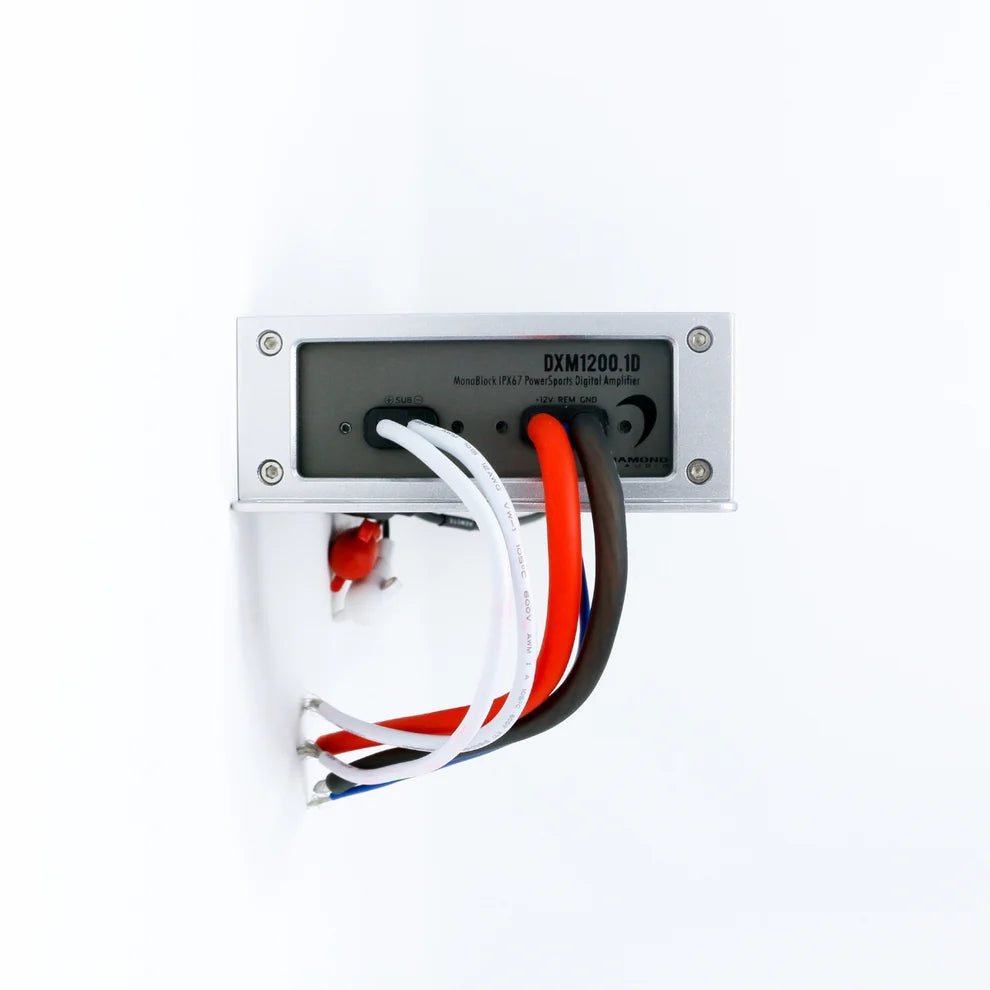

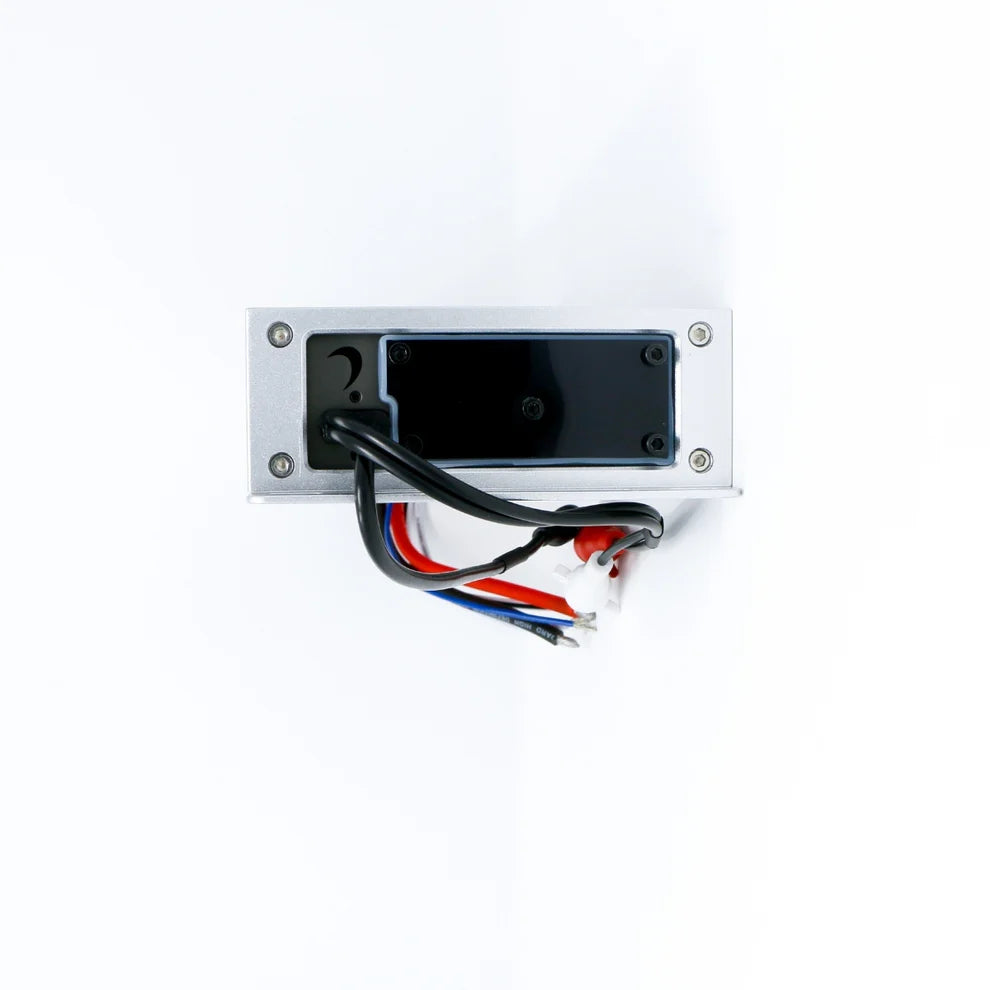

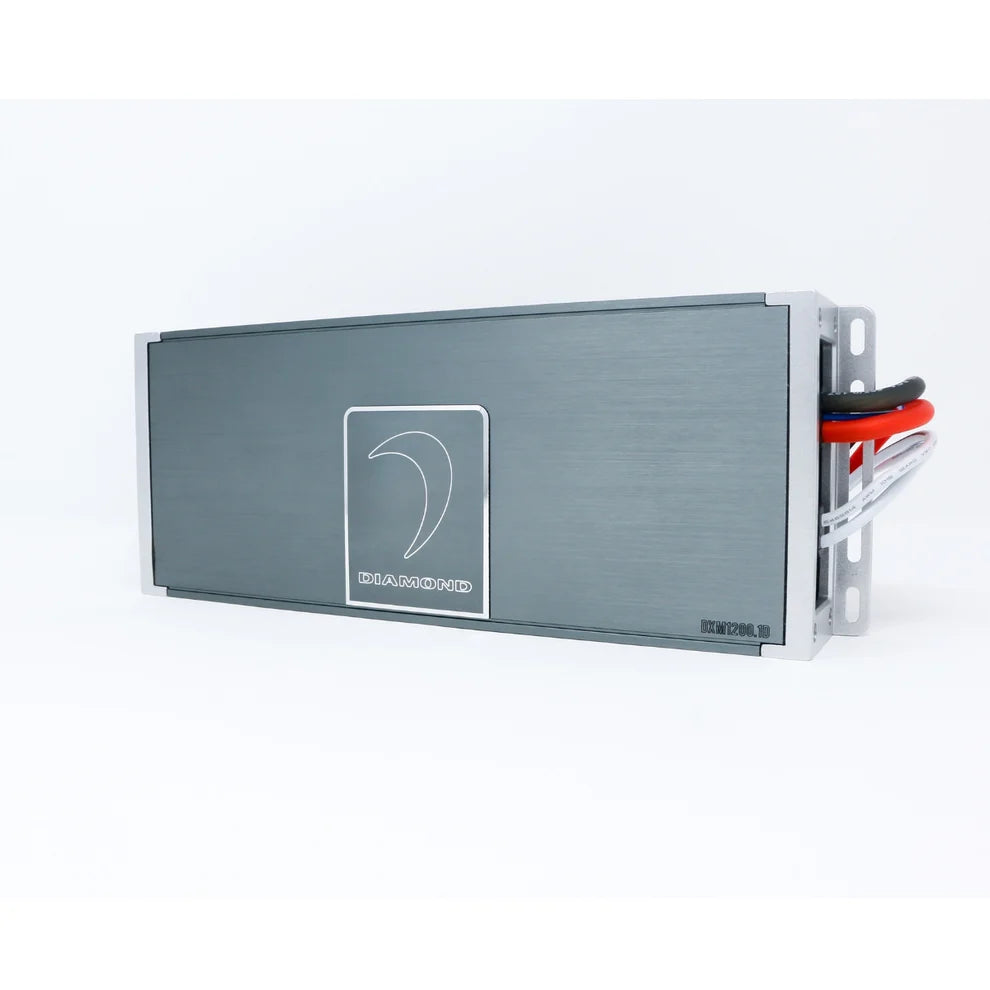

Diamond Audio DXM1200.1D Waterproof Monoblock Amplifier 1200W RMS
The Diamond Audio DXM1200.1D is a monoblock Class D subwoofer amplifier with an IPX67 waterproof rating, rated up to 1200W RMS at 1 ohm. A remote bass knob is included.
1200W RMS at 1 ohm for subwoofers
Variable low-pass and subsonic filters, bass boost and phase control in an 11.8 in chassis.
- 1200W RMS at 1 ohm
- 800W RMS at 2 ohm / 500W RMS at 4 ohm
- IPX67 waterproof rating
Key Product Details
| Model | DXM1200.1D |
| Type | Monoblock Class D subwoofer amplifier |
| Waterproof rating | IPX67 |
| Fuse | 70A |
| Size | 11.8" x 4.3" x 1.7" |
| Remote bass knob | Included |
Diamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years, so send us your bike and we will confirm the install plan.
Matching a subwoofer load
Power depends on the final impedance: 500W RMS at 4 ohm, 800W RMS at 2 ohm and 1200W RMS at 1 ohm. Choose your subwoofer voice coil configuration so the load matches the output you want, and wire with the 70A fuse size.
Use the variable low-pass (40 Hz to 250 Hz), subsonic filter (10 Hz to 55 Hz), bass boost (0 to 18 dB) and phase (0 to 180 degrees) controls to tune the sub against your main speakers.
Specifications
| Power at 1 ohm | 1200W RMS |
| Power at 2 ohm | 800W RMS |
| Power at 4 ohm | 500W RMS |
| THD | Under 0.3% |
| Signal-to-noise | Better than -102 dB |
| Gain range | 0.2V to 10V |
| Low-pass crossover | Variable, 40 Hz to 250 Hz |
| Subsonic filter | 10 Hz to 55 Hz |
| Bass boost | 0 to 18 dB |
| Phase | Selectable, 0 to 180 degrees |
Related Paths
DXM1200.1D FAQ
How much power does the DXM1200.1D make?
It is rated 1200W RMS at 1 ohm, 800W RMS at 2 ohm and 500W RMS at 4 ohm.
Is the DXM1200.1D waterproof?
Diamond Audio gives it an IPX67 waterproof rating.
What fuse does it need?
The fuse size is 70A.
What tuning controls does it have?
A variable low-pass crossover from 40 Hz to 250 Hz, a subsonic filter from 10 Hz to 55 Hz, bass boost from 0 to 18 dB and selectable phase from 0 to 180 degrees. A remote bass knob is included.
Which motorcycles does it fit?
Diamond Audio lists the DXM series for motorcycles, ATVs, UTVs and off-road vehicles but does not list specific motorcycle models or years. It measures 11.8" x 4.3" x 1.7"; send us your bike and mounting plan so we can confirm.
