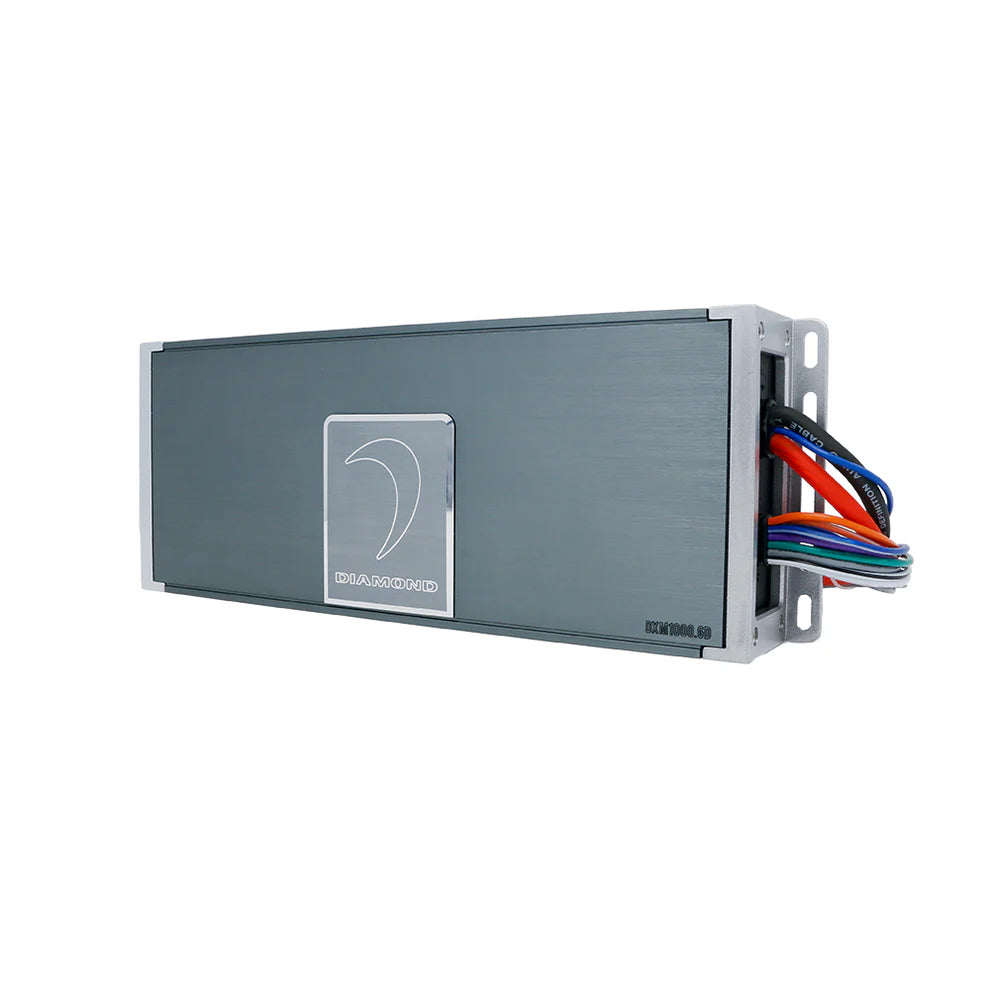

Diamond Audio DXM1000.6D 6-Channel Waterproof Full Range Amplifier 1000W RMS

TYPE: Amplifiers
VENDOR: Diamond Audio
  • Diamond Audio - DXM1000.6D DXM Series Monoblock 1000W RMS Class D Waterproof Amplifier
  • Diamond Audio - DXM1000.6D DXM Series Monoblock 1000W RMS Class D Waterproof Amplifier
  • Diamond Audio - DXM1000.6D DXM Series Monoblock 1000W RMS Class D Waterproof Amplifier
  • Diamond Audio - DXM1000.6D DXM Series Monoblock 1000W RMS Class D Waterproof Amplifier
1 4

PRODUCT INFORMATION

Diamond Audio DXM1000.6D 6-Channel Waterproof Full Range Amplifier 1000W RMS

TYPE: Amplifiers
VENDOR: Diamond Audio
Type: Amplifiers
Vendor: Diamond Audio

$859.99

$959.99

$859.99

Sale Sold out
Tax included. Shipping calculated at checkout.

Additional Payment Info

Frame_8859
unnamed
ShopPay
View full details
Motorcycle Audio

Diamond Audio DXM1000.6D 6-Channel Waterproof Full Range Amplifier 1000W RMS

Need Help?

Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.

  • Description

  • Reviews

Diamond Audio - DXM1000.6D

DXM Series Monoblock 1000W RMS Class D Waterproof Amplifier

All weather amplifier for your OUTDOOR life (IPX67 Rated)

  • Specifications

    Ratings:
    • Power @ 2Ω: 150W RMS x 6
    • Power @ 4Ω: 100W RMS x 6
    • Power @ 4Ω Bridged: 340W RMS x 3CH
    • Total Harmonic Distortion: <0.3%
    • S/N Ratio (1W@4Ω): >-96dB
    • Gain Range: 0.2v-10v
    • Crossover Range: 40Hz-400Hz
    • Frequency Range: 10Hz-33KHz
    • Current Draw Full Power (Music): 105A (10.5A) AVG
    • Fuse Rating: 50A
    • Dimensions: 11.8”x4.3”x1.7” (298.6mm x 110mm x 44.0mm)
    Features
    • Power & Protection Led Light Status Indicator
    • Short circuit, thermal, and voltage protection
    • Selectable X-Over: LPF/FULL/HPF
    • Selectable Input Modes: 2CH/6CH
    • IPX67 Rated
    • Remote Bass Knob Included

DXM Series Amplifier Manual

DXM1000.6D One Sheet
