Diamond Audio MS65NEO 6.5" Midrange
Diamond Audio MS65NEO 6.5" Midrange
Couldn't load pickup availability
Additional Payment Info
-
Description
-
Reviews
Diamond Audio MS65NEO 6.5" Midrange

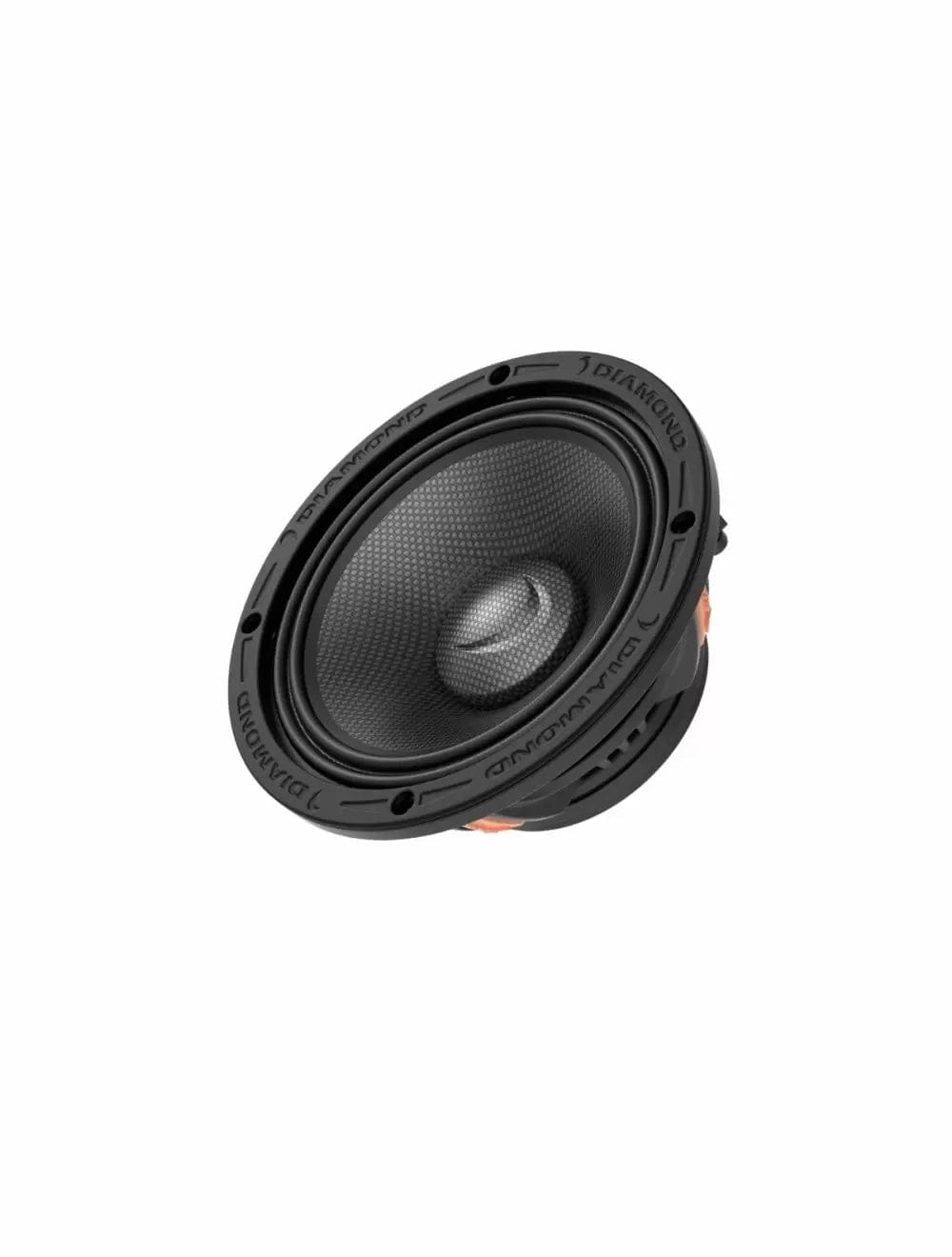

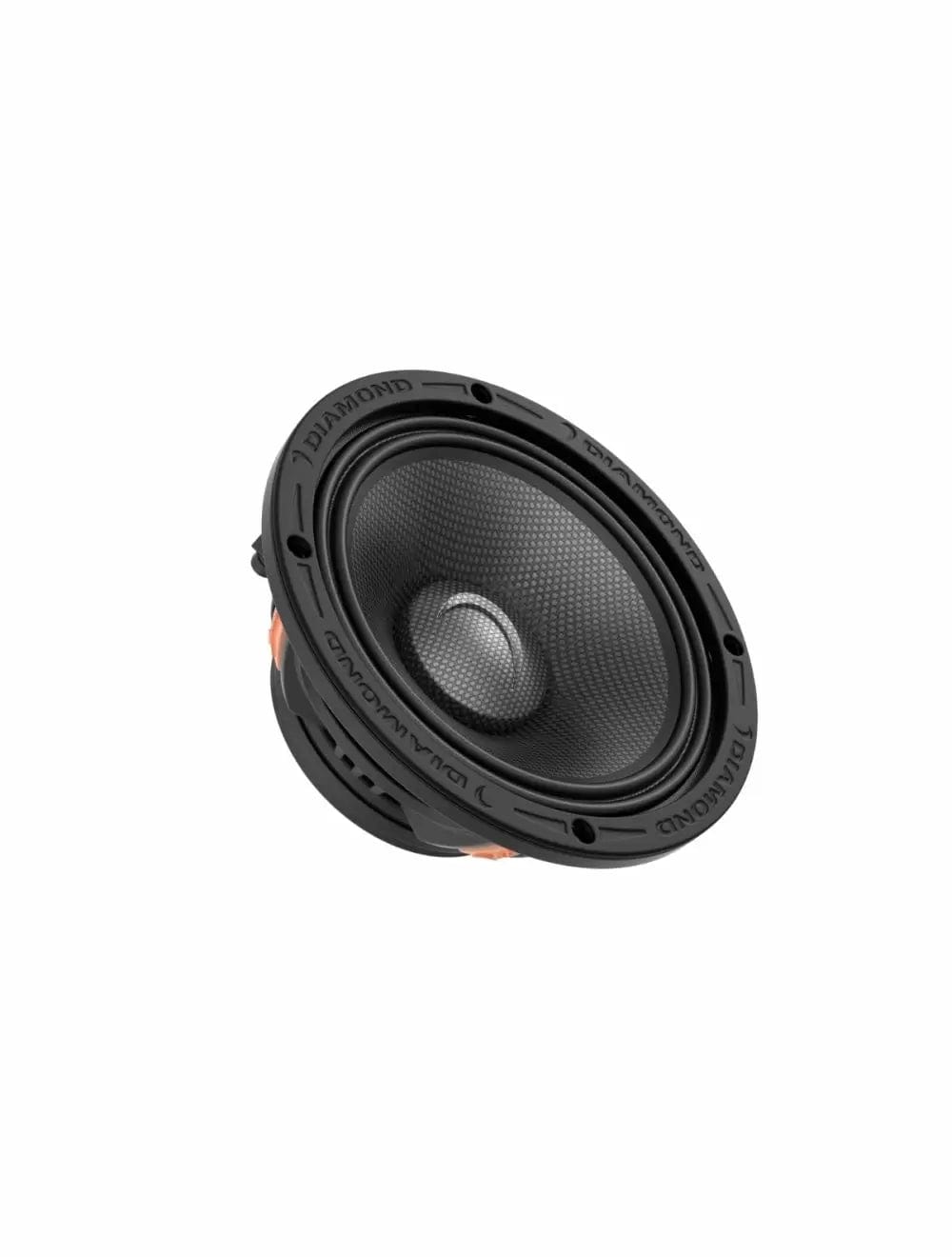

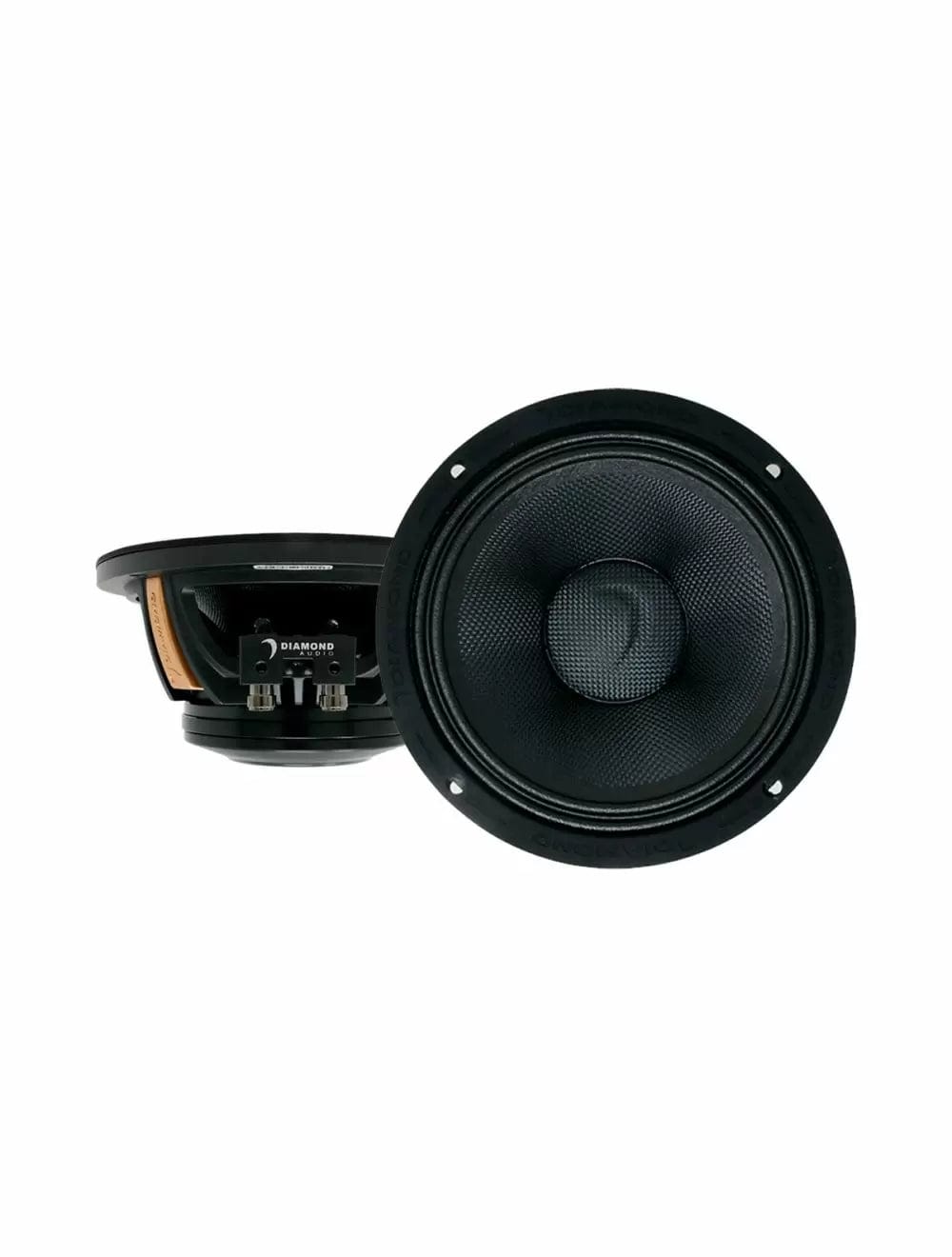

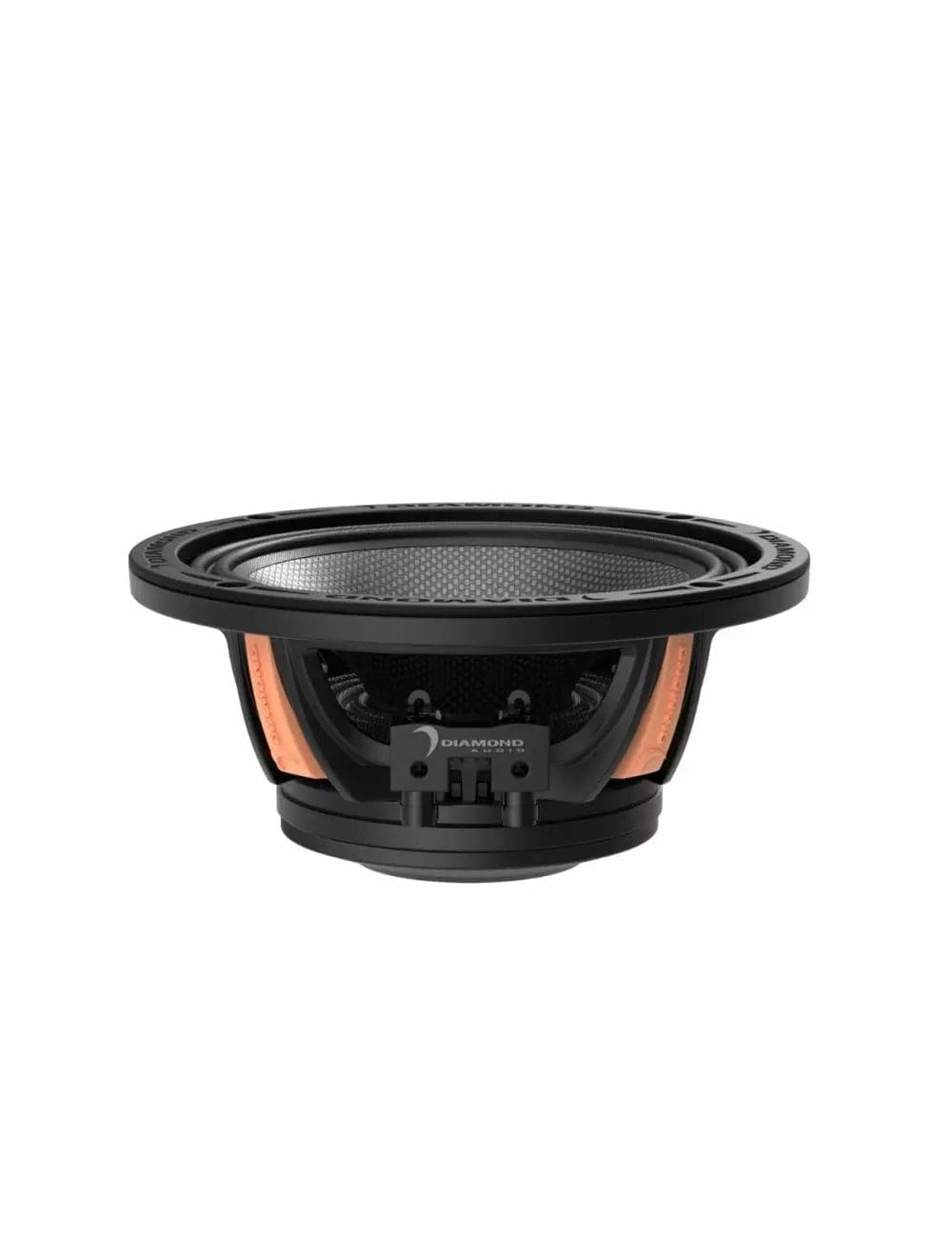

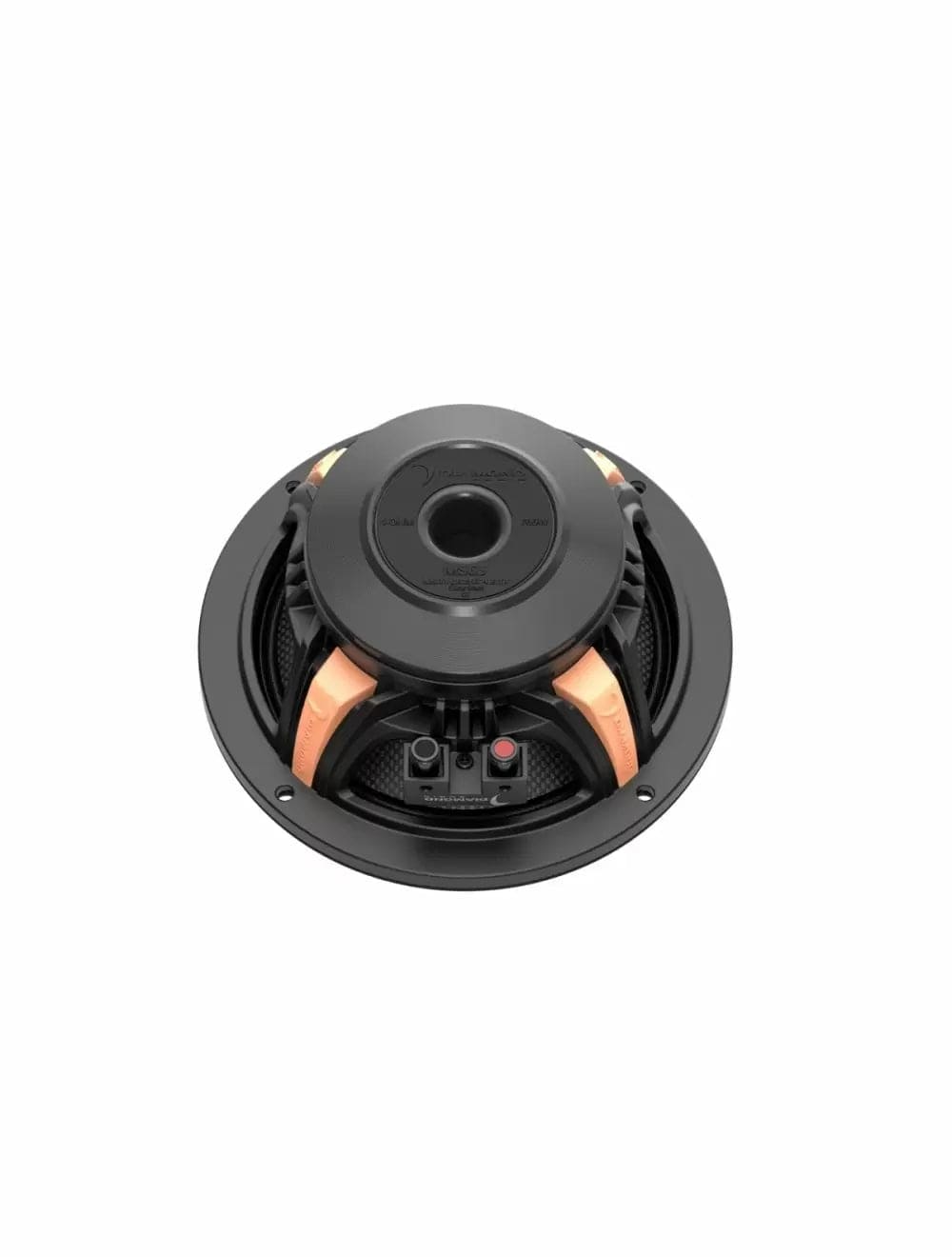

The Diamond Audio MS65NEO is the 6.5 inch Motorsport neodymium midrange, sold as a pair at 4 ohm, with a 5.79 in mounting diameter and 2.78 in mounting depth. It has a waterproof Kevlar cone and a 2 inch high-temperature voice coil.
6.5 in midrange, 300W RMS / 600W max
It covers 100 Hz to 13 kHz at 94 dB sensitivity, with a 6.65 in overall diameter.
- 300W RMS / 600W max
- 94 dB sensitivity
- 100 Hz to 13 kHz
Key Product Details
| Model | MS65NEO, sold as a pair |
| Size | 6.5 in |
| Impedance | 4 ohm |
| Power | 300W RMS / 600W max |
| Cone | Waterproof Kevlar |
Check mounting depth and diameter against your lid or fairing before ordering.
Using a midrange driver
This is a midrange driver with a 100 Hz to 13 kHz range, so plan the crossover for your system. At 300W RMS and 4 ohm, give each speaker an amplifier channel sized to that rating, and check the 2.78 in depth in your opening.
Specifications
| Frequency range | 100 Hz to 13 kHz |
| Sensitivity | 94 dB |
| Voice coil | 2 in, high-temperature, US-manufactured |
| Overall diameter | 6.65 in (169 mm) |
| Mounting diameter | 5.79 in (147 mm) |
| Mounting depth | 2.78 in |
Related Paths
MS65NEO FAQ
How much power does the MS65NEO handle?
300W RMS / 600W max at 4 ohm.
What is its frequency range?
100 Hz to 13 kHz, with 94 dB sensitivity.
What are the mounting dimensions?
Mounting diameter is 5.79 in (147 mm) and mounting depth is 2.78 in. Overall diameter is 6.65 in (169 mm).
Is it sold as a pair?
Yes, as a pair.
