Diamond Audio MS8NEO 8" Midrange

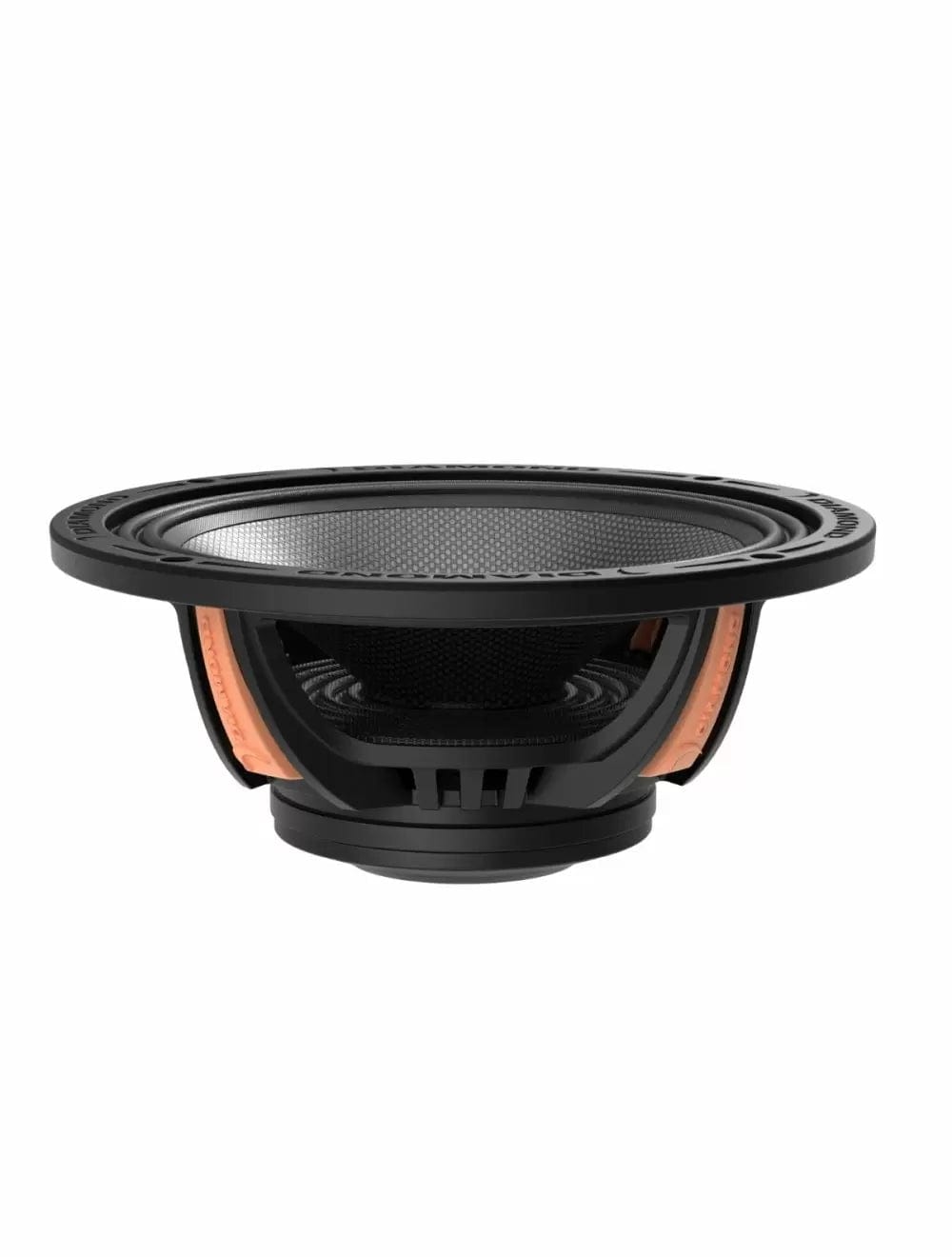

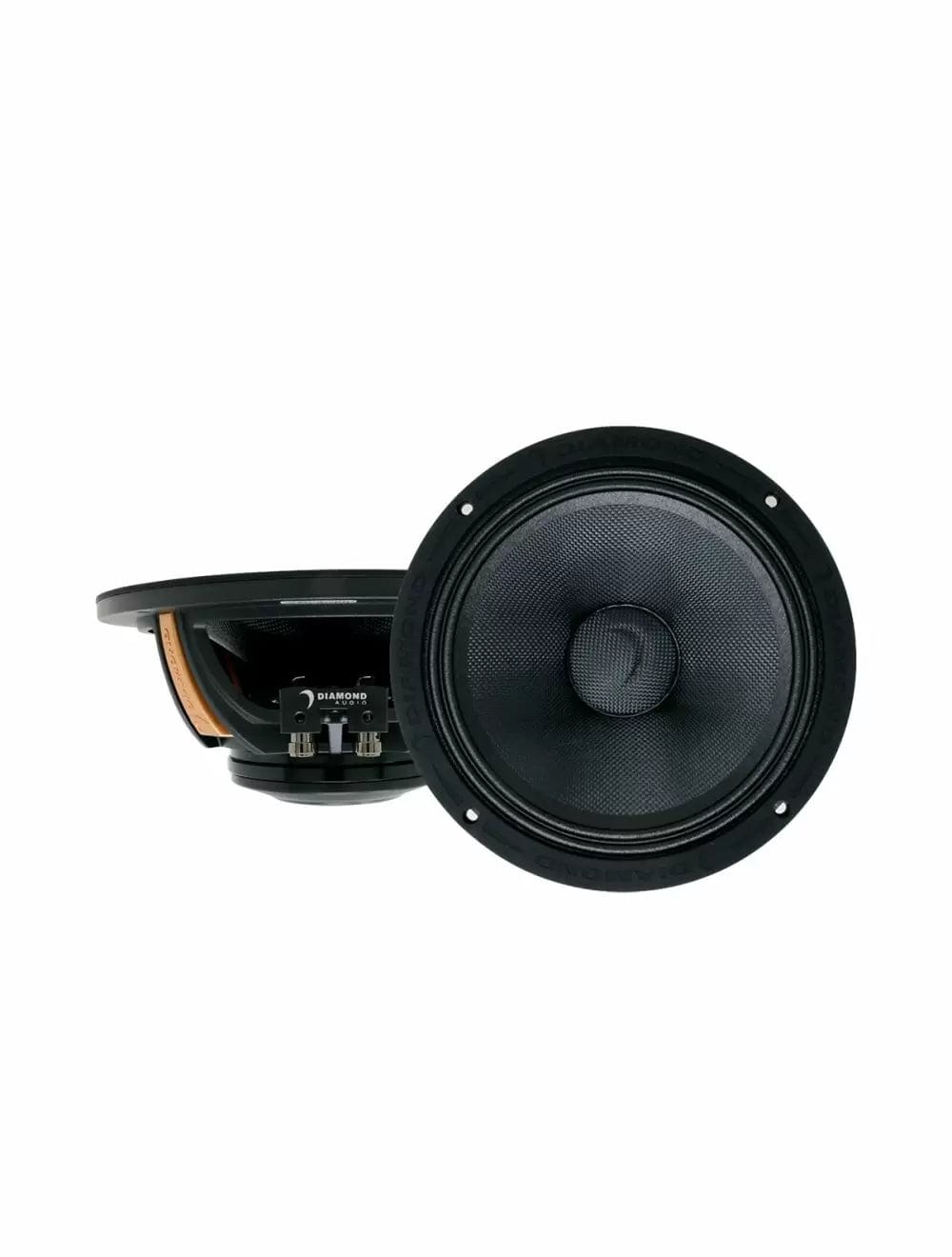

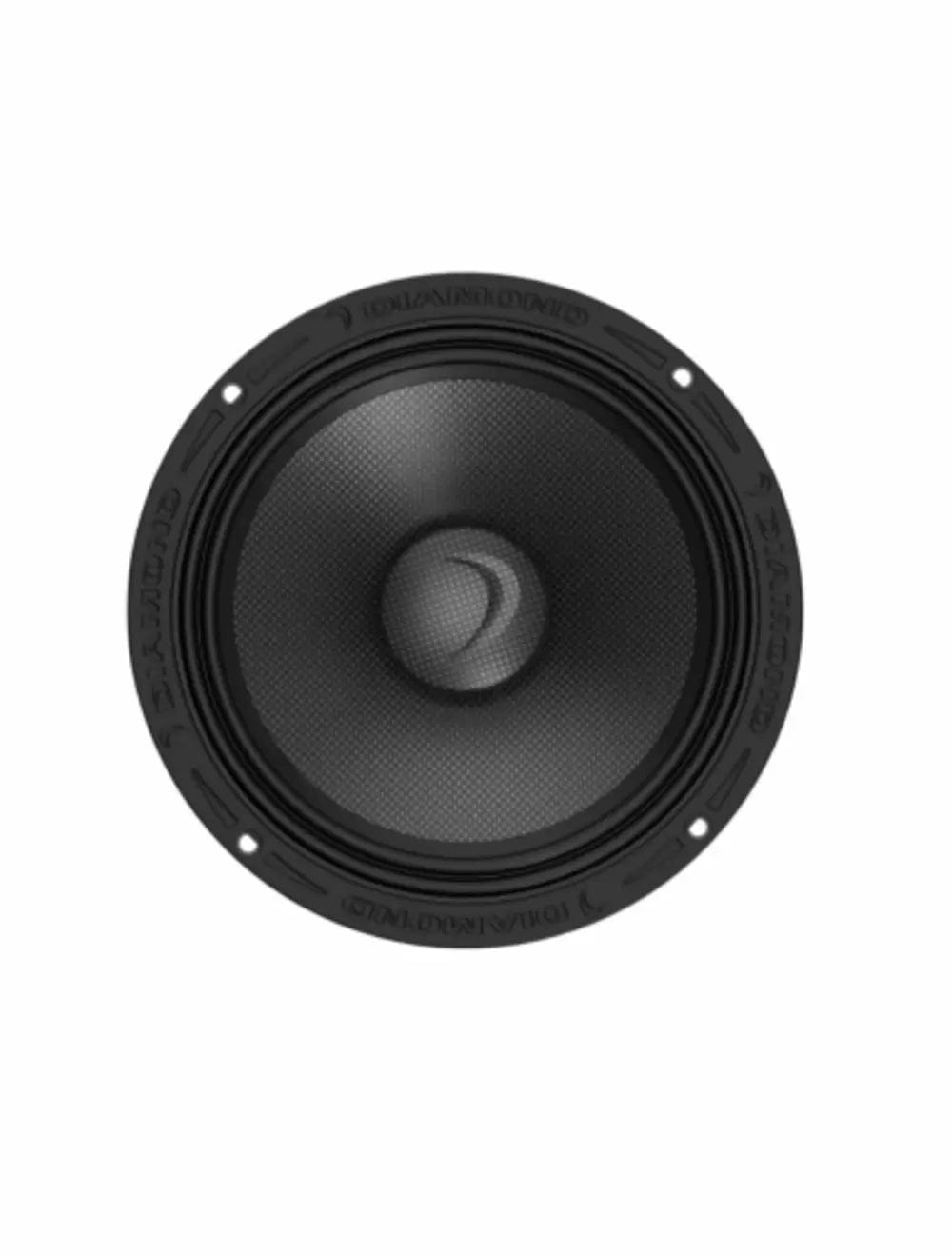

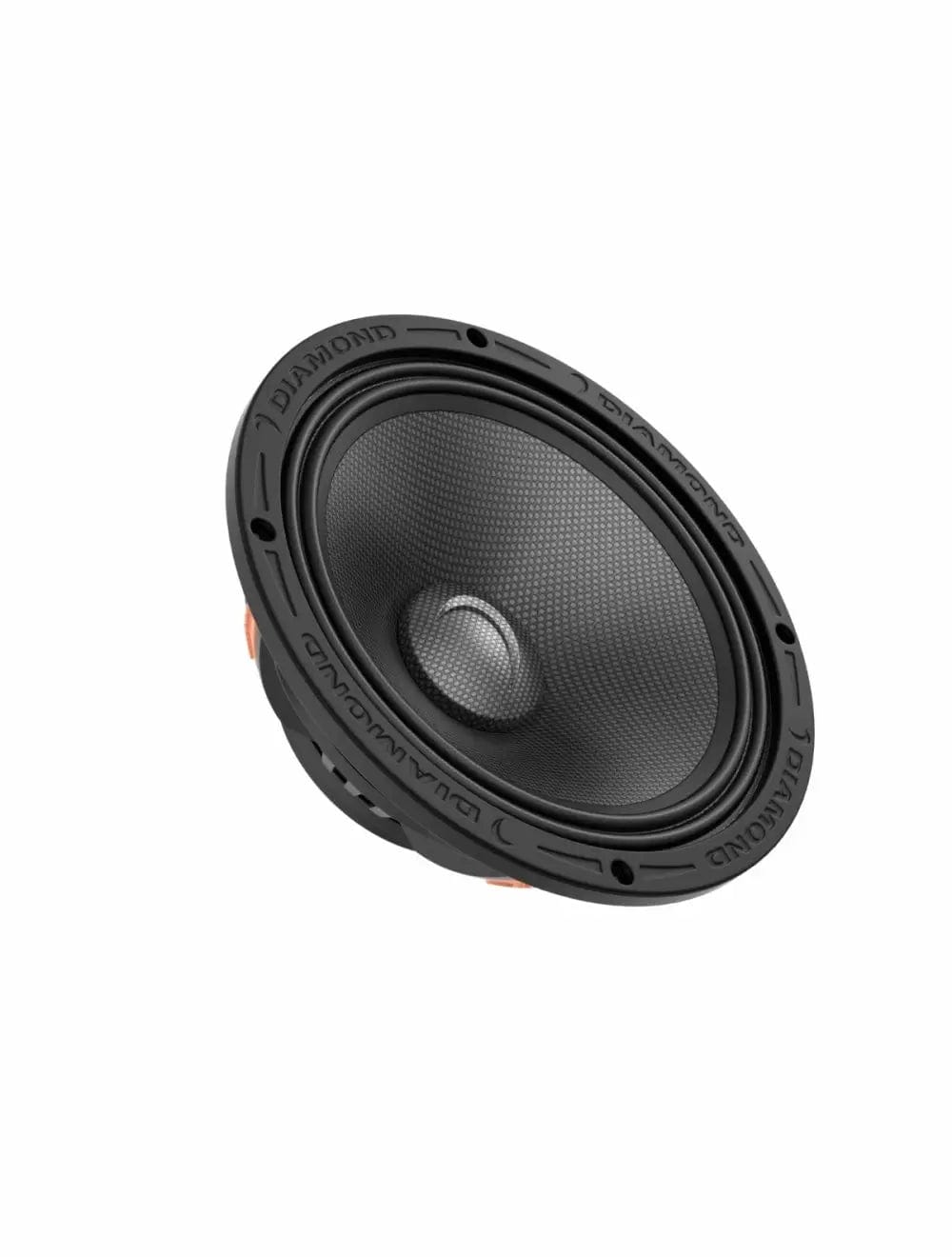

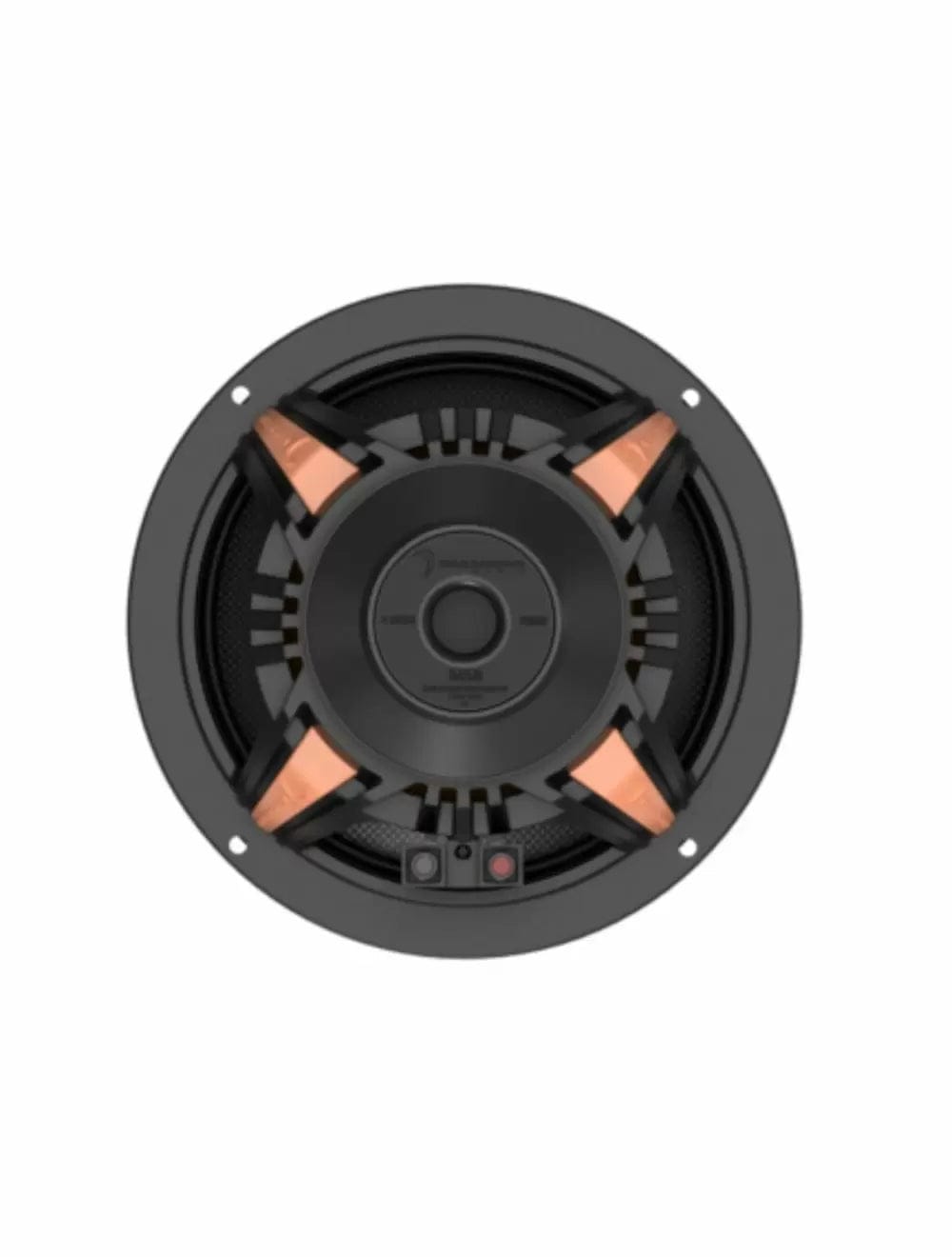

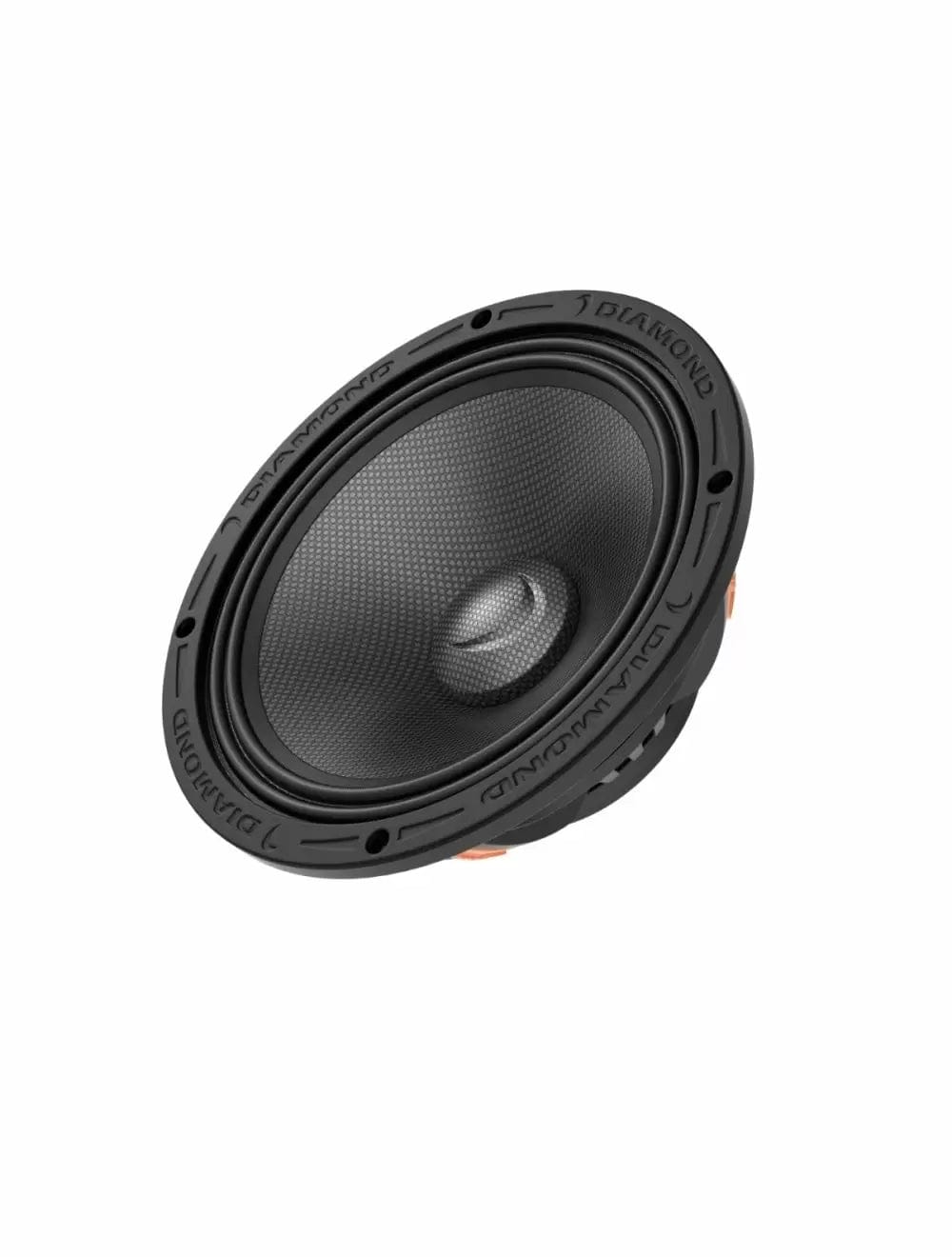

The Diamond Audio MS8NEO is the 8 inch Motorsport neodymium midrange, sold as a pair at 4 ohm, with a 7 in mounting diameter and 3.15 in mounting depth. It has a waterproof Kevlar cone and a 2 inch high-temperature voice coil.
8 in midrange, 350W RMS / 700W max
It covers 90 Hz to 10 kHz at 96 dB sensitivity, with an 8.27 in overall diameter.
- 350W RMS / 700W max
- 96 dB sensitivity
- 90 Hz to 10 kHz
Key Product Details
| Model | MS8NEO, sold as a pair |
| Size | 8 in |
| Impedance | 4 ohm |
| Power | 350W RMS / 700W max |
| Cone | Waterproof Kevlar |
Check the 3.15 in mounting depth and 7 in mounting diameter against your lid or fairing before ordering.
Planning an 8 inch midrange
At 350W RMS and 4 ohm, size the amplifier channel to that rating and plan the crossover around the 90 Hz to 10 kHz range. Verify the 3.15 in depth in your lid or fairing.
Specifications
| Frequency range | 90 Hz to 10 kHz |
| Sensitivity | 96 dB |
| Voice coil | 2 in, high-temperature, US-manufactured |
| Overall diameter | 8.27 in (210 mm) |
| Mounting diameter | 7 in (178 mm) |
| Mounting depth | 3.15 in |
Related Paths
MS8NEO FAQ
How much power does the MS8NEO handle?
350W RMS / 700W max at 4 ohm.
What are the mounting dimensions?
Mounting diameter is 7 in (178 mm) and mounting depth is 3.15 in. Overall diameter is 8.27 in (210 mm).
What is its frequency range?
90 Hz to 10 kHz, with 96 dB sensitivity.
Is it sold as a pair?
Yes, as a pair.
