Diamond Audio MP65 (2Ω and 4Ω) 6.5" Pro Coaxial Speaker

Diamond Audio MP65 (2Ω and 4Ω) 6.5" Pro Coaxial Speaker

Regular price $439.99
Regular price $539.99 Sale price $439.99
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

Diamond Audio MP65 (2Ω and 4Ω) 6.5" Pro Coaxial Speaker

The Diamond Audio MP65 is the 6.5" size of the Diamond Audio pro full-range coaxial speakers, with a rear-mounted compression driver and a 5.73 in (145.5mm) mounting diameter. It is sold in pairs in 2 ohm or 4 ohm versions for Harley-Davidson bagger audio builds. If you need the 6x9 size instead, look at the MP69.

Pro Coaxial Speaker

MP65 6.5 in pro coax in 2 ohm or 4 ohm

The 6.5 in MP65 is rated 150W RMS, with a 1.5 in voice coil, a neodymium ring magnet and 3.33 in mounting depth.

  • 150W RMS / 300W max
  • 101 dB sensitivity
  • 2 ohm or 4 ohm versions

Key Product Details

ModelMP65, sold as a pair
Size6.5 in
Impedance2 ohm or 4 ohm version
Power150W RMS / 300W max
Water ratingWater resistant, not waterproof

Pods will need to be modified on 2014 and up Harley-Davidson models. It is not a direct fit for the tour pak and is not a drop-in for lowers; a spacer or modification may be needed.

Choose your impedance

Pick the 2 ohm or 4 ohm version to match your amplifier channel. On 2014 and up Harley-Davidson models, plan for pod modification, and for lowers plan on a spacer or modification. Browse speaker adapters if you need one.

Specifications

Frequency response110Hz to 18kHz
Sensitivity101 dB (1W/1M)
Voice coil1.5 in
MagnetNeodymium ring magnet
Crossover12 dB for the compression driver
Mounting diameter5.73 in (145.5mm)
Mounting depth3.33 in

Related Paths

MP65 FAQ

Is the MP65 a direct fit for my Harley?

Pods will need to be modified on 2014 and up Harley-Davidson models. It is not a direct fit for the tour pak and not a drop-in for lowers; a spacer or modification may be needed.

Should I choose the 2 ohm or 4 ohm version?

Match the impedance to your amplifier channel. Both versions are rated 150W RMS / 300W max.

Is it waterproof?

No. It is water resistant, not waterproof.

What are the mounting dimensions?

Mounting diameter is 5.73 in (145.5mm) and mounting depth is 3.33 in.

Is it sold as a pair?

Yes, in pairs.

Need Help Choosing?

Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.

Similar Products

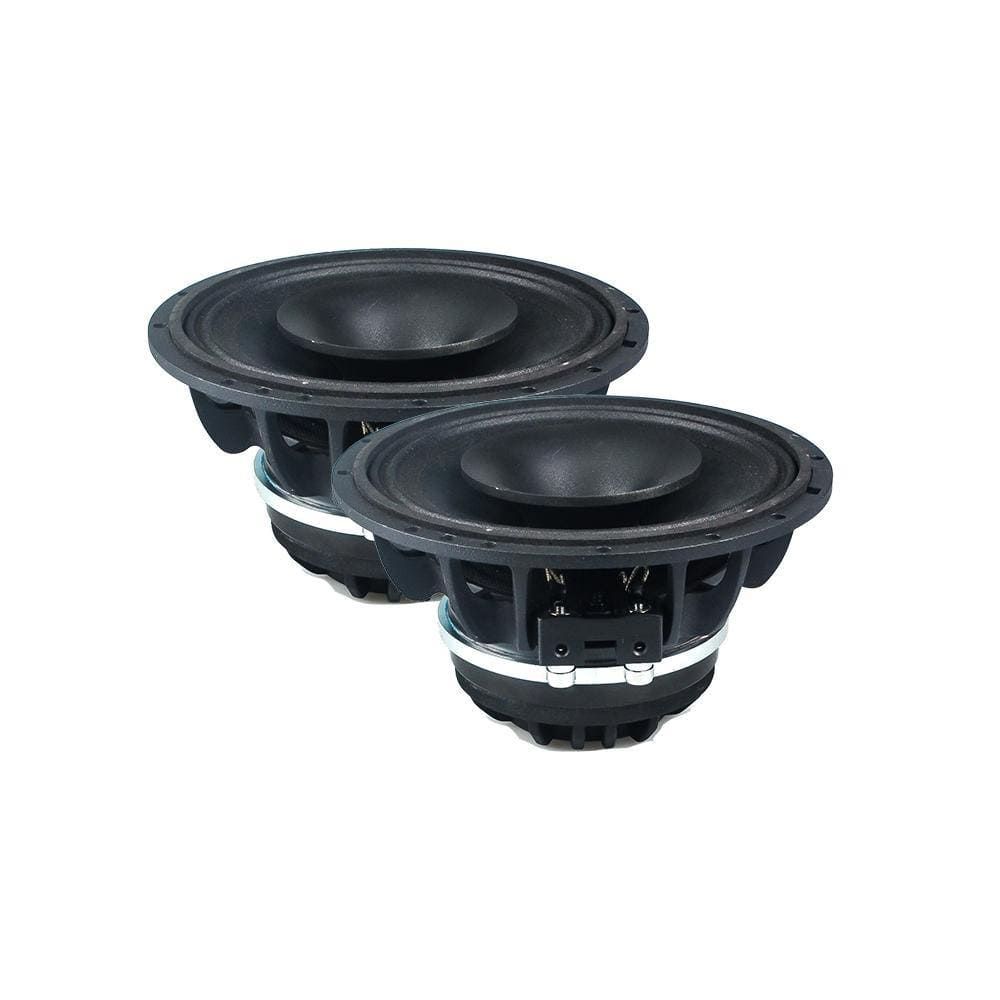

Diamond Audio MP65 6.5 inch pro coaxial horn speakers, pair

Diamond Audio MP65 Specs

A 6.5 inch pro coaxial with a 1 inch horn tweeter on a neodymium motor. Diamond specs:

  • 150 W RMS, 300 W max.
  • 101 dB (1 W/1 m), 110 Hz-18 kHz.
  • 1.5 in midrange voice coil.
  • Mounting diameter 5.73 in. Mounting depth 3.33 in.

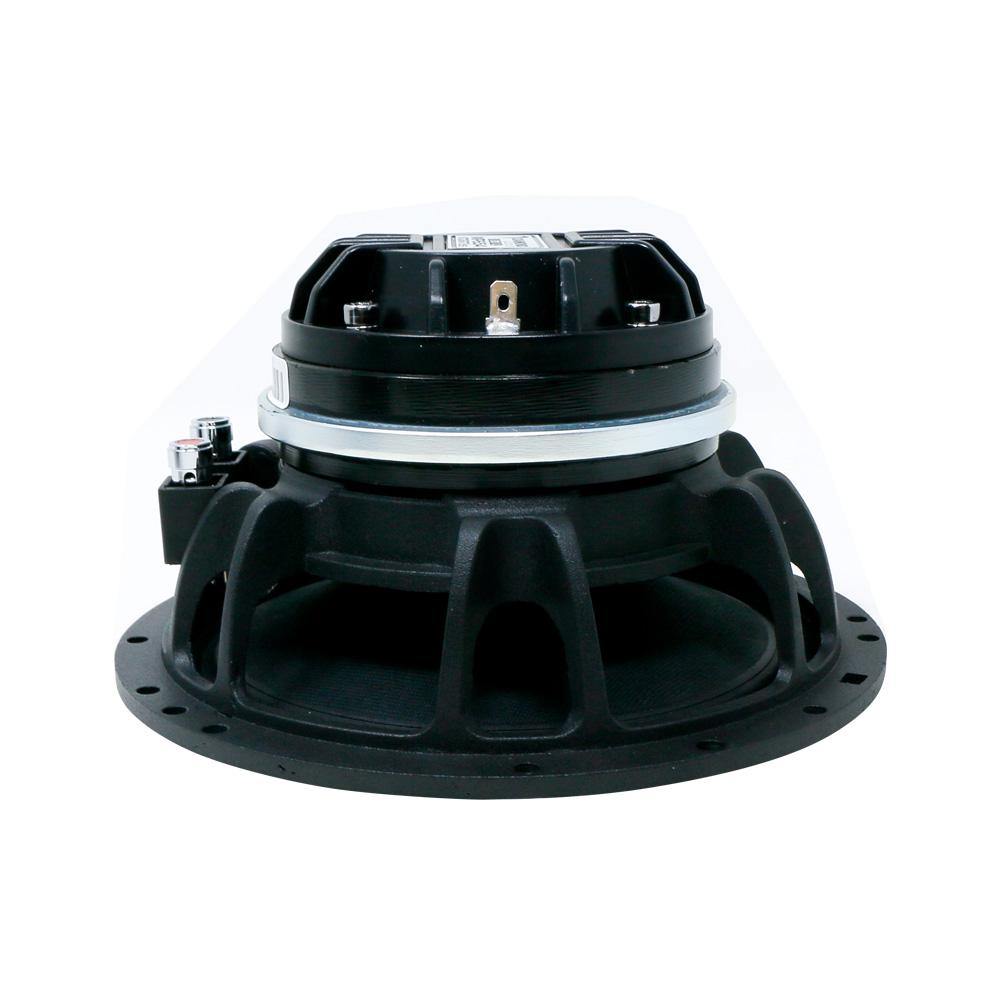

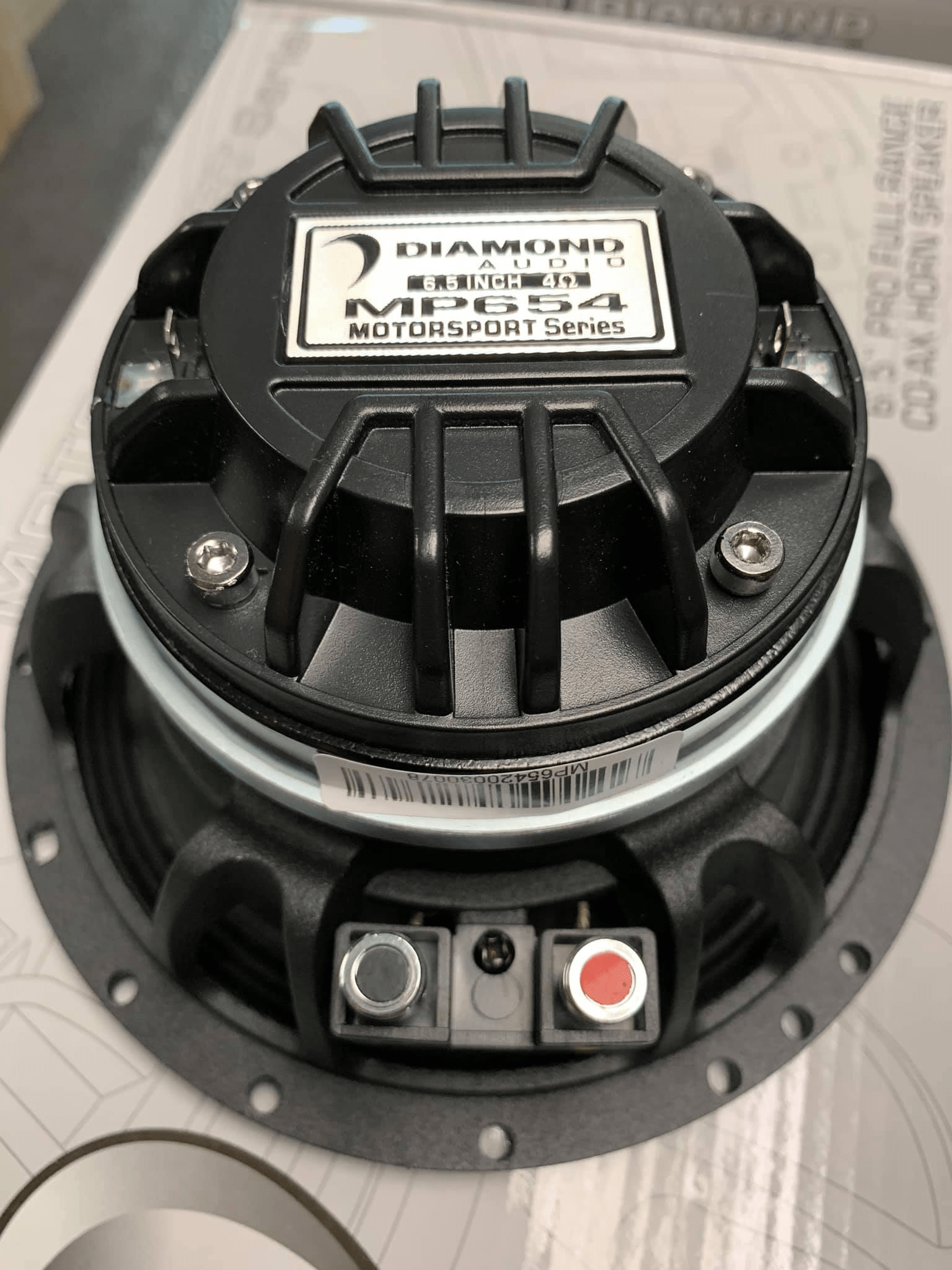

Diamond Audio MP65 speaker, rear view of the basket and motor

Set Up the MP65 Right

Diamond rates it water resistant, not waterproof, so keep it out of standing water. Pro coax speakers need amp power and a high-pass crossover, so plan the amp with the speakers.

See more 6.5 inch pro coaxial speakers, motorcycle amplifiers and custom builds.

More Diamond Audio MP65 (2Ω and 4Ω) 6.5" Pro Coaxial Speaker Questions

Is the Diamond MP65 waterproof?

No. Diamond rates it water resistant, not waterproof.

What is the mounting depth of the MP65?

3.33 inches, with a 5.73 inch mounting diameter.

How much power does it handle?

150 W RMS and 300 W max.
