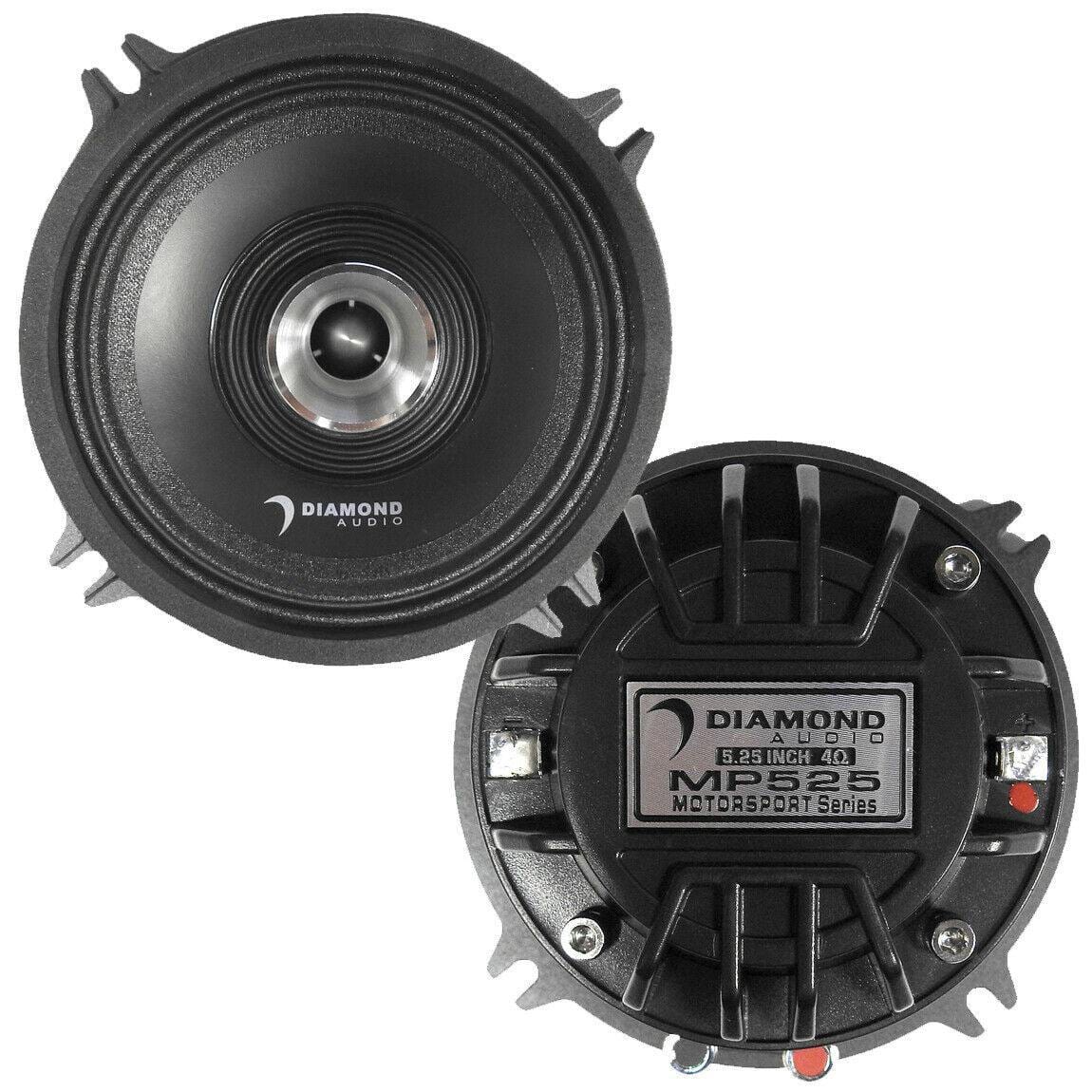

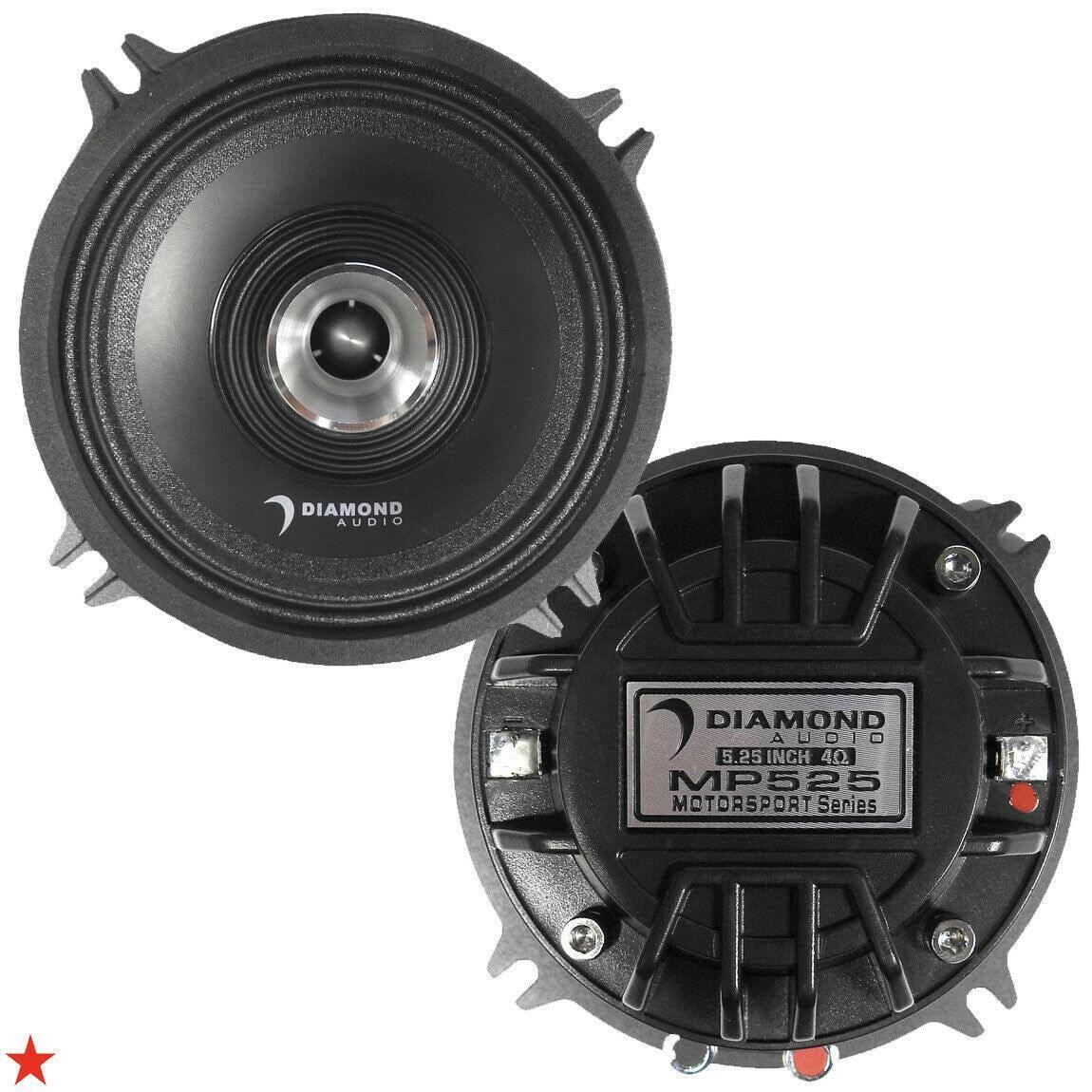

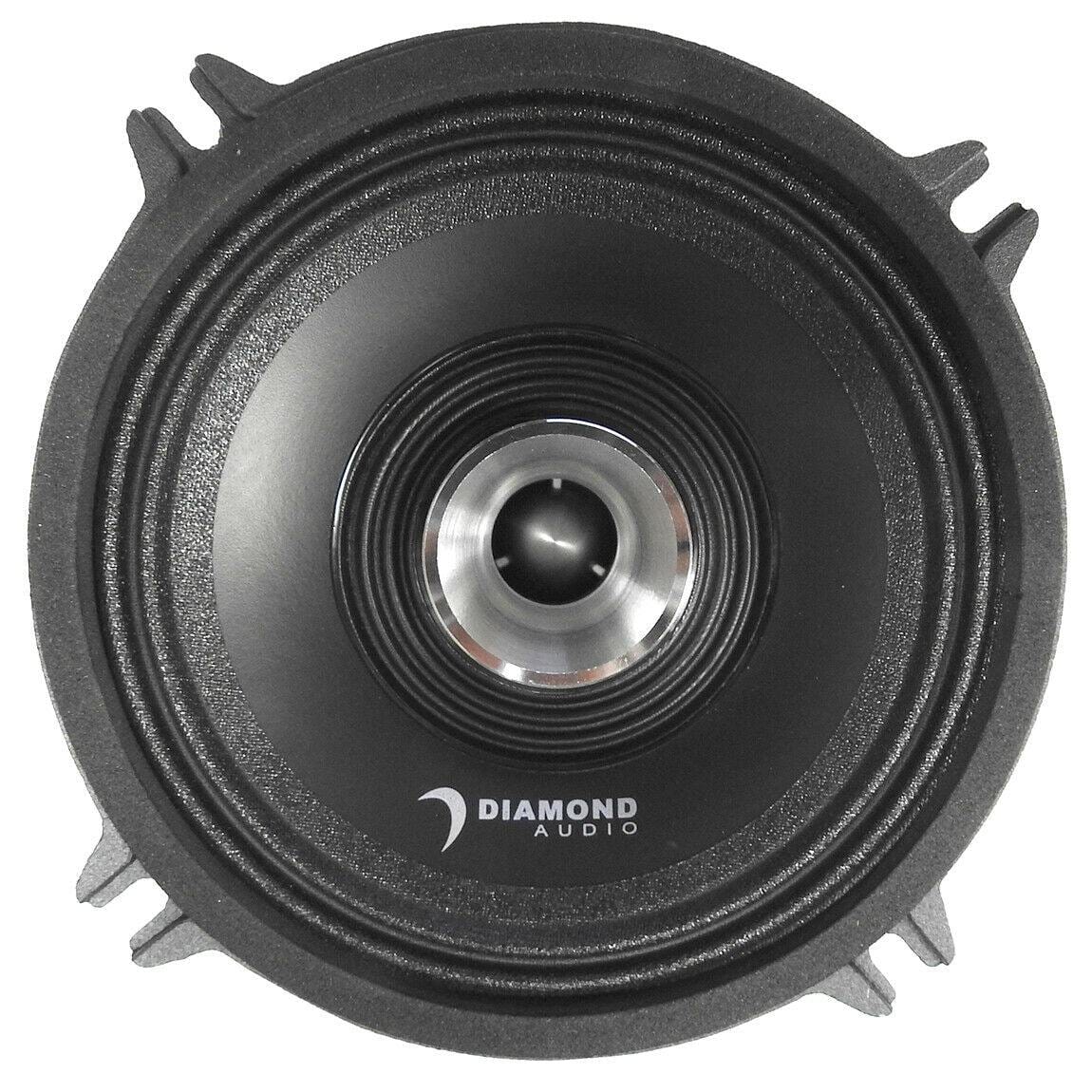

Diamond Audio MP525 5.25" Pro Full-range Coax Horn Speaker (Pair)

Diamond Audio MP525 5.25" Pro Full-range Coax Horn Speaker (Pair)

Regular price $439.99
Regular price $539.99 Sale price $439.99
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

Diamond Audio MP525 5.25" Pro Full-range Coax Horn Speaker (Pair)

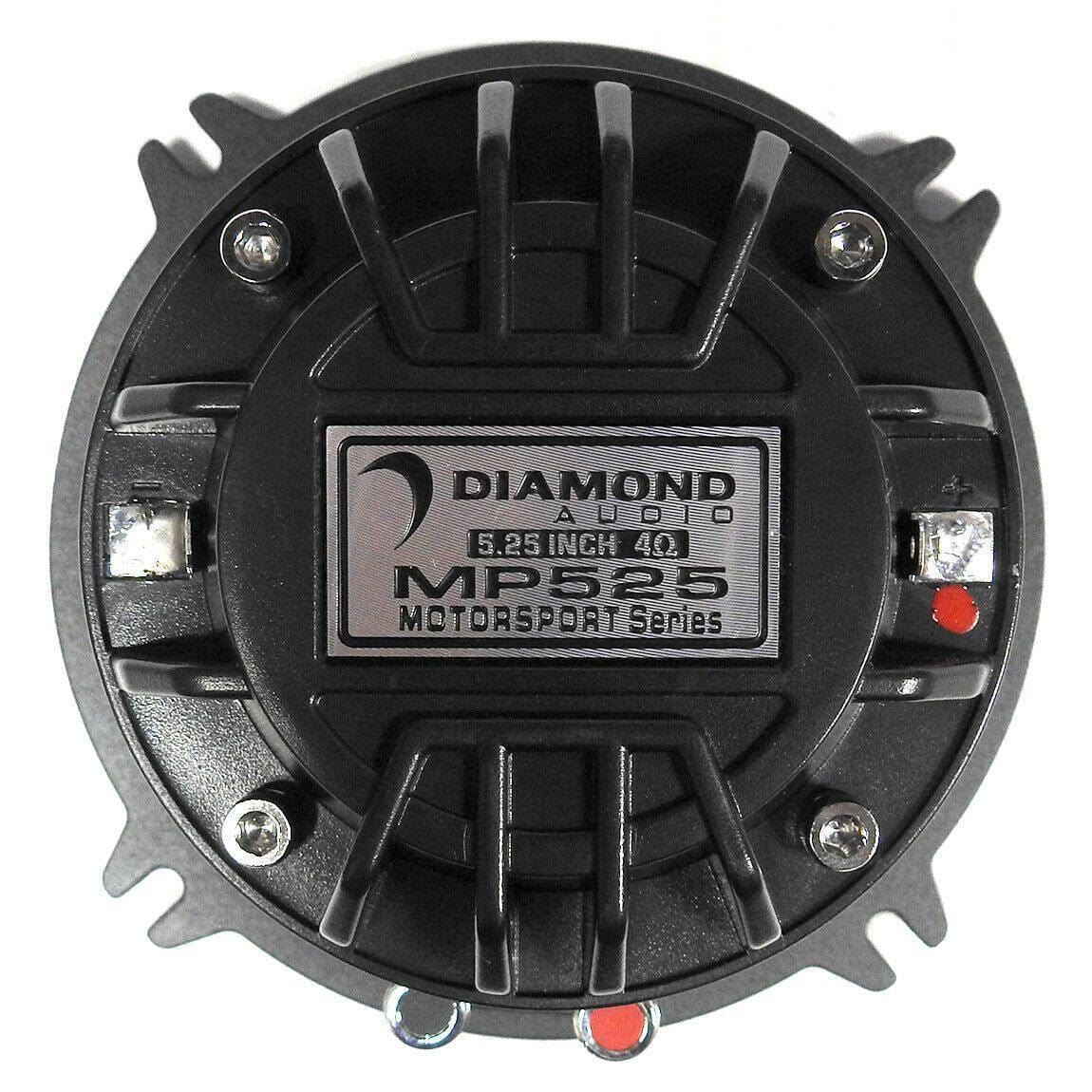

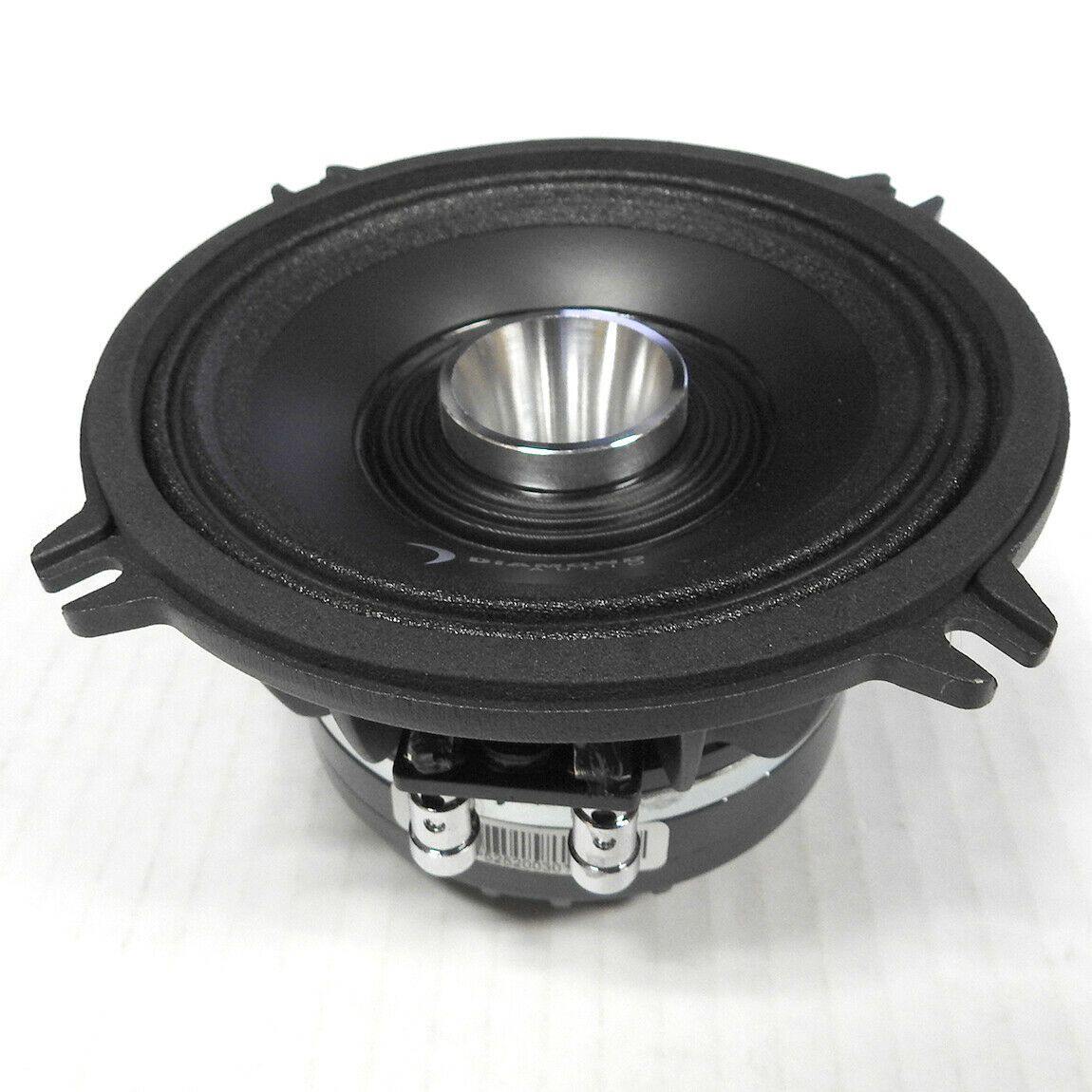

The Diamond Audio MP525 is a 5.25 inch pro full-range coaxial horn speaker sold as a pair. It combines a 1.5 inch voice coil woofer with a rear mounted full-size compression driver.

Pro Coaxial Speaker

5.25 in pro coax with compression driver

150W RMS with 101 dB sensitivity and a neodymium ring magnet.

  • 150W RMS / 300W max
  • 101 dB sensitivity
  • 110 Hz to 18 kHz

Key Product Details

ModelMP525
Size5.25 in, sold as a pair
Impedance4 ohm
Power150W RMS / 300W max
Mounting depth2.99 in (76 mm)

Check mounting depth against your lid or fairing before ordering.

System planning

The rear-mounted compression driver is crossed over at 12 dB/octave. With 150W RMS handling at 4 ohm, pair it with an amplifier channel sized to that rating and verify the 2.99 in depth and 4.68 in mounting diameter in your opening.

Specifications

Frequency response110 Hz to 18 kHz
Sensitivity101 dB (1W/1m)
Voice coil1.5 in
MagnetNeodymium ring magnet
BasketDie-cast aluminum
Mounting diameter4.68 in (119 mm)
Mounting depth2.99 in (76 mm)
Crossover12 dB/octave for the compression driver

Related Paths

MP525 FAQ

How much power does the MP525 handle?

150W RMS / 300W max at 4 ohm.

What are the mounting dimensions?

Mounting diameter is 4.68 in (119 mm) and mounting depth is 2.99 in (76 mm).

What is its frequency response?

110 Hz to 18 kHz, with 101 dB sensitivity at 1W/1m.

Is it sold as a pair?

Yes, the MP525 is sold as a pair.
