Collection: Diamond Audio
Diamond Audio Motorcycle Audio
-
SaleDiamond Audio MP84 8" Pro Coaxial Speaker
Vendor:Diamond AudioMP84 – 8” PRO Full-Range Coax Horn Speaker Features: Sold in Pairs Weather treated 1.75" Voice Coil Neodymium Ring Magnet Assembly Rear Mounted Full Sized Compression Driver 200W RMS /400Max power 12DB Crossover for Compression Drivers Freq Response 80Hz-18kHz 103 Db/1W Power Mounting Depth: 3.98” / 101mm Mounting Diameter: 7.09” / 180mmSale -
SaleDiamond Audio MS69CX 6x9" 2-Way Coaxsub Speakers (Pair)
Vendor:Diamond AudioDiamond Audio MS69CX MS69CX – 6” X 9” 2-WAY High Output Coaxsub Speaker System 6"x9" 2-Way High Power MotorSport Coaxsub Manufactured to IPx65 Marine Grade Compliant Specifications 1" High Output Titanium Dome Tweeter UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround 12dB Bessel Crossover Network Super High Energy Ferrite Motor System with Milled Aluminum Top Plate T-Yoke Back Plate Drilled for 35% More Cooling, Increased Power Handling High Temperature Cast Aluminum Basket Sold in pairs Specifications: Power Handling: 120W RMS 240W Max High Output Titanium Dome Tweeter: 1" Freq Response 45-23k Nominal Impedance: 4-Ohm Mounting Depth: 3.818" Cut-Out Diameter: 5.984" x 8.858"Sale -
SaleDiamond Audio Motorsports 2-WAY 6.5" Flush Mount Speaker (2Ω and 4Ω)
Vendor:Diamond AudioAll Weather 6.5 Coaxial Driver Speaker Flush Mount 2Ω or 4Ω Speaker Diamond Audio proudly expands its Motorsport HXM speaker line with a series of new flush-mount versions and higher-performance, higher-power handling Elite series models. The speakers are designed with precise measurements to perfectly fit most Harley-Davidson motorcycles and maintain that custom factory appearance. Speaker grills are optional. SPECIFICATIONS: 4Ω or 2Ω– 6.5-inch coaxial driver Freq response range 80hz-18Khz +/- 4dB Sensitivity: 92dB, 1W / 1M Power handling: 125W RMS/250W MAX Mounting Depth 2.56" Mounting Diameter 5.63" Water Spray and Salt Water Resistant, 100% UV Stable Ultra Small Neodymium Motor Structure With Max Xmax Suspension Molded, UV-coated, Patent Pending Waterproof Injection PP Cone Integrated Dream RGB LED LightingSale -
SaleDiamond Audio 23.5-current Harley Davidson 6x9 Cut-in lid kit w/speakers
Vendor:Diamond Audio23.5-current 6x9 Cut-in lid kit w/speakers Diamond Audio Harley Davidson Motorcycle Audio Cut-in Kit for Quick Install - Easily add 6x9" speakers to your lids without the need for paint The supplied template makes cutting lids much more accurate and accessible than current offerings. Includes adaptors with grills, cutting templates, plug-and-play wiring harness, and all required hardware to complete the installation Diamond Audio Coaxial Subwoofer with tweeter - MS69CX Wiring Harness Included Speaker Specs Diamond Audio MS69CX and MS692CX Power Rating: 125W RMS Nominal Impedance: 4 ohm or 2 ohm Sensitivity: 93.5 dB 1W/1M Mounting Depth: 3.81” / 97mm Mounting Diameter: 5.98” x 8.85” / 152mm x 225mm Manufactured to IPx65 Marine Grade Compliant Specifications 1" High Output Titanium Dome Tweeter UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround 12dB Bessel Crossover Network Super High Energy Ferrite Motor System With Milled Aluminum Top Plate T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling High-Temperature Cast Aluminum Basket Diamond Audio HXM69F4 and HXM69F2 2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair) 150W RMS / 300W MAX Power Rating Available in 4Ω and 2Ω Flush Mount Design Water Spray and Salt Water Resistant, 100% UV Stable Ultra Small Neodymium Motor Structure With Max Xmax Suspension High Temp Injection Molded Composite Basket Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone Integrated Dream RGB LED Lighting Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm Mounting Depth: 3.15" / 80m Diamond Audio MP694 and MP692 Pro Coaxial 150W RMS/300W MAX Power Handling Ferrite Strontium High Temp Magnet structure Heavy Duty Die-cast Aluminum Basket 1.5" 4 Ohm or 2 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer 1.0" 8 Ohm - Single Layer High Temp Voice Coil for Tweeter Advanced Voice Coil Heat Sink Design for Better Heat Dissipation Frequency Response: 80Hz -18Khz High Sensitivity 101dB 1W/1M 12dB Crossover Mounting Depth: 3.99" / 101.3mm Mounting Diameter: 8.86" x 5.98" / 225 x 152mm Fitment 23.5-Current Street Glide and Road Glide, including CVO ST Elevate Your Ride with Superior Audio Quality Transform your motorcycle experience with our Cerwin Vega Cut-In Lid Kit, designed specifically for Harley Davidson motorcycles. This kit offers superior sound quality and an immersive audio experience that elevates your ride. Whether you're cruising down the highway or navigating city streets, the clarity and depth of our speaker system will provide the perfect soundtrack to your adventures. Hassle-Free Installation for 2023.5 and Newer Models Say goodbye to complicated setups! Our hassle-free installation process features a plug-and-play wire harness, making it incredibly easy to upgrade your audio without needing professional help. Designed exclusively for OEM saddlebag lids, the lid kit fits seamlessly into your existing setup, ensuring a factory-finish appearance that complements your Harley. Compatibility with Harley Davidson Motorcycles This cut-in lid kit is compatible with a variety of Harley Davidson models, including: Street Glide Road Glide The fitment range extends from 2023.5 to the current model year, ensuring you can enjoy enhanced audio regardless of your bike's vintage.Sale -
SaleDiamond Audio 98-13 Harley Davidson Cut-In Lid Kit w/Speakers
Vendor:Diamond AudioDiamond Audio 98-13 Harley Davidson Cut-In Lid Kit w/Speakers Diamond Audio Harley Davidson Motorcycle Audio Fitment Harley Davidson® 1998-2013 models Unleash the Ultimate Sound Experience with Diamond Audio's Cut-In Lid Kits Elevate your ride with Diamond Audio's Cut-in Lid Kits, custom-engineered for 1998-2013 Harley Davidson® motorcycles. This premier audio upgrade brings unparalleled clarity and power to your journey, ensuring every ride is an adventure in sound. Seamless Integration Designed specifically for Harley Davidson® models from 1998-2013, Diamond Audio guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic. Choices in 6x9" Speakers include: HXM69F4 (4Ω) 2-Way Marine Speakers w/Titanium Dome Tweeter (4Ω) 6"x9" 2-Way Speaker System (Pair) 150W RMS / 300W MAX Power Rating Flush Mount Design Water Spray and Salt Water Resistant, 100% UV Stable Ultra Small Neodymium Motor Structure With Max Xmax Suspension High Temp Injection Molded Composite Basket Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone Integrated Dream RGB LED Lighting Mounting Diameter: 8.64” x 6.0” / 219 x 152.5mm Mounting Depth: 3.15” / 80mm MS692CX2(2Ω) 2-Way Coaxial Subwoofers w/Titanium Dome Tweeter (2Ω) 6"x9" 2-Way Speaker System (Pair) Power Handling Watts (RMS/Peak): 130W/520W Nominal Impedance (Ω): 2Ω Frequency Response (Hz): 45Hz-23kHz Voice Coil: 1.66" (42.2mm) Fs - Free Air Resonance (Hz): 46Hz Qts: 0.51 Vas ftÂł (Liter): 0.794" (22.5L) Sensitivity (1W/1M): 87.6db Sensitivity( 2.83V/1M): 94.6db Xmax (mm): 0.315" (8mm) Mounting Depth: 3.818” (97mm) Mounting Diameter: 5.98”x8.85” (152mmX225mm) Manufactured to IPx65 Marine Grade Compliant Specifications 1" High Output Titanium Dome Tweeter UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround 12dB Bessel Crossover Network Super High Energy Ferrite Motor System With Milled Aluminum Top Plate T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling High-Temperature Cast Aluminum Basket Coax-sub HXM69F2 (2Ω) 2-Way Marine Speakers w/Titanium Dome Tweeter (2Ω) 6"x9" 2-Way Speaker System (Pair) 150W RMS/300W MAX Power Rating Flush Mount Design Water Resistant, 100% UV Stable Ultra Small Neodymium Motor Structure With Max Xmax Suspension High Temp Injection Molded Composite Basket Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone Integrated Dream RGB LED Lighting Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm Mounting Depth: 3.15" / 80m MS69CX (4Ω) 2-Way Coaxial Subwoofers w/Titanium Dome Tweeter (4Ω) 6"x9" 2-Way Speaker System (Pair) Power Handling Watts (RMS/Peak): 125W/500W Nominal Impedance (Ω): 4Ω Frequency Response (Hz): 46Hz-20kHz Voice Coil: 1.66" (42.2mm) Fs - Free Air Resonance (Hz): 46Hz Qts: 0.57 Vas ftÂł (Liter): 0.829" (23.5L) Sensitivity (1W/1M): 87.4db Sensitivity( 2.83V/1M): 91.1db Xmax (mm): 0.315" (8mm) Mounting Depth: 3.81” (97mm) Mounting Diameter: 5.98” x 8.85” (152mm x 225mm) Manufactured to IPx65 Marine Grade Compliant Specifications 1" High Output Titanium Dome Tweeter UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround 12dB Bessel Crossover Network Super High Energy Ferrite Motor System With Milled Aluminum Top Plate T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling High-Temperature Cast Aluminum Basket Coax-Sub MP694 (4Ω) 2-Way Full-Range Coaxial Speakers w/1" Horn Tweeters (4Ω) 6"x9" 2-Way Speaker System (Pair) Power: 150W RMS/300W MAX SPL(dB) MidBass: 95.6 SPL(dB) Tweeter: 107 Fs(Hz): 82.6 Hi-pass Filter: 12dB 2nd Order Crossover Diameter: 9.33"x6.57" (237mm x 167mm) Mounting Diameter: 8.86"x5.98" (225mm x 152mm) Mounting Depth: 3.99" (101.3mm) Total Depth: 4.26" (108.3mm) Magnet Diameter: 3.94" (100mm) NEO Magnet Heavy Duty Steel Basket Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil Frequency Response: 80Hz -18Khz High Sensitivity 101dB 1W/1M 12dB 2nd Order Filter Crossover MP692 (2Ω) 2-Way Full-Range Coaxial Speakers w/1" Horn Tweeters (2Ω) 6"x9" PRO Full-Range Co-Ax Horn Speaker 250W RMS/500 MAX Power Handling Ferrite Strontium High Temp Magnet structure Heavy Duty Die-cast Aluminum Basket Advanced Voice Coil Heat Sink Design for Better Heat Dissipation 1.5" Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer 1.0" Single Layer High Temp Voice Coil with Black Coated VC former for Tweeter Frequency Response: 80Hz -18Khz High Sensitivity 101dB 1W/1M 12dB Crossover Mounting Depth: 3.99" / 101.3mm Mounting Diameter: 8.86" x 5.98" (225 x 152mm) MS69NEO (4Ω) MSNEO SERIES High Output Neo Midrange Speakers (4Ω) Power: 350W RMS/700W RMS SPL(dB): 96 Fs(Hz): 90 Frequency Response: 90Hz-10kHz Diameter: 9.193" x 6.378" (233.5mm x 162mm) Mounting Diameter: 8.583" x 5.748" (218mm x 146mm) Mounting Depth: 3.091" (78.5mm) Magnet Diameter: Heavy Duty Industrial Cast Aluminum Basket Waterproof Black DUPONT™ Kevlar Cone Neodymium Magnet Motor Structure US manufactured 2” Black High Temperature Coated Voice Coil ÂSale -

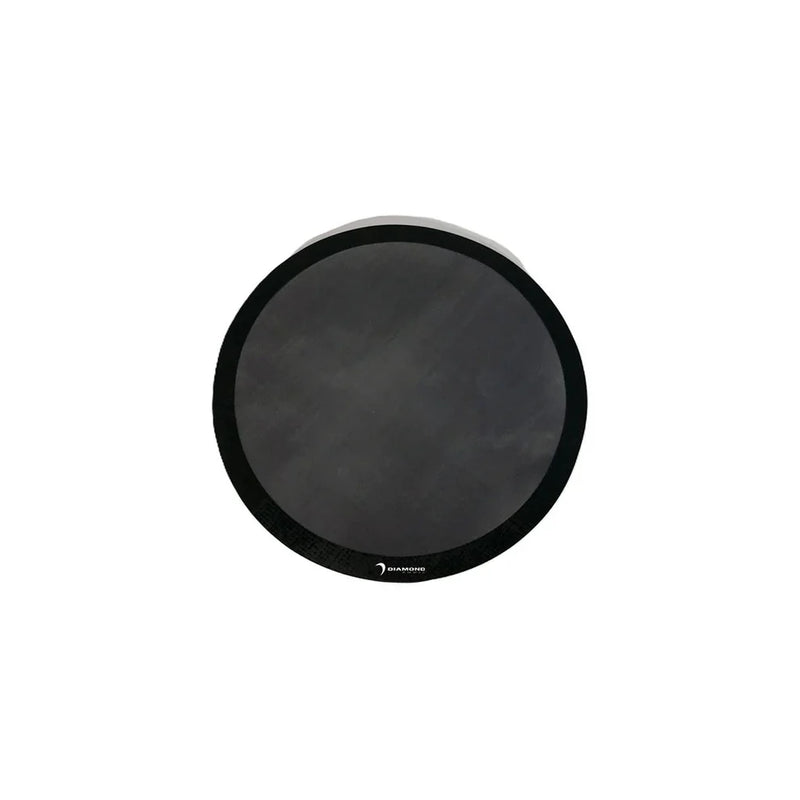

SaleDiamond Audio FSWPG69 6x9" Water Repelling Mesh Grill w/ Adhesive Application (Pair)
Vendor:Diamond AudioDiamond Audio Motorcycle  FSWPG69 6x9" Water Repelling Mesh Grill w/ Adhesive Application Diamond Audio's Frogzskin Mesh repels water, dirt and dust while still allowing air to flow freely. The Frogzskin Mesh is a woven polyester material that is hydrophobic, meaning it will repel water and splashes of water. The peel and stick adhesive mesh will fit most speaker with the ease of application. Specifications FSWPG69 - 6"x9" Water Repelling Mesh Grill with Adhesive Application (Pair) Material: Woven Polyester With a Hydrophobic (Water-Repellent) Layer Repels Water, Dirt, and Dust Allows Air to Flow Freely Through the Mesh Easy Peel-and-Stick Adhesive Application Fits most 6"x9" Speakers Important Note: Hydrophobic Membrane Repels Water, the mesh is NOT Waterproof HydroPro Membrane SEMA 2023 DemoSale -

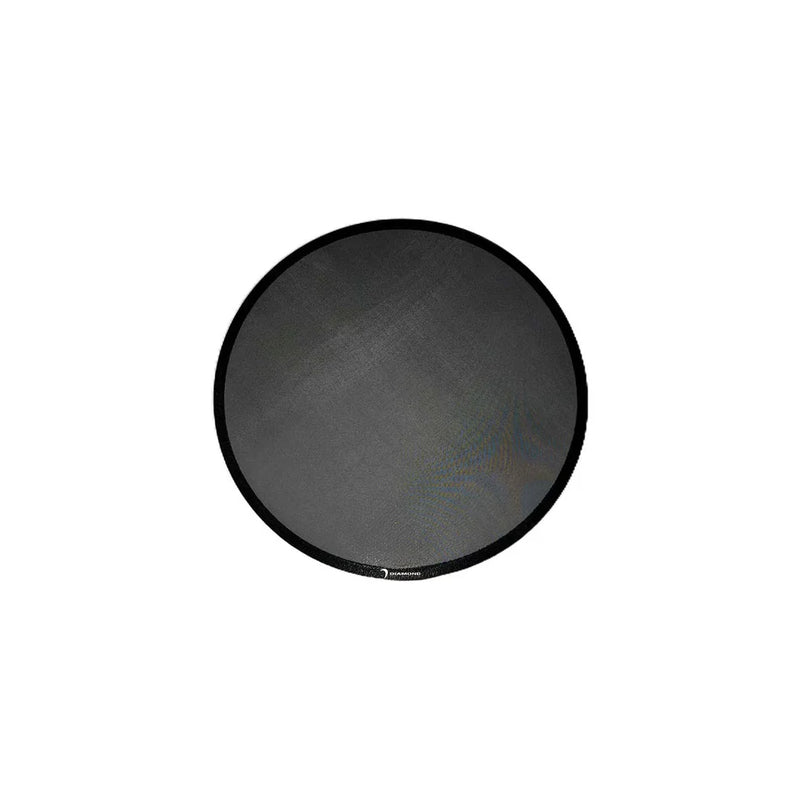

SaleDiamond Audio FSWPG65 6.5" Water Repelling Mesh Grill w/ Adhesive Application (Pair)
Vendor:Diamond AudioDiamond Audio Motorcycle FSWPG65 6.5" Water Repelling Mesh Grill w/ Adhesive Application Diamond Audio's Frogzskin Mesh repels water, dirt and dust while still allowing air to flow freely. The Frogzskin Mesh is a woven polyester material that is hydrophobic, meaning it will repel water and splashes of water. The peel and stick adhesive mesh will fit most speaker with the ease of application. Specifications FSWPG65 - 6.5" Water Repelling Mesh Grill with Adhesive Application (Pair) Material: Woven Polyester With a Hydrophobic (Water-Repellent) Layer Repels Water, Dirt, and Dust Allows Air to Flow Freely Through the Mesh Easy Peel-and-Stick Adhesive Application Fits most 6.5" Speakers Important Note: Hydrophobic Membrane Repels Water, the mesh is NOT Waterproof HydroPro Membrane SEMA 2023 DemoSale -
SaleDiamond Audio FSWPG8 8" Water Repelling Mesh Grill w/ Adhesive Application (Pair)
Vendor:Diamond AudioDiamond Audio Motorcycle FSWPG8 8" Water Repelling Mesh Grill w/ Adhesive Application Diamond Audio's Frogzskin Mesh repels water, dirt and dust while still allowing air to flow freely. The Frogzskin Mesh is a woven polyester material that is hydrophobic, meaning it will repel water and splashes of water. The peel and stick adhesive mesh will fit most speaker with the ease of application. Specifications FSWPG65 - 8" Water Repelling Mesh Grill with Adhesive Application (Pair) Material: Woven Polyester With a Hydrophobic (Water-Repellent) Layer Repels Water, Dirt, and Dust Allows Air to Flow Freely Through the Mesh Easy Peel-and-Stick Adhesive Application Fits most 8" Speakers Important Note: Hydrophobic Membrane Repels Water, the mesh is NOT Waterproof HydroPro Membrane SEMA 2023 DemoSale
-
SaleDiamond Audio MS652NEOS 6.5" 2-Way Coaxial Shallow Mount Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS652NEOS 6.5" 2-Way Coaxial Shallow Mount Speakers All Weather 6.5 Pro Coaxial Driver Speaker SPECIFICATIONS: MS652NEO2S (2Ω) SPEAKER SIZE – 6.5" SPEAKER TYPE – HORN LOADED CO AXIAL BI-AMPABLE – YES OHMS (PER COIL) – 2 NUMBER OF VOICE COILS – DUAL FIELD SERVICABLE VOICE COIL – YES CONE MATERIAL – CARBON FIBER DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL – CAST ALUMINIUM MAGNET TYPE – NEODYMIUM WATER RESISTANCE VOICE COIL DIAMETER – 2" SENSITIVITY (1W/1M) – 93 RE (Ω) [SERIES] – 3.2 FS (HZ) – 151 POWER HANDLING RMS – 200 POWER HANDLING MAX – 400 MS652NEO4S (4Ω) SPEAKER SIZE – 6.5" SPEAKER TYPE – HORN LOADED CO AXIAL BI-AMPABLE – YES OHMS (PER COIL) – 4 NUMBER OF VOICE COILS – DUAL FIELD SERVICABLE VOICE COIL – YES CONE MATERIAL – CARBON FIBER DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL – CAST ALUMINIUM MAGNET TYPE – NEODYMIUM WATER RESISTANCE VOICE COIL DIAMETER – 2" SENSITIVITY (1W/1M) – 93 RE (Ω) [SERIES] – 3.2 FS (HZ) – 151 POWER HANDLING RMS – 200 POWER HANDLING MAX – 400 Diamond Audio Neo Series - Coaxial DriversSale -
SaleDiamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS692NEO 6x9" 2-Way Coaxial Neo Speakers (2Ω or 4Ω) All Weather 6x9" Pro Coaxial Driver Speaker  SPECIFICATIONS: MS692NEO (2Ω or 4Ω) SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 4 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM MAGNET TYPE - NEODYMIUM SURROUND MATERIAL - RUBBER WATER RESISTANCE - VOICE COIL DIAMETER - INCH (MM) - 2" THIELE/SMALL PARAMETERS SENSITIVITY (1W/1M): 94 RE (Ω) [SERIES]: 3.2 QMS: 7.368 QES: 0.597 QTS: 0.552 FS (HZ): 104 VAS (L): 9 CMS (MM/N): 0.148 MMS (G): 15.6 SD (M2): 206.84 BL (T*M): 7.418 XMAX (MM): 1.2 POWER HANDLING RMS: 200 POWER HANDLING MAX: 400 MOUNTING DEPTH: IN.(MM):3.74" (95MM) CUT OUT DIAMETER IN.(MM):8.58" (218MM) OVER ALL DIAMETER IN.(MM):9.19" (233.5MM) OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)Sale -
SaleDiamond Audio MS82NEO 8" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)
Vendor:Diamond AudioDiamond Audio MS82NEO 8" 2-Way Coaxial Neo Speakers (2Ω or 4Ω) SPECIFICATIONS: MS82NEO2 (2Ω) SPEAKER SIZE – 8" SOLD IN PAIRS SPEAKER TYPE – HORN LOADED CO AXIAL BI-AMPABLE – YES OHMS (PER COIL) – 2 NUMBER OF VOICE COILS – DUAL FIELD SERVICABLE VOICE COIL – YES CONE MATERIAL – CARBON FIBER DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL – CAST ALUMINIUM MAGNET TYPE – NEODYMIUM WATER RESISTANCE – YES BASKET MATERIAL – CAST ALUMINIUM VOICE COIL DIAMETER – 2" MS82NEO4 (4Ω) SPEAKER SIZE – 8" SOLD IN PAIRS SPEAKER TYPE – HORN LOADED CO AXIAL BI-AMPABLE – YES OHMS (PER COIL) – 4 NUMBER OF VOICE COILS – DUAL FIELD SERVICABLE VOICE COIL – YES CONE MATERIAL – CARBON FIBER DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL – CAST ALUMINIUM MAGNET TYPE – NEODYMIUM WATER RESISTANCE – - VOICE COIL DIAMETER – 2 Diamond Audio Neo Series - Coaxial DriversSale -
SaleDiamond Audio MS65NEO 6.5" Midrange
Vendor:Diamond Audio6.5" Motorsport High Output Neo Midrange Weather Proof Features: Speaker Size 6.5" Impedance 4Ω RMS Power Rating 300w Max Power Rating 600w Freq Range 100Hz-13KHz Sensitivity (1W/1Mm) 94dB Water-resistant Sold in Pairs US manufactured 2” Black High Temperature Coated Voice CoilSale
About Diamond Audio
Based in Tempe, Arizona, Diamond Audio has been a trailblazer in the mobile audio industry since 1994. Known for breaking boundaries in innovation, technology, and performance, Diamond Audio has consistently set the standard for premium sound systems. Their dedication to quality and cutting-edge design has made them a highly desired brand among bikers and powersport enthusiasts.
Revolutionizing Motorcycle Audio
Diamond Audio’s motorcycle audio systems are designed to deliver unparalleled sound performance. With a focus on high efficiency and exceptional sound quality, these systems elevate your riding experience. Whether you are cruising through the city or hitting the open road, Diamond Audio ensures your music sounds as the artist intended, providing a concert-like experience on your motorcycle.
Unmatched Sound Quality
Diamond Audio’s products are engineered to deliver crystal-clear audio signals, maintaining the integrity of your digital music. Their advanced digital signal processing technology ensures that every note, beat, and lyric is heard with stunning clarity, making your rides more enjoyable and immersive.
Durable and Reliable Performance
Diamond Audio’s commitment to quality is evident in their durable and reliable products. Constructed with high-quality materials and designed to withstand the rigors of the road, their audio systems ensure consistent performance, even on long journeys. The solid-state design and recommended fuse settings guarantee reliable operation, allowing you to enjoy your music without interruption.
Diamond Audio at Garage Bagger Stereo
At Garage Bagger Stereo, we pride ourselves on offering only the best in motorcycle audio equipment, and Diamond Audio is a prime example of the elite brands we feature. Understanding the importance of superior sound quality for your ride, we have partnered with Diamond Audio to provide their exceptional range of products to our customers.
