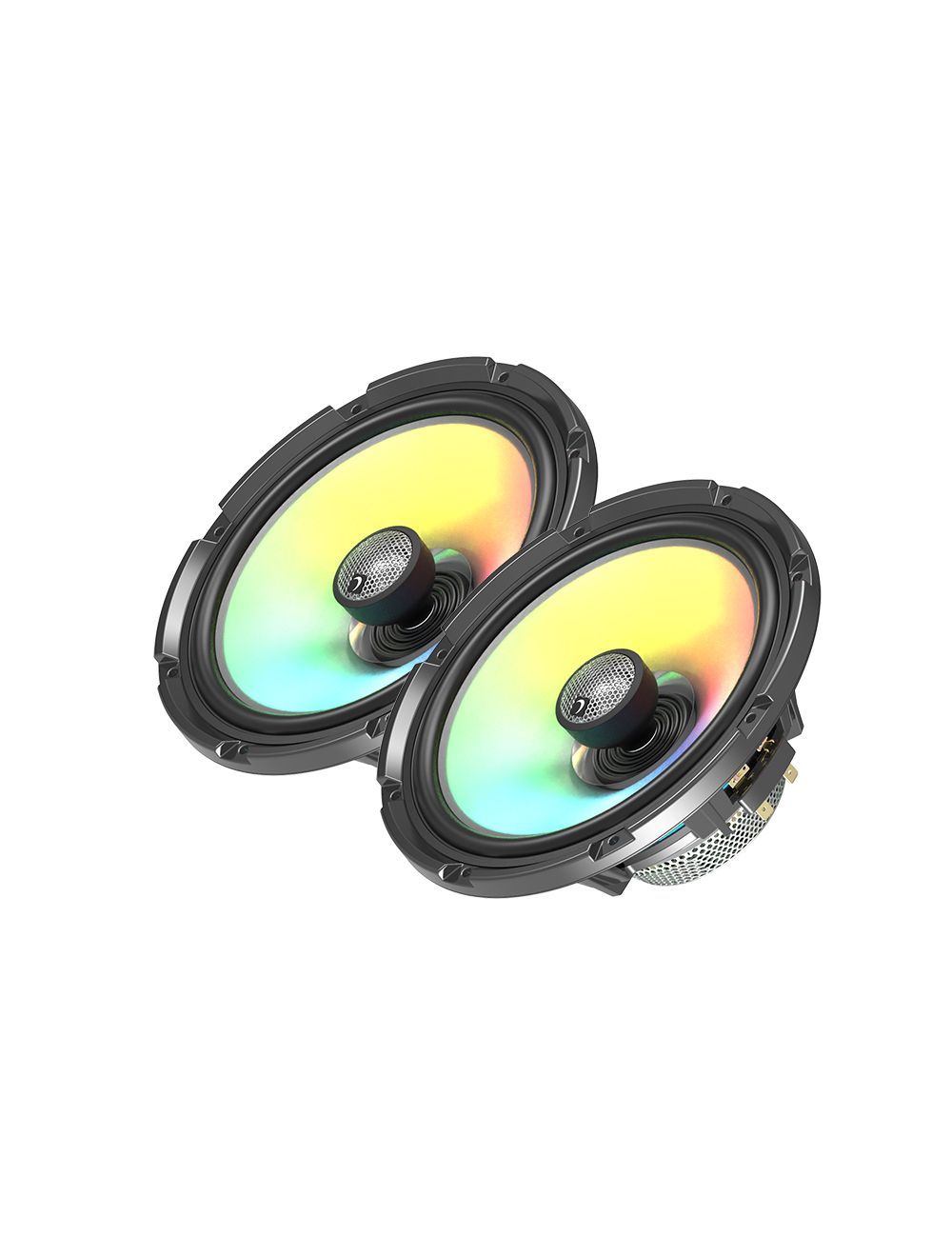

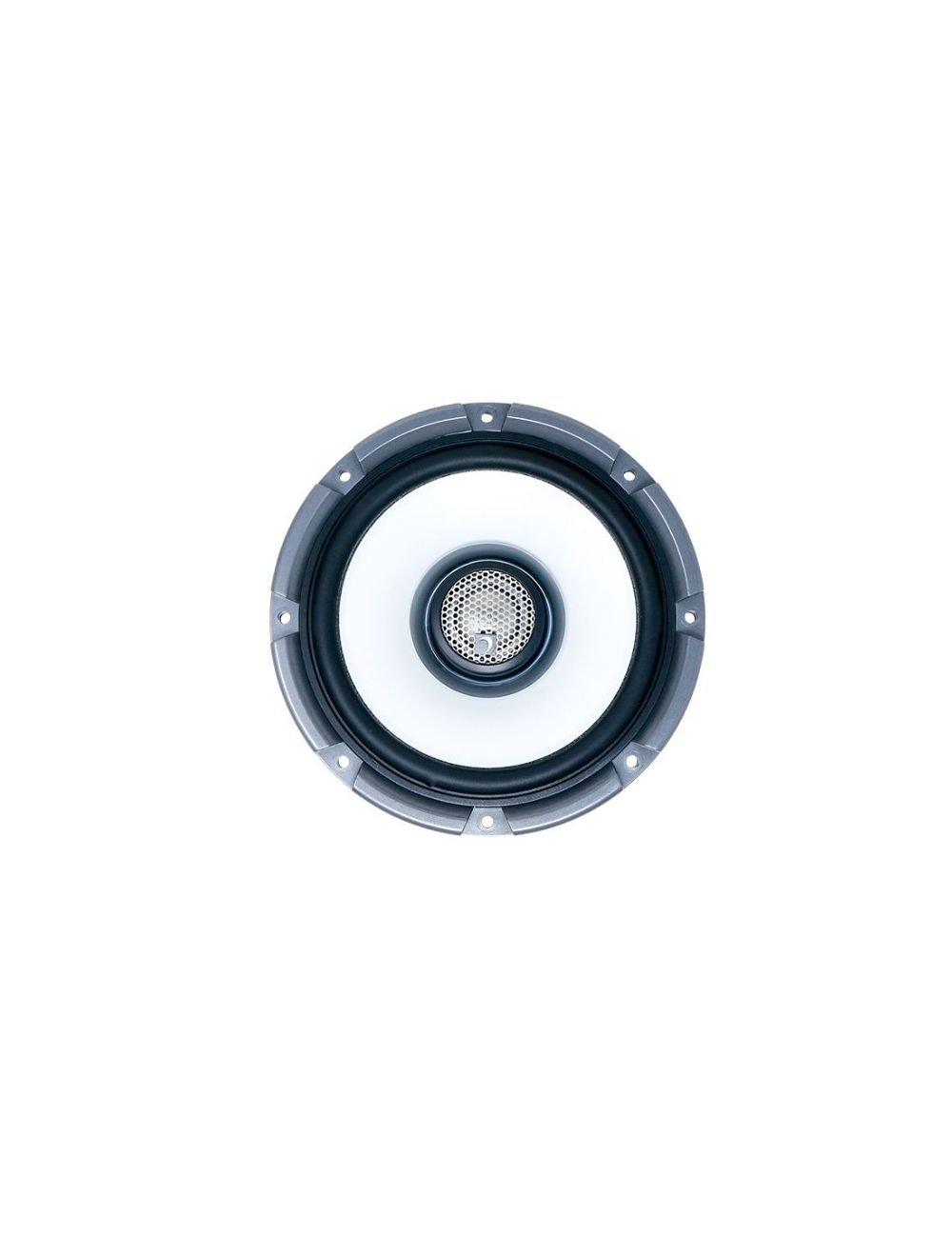

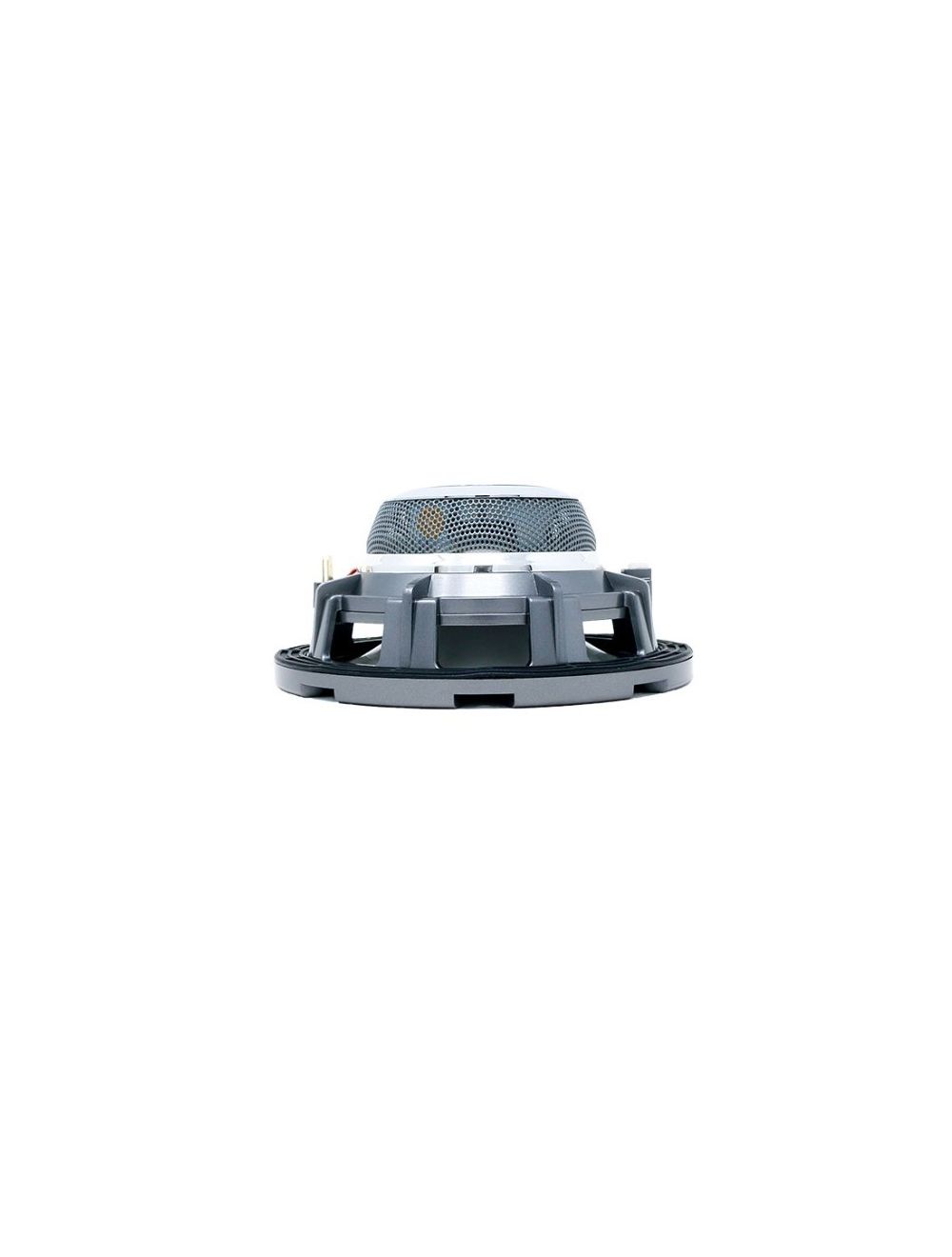

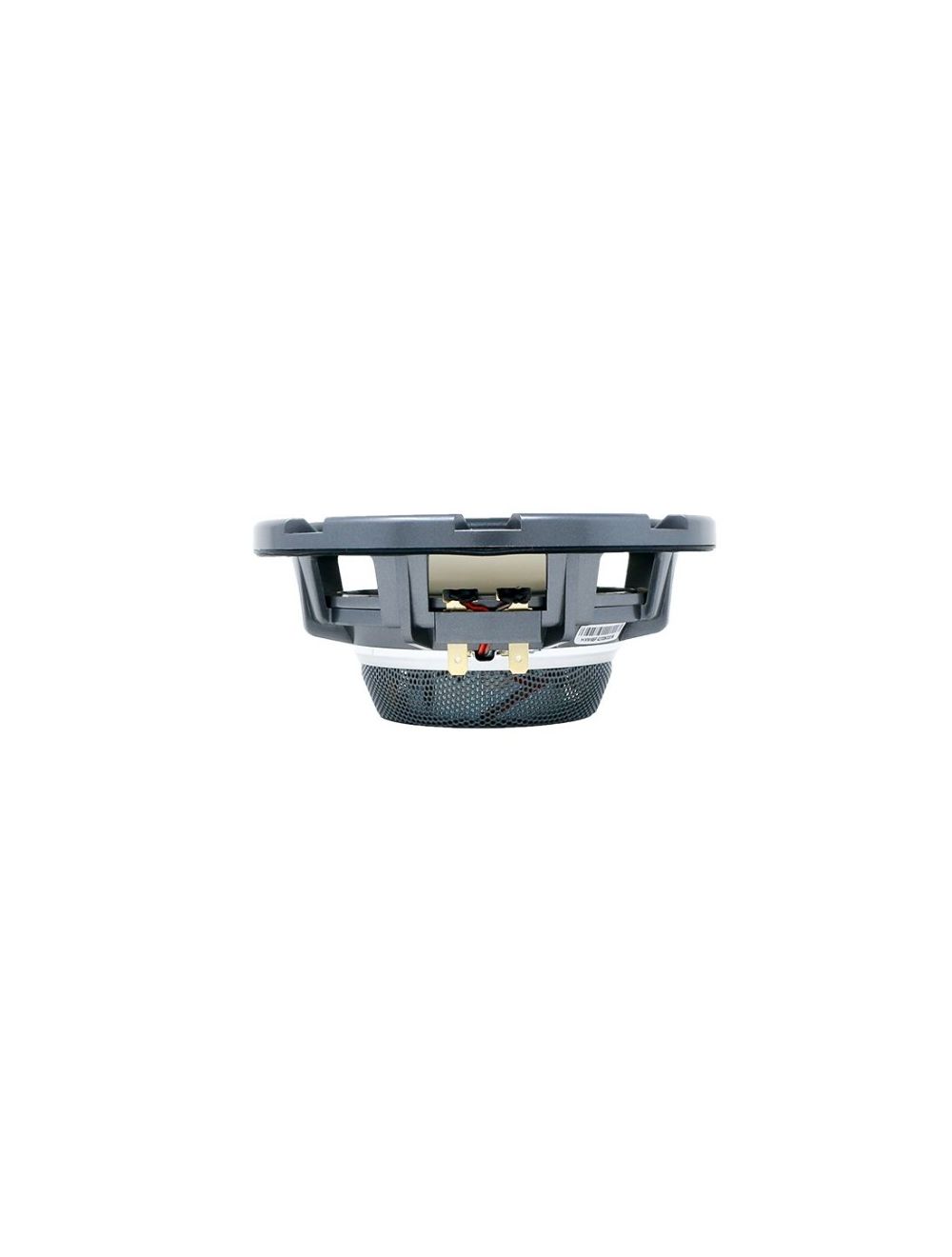

Diamond Audio Motorsports 2-WAY 6.5" Flush Mount Speaker (2Ω and 4Ω)
The Diamond Audio Motorsports 6.5" 2-way flush mount speaker is a coaxial driver offered in 2 ohm and 4 ohm versions. It is designed to fit most Harley-Davidson motorcycles while keeping a factory-style look.
6.5" coaxial in 2Ω and 4Ω versions
Flush mount 2-way driver with a neodymium motor and integrated RGB LED lighting.
- 125W RMS / 250W max
- 92 dB sensitivity (1W/1M)
- 5.63" mounting diameter, 2.56" mounting depth
Key Product Details
| Product | Diamond Audio Motorsports 2-Way 6.5" Flush Mount Speaker |
| Type | 2-way coaxial, flush mount |
| Impedance | 2Ω or 4Ω versions |
| Designed For | Most Harley-Davidson motorcycles, with a factory-style look |
| Lighting | Integrated RGB LED |
| Grills | Optional |
Choose the 2Ω or 4Ω version before ordering. Speaker grills are optional.
Matching the Speaker to Your Amplifier
This speaker is rated at 125W RMS and 250W max, so pick an amplifier channel rating that suits that power handling and the impedance version you order. As a reference point, the Diamond Audio NEO12004DSP is rated at 150W RMS x 4 at 4 ohms and 300W RMS x 4 at 2 ohms.
Check the mounting opening before ordering: the speaker needs a 5.63" mounting diameter and 2.56" of mounting depth. Optional grills are available in the speaker grill collection.
Specifications
| Frequency Response | 80Hz to 18kHz +/- 4dB |
| Sensitivity | 92 dB (1W/1M) |
| Power Handling | 125W RMS / 250W max |
| Mounting Diameter | 5.63" |
| Mounting Depth | 2.56" |
| Motor | Neodymium |
| Cone | Injection-molded PP |
| Lighting | Integrated RGB LED |
| Durability | UV stable, water spray resistant |
Related Paths
Diamond Audio 6.5" Speaker FAQ
What impedance options does this speaker come in?
It is offered in 2 ohm and 4 ohm versions. Pick the version that matches your amplifier and wiring plan.
How much power can the speaker handle?
It is rated for 125W RMS and 250W max.
What size opening does it need?
The mounting diameter is 5.63" and the mounting depth is 2.56".
Do speaker grills come with it?
Speaker grills are optional. You can browse them in our motorcycle speaker grill collection.
Does it have lighting and weather protection?
It has integrated RGB LED lighting and is listed as UV stable and water spray resistant.
Will it fit my Harley-Davidson?
It is designed to fit most Harley-Davidson motorcycles. Tell us your model and year and we will confirm fitment before you order.
