Diamond Audio 98-13 Harley Davidson Cut-In Lid Kit w/Speakers
Diamond Audio Harley Davidson Motorcycle Audio
Fitment
Harley Davidson® 1998-2013 models

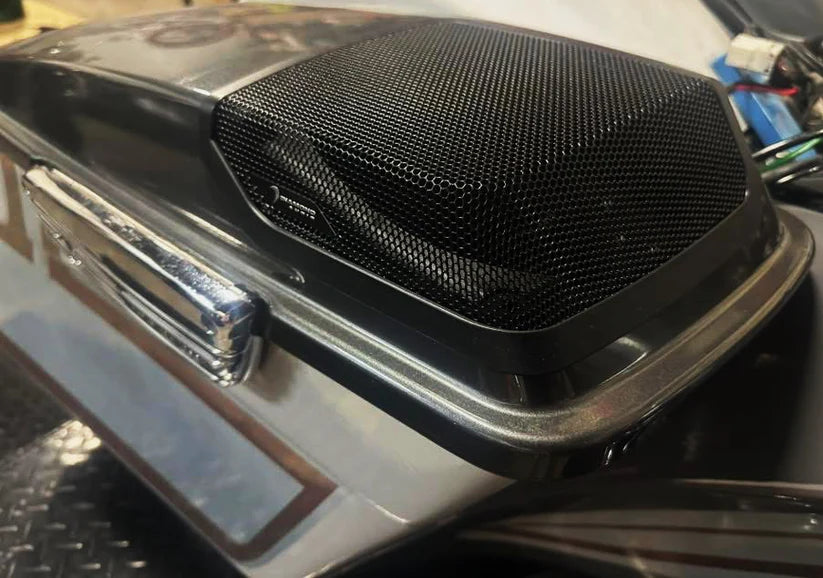

Unleash the Ultimate Sound Experience with Diamond Audio's Cut-In Lid Kits
Elevate your ride with Diamond Audio's Cut-in Lid Kits, custom-engineered for 1998-2013 Harley Davidson® motorcycles. This premier audio upgrade brings unparalleled clarity and power to your journey, ensuring every ride is an adventure in sound.
Seamless Integration
Designed specifically for Harley Davidson® models from 1998-2013, Diamond Audio guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic.
Choices in 6x9" Speakers include:

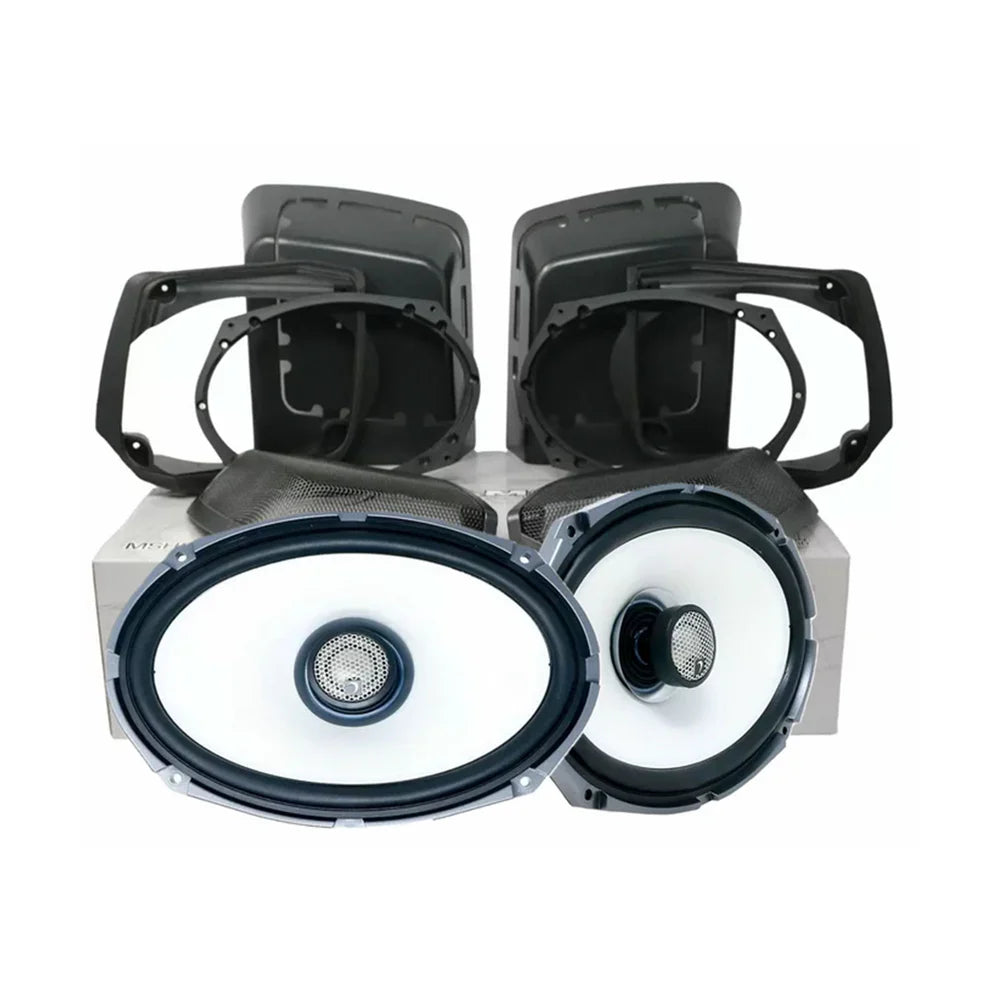

HXM69F4 (4Ω)
2-Way Marine Speakers w/Titanium Dome Tweeter (4Ω)
- 6"x9" 2-Way Speaker System (Pair)
- 150W RMS / 300W MAX Power Rating
- Flush Mount Design
- Water Spray and Salt Water Resistant, 100% UV Stable
- Ultra Small Neodymium Motor Structure With Max Xmax Suspension
- High Temp Injection Molded Composite Basket
- Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone
- Integrated Dream RGB LED Lighting
- Mounting Diameter: 8.64” x 6.0” / 219 x 152.5mm
- Mounting Depth: 3.15” / 80mm
MS692CX2(2Ω)
2-Way Coaxial Subwoofers w/Titanium Dome Tweeter (2Ω)
- 6"x9" 2-Way Speaker System (Pair)
- Power Handling Watts (RMS/Peak): 130W/520W
- Nominal Impedance (Ω): 2Ω
- Frequency Response (Hz): 45Hz-23kHz
- Voice Coil: 1.66" (42.2mm)
- Fs - Free Air Resonance (Hz): 46Hz
- Qts: 0.51
- Vas ft³ (Liter): 0.794" (22.5L)
- Sensitivity (1W/1M): 87.6db
- Sensitivity( 2.83V/1M): 94.6db
- Xmax (mm): 0.315" (8mm)
- Mounting Depth: 3.818” (97mm)
- Mounting Diameter: 5.98”x8.85” (152mmX225mm)
- Manufactured to IPx65 Marine Grade Compliant Specifications
- 1" High Output Titanium Dome Tweeter
- UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
- 12dB Bessel Crossover Network
- Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
- T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
- High-Temperature Cast Aluminum Basket
- Coax-sub
HXM69F2 (2Ω)
2-Way Marine Speakers w/Titanium Dome Tweeter (2Ω)
- 6"x9" 2-Way Speaker System (Pair)
- 150W RMS/300W MAX Power Rating
- Flush Mount Design
- Water Resistant, 100% UV Stable
- Ultra Small Neodymium Motor Structure With Max Xmax Suspension
- High Temp Injection Molded Composite Basket
- Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone
- Integrated Dream RGB LED Lighting
- Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm
- Mounting Depth: 3.15" / 80m

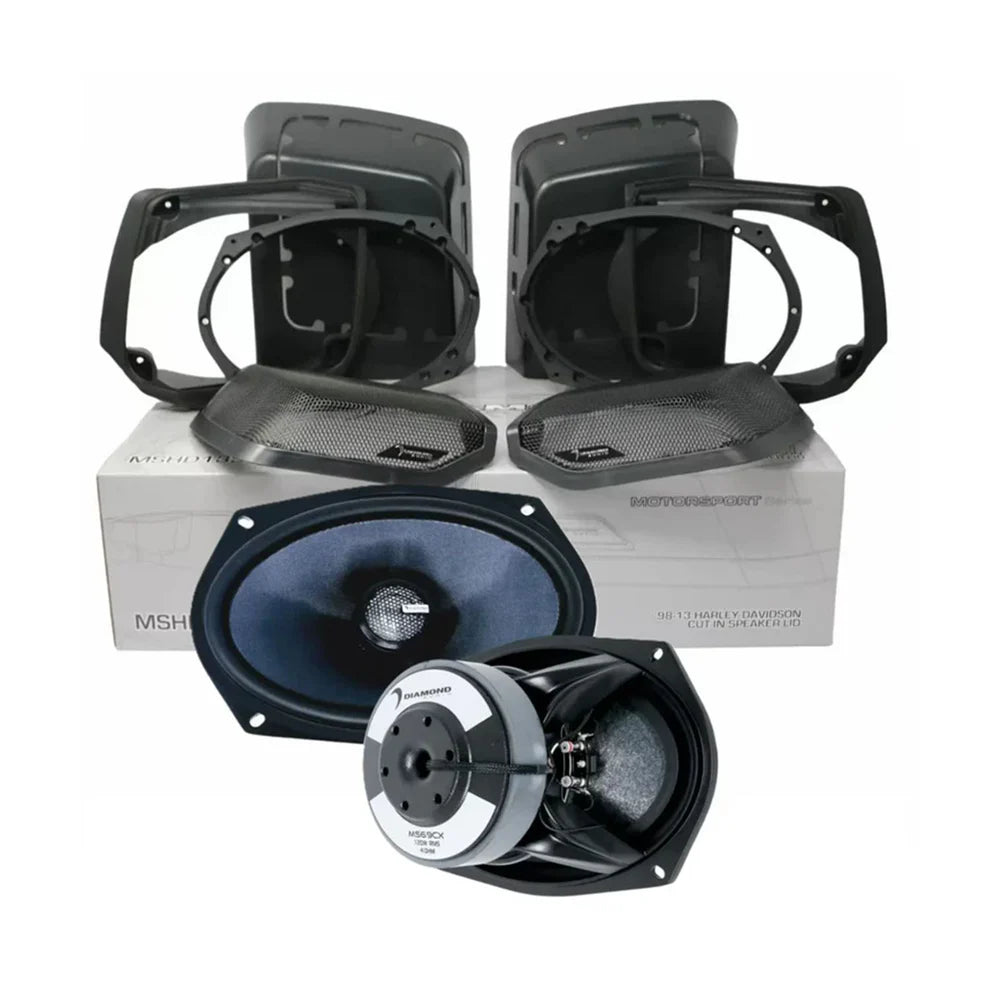

MS69CX (4Ω)
2-Way Coaxial Subwoofers w/Titanium Dome Tweeter (4Ω)
- 6"x9" 2-Way Speaker System (Pair)
- Power Handling Watts (RMS/Peak): 125W/500W
- Nominal Impedance (Ω): 4Ω
- Frequency Response (Hz): 46Hz-20kHz
- Voice Coil: 1.66" (42.2mm)
- Fs - Free Air Resonance (Hz): 46Hz
- Qts: 0.57
- Vas ft³ (Liter): 0.829" (23.5L)
- Sensitivity (1W/1M): 87.4db
- Sensitivity( 2.83V/1M): 91.1db
- Xmax (mm): 0.315" (8mm)
- Mounting Depth: 3.81” (97mm)
- Mounting Diameter: 5.98” x 8.85” (152mm x 225mm)
- Manufactured to IPx65 Marine Grade Compliant Specifications
- 1" High Output Titanium Dome Tweeter
- UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
- 12dB Bessel Crossover Network
- Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
- T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
- High-Temperature Cast Aluminum Basket
- Coax-Sub

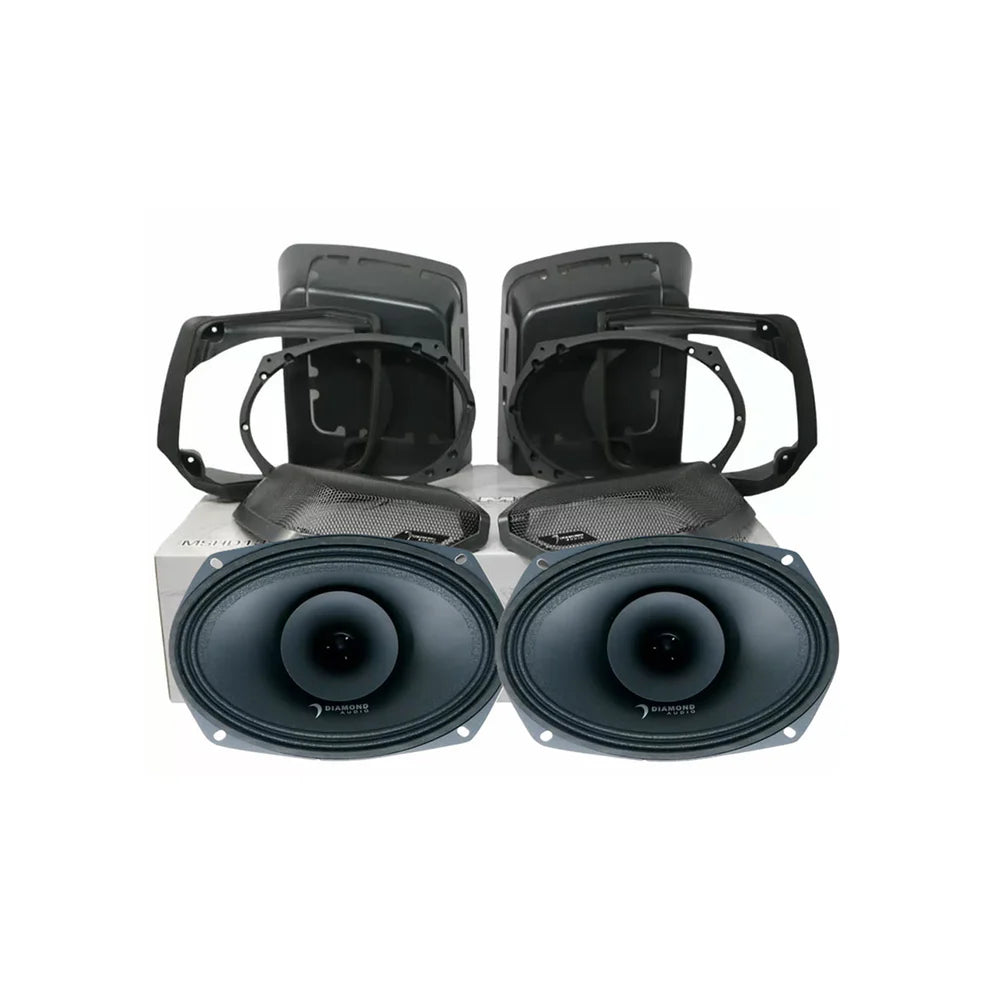

MP694 (4Ω)
2-Way Full-Range Coaxial Speakers w/1" Horn Tweeters (4Ω)
- 6"x9" 2-Way Speaker System (Pair)
- Power: 150W RMS/300W MAX
- SPL(dB) MidBass: 95.6
- SPL(dB) Tweeter: 107
- Fs(Hz): 82.6
- Hi-pass Filter: 12dB 2nd Order Crossover
- Diameter: 9.33"x6.57" (237mm x 167mm)
- Mounting Diameter: 8.86"x5.98" (225mm x 152mm)
- Mounting Depth: 3.99" (101.3mm)
- Total Depth: 4.26" (108.3mm)
- Magnet Diameter: 3.94" (100mm)
- NEO Magnet
- Heavy Duty Steel Basket
- Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil
- Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil
- Frequency Response: 80Hz -18Khz
- High Sensitivity 101dB 1W/1M
- 12dB 2nd Order Filter Crossover

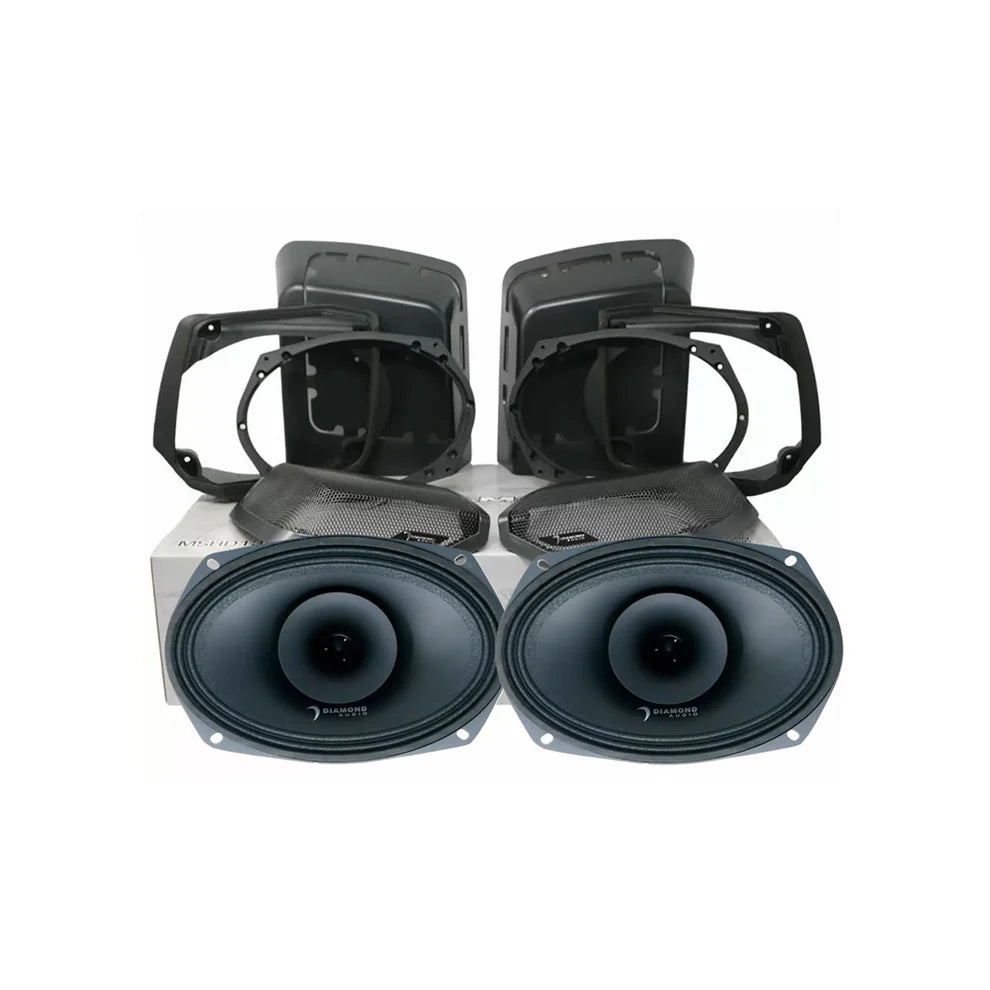

MP692 (2Ω)
2-Way Full-Range Coaxial Speakers w/1" Horn Tweeters (2Ω)
- 6"x9" PRO Full-Range Co-Ax Horn Speaker
- 250W RMS/500 MAX Power Handling
- Ferrite Strontium High Temp Magnet structure
- Heavy Duty Die-cast Aluminum Basket
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- 1.5" Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0" Single Layer High Temp Voice Coil with Black
- Coated VC former for Tweeter
- Frequency Response: 80Hz -18Khz
- High Sensitivity 101dB 1W/1M
- 12dB Crossover
- Mounting Depth: 3.99" / 101.3mm
- Mounting Diameter: 8.86" x 5.98" (225 x 152mm)

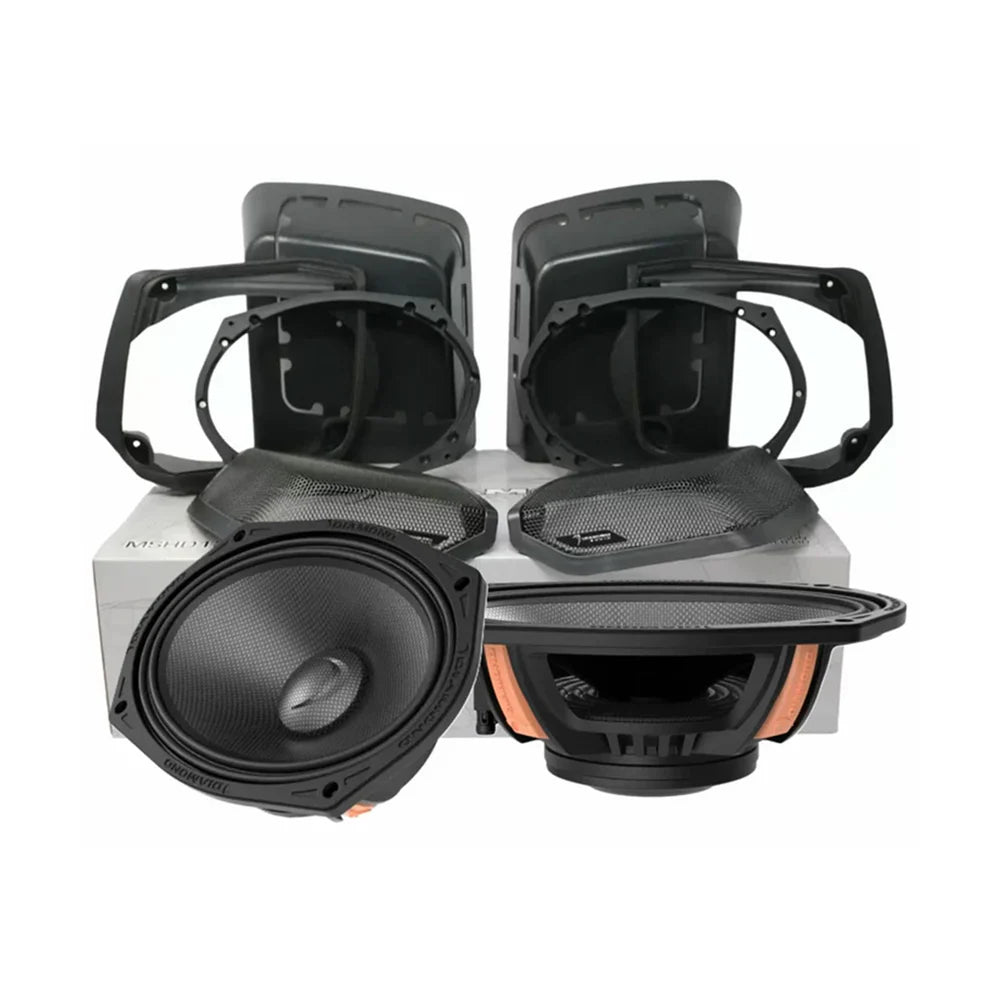

MS69NEO (4Ω)
MSNEO SERIES High Output Neo Midrange Speakers (4Ω)
- Power: 350W RMS/700W RMS
- SPL(dB): 96
- Fs(Hz): 90
- Frequency Response: 90Hz-10kHz
- Diameter: 9.193" x 6.378" (233.5mm x 162mm)
- Mounting Diameter: 8.583" x 5.748" (218mm x 146mm)
- Mounting Depth: 3.091" (78.5mm)
- Magnet Diameter:
- Heavy Duty Industrial Cast Aluminum Basket
- Waterproof Black DUPONT™ Kevlar Cone
- Neodymium Magnet Motor Structure
- US manufactured 2” Black High Temperature Coated Voice Coil
