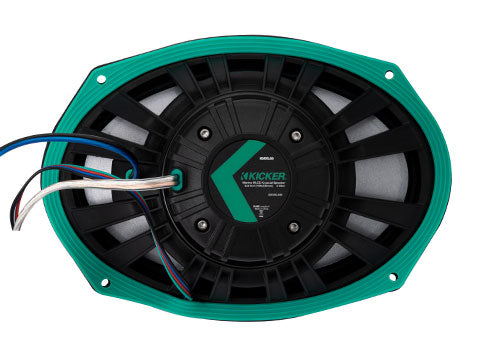

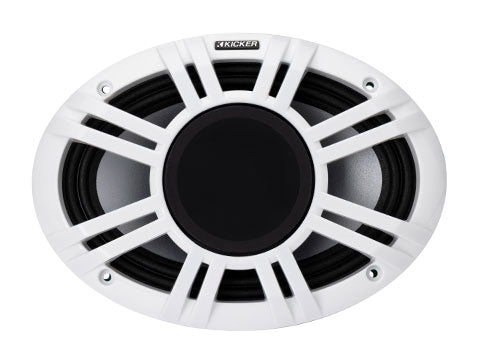

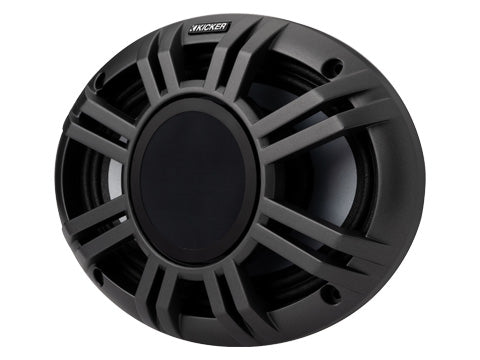

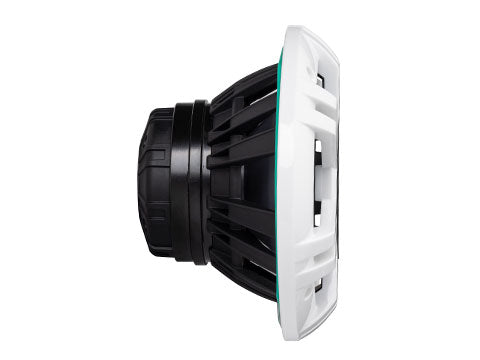

KICKER KMXL69 6x9" Marine Horn‑Loaded Coaxial Speakers w/ RGB LEDs
The Kicker KMXL69 is the 6 x 9 in (160 x 230 mm) size in the KMXL marine horn-loaded coaxial series, rated 15-150 watts RMS and 300 watts peak at 4 ohms with a 70-20k Hz response. It mounts in a 5-13/16 x 8-9/16 in (148 x 218 mm) hole and is sold in pairs with integrated RGB LED lighting.
6 x 9 in horn-loaded coaxial for a 5-13/16 x 8-9/16 in hole
Neodymium motor, UV-treated poly/carbon-fiber woofer cones and a shallow mounting depth of 3-3/8 in (85 mm).
- 15-150 watts RMS recommended, 300 watts peak
- 4 ohm; 70-20k Hz; IP66
- Shallow mount: 3-3/8 in (85 mm) depth
Key Product Details
| Brand | Kicker |
| Model | KMXL69 |
| Type | Marine horn-loaded coaxial speakers, sold in pairs |
| Rated impedance | 4 ohm |
| Recommended amplifier power | 15-150 watts RMS |
| Peak power handling | 300 watts |
| Mounting hole | 5-13/16 x 8-9/16 in (148 x 218 mm) |
| Mounting depth | 3-3/8 in (85 mm) |
| IP rating | IP66 |
| Lighting | Integrated multi-color LED, controlled with the KMLC LED remote |
| Grilles | Both white and charcoal |
Specifications from Kicker's KMXL69 page.
Planning Your KMXL69 Install
Cut a 5-13/16 x 8-9/16 in (148 x 218 mm) hole; mounting depth is 3-3/8 in (85 mm), which Kicker describes as shallow enough for traditional speaker hole cutouts. Kicker supplies mounting templates.
Kicker's recommended amplifier power is 15-150 watts RMS at 4 ohms, with a recommended crossover of 12 dB/octave at an 80 Hz high pass for maximum power handling. Use a marine amplifier in that range.
Kicker also lists these as loud and clear enough for all-weather use in motorcycle fairings and saddlebags and in UTVs. See the motorcycle pro coaxial speakers collection if you are also outfitting a bike.
Marine Construction Details
Kicker lists REAL MARINE grade construction, IP66 certification (protected from dust and water jets/splash), UV-treated waterproof poly/carbon-fiber woofer cones, a lightweight neodymium motor and a proprietary high-frequency horn design. Integrated multi-color LED lighting is controlled with the KMLC LED remote.
Specifications
| Woofer | 6 x 9 in (160 x 230 mm) |
| Tweeter | 1-1/4 in (32 mm) aluminum dome |
| Rated impedance | 4 ohm |
| Peak power handling | 300 watts |
| Recommended amplifier power | 15-150 watts RMS |
| Sensitivity (1 W, 1 m) | 92 dB |
| Frequency response | 70-20k Hz |
| Mounting hole diameter | 5-13/16 x 8-9/16 in (148 x 218 mm) |
| Mounting depth | 3-3/8 in (85 mm) |
| Grilles | Both white and charcoal |
| Crossover (recommended for max power handling) | 12 dB/octave, 80 Hz high pass |
| IP rating | IP66 (protected from dust and water jets/splash) |
| Warranty | 3 years from date of original purchase when bought from an Authorized KICKER Dealer or kicker.com (per Kicker) |
Source: Kicker.com product page for the KMXL69.
Related Paths
KMXL69 FAQ
Is the KMXL69 sold in pairs?
Yes. Kicker says the KMXL series is sold in pairs.
What amplifier power is recommended?
Kicker's recommended amplifier power is 15-150 watts RMS, with 300 watts peak power handling.
What cutout and mounting depth do they need?
A 5-13/16 x 8-9/16 in (148 x 218 mm) mounting hole and 3-3/8 in (85 mm) of mounting depth.
Can they go on a motorcycle or UTV?
Kicker states they are also loud and clear enough for all-weather use in motorcycle fairings and saddlebags, and UTVs.
What is the warranty?
Three years from the date of original purchase when bought from an Authorized KICKER Dealer or kicker.com.
Need Help Choosing?
Not sure which Kicker marine speaker fits your cutouts and amplifier? Call or start a build consultation and we will confirm fitment and match the power.
