Upgrade a compatible late-model Harley-Davidson Street Glide with a complete front component audio system built around Cicada Audio 24CXK65.2SG speakers, the current FLX1400.4PRO four-channel DSP amplifier, NAV-TV factory A2B integration and motorcycle-ready 4-AWG power wiring.
The system places two high-output 6.5-inch mid-bass drivers and two shallow horn tweeters in the Street Glide fairing. The amplifier’s integrated six-channel DSP provides crossover control, equalization, output management and future system-expansion capability.
Complete Street Glide Fairing System
- Street Glide-specific component speaker system
- Cicada 24CXK65.2SG component kit
- Two 2-ohm 6.5-inch mid-bass drivers
- Two 4-ohm shallow horn tweeters
- External 12dB passive crossovers
- FLX1400.4PRO four-channel DSP amplifier
- 350 watts RMS Ă— 4 at 2 ohms
- Six DSP channels: four amplified and two pass-through
- Bluetooth audio streaming
- USB-C computer-based DSP tuning
- DIALD app-compatible configuration
- NAV-TV ZEN-H factory A2B integration
- Cicada HDPG4K 4-AWG power kit
Complete Street Glide DSP Audio System
This Garage Bagger Stereo package combines a Street Glide-specific Cicada component speaker system, a high-power DSP amplifier, factory A2B integration and heavy-gauge amplifier wiring into one complete front-fairing audio upgrade.
The 24CXK65.2SG uses two 2-ohm mid-bass drivers for strong vocal and mid-bass output. Two separate shallow ring-radiator horn tweeters provide high-frequency projection from compatible Street Glide factory-designed locations.
The FLX1400.4PRO supplies four amplified DSP channels plus two DSP-controlled pass-through channels. Two amplified channels operate the front component system, leaving two amplified channels and two pass-through outputs available for a properly designed future expansion.
Street Glide Fitment
2023.5+ CVO Street Glide
Verify the exact motorcycle, fairing, factory radio, factory amplifier and A2B configuration before ordering for a late-production CVO Street Glide.
2024+ Street Glide
The 24CXK65.2SG component speaker kit is designed around compatible redesigned 2024 and newer Street Glide factory speaker locations.
Everything Included in the Audio System

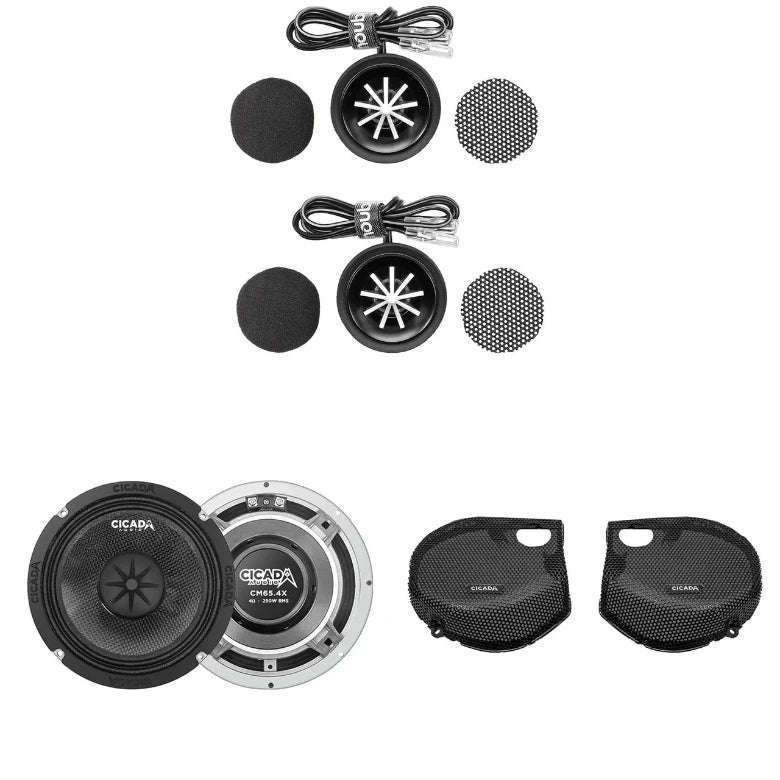

Cicada 24CXK65.2SG Component Kit
One Street Glide-specific component speaker package with two 2-ohm 6.5-inch mid-bass drivers and two 4-ohm shallow horn tweeters.
External Passive Crossovers
Two custom 12dB crossover networks filter and protect the shallow horn tweeters at the manufacturer-specified crossover frequency.
Tweeter Attenuation Resistors
Resistor options allow the high-frequency output to be reduced by 3dB or 6dB when required by the installation and final tuning.
Cicada FLX1400.4PRO DSP Amplifier
One current-generation four-channel Class-D amplifier with six DSP channels, Bluetooth streaming, USB-C tuning and DIALD software support.
NAV-TV ZEN-H A2B Interface
Factory A2B interface that converts the compatible Harley-Davidson digital audio signal into analog RCA outputs for the Cicada amplifier.
Cicada HDPG4K Power Kit
4-AWG power and ground wiring with battery terminals, amplifier ferrules, remote wiring and waterproof Mini-ANL fuse protection.
Front Component Speaker Layout
Left Fairing Position
- One 2-ohm 6.5-inch mid-bass driver
- One 4-ohm shallow horn tweeter
- One external passive crossover
- One dedicated amplified DSP channel
Right Fairing Position
- One 2-ohm 6.5-inch mid-bass driver
- One 4-ohm shallow horn tweeter
- One external passive crossover
- One dedicated amplified DSP channel
Cicada 24CXK65.2SG Component Speaker Kit
The 24CXK65.2SG is engineered for compatible 2024 and newer Street Glide factory-designed speaker locations. Carbon Matrix Composite cones, neodymium motors and aluminum shallow horn tweeters provide high-output performance in a compact motorcycle-ready package.
250W RMS Mid-Bass
Each 6.5-inch mid-bass driver handles 250 watts RMS.
200W RMS Tweeters
Each tweeter handles 200 watts RMS through the correct crossover.
Street Glide Fitment
Designed around compatible late-model Street Glide locations.
Carbon Matrix Cones
Lightweight cone construction supports efficient projection.
Neodymium Motors
Compact high-strength motors reduce weight while maintaining output.
Rain or Shine Design
All-weather materials support exposed fairing installations.
Cicada FLX1400.4PRO 350W Ă— 4-Channel DSP Amplifier
The FLX1400.4PRO combines four high-power amplified channels with six-channel DSP processing. Four DSP channels feed the built-in amplifier outputs, while two additional DSP channels provide pass-through outputs for future equipment.
225W × 4 at 4Ω
Four-channel output at 14.4 volts into 4-ohm loads.
350W × 4 at 2Ω
Four-channel output for compatible 2-ohm speaker channels.
700W Ă— 2 Bridged
Bridged output into compatible 4-ohm loads.
Six-Channel DSP
Four amplified DSP channels plus two pass-through channels.
Bluetooth Streaming
Stream audio directly through the amplifier’s Bluetooth input.
USB-C Tuning
Connect a computer for detailed DIALD DSP configuration.
NAV-TV ZEN-H Factory A2B Integration
The ZEN-H allows the compatible factory Harley-Davidson radio to feed the Cicada DSP amplifier without replacing the factory infotainment system.
Eight RCA Outputs
Provides eight low-level analog channels for aftermarket equipment.
Up to 5V RMS
Supplies a strong preamplifier signal to the Cicada amplifier.
Factory Control Retention
Retains supported volume, balance, fader, chimes and EQ presets.
Power Wiring and Fuse Protection
The Cicada HDPG4K supplies the heavy-gauge power and ground foundation required for the FLX1400.4PRO installation.
DSP Setup and Component Protection
- Install both passive tweeter crossovers correctly.
- Do not connect either tweeter directly to unfiltered amplifier output.
- Configure protective high-pass filtering for both front channels.
- Set gain using measured clean output rather than by ear.
- Use DSP output limiting to protect the mid-bass drivers.
- Use equalization to correct fairing-specific response issues.
- Use time alignment to improve left-to-right arrival timing.
- Confirm tweeter polarity and attenuation before final assembly.
- Reduce output immediately if distortion or mechanical noise occurs.
Installation Instructions and Resources
Speaker Installation
Street Glide and A2B Installation
Complete System Specifications
Fitment and Ordering Notes
- This product is configured for compatible Street Glide motorcycles.
- The speaker kit uses two 2-ohm mid-bass drivers.
- The speaker kit uses two 4-ohm shallow horn tweeters.
- Both passive crossover networks must be used.
- Two amplifier channels operate the front component system.
- Two amplified DSP channels remain available for expansion.
- Two additional DSP pass-through channels are available.
- Rear speakers and rear mounting components are not included.
- Verify speaker depth, grille clearance and crossover placement.
- Verify amplifier mounting space and rack compatibility.
- Correct DSP setup and output limiting are required.
- Professional installation and tuning are strongly recommended.
Current Shipping Promotion
Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply.
Related Motorcycle Audio Categories
Street Glide and Cicada Audio
Amplifier and Signal Support
Cicada Street Glide DSP Audio System FAQ
Which component speaker kit is included?
The system includes the Street Glide-specific Cicada Audio 24CXK65.2SG component speaker kit.
Which amplifier is included?
The system includes the current Cicada Audio FLX1400.4PRO 350-watt Ă— four-channel DSP amplifier.
Is this the discontinued FLX1400.4P?
No. This updated package uses the current FLX1400.4PRO amplifier.
How many speakers are included?
The system uses two primary fairing positions and contains two mid-bass drivers and two separate tweeters.
What impedance are the mid-bass drivers?
Each 6.5-inch mid-bass driver has a nominal impedance of 2 ohms.
What impedance are the tweeters?
Each shallow horn tweeter has a nominal impedance of 4 ohms.
Are passive tweeter crossovers included?
Yes. The component kit includes external 12dB crossover networks and tweeter-attenuation resistor options.
How much power does the amplifier produce at 2 ohms?
The FLX1400.4PRO produces 350 watts RMS per channel at 2 ohms and 14.4 volts.
How many DSP channels does the amplifier provide?
It provides six DSP channels: four amplified outputs and two pass-through outputs.
Does the amplifier support Bluetooth audio?
Yes. Bluetooth audio streaming is built into the FLX1400.4PRO.
How is the DSP configured?
The amplifier supports USB-C computer tuning and DIALD app-based configuration.
What does the NAV-TV ZEN-H do?
It converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the Cicada amplifier.
Does the ZEN-H provide the system DSP?
No. The standard ZEN-H performs A2B signal conversion. The FLX1400.4PRO provides the system’s DSP processing.
Are all four amplified channels used?
No. Two channels operate the front component system, leaving two amplified channels available for properly matched expansion.
Are rear speakers included?
No. Rear speakers, rear wiring and rear mounting components must be added separately.
Is professional tuning recommended?
Yes. Proper crossover, equalization, limiting and gain configuration are essential because the amplifier has more available output than the included mid-bass drivers require.
