2024-Present and CVO Road Glide 2-Speaker DSP Audio System | Cicada
A Road Glide-specific front fairing package built around the Cicada Audio 24CXK65.2RG component speakers, the FLX1400.4PRO four-channel DSP amplifier, a NAV-TV ZEN-H factory A2B interface and a Cicada HDPG4K 4-AWG power kit. It is called a two-speaker system because it uses two 6.5-inch fairing positions; the component kit contains four drivers, two mid-bass speakers and two tweeters.
Component speakers, DSP amplifier and A2B interface in one package
Two amplified channels run the front component system, leaving two amplified channels and two DSP pass-through channels for properly designed expansion.
- 350W RMS × 4 at 2Ω from the FLX1400.4PRO (14.4V)
- 24CXK65.2RG: two 2Ω 6.5-inch mid-bass drivers plus two 4Ω horn tweeters
- Six DSP channels with Bluetooth streaming and USB-C tuning
Key Product Details
| Product type | Road Glide front-fairing component speaker, DSP amplifier, A2B interface and power wiring package |
| Application | Compatible 2024-Present Road Glide, including CVO Road Glide |
| Component speakers | Cicada Audio 24CXK65.2RG: two 6.5-inch 2Ω mid-bass drivers and two one-inch 4Ω shallow horn tweeters |
| Amplifier | Cicada Audio FLX1400.4PRO, 350W RMS × 4 at 2Ω and 14.4V |
| DSP channels | Six: four amplified and two pass-through |
| Factory integration | NAV-TV ZEN-H A2B interface |
| Power wiring | Cicada Audio HDPG4K 4-AWG kit |
| Amplified channels used / free | Two used by the front system / two free |
| Rear speakers included | No |
Rear speakers and rear mounting components are not included. Confirm the motorcycle year, exact model, trim, factory radio, factory amplifier and A2B configuration before ordering.
Road Glide Fitment and Component Layout
2024-Present CVO Road Glide: Verify the exact motorcycle, fairing, factory radio, factory amplifier and A2B configuration before ordering for a late-production CVO Road Glide.
2024-Present Road Glide: The 24CXK65.2RG speaker package is designed around compatible redesigned 2024-Present Road Glide factory speaker locations. It is the Road Glide kit, not the Street Glide speaker configuration, so confirm the exact year, model and trim before ordering.
Each fairing position gets one 2Ω 6.5-inch mid-bass driver, one 4Ω shallow horn tweeter, one external passive crossover and one dedicated amplified DSP channel. That is four individual drivers from two primary speaker positions.
Everything Included
- Cicada 24CXK65.2RG component kit: two 2Ω 6.5-inch mid-bass drivers and two 4Ω shallow horn tweeters
- Two custom 12dB crossover networks filter and protect the shallow horn tweeters.
- Tweeter attenuation resistor options to reduce high-frequency output by 3dB or 6dB when the installation and final tuning require it
- Cicada FLX1400.4PRO four-channel Class-D amplifier with six DSP channels, Bluetooth streaming, USB-C tuning and DIALD software support
- NAV-TV ZEN-H A2B interface for the compatible factory Harley-Davidson digital audio signal
- Cicada HDPG4K 4-AWG power and ground kit with battery terminals, amplifier ferrules, remote wiring and waterproof Mini-ANL fuse protection
Before ordering, confirm with us the Road Glide amplifier rack, A2B-to-amplifier harness, speaker-output wiring and mounting hardware that ship with the active bundle.

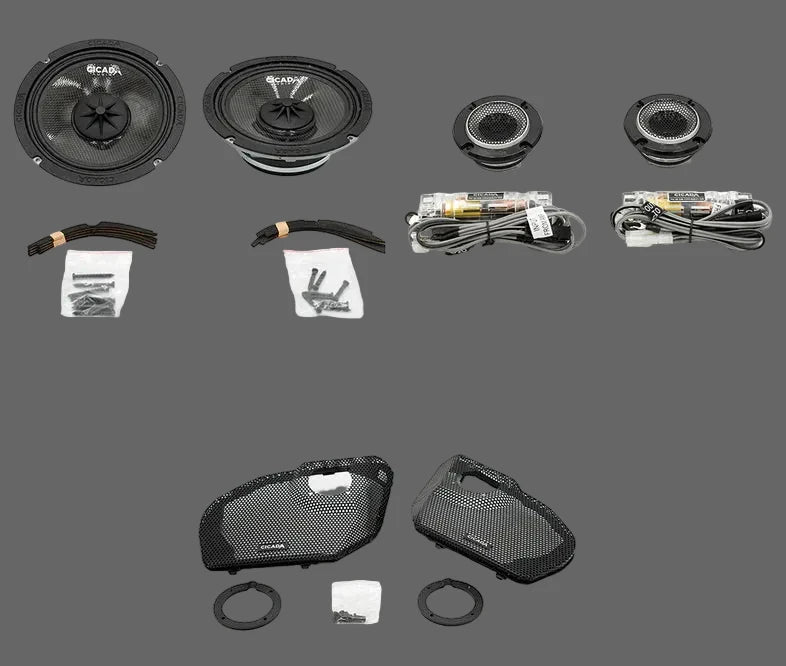

Cicada 24CXK65.2RG Component Speaker Specifications
| Component kit | 24CXK65.2RG |
| Application | Compatible 2024-Present Harley-Davidson Road Glide |
| Mid-bass size / impedance | 6.5 inches / 2Ω per driver |
| Mid-bass power | 250W RMS / 500W maximum per driver |
| Mid-bass voice coil | 2 inches / 51mm |
| Mid-bass cone | Carbon Matrix Composite |
| Mid-bass sensitivity | 94dB, 1W / 1m |
| Mid-bass response | 70Hz–20kHz ±3dB |
| Mid-bass mounting depth | 2.64 inches / 67mm |
| Mid-bass mounting diameter | 5.67 inches / 144mm |
| Tweeter size / impedance | One inch / 4Ω per tweeter |
| Tweeter power | 200W RMS / 400W maximum per tweeter |
| Tweeter diaphragm | Aluminum |
| Tweeter sensitivity | 107dB, 1W / 1m |
| Tweeter response | 2kHz–20kHz ±3dB |
| Passive crossover | External 12dB crossover at 7kHz |
| Tweeter attenuation | Optional -3dB and -6dB resistor settings |

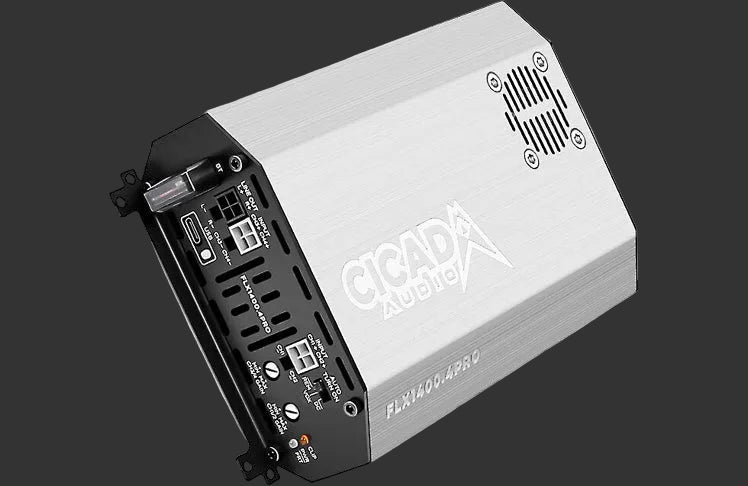

Cicada FLX1400.4PRO DSP Amplifier Specifications
| Amplifier model | Cicada Audio FLX1400.4PRO |
| Type | Four-channel Class-D amplifier with six-channel DSP (four amplified, two pass-through) |
| Output at 4Ω / 14.4V | 225W RMS × 4 |
| Output at 2Ω / 14.4V | 350W RMS × 4 |
| Bridged output at 4Ω / 14.4V | 700W RMS × 2 |
| Frequency response | 20Hz–20kHz ±3dB |
| THD + noise | 0.1% at 2Ω per channel and 10% rated power |
| Signal-to-noise ratio | 91dB A-weighted |
| Damping factor | 200 |
| Efficiency | 80% |
| DSP crossover modes | High-pass / band-pass / low-pass |
| DSP crossover range | 20Hz–20kHz |
| DSP crossover slopes | 6, 12, 24 or 48dB per octave |
| Input sensitivity | 12V–0.2V |
| Bluetooth / tuning | Bluetooth audio included; USB-C computer connection; DIALD PC and app-based configuration (iOS app compatible) |
| Operating voltage | 9V–16V |
| Current draw | 70A music / 150A maximum |
| Recommended fuse | 100A |
| Turn-on options | Remote / DC / VOX |
| Power input / speaker outputs | 4-AWG power input; 12-AWG busbar-style speaker connections |
| Dimensions with brackets | 8.26 × 4.9 × 2 inches / 210 × 125 × 51mm |
| Chassis dimensions | 7.1 × 4.9 × 2 inches / 180 × 125 × 51mm |
| Warranty | Two years through Cicada Audio |
NAV-TV ZEN-H Factory A2B Integration
The ZEN-H lets the compatible factory Harley-Davidson radio feed the Cicada DSP amplifier without replacing the factory infotainment system. It converts the compatible factory signal into analog outputs, provides eight output channels and retains supported factory audio controls and radio operation. The standard ZEN-H performs the A2B signal conversion only; the FLX1400.4PRO supplies the DSP processing, Bluetooth streaming and tuning.
Cicada HDPG4K Power Kit
| Power kit | Cicada Audio HDPG4K |
| Power cable | 4-AWG OFC cable |
| Ground cable | 4-AWG OFC cable |
| Fuse holder | Waterproof Mini-ANL |
| Amplifier recommended fuse | 100A |
The HDPG4K also includes battery terminals, amplifier ferrules and remote wiring. Confirm that the complete wiring, fuse holder, terminals and supplied 100-amp fuse match current Cicada guidance for the FLX1400.4PRO before powering it.
DSP Setup and Component Protection
Final crossover, equalization, time alignment, gain and limiting settings depend on the motorcycle, the installation and the intended listening level, so professional tuning is recommended.
- Install both passive tweeter crossovers, and never connect either tweeter directly to an unfiltered amplifier output.
- Configure protective high-pass filtering for both front channels.
- Set gain using measured clean output rather than by ear.
- Use DSP output limiting to protect the mid-bass drivers.
- Use equalization to correct fairing-specific response issues and time alignment to improve left-to-right arrival timing.
- Confirm tweeter polarity and attenuation before final assembly.
- Reduce output immediately if distortion or mechanical noise occurs.
Ordering Notes
- Configured for compatible Road Glide motorcycles; the Street Glide uses a different speaker configuration.
- Both passive crossover networks must be used.
- Two amplified DSP channels and two DSP pass-through channels remain available for expansion.
- Rear speakers, rear wiring and rear mounting components are not included.
- Verify speaker depth, grille clearance, crossover placement, amplifier mounting space and rack compatibility.
- Correct DSP setup and output limiting are required.
Related Paths
Cicada Road Glide DSP Audio System FAQ
Which amplifier is included?
The system includes the current Cicada Audio FLX1400.4PRO 350-watt × four-channel DSP amplifier.
Is this the discontinued FLX1400.4P?
No. This updated package uses the current FLX1400.4PRO amplifier.
How many speakers are included?
The system uses two primary fairing positions and contains two mid-bass drivers and two separate tweeters, four individual drivers in total.
How much power does the amplifier produce at 2 ohms?
The FLX1400.4PRO produces 350 watts RMS per channel at 2 ohms and 14.4 volts.
How many DSP channels does the amplifier provide?
Six: four amplified outputs and two pass-through outputs.
Does the amplifier support Bluetooth audio?
Yes. Bluetooth audio streaming is built into the FLX1400.4PRO, and the DSP is configured by USB-C computer tuning or the DIALD app.
Are passive tweeter crossovers included?
Yes. The component kit includes external 12dB crossover networks and tweeter-attenuation resistor options.
What does the NAV-TV ZEN-H do?
It converts the compatible factory Harley-Davidson A2B signal into analog outputs for the Cicada amplifier. It does not provide the system DSP; the FLX1400.4PRO does.
Are all four amplified channels used?
No. Two channels operate the front component system, leaving two amplified channels available for properly matched expansion.
Are rear speakers included?
No. Rear speakers, rear wiring and rear mounting components must be added separately.
Is professional tuning recommended?
Yes. Proper crossover, equalization, limiting and gain configuration are essential because the amplifier has more available output than the included mid-bass drivers are rated to handle.
Need Help Choosing?
We can verify Road Glide fitment, amplifier matching, fairing speaker and amplifier mounting, power and speaker wiring, passive crossover placement and factory A2B signal integration before installation. Call or start a build consultation.
