2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada
$2,124.57
Couldn't load pickup availability
Additional Payment Info
2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada
Harley Davidson Plug and Play Fairing Kit (FLX1000 amplifier) 23.5-current from Cicada Audio ? motorcycle?ready performance with clean output and compact install.
Why Riders Choose It
- Built for motorcycle audio ? loud, clear, reliable
- Compact install with clean integration
- Voiced for highway clarity and output
Best With
- Use OFC wiring and correct fusing
- Set clean gains and proper HPF/LPF
- Pair with efficient speakers and quality power
Tell us your bike and goals ? we?ll map crossovers, gains, and wiring for loud, clean sound.
Garage Bagger Stereo Advantage
- Bike?specific parts selection and pairing
- Clean OFC wiring and correct fusing
- On?bike tuning for highway?clear performance
- Nationwide shipping and tech support
Need Help?
Need help dialing it in? Call (864) 334?6131 ? we?ll set targets for your exact setup.
-
Description
-
Reviews
2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System | Cicada
Build a high-output front fairing audio system with two Cicada Audio CHX65.4 pro coaxial horn speakers, a bridged FLX1000.4 amplifier, NAV-TV factory A2B integration and motorcycle-ready power and speaker-output wiring.
Each 4-ohm speaker operates from one bridged amplifier channel pair. This configuration uses all four amplifier channels to deliver a dedicated high-output two-speaker system for compatible late-model Harley-Davidson Road Glide, Street Glide and CVO motorcycles.
High-Output Fairing Audio
- Compatible 2023.5+ CVO and 2024+ Touring applications
- Road Glide and Street Glide fitment support
- Two Cicada Audio CHX65.4 speakers
- 4-ohm impedance per speaker
- 300 watts RMS per speaker
- Carbon Matrix Composite mid-bass cones
- Integrated aluminum-diaphragm horn tweeters
- External 12dB passive crossovers
- Cicada Audio FLX1000.4 amplifier
- Two bridged amplifier channel pairs
- NAV-TV factory A2B integration
- 4-AWG OFC power and ground wiring
- Bridged-output Molex speaker harness
Complete 2-Speaker Plug-and-Play System Overview
This Garage Bagger Stereo package combines the speakers, amplifier, factory-radio interface, power wiring and bridged-output connections required to create a serious two-speaker fairing system in a compatible late-model Harley-Davidson motorcycle.
Each Cicada Audio CHX65.4 combines a high-output 6.5-inch mid-bass driver with a coaxially mounted horn tweeter. The external passive crossover divides the signal between the mid-bass and high-frequency sections while optional attenuation resistors allow the tweeter level to be reduced when required.
The FLX1000.4 is configured as two bridged amplifier channels. Channels 1 and 2 operate one CHX65.4, while channels 3 and 4 operate the second speaker. The included RCA Y-adapters distribute the left and right input signals across the required amplifier input pairs.
Harley-Davidson Fitment
2023.5+ CVO
Intended for compatible late-production Harley-Davidson CVO motorcycles using the Skyline infotainment and factory A2B audio platform.
2024+ Road Glide
Supports compatible redesigned Road Glide motorcycles after confirming the factory radio, amplifier configuration, fairing clearance and speaker mounting requirements.
2024+ Street Glide
Supports compatible redesigned Street Glide motorcycles after confirming the factory radio, amplifier configuration, fairing clearance and speaker mounting requirements.
Everything Included in the Audio System
Cicada Audio CHX65.4 Speaker Pair
Two 6.5-inch, 4-ohm pro coaxial horn speakers rated for 300 watts RMS and 600 watts maximum per speaker.
External Passive Crossovers
Two custom 12dB crossover networks divide each amplifier signal between the mid-bass cone and horn tweeter.
Tweeter Attenuation Resistors
Optional -3dB and -6dB resistor packs allow the high-frequency output to be reduced when required by the motorcycle or tuning.
Cicada Audio FLX1000.4 Amplifier
One compact four-channel Class-D amplifier configured as two bridged outputs for the included 4-ohm speakers.
NAV-TV A2B Processor
Factory A2B audio interface providing analog RCA output for the aftermarket Cicada Audio amplifier while retaining supported factory radio controls.
Cicada Audio 4-AWG OFC Power Kit
Heavy-gauge amplifier power and ground wiring with the primary battery-side and amplifier-side installation components.
Two All-Male RCA Y-Adapters
The two adapters distribute the left and right front signals across the amplifier input channels required for bridged operation.
Cicada Audio HDFRBoM Harness
Bridged left and right amplifier-output harness with factory-style Molex speaker connections. The exact harness length supplied may depend on the final motorcycle configuration.
Bridged Amplifier and Speaker Configuration
Left Speaker
One 4-ohm CHX65.4 speaker connects to the bridged output from amplifier channels 1 and 2.
Right Speaker
The second 4-ohm CHX65.4 speaker connects to the bridged output from amplifier channels 3 and 4.

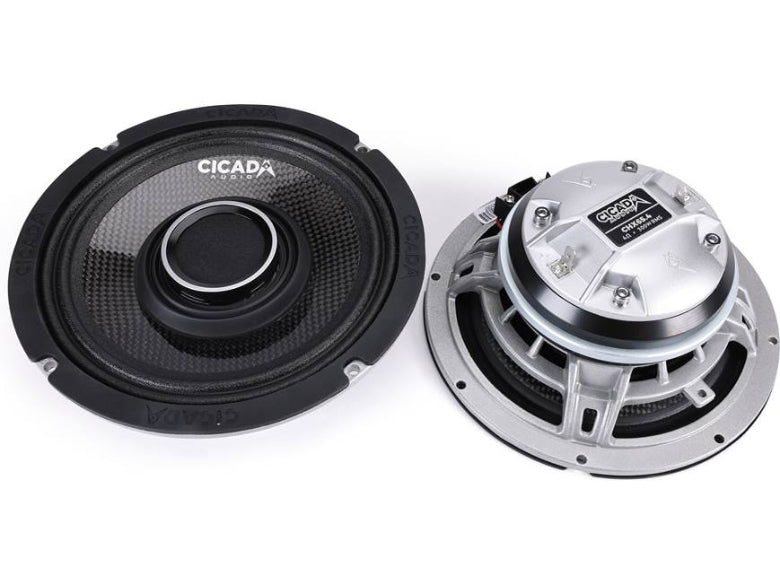

Cicada Audio CHX65.4 Pro Coaxial Horn Speakers
The CHX65.4 is designed for riders who need strong vocal projection, detailed high-frequency output and reliable performance in an open-air motorcycle environment.
300W RMS
Each speaker is rated for 300 watts RMS and 600 watts maximum.
4-Ohm Impedance
Each speaker presents the correct nominal load for one bridged FLX1000.4 channel pair.
Coaxial Horn Design
The mid-bass cone and horn tweeter share one compact motorcycle speaker basket.
Carbon Matrix Cone
The lightweight, rigid cone is engineered for efficient mid-bass and vocal projection.
All-Weather Construction
Waterproofing and UV protection support fairing and powersports installation.
External Crossover
The supplied 12dB network filters and protects the integrated horn tweeter.

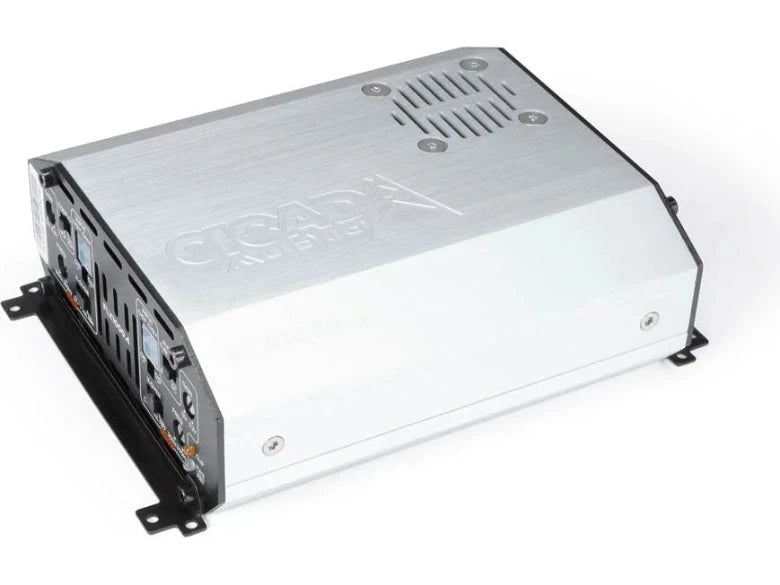

Cicada Audio FLX1000.4 Four-Channel Amplifier
The FLX1000.4 is a compact four-channel Class-D amplifier with flexible stereo and bridged operation. In this package, all four channels are combined into two high-output bridged channels.
168W × 4 at 4Ω
Published four-channel output at 14.4 volts for compatible stereo systems.
254W × 4 at 2Ω
Published four-channel output at 14.4 volts into compatible 2-ohm loads.
530W × 2 Bridged
Published bridged output at 14.4 volts into compatible 4-ohm speakers.
Adjustable Crossovers
Selectable high-pass, full-range and low-pass operation supports system-specific filtering.
Compact Chassis
The six-inch-long amplifier body supports space-conscious motorcycle installations.
Motorcycle Voltage Range
The amplifier operates across an 8- to 16-volt electrical range.
NAV-TV Factory A2B Signal Integration
The NAV-TV A2B processor allows a compatible factory Harley-Davidson head unit to supply clean analog audio to the Cicada amplifier while retaining supported factory audio controls.
Factory A2B Conversion
Converts the digital factory audio signal into low-level analog amplifier inputs.
Eight Analog Outputs
Provides up to eight RCA output channels for compatible aftermarket audio equipment.
Factory Control Retention
Retains supported factory volume, balance, fader, chimes and radio EQ functions.
RCA, Bridged Output and Power Wiring
Two RCA Y-Adapters
Split the front left and right RCA signals across the amplifier inputs needed for the two bridged channel pairs.
HDFRBoM Output Harness
Routes the left and right bridged amplifier outputs through factory-style Molex speaker connections.
4-AWG OFC Power Kit
Supplies the heavy-gauge power and ground foundation required by the FLX1000.4 amplifier.
- Disconnect the motorcycle battery before installation.
- Install fuse protection close to the positive battery terminal.
- Use secure battery, ground and amplifier connections.
- Protect wiring from steering movement, heat and sharp edges.
- Keep signal wiring separated from high-current power wiring.
- Confirm RCA Y-adapter routing before setting amplifier gain.
- Verify bridged speaker polarity before reinstalling the fairing.
- Inspect battery and charging-system condition before high-output use.
Gain, Crossover and Speaker Protection
Proper setup is mandatory because the bridged FLX1000.4 has substantially more available continuous power than each included CHX65.4 requires.
- Connect one speaker to each designated bridged output pair.
- Do not connect a speaker below 4 ohms to either bridged output.
- Install both supplied external speaker crossovers.
- Configure both bridged channel pairs for high-pass operation.
- Select a protective high-pass point appropriate for the fairing.
- Set both channel-pair gains using measured clean output voltage.
- Do not use the amplifier gain controls as volume controls.
- Confirm left and right RCA input routing before final setup.
- Verify speaker polarity and crossover connections.
- Reduce output immediately if distortion or mechanical noise occurs.
Installation Instructions and Resources
Speaker and Crossover Setup
Fairing and A2B Installation
Complete System Specifications
Fitment and Ordering Notes
- The system includes two 4-ohm CHX65.4 speakers.
- Both amplifier channel pairs operate in bridged mode.
- All four amplifier channels are used.
- Rear speakers are not included.
- Future rear expansion requires an additional amplifier or system redesign.
- The external passive crossovers must be installed and protected.
- Verify fairing speaker depth and grille clearance.
- Verify amplifier mounting space before installation.
- Confirm the exact NAV-TV A2B processor included.
- Confirm the HDFRBoM harness length supplied with the kit.
- Correct bridged wiring, gain and high-pass setup are mandatory.
- Professional installation and tuning are strongly recommended.
Current Shipping Promotion
Enter code ShipOne at checkout for eligible free shipping. Current checkout eligibility and product exclusions apply.
Related Motorcycle Audio Categories
Late-Model Harley Audio
Amplifier and Signal Support
Cicada FLX1000.4 2-Speaker System FAQ
How many speakers are included?
The system includes two Cicada Audio CHX65.4 6.5-inch pro coaxial horn speakers.
What impedance are the speakers?
Each included CHX65.4 speaker has a nominal impedance of 4 ohms.
How are the speakers connected to the amplifier?
One speaker connects to amplifier channels 1 and 2 bridged. The second connects to channels 3 and 4 bridged.
How much power does the amplifier produce when bridged?
The FLX1000.4 is rated for up to 530 watts RMS × 2 into 4-ohm loads at 14.4 volts.
How much power can each CHX65.4 handle?
Each speaker is rated for 300 watts RMS and 600 watts maximum.
Why must the amplifier output be limited?
The amplifier can produce more bridged continuous power than each speaker is rated to handle. Correct gain, crossover and output-voltage settings are required.
Are passive crossovers included?
Yes. The pair includes two external 12dB passive crossover networks and optional tweeter-attenuation resistor packs.
What do the RCA Y-adapters do?
They distribute the left and right A2B processor outputs across the amplifier input channels required for bridged operation.
What does the HDFRBoM harness do?
It routes the left and right bridged amplifier output into factory-style Molex speaker connections.
Does the system integrate with the factory Harley radio?
Yes. The included NAV-TV A2B processor is used to connect the compatible factory audio system to the aftermarket amplifier.
Are rear speakers included?
No. This is a dedicated two-speaker front fairing system.
Can rear speakers be added to the same amplifier?
Not in the supplied bridged configuration because all four amplifier channels are being used. Rear expansion requires an additional amplifier or a redesigned channel configuration.
Are the speakers weather resistant?
Yes. Cicada describes the CHX65 series as an all-weather design with waterproofing and UV protection.
Is professional installation recommended?
Yes. The system requires A2B signal integration, bridged amplifier wiring, external crossover placement, heavy-gauge power wiring and measured amplifier setup.
