2023.5+ Harley-Davidson 2-Speaker Plug-and-Play Audio System
Upgrade a compatible late-model Harley-Davidson with two high-output Cicada Audio pro coaxial horn speakers, a compact SounDigital four-channel amplifier, NAV-TV factory A2B integration and the primary amplifier power wiring required for installation.
Choose the 4-ohm CHX65.4 version for a bridged two-speaker system or the 2-ohm CHX65.2 version for a stereo configuration that leaves two amplifier channels available for a properly matched future rear-speaker upgrade.
Complete Two-Speaker Audio System
- Compatible late-model Harley A2B applications
- Road Glide and Street Glide fitment support
- Cicada CHX65.2 or CHX65.4 speaker pair
- 300 watts RMS per speaker
- Built-in coaxial horn tweeters
- External 12dB passive crossovers
- SounDigital XP 800.4 four-channel amplifier
- Up to 400 watts RMS × 2 bridged at 4Ω
- Up to 200 watts RMS × 4 at 2Ω
- NAV-TV ZEN-H A2B integration
- Cicada Audio OFC amplifier power wiring
- All-weather motorcycle speaker construction
Complete 2-Speaker Plug-and-Play System Overview
This Garage Bagger Stereo package combines a pair of Cicada Audio CHX65 pro coaxial horn speakers, a SounDigital XP 800.4 amplifier, NAV-TV ZEN-H factory signal integration and an amplifier power kit into one late-model Harley-Davidson audio system.
Each CHX65 combines a Carbon Matrix Composite mid-bass cone with an aluminum-diaphragm horn tweeter. The supplied external crossover divides the signal between the mid-bass and tweeter sections while optional resistor packs allow the tweeter output to be reduced when required.
The product is offered with either 2-ohm or 4-ohm speakers. The correct option depends on whether the system will remain a high-output two-speaker configuration or be expanded into a four-speaker system.
Harley-Davidson Fitment
2023.5+ Harley CVO
Intended for compatible late-production CVO motorcycles using the Skyline infotainment and factory A2B audio platform.
2024+ Road Glide
Supports compatible redesigned Road Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements.
2024+ Street Glide
Supports compatible redesigned Street Glide motorcycles after confirming factory radio, amplifier, speaker clearance and mounting requirements.
Choose the Correct Speaker Impedance
4Ω CHX65.4 Configuration
The two 4-ohm speakers are designed to use the SounDigital amplifier’s bridged channel pairs. One speaker connects to channels 1/2 and the other connects to channels 3/4.
- Two CHX65.4 speakers
- 4Ω nominal impedance per speaker
- 300W RMS per speaker
- Up to 400W RMS available per bridged channel pair
- All four amplifier channels are used
- Best for a dedicated high-output two-speaker system
2Ω CHX65.2 Configuration
Each 2-ohm speaker connects to its own amplifier channel. Two amplifier channels remain available for a compatible future rear-speaker pair.
- Two CHX65.2 speakers
- 2Ω nominal impedance per speaker
- 300W RMS per speaker
- Up to 200W RMS available per active channel
- Two amplifier channels remain available
- Best for planned four-speaker expansion
Everything Included in the Audio System
Cicada CHX65 Speaker Pair
One matched pair of 6.5-inch pro coaxial horn speakers in the selected 2-ohm or 4-ohm configuration.
External Passive Crossovers
Two custom 12dB vented crossover networks divide the amplifier output between each mid-bass cone and horn tweeter.
Tweeter Attenuation Resistors
Optional -3dB and -6dB resistor packs allow the high-frequency output to be reduced when required by the installation or tuning.
SounDigital XP 800.4 Amplifier
One compact full-range four-channel Class-D amplifier capable of stereo or bridged operation.
NAV-TV ZEN-H A2B Interface
Factory A2B interface supplying eight channels of analog RCA output for aftermarket amplifier integration.

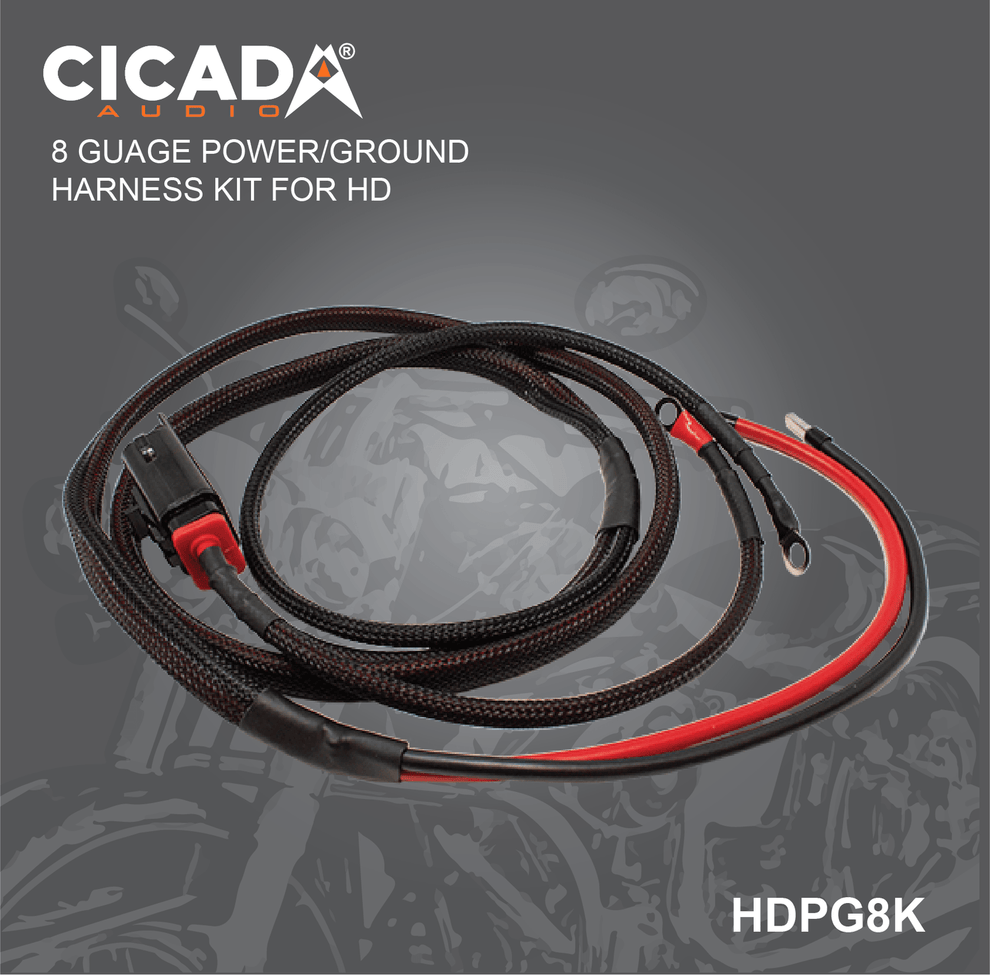

Cicada Audio OFC Power Kit
Amplifier power and ground wiring with battery-side terminals, amplifier-side termination and fuse protection.

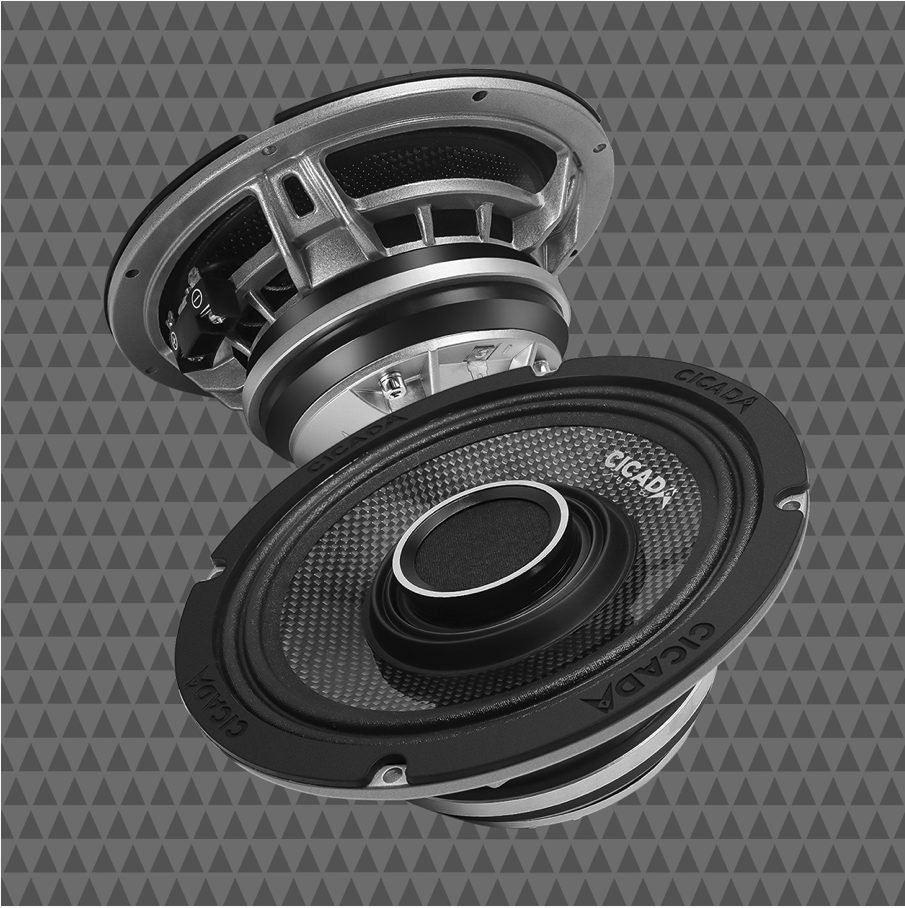

Cicada Audio CHX65 Pro Coaxial Horn Speakers
The CHX65 is designed for riders who need strong vocal projection, detailed high-frequency output and an all-weather speaker construction suitable for open-air motorcycle use.
300W RMS
Each speaker is rated for 300 watts RMS and 600 watts maximum.
Coaxial Horn Design
A high-output mid-bass cone and horn tweeter share one compact basket.
All-Weather Construction
Waterproofing and UV protection support motorcycle installations.
Carbon Matrix Cone
The lightweight, rigid cone is engineered for efficient projection.
Neodymium Motor
The compact N35SH motor reduces weight while maintaining output.
External Crossover
The supplied 12dB network protects and filters the horn tweeter.

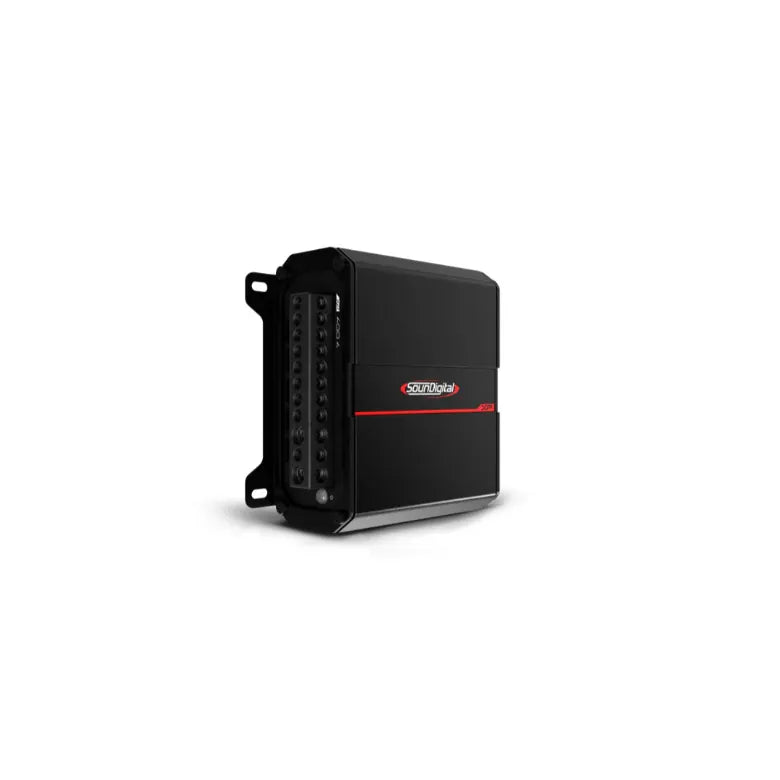

SounDigital XP 800.4 Four-Channel Amplifier
The SounDigital XP 800.4 is a compact full-range Class-D amplifier that can operate four stereo channels or two bridged channel pairs. Its flexible layout supports both CHX65 impedance options.
132W × 4 at 4Ω
Four-channel output for compatible 4-ohm stereo applications.
200W × 4 at 2Ω
Ideal for the 2-ohm speaker option and planned four-speaker systems.
400W × 2 Bridged
High-output bridged configuration for the 4-ohm speaker option.
Full-Range Operation
Supports the frequency range required by coaxial horn speakers.
Variable Crossovers
Adjustable high-pass and low-pass filtering from 45Hz to 850Hz.
Compact Installation
The small chassis supports space-conscious motorcycle installations.
NAV-TV ZEN-H Factory A2B Integration
The NAV-TV ZEN-H converts the compatible factory Harley-Davidson A2B signal into analog RCA outputs for the SounDigital amplifier while retaining supported factory audio controls.
Eight RCA Outputs
Provides eight channels of low-level analog audio output.
Up to 5V RMS
Supplies a strong preamplifier signal for compatible equipment.
Factory Control Retention
Retains supported volume, fader, balance, chimes and EQ presets.
Power Wiring and Electrical Requirements
The original bundle lists a Cicada Audio OFC 8-gauge power kit. The power and ground wiring must be installed with secure terminals, short protected routing and the correct fuse near the battery.
- Disconnect the motorcycle battery before installation.
- Mount the fuse holder close to the positive battery connection.
- Use a clean, secure power and ground connection.
- Protect wiring from heat, steering movement and sharp edges.
- Confirm the final fuse value before powering the amplifier.
- Verify cable size against the amplifier, cable length and installation.
- Inspect battery and charging-system condition before high-output use.
Installation Instructions and Resources
Speaker and Crossover Setup
Fairing and A2B Installation
Professional Installation
Complete System Specifications
Fitment and Ordering Notes
- Select the 2Ω or 4Ω speaker option before adding the kit to the cart.
- The package includes two front fairing speakers.
- The 4Ω version uses both bridged amplifier channel pairs.
- The 2Ω version uses two individual amplifier channels.
- The 2Ω configuration leaves two channels available for expansion.
- The external passive crossovers must be installed and protected.
- The NAV-TV ZEN-H supplies factory A2B signal integration.
- The system does not include built-in DSP.
- Confirm speaker depth, grille clearance and fairing fitment.
- Confirm amplifier mounting hardware before installation.
- Correct gain and high-pass crossover setup are required.
- Professional installation and tuning are recommended.
Related Motorcycle Audio Categories
Late-Model Harley Audio
Amplifier and Signal Support
Cicada and SounDigital 2-Speaker System FAQ
How many speakers are included?
The system includes one pair of Cicada CHX65 6.5-inch pro coaxial horn speakers.
Can I choose 2-ohm or 4-ohm speakers?
Yes. The product includes separate CHX65.2 and CHX65.4 Shopify variants.
Which option is best for a two-speaker system?
The 4-ohm version can use the amplifier’s two bridged channel pairs for a dedicated high-output two-speaker configuration.
Which option is best when adding rear speakers later?
The 2-ohm version uses one amplifier channel per front speaker and leaves two channels available for a compatible rear-speaker pair.
How much power do the CHX65 speakers handle?
Each CHX65.2 or CHX65.4 is rated for 300 watts RMS and 600 watts maximum.
How much power does the amplifier produce?
The XP 800.4 produces 132 watts RMS × 4 at 4 ohms, 200 watts RMS × 4 at 2 ohms or 400 watts RMS × 2 bridged at 4 ohms.
Are crossovers included?
Yes. Each speaker uses an external 12dB crossover with optional tweeter-attenuation resistor packs.
Does the system include factory A2B integration?
Yes. The package includes the standard NAV-TV ZEN-H A2B interface.
Does the ZEN-H include DSP?
No. The standard ZEN-H converts the factory A2B signal to analog RCA output but does not include the DSP functions found in the ZEN-H PRO.
Is the power kit included?
Yes. The original bundle lists a Cicada Audio OFC 8-gauge amplifier power and ground kit.
Are rear speakers included?
No. This is a two-speaker system. Rear speakers, mounting components and rear-speaker wiring must be purchased separately.
Are the speakers weather resistant?
Yes. Cicada describes the CHX65 series as an all-weather design with waterproofing and UV protection.
Is professional installation recommended?
Yes. The system requires A2B integration, amplifier power wiring, secure crossover placement, correct impedance configuration and measured gain and crossover setup.
Need Help Matching This Harley Audio System?
Garage Bagger Stereo can help verify motorcycle fitment, 2-ohm or 4-ohm impedance selection, amplifier matching, speaker and amplifier mounting, power and speaker wiring, crossover placement and factory A2B signal integration before installation.
