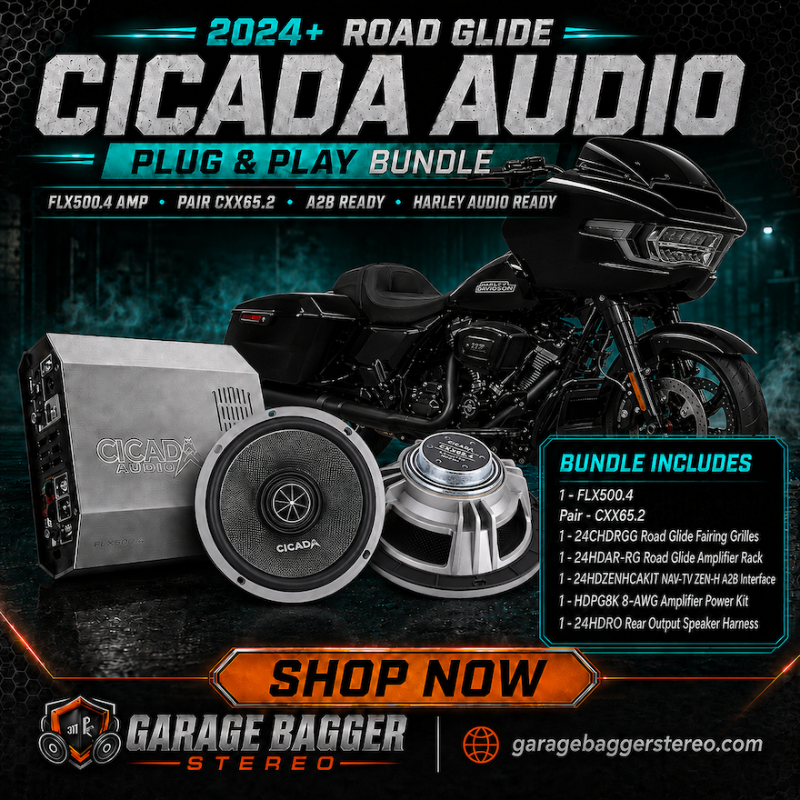

Cicada Audio 24FLXCXX-4X2RG 500W 2-Speaker Audio System
The Cicada Audio 24FLXCXX-4X2RG is a complete front-fairing audio package for compatible 2024 and newer Harley-Davidson Road Glide motorcycles. It combines a compact four-channel amplifier, two high-efficiency 2-ohm Pro Coaxial speakers, factory A2B radio integration and Road Glide-specific installation components.
The supplied system uses two amplifier channels for the front speaker pair. Two additional channels and the included rear-output harness remain available for a properly matched future rear-speaker upgrade.
Front Audio with Rear Expansion Support
- Designed for compatible 2024+ Road Glide motorcycles
- FLX500.4 compact four-channel Class-D amplifier
- 125 watts RMS × 4 channels at 2Ω
- Two CXX65.2 6.5-inch Pro Coaxial speakers
- Both included speakers are 2Ω
- Road Glide fairing grilles included
- NAV-TV ZEN-H A2B factory-radio integration
- Road Glide amplifier rack included
- 8-AWG amplifier power kit included
- Rear-output harness included for future expansion
24FLXCXX-4X2RG Complete System Overview
This Cicada Audio package upgrades the two factory Road Glide fairing speaker locations while installing the amplifier, power wiring, A2B interface and vehicle-specific mounting hardware needed for a complete front audio system.
One pair of CXX65.2 6.5-inch Pro Coaxial speakers installs behind the included Cicada-branded Road Glide fairing grilles. Each speaker has a nominal impedance of 2 ohms and connects to its own amplifier channel.
The FLX500.4 provides four amplified channels. The supplied system uses two channels for the front speakers, while the 24HDRO harness supports future expansion to compatible rear speakers.
Standard Non-DSP System Configuration
FLX500.4 Power Amplifier
This package uses the standard FLX500.4 four-channel Class-D amplifier. It delivers compact, efficient power but does not contain an integrated digital signal processor.
NAV-TV ZEN-H A2B Integration
The included interface kit converts the compatible factory A2B audio signal and connects it to the Cicada amplifier through purpose-built locking harness connections.
Speaker Impedance and Amplifier Channel Load
Front Left: 2Ω
One CXX65.2 speaker connects to the assigned left-front amplifier channel and presents a nominal 2-ohm load.
Front Right: 2Ω
The second CXX65.2 speaker connects to the assigned right-front amplifier channel and presents a nominal 2-ohm load.
Rear Channels: Available
No rear speakers are included. The remaining two amplifier channels can power a properly matched future rear-speaker system.
Everything Included in the Complete System
FLX500.4 — Four-Channel Amplifier
One compact Class-D amplifier rated for 125 watts RMS Ă— 4 channels at 2 ohms, 95 watts RMS Ă— 4 at 4 ohms or 250 watts RMS Ă— 2 bridged at 4 ohms.
CXX65.2 — 6.5" Pro Coaxial Speakers
One pair of 2-ohm CXX65.2 speakers for the Road Glide fairing. Each speaker is rated for 100 watts RMS and uses a Kevlar cone, PEI dome tweeter and built-in 6dB crossover.
24CHDRGG — Road Glide Fairing Grilles
One pair of Cicada Audio-branded powder-coated steel grilles designed for compatible 2024 and newer Harley-Davidson Road Glide fairings.
24HDAR-RG — Road Glide Amplifier Rack
Black-anodized aluminum amplifier rack that uses compatible OEM mounting locations and includes predrilled FLX amplifier mounting points and installation hardware.
HDPG8K — 8-AWG Amplifier Power Kit
Includes six-foot power and ground cables, braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder.
24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface
NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned locking Molex connections.
24HDRO — Rear Output Speaker Harness
Plug-and-play rear-output harness with factory-style connectors, short extensions and longer speaker-wire leads for future rear-speaker installation.
FLX500.4 Amplifier Power
125W × 4 at 2Ω
The amplifier produces up to 125 watts RMS on each of its four channels when operating at 2 ohms and 14.4 volts.
95W × 4 at 4Ω
It also supports four-channel operation with compatible 4-ohm speakers when the system is designed around that channel load.
250W Ă— 2 Bridged
The published bridged configuration is 250 watts RMS Ă— 2 into compatible 4-ohm loads.
Wide Input Range
The 0.2V–12V gain range supports compatible factory interfaces, aftermarket radios, processors and high-output preamplifiers.
Flexible Crossovers
Selectable LPF, FULL and HPF modes provide 20Hz–20kHz adjustment with selectable 6, 12, 24 or 48dB-per-octave slopes.
Compact Motorcycle Chassis
The compact aluminum chassis installs on the included Road Glide amplifier rack without consuming unnecessary fairing space.
FLX500.4 Amplifier Specifications
CXX65.2 Road Glide Fairing Speakers
Road Glide-Specific Hardware
24CHDRGG Fairing Grilles
The included powder-coated steel grilles are shaped for compatible 2024 and newer Road Glide fairings and feature Cicada Audio-branded emblems.
24HDAR-RG Amplifier Rack
The black-anodized aluminum rack uses compatible OEM amplifier mounting locations and includes predrilled holes for FLX-style amplifiers.
Factory A2B Radio Integration
The NAV-TV ZEN-H interface extracts the compatible factory digital A2B audio signal. The included Cicada harness routes that signal directly into the FLX500.4 through correctly pinned locking connections.
- Designed for compatible 2024+ Harley-Davidson A2B systems
- No cutting or splicing of the factory signal harness
- Positive-locking automotive-grade connections
- Direct integration with compatible Cicada Audio amplifiers
- Compact routing inside the Road Glide fairing
- Standard non-DSP system configuration
Rear-Speaker-Ready System Design
The FLX500.4 provides four amplifier channels, but the supplied package includes only two front fairing speakers. The included 24HDRO harness prepares the system for compatible rear speakers without replacing the original amplifier or rebuilding the factory-radio interface.
Included for Expansion
- Two additional amplifier channels
- 24HDRO rear-output harness
- Factory-style harness connections
- Extended speaker-wire leads for rear routing
Not Included
- Rear saddlebag speakers
- Saddlebag speaker adapters
- Cut-in speaker-lid hardware
- Rear speaker grilles or pods
Power Wiring and Fuse Selection
Included HDPG8K Power Kit
The supplied kit includes six-foot 8-AWG power and ground cables, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder.
Amplifier Fuse Specification
Cicada’s current FLX500.4 specification recommends a 50-amp fuse for the amplifier.
Complete System Specifications
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Road Glide motorcycles.
- The package includes two 2-ohm front speakers.
- No selectable speaker-impedance variants are required.
- Two amplifier channels power the included front speaker pair.
- The remaining two channels are available for future expansion.
- The rear-output harness is included.
- Rear speakers and saddlebag mounting components are not included.
- No saddlebag cutting is required for the supplied front-only system.
- Future rear installation requirements depend on the selected mounting system.
- The amplifier does not include built-in DSP.
- Professional installation and system setup are recommended.
Best For
- Compatible 2024+ Road Glide front-speaker upgrades
- Riders starting with a two-speaker amplified system
- Factory A2B radios requiring aftermarket amplifier integration
- Efficient 2-ohm Pro Coaxial motorcycle speakers
- Systems using a compact standard four-channel amplifier
- Riders planning to add compatible rear speakers later
- Professional Road Glide audio installations
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Audio
System Support
Cicada 24FLXCXX-4X2RG FAQ
What impedance are the included speakers?
Both included CXX65.2 speakers have a nominal impedance of 2 ohms.
How many speakers are included?
The system includes two 6.5-inch CXX65.2 Pro Coaxial speakers for the Road Glide fairing.
What load does the amplifier see?
Each included speaker connects to its own amplifier channel, so each loaded front channel operates at a nominal 2-ohm load.
Are all four amplifier channels used?
No. The supplied system uses two channels for the front speakers. The remaining two channels are available for a compatible rear-speaker upgrade.
How much power does the amplifier produce?
The FLX500.4 produces 125 watts RMS Ă— 4 at 2 ohms, 95 watts RMS Ă— 4 at 4 ohms or 250 watts RMS Ă— 2 bridged at 4 ohms.
How much power can the included speakers handle?
Each CXX65.2 speaker is rated for 100 watts RMS and 200 watts maximum. Amplifier gain must be set correctly to protect the speakers.
Does the amplifier include a DSP?
No. The FLX500.4 is a standard four-channel amplifier without an integrated digital signal processor.
Does the system integrate with the factory A2B radio?
Yes. The package includes the NAV-TV ZEN-H A2B interface and Cicada Audio direct-connect amplifier harness.
Are Road Glide fairing grilles included?
Yes. The package includes the Cicada Audio 24CHDRGG powder-coated steel fairing grille pair.
Is the amplifier rack included?
Yes. The package includes the 24HDAR-RG Road Glide amplifier rack and its mounting hardware.
Is rear-speaker wiring included?
Yes. The 24HDRO rear-output harness is included for a future rear-speaker upgrade.
Are rear speakers included?
No. Rear speakers and their saddlebag mounting components must be purchased separately.
Do the saddlebags need to be cut for this system?
No saddlebag modification is required for the supplied front-only system. A future rear-speaker installation may require cutting or other modification depending on the selected mounting solution.
What fuse should be used?
Cicada’s current FLX500.4 specifications recommend a 50-amp fuse, but the included HDPG8K kit is listed with larger fuse values. Verify the correct final fuse with current Cicada guidance before installation.
Need Help Planning Your Road Glide System?
Garage Bagger Stereo can help verify Road Glide fitment, speaker impedance selection, amplifier matching, mounting clearance, power and speaker wiring, crossover setup and factory A2B signal integration before installation.
