Cicada Audio 24FLXCHX-4X4RG 1400W 4-Speaker System for 2024+ Road Glide
PRODUCT INFORMATION
Cicada Audio 24FLXCHX-4X4RG 1400W 4-Speaker System for 2024+ Road Glide
$4,049.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24FLXCHX-4X4RG 1400W 4-Speaker System for 2024+ Road Glide
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews

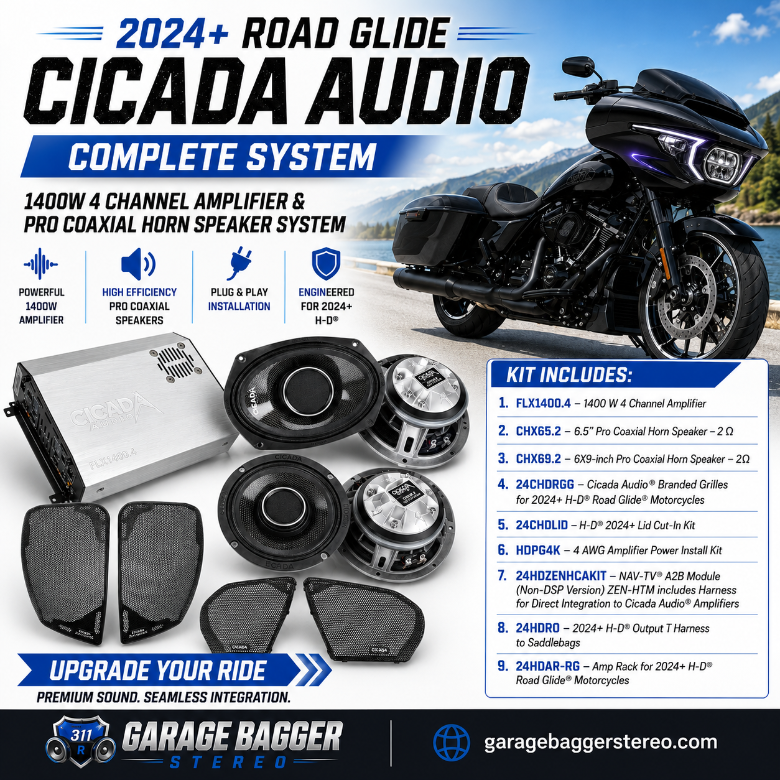

Cicada Audio 24FLXCHX-4X4RG 1400W 4-Speaker Audio System
The Cicada Audio 24FLXCHX-4X4RG is a complete front-and-rear audio system for compatible 2024 and newer Harley-Davidson Road Glide motorcycles. It combines a high-output four-channel amplifier, four 2-ohm Pro Coaxial Horn speakers, A2B factory-radio integration, Road Glide-specific mounting components and the wiring required to connect the system.
Complete Front and Rear Upgrade
- Designed for compatible 2024+ Road Glide motorcycles
- FLX1400.4 four-channel Class-D amplifier
- 350 watts RMS × 4 channels at 2Ω and 14.4 volts
- Standard amplifier without built-in DSP
- Four 2Ω Pro Coaxial Horn speakers
- Two 6.5-inch fairing speakers
- Two 6Ă—9-inch saddlebag speakers
- NAV-TV ZEN-H A2B factory-radio integration
- Road Glide amplifier rack and wiring included
- 6Ă—9 saddlebag lid cut-in mounting system
24FLXCHX-4X4RG Complete System Overview
This manufacturer-matched Cicada Audio package combines the amplifier, speakers, factory-radio interface, power wiring, speaker wiring and Road Glide-specific mounting components needed for a four-channel motorcycle audio upgrade.
Two CHX65.2 6.5-inch Pro Coaxial Horn speakers install in the Road Glide fairing. Two CHX69.2 6Ă—9-inch Pro Coaxial Horn speakers install in the factory saddlebag lids using the included 24CHDLID cut-in mounting system.
All four speakers are 2-ohm models. Each speaker connects to an individual channel of the FLX1400.4 amplifier, creating a 2-ohm nominal load on each of the amplifier’s four channels.
Standard Non-DSP Amplifier Configuration
FLX1400.4 Power Amplifier
This package includes the standard Cicada Audio FLX1400.4 four-channel amplifier. It provides high-output Class-D power but does not contain an integrated digital signal processor.
NAV-TV ZEN-H A2B Integration
The included NAV-TV ZEN-H interface and Cicada Audio harness extract the factory A2B audio signal and provide direct-connect amplifier integration without cutting the factory signal harness.
Speaker Impedance and Amplifier Channel Load
Front Fairing: 2Ω
The package includes one pair of CHX65.2 6.5-inch Pro Coaxial Horn speakers. Each front speaker has a nominal impedance of 2 ohms.
Rear Saddlebags: 2Ω
The package includes one pair of CHX69.2 6Ă—9-inch Pro Coaxial Horn speakers. Each rear speaker has a nominal impedance of 2 ohms.
Amplifier Load: 2Ω × 4
One speaker is connected to each amplifier channel, presenting a 2-ohm nominal load to each of the four channels.
Everything Included in the Complete System
FLX1400.4 — 1400W Four-Channel Amplifier
One compact Class-D amplifier rated for up to 350 watts RMS Ă— 4 channels at 2 ohms and 14.4 volts. This is the standard FLX1400.4 model without built-in DSP.
CHX65.2 — 6.5" Pro Coaxial Horn Speakers
One pair of 2-ohm CHX65.2 speakers for the Road Glide fairing. Each speaker is rated for 300 watts RMS and includes an external 12dB crossover with optional tweeter attenuation.
CHX69.2 — 6×9" Pro Coaxial Horn Speakers
One pair of 2-ohm CHX69.2 speakers for the rear saddlebag lids. Each speaker is rated for 400 watts RMS and includes an external 12dB crossover with optional tweeter attenuation.
24CHDRGG — Road Glide Fairing Grilles
One pair of Cicada Audio branded, powder-coated steel fairing grilles engineered for compatible 2024 and newer Road Glide models.
24CHDLID — 6×9" Saddlebag Lid Cut-In Kit
A complete left-and-right saddlebag lid mounting system with angled top-load baffles, powder-coated steel grilles, gasketed clamping rings and precision cutout templates.
HDPG4K — 4-AWG Amplifier Installation Kit
Includes six-foot 4-AWG power and ground cables, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and multiple fuse values.
24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface Kit
NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect harness and correctly pinned Molex connections for compatible Cicada amplifiers.
24HDRO — Rear Output Speaker Harness
Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for routing amplifier output to the saddlebags.
24HDAR-RG — Road Glide Amplifier Rack
Black-anodized aluminum amplifier rack that uses compatible Road Glide OEM amplifier mounting locations. Predrilled FLX amplifier mounting positions and installation hardware are included.
FLX1400.4 Amplifier Power
350W × 4 at 2Ω
At 14.4 volts, the amplifier produces up to 350 watts RMS on each of its four channels into the included 2-ohm speakers.
225W × 4 at 4Ω
The amplifier also supports four-channel 4-ohm operation, although this complete system includes 2-ohm speakers.
700W × 2 Bridged at 4Ω
The amplifier supports bridged operation with compatible 4-ohm loads, but this complete package uses four-channel stereo operation.
Wide Input Range
A 0.2V–12V input sensitivity range supports compatible factory-radio interfaces and aftermarket signal sources.
Built-In Crossovers
Selectable low-pass, full-range and high-pass modes provide 30Hz–300Hz adjustment with a 12dB-per-octave slope.
Compact FLX Chassis
The compact aluminum chassis installs on the included Road Glide rack for a secure, vehicle-specific fairing installation.
FLX1400.4 Amplifier Specifications
CHX65.2 Front Fairing Speakers
CHX69.2 Rear Saddlebag Speakers
24CHDLID Saddlebag Lid System
The included 24CHDLID is a complete cut-in system designed to convert compatible factory saddlebag lids into reinforced, rider-focused 6Ă—9-inch speaker locations.
- Left and right angled top-load 6Ă—9-inch speaker baffles
- Heavy-duty powder-coated steel speaker grilles
- Secure clamping rings with waterproof gaskets
- High-strength ASA molded construction
- ABS molded saddlebag lid cutout templates
- Heavy-duty replacement lid gasket seals
- Rainproof lid covers
- Cicada lid tethers with crossover-storage pouches
- Die-cut speaker gasketing
Plug-and-Play A2B Integration
The included NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The Cicada direct-connect harness routes that signal into the FLX1400.4 amplifier through correctly pinned locking connectors.
- Designed for compatible 2024+ Harley-Davidson A2B systems
- No cutting or splicing of the factory signal harness
- Correctly pinned Molex amplifier connections
- OEM-grade positive-locking connectors
- Compact routing inside the Road Glide fairing
- Automotive-grade construction for motorcycle use
Road Glide-Specific Amplifier Mounting
The included 24HDAR-RG amplifier rack is designed around compatible OEM amplifier mounting locations inside the 2024 and newer Road Glide fairing.
- Road Glide-specific amplifier mounting platform
- Uses compatible OEM amplifier mounting locations
- Black-anodized aluminum construction
- Predrilled holes for Cicada FLX-style amplifiers
- Amplifier-rack mounting hardware included
- Supports a clean and secure fairing installation
Plug-and-Play Versus Cut-In Installation
Direct-Fit Components
The A2B interface harness, amplifier input connection, rear-output harness and Road Glide amplifier rack use vehicle-specific connectors and mounting points to reduce custom wiring and fabrication.
Cut-In Components
The rear CHX69.2 speaker installation requires permanent cutting of both factory saddlebag lids using the templates and baffles supplied with the 24CHDLID system.
Complete System Specifications
Electrical and Fuse Requirements
- Use the included HDPG4K 4-AWG power and ground wiring.
- Install the correctly rated main fuse close to the battery connection.
- Do not substitute a larger fuse than the wiring and system can safely support.
- Use clean, secure and properly prepared power and ground connections.
- Confirm the motorcycle battery is in good operating condition.
- Evaluate charging-system capacity before extended high-output use.
- Protect all wiring from heat, sharp edges and moving components.
- Secure the amplifier and wiring against motorcycle vibration.
- Professional electrical installation is strongly recommended.
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Road Glide motorcycles.
- The package includes four 2-ohm speakers.
- The package does not include selectable 4-ohm speaker variants.
- The amplifier uses one speaker on each of its four channels.
- The FLX1400.4 amplifier does not include built-in DSP.
- The A2B interface supports direct factory-radio signal integration.
- The rear-output harness routes amplifier output to the saddlebags.
- The factory saddlebag lids require permanent cutting.
- Amplifier gain and crossover setup are required.
- Professional installation is strongly recommended.
Best For
- Compatible 2024+ Road Glide audio upgrades
- Four-speaker front-and-rear motorcycle audio systems
- Factory A2B radio systems requiring aftermarket integration
- High-output 2-ohm Pro Coaxial Horn speaker systems
- Riders adding 6Ă—9-inch speakers to factory saddlebag lids
- Systems using a standard four-channel amplifier without built-in DSP
- Professional Road Glide audio installations
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Audio
System Support
Cicada 24FLXCHX-4X4RG FAQ
What ohm speakers come with this system?
All four included speakers are 2-ohm models. The front pair is CHX65.2, and the rear saddlebag pair is CHX69.2.
What load does the amplifier see?
Each amplifier channel powers one 2-ohm speaker. The intended system configuration therefore presents a 2-ohm nominal load to each of the amplifier’s four channels.
How much power does the amplifier produce?
The FLX1400.4 produces up to 350 watts RMS Ă— 4 channels at 2 ohms and 14.4 volts.
Does this system include a DSP amplifier?
No. This package includes the standard FLX1400.4 power amplifier without built-in DSP.
How many speakers are included?
Four speakers are included: two CHX65.2 6.5-inch fairing speakers and two CHX69.2 6Ă—9-inch saddlebag speakers.
Does the system integrate with the factory A2B radio?
Yes. It includes a NAV-TV ZEN-H A2B interface and Cicada Audio direct-connect amplifier harness.
Are the Road Glide fairing grilles included?
Yes. The system includes a pair of powder-coated steel 24CHDRGG Cicada-branded Road Glide fairing grilles.
Does the system include rear-speaker wiring?
Yes. The 24HDRO plug-and-play rear-output harness is included for routing amplifier output to the saddlebag speakers.
Does the system include an amplifier rack?
Yes. The package includes the 24HDAR-RG black-anodized aluminum Road Glide amplifier rack and mounting hardware.
Do the factory saddlebag lids need to be cut?
Yes. The included 24CHDLID is a cut-in 6Ă—9-inch mounting system. Installation permanently modifies both factory saddlebag lids.
Is this completely plug-and-play?
The A2B interface, amplifier signal connections, rear-output harness and amplifier rack are vehicle-specific. The rear speaker installation still requires permanent cutting of the factory saddlebag lids.
What fuse should be used with the amplifier?
Cicada’s FLX1400.4 amplifier specifications list a recommended 120-amp fuse, while the included HDPG4K kit includes 60-, 80- and 100-amp fuses. Confirm the final fuse value with current Cicada Audio installation guidance before powering the system.
Does the system require setup or tuning?
Yes. Amplifier gains, high-pass filters and the external speaker crossovers must be configured correctly. Advanced equalization, time alignment and limiting require a separate compatible DSP.
Need Help Confirming Your Road Glide System?
Submit your Road Glide year, trim, factory audio package and current electrical setup so Garage Bagger Stereo can verify system fitment, installation requirements and the supporting components needed for your motorcycle.
