Cicada Audio 24FLXPCH-4X4SG 1400W DSP 4-Speaker System for 2024+ Street Glide
PRODUCT INFORMATION
Cicada Audio 24FLXPCH-4X4SG 1400W DSP 4-Speaker System for 2024+ Street Glide
$3,949.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24FLXPCH-4X4SG 1400W DSP 4-Speaker System for 2024+ Street Glide
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews

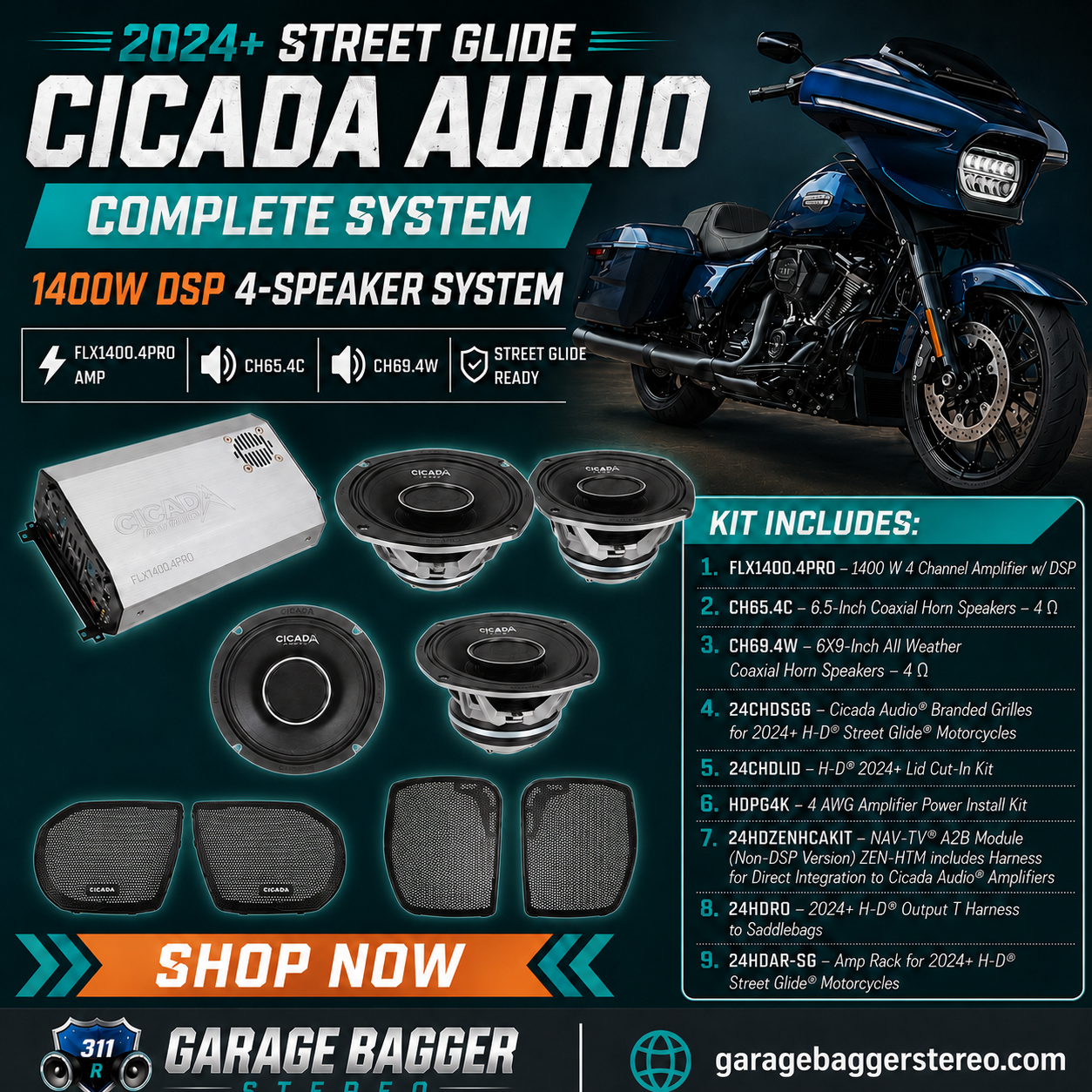

Cicada Audio 24FLXPCH-4X4SG 1400W DSP 4-Speaker System
Build a complete high-output audio system in a compatible 2024 and newer Harley-Davidson Street Glide with four Cicada Audio coaxial horn speakers, a powerful four-channel DSP amplifier and direct factory A2B radio integration.
The package powers two 6.5-inch fairing speakers and two 6×9-inch saddlebag speakers from four dedicated amplifier channels. It also includes the Street Glide grilles, amplifier rack, saddlebag lid cut-in system, power wiring and rear-output harness required for the complete installation.
Complete Four-Speaker System
- Designed for compatible 2024+ Street Glide motorcycles
- FLX1400.4PRO amplifier with six-channel DSP
- 225 watts RMS × 4 channels at 4 ohms
- Two CH65.4C 6.5-inch fairing speakers
- Two CH69.4W 6×9 saddlebag speakers
- All four included speakers are 4 ohms
- Street Glide fairing grilles included
- 2024+ saddlebag lid cut-in kit included
- NAV-TV ZEN-H A2B integration included
- 4-AWG amplifier power kit included
- Rear-output wiring harness included
- Street Glide amplifier rack included
24FLXPCH-4X4SG Complete System Overview
The Cicada Audio 24FLXPCH-4X4SG combines the main audio, integration, wiring and mounting components required to create a complete amplified four-speaker system in a compatible 2024 and newer Harley-Davidson Street Glide.
Two CH65.4C 6.5-inch coaxial horn speakers install in the front fairing. Two CH69.4W 6×9 coaxial horn speakers install in the factory saddlebag lids using the included 24CHDLID cut-in mounting system.
The FLX1400.4PRO powers all four speakers and provides the crossover, equalization, delay and output-control functions needed to tune the complete motorcycle audio system.
Four-Channel Speaker and Amplifier Configuration
Front Fairing Channels
Two CH65.4C 6.5-inch speakers power the Street Glide front soundstage. Each speaker presents a nominal 4-ohm load to its own FLX1400.4PRO amplifier channel.
Rear Saddlebag Channels
Two CH69.4W 6×9 speakers provide the rear soundstage. Each speaker presents a nominal 4-ohm load to its own amplifier channel.
Everything Included in the Complete System
FLX1400.4PRO DSP Amplifier
One four-channel Class-D amplifier with four amplified DSP channels, two DSP pass-through channels, Bluetooth audio streaming and USB-C computer tuning.
CH65.4C Fairing Speaker Pair
Two 4-ohm Larry Frederick Classic 6.5-inch coaxial horn speakers for the Street Glide front fairing.
CH69.4W Saddlebag Speaker Pair
Two 4-ohm 6×9-inch all-weather coaxial horn speakers for the rear saddlebag lid locations.
24CHDSGG Street Glide Grilles
Powder-coated steel front fairing grilles with Cicada Audio-branded emblems for compatible 2024+ Street Glide motorcycles.
24CHDLID Saddlebag Lid Kit
Complete 2024+ cut-in mounting system with top-load 6×9 baffles, steel grilles, clamping rings, templates, gasketing, tethers and rain covers.
HDPG4K 4-AWG Power Kit
Heavy-gauge power and ground wiring, remote trigger wiring, waterproof Mini-ANL fuse holder and multiple fuse values.
24HDZENHCAKIT A2B Interface
NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect harness and locking Molex connections.
24HDRO Rear-Output Harness
Plug-and-play rear-speaker harness with factory-style connectors, extensions and longer leads for routing audio to the saddlebags.
24HDAR-SG Amplifier Rack
Black-anodized aluminum amplifier rack designed for compatible OEM Street Glide mounting locations and Cicada FLX amplifiers.
FLX1400.4PRO Six-Channel DSP Amplifier
The FLX1400.4PRO combines a high-power four-channel Class-D amplifier with six channels of digital signal processing. Four DSP channels feed the internal amplifier, while two additional processed pass-through outputs can feed compatible future amplifiers.
225W × 4 at 4Ω
Supplies 225 watts RMS to each included 4-ohm coaxial horn speaker.
350W × 4 at 2Ω
Supports compatible future 2-ohm system configurations when the complete speaker and tuning design is changed accordingly.
700W × 2 Bridged at 4Ω
The amplifier can also operate as a two-channel bridged amplifier with compatible 4-ohm loads.
Six DSP Channels
Four amplified and two pass-through DSP channels support precise system control and future expansion.
Bluetooth Streaming
Built-in Bluetooth audio streaming provides a direct audio source for compatible tuning and testing applications.
USB-C Computer Tuning
USB-C connectivity supports PC-based DIALD DSP configuration and system tuning.
FLX1400.4PRO Amplifier Specifications
CH65.4C Front Fairing Speakers
The CH65.4C pair uses Cicada Audio’s Larry Frederick Classic coaxial horn design. Each speaker combines a 6.5-inch mid-bass driver, aluminum horn tweeter and external 12dB crossover.
CH69.4W Saddlebag Speakers
The CH69.4W pair provides high-output rear audio from the Street Glide saddlebag lids. Each speaker combines a water-resistant treated-paper cone, aluminum horn tweeter, external crossover and neodymium motor.
Built-In DSP and System Tuning
Front and Rear Crossovers
Configure independent filtering for the 6.5-inch front speakers and 6×9-inch rear speakers.
Equalization
Shape the system response around the Street Glide fairing, saddlebag locations and open-air riding environment.
Time Alignment
Correct arrival-time differences between the front and rear speaker locations for a more coherent soundstage.
Output Limiting
Control maximum clean output to protect the speakers from clipping, thermal stress and excessive mechanical excursion.
Tweeter-Level Control
Combine DSP adjustment with the external crossover attenuation options to balance upper-frequency projection.
Future Expansion
Two processed pass-through outputs can support a compatible additional amplifier for later system expansion.
NAV-TV A2B Signal Integration
The included 24HDZENHCAKIT uses the NAV-TV ZEN-H to extract the compatible factory Harley-Davidson A2B audio signal. Cicada’s direct-connect harness routes the signal into the FLX1400.4PRO through correctly pinned locking connectors.
- Compatible 2024+ Harley-Davidson A2B factory signal integration
- No cutting or splicing of the factory signal harness
- Correctly pinned Cicada amplifier connections
- Automotive-grade materials and locking connectors
- Compact routing inside the Street Glide fairing
- Stable signal delivery to the DSP amplifier
24CHDLID Saddlebag Lid Installation
The included 24CHDLID system converts compatible 2024 and newer factory Harley-Davidson saddlebag lids into top-load 6×9-inch speaker locations. The angled baffles direct the rear-speaker output toward the rider.
Top-Load Baffle System
The speaker installs from the top of the lid for easier service and improved support of full-depth 6×9 drivers.
Steel Speaker Grilles
Heavy-duty powder-coated steel mesh protects the rear speakers from contact and debris.
Waterproof Gasket System
A clamping ring and gasket system help seal the completed opening against water intrusion.
Precision Templates
Molded cutting templates support accurate placement of the permanent saddlebag lid openings.
Rain Covers
Rainproof lid covers provide additional speaker protection while the motorcycle is parked or being washed.
Crossover Pouches and Tethers
Included lid tethers and crossover-storage pouches support a secure, organized rear-speaker installation.
Street Glide Grilles and Amplifier Rack
24CHDSGG Fairing Grilles
Powder-coated steel grilles are engineered for compatible 2024+ Street Glide front speaker locations and include Cicada Audio logo emblems.
24HDAR-SG Amplifier Rack
The black-anodized aluminum rack uses compatible OEM amplifier mounting locations and predrilled holes for the FLX1400.4PRO.
Power Wiring and Fuse Protection
The HDPG4K includes six-foot 4-AWG power and ground cables with braided covering, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder.
Complete System Specifications
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Street Glide motorcycles.
- The package includes four 4-ohm speakers.
- All four amplifier channels are used in the supplied configuration.
- Each speaker is connected to its own amplifier channel.
- The FLX1400.4PRO supplies the system DSP processing.
- The included NAV-TV ZEN-H is the non-DSP A2B interface.
- The front fairing grilles are included.
- The rear saddlebag lid cut-in mounting system is included.
- Both factory saddlebag lids require permanent cutting.
- Rear speaker wiring is included.
- Professional installation and DSP tuning are strongly recommended.
Best For
- Compatible 2024+ Street Glide complete audio upgrades
- Riders wanting front fairing and saddlebag speakers
- Factory A2B radio systems requiring aftermarket integration
- Four-channel systems using matched 4-ohm speaker loads
- High-output coaxial horn motorcycle audio systems
- Systems requiring built-in DSP tuning and output control
- Professional Street Glide audio installations
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Audio
Amplifier and Signal Support
Cicada 24FLXPCH-4X4SG FAQ
How many speakers are included?
The system includes four speakers: two CH65.4C 6.5-inch fairing speakers and two CH69.4W 6×9 saddlebag speakers.
What impedance are the included speakers?
Every included speaker has a nominal impedance of 4 ohms.
Are these the 2-ohm CHX speakers?
No. The current official bundle specifies 4-ohm CH65.4C and CH69.4W coaxial horn speakers.
How much power does each speaker receive?
The FLX1400.4PRO supplies up to 225 watts RMS to each speaker channel at 4 ohms.
How much power can each speaker handle?
Each included speaker is rated for 250 watts RMS and 500 watts maximum.
Are all four amplifier channels used?
Yes. Two channels power the front speakers and two channels power the rear saddlebag speakers.
Are any DSP outputs available for expansion?
Yes. The amplifier provides two processed pass-through DSP outputs for a compatible future external amplifier.
Does the amplifier include DSP?
Yes. The FLX1400.4PRO contains six DSP channels: four amplified and two pass-through channels.
Does the NAV-TV interface include DSP?
No. The package uses the non-DSP ZEN-H interface for factory A2B signal integration. The Cicada amplifier performs the DSP processing.
Are Street Glide fairing grilles included?
Yes. Cicada 24CHDSGG powder-coated steel front grilles are included.
Are saddlebag speaker mounts included?
Yes. The complete 24CHDLID 6×9 saddlebag lid cut-in system is included.
Do the factory saddlebag lids need to be cut?
Yes. The included rear-speaker system requires permanent modification of both factory saddlebag lids.
Is rear-speaker wiring included?
Yes. The package includes the 24HDRO plug-and-play rear-output harness.
What fuse does the amplifier require?
Cicada publishes a 100-amp recommended fuse for the FLX1400.4PRO music-load specification. The included HDPG4K kit includes a 100-amp fuse.
Is the Street Glide amplifier rack included?
Yes. The package includes the 24HDAR-SG black-anodized aluminum amplifier rack and mounting hardware.
Is professional tuning recommended?
Yes. The front and rear speaker locations, external crossovers, amplifier output and high-power operating levels make professional DSP setup strongly recommended.
Need Help Planning Your Street Glide System?
Garage Bagger Stereo can help verify Street Glide fitment, speaker impedance selection, amplifier matching, fairing and saddlebag mounting, power and speaker wiring, and factory A2B signal integration before the system is installed.
