DS18 PRO-HY6.4B 6.5" Pro Coaxial Speaker
The PRO-HY6.4B squeezes a 1 in titanium compression driver into a 6.5 in water resistant paper cone, with a 6.85 in overall diameter. It is rated 225W RMS / 450W max at 4 ohm and 96dB, and DS18 recommends a 120Hz high-pass.
6.5 in hybrid mid with a 1 in titanium driver
Rated 225W RMS / 450W max at 4 ohm. It is large for many fairings and packs.
- 225W RMS / 450W max
- 96dB sensitivity, 4 ohm
- 100Hz-20kHz response
Key Product Details
| Brand | DS18 |
| Model | PRO-HY6.4B |
| Size | 6.5" hybrid mid-range |
| Sold as | Single |
| Impedance | 4 ohm |
| Built-in driver | 1" titanium compression driver |
Check depth and cutout before ordering.
Fitment
This speaker is large for many fairings and packs and is not an all-fit solution for motorcycles. Check depth and cutout first, or consider the slim HY6 MSL.
Crossover
DS18 recommends a 120Hz high-pass crossover.

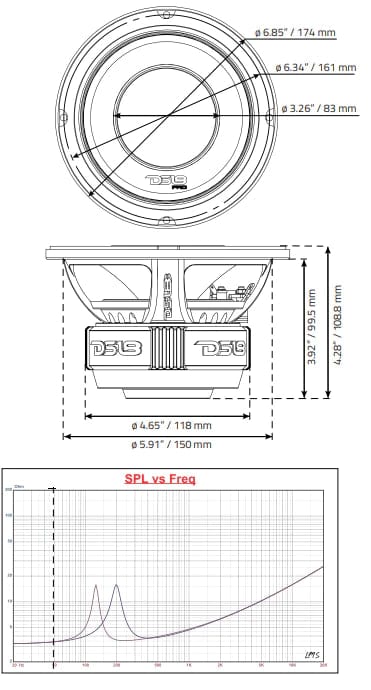

Specifications
| Power handling | 225W RMS / 450W max |
| Nominal impedance | 4 ohm |
| Sensitivity | 96dB (1W/1m) |
| Frequency response | 100Hz-20kHz |
| Recommended high-pass | 120Hz |
| Voice coil | 1.5" (38.6mm) |
| Cone / surround | Water resistant paper cone, cloth surround |
| Overall diameter | 6.85" (174mm) |
| Front mount cutout | 5.91" (150mm) |
| Mounting depth | 3.92" (99.5mm) |
| Overall depth | 4.28" (108.8mm) |
Related Paths
DS18 PRO-HY6.4B FAQ
What size is the PRO-HY6.4B?
It is a 6.5" hybrid mid-range loudspeaker with a built-in 1" titanium compression driver, sold as a single.
What are the power ratings?
225W RMS and 450W max at 4 ohm.
What are the cutout and depth?
Front mount cutout is 5.91" (150mm) and mounting depth is 3.92" (99.5mm).
Is it an all-fit speaker?
No. It is large for many fairings and packs, so check depth and cutout first.
What high-pass crossover is recommended?
120Hz.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
Similar Products
DS18 PRO-HY6.4B Specs
A 6.5 inch hybrid midrange with a built-in 1 inch titanium compression driver, so one speaker covers mids and highs. DS18 specs:
- 225 W RMS, 450 W max, 4 ohm.
- 96 dB (1 W/1 m), 100 Hz-20 kHz.
- Recommended high-pass at 120 Hz.
- Mounting depth 3.92 in. Front-mount cutout 5.91 in.
Fitting a PRO-HY6.4B
Sold as a single, grille included. At 3.92 in deep with a 4.65 in motor, measure your fairing, lid or pod before you order, and keep the high-pass at 120 Hz or above.
See more 6.5 inch pro coaxial speakers and DS18 motorcycle audio, or start a custom build.
More DS18 PRO-HY6.4B 6.5" Pro Coaxial Speaker Questions
Is the DS18 PRO-HY6.4B sold as a pair?
No. It is sold as a single speaker, so order two for a pair.
What crossover should I use on the PRO-HY6.4B?
DS18 recommends a high-pass crossover at 120 Hz.
What is the mounting depth of the PRO-HY6.4B?
3.92 inches, with a 5.91 inch front-mount cutout.
