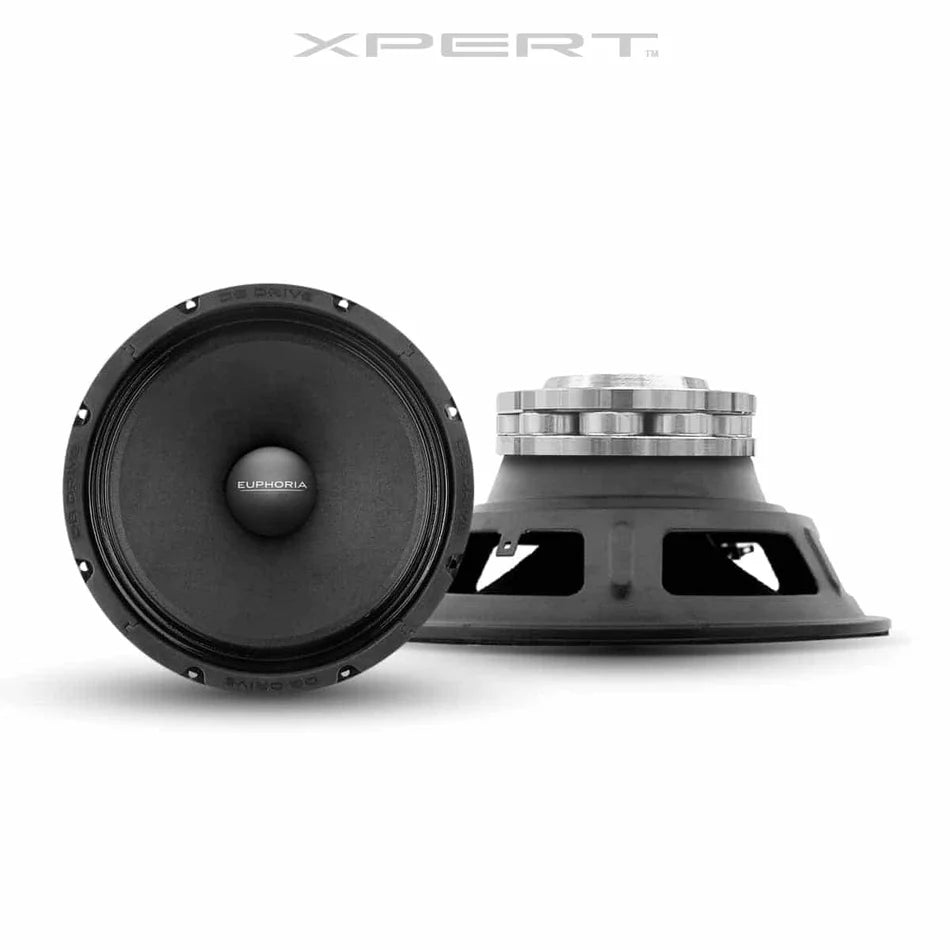

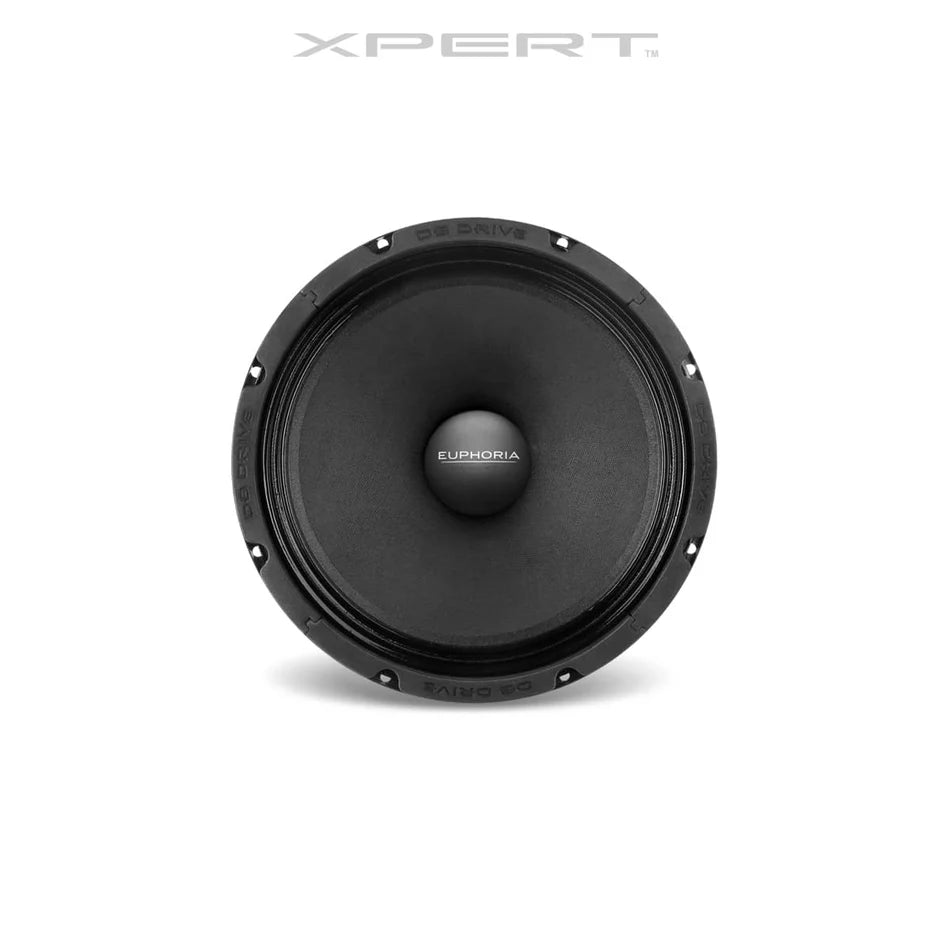

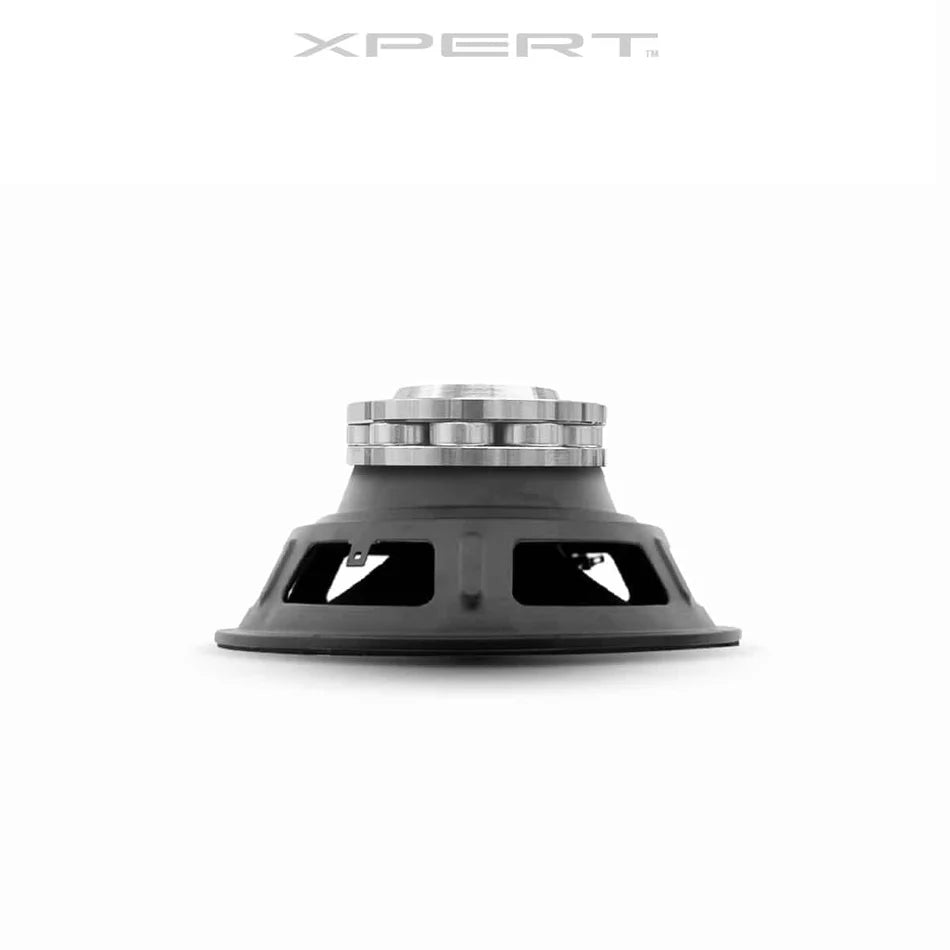

DB Drive XPERT EXM10SN 10" Midrange - Stamped Frame
The DB Drive XPERT EXM10SN is the stamped-frame version of the XPERT 10" midrange line, built on a heavy-gauge stamped steel basket with a 12-piece radially equalized neodymium assembly. It is rated 101.8dB at 4 ohm with a 49.4Hz resonant frequency.
Stamped steel basket, 12-piece neodymium magnet, 49.4Hz resonance
Choose this version for the heavy-gauge stamped steel basket. Mounting rings are needed to install this 10" driver, so check them against your lid or bag.
- 400W power handling, 800W dynamic
- 101.8dB sensitivity, 4 ohm
- 2.5" (63.5mm) voice coil
Key Product Details
| Brand | DB Drive |
| Model | EXM10SN |
| Size | 10" midrange |
| Magnet | 12-piece radially equalized neodymium assembly |
| Basket | heavy-gauge stamped steel |
| Nominal impedance | 4 ohm |
The EXM10SN pairs a heavy-gauge stamped steel basket with a 12-piece neodymium assembly and needs mounting rings to install. If you would rather have the die-cast aluminum basket with radial venting, see the DB Drive XPERT EXM10N.
Fitment and mounting rings
The EXM10SN is built on a heavy-gauge stamped steel basket with a 12-piece radially equalized neodymium assembly, driving a 2.5" (63.5mm) voice coil. 10-inch speakers always need mounting rings, and this one is no exception. Browse the Nagy's Customs adapter rings, including the Nagy's Customs 10" 98-23 Harley subwoofer and midbass adapter rings, the Nagy's Customs Monster Mega 10" 98-23 adapter rings and the Nagy's Customs 10" rear adapter rings 14-23, and check them against your lid or bag before ordering. If you are not sure which ring suits your bike, start a build consultation and we will help confirm it.
Planning the system around this midrange
This driver is rated 400W with 800W dynamic handling and 101.8dB sensitivity at 4 ohm. Pair it with an amplifier channel that suits those ratings, and add a tweeter such as the DB Drive horn and bullet tweeters for high-frequency output.
Specifications
| Voice coil | 2.5" (63.5mm) |
| Magnet | 12-piece radially equalized neodymium assembly |
| Cone / surround | IP52 rated paper cone, treated cloth surround |
| Basket | heavy-gauge stamped steel |
| Power handling | 400W, dynamic 800W |
| Sensitivity | 101.8dB (1W/1m) |
| Nominal impedance | 4 ohm |
| Resonant frequency | 49.4Hz |
| DC resistance | 3.2 ohm |
Related Paths
DB Drive EXM10SN FAQ
What size is the DB Drive EXM10SN?
It is a 10" midrange with a 2.5" (63.5mm) voice coil.
What are the power and impedance ratings?
Power handling is 400W with 800W dynamic, at 4 ohm nominal impedance.
Do I need mounting rings?
Yes. 10-inch speakers always need mounting rings, and the EXM10SN is a 10" midrange with a heavy-gauge stamped steel basket and a 12-piece radially equalized neodymium assembly. Check the rings against your lid or bag before ordering.
What is the resonant frequency?
The resonant frequency is 49.4Hz and DC resistance is 3.2 ohm.
What is the basket made of?
Heavy-gauge stamped steel.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
