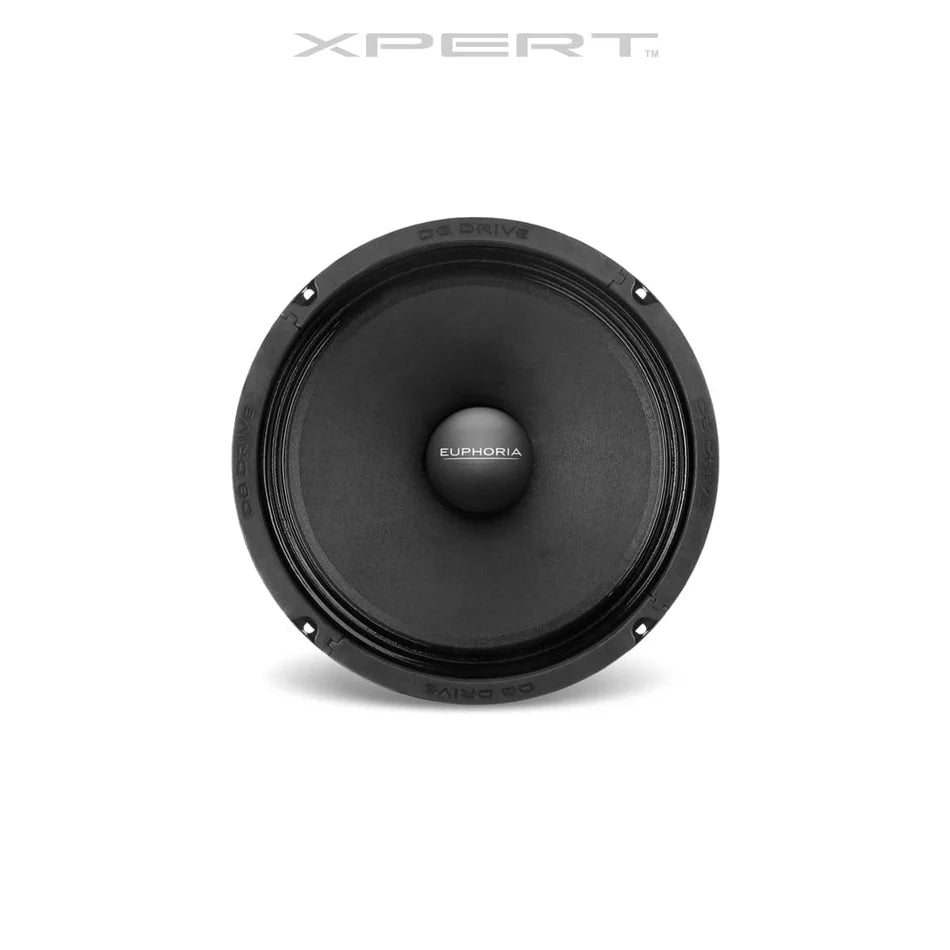

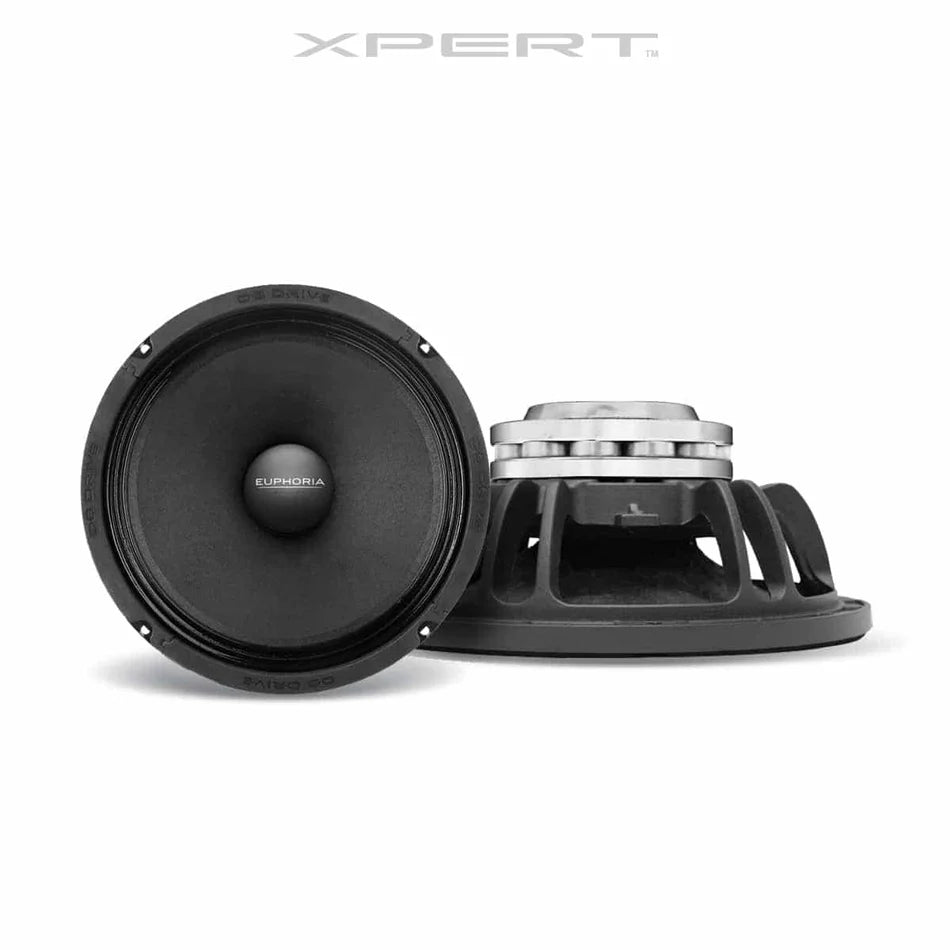

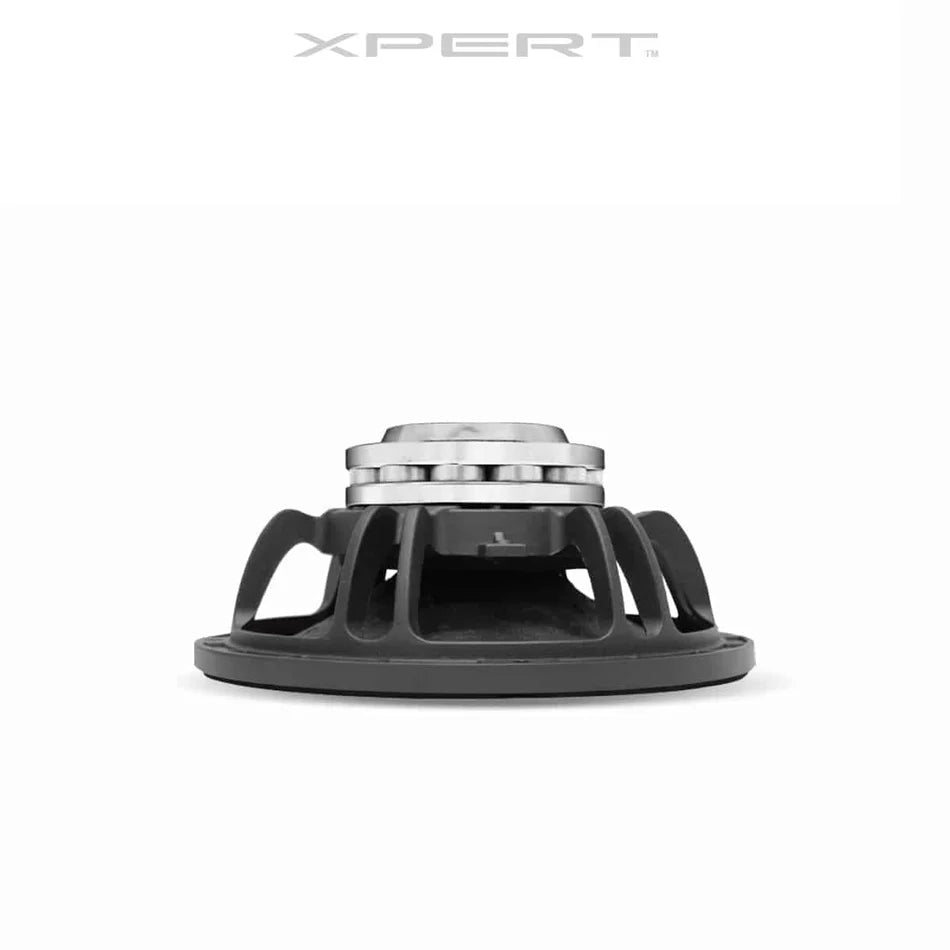

DB Drive XPERT EXM10N 10" NEO Midrange
The DB Drive XPERT EXM10N is the die-cast aluminum basket 10" midrange in the XPERT line, with radial venting and a 10-piece radially equalized neodymium assembly. It is rated 102.1dB at 4 ohm with a 71.7Hz resonant frequency.
Die-cast aluminum basket, 10-piece neodymium magnet, 71.7Hz resonance
Choose this version for the die-cast aluminum basket with radial venting. Mounting rings are needed to install this 10" driver, so check them against your lid or bag.
- 400W power handling, 800W dynamic
- 102.1dB sensitivity, 4 ohm
- 2.5" (63.5mm) voice coil
Key Product Details
| Brand | DB Drive |
| Model | EXM10N |
| Size | 10" midrange |
| Magnet | 10-piece radially equalized neodymium assembly |
| Basket | die-cast aluminum with radial venting |
| Nominal impedance | 4 ohm |
The EXM10N pairs a die-cast aluminum basket with a 10-piece neodymium assembly and needs mounting rings to install. If you would rather have the stamped-frame option, see the DB Drive XPERT EXM10SN.
Fitment and mounting rings
The EXM10N is built on a die-cast aluminum basket with radial venting and a 10-piece radially equalized neodymium assembly, driving a 2.5" (63.5mm) voice coil. 10-inch speakers always need mounting rings, and this one is no exception. Browse the Nagy's Customs adapter rings, including the Nagy's Customs 10" 98-23 Harley subwoofer and midbass adapter rings, the Nagy's Customs Monster Mega 10" 98-23 adapter rings and the Nagy's Customs 10" rear adapter rings 14-23, and check them against your lid or bag before ordering. If you are not sure which ring suits your bike, start a build consultation and we will help confirm it.
Planning the system around this midrange
This driver is rated 400W with 800W dynamic handling and 102.1dB sensitivity at 4 ohm. Pair it with an amplifier channel that suits those ratings, and add a tweeter such as the DB Drive horn and bullet tweeters for high-frequency output.
Specifications
| Voice coil | 2.5" (63.5mm) |
| Magnet | 10-piece radially equalized neodymium assembly |
| Cone / surround | IP52 rated paper cone, treated cloth surround |
| Basket | die-cast aluminum with radial venting |
| Power handling | 400W, dynamic 800W |
| Sensitivity | 102.1dB (1W/1m) |
| Nominal impedance | 4 ohm |
| Resonant frequency | 71.7Hz |
| DC resistance | 3.2 ohm |
Related Paths
DB Drive EXM10N FAQ
What size is the DB Drive EXM10N?
It is a 10" midrange with a 2.5" (63.5mm) voice coil.
What are the power and impedance ratings?
Power handling is 400W with 800W dynamic, at 4 ohm nominal impedance.
Do I need mounting rings?
Yes. 10-inch speakers always need mounting rings, and the EXM10N is a 10" midrange with a die-cast aluminum basket and a 10-piece radially equalized neodymium assembly. Check the rings against your lid or bag before ordering.
What is the resonant frequency?
The resonant frequency is 71.7Hz and DC resistance is 3.2 ohm.
What is the basket made of?
Die-cast aluminum with radial venting.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
