DB Drive XPERT EXT1NH 1" Mini NEO Horn Tweeter

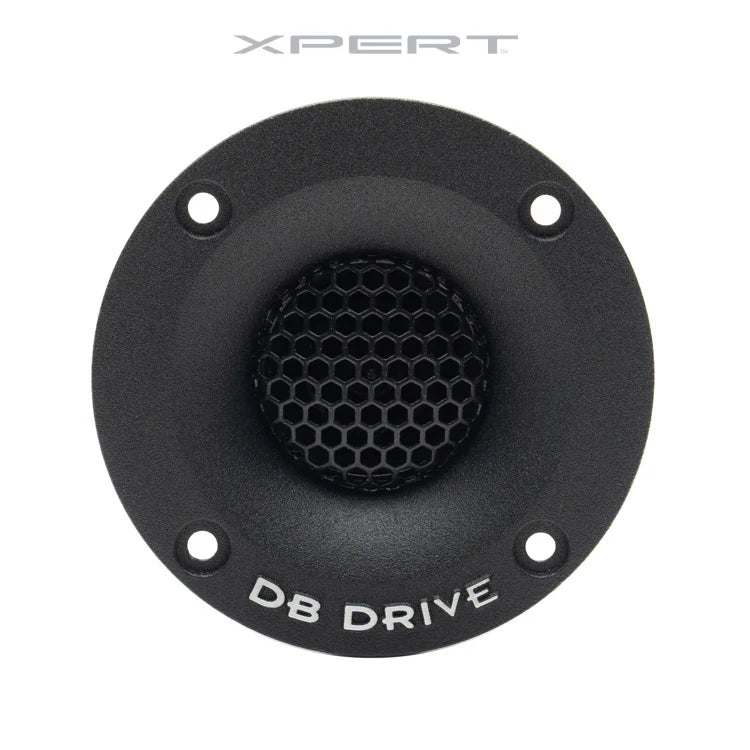

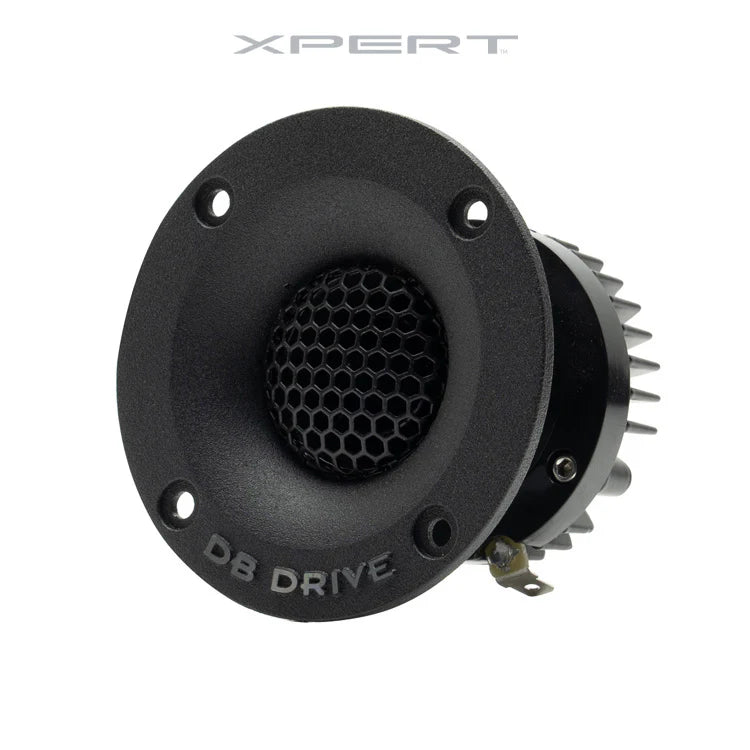

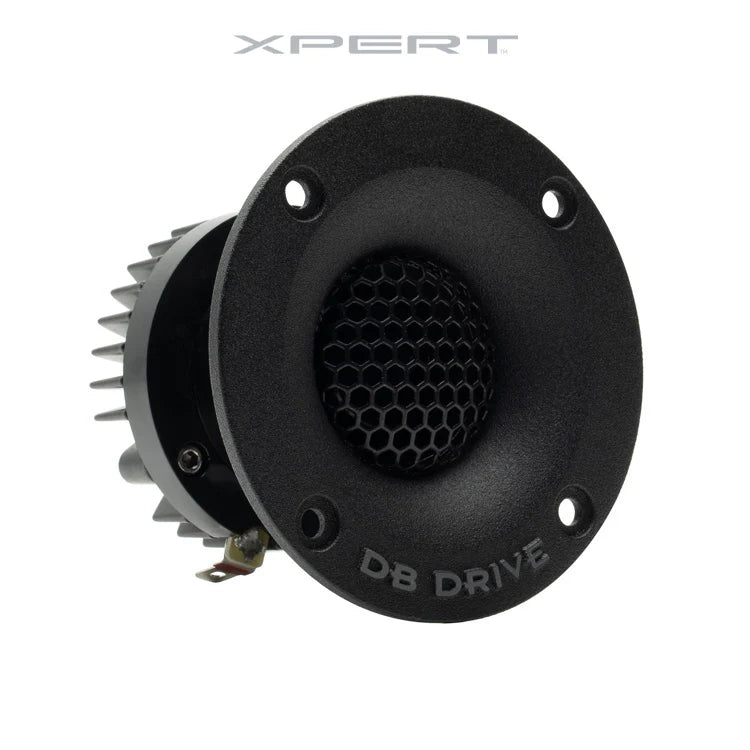

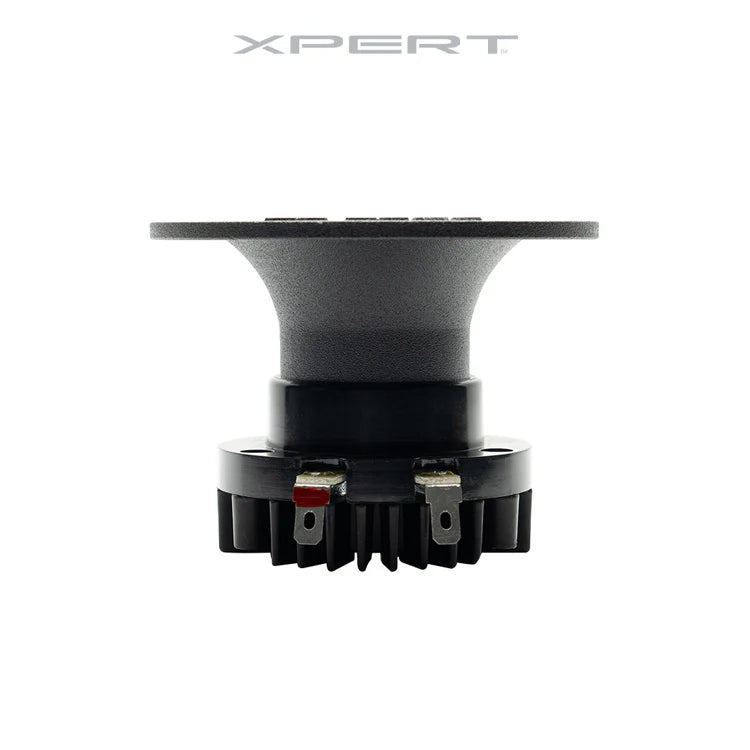

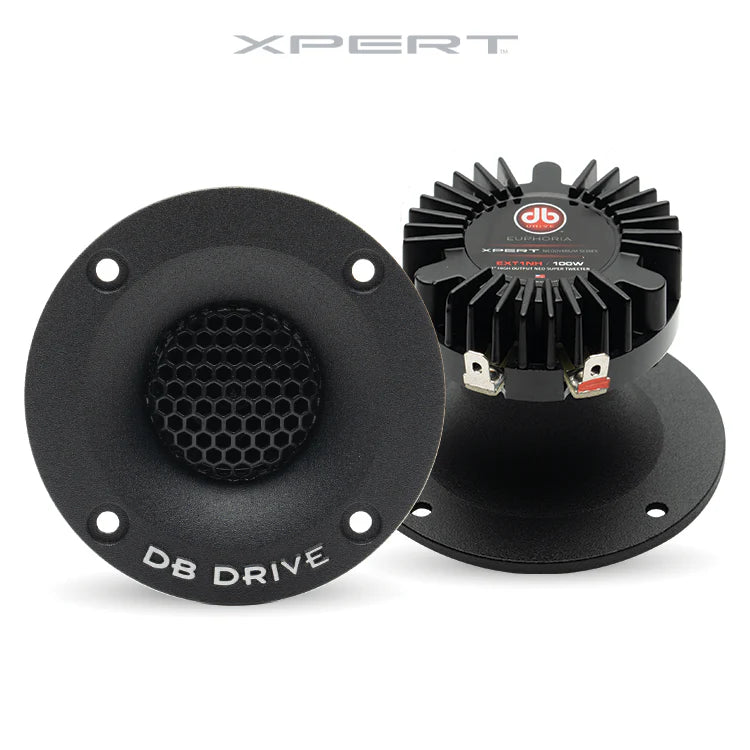

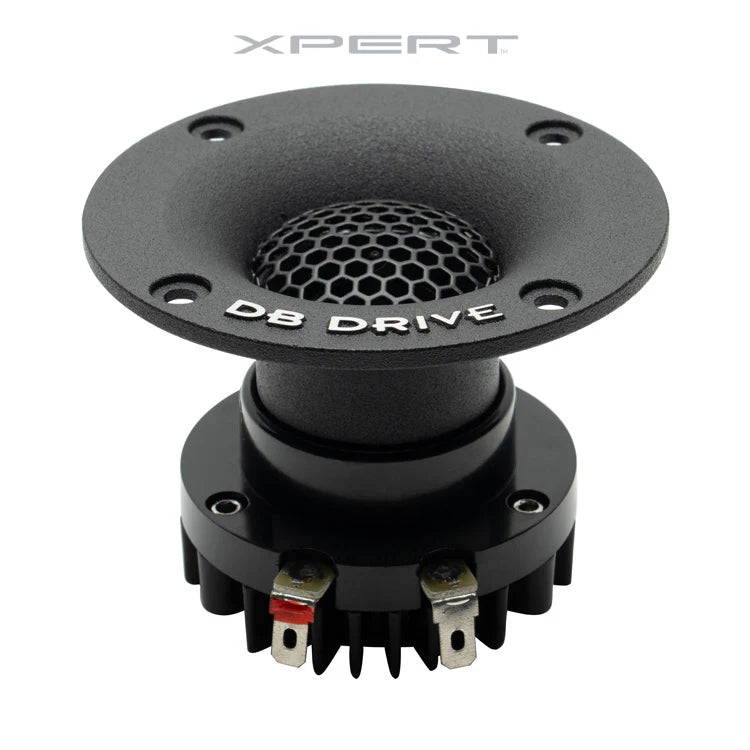

The DB Drive XPERT EXT1NH is a 1" mini NEO horn tweeter with a titanium diaphragm and a die-cast aluminum waveguide. It is used for high-frequency output in component bagger systems.
1" titanium-diaphragm horn tweeter

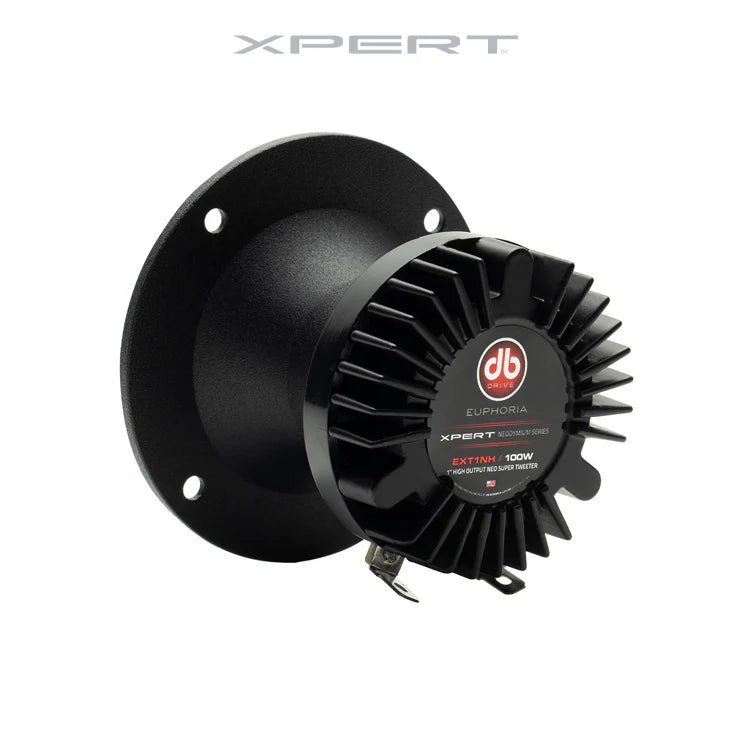

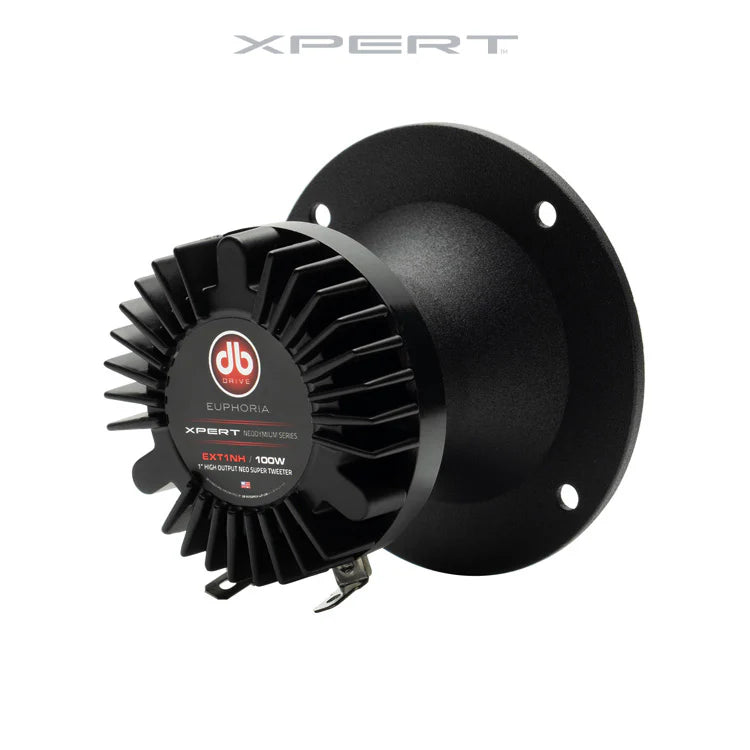

Neodymium magnet and a 3kHz-20kHz frequency response, with a die-cast aluminum waveguide designed for wide dispersion.
- 35W, dynamic 108W
- 106dB sensitivity, 8 ohm
- 3kHz-20kHz response
Key Product Details
| Brand | DB Drive |
| Model | EXT1NH |
| Type | 1" mini NEO horn tweeter |
| Diaphragm | Titanium |
| Nominal impedance | 8 ohm |
| Waveguide | Die-cast aluminum |

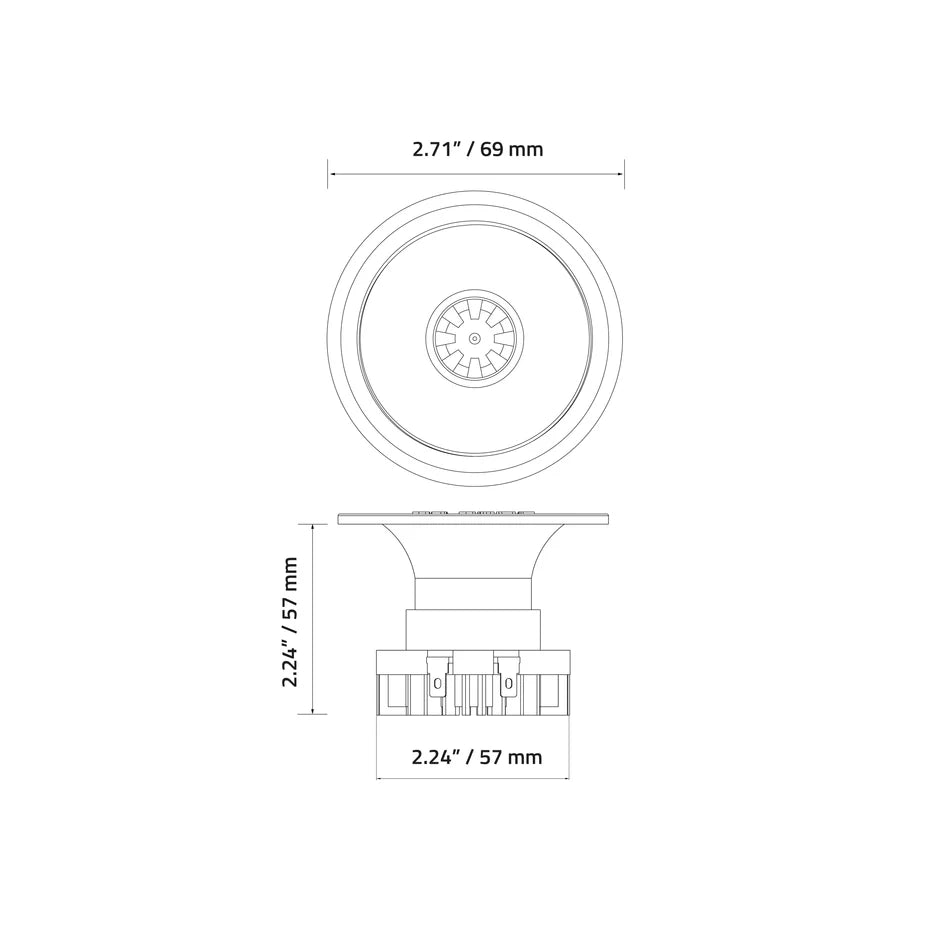

Sold as a single. Verify crossover and mounting space for your build before ordering.
Choosing between the 1" and 1.5" horn tweeters
The EXT1NH is rated 35W with 108W dynamic, while the 1.5" EXT1.5NH is rated 85W with 250W dynamic. Both are 106dB and 8 ohm, so the choice comes down to power handling and mounting space.
Frequency range and system use
The response starts at 3kHz, so pair it with a midrange or pro coaxial speaker and a suitable high-pass crossover. It is used for high-frequency output in component bagger systems.
Specifications
| Voice coil | 1" (25mm) |
| Magnet | Neodymium |
| Diaphragm | Titanium |
| Waveguide | Aluminum die-cast, designed for wide dispersion |
| Power handling | 35W, dynamic 108W |
| Sensitivity | 106dB (1W/1m) |
| Nominal impedance | 8 ohm |
| Frequency response | 3kHz-20kHz |
Related Paths
DB Drive EXT1NH FAQ
What is the frequency response of the EXT1NH?
3kHz to 20kHz.
What are its power ratings?
35W with 108W dynamic handling.
What is the diaphragm made of?
Titanium, with a 1" (25mm) voice coil and a neodymium magnet.
What impedance is it?
8 ohm nominal, with 106dB sensitivity (1W/1m).
How does it differ from the EXT1.5NH?
The EXT1.5NH has a 1.5" voice coil with a poly/mylar diaphragm and higher 85W power handling.
