DB Drive XPERT EXT1.5NH 1.5" Mini NEO Horn Tweeter

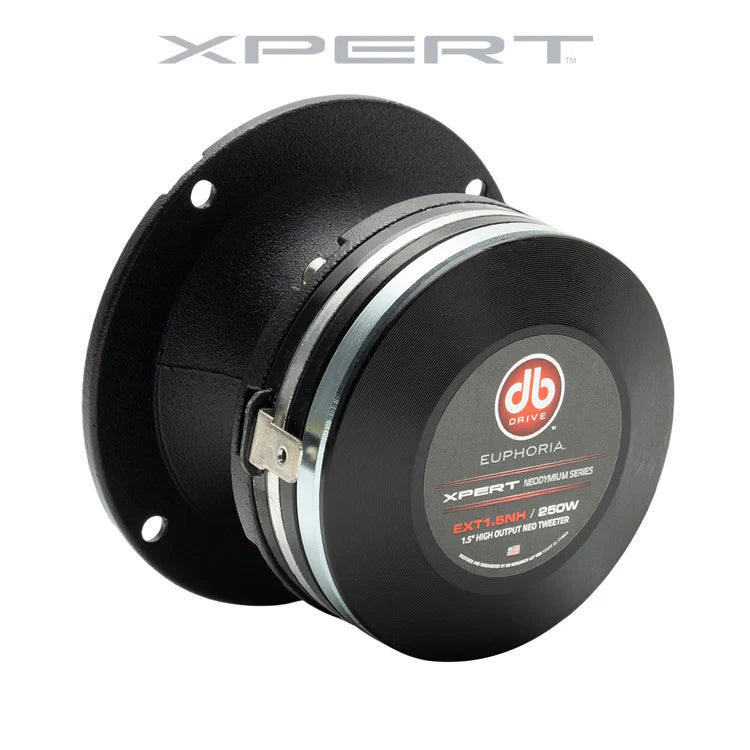

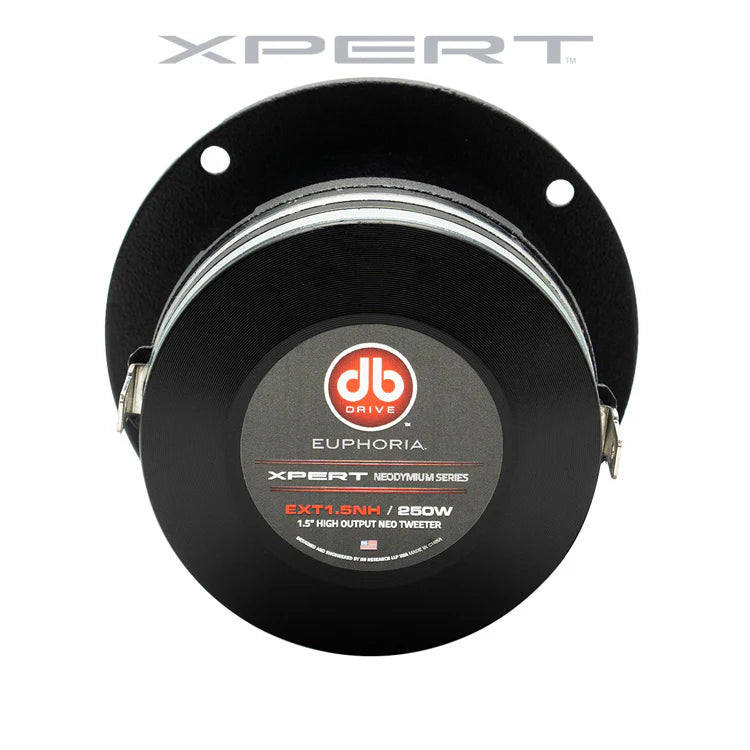

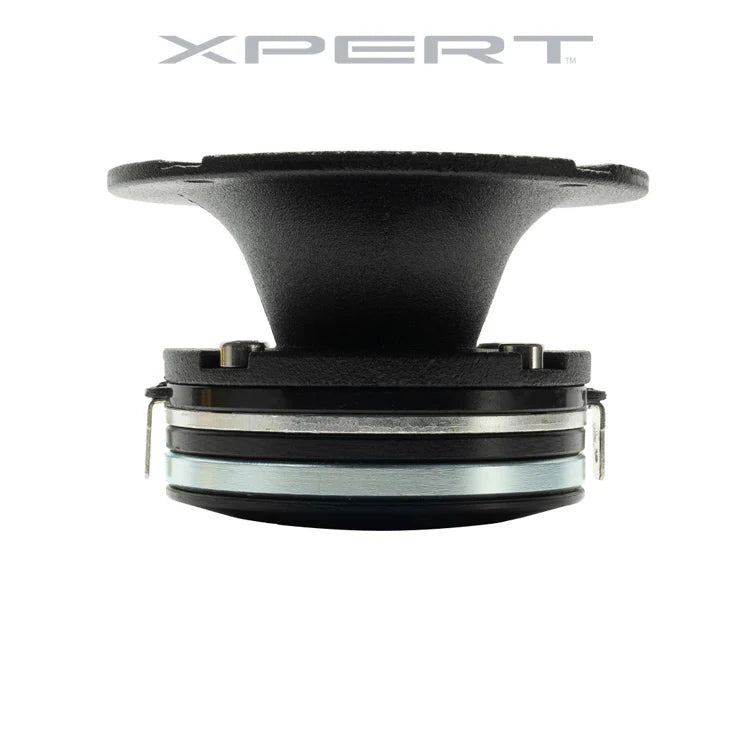

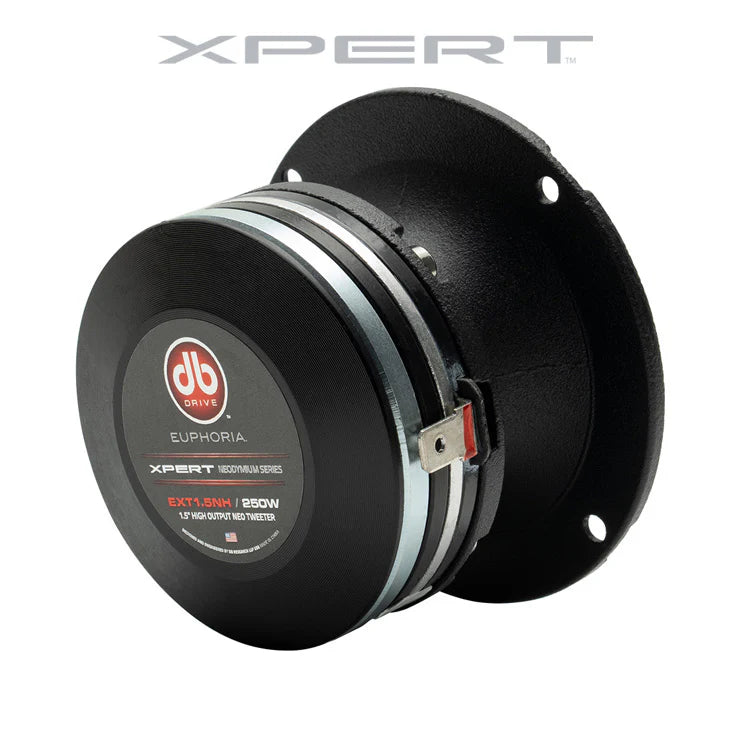

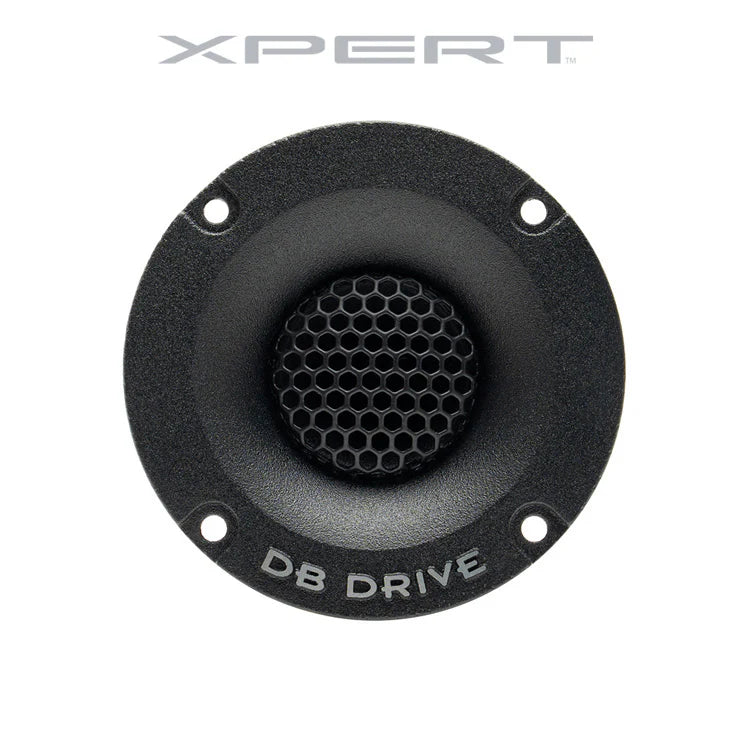

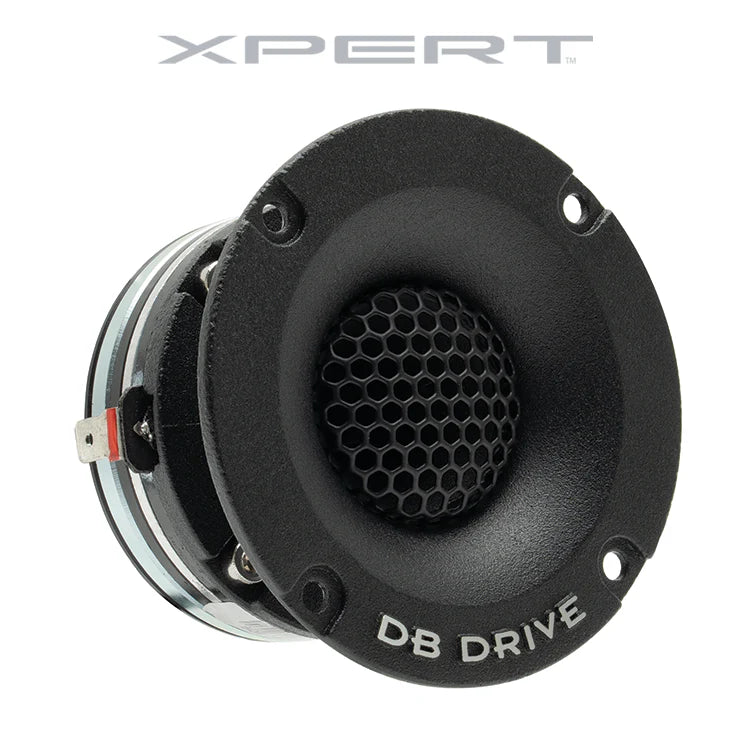

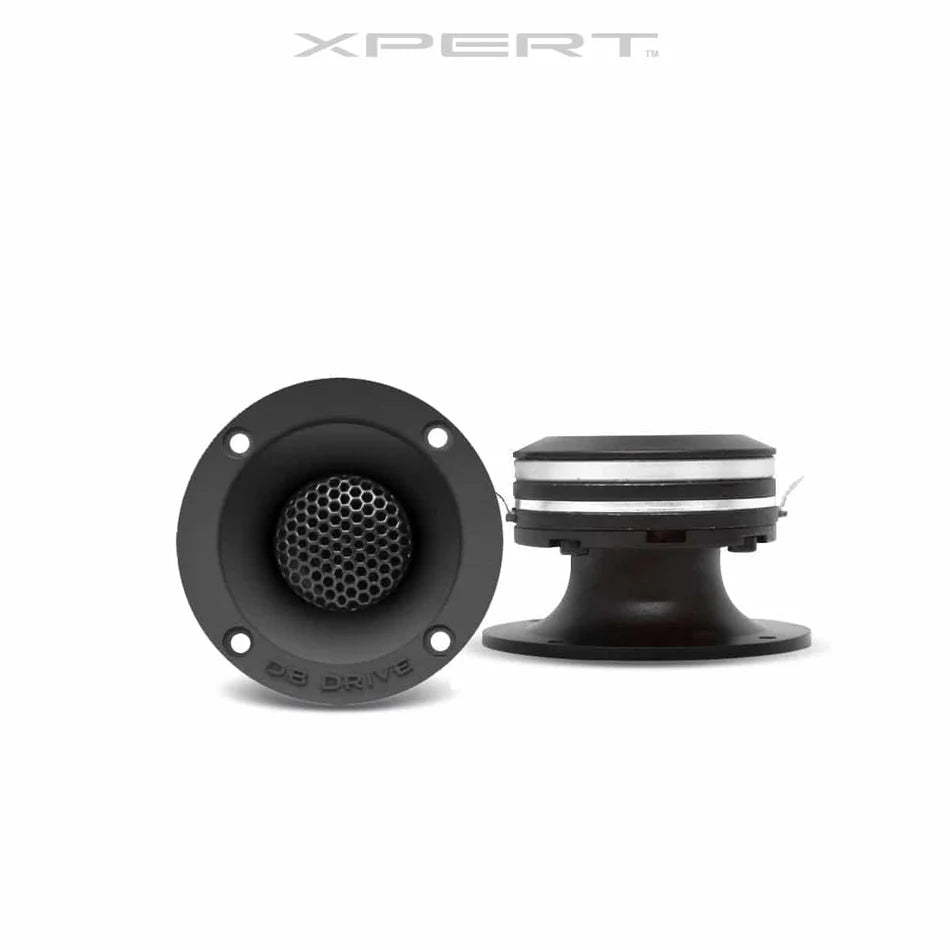

The DB Drive XPERT EXT1.5NH is a 1.5" mini NEO horn tweeter with a die-cast aluminum waveguide, sold as a single. It adds high-frequency output to component bagger systems.
1.5" neodymium horn tweeter with wide-dispersion waveguide
Sold as a single, with a poly/mylar diaphragm and a minimum recommended crossover of 3kHz at 12dB slope or higher.
- 85W, dynamic 250W
- 106dB sensitivity, 8 ohm
- 3kHz minimum crossover, 12dB slope or higher
Key Product Details
| Brand | DB Drive |
| Model | EXT1.5NH |
| Type | 1.5" mini NEO horn tweeter |
| Sold as | Single |
| Nominal impedance | 8 ohm |
| Waveguide | Die-cast aluminum |
Sold as a single. Verify crossover and mounting space for your build before ordering.
Crossover requirements
DB Drive lists a minimum recommended crossover of 3kHz at a 12dB slope or higher. Use a high-pass at or above that point so the tweeter is not driven below its range.
Using it in a component system
This tweeter is intended for high-frequency output in component bagger systems, paired with a midrange or pro coaxial speaker. Because it is sold as a single, order one per side for a stereo setup.
Specifications
| Voice coil | 1.5" (38mm) |
| Magnet | Neodymium |
| Diaphragm | Poly/mylar |
| Waveguide | Aluminum die-cast, designed for wide dispersion |
| Power handling | 85W, dynamic 250W |
| Sensitivity | 106dB (1W/1m) |
| Nominal impedance | 8 ohm |
| Minimum recommended crossover | 3kHz at 12dB slope or higher |
Related Paths
DB Drive EXT1.5NH FAQ
What size is the EXT1.5NH?
It is a 1.5" (38mm) voice coil mini NEO horn tweeter with a neodymium magnet.
What crossover does it need?
The minimum recommended crossover is 3kHz at 12dB slope or higher.
What are its power and impedance ratings?
85W with 250W dynamic handling, at 8 ohm nominal impedance.
Is it sold as a pair?
No, it is sold as a single.
What is the waveguide made of?
A die-cast aluminum waveguide designed for wide dispersion.
