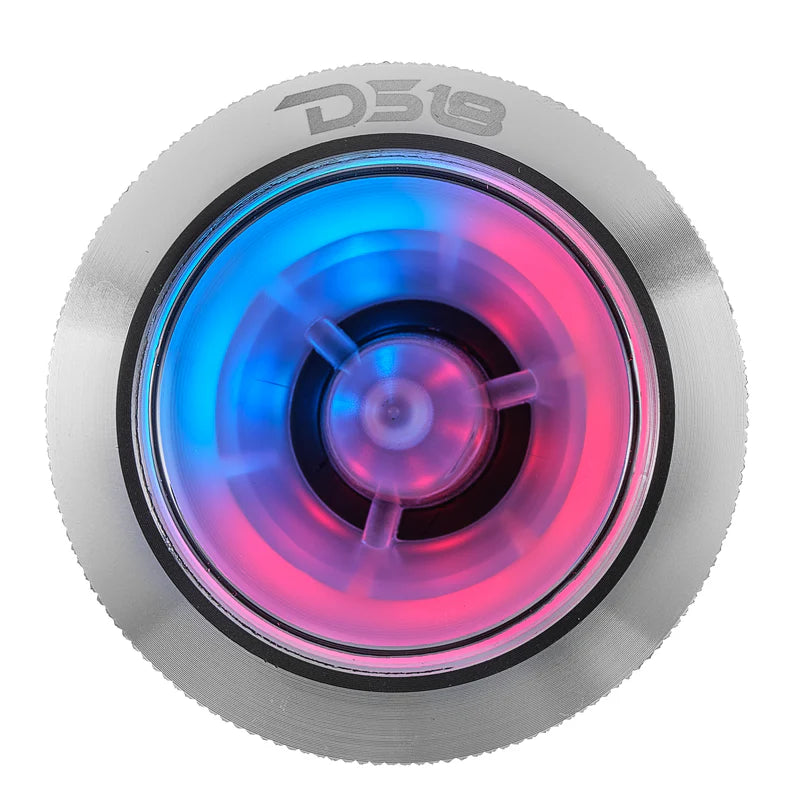

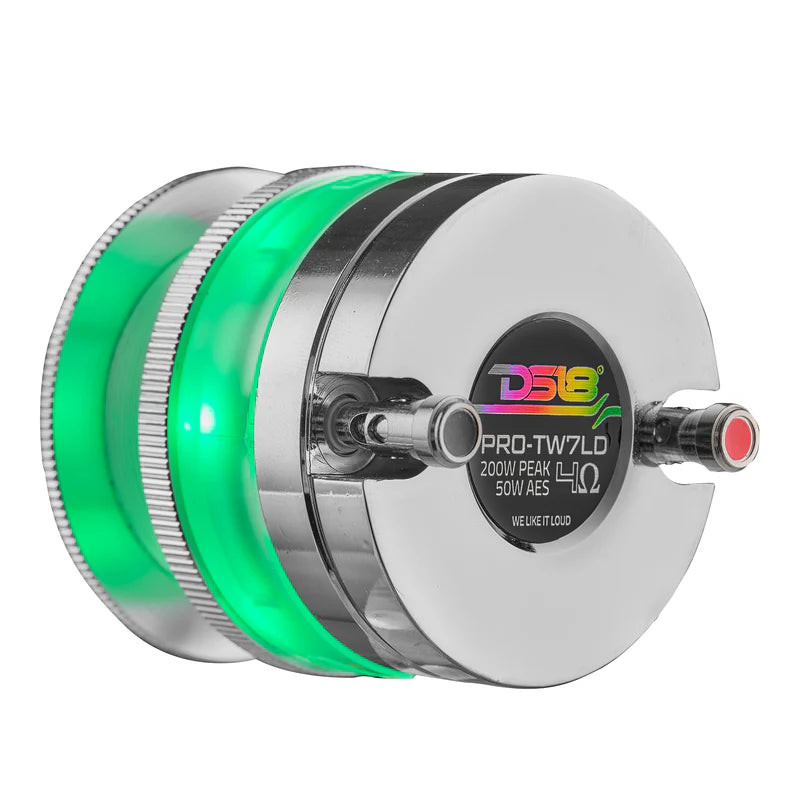

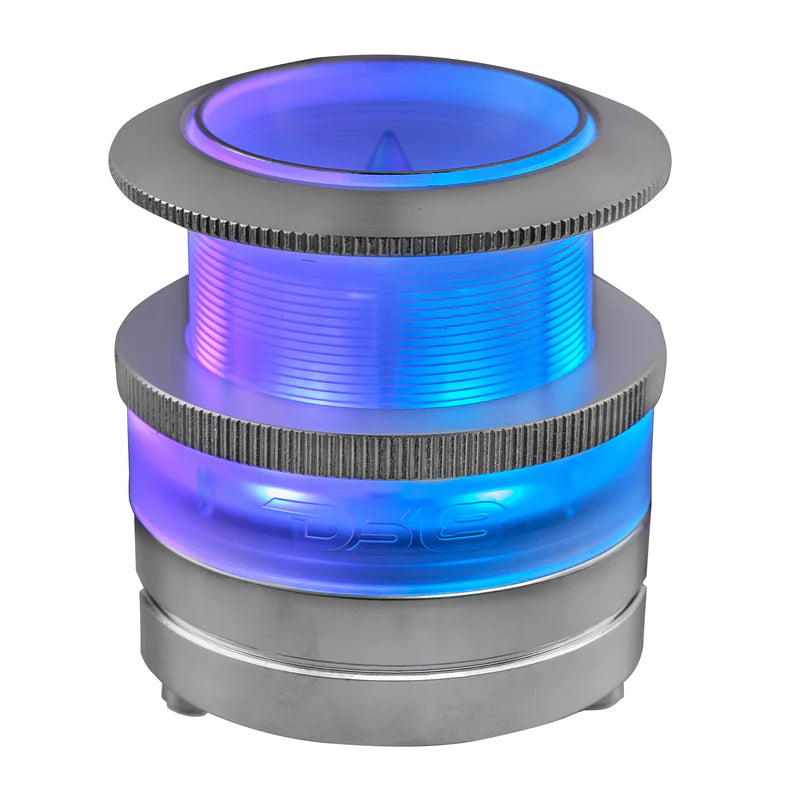

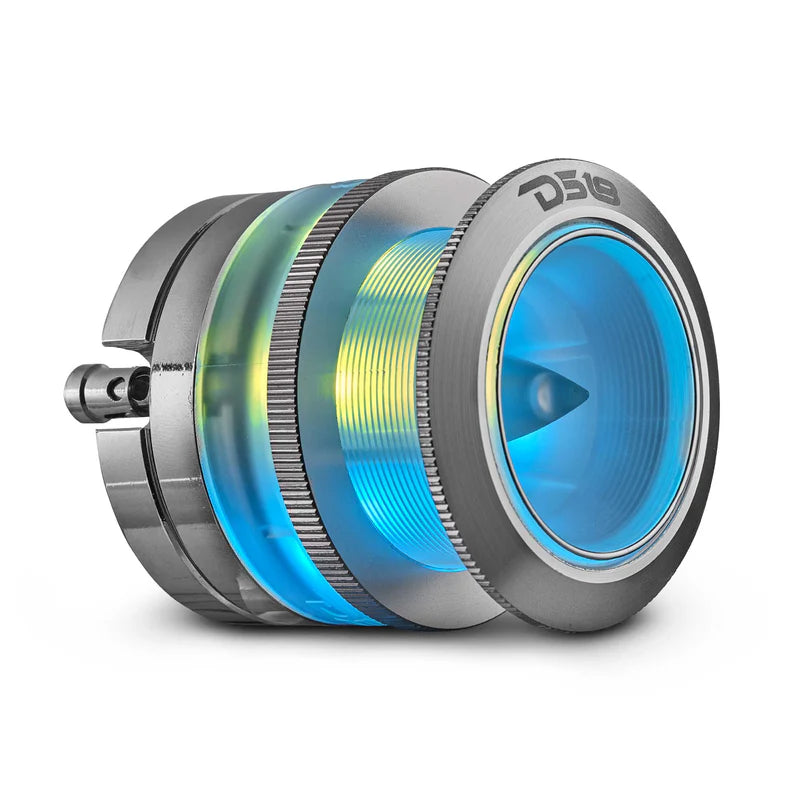

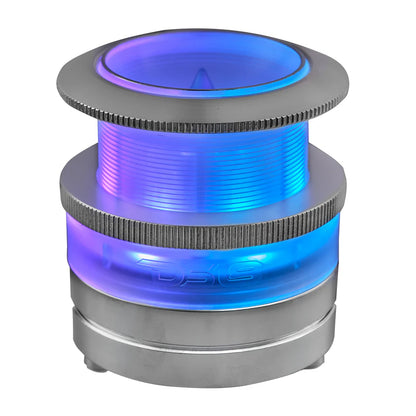

DS18 PRO-TW7LD 2.3" Neodymium Super Bullet Tweeter w/ Digital LED Lights (Single)
TYPE: Compression Drivers/Horn
VENDOR: DS18 Motorcycle
PRODUCT INFORMATION
DS18 PRO-TW7LD 2.3" Neodymium Super Bullet Tweeter w/ Digital LED Lights (Single)
TYPE: Compression Drivers/Horn
VENDOR: DS18 Motorcycle
Type: Compression Drivers/Horn
Vendor: DS18 Motorcycle
$99.95
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Additional Payment Info
$99.95
-
Description
-
Reviews
DS18 PRO-TW7LD
2.3" Neodymium Super Bullet Tweeter w/ 1" Aluminum Voice Coil & Digital LED Lights
Designed for seamless integration, the PRO-TW7LD features a compact mounting depth and pre-wired LED input, making installation quick and hassle-free across multiple setups. Upgrade your car, motorcycle, or custom build with this high SPL tweeter for guaranteed power and precision.
Key Features:
- 2.3" Super Bullet Tweeter
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4 Ohm - 102dB
- High-Performance Neodymium Magnet ~ Single
- Digital LED Lights with Transparent Polycarbonate Body
Specs:
- Nominal Diameter - 2.3" / 58.4mm
- Nominal Impedance - 4 ohm
- AES Power Handling - 50W
- Program Power Handling - 100W
- Peak Power Handling - 200W
- Sensitivity (1w/1m) - 102 dB
- Frequency Response - 4K - 20KHz
- Recommended Hi Pass Crossover - 4Khz
- Voice Coil Diameter - 1" / 25.4mm
- Voice Coil Former Material - Kapton
- Winding Material - CCA
- Diaphragm Material - Aluminum
- Magnet Material - Neodymium
Measurements:
- Overall Diameter - 2.36" / 60mm
- Overall Depth - 2.72" / 69.2mm
- Front Mount Baffle Cutout - 1.71" / 43.5mm
- Mounting Depth - 1.5~2.5" / 39~64mm
- Magnet Diameter - 2.28" / 58mm
