DS18 PRO-CF6.4SL — 6.5" Slim Carbon Fiber Motorcycle Loudspeaker

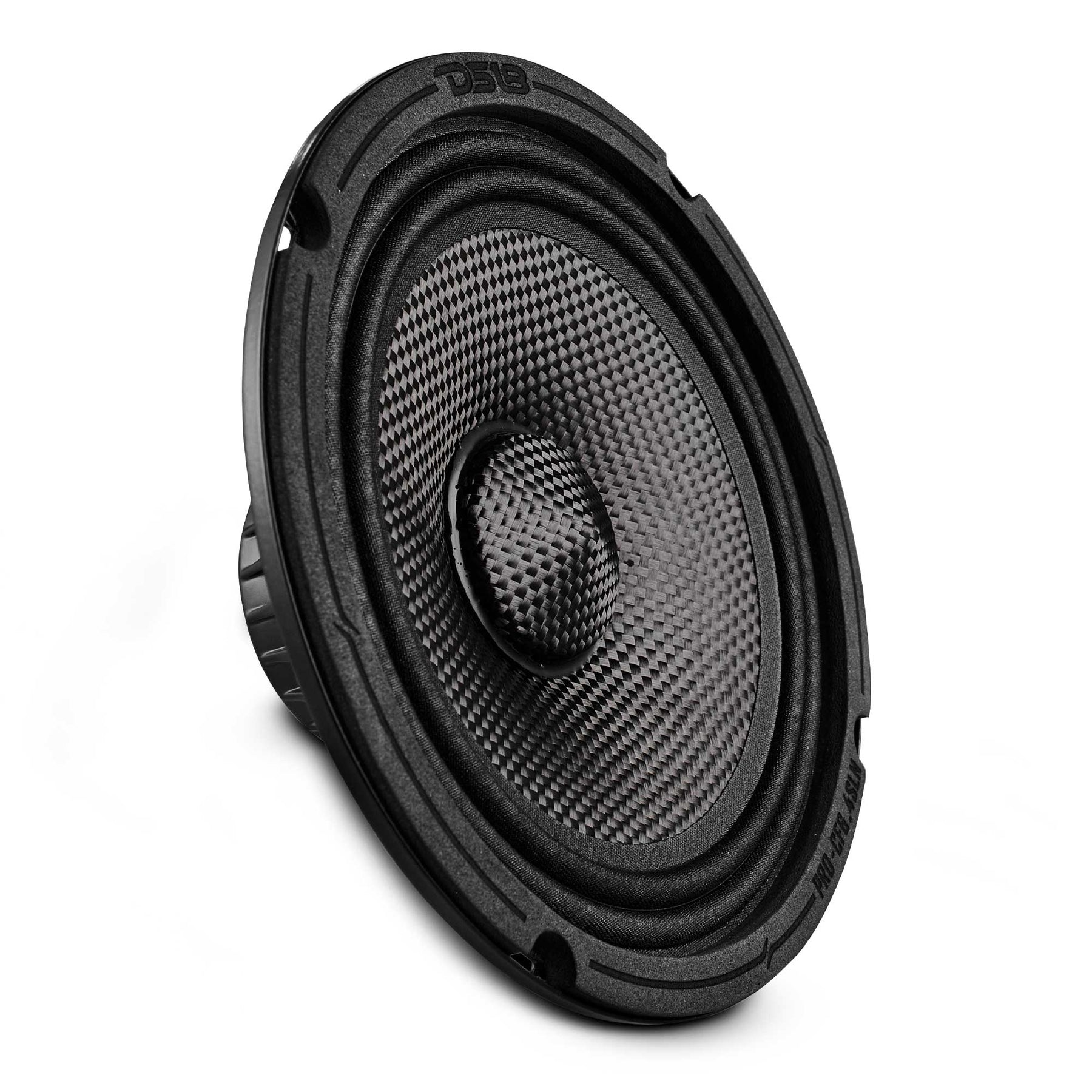

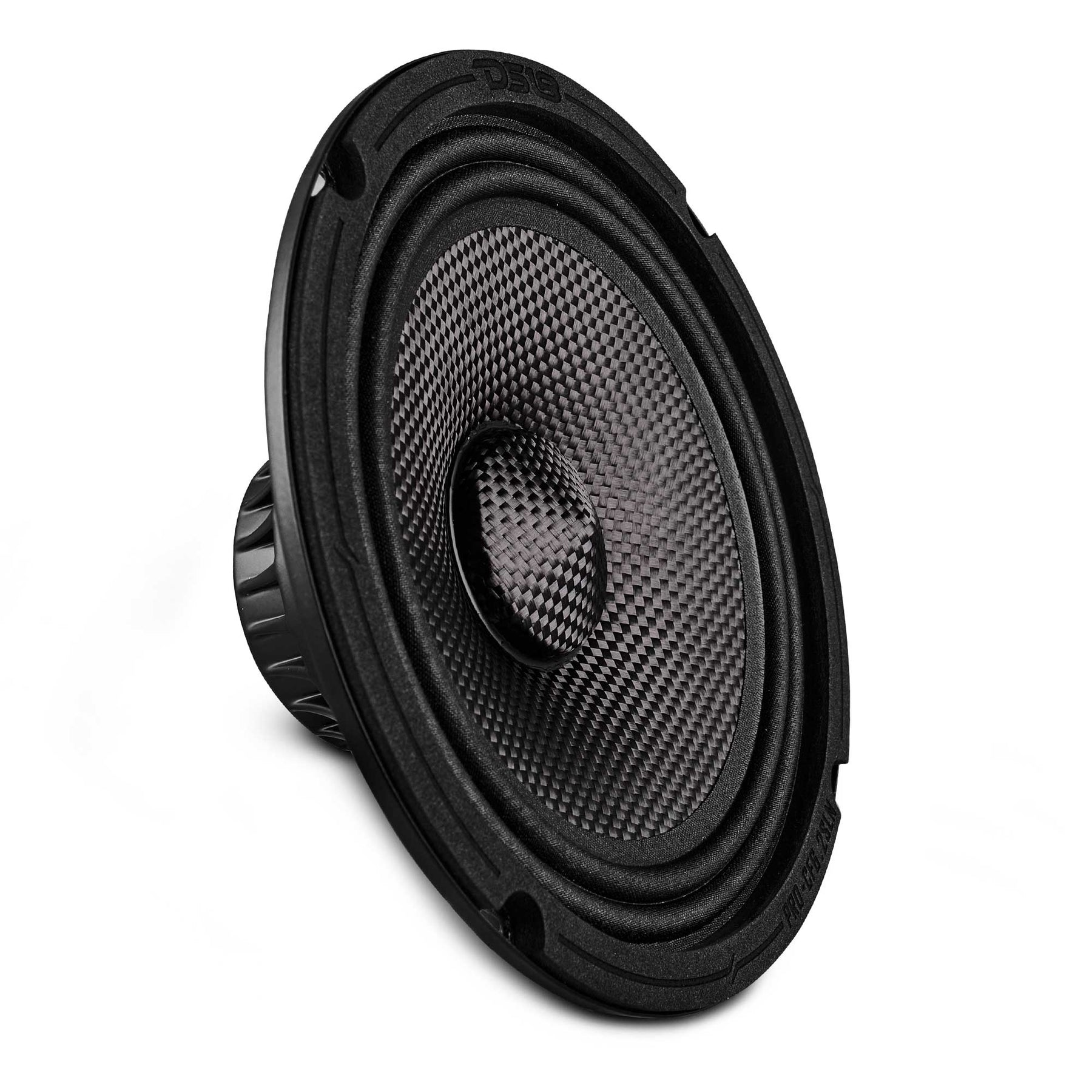

The DS18 PRO-CF6.4SL is a 6.5-inch slim carbon fiber mid-bass loudspeaker, sold as a single speaker, for custom motorcycle audio builds where mounting depth is limited. DS18 rates it at 250W RMS and 500W max on a 4-ohm voice coil.
Shallow carbon fiber mid-bass for custom builds
Only 2.15" (54.5mm) mounting depth, rated 250W RMS / 500W max at 4 ohm. Grille not included.
- 250W RMS / 500W max
- 95dB sensitivity, 4 ohm
- 2.15" mounting depth
Key Product Details
| Brand | DS18 |
| Model | PRO-CF6.4SL |
| Nominal size | 6.5 in (165mm) |
| Sold as | Single |
| Impedance | 4 ohms |
| Grille | Not included |
Check cutout and depth against your lid or fairing location before ordering.
Fitment
DS18 does not list specific Harley-Davidson models for this speaker, so check the 5.67 in cutout and 2.15 in mounting depth against your lid or fairing location before ordering.
Crossover and system planning
DS18 recommends a 100Hz high-pass. Because the grille is not included, plan your grille or lid design separately.
Specifications
| Nominal size | 6.5 in (165mm) |
| Impedance | 4 ohms |
| Power handling | 250W RMS / 500W max |
| Sensitivity | 95 dB (1W/1m) |
| Frequency response | 80Hz-12.5kHz |
| Recommended high-pass | 100Hz |
| Front-mount cutout | 5.67 in (144mm) |
| Mounting depth | 2.15 in (54.5mm) |
| Construction | Waterproof carbon fiber cone, steel basket, push terminals |
Related Paths
DS18 PRO-CF6.4SL FAQ
What is the mounting depth?
2.15 in (54.5mm), with a 5.67 in (144mm) front-mount cutout.
What are the power ratings?
250W RMS and 500W max at 4 ohms.
What high-pass filter is recommended?
DS18 recommends a 100Hz high-pass.
Is a grille included?
No, the grille is not included.
Which Harley models does it fit?
DS18 does not list specific Harley-Davidson models, so verify the cutout and depth for your location.
