DS18 Harley-Davidson Front Stage Speaker and Bullet Tweeter Kit
Build a stronger front soundstage on a compatible 2014–2023 Harley-Davidson Road Glide or Street Glide with a matched pair of DS18 slim 6.5-inch midrange speakers and fairing-specific replacement grilles preloaded with NVY neodymium bullet tweeters.
Each kit combines powerful midrange projection, dedicated high-frequency output, inline tweeter crossovers and a clean OEM-style grille installation. Select the Road Glide or Street Glide version that matches the motorcycle’s fairing.
Complete Front-Stage Upgrade
- Road Glide and Street Glide versions available
- Designed for compatible 2014–2023 Harley Touring fairings
- Two PRO-CF6.4SLN slim 6.5-inch midrange speakers
- 150 watts RMS per midrange speaker
- 4-ohm nominal impedance per midrange
- Water-resistant carbon-fiber cones
- Neodymium midrange motor structure
- Two 2.5-inch NVY bullet tweeters
- Inline tweeter crossovers included
- Direct-fit replacement fairing grilles
DS18 Harley Front Stage Kit Overview
This DS18 package replaces the factory front speaker locations with higher-output midrange drivers while adding dedicated bullet tweeters directly to the replacement fairing grilles.
The PRO-CF6.4SLN speakers are shallow 6.5-inch midrange drivers designed for space-limited motorcycle installations. Their carbon-fiber cones, neodymium motors and 93dB sensitivity help deliver strong vocals, guitars and upper midrange frequencies through wind, road and exhaust noise.

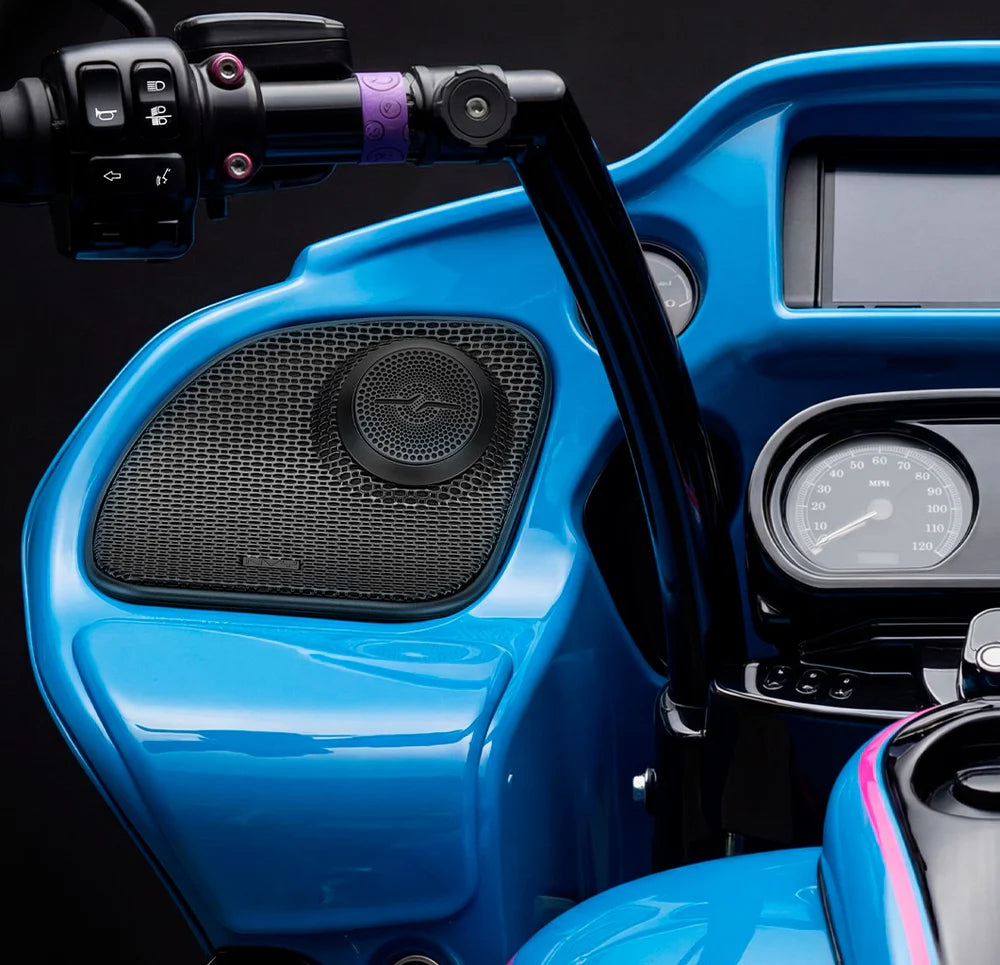

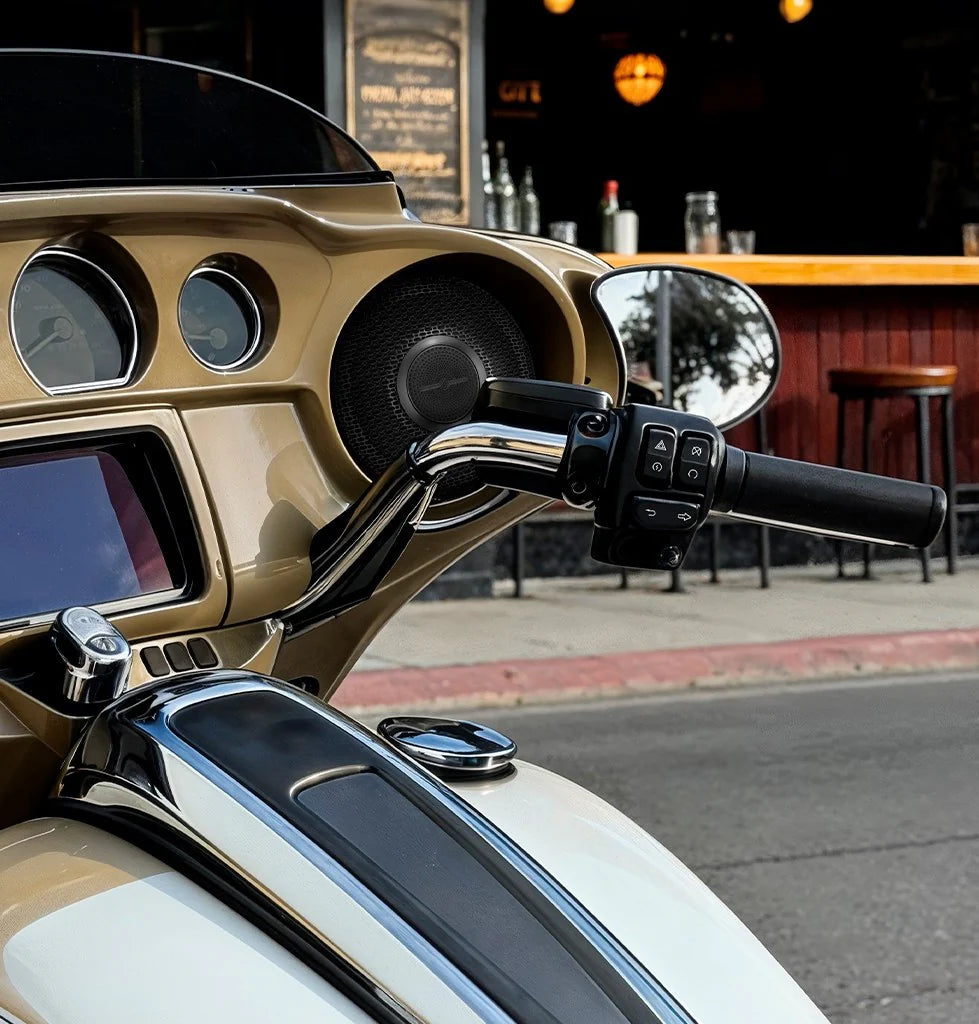

The NVY grille assemblies place one bullet tweeter on each side of the fairing. Inline crossovers filter lower frequencies before they reach the tweeters, while the fairing-specific grille design maintains a clean factory-style appearance.
Road Glide and Street Glide Variants
2014–2023 Road Glide

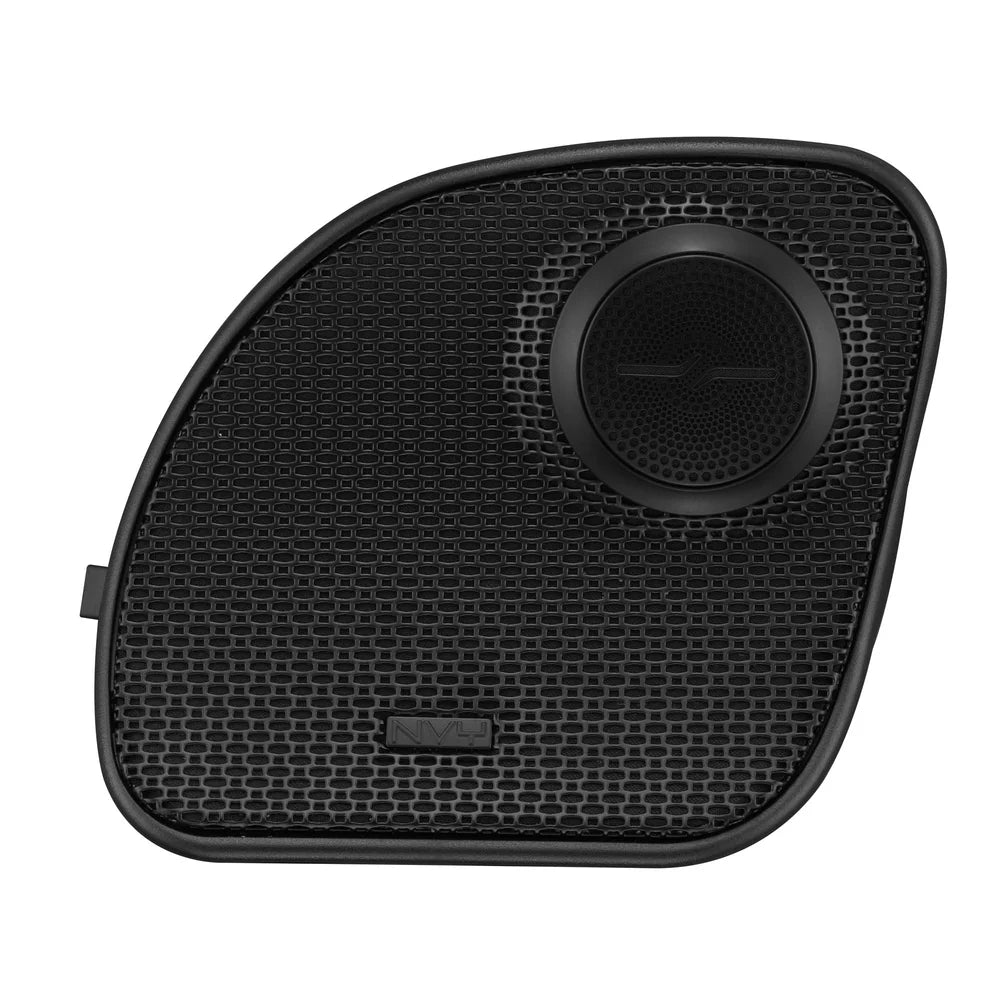

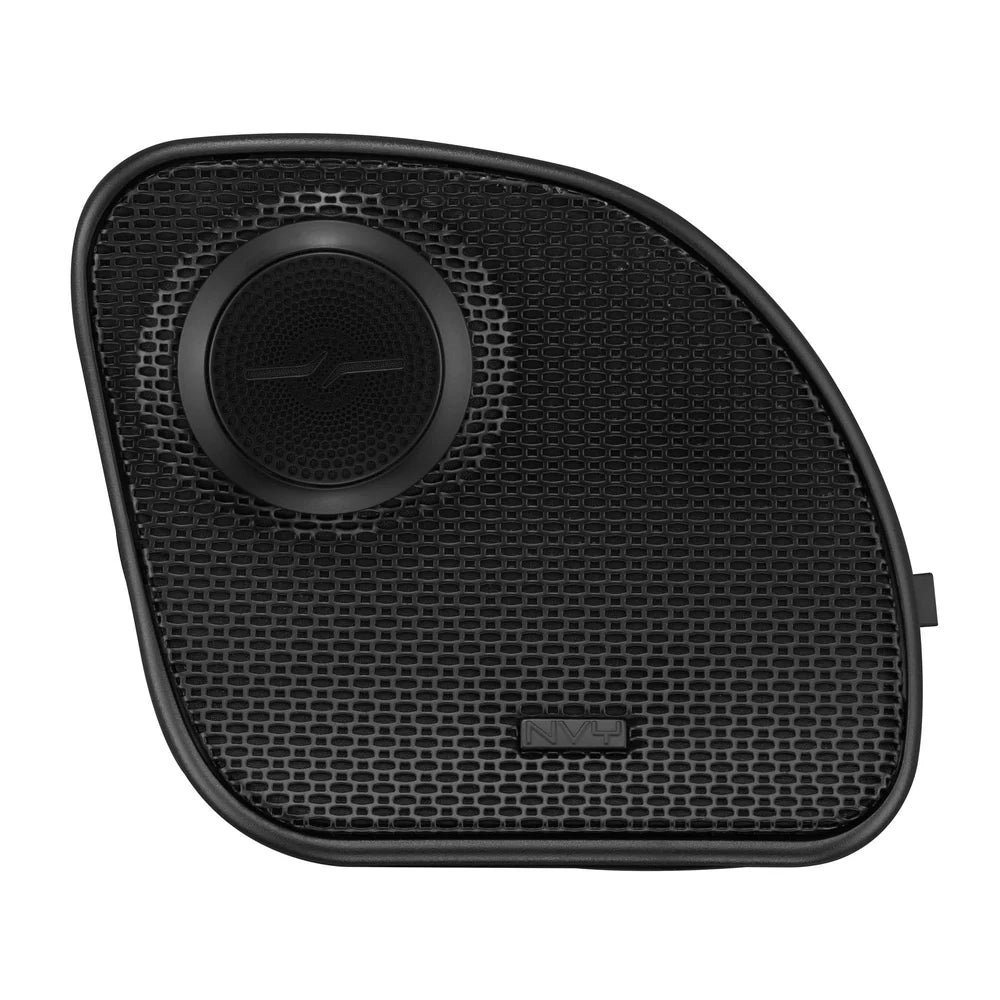

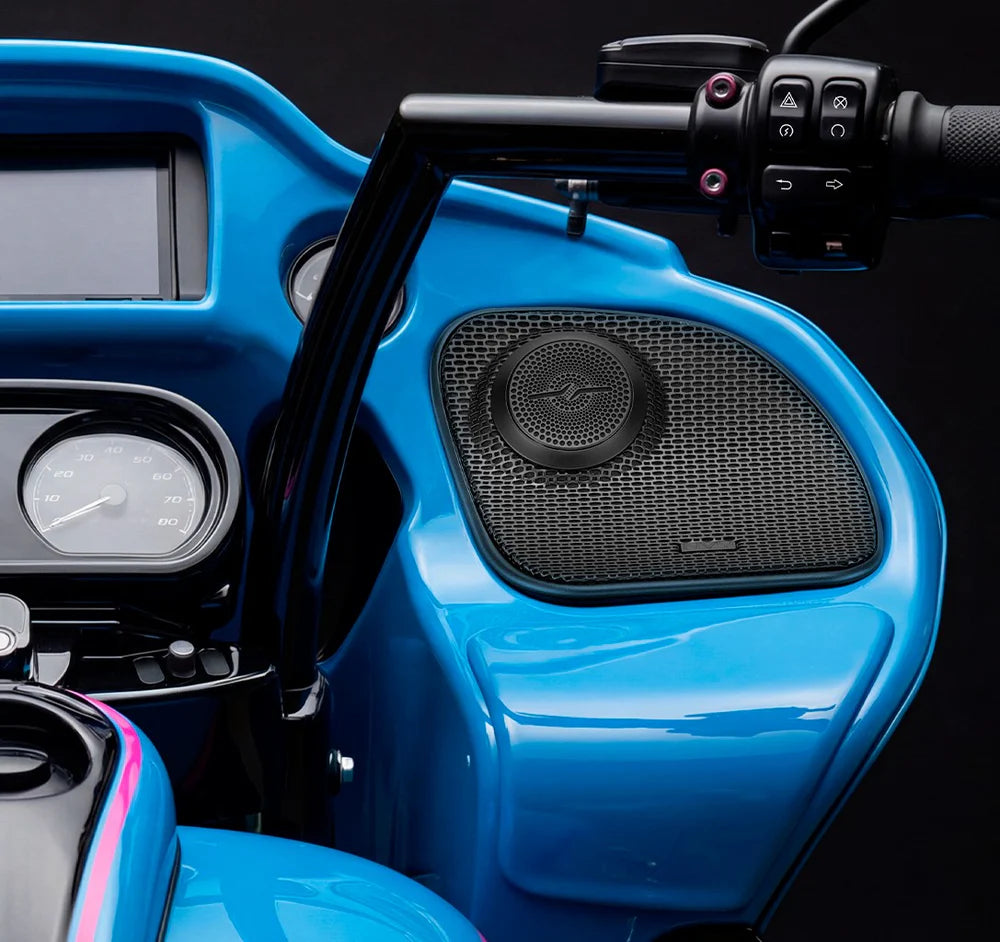

Includes the PRO-CF6.4SLN midrange speaker pair and the NVY-HDGRGTW.1423LD Road Glide grille and bullet tweeter package. The grilles are shaped for compatible sharknose fairing speaker locations.
- Package SKU: PRO-CF6.4SLN.2pk + NVY-HDGRGTW.1423LD
- Road Glide-specific replacement grille pair
- 102dB published tweeter sensitivity
2014–2023 Street Glide

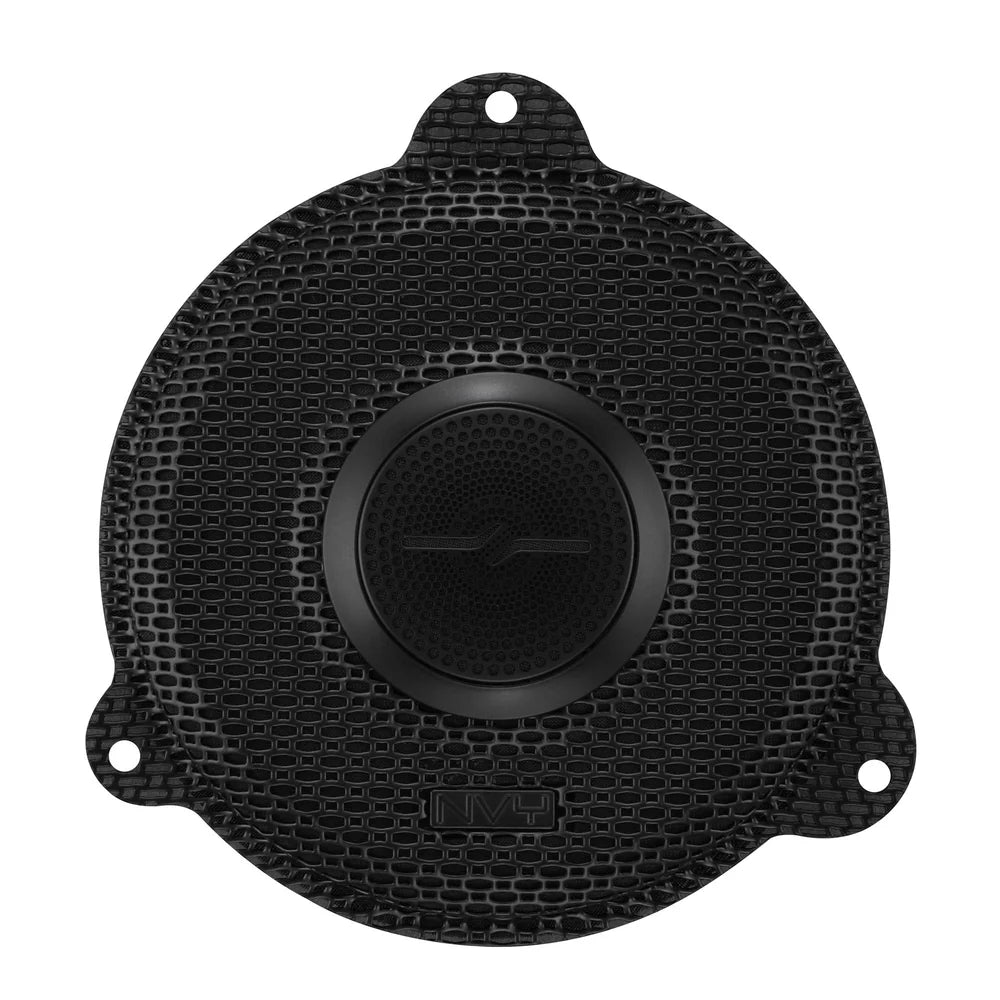

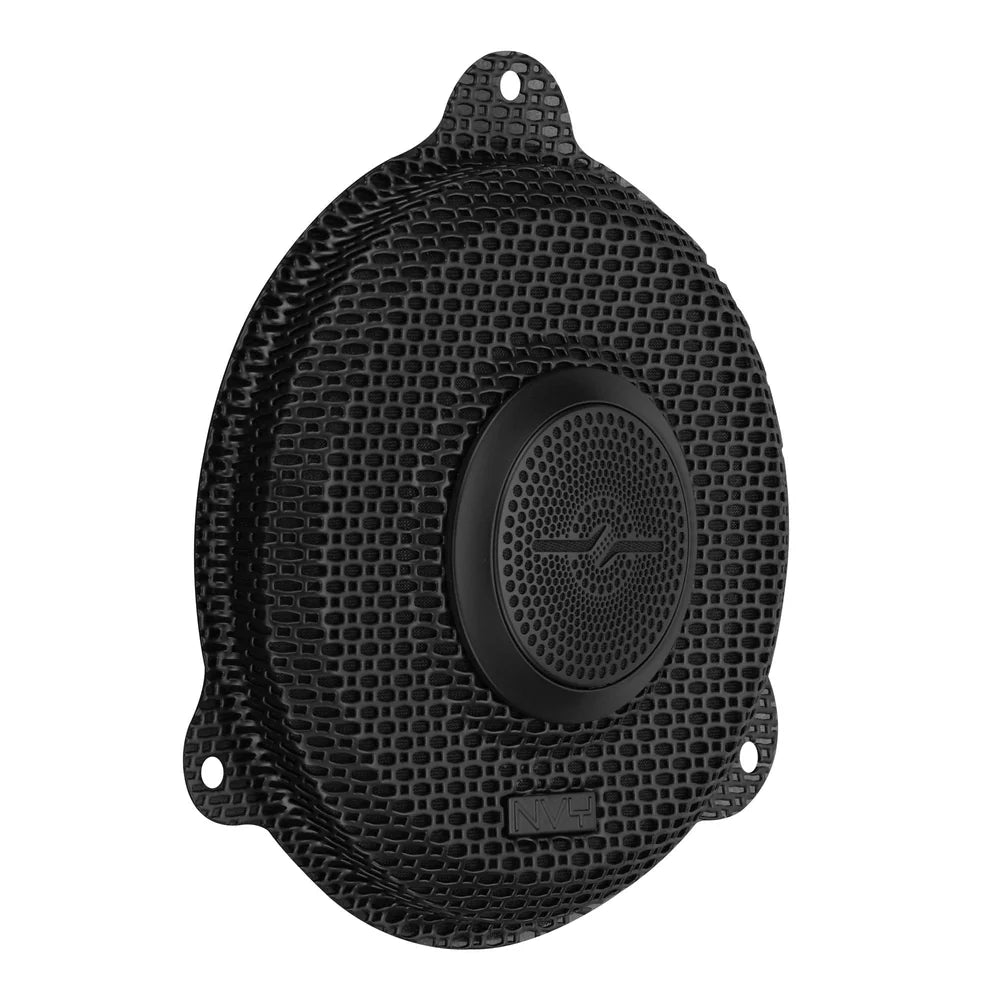

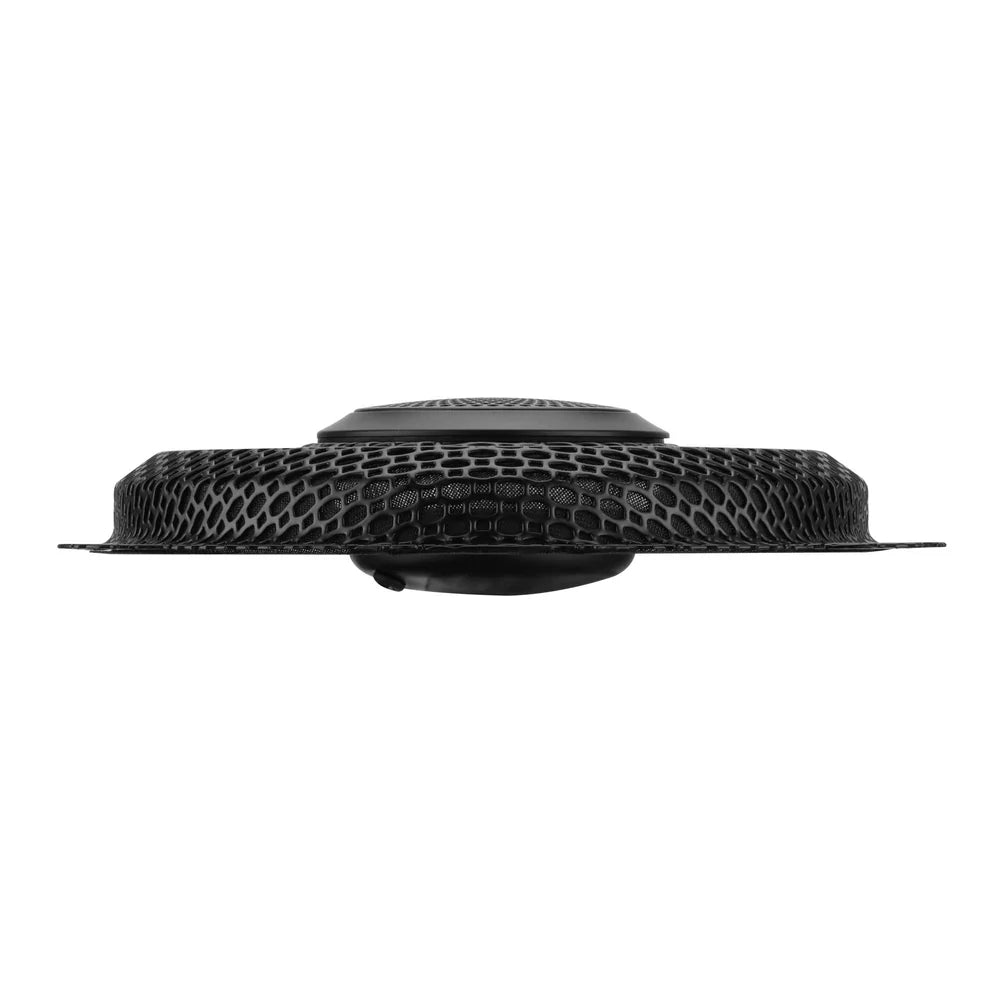

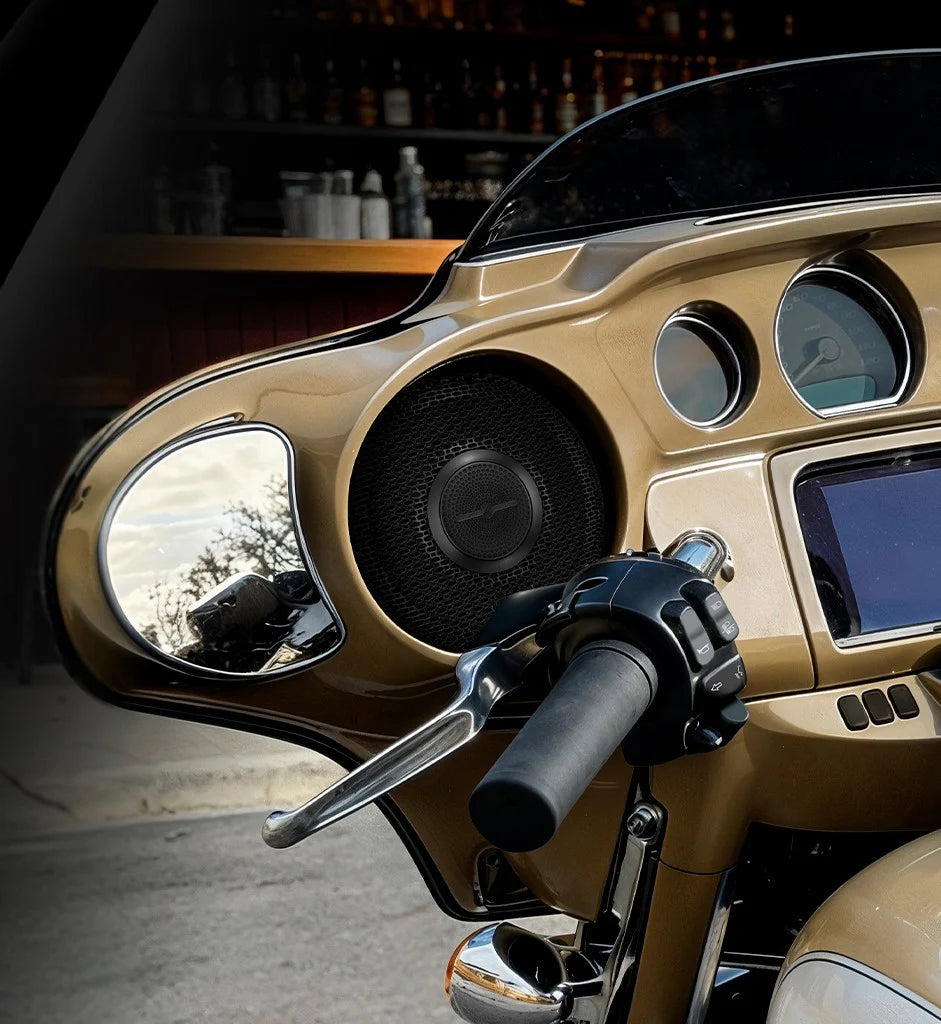

Includes the PRO-CF6.4SLN midrange speaker pair and the NVY-HDGSGTW.1423LD Street Glide grille and bullet tweeter package. The grilles are shaped for compatible batwing fairing speaker locations.
- Package SKU: PRO-CF6.4SLN.2pk + NVY-HDGSGTW.1423LD
- Street Glide-specific replacement grille pair
- 105dB published tweeter sensitivity
Speaker Impedance and Amplifier Planning
Midrange Impedance
Each PRO-CF6.4SLN midrange speaker has a nominal impedance of 4 ohms.
Tweeter Impedance
Each grille-mounted NVY bullet tweeter has a nominal impedance of 4 ohms and must be used with its crossover filtering.
Final Channel Load
The final amplifier load depends on how the midrange and crossover network are connected. Verify the complete wiring configuration before selecting or configuring an amplifier.

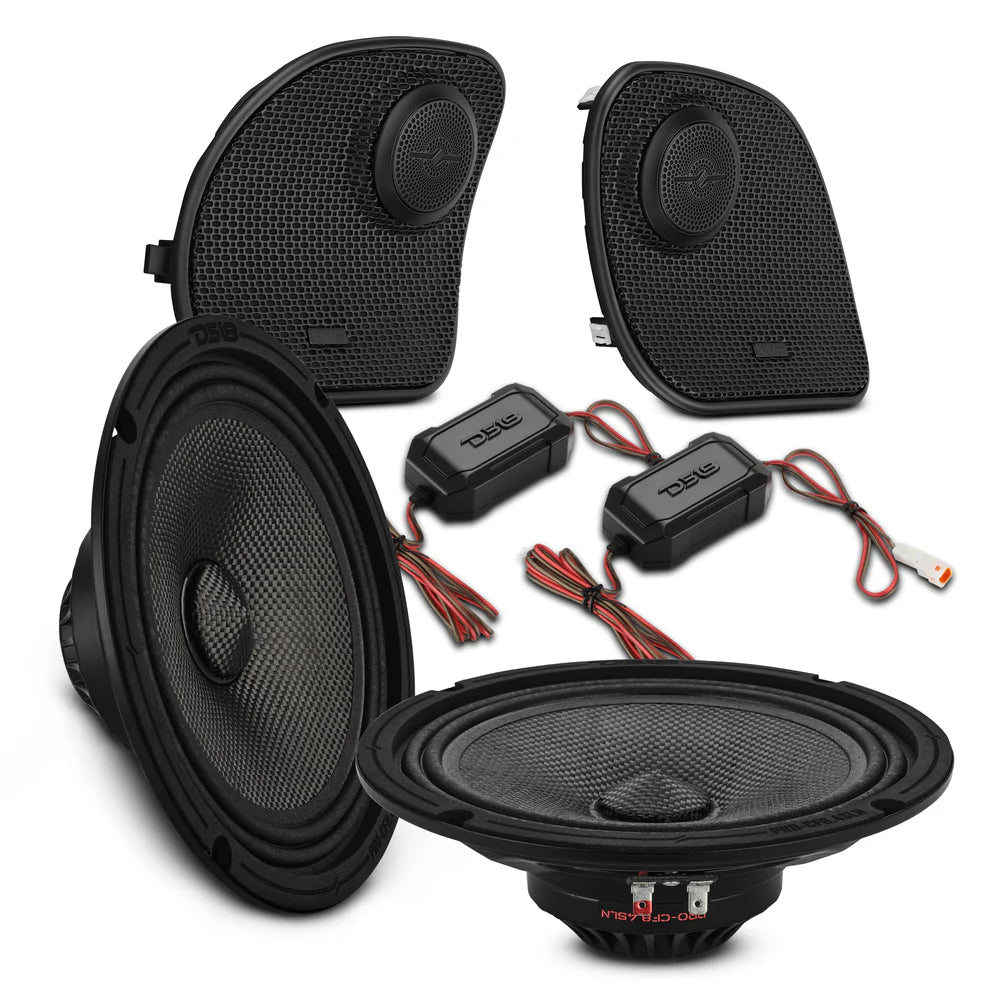

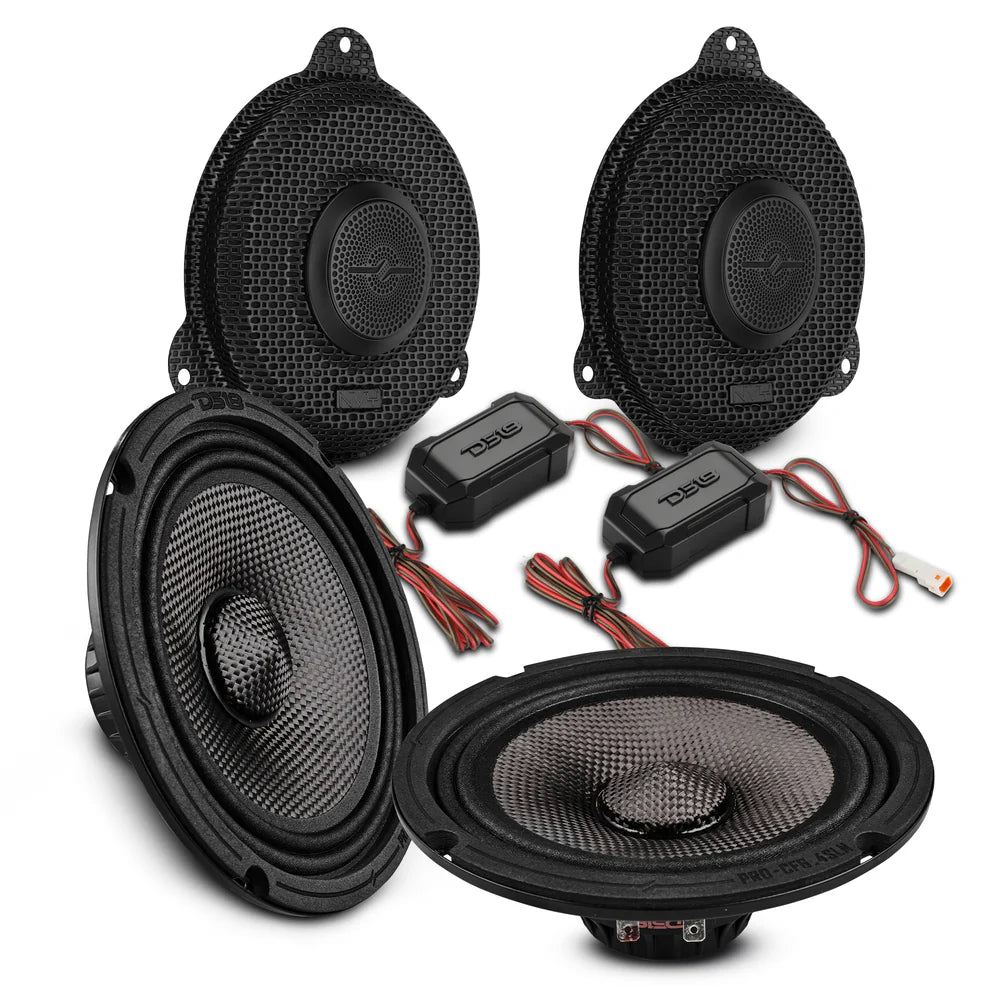

Everything Included in the Front Stage Kit

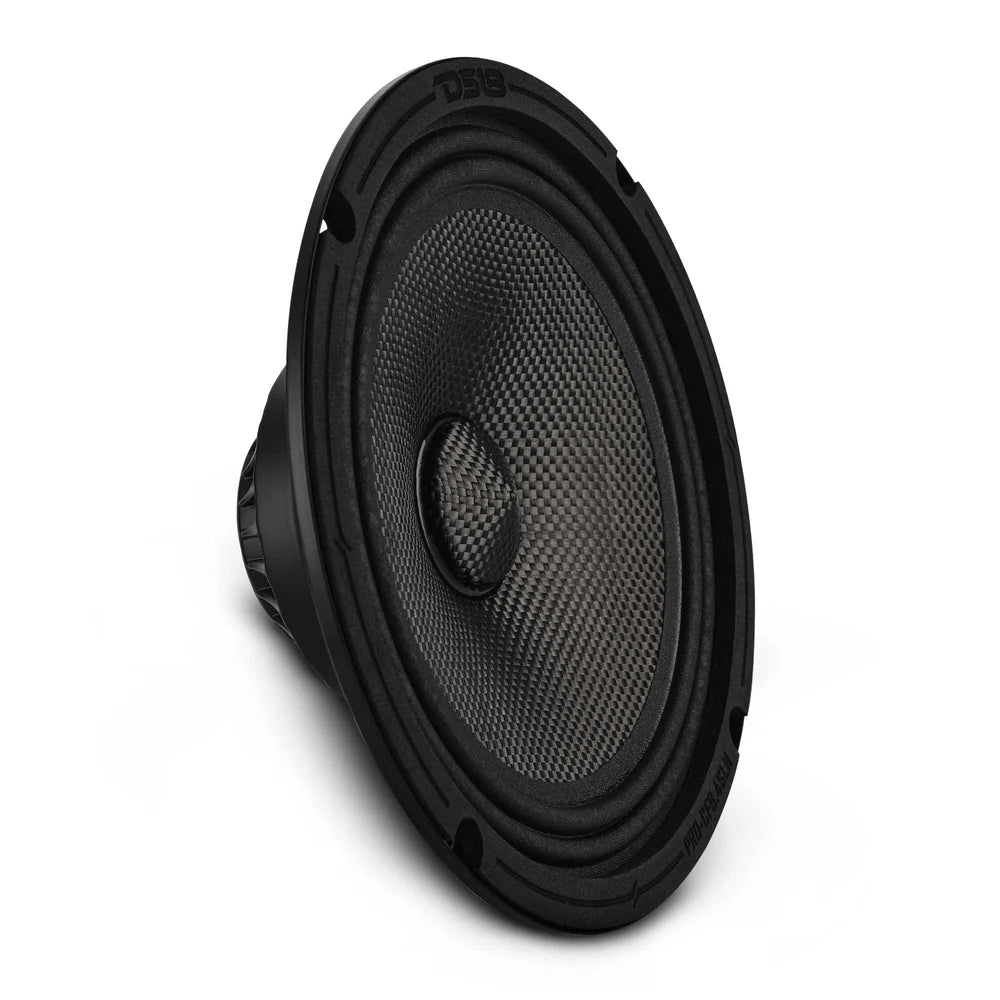

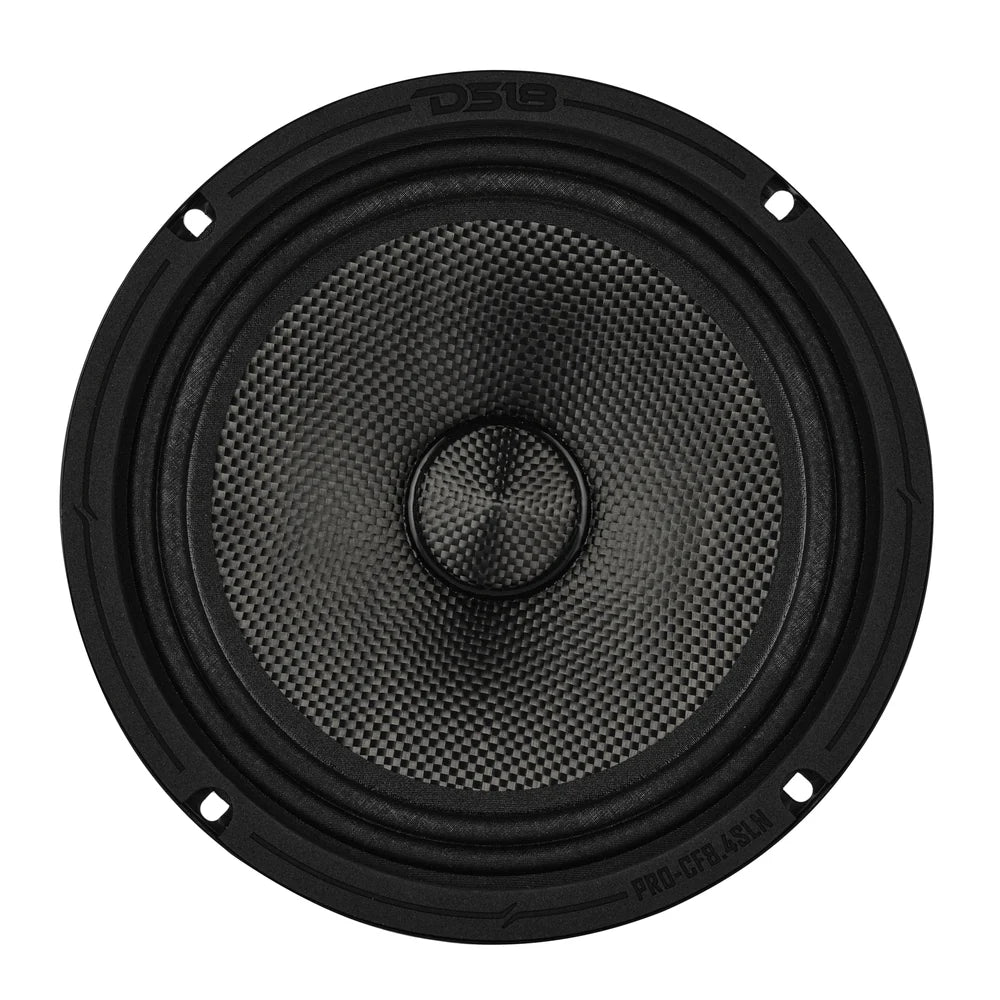

Two PRO-CF6.4SLN Midrange Speakers
One matched pair of slim-profile 6.5-inch midrange loudspeakers rated at 150 watts RMS and 300 watts maximum per speaker.

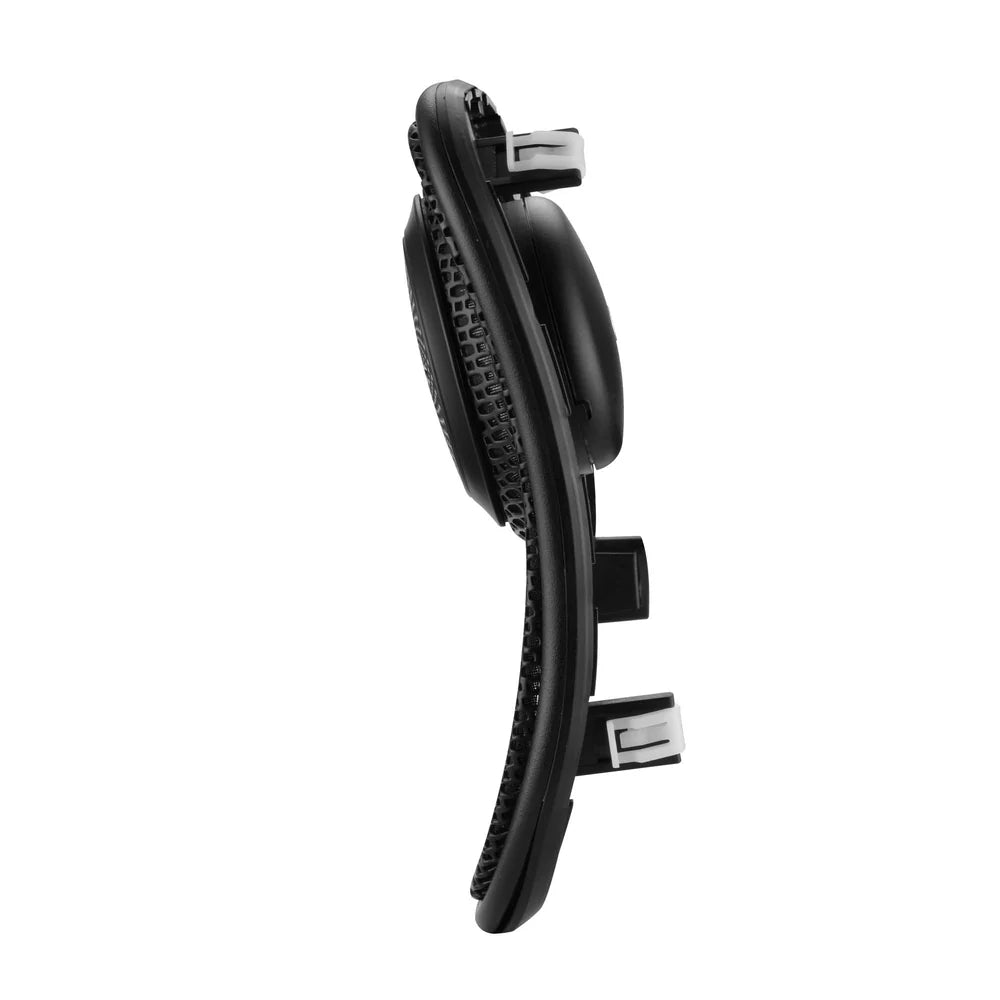

Fairing-Specific Replacement Grilles
One left-and-right Road Glide or Street Glide replacement grille pair, depending on the selected Shopify variant.
Two NVY Bullet Tweeters
Each replacement grille is preloaded with one 2.5-inch neodymium bullet tweeter for dedicated high-frequency output.

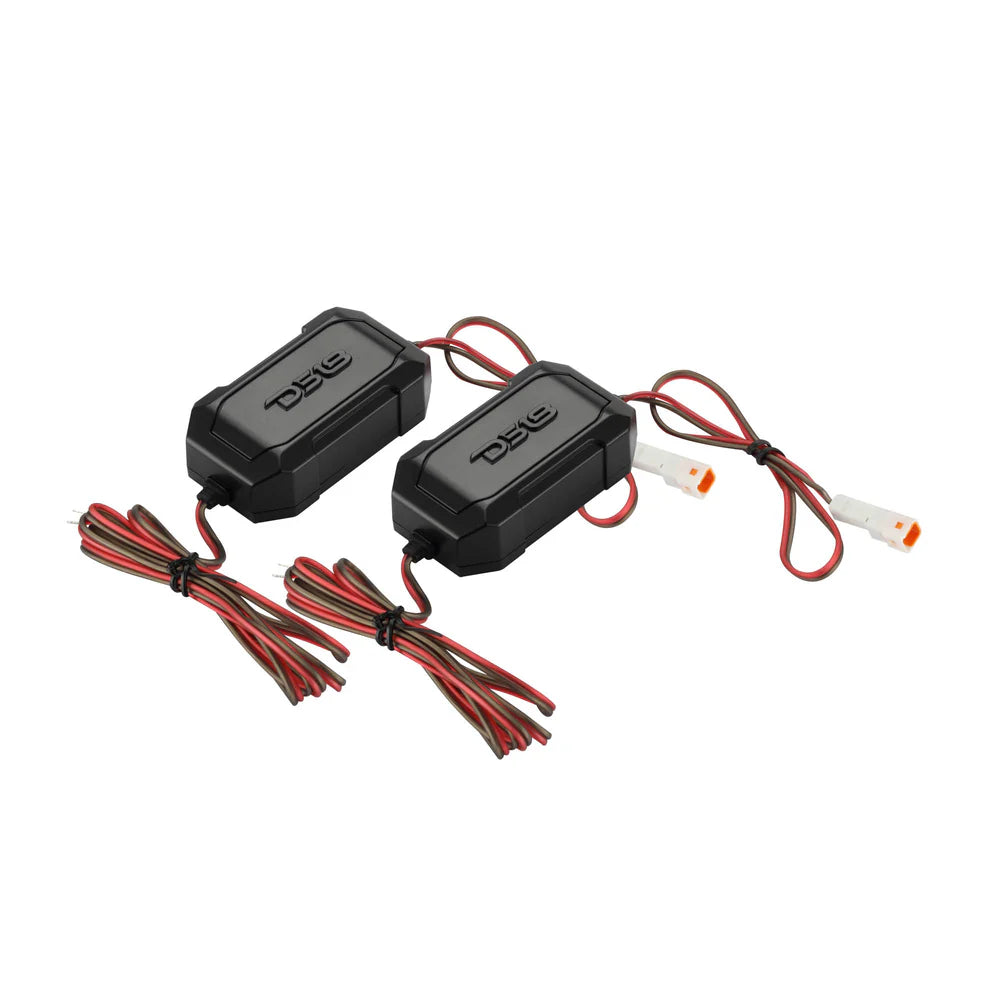

Two Inline Crossovers
The included crossover modules filter damaging lower frequencies before they reach the bullet tweeters.
Why Riders Choose This DS18 Front Stage
Highway-Ready Midrange
The midrange speakers emphasize the vocal and instrument frequencies that must overcome wind, engine and road noise.
Dedicated High Frequencies
Grille-mounted bullet tweeters improve the projection of vocals, cymbals and upper-frequency detail.
Slim Speaker Design

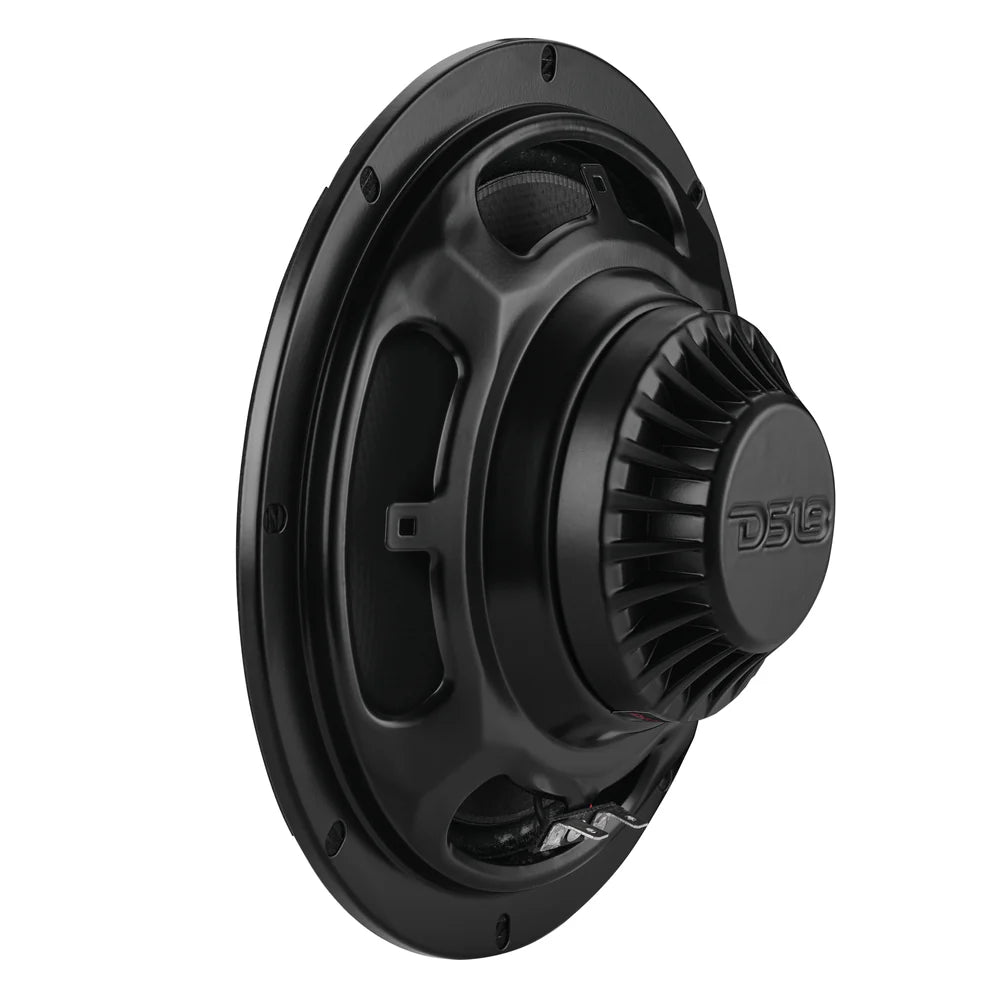

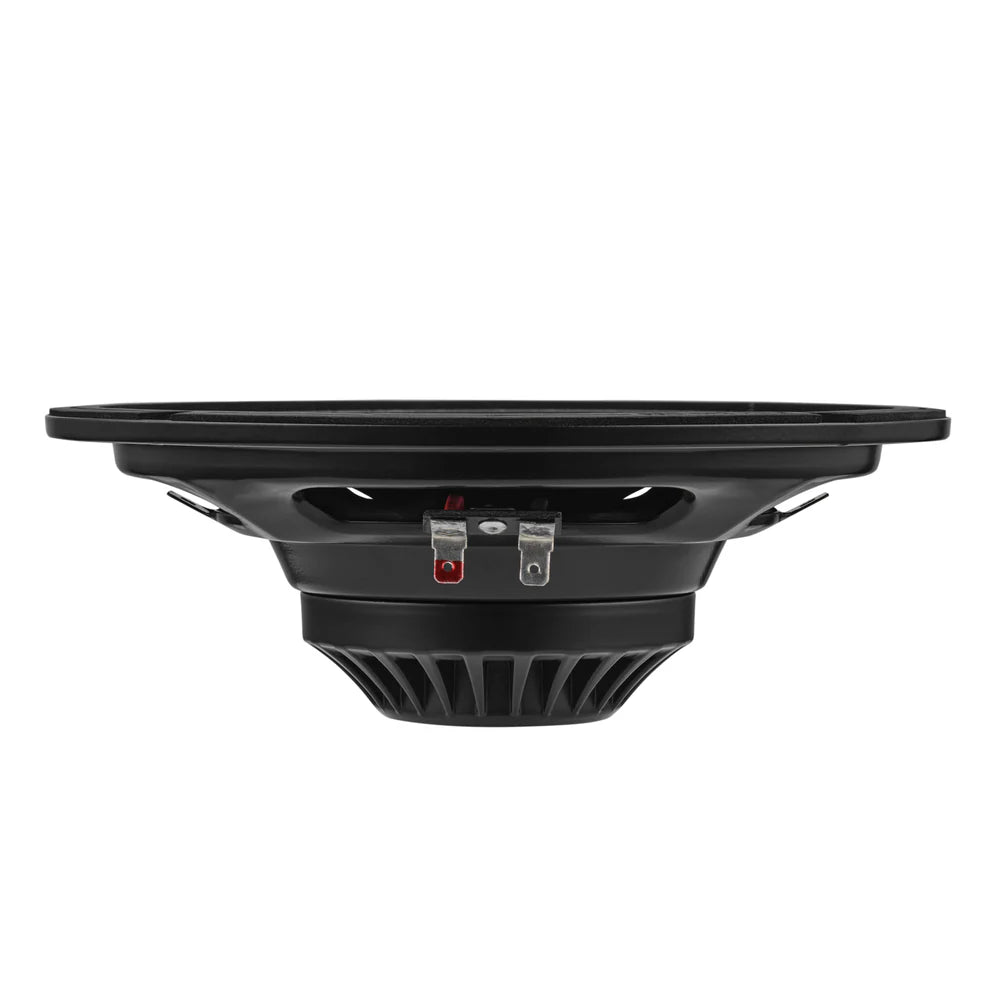

The shallow PRO-CF6.4SLN frame is engineered for compact motorcycle fairing installations where mounting depth is limited.
Carbon-Fiber Cones
Water-resistant carbon-fiber cones provide a rigid, lightweight diaphragm for clear and controlled midrange output.
Neodymium Motors
Lightweight neodymium motor structures reduce unnecessary weight while supporting efficient speaker output.
OEM-Style Appearance
The tweeters are integrated into vehicle-specific replacement grilles rather than mounted in unrelated external pods.
PRO-CF6.4SLN Midrange Specifications
NVY Bullet Tweeter and Grille Specifications
Midrange and Tweeter System Design
Midrange Frequency Coverage
The PRO-CF6.4SLN speakers reproduce the vocal, guitar and upper midrange frequencies that provide most of the system’s perceived clarity and projection.
High-Frequency Coverage
The bullet tweeters extend the front stage into the upper frequencies while the inline crossovers protect them from lower frequency energy.
Amplifier and Crossover Setup
- Use an amplifier that is stable with the final connected channel load.
- Match amplifier output to the 150-watt RMS rating of each midrange speaker.
- Use the supplied inline crossover modules with the bullet tweeters.
- Do not send unfiltered bass or midrange energy directly to the tweeters.
- Use appropriate high-pass filtering on the PRO-CF6.4SLN midranges.
- Set amplifier gain with clean measured output rather than by volume position alone.
- Verify speaker and tweeter polarity on both sides of the fairing.
- Secure the crossovers and wiring against vibration and fairing-panel contact.
- Confirm that all wiring is protected from heat, sharp edges and moving components.
- Professional installation and system tuning are recommended.
Complete Kit Specifications
Fitment and Ordering Notes
- Select the Road Glide or Street Glide variant before adding to cart.
- The replacement grilles are not interchangeable between fairing styles.
- The kit is intended for compatible 2014–2023 Touring fairings.
- Each included midrange speaker has a nominal impedance of 4 ohms.
- Each included bullet tweeter has a nominal impedance of 4 ohms.
- Inline tweeter crossovers are included and must remain in the signal path.
- Confirm midrange mounting depth and enclosure clearance before assembly.
- Confirm crossover placement before snapping or bolting the grilles into place.
- An amplifier and amplifier wiring are not included.
- Professional installation and tuning are recommended.
Best For
- 2014–2023 Road Glide front-stage audio upgrades
- 2014–2023 Street Glide front-stage audio upgrades
- Riders who need stronger vocal projection at highway speeds
- Systems requiring separate midrange and high-frequency drivers
- Fairing installations with limited speaker mounting depth
- Harley audio systems using an aftermarket amplifier or DSP
- Installations that need a clean factory-style grille appearance
Related Motorcycle Audio Categories
Motorcycle Speaker Upgrades
Signal and System Support
DS18 Harley Front Stage Kit FAQ
What comes with this DS18 Harley front-stage kit?
The kit includes two PRO-CF6.4SLN slim 6.5-inch midrange speakers, one pair of fairing-specific replacement grilles, two preinstalled NVY bullet tweeters and two inline tweeter crossover modules.
Does this listing cover both Road Glide and Street Glide?
Yes. Choose the Road Glide or Street Glide variant. Each option uses a different grille assembly matched to its specific fairing.
What impedance are the midrange speakers?
Each PRO-CF6.4SLN midrange speaker has a nominal impedance of 4 ohms.
What impedance are the bullet tweeters?
Each grille-mounted bullet tweeter has a nominal impedance of 4 ohms.
Does the complete system create a 2-ohm load?
Do not assume a constant 2-ohm load. The tweeter uses a frequency-selective crossover, so the final impedance varies with frequency and depends on the actual wiring arrangement.
How much power can the midrange speakers handle?
Each midrange speaker is rated for 150 watts RMS and 300 watts maximum.
What is the difference between the Road Glide and Street Glide tweeters?
The grille shapes are different. DS18 also publishes 102dB tweeter sensitivity for the Road Glide package and 105dB for the Street Glide package.
Are the tweeter crossovers included?
Yes. Inline crossover modules are supplied with the grille and tweeter assemblies.
Can the tweeters be connected without the crossovers?
No. The tweeters require crossover or high-pass protection to prevent damaging lower frequencies from reaching the high-frequency drivers.
Are these full-range speakers?
The PRO-CF6.4SLN is a dedicated midrange loudspeaker. The grille-mounted tweeters supply the upper frequencies. Additional mid-bass or subwoofers may be needed for stronger low-frequency output.
Is an amplifier included?
No. This package contains the speakers, tweeter grilles and crossover modules. The amplifier, DSP and amplifier wiring are sold separately.
Are the components weather resistant?
The midranges use water-resistant carbon-fiber cones. The tweeters are IP65 rated, and the grille assemblies use UV-resistant construction with protective cloth backing.
