DS18 Harley-Davidson Front Grille Bullet Tweeter Kit
Upgrade the front soundstage on a compatible 2014–2023 Harley-Davidson Road Glide or Street Glide with direct-fit replacement fairing grilles preloaded with DS18 NVY-BULLET1 neodymium bullet tweeters and inline crossovers.
Select the Road Glide or Street Glide version to match the motorcycle’s fairing. Each kit provides stronger high-frequency projection, improved vocal clarity and a clean OEM-style grille installation.
Direct-Fit Harley Tweeter Upgrade
- Road Glide and Street Glide versions available
- Fits compatible 2014–2023 Harley Touring fairings
- Pair of replacement front speaker grilles
- DS18 NVY-BULLET1 tweeters preinstalled
- 2.5-inch neodymium bullet tweeters
- 4-ohm nominal impedance per tweeter
- Inline crossover filtering included
- 102dB sensitivity for efficient high-frequency output
- IP65-rated weather-resistant tweeter design
- UV-resistant materials for exposed motorcycle use
DS18 Harley Front Grille Tweeter Kit Overview
This DS18 front grille upgrade adds dedicated high-frequency output to compatible 2014–2023 Harley-Davidson Touring motorcycles without using a separate custom tweeter mounting location.

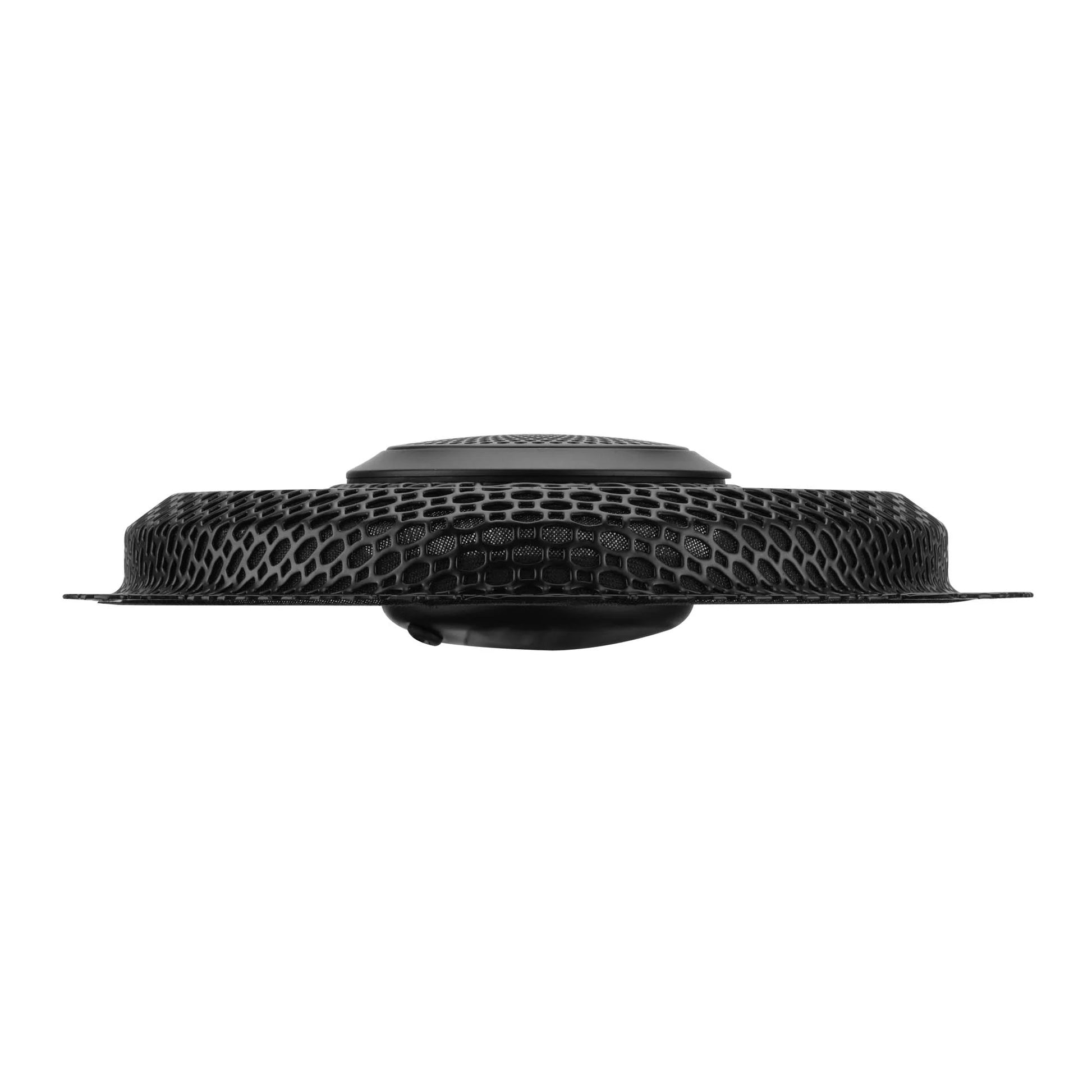

Each replacement grille is preloaded with a DS18 NVY-BULLET1 bullet tweeter. The tweeters use compact neodymium motors and high-sensitivity compression-style construction to project vocals, cymbals and upper frequencies through wind, road and exhaust noise.
Inline crossovers are included to filter lower frequencies before they reach the tweeters. Select the correct Road Glide or Street Glide grille version before ordering because the two fairing designs use different replacement grille assemblies.
Available Road Glide and Street Glide Versions

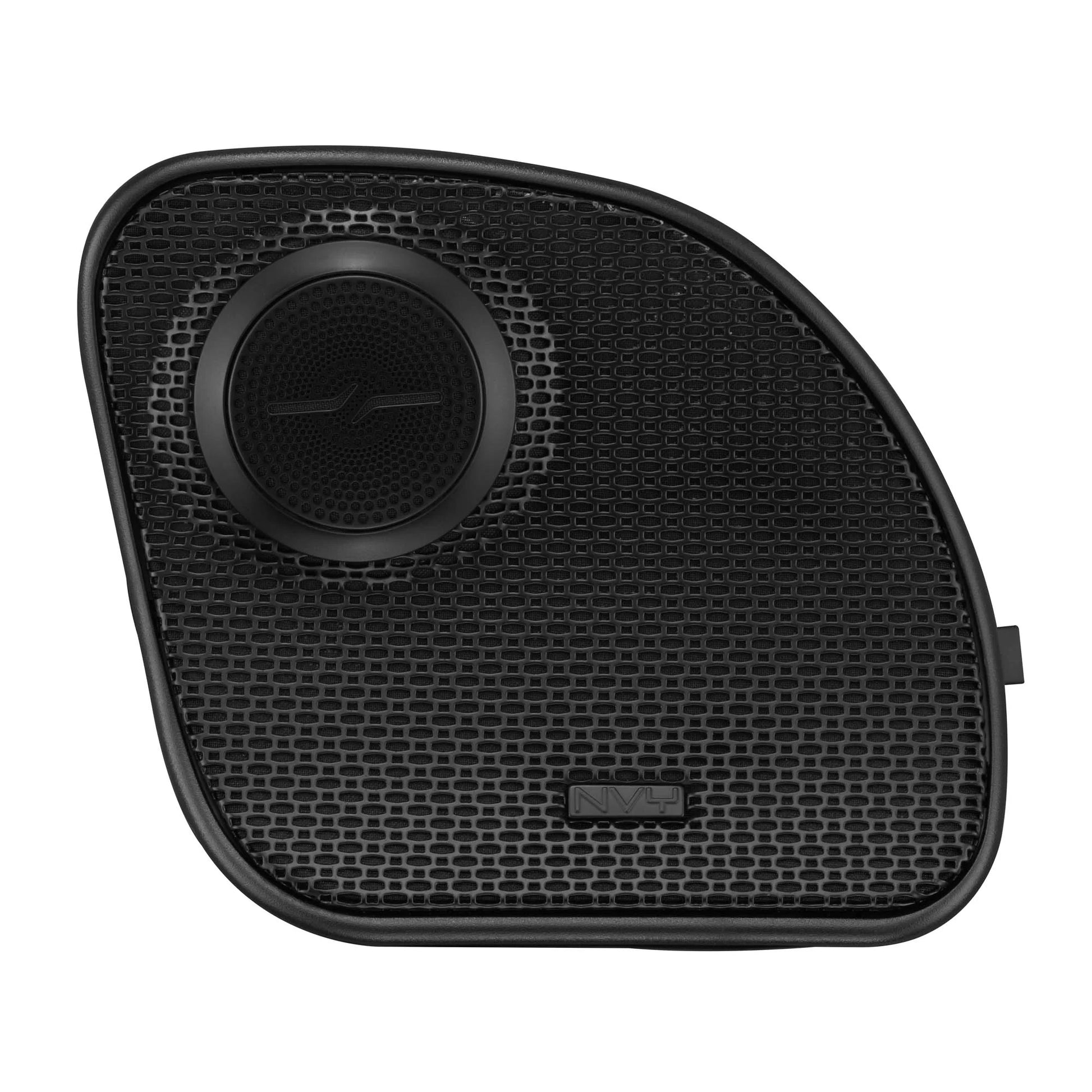

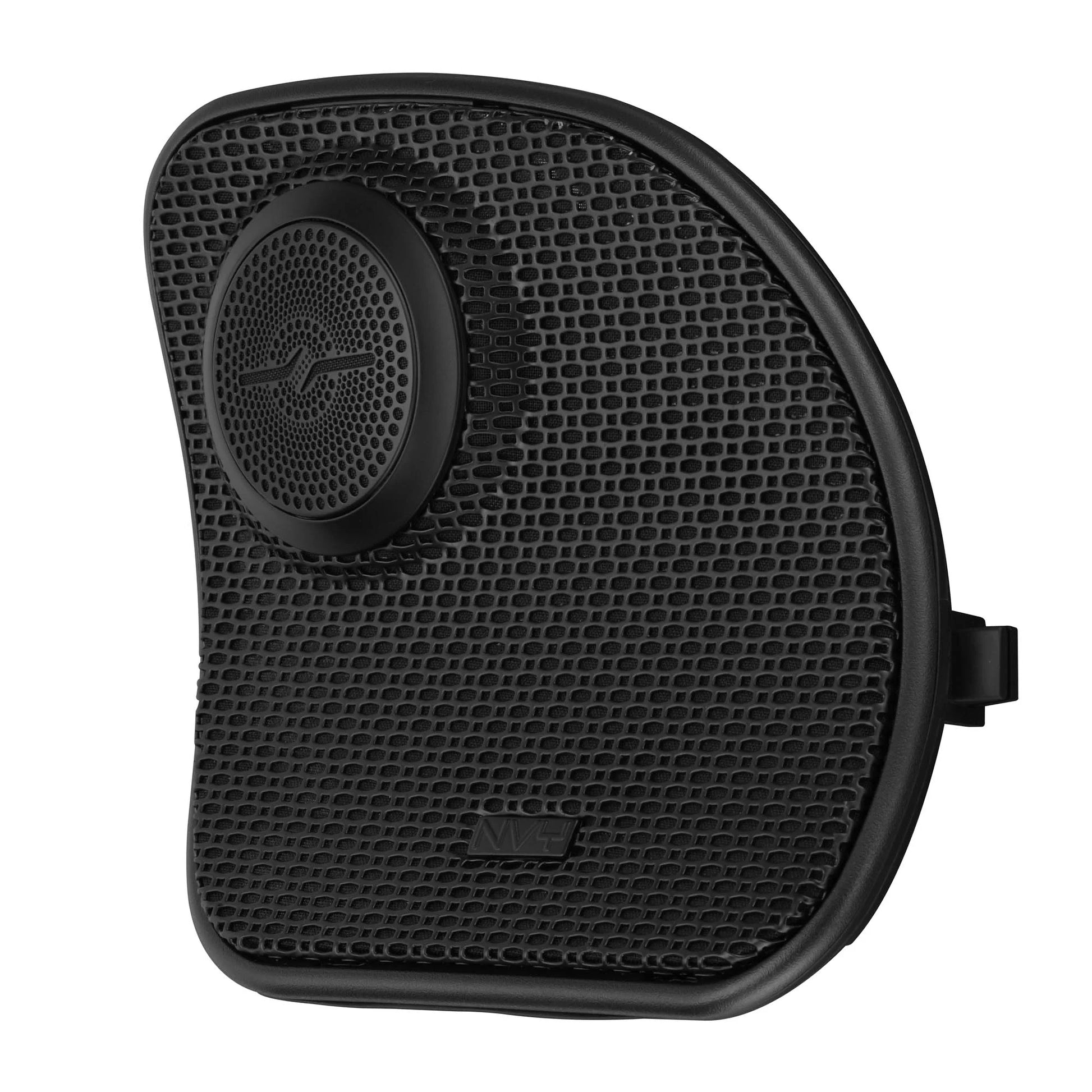

2014–2023 Road Glide

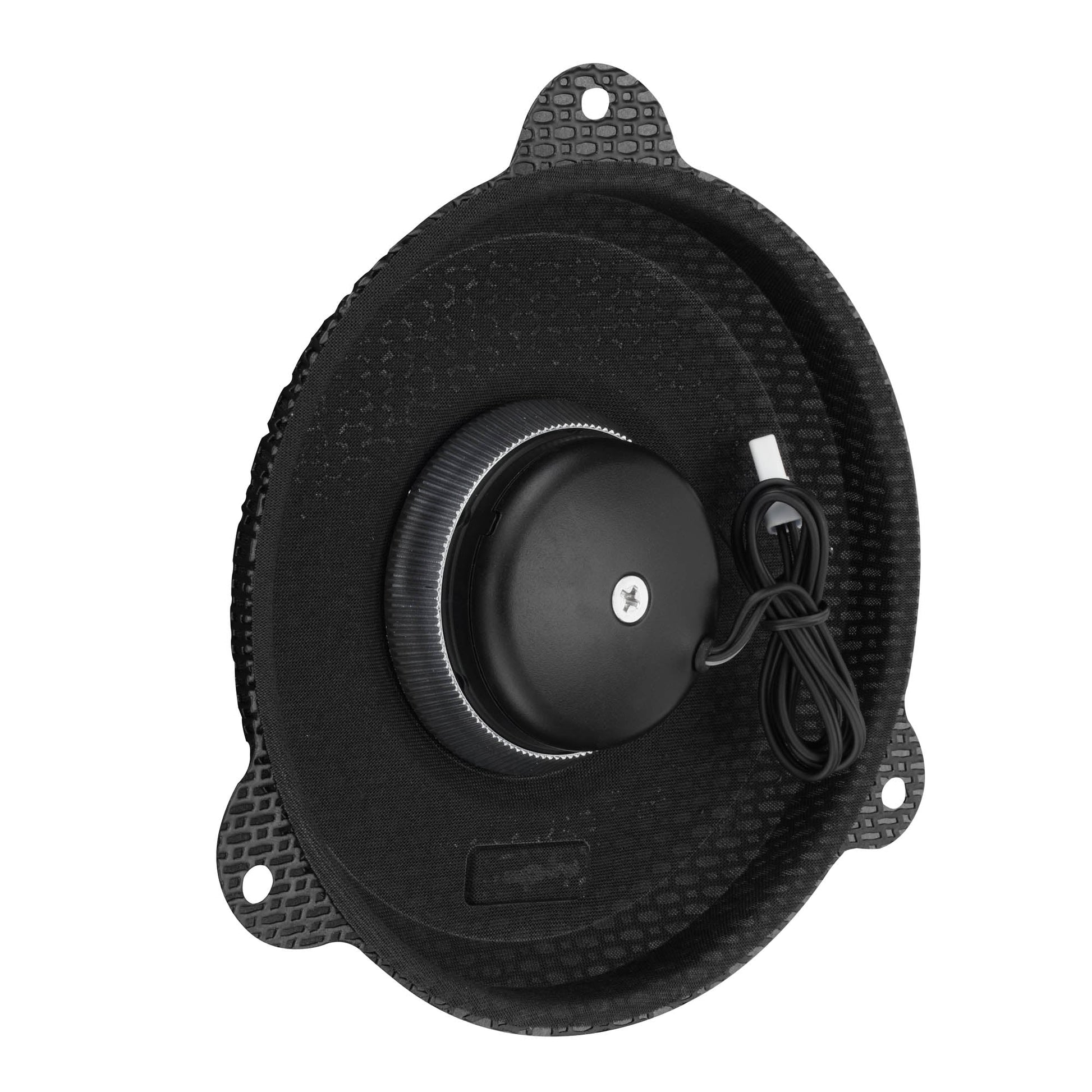

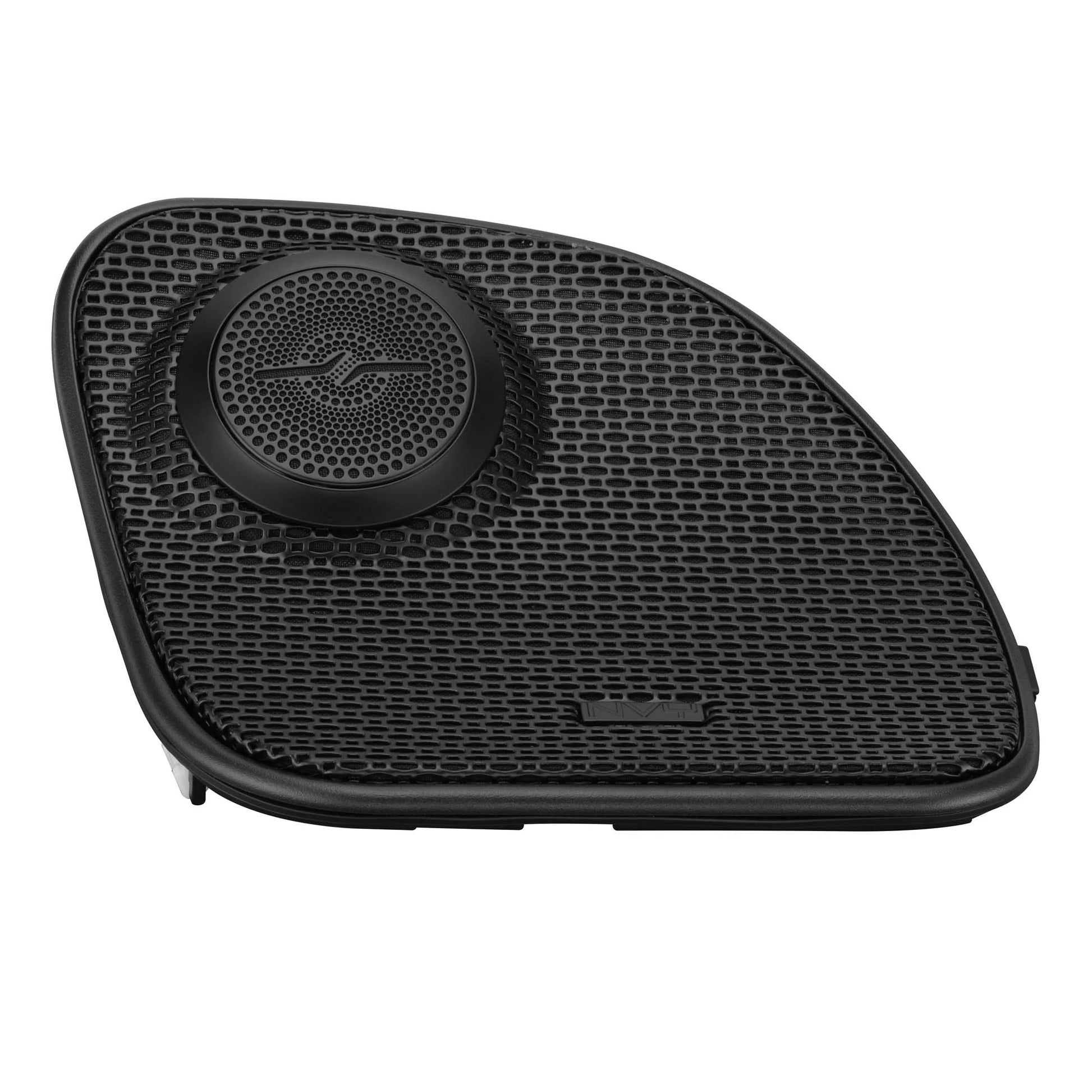

Select this version for compatible 2014–2023 Harley-Davidson Road Glide sharknose fairings. The grille shape and mounting design are specific to the Road Glide front speaker locations.

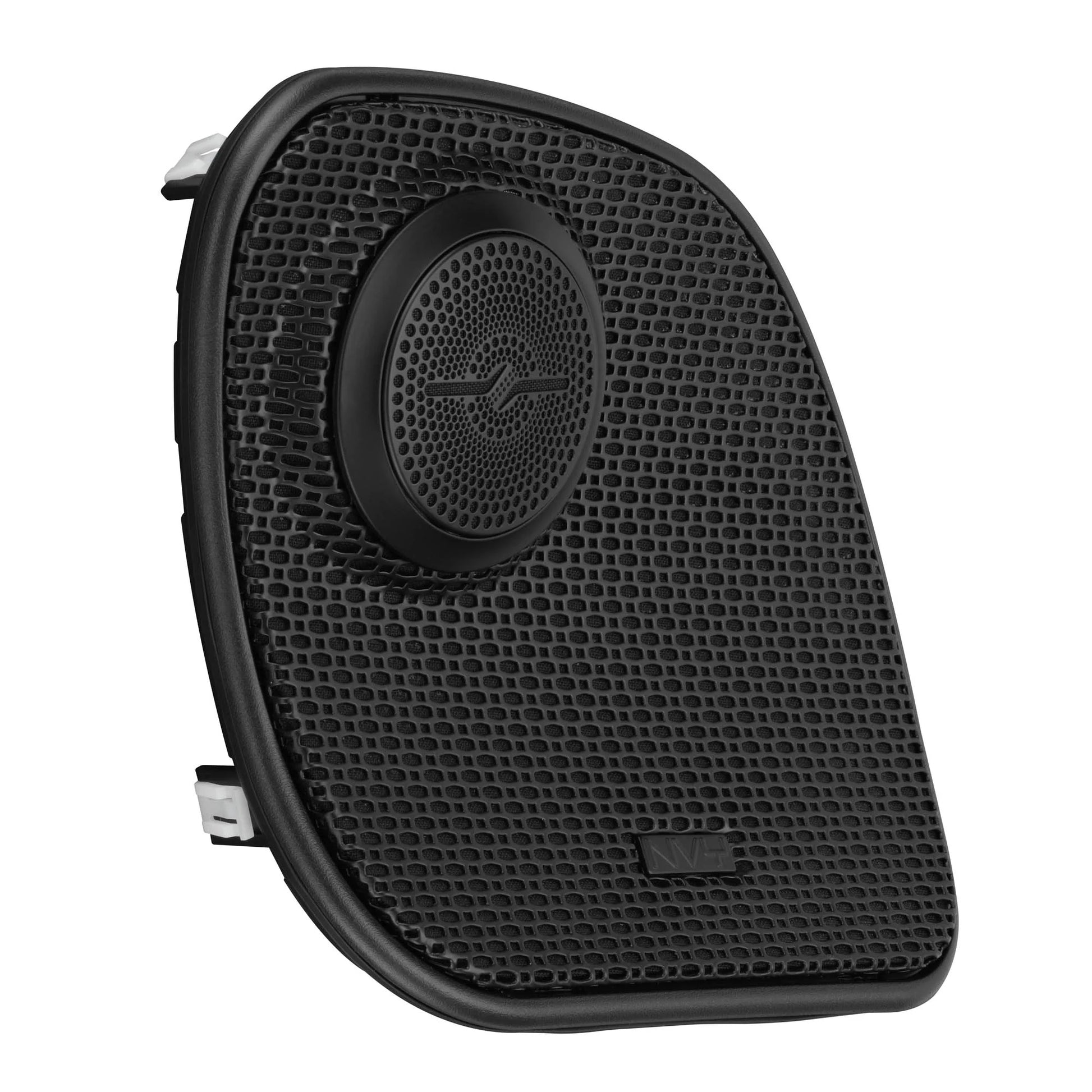

2014–2023 Street Glide

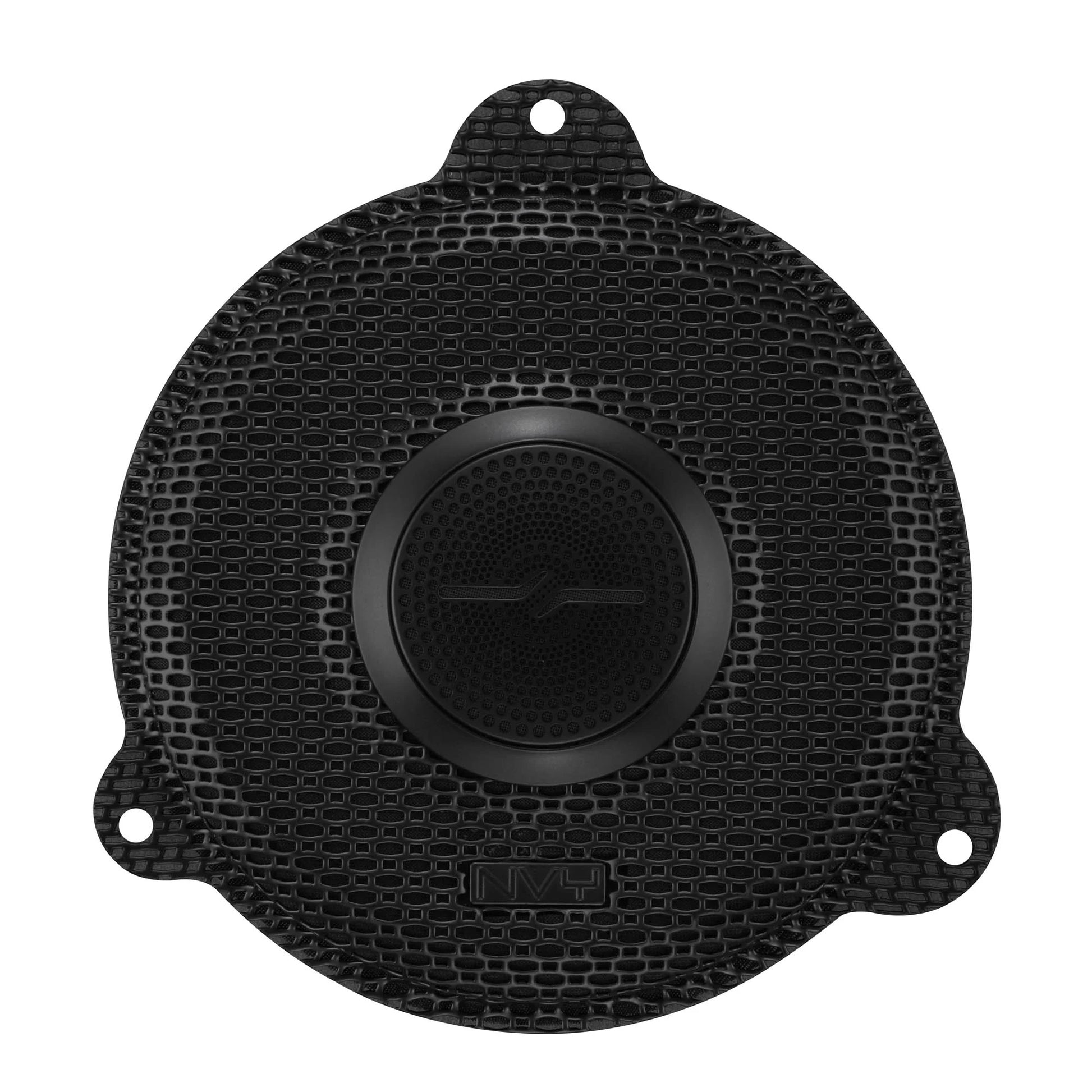

Select this version for compatible 2014–2023 Harley-Davidson Street Glide batwing fairings. The grille shape and mounting design are specific to the Street Glide front speaker locations.

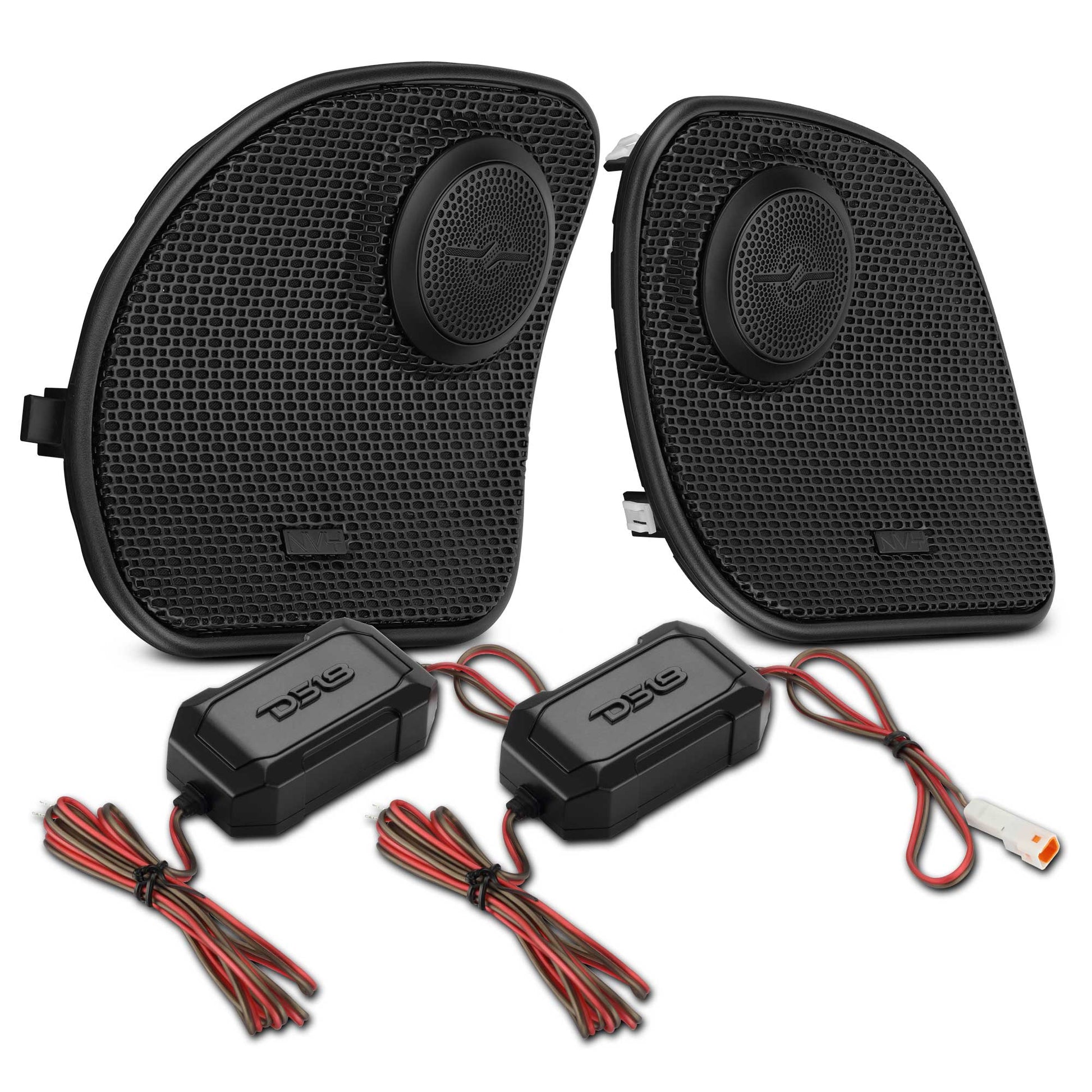

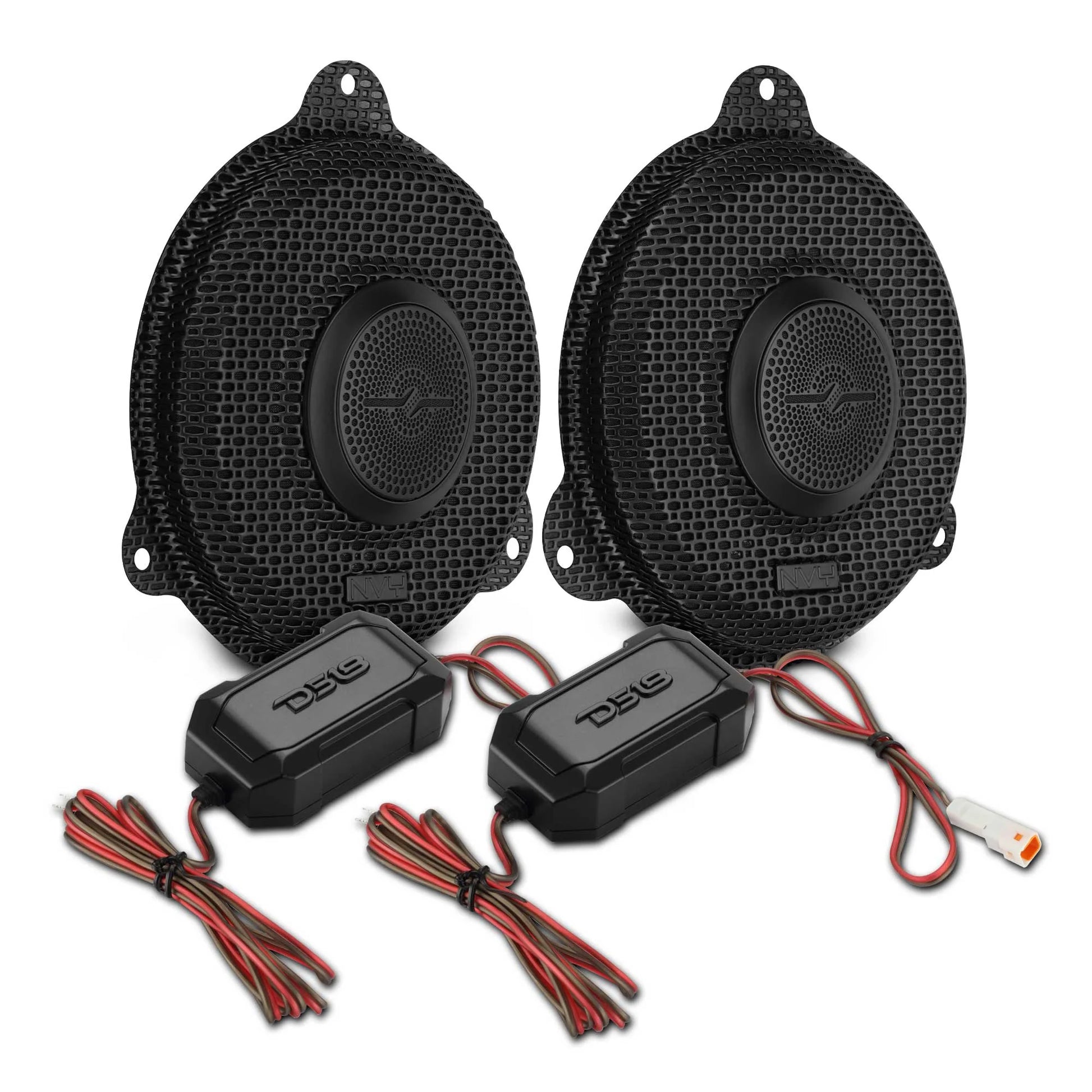

What Comes with the Kit
Replacement Grille Pair
One matched pair of Road Glide or Street Glide replacement front speaker grilles, depending on the selected variant.
Two NVY-BULLET1 Tweeters
Each grille is preloaded with one DS18 NVY-BULLET1 2.5-inch, 4-ohm neodymium bullet tweeter.

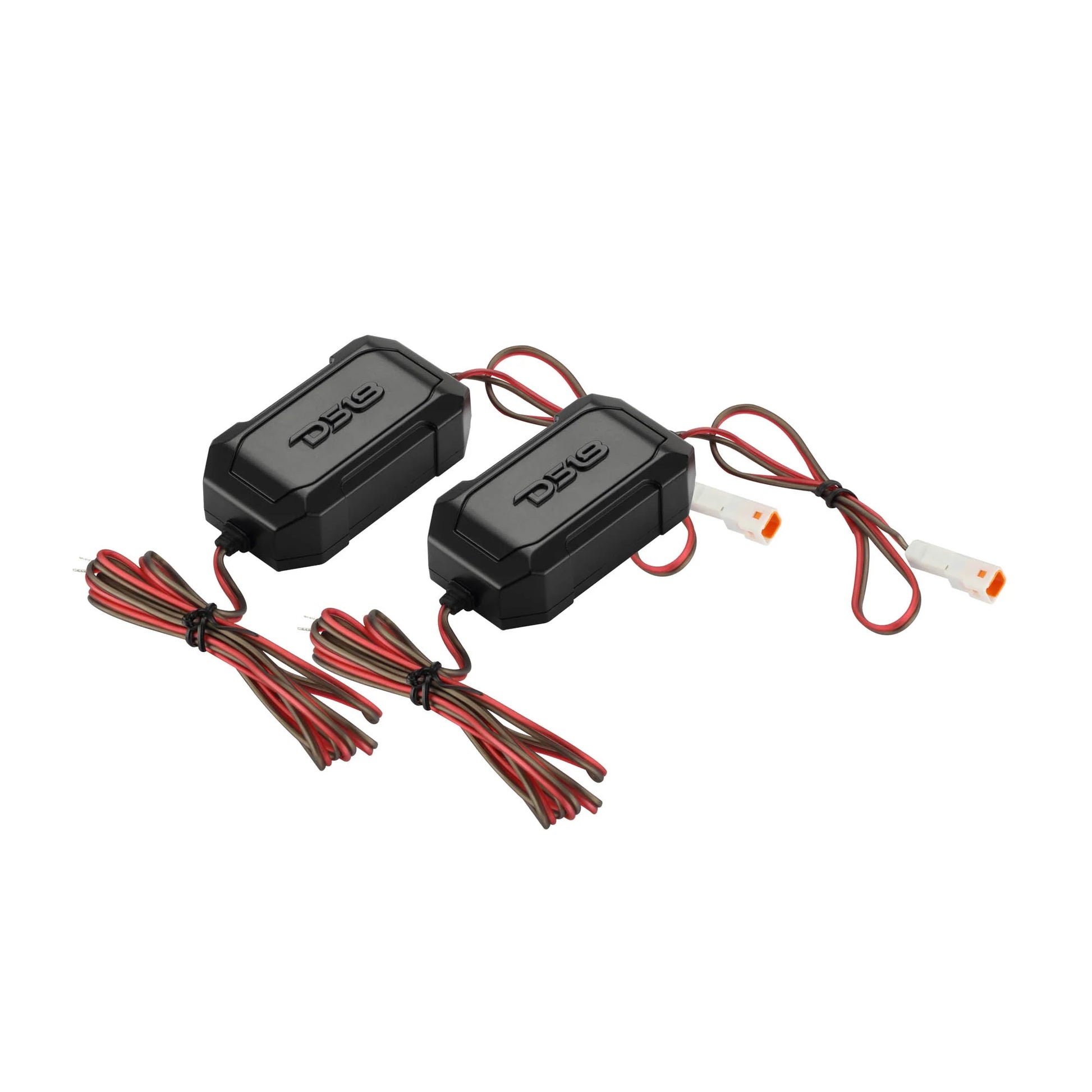

Inline Crossovers
Inline crossover filtering is included to reduce damaging low-frequency content before it reaches the tweeters.
Why Riders Choose This Front Grille Upgrade
Stronger High-Frequency Projection
The high-sensitivity bullet tweeters help project vocals and upper frequencies over wind, exhaust and highway noise.
Preloaded Grille Design

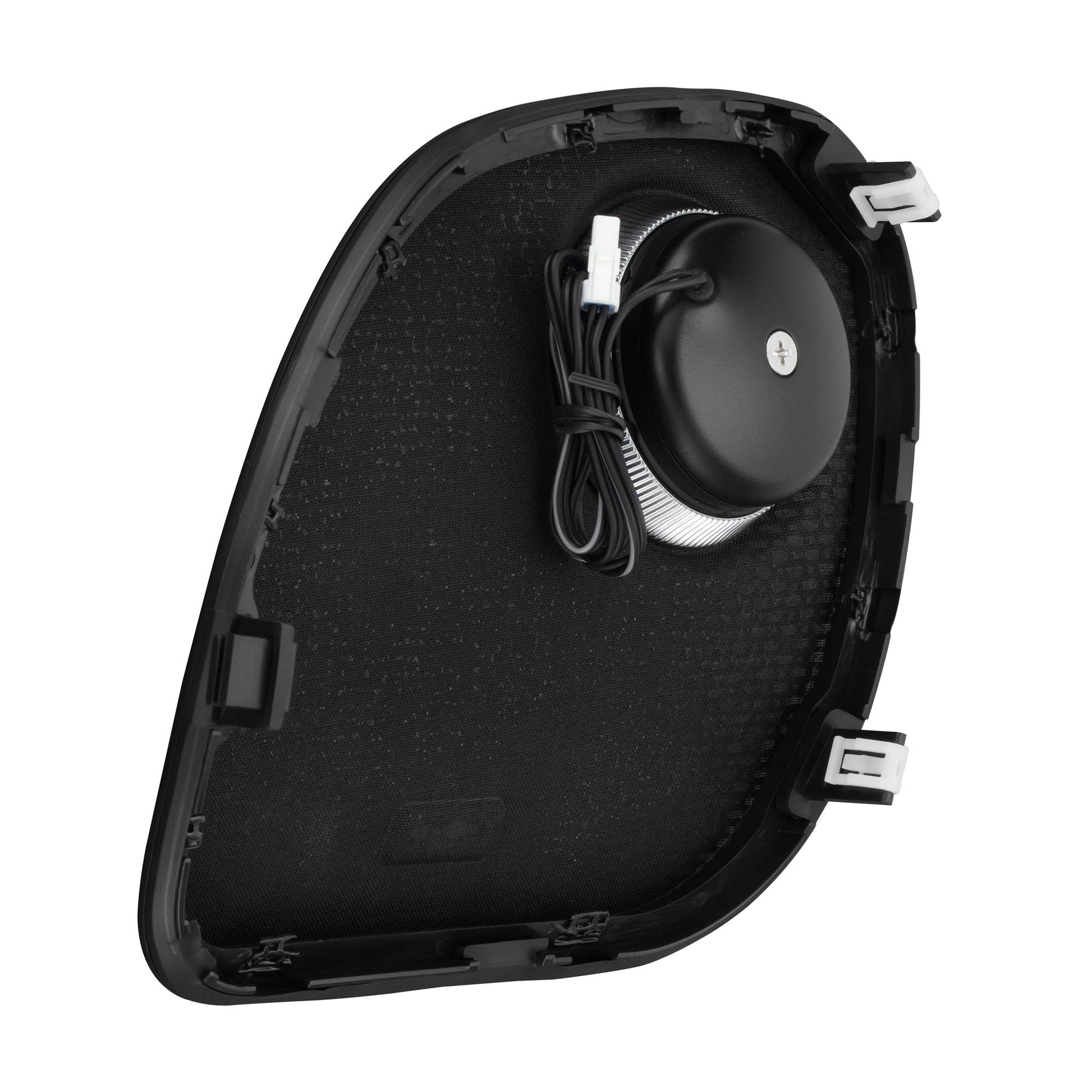

The tweeters arrive mounted in the replacement grilles, reducing the fabrication normally required for a separate tweeter location.
OEM-Style Appearance
Vehicle-specific grille shapes maintain a clean factory-style appearance while adding dedicated high-frequency drivers.
Inline Crossover Protection
Included crossover filtering helps keep low-frequency energy away from the tweeters and supports cleaner high-frequency performance.
Weather-Resistant Construction
The IP65-rated tweeter design and UV-resistant materials are suited to exposed motorcycle fairing environments.
Road Glide or Street Glide Fitment
Separate fairing-specific versions provide the correct grille shape for compatible 2014–2023 Touring applications.
DS18 NVY-BULLET1 Tweeter Performance
The NVY-BULLET1 is a compact neodymium bullet tweeter designed for efficient output in motorcycle and powersports audio systems. Its 102dB sensitivity allows it to produce strong high-frequency output without requiring excessive amplifier power.
- 2.5-inch bullet-style high-frequency driver
- Compact neodymium motor assembly
- 4-ohm nominal impedance per tweeter
- 50 watts AES power handling per tweeter
- 100 watts program power per tweeter
- 200 watts peak power per tweeter
- 2kHz–20kHz published frequency response
- 102dB published sensitivity
- Recommended high-pass frequency of 4kHz
Inline Crossover and Amplifier Setup
Included Crossover Filtering
The supplied inline crossovers filter lower frequencies from the tweeters. Install them in the signal path and secure them where they cannot move, rattle or contact sharp fairing components.
Amplifier or DSP Configuration
When the system uses an aftermarket amplifier or DSP, configure the output for the tweeters’ 4-ohm impedance, power rating and recommended high-pass operating range.
Key Specifications
Harley-Davidson Fitment
Road Glide Variant
- Compatible 2014–2023 Road Glide applications
- Sharknose fairing-specific grille design
- Left and right front grille assemblies
- Confirm trim and existing audio equipment before ordering
Street Glide Variant
- Compatible 2014–2023 Street Glide applications
- Batwing fairing-specific grille design
- Left and right front grille assemblies
- Confirm trim and existing audio equipment before ordering
Installation Notes
- Disconnect the motorcycle battery before beginning installation.
- Select the grille version that matches the exact fairing.
- Remove the factory front grilles without damaging the mounting tabs.
- Plan the tweeter wiring and crossover location before snapping the replacement grilles into place.
- Keep crossover modules away from heat, sharp edges and moving components.
- Secure all wiring against vibration and fairing-panel contact.
- Observe correct polarity on both tweeters.
- Use the supplied crossover filtering in the tweeter signal path.
- Confirm amplifier stability with the complete connected speaker load.
- Set output levels conservatively and verify clean operation before final assembly.
Best For
- 2014–2023 Road Glide front-stage upgrades
- 2014–2023 Street Glide front-stage upgrades
- Harley audio systems that need stronger high-frequency projection
- Riders having difficulty hearing vocals and upper frequencies at speed
- Systems using existing fairing speakers that need added tweeter output
- Installations that require a clean factory-style grille appearance
- Amplified or DSP-controlled Harley-Davidson audio systems
Related Motorcycle Audio Categories
Harley Speaker Upgrades
Amplifier and Signal Support
DS18 Harley Front Grille Tweeter Kit FAQ
Does this listing include Road Glide and Street Glide versions?
Yes. Select the Road Glide or Street Glide fairing version before adding the kit to the cart. The two motorcycles use different grille shapes and mounting designs.
How many grilles are included?
The selected variant includes one matched left-and-right front grille pair.
Are the tweeters already installed in the grilles?
Yes. Each grille is preloaded with one DS18 NVY-BULLET1 bullet tweeter.
What impedance are the tweeters?
Each NVY-BULLET1 tweeter has a nominal impedance of 4 ohms.
Are crossovers included?
Yes. Inline crossover filtering is included for the tweeter pair.
What high-pass frequency is recommended?
The published recommended high-pass frequency is 4kHz. Final amplifier or DSP settings should account for the complete system design and crossover network.
How much power can each tweeter handle?
Each tweeter is rated for 50 watts AES, 100 watts program power and 200 watts peak power.
Are the tweeters weather resistant?
The NVY-BULLET1 design is IP65 rated and uses UV-resistant materials for exposed motorcycle and powersports installations.
Will one grille kit fit both Road Glide and Street Glide models?
No. The grille assemblies are fairing specific. Select the variant that matches the exact motorcycle.
Will these fit every 2014–2023 Harley-Davidson model?
No. The listing is intended for compatible Road Glide or Street Glide applications. It is not a universal grille kit for every Harley model.
Can these be used with a factory or aftermarket audio system?
They can be integrated into compatible factory or aftermarket systems, but the available signal, amplifier power, crossover arrangement and total connected impedance must be verified before installation.
