DS18 Harley-Davidson 6×9 Saddlebag Lid Conversion Kit

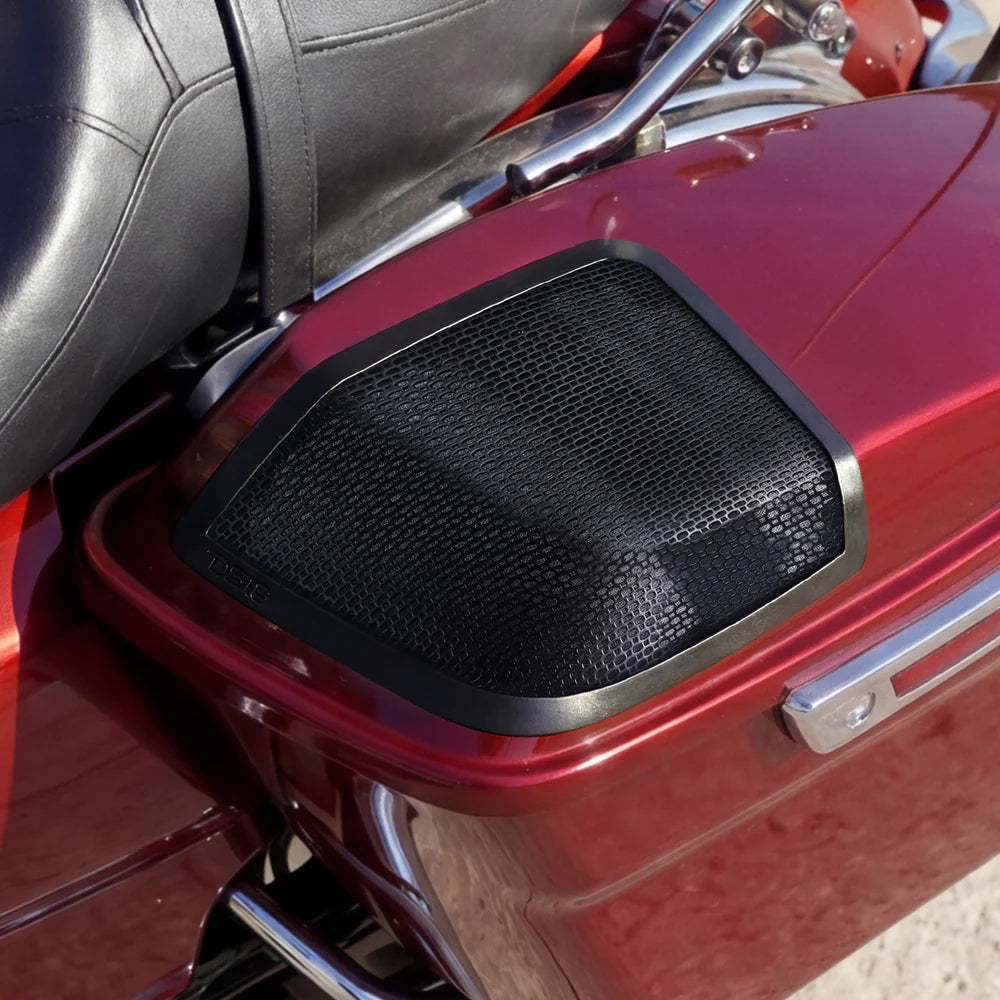

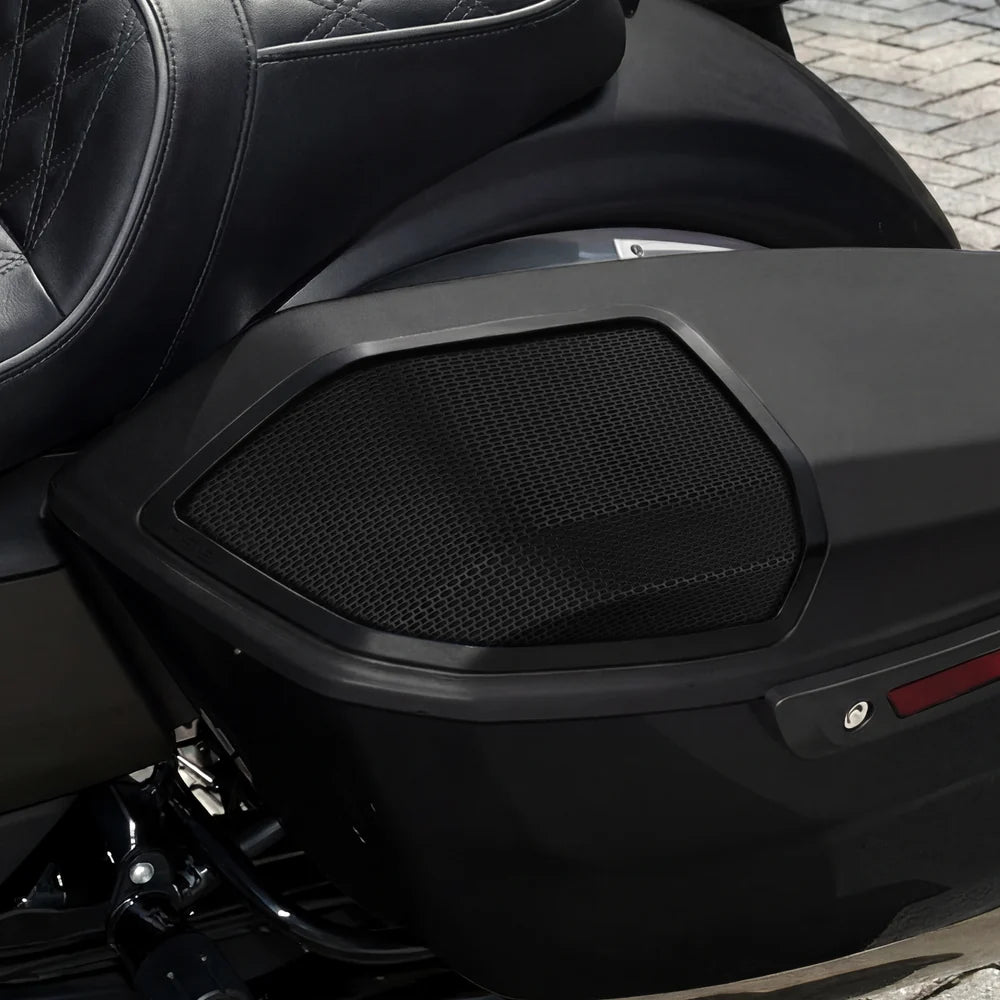

Convert compatible factory Harley-Davidson Touring saddlebag lids into clean, reinforced 6×9-inch speaker locations with model-specific DS18 cut-in adapters, matte black steel grilles, wiring, cutting templates and installation hardware.
Choose the 2014–2023 or 2024+ Harley Touring version to match the motorcycle’s factory saddlebag and lid design. Speakers are sold separately so the finished system can be matched to the amplifier, desired output and available mounting depth.
Complete Cut-In Lid System
- 2014–2023 and 2024+ Harley Touring versions
- Designed for standard 6×9-inch motorcycle speakers
- Two precision-molded saddlebag lid adapters
- Two matte black steel mesh speaker grilles
- Protective cloth backing behind the grilles
- Dual saddlebag speaker harnesses
- Main amplifier-ready wiring harness
- Brake-side and clutch-side cutting templates
- UV-resistant injected ABS and polycarbonate blend
- Speakers sold separately
DS18 Saddlebag Lid Conversion Kit Overview
The DS18 RY-HD69SBU series provides the structural, cosmetic and wiring components needed to install standard 6×9-inch motorcycle speakers into compatible factory Harley-Davidson Touring saddlebag lids.
Each version uses a cut-in installation system. The supplied templates establish the opening for the brake-side and clutch-side lids, while the molded adapters create a finished mounting surface for the selected speakers and protective steel grilles.
The kit also includes individual saddlebag speaker harnesses and a main amplifier-ready harness, allowing the rear speakers to be integrated with a compatible aftermarket amplifier or audio source.
Choose the Correct Harley Touring Version
2014–2023 Harley Touring
Select RY-HD69SBU.1423 for compatible factory saddlebag lids used on 2014–2023 Harley-Davidson Touring applications.
- SKU: RY-HD69SBU.1423
- Designed for compatible 2014–2023 OEM Touring lids
- Brake-side and clutch-side templates included
- Standard 6×9-inch speaker compatibility
2024+ Harley Touring
Select RY-HD69SBU.24 for compatible 2024 and newer Touring saddlebags, including supported Road Glide, Street Glide and similar factory-style bagger applications.
- SKU: RY-HD69SBU.24
- Designed for compatible 2024+ OEM Touring lids
- Primarily intended for bags without OEM rear audio
- Minor connector-harness modification may be required
Everything Included in the Conversion Kit

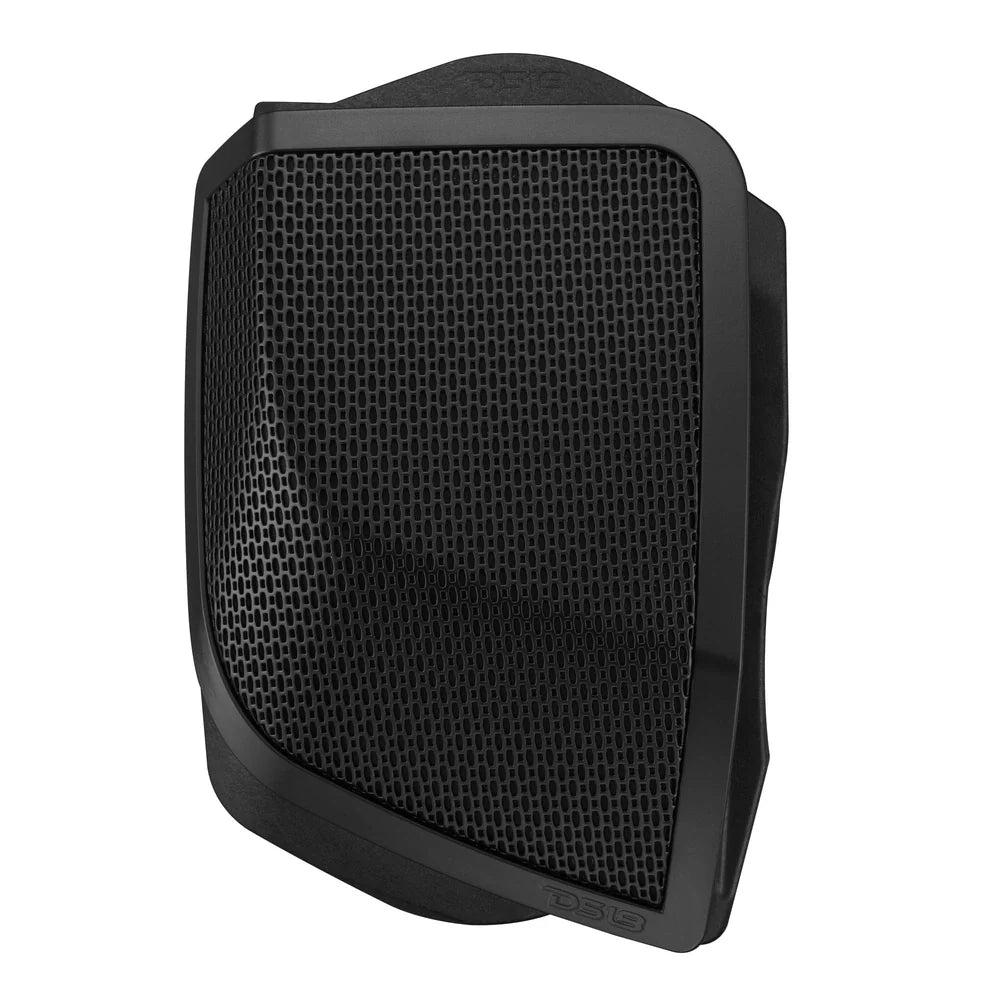

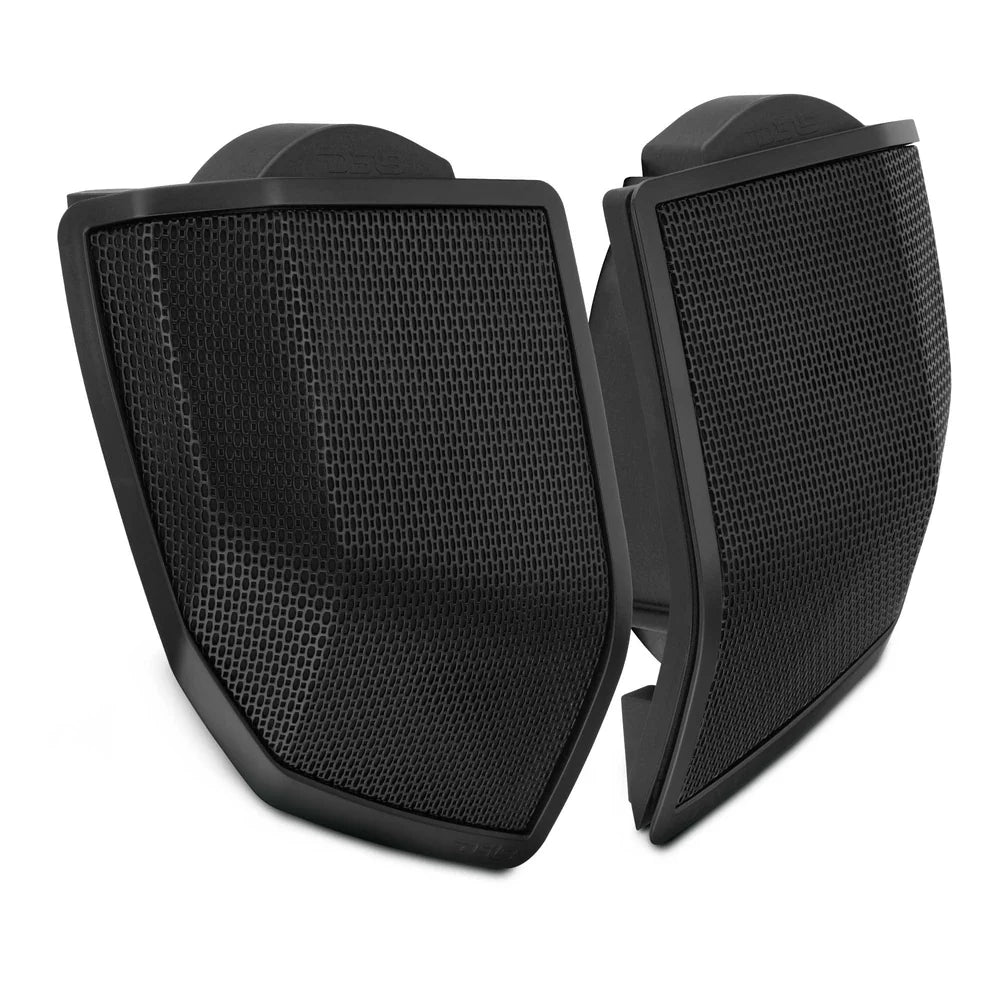

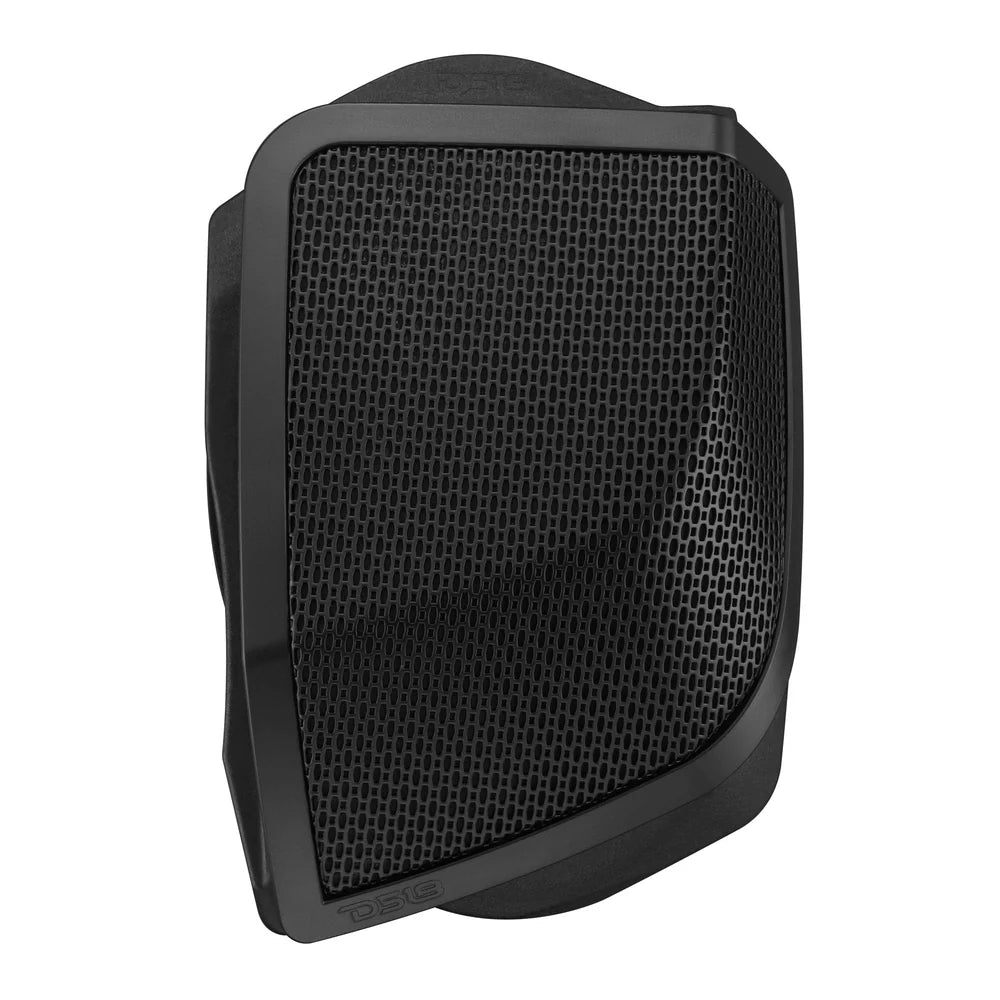

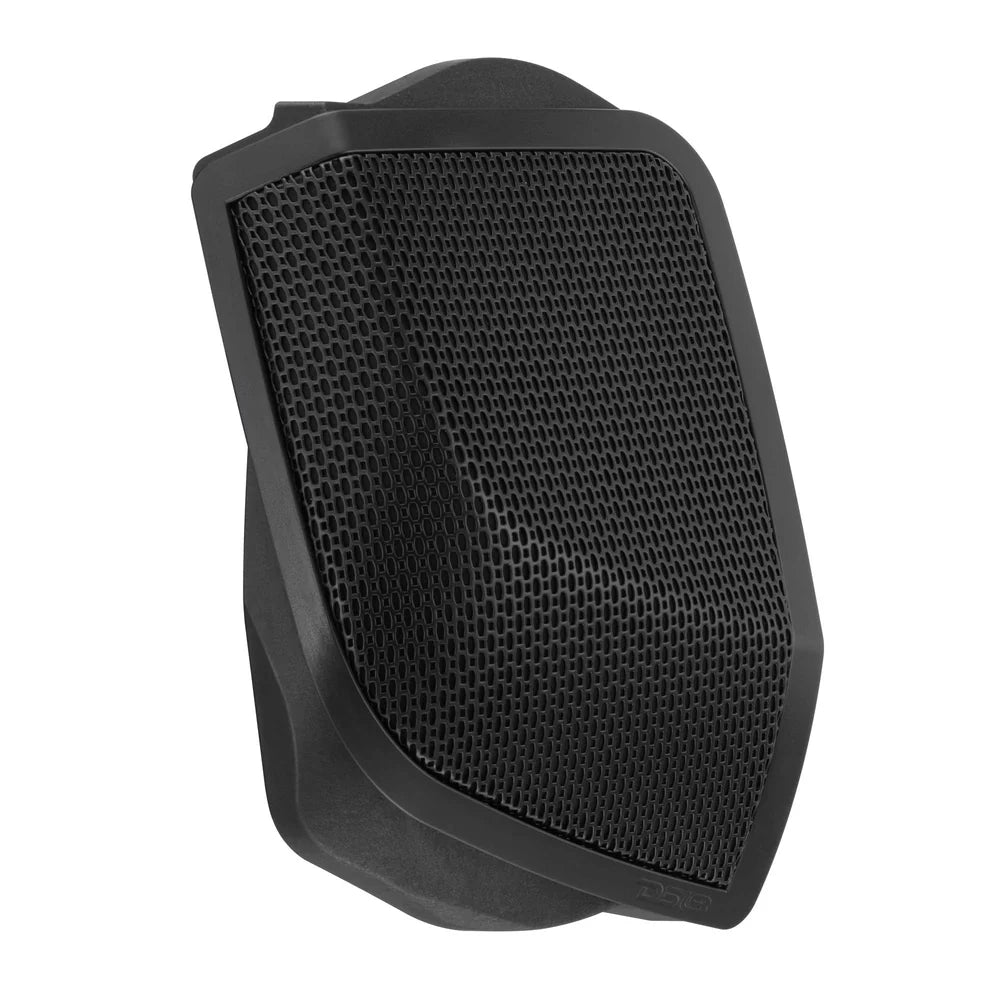

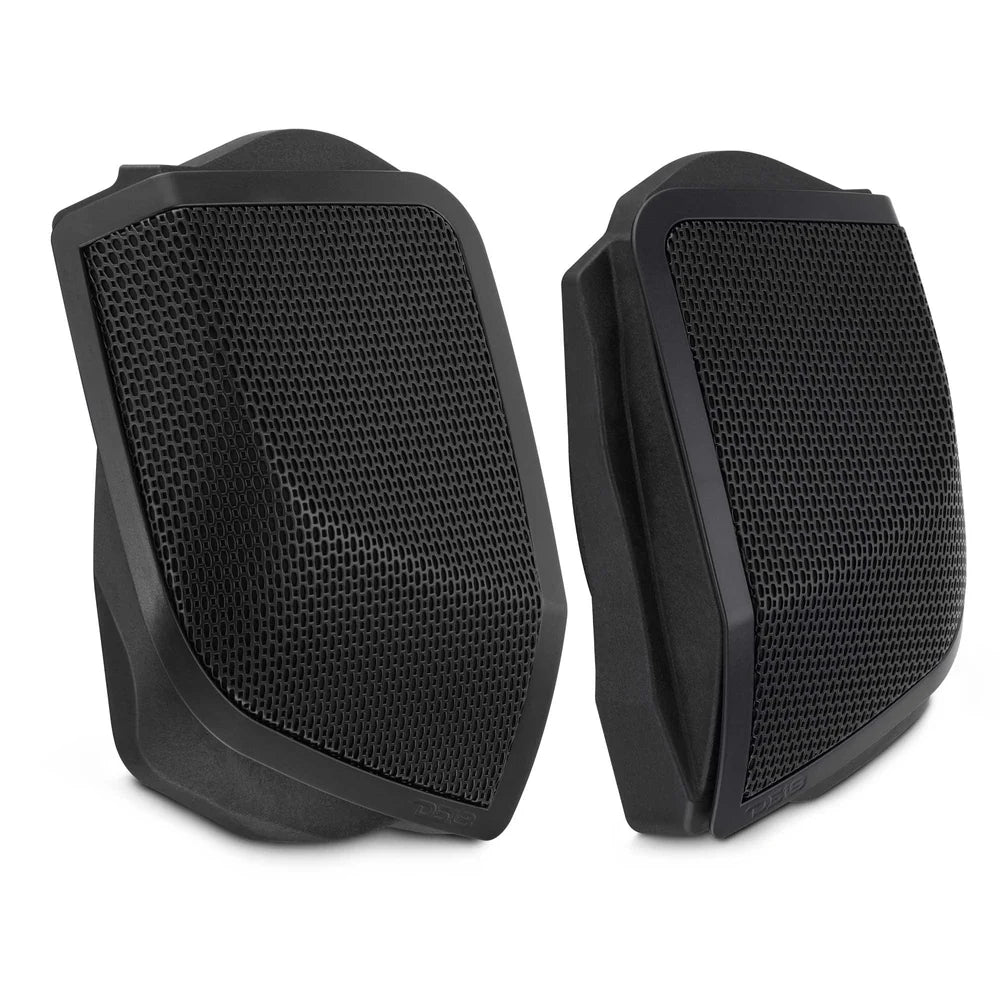

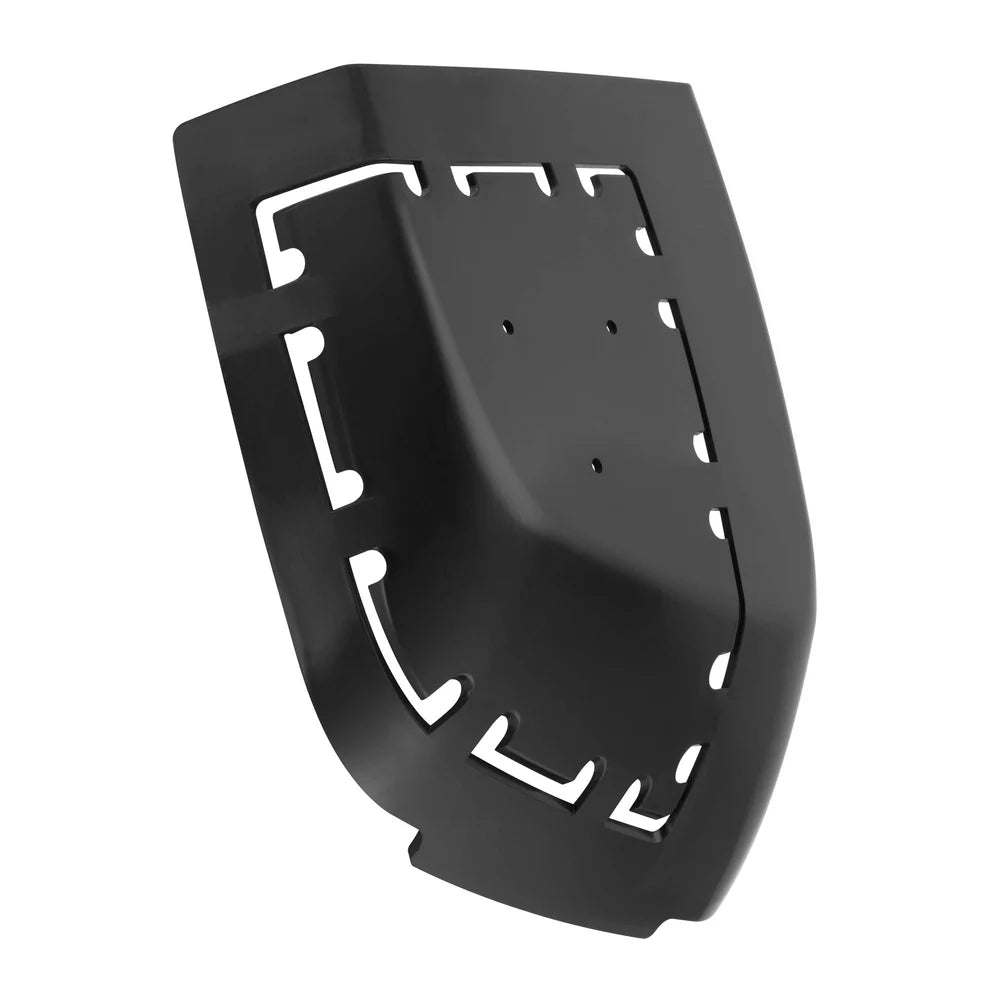

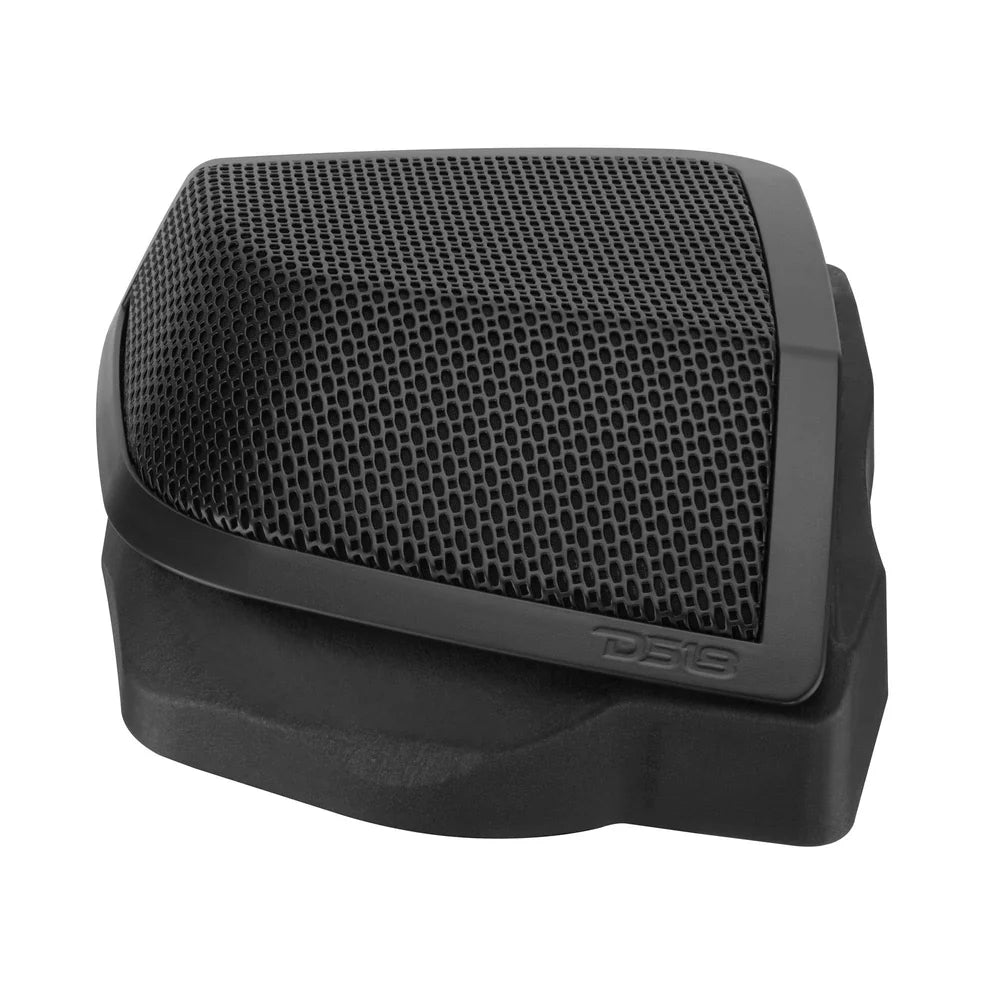

Two Saddlebag Lid Adapters

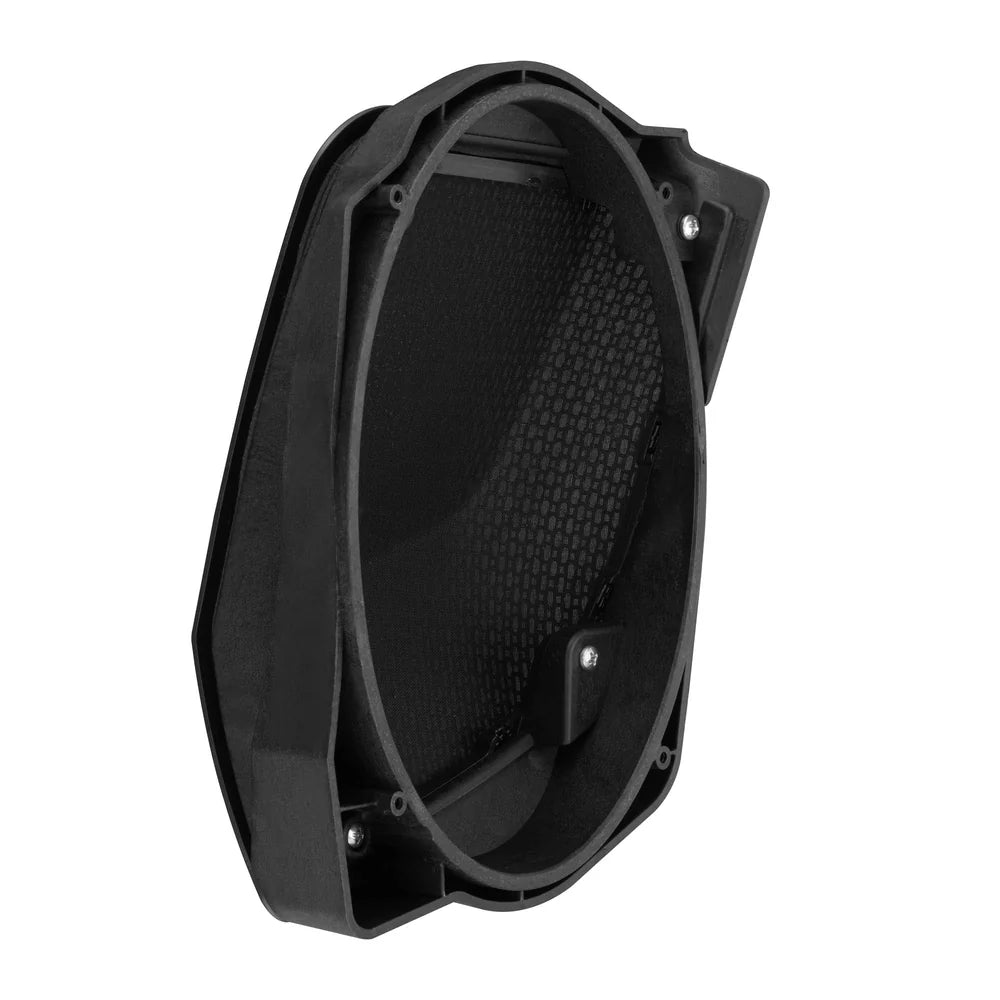

One precision-molded adapter for each factory saddlebag lid creates the mounting surface for a standard 6×9-inch motorcycle speaker.

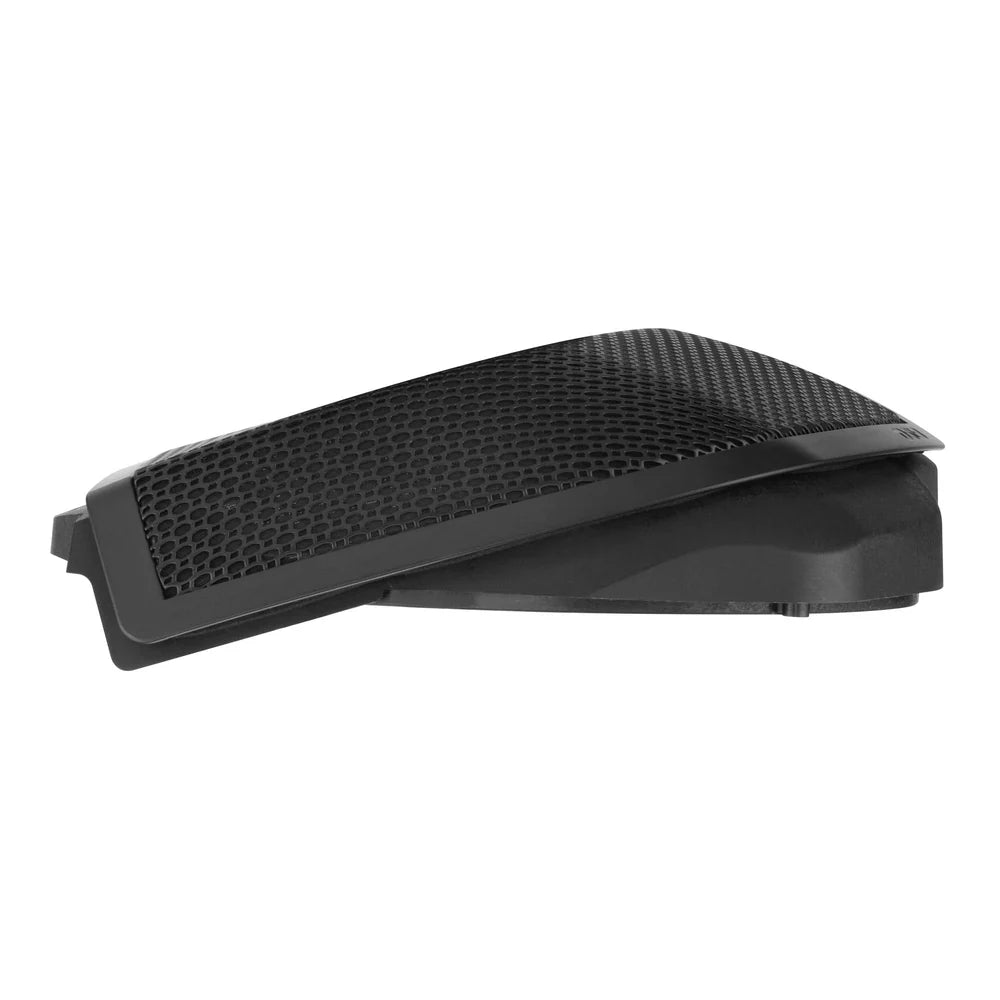

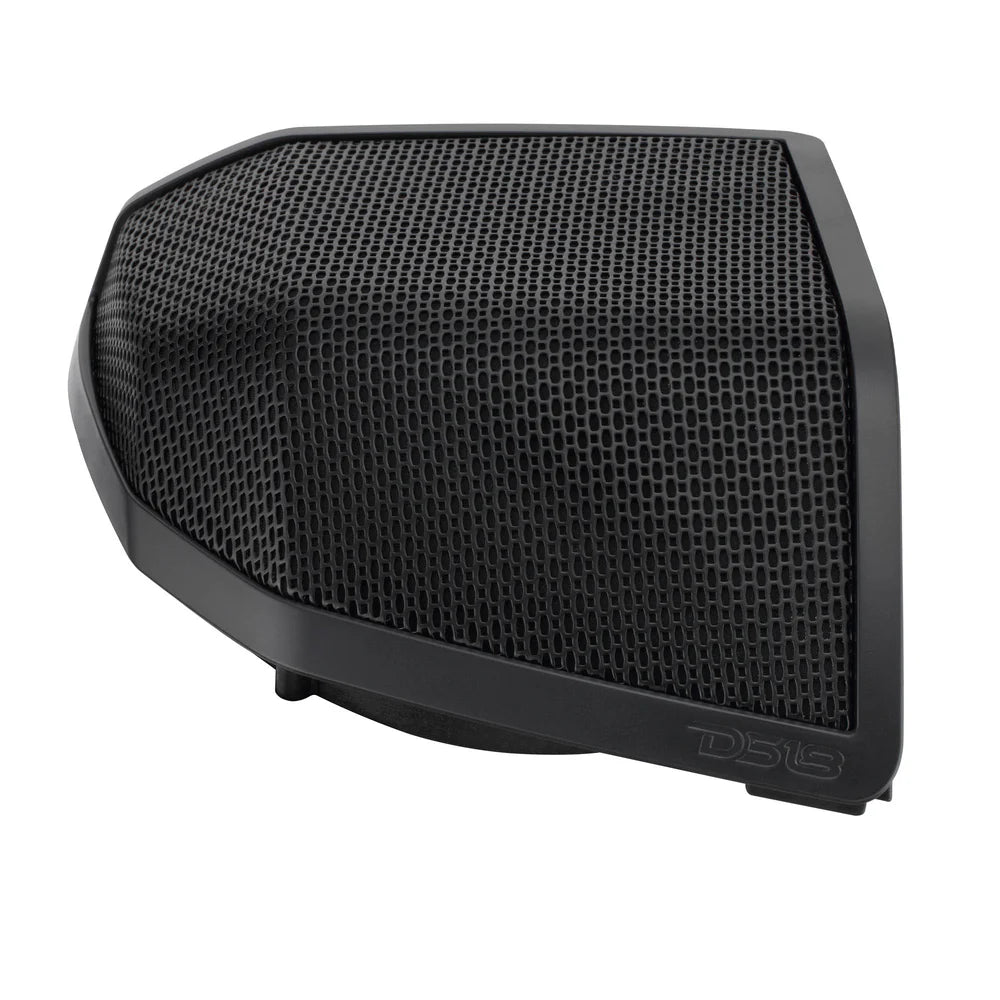

Two Steel Speaker Grilles
Matte black steel mesh grilles protect the speakers while retaining a clean, finished appearance on the top of each saddlebag lid.
Protective Cloth Backing
Cloth mesh behind the steel grilles helps reduce the direct entry of dirt and debris while maintaining acoustic output.

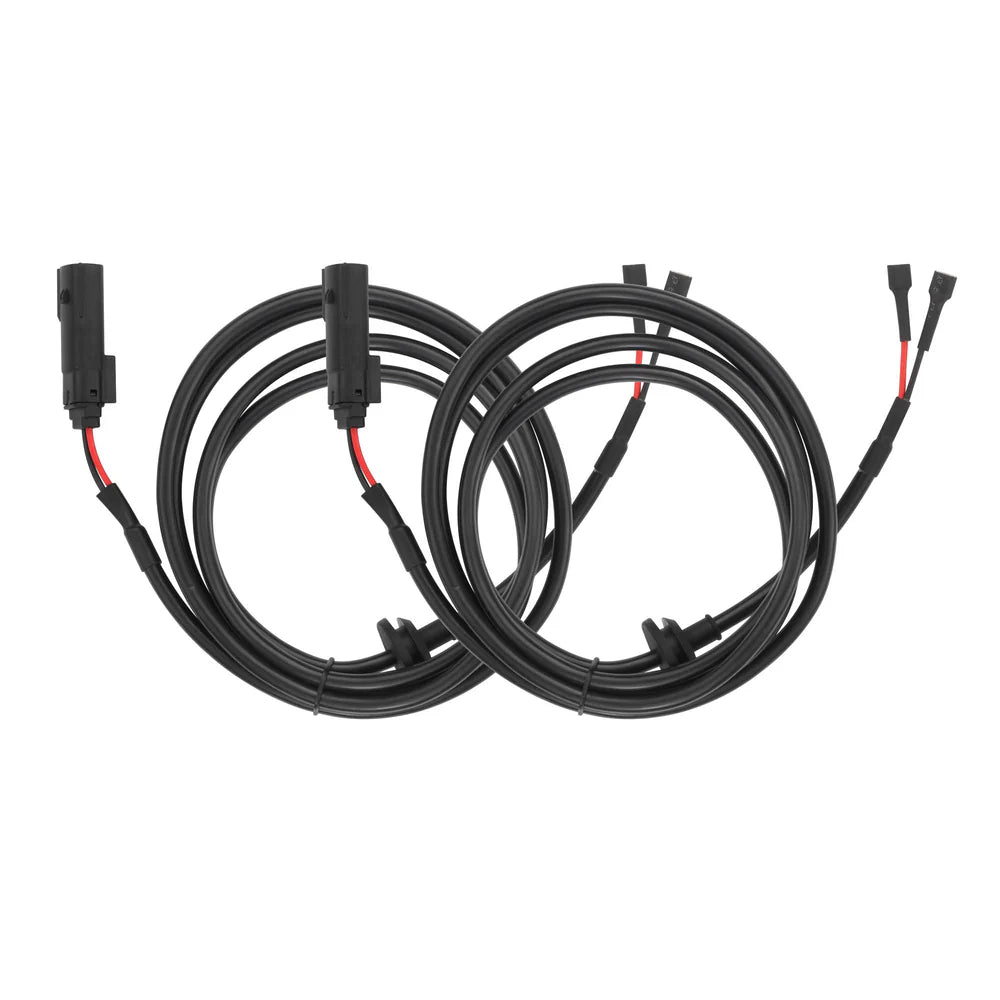

Two Saddlebag Speaker Harnesses
Individual harnesses provide speaker connections inside the left and right saddlebags.

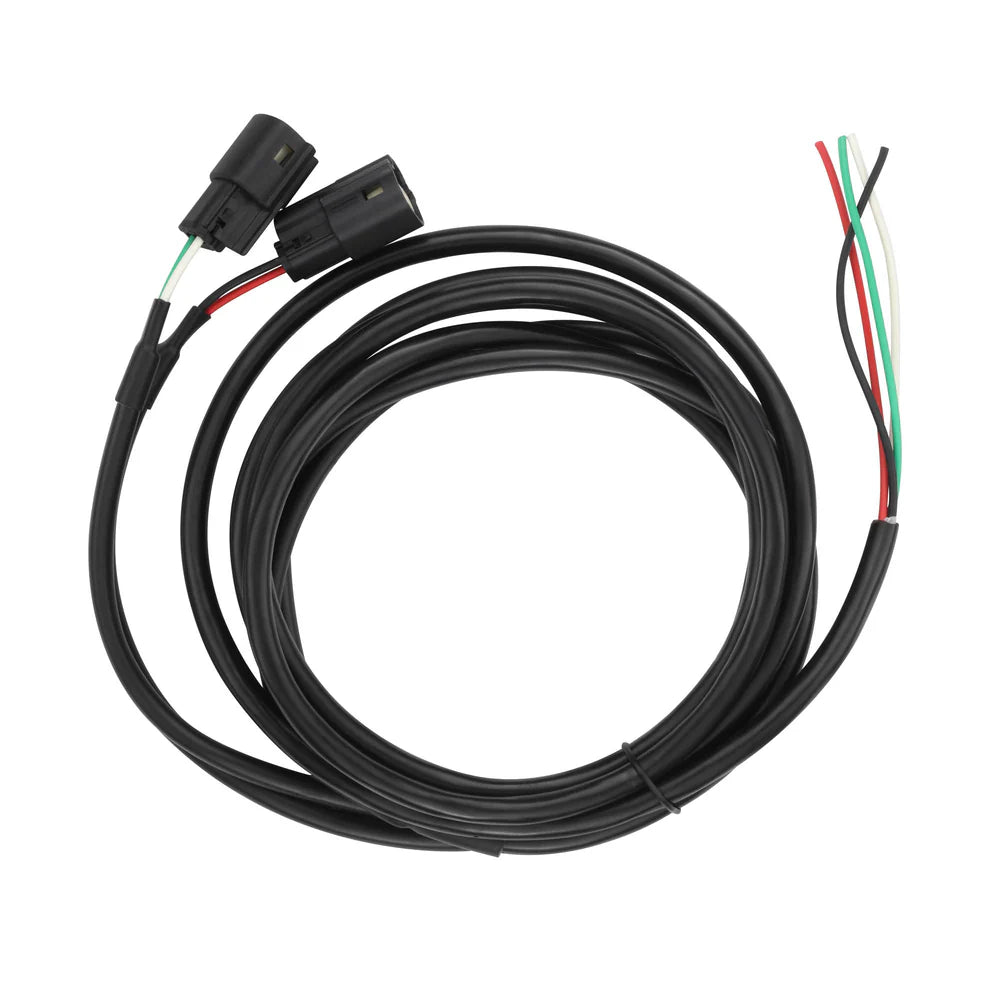

Main Amplifier-Ready Harness
The included main harness supports routing the rear speaker signal from a compatible aftermarket amplifier or source to both bags.

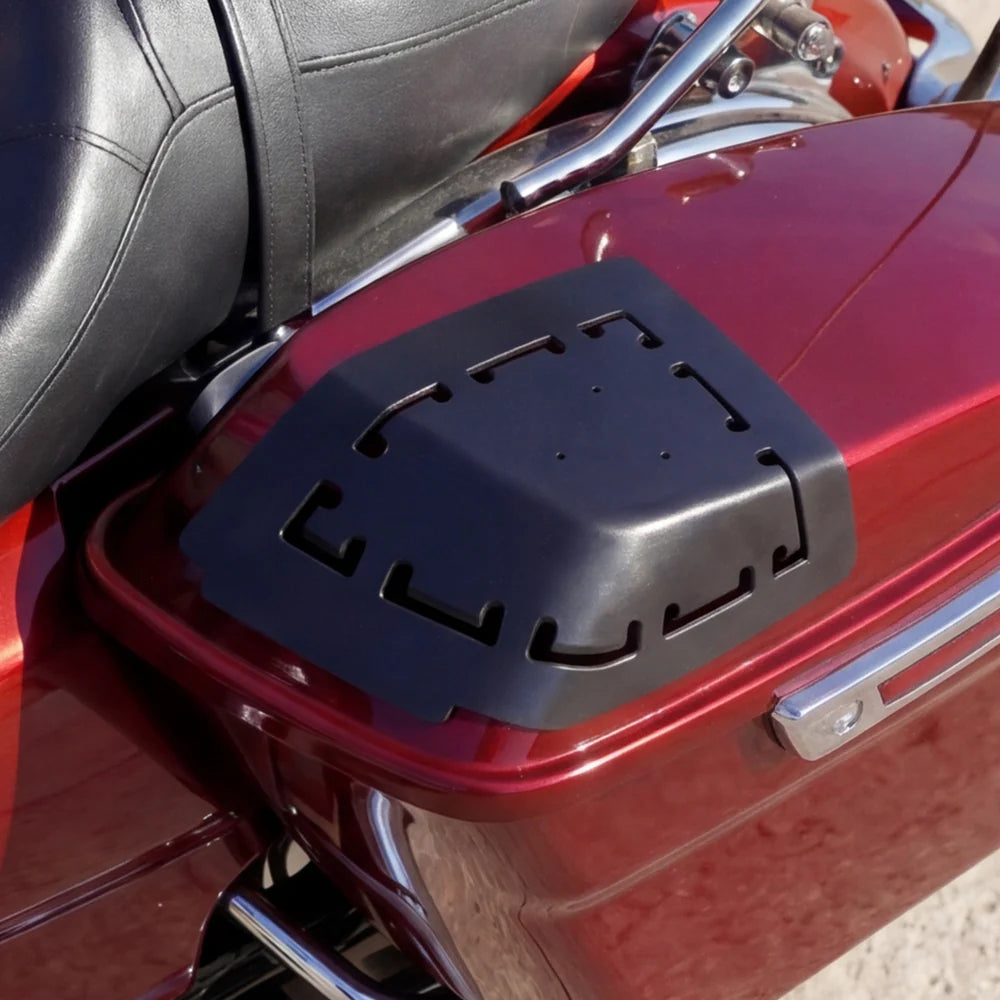

Two Precision Cutting Templates
Separate brake-side and clutch-side templates establish the correct cut-in location for each model-specific lid adapter.

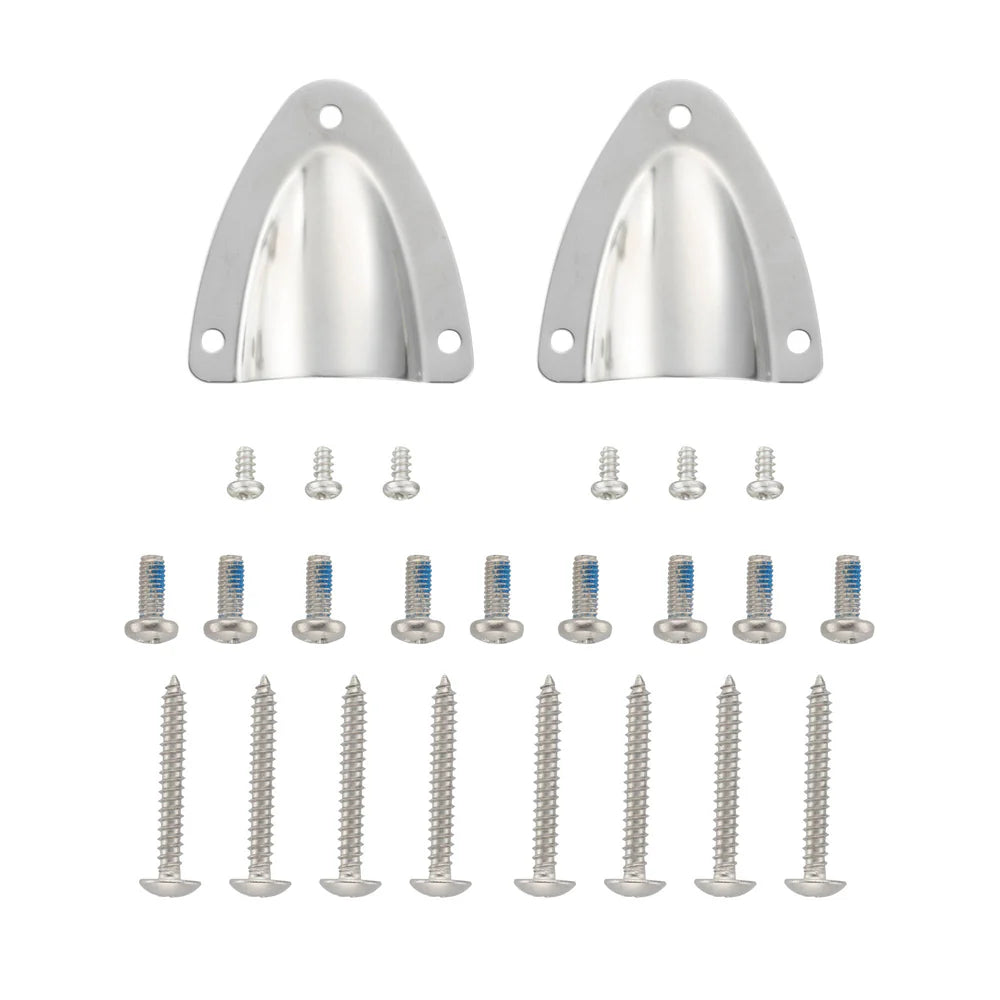

Grommets and Hole Covers
Two rubber wiring grommets and two metal hole covers are included for a cleaner, protected wiring installation.
Mounting Hardware
Sixteen mounting screws are included for securing the adapters, grilles and related installation components.
6×9-Inch Speaker Compatibility
Standard 6×9 Format
The adapters are designed around standard 6×9-inch motorcycle speakers, allowing the system to be matched to different audio goals and amplifier power levels.
Verify Mounting Depth
Speaker frame shape, magnet diameter and mounting depth vary between models. Confirm full clearance before cutting or final assembly.
Match the Amplifier
The selected speaker impedance and RMS power rating must be compatible with the amplifier’s stable channel load and available output.
Durable Saddlebag Construction
ABS and Polycarbonate Blend
The molded adapter components use an injected ABS and polycarbonate blend designed for strength, impact resistance and dimensional stability.
UV-Resistant Materials
The exposed components are designed to withstand prolonged sunlight, heat and typical road conditions.
Steel Mesh Protection
Matte black steel grilles protect the speaker cones from incidental contact and debris while maintaining an understated appearance.
Cut-In Installation Process
- Confirm the exact motorcycle year and saddlebag lid configuration.
- Select the correct 2014–2023 or 2024+ Shopify variant.
- Remove the lids and protect the painted surfaces before marking.
- Identify the brake-side and clutch-side cutting templates.
- Position and secure each template exactly as instructed.
- Confirm that the proposed opening does not conflict with modified hardware.
- Cut each lid carefully using the recommended tools and techniques.
- Deburr and seal the cut edges before installing the adapters.
- Test-fit the selected 6×9-inch speakers and check magnet clearance.
- Install the adapters, grilles, harnesses, grommets and hardware.
- Route and secure the speaker wiring away from hinges and moving parts.
- Verify polarity, amplifier settings and clean operation before final assembly.
Wiring and Amplifier Integration
Dual Saddlebag Harnesses
Each saddlebag receives its own speaker harness, allowing the lids and bags to be wired cleanly while retaining service access.
Main Rear-Speaker Harness
The main harness routes left and right rear audio output from a compatible amplifier or source toward the saddlebag connections.
- Observe correct left and right speaker polarity.
- Protect every pass-through location with the supplied grommets.
- Keep wiring clear of hinges, latch mechanisms and mounting hardware.
- Secure loose wiring against vibration and repeated lid movement.
- Match amplifier output to the selected speakers’ RMS ratings.
- Use appropriate high-pass filtering for the selected 6×9 speakers.
- Confirm amplifier stability at the final speaker impedance.
- Minor connector modification may be required on some 2024+ installations.
Complete Kit Specifications
Fitment and Ordering Notes
- Choose the 2014–2023 or 2024+ version before adding to cart.
- The two model-year kits use different lid adapters and templates.
- The kit is intended for compatible factory-style Touring saddlebags.
- Modified lids or bags with altered geometry may not fit.
- The 2024+ kit is primarily intended for bags without OEM rear audio.
- A slight speaker-connector harness modification may be required on 2024+ models.
- Both saddlebag lids require permanent cutting.
- Standard 6×9-inch speakers are supported, but dimensions must be verified.
- Speakers and an amplifier are not included.
- Professional installation is strongly recommended.
Best For
- 2014–2023 Harley-Davidson Touring saddlebag audio upgrades
- Compatible 2024+ Road Glide and Street Glide rear-speaker installations
- Riders converting factory solid lids for 6×9-inch speakers
- Systems using aftermarket motorcycle or powersports speakers
- Amplified four-speaker Harley audio systems
- Custom rear-stage systems requiring clean speaker protection
- Professional motorcycle audio installations
Related Motorcycle Audio Categories
Motorcycle Speaker Upgrades
Amplifier and Signal Support
DS18 Harley Saddlebag Lid Kit FAQ
What model years does this listing cover?
The listing includes separate 2014–2023 and 2024+ Harley-Davidson Touring variants. Select the version that matches the motorcycle.
What are the two kit SKUs?
The 2014–2023 version is RY-HD69SBU.1423. The 2024+ version is RY-HD69SBU.24.
What speaker size fits these adapters?
The adapters are designed for standard 6×9-inch motorcycle speakers. Basket, magnet and mounting-depth measurements must still be verified.
Are speakers included?
No. The kit includes the lid adapters, grilles, wiring, templates and installation hardware. Speakers are sold separately.
Do the factory lids need to be cut?
Yes. This is a permanent cut-in conversion. Both factory saddlebag lids must be cut using the correct supplied templates.
Are cutting templates included?
Yes. The kit includes separate brake-side and clutch-side precision cutting templates.
Are the speaker grilles included?
Yes. Two matte black steel mesh speaker grilles with protective cloth backing are included.
Is speaker wiring included?
Yes. The kit includes two saddlebag speaker harnesses and one main amplifier-ready harness.
Does the kit include wiring grommets?
Yes. Two rubber grommets and two metal hole covers are included.
Will the 2014–2023 kit fit a 2024 motorcycle?
No. The model-year versions use different lid geometry, adapters and templates. Select the correct Shopify variant.
Will this fit modified saddlebag lids?
Fitment is not guaranteed when previous modifications have changed the lid or saddlebag geometry.
Does the 2024+ version fit motorcycles with factory rear audio?
DS18 primarily describes the 2024+ version for saddlebags without OEM rear audio. Factory-equipped rear-audio applications should be verified before ordering.
Is the finished system waterproof?
The materials are designed for heat, UV exposure and road conditions, but the finished installation should not be described as waterproof. Use weather-resistant speakers and properly protect all electrical connections.
Is professional installation recommended?
Yes. The installation permanently alters painted factory lids and requires accurate template placement, cutting, wiring and speaker clearance verification.
