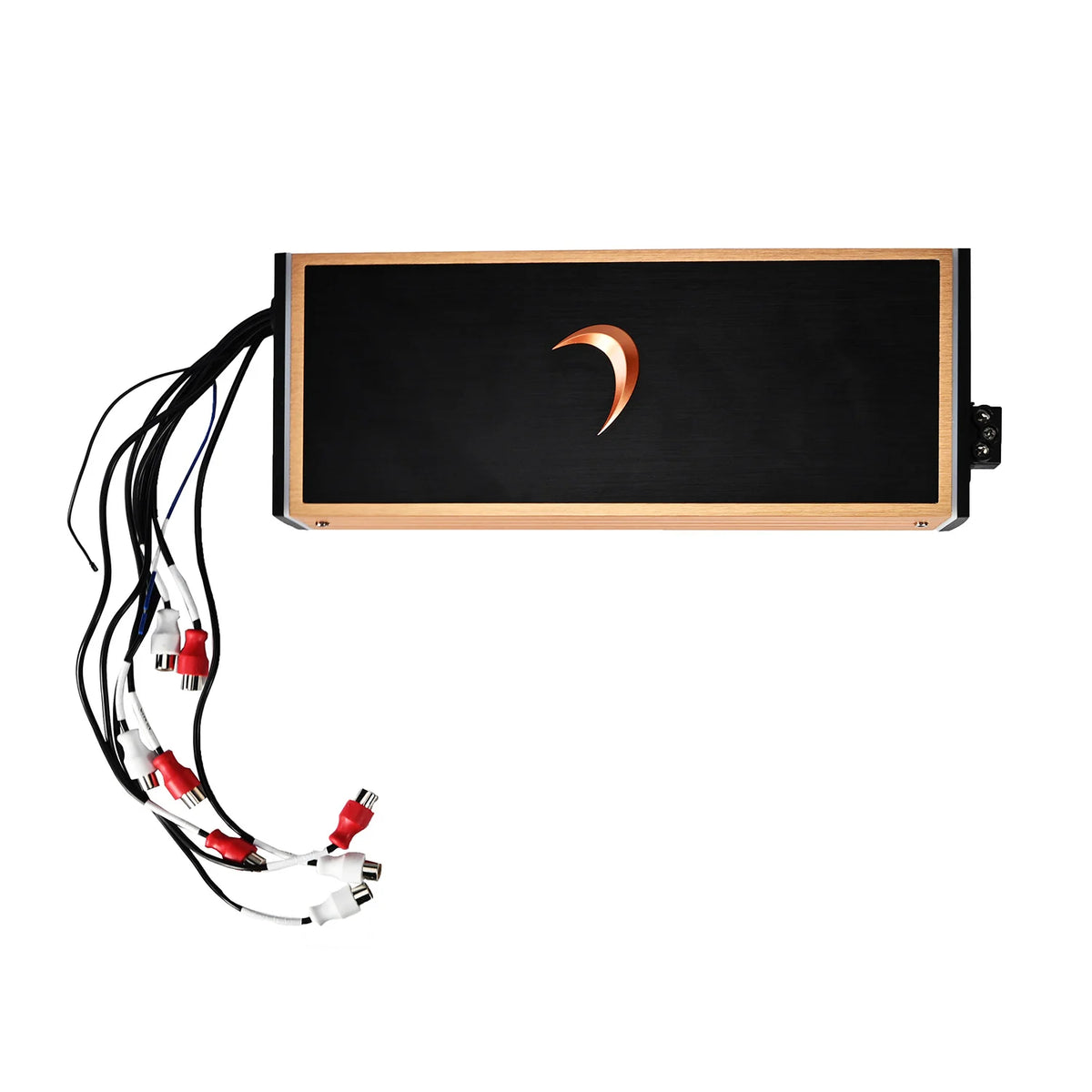

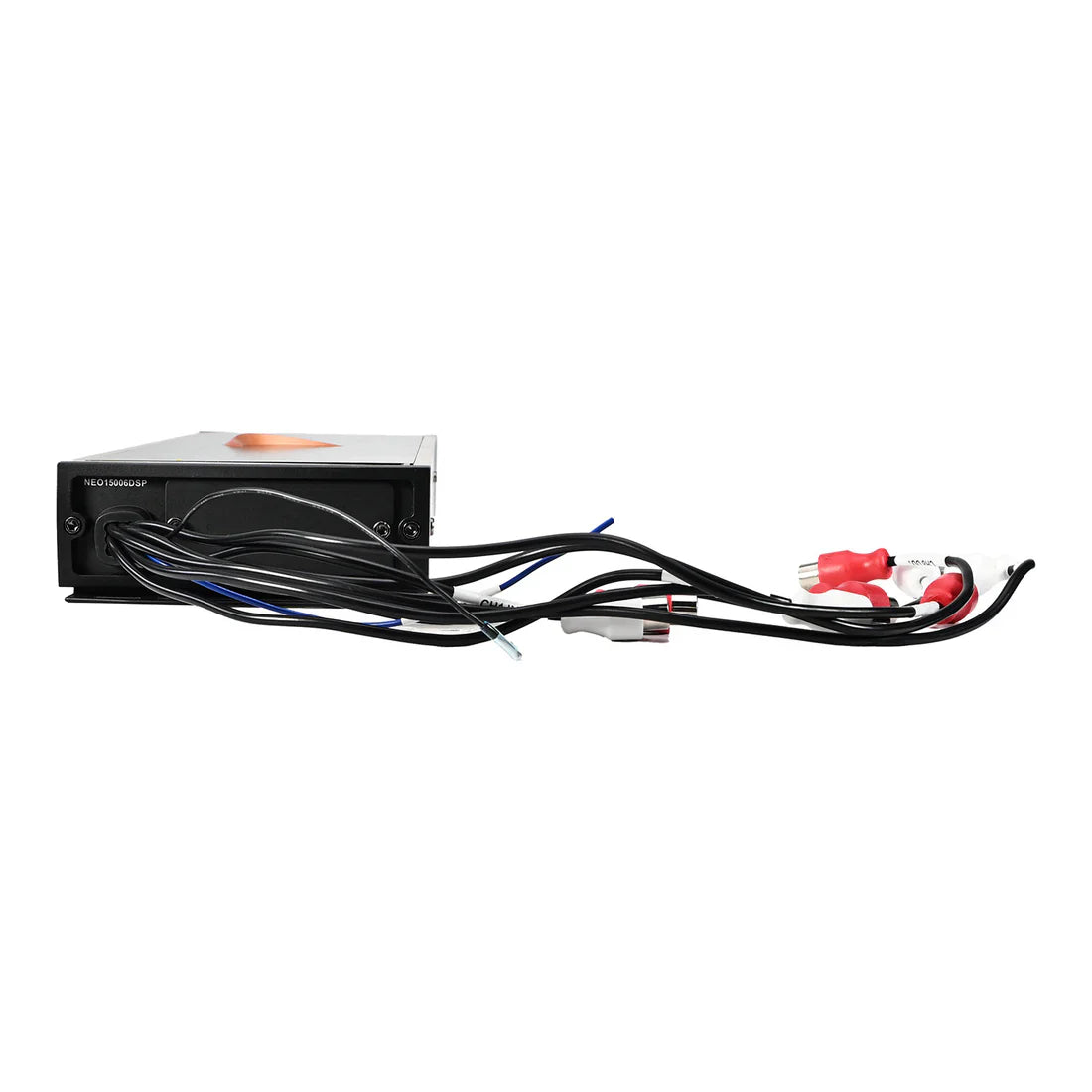

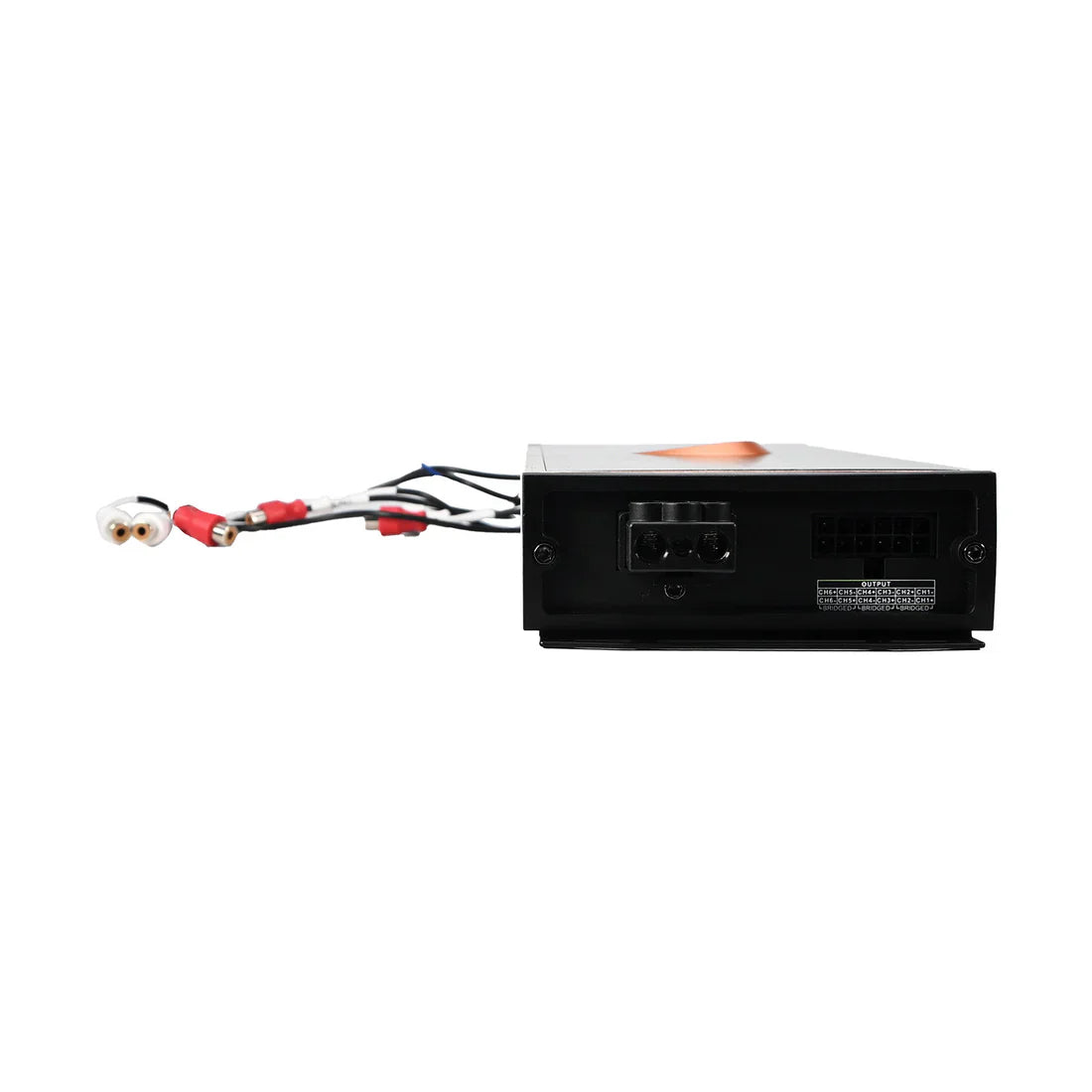

Diamond Audio NEO15006DSP — 1500W RMS 6-Channel Amplifier w/ DSP
PRODUCT INFORMATION
Diamond Audio NEO15006DSP — 1500W RMS 6-Channel Amplifier w/ DSP
Make it Plug and Play:
$799.99
Couldn't load pickup availability
Additional Payment Info
Diamond Audio NEO15006DSP — 1500W RMS 6-Channel Amplifier w/ DSP
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Product Overview Video
Diamond Audio NEO15006DSP 1500W RMS 6-Channel Amplifier with 8CH DSP
The Diamond Audio NEO15006DSP combines six channels of compact Class D amplification with an integrated 8-channel digital signal processor for serious motorcycle, powersports, marine, and custom audio systems. It delivers 1500 watts RMS total while giving installers precise control over EQ, crossovers, time alignment, channel configuration, OEM integration, and system expansion.
With 150 watts x 6 at 4 ohms, 250 watts x 6 at 2 ohms, or up to 500 watts x 3 bridged at 4 ohms, the NEO15006DSP can power complex multi-speaker layouts from a single compact amplifier while retaining the tuning flexibility required for high-output motorcycle audio.
Six Channels of Power. Eight Channels of DSP Control.
Built for complex motorcycle audio systems that need high-output amplification, advanced system tuning, OEM integration, Bluetooth streaming, and flexible signal expansion from one compact chassis.
Diamond Audio NEO15006DSP Key Specifications
| Model | NEO15006DSP |
| Amplifier Type | Class D 6-Channel Amplifier with Integrated 8-Channel DSP |
| Total Rated Output | 1500W RMS |
| Power @ 4Ω | 150W RMS x 6 |
| Power @ 2Ω | 250W RMS x 6 |
| Bridged @ 4Ω | 500W RMS x 3 |
| DSP Architecture | 8 channels total: 6 amplified channels + 2 RCA preamp outputs |
| Parametric EQ | 31 bands per DSP channel |
| DSP Controls | Parametric EQ, crossovers, time delay, channel linking, gain and system configuration |
| Programming | PC and Android programming support |
| Bluetooth | Built-in Bluetooth audio streaming |
| Signal Input Range | 0.4V – 20V high/low-level input |
| Selectable Load Resistors | 10Ω, 20Ω, 60Ω and 20kΩ |
| Operating Voltage Range | 8V – 17V |
| RCA Preamp Outputs | 2 channels |
| Frequency Response | 15Hz – 23kHz |
| Signal-to-Noise Ratio | 85dB |
| THD & Noise | ≤0.03% |
| Dimensions | 11.32″ x 4.07″ x 1.38″ |
| Net Weight | 2.78 lbs |
| Remote Compatibility | Diamond Audio NeoDRC1 Remote Commander — sold separately |
| Construction | Marine-ready, water-resistant chassis |
Fitment warning: At 11.32 inches long, this amplifier may require an oversized amplifier rack or alternate mounting location on some motorcycles. Verify placement, clearance, wiring path, ventilation, and system layout before ordering.
1500W RMS Across Six Amplified Channels
The NEO15006DSP is designed for systems that need more channel count without stacking multiple amplifiers. Six full-range amplified channels allow one chassis to power fairing speakers, lower pods, saddlebag speakers, tour-pack speakers, active component layouts, or other multi-speaker configurations.
150W x 6 @ 4Ω
Six independently amplified channels provide rated power for efficient multi-speaker systems and active configurations.
250W x 6 @ 2Ω
Lower-impedance capability provides additional output for compatible high-performance motorcycle and powersports speakers.
500W x 3 Bridged @ 4Ω
Channel pairs can be bridged for applications requiring substantially higher output from fewer channels.
Integrated 8-Channel DSP
The NEO15006DSP combines its six amplified channels with two additional RCA preamp outputs, creating an 8-channel DSP platform. That allows the amplifier to control its own powered channels while also feeding additional external amplification when the system grows beyond six channels.
31-Band Parametric EQ Per Channel
Detailed channel-by-channel equalization gives the installer precise control over frequency response and system voicing.
Crossovers and Time Delay
Configure frequency ranges and channel timing for fairing speakers, pods, saddlebag speakers, tweeters, midbass drivers, and other system components.
Channel Linking
Linked-channel controls help simplify tuning when multiple speakers or amplifier channels require matching adjustments.
PC and Android Programming
Professional DSP programming support gives installers access to the amplifier's detailed tuning and configuration controls.
OEM Audio System Integration
The NEO15006DSP includes integration tools for vehicles and motorcycles where the factory source unit or amplifier may not provide a conventional low-level RCA signal.
- High- and low-level signal input capability from 0.4V up to 20V.
- Selectable onboard 10Ω, 20Ω, 60Ω, and 20kΩ load resistors.
- 8V to 17V operating-voltage compatibility.
- DSP-based signal management for complex aftermarket system layouts.
- Two RCA preamp outputs for additional amplifier expansion.
Bluetooth Audio Streaming Built In
Diamond Audio includes Bluetooth audio streaming directly in the NEO15006DSP. This allows compatible Bluetooth devices to stream audio directly to the amplifier and DSP without requiring the signal to originate from a conventional head unit input.
Diamond Audio also lists smartphone control capability through its NEO platform, with its dedicated companion-app functionality continuing to develop separately from the core amplifier and DSP hardware.
Designed for Motorcycle, Marine, Powersports and Custom Audio
The NEO15006DSP uses a marine-ready, water-resistant chassis designed for demanding installations. Its compact height, staggered RCA layout, quick-connect power block, and integrated DSP reduce the number of separate components required in a complex system.
Water-Resistant Chassis
Designed for motorcycle, powersports, marine, and other installations where moisture and environmental exposure must be considered.
Staggered RCA Connections
Connection placement helps simplify signal wiring and cable management in compact installations.
Quick-Connect Power Block
High-current removable power connections support cleaner service and installation access.
Third-Party Measured Output
In addition to Diamond Audio's published RMS ratings, the existing Garage Bagger Stereo listing includes independent measured output results from Vegas Hardbags.
| Vegas Hardbags Measured @ 4Ω | 202W x 6 |
| Vegas Hardbags Measured @ 2Ω | 404W x 6 |
These are third-party measured results and are not Diamond Audio's published continuous RMS specifications. Actual measured output can vary with voltage, test method, load, gain structure, and operating conditions.
Installation and System Planning
- Verify available amplifier-rack and fairing space before ordering.
- Confirm speaker impedance and RMS power requirements for every channel.
- Determine whether each channel will operate independently or in a bridged configuration.
- Verify the motorcycle's source-unit and factory-amplifier signal configuration.
- Confirm whether high-level inputs, load resistors, RCA inputs, or an external integration interface will be used.
- Plan the two DSP-controlled RCA outputs if additional amplification will be added.
- Verify electrical-system capacity for the complete amplifier and speaker package.
- Use proper fused power wiring, grounding, routing, and weather-resistant connections.
- Complete final DSP tuning only after the entire audio system is installed and operating correctly.
Need Help Designing the System?
The NEO15006DSP can simplify a complex system, but six amplified channels and eight channels of DSP also create a large number of possible configurations. Garage Bagger Stereo can help determine speaker loading, bridging, signal integration, electrical requirements, amplifier placement, and DSP strategy before you purchase.
