Diamond Audio MSMB102NEO 10" Midbass

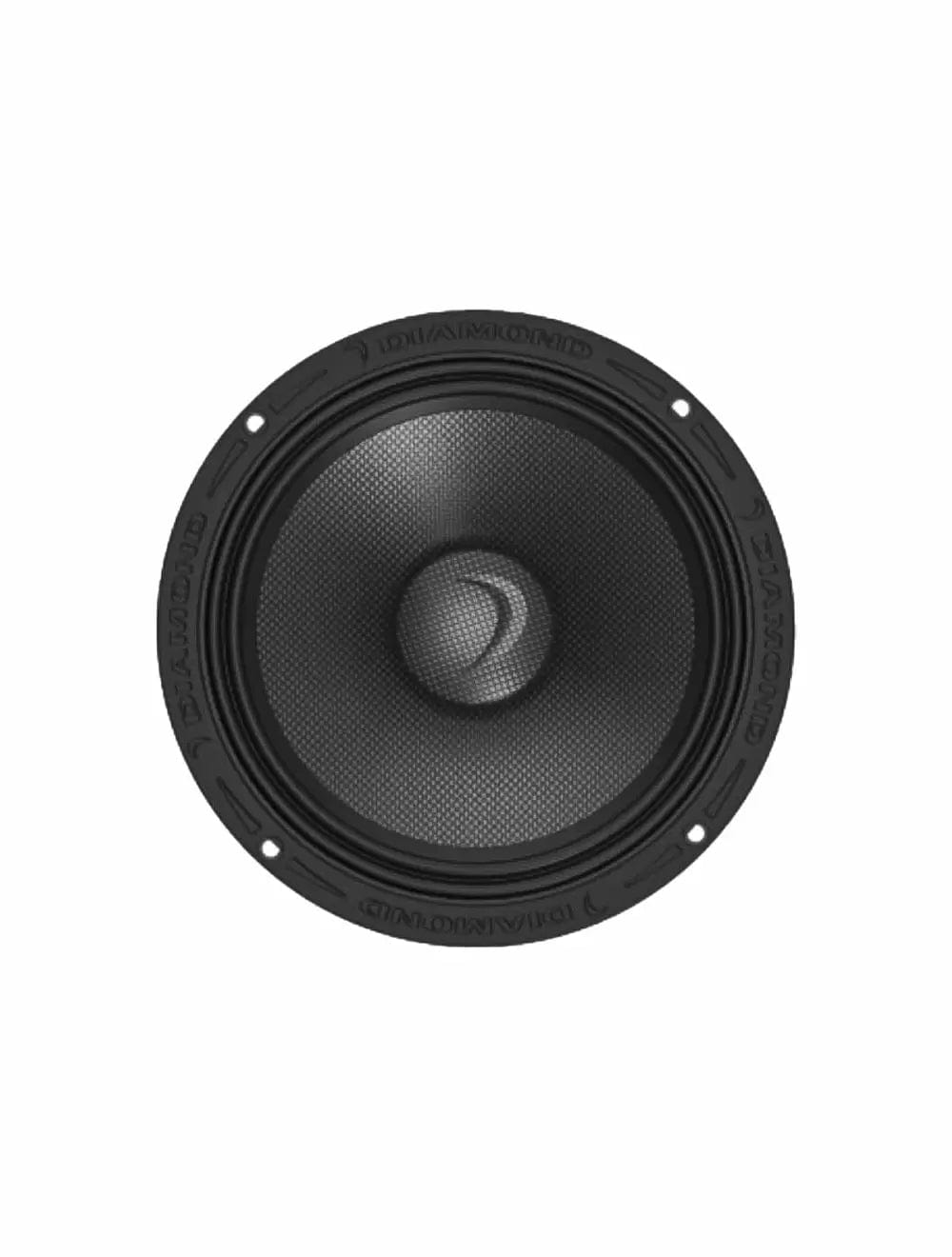

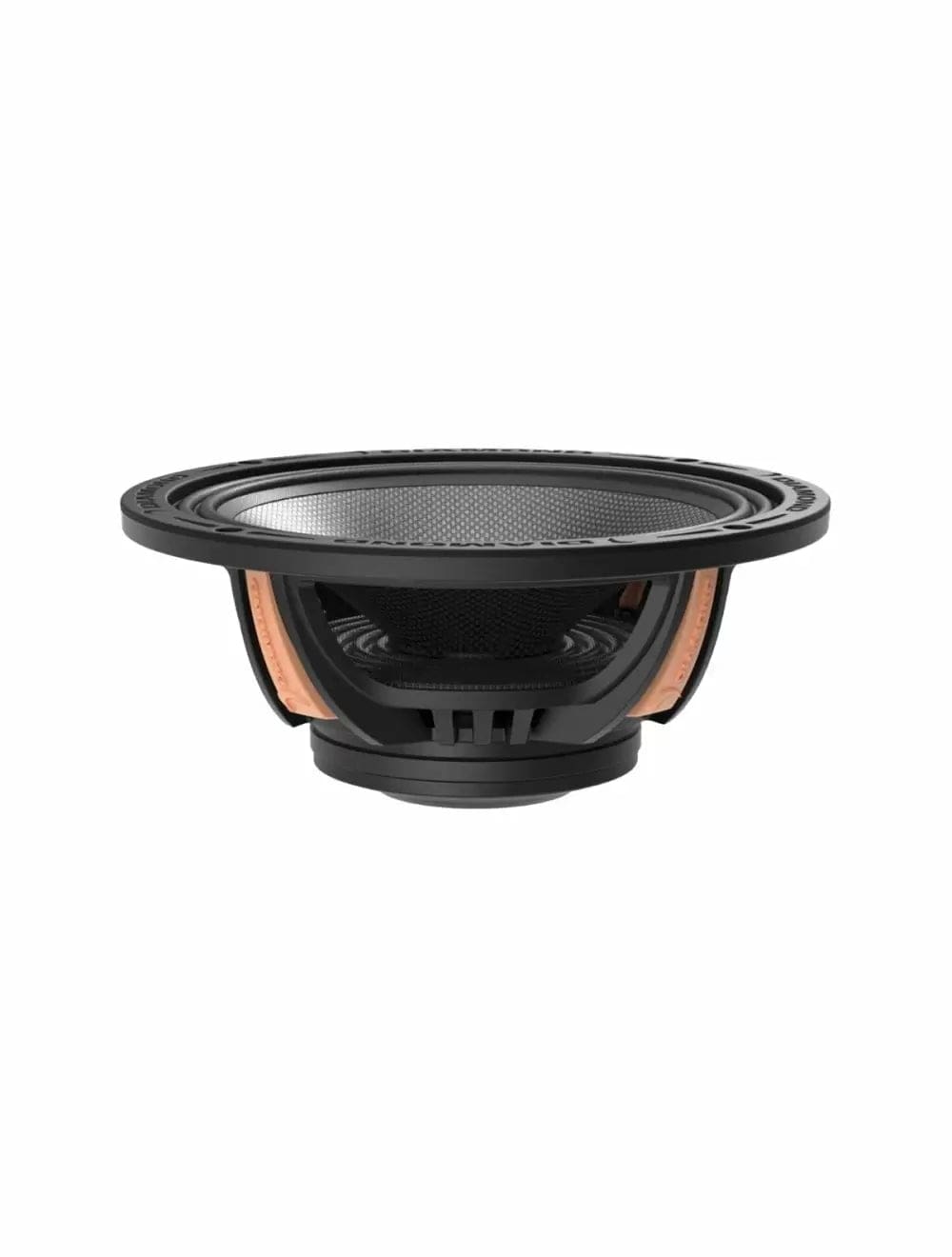

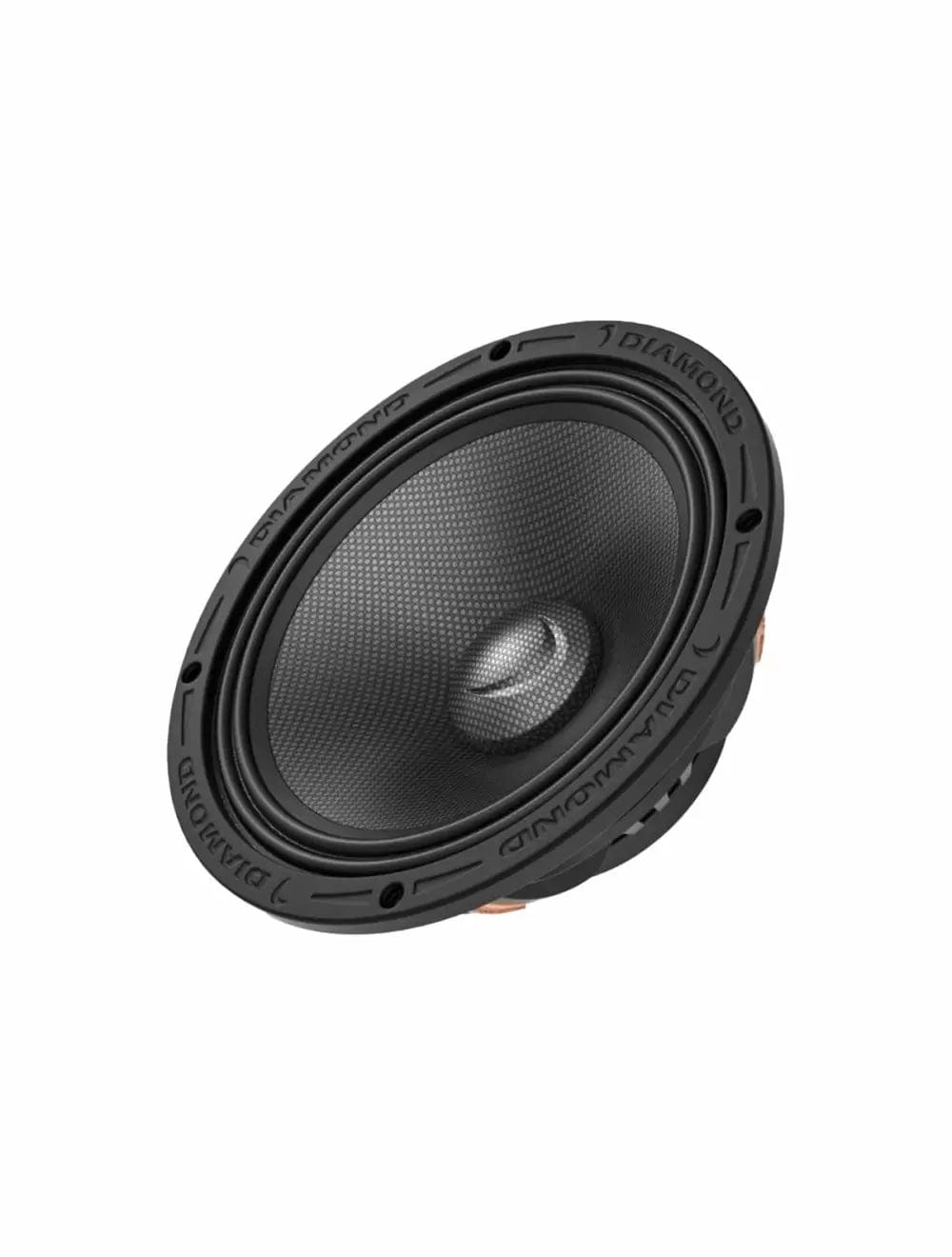

The Diamond Audio MSMB102NEO is a 10" neodymium midbass driver, sold in pairs, for high-output Harley-Davidson bagger builds such as rear-end and lid installs.
400W RMS 10 in midbass, 2 ohm
A 4 ohm version is sold separately as the MSMB104NEO.
- 400W RMS / 800W max
- 96 dB sensitivity
- 55 Hz to 4.5 kHz
Key Product Details
| Model | MSMB102NEO, sold as a pair |
| Size | 10 in |
| Impedance | 2 ohm (4 ohm version is the MSMB104NEO) |
| Power | 400W RMS / 800W max |
| Mounting depth | 4.21 in |
Confirm the 4.21 in mounting depth fits your enclosure or lid before ordering.
Midbass for rear-end and lid builds
This 2 ohm version is built for high-output builds. If your amplifier is better matched to 4 ohm, Diamond Audio sells the MSMB104NEO separately. Check the 9.13 in cutout and 4.21 in depth first.
Mounting rings: 10-inch speakers need mounting (adapter) rings. Browse the Nagy's Customs adapter rings collection, including the Nagy's Customs Monster Mega 10″ 98-23 HD Subwoofer or Midbass Adapter Rings (Pair), and confirm the right ring for your year and model with Garage Bagger Stereo before ordering.
Specifications
| Frequency range | 55 Hz to 4.5 kHz |
| Sensitivity | 96 dB (1W/1M) |
| Cone | Kevlar, described by Diamond Audio as waterproof |
| Basket | Cast aluminum |
| Cutout diameter | 9.13 in |
| Overall diameter | 10.3 in |
| Mounting depth | 4.21 in |
Related Paths
MSMB102NEO FAQ
How much power does the MSMB102NEO handle?
400W RMS / 800W max at 2 ohm.
Is there a 4 ohm version?
Yes. A 4 ohm version is sold separately as the MSMB104NEO.
What are the mounting dimensions?
Cutout diameter is 9.13 in, mounting depth is 4.21 in and overall diameter is 10.3 in.
What is its frequency range?
55 Hz to 4.5 kHz, with 96 dB sensitivity at 1W/1M.
