DB Drive Euphoria Xpert EX69NPS-CF 6×9" 2-Way NEO Carbon Fiber Point Source Loudspeaker
DB Drive Euphoria Xpert EX69NPS-CF 6×9" 2-Way NEO Carbon Fiber Point Source Loudspeaker
Couldn't load pickup availability
Additional Payment Info
-
Description
-
Reviews
DB Drive Euphoria Xpert EX69NPS-CF 6×9" 2-Way NEO Carbon Fiber Point Source Loudspeaker
The DB Drive Euphoria XPERT EX69NPS-CF is a 6x9" 2-way NEO carbon fiber point source loudspeaker with a 1" aluminum dome tweeter. It is a full-range 6x9 coaxial.
Full-range 6x9 carbon fiber coaxial
Rated for 400W (800W dynamic) at 4 ohm with a protective grill.
- 400W (800W dynamic), 4 ohm
- 77Hz-19kHz; 92dB sensitivity
- IP65 rated carbon fiber cone
Key Product Details
| Product | DB Drive Euphoria XPERT EX69NPS-CF 6×9" 2-Way NEO Carbon Fiber Point Source Loudspeaker |
| Brand | DB Drive Euphoria XPERT |
| Size | 6x9" |
| Type | 2-way NEO carbon fiber point source with 1" aluminum dome tweeter |
| Power handling | 400W (800W dynamic) |
| Impedance | 4 ohm nominal |

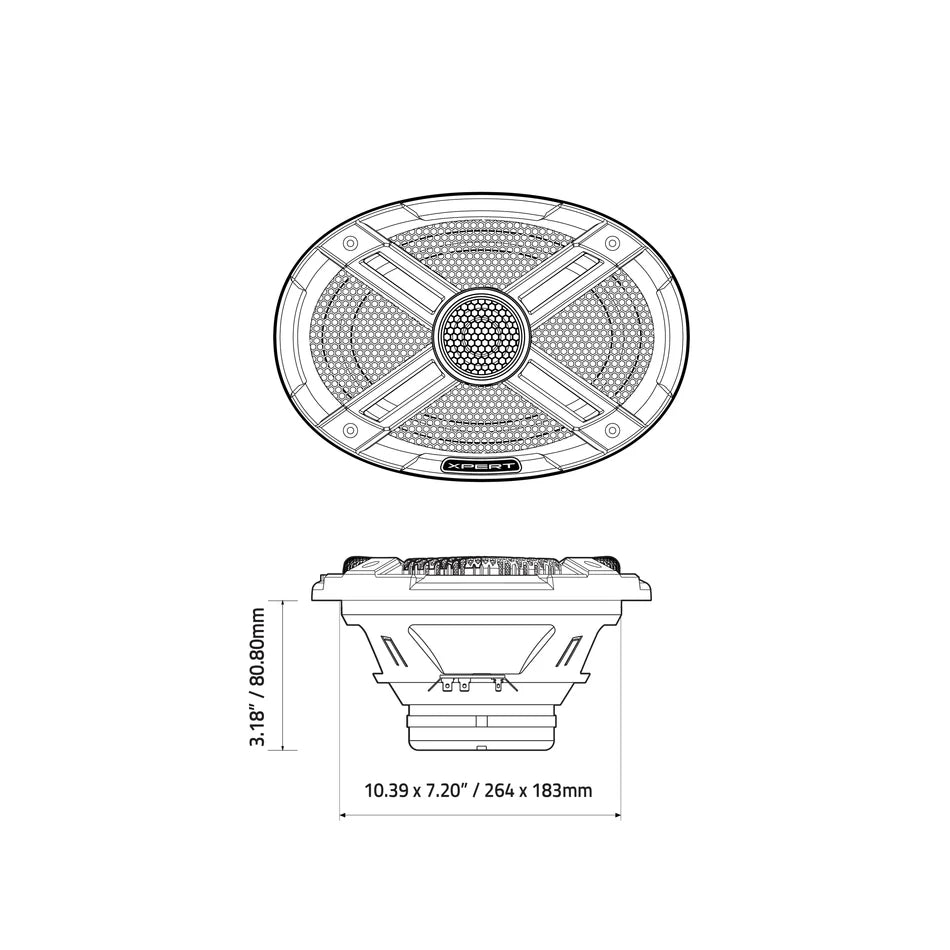

Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
System Planning
Match the amplifier channel to the 4 ohm nominal impedance and 400W rating. Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
Specifications
| Power handling | 400W (800W dynamic) |
| Nominal impedance | 4 ohm |
| Sensitivity | 92dB (1W/1m) |
| Frequency response | 77Hz-19kHz |
| Resonant frequency | 68.8Hz |
| Voice coil | 1.5" (38.1mm) |
| Magnet | High-intensity NEO ring magnet |
| Cone | IP65 rated carbon fiber with cloth surround |
| Tweeter | 1" aluminum dome |
| Basket | Stamped steel |
| Grill | Protective grill |
Related Paths
DB Drive EX69NPS-CF FAQ
What is the power handling of the DB Drive EX69NPS-CF?
It is rated for 400W, with 800W dynamic power handling, at 4 ohm nominal impedance.
What frequency response and sensitivity does it have?
The response is 77Hz-19kHz and sensitivity is 92dB (1W/1m).
What is the cone made of?
An IP65 rated carbon fiber cone with a cloth surround on a stamped steel basket.
What tweeter does it use?
A 1" aluminum dome tweeter, with a protective grill.
Can Garage Bagger Stereo confirm fitment before I order?
Yes. Start a Build Consultation or call 864-334-6131 with your bike, model year and where the speaker will mount, and we will confirm fitment and the right parts before you order.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
