DB Drive Euphoria XPERT EX8NMB-CFV2 8" NEO Carbon Fiber Midbass (Single)
The DB Drive EX8NMB-CFV2 is an 8" neodymium carbon fiber midbass driver built for high-output SQ systems. It handles 300 watts, runs at 3Ω, and is rated at 93.2dB sensitivity. This listing is for a single driver.
8" Carbon Fiber Midbass for Harley Audio
A redesigned single-ring N52 neodymium motor with extended bandwidth for pairing with midranges and tweeters.
- 300 watts power handling / 600 watts dynamic
- 93.2dB sensitivity, 3Ω
- 3.78" mounting depth
Key Product Details
| Product | DB Drive Euphoria XPERT EX8NMB-CFV2 8" NEO Carbon Fiber Midbass |
| Impedance | 3Ω |
| Power Handling | 300W / 600W dynamic |
| Mounting | 7.09" / 180mm cutout, 3.78" / 96mm depth |
| Sold As | Single (order two for a pair) |
Always verify impedance, speaker location, mounting depth, amplifier power, wiring, crossover setup, and final fitment before ordering for your Harley-Davidson audio build.
A High-Output Carbon Fiber Midbass

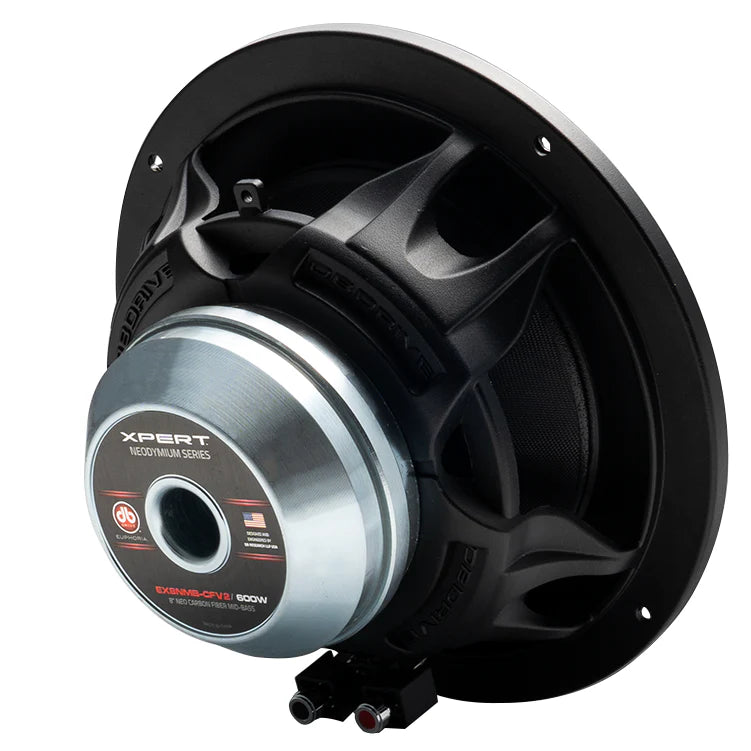

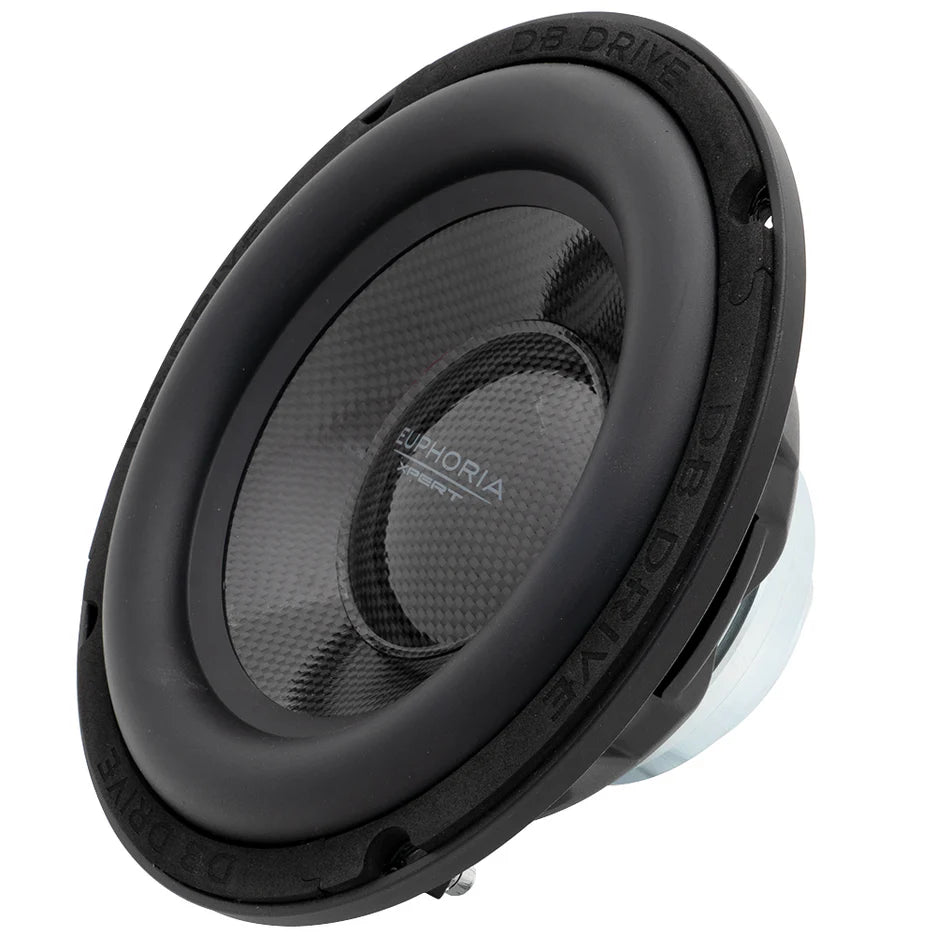

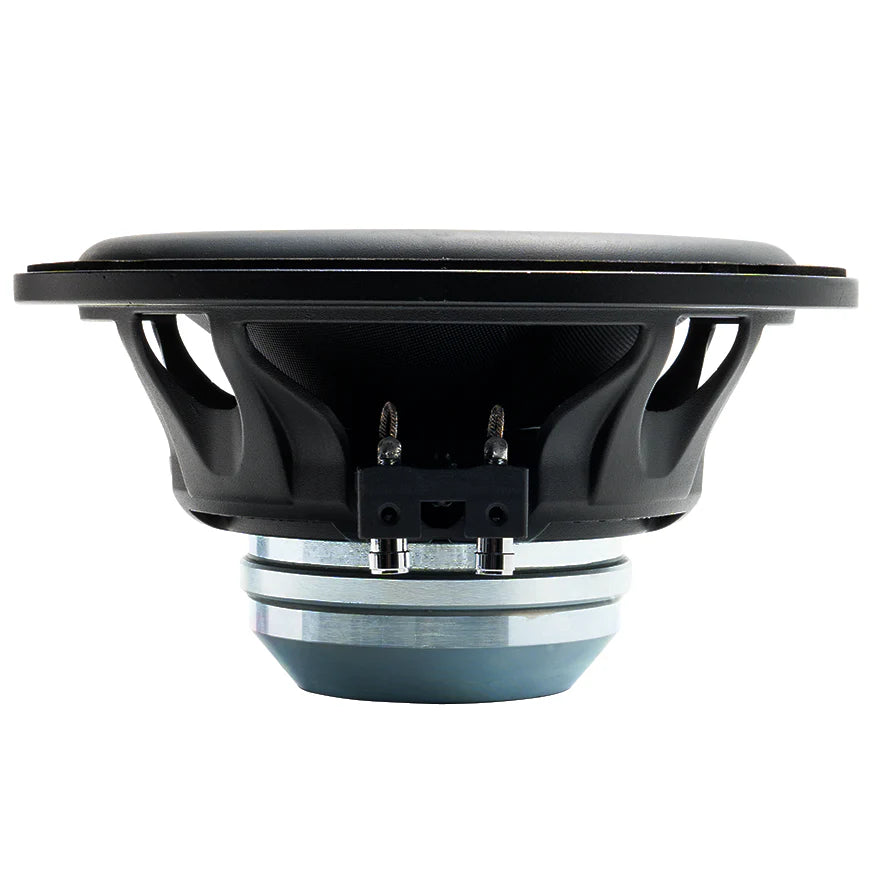

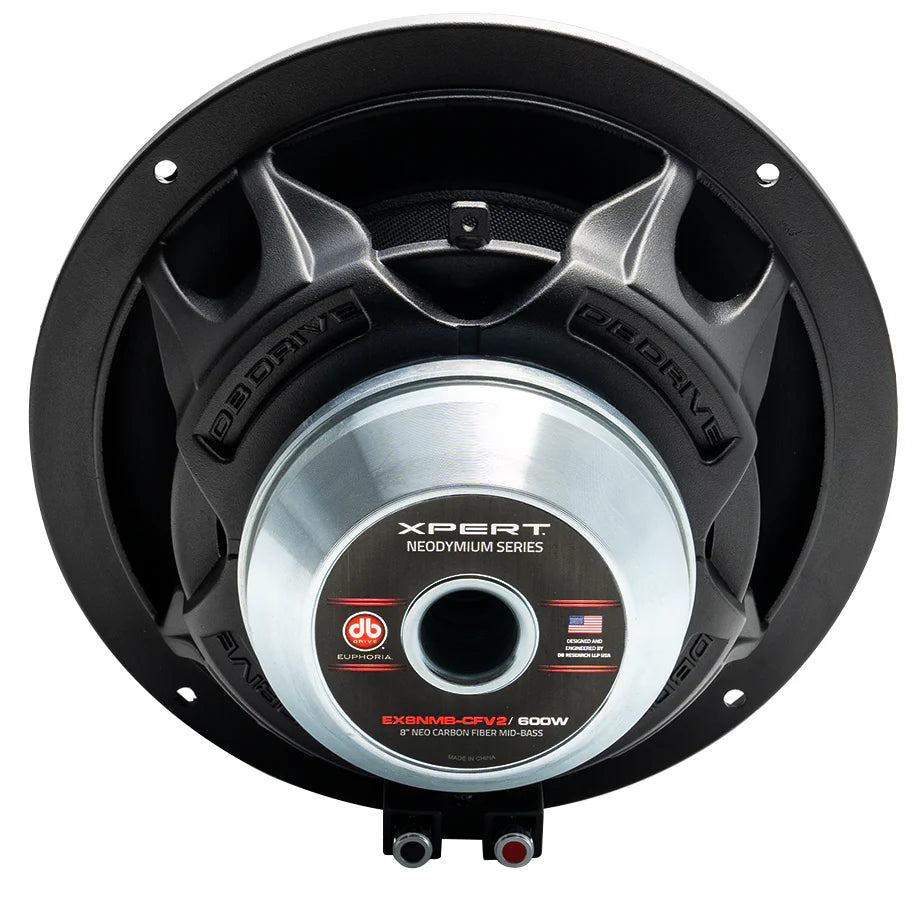

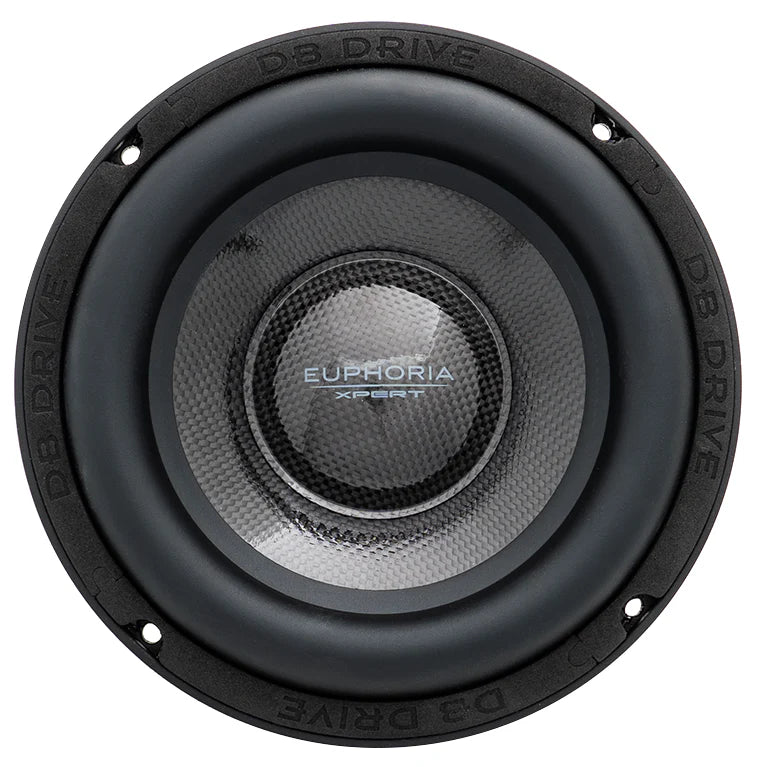

The EX8NMB-CFV2 uses a weather-resistant carbon fiber cone with a rubber surround, a 2" voice coil and a die-cast aluminum basket with radial venting.
- Neodymium M-Ring motor assembly.
- Compression speaker terminals.
- Optimized for high-output SQ sound systems.
Specifications
| Size | 8" NEO carbon fiber midbass |
| Impedance | 3Ω |
| Power Handling | 300 watts / 600 watts dynamic |
| Sensitivity | 93.2dB (1W/1m) |
| Voice Coil | 2" / 51mm |
| Resonant Frequency (Fs) | 57.62Hz |
| Overall Diameter | 8.29" / 210.5mm |
| Mounting Cutout | 7.09" / 180mm |
| Mounting Depth | 3.78" / 96mm |
Fitment and System Planning
Confirm driver depth, cutout, pod or enclosure space, wiring path, impedance and amplifier compatibility before installation.
Plan a crossover or DSP setup so the midbass is filtered correctly. Confirm your year and model with Garage Bagger Stereo before ordering the EX8NMB-CFV2.
What to Pair With the EX8NMB-CFV2
These parts help you power, wire and tune the driver correctly.
Motorcycle Amplifiers
Power the driver with an amplifier built for Harley-Davidson audio.
Motorcycle DSP
Set crossovers and tune the system with a digital sound processor.
Speaker Installation Parts
Adapters, rings, grilles and mounting parts for speaker installs.
DB Drive Motorcycle Audio
More DB Drive speakers and subwoofers.
Best Use for the EX8NMB-CFV2
Choose it for a high-output midbass position in a multi-driver system with DSP tuning.
Amplified System Recommended
This driver is intended for serious motorcycle audio systems. For best results, match the EX8NMB-CFV2 with proper amplifier power, correct impedance, clean wiring, and a real tuning plan.
Related Paths
Build the system around the correct driver, amplifier, DSP, wiring, and installation parts.
DB Drive EX8NMB-CFV2 FAQ
What impedance is the EX8NMB-CFV2?
DB Drive lists it at 3Ω. Match it to an amplifier and wiring plan that supports 3Ω.
How much power can it handle?
DB Drive lists 300 watts power handling and 600 watts dynamic wattage.
What are the mounting dimensions?
DB Drive lists a 7.09 inch (180mm) mounting cutout and a 3.78 inch (96mm) mounting depth. Verify the available depth and cutout in your location before ordering.
Is the EX8NMB-CFV2 sold as a pair?
No. This listing is for a single driver, so order two if you need a pair.
What else do I need to run the EX8NMB-CFV2?
Plan for an amplifier that matches the driver impedance and power handling, OFC speaker wire, clean signal input, and a tuning plan such as a DSP. Garage Bagger Stereo can help you match the parts to your bike.
Does Garage Bagger Stereo install the EX8NMB-CFV2?
Garage Bagger Stereo offers motorcycle audio installation at our Taylors, SC shop and can help you plan a DIY install. Start a Build Consultation or call 864-334-6131 to check scheduling.
Need Help Choosing?
Not sure the EX8NMB-CFV2 fits your location or amplifier setup? Garage Bagger Stereo can help match it to your bike.
