Cicada Audio 24HDNAVTVA2B NAV-TV A2B Harness for 2024+ Harley
PRODUCT INFORMATION
Cicada Audio 24HDNAVTVA2B NAV-TV A2B Harness for 2024+ Harley
$64.99
$64.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24HDNAVTVA2B NAV-TV A2B Harness for 2024+ Harley
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Cicada Audio 24HDNAVTVA2B NAV-TV A2B Harness for 2024+ Harley

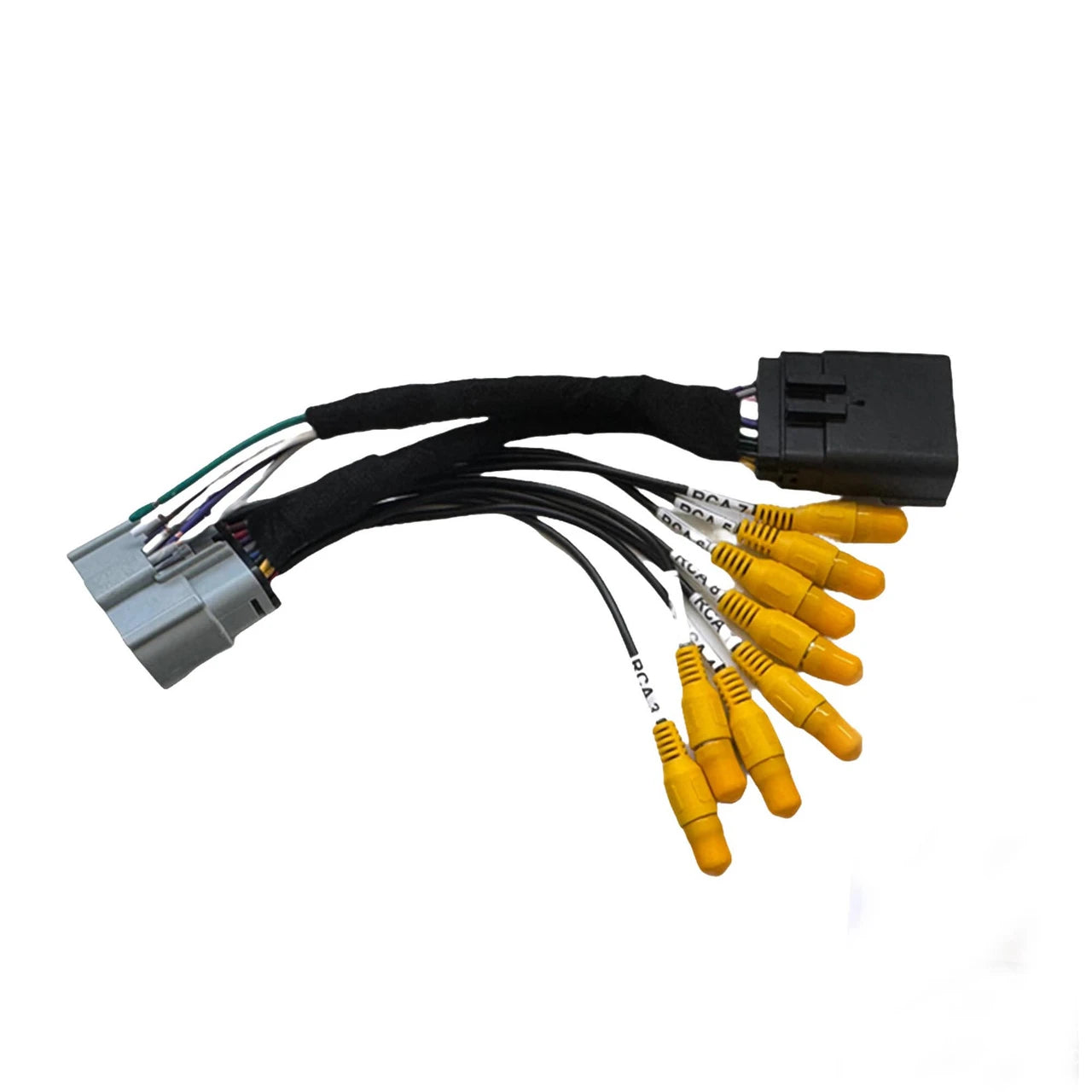

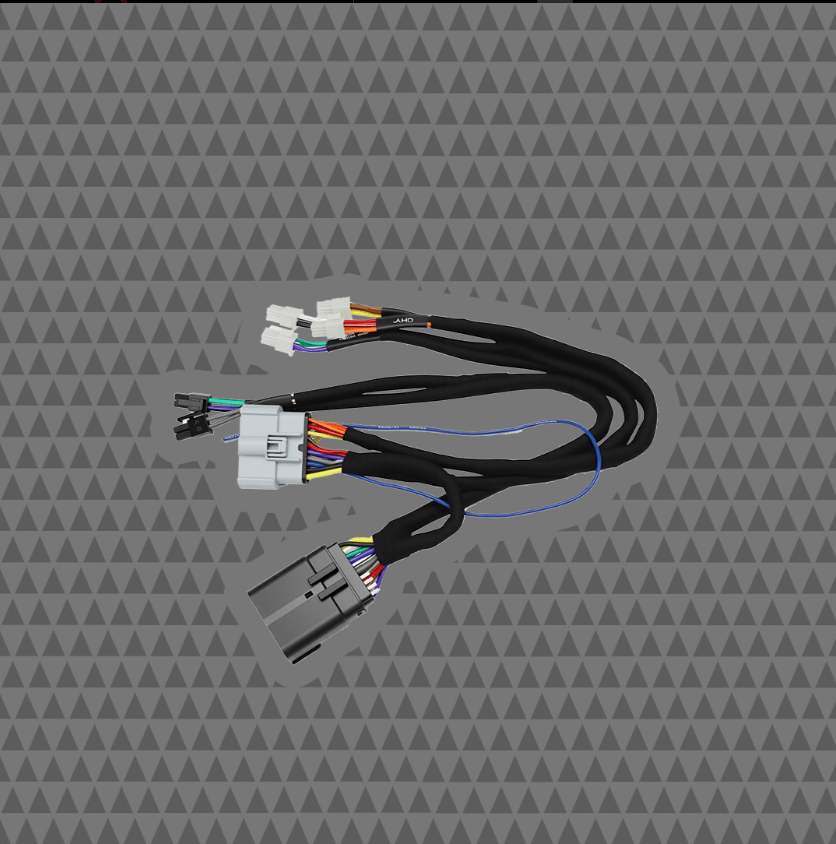

The Cicada Audio 24HDNAVTVA2B is a direct-fit plug-and-play harness designed to connect a NAV-TV ZEN H-D A2B interface to Cicada Audio amplifiers in compatible 2024 and newer Harley-Davidson audio systems. Correctly pinned locking connectors provide a cleaner installation without cutting, splicing, depinning, or modifying the factory harness.
Direct Connection from NAV-TV to Cicada
- Built for NAV-TV ZEN H-D A2B integration
- Designed for compatible 2024+ Harley audio systems
- Direct connection to Cicada amplifier ports
- Correctly pinned Molex-style connectors
- No cutting, splicing, depinning, or rewiring
- Positive-locking connections
- Compact routing for fairing installations
Important System Requirement
This product is an integration harness. It is designed to work between a compatible NAV-TV ZEN H-D A2B interface and Cicada Audio amplifiers.
Cicada 24HDNAVTVA2B Harness Overview
Integrating aftermarket amplifiers into a newer Harley-Davidson A2B audio system requires the correct signal interface and properly pinned amplifier connections. The Cicada Audio 24HDNAVTVA2B removes the need to build or repin a custom harness between the NAV-TV interface and compatible Cicada amplifiers.
The harness provides dedicated signal routing through secure connectors and a compact cable layout. This helps reduce installation time, avoid unnecessary factory-wire modification, and keep the finished fairing installation cleaner and easier to service.
Why Installers Choose It
Direct-Fit NAV-TV Integration
Designed specifically to connect with the NAV-TV ZEN H-D A2B interface without building a custom adapter harness.
Cicada Amplifier Connections
Correctly pinned connectors are designed to mate with the input and output connections used by Cicada Audio amplifiers.
No Factory-Wire Modification
The plug-and-play design eliminates cutting, splicing, depinning, and modification of the motorcycle’s factory wiring harness.
Positive-Locking Connectors
Locking connector bodies help resist accidental disconnection from motorcycle vibration, heat, and long-term use.
OEM-Grade Construction
Automotive-grade materials support durability, vibration resistance, and reliable performance in motorcycle installations.
Compact Fairing Layout
Tight cable routing and minimal bulk help keep the harness organized inside space-limited Harley-Davidson fairings.
Compatibility and System Requirements
What’s Included

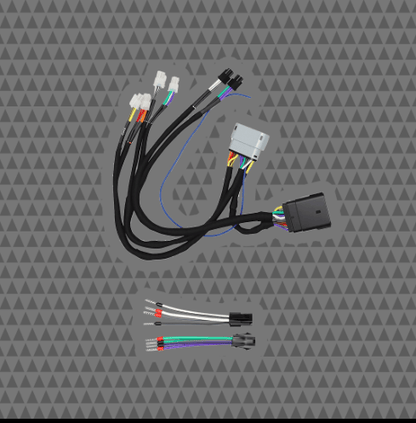

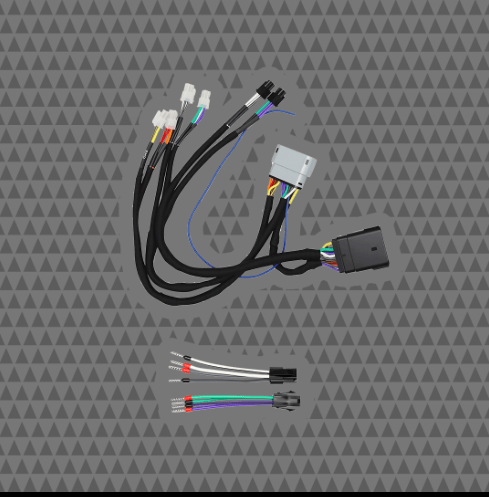

- Cicada Audio 24HDNAVTVA2B main integration harness

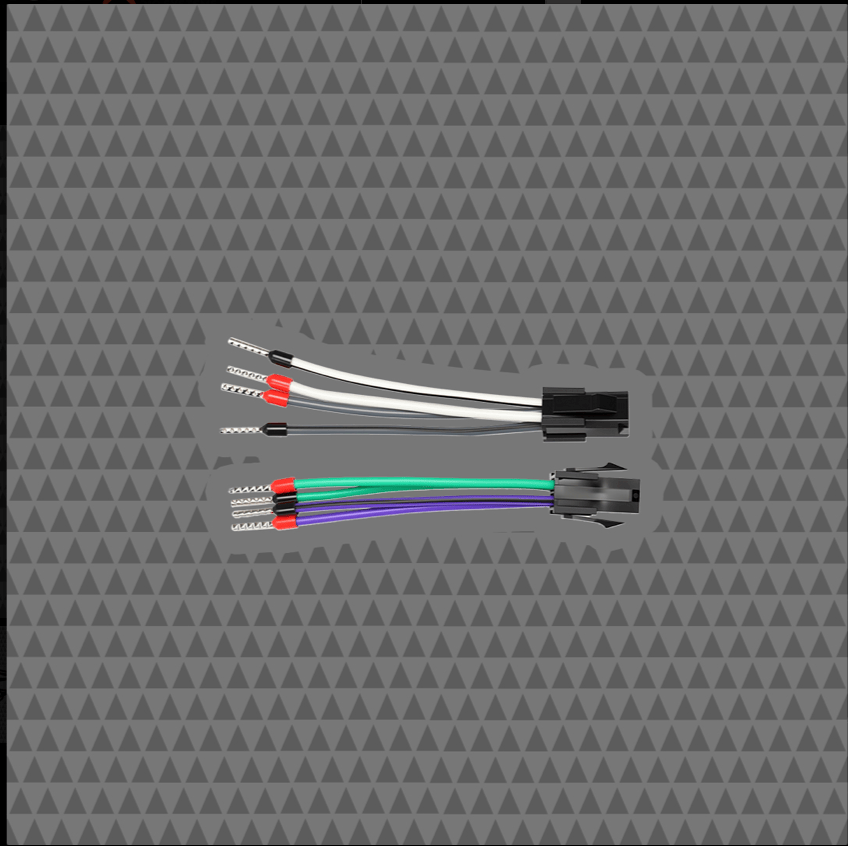

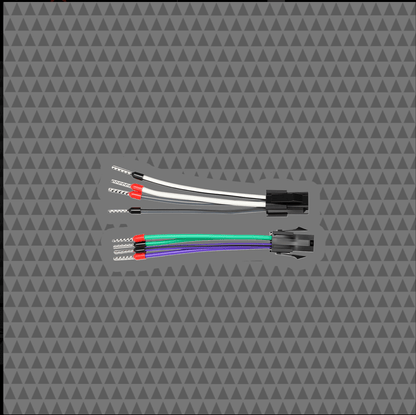

- Supplied amplifier connection pigtails shown with the harness
How the Harness Fits into the System
Factory Harley A2B Audio System
The motorcycle’s factory digital audio system feeds the compatible NAV-TV ZEN H-D A2B interface.
NAV-TV ZEN H-D A2B Interface
The NAV-TV interface provides the signal integration required for adding an aftermarket amplifier system.
Cicada 24HDNAVTVA2B Harness
The harness connects the NAV-TV interface to the compatible Cicada amplifier connections without custom repinning.
Cicada Amplifier and Speakers
The amplifier powers the selected speaker system after proper wiring, configuration, gain setup, and tuning.
Important Installation Notes
- Confirm that your installation uses the NAV-TV ZEN H-D A2B interface before ordering this harness.
- Verify the Cicada amplifier model, channel count, input arrangement, and planned speaker configuration.
- Test-fit the interface, amplifier rack, amplifiers, and harness before completing final wire routing.
- Keep signal wiring separated from high-current power wiring whenever the installation layout allows.
- Use correctly sized amplifier power and ground wiring with proper battery-mounted fuse protection.
- Secure the harness away from sharp edges, steering components, heat sources, pinch points, and moving parts.
- Complete all gain, crossover, DSP, and output-level setup before operating the system at high volume.
- Professional motorcycle audio installation is recommended.
Garage Bagger Stereo Advantage
- NAV-TV and Cicada amplifier integration guidance
- 2024+ Harley amplifier, rack, and wiring-system planning
- Speaker impedance and amplifier channel-matching support
- Power wiring, fuse, grounding, DSP, and tuning recommendations
- Professional installation available in Taylors, South Carolina
Related Motorcycle Audio Categories
2024+ Harley Integration
Cicada Amplifiers and Parts
Professional Installation
Cicada 24HDNAVTVA2B FAQ
What does the Cicada 24HDNAVTVA2B harness do?
It connects a compatible NAV-TV ZEN H-D A2B interface to Cicada Audio amplifiers in a 2024+ Harley-Davidson audio upgrade.
Does this harness replace the NAV-TV A2B interface?
No. The harness works with the NAV-TV ZEN H-D A2B interface; it does not replace the interface.
Is the NAV-TV interface included?
No. This listing is for the Cicada integration harness assembly. The NAV-TV interface is a separate system component.
Is a Cicada amplifier included?
No. Cicada amplifiers are sold separately unless this harness is specifically included as part of a separate GBS system bundle.
Does installation require cutting the factory harness?
No. The direct-fit harness is designed to avoid cutting, splicing, depinning, or modifying the motorcycle’s factory harness.
Will this work with every 2024+ Harley model?
Compatibility depends on the motorcycle, factory audio configuration, NAV-TV interface, Cicada amplifier, and planned system layout. Verify the complete system before ordering.
Need Help Planning Your 2024+ Harley A2B System?
Call Garage Bagger Stereo with your Harley year, model, factory audio system, NAV-TV interface, Cicada amplifier, and planned speaker layout. We’ll help confirm the harness, amplifier rack, power wiring, fuse protection, signal routing, and supporting equipment for your build.
