Cicada Audio 24CHDSGGTK-05 Street Glide Grilles with RR05T Tweeters

Cicada Audio 24CHDSGGTK-05 Street Glide Grilles with RR05T Tweeters

Regular price $349.99
Regular price $419.99 Sale price $349.99
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

Cicada Audio 24CHDSGGTK-05 Street Glide Grilles with RR05T Tweeters

A pair of Street Glide fairing grilles loaded with Cicada Audio RR05T horn tweeters, for compatible 2024-Present CVO and Street Glide motorcycles. Each 4-ohm tweeter has a titanium dome and neodymium motor, and the kit includes two external 7 kHz / 12 dB crossovers.

2024-Present CVO / STREET GLIDE AUDIO

Street Glide-specific grilles with RR05T tweeters

A tweeter kit only: it adds high-frequency output and needs matched front speakers and amplification.

  • Two RR05T tweeters, 4Ω, 40W RMS / 80W maximum each
  • 99 dB sensitivity, 3 kHz–20 kHz response
  • Powder-coated steel grilles, sold as a matched left and right pair
Required: The RR05T tweeters must receive a filtered signal. Install the supplied 7 kHz crossover networks between the amplifier output and the tweeters, and do not connect either tweeter directly to full-range amplifier power.

Key Product Details

Manufacturer / SKUCicada Audio / 24CHDSGGTK-05
Product typeStreet Glide fairing grille and tweeter kit
ApplicationCompatible 2024-Present CVO and Street Glide
QuantityMatched left and right pair
Tweeter modelCicada Audio RR05T
IncludedLeft and right grilles, two RR05T tweeters, two external crossovers
Not included6.5-inch mid-bass or full-range speakers, amplifier, speaker wiring, signal integration

This is not the Road Glide grille configuration. Confirm the motorcycle year, exact model, trim, fairing design and existing audio equipment before ordering.

Street Glide Fitment

2024-Present CVO Street Glide: intended for compatible late-production CVO Street Glide fairings using the redesigned grille configuration.

2024-Present Street Glide: designed around compatible 2024-Present Harley-Davidson Street Glide fairing grille locations.

It is not designed for Road Glide fairing grille locations.

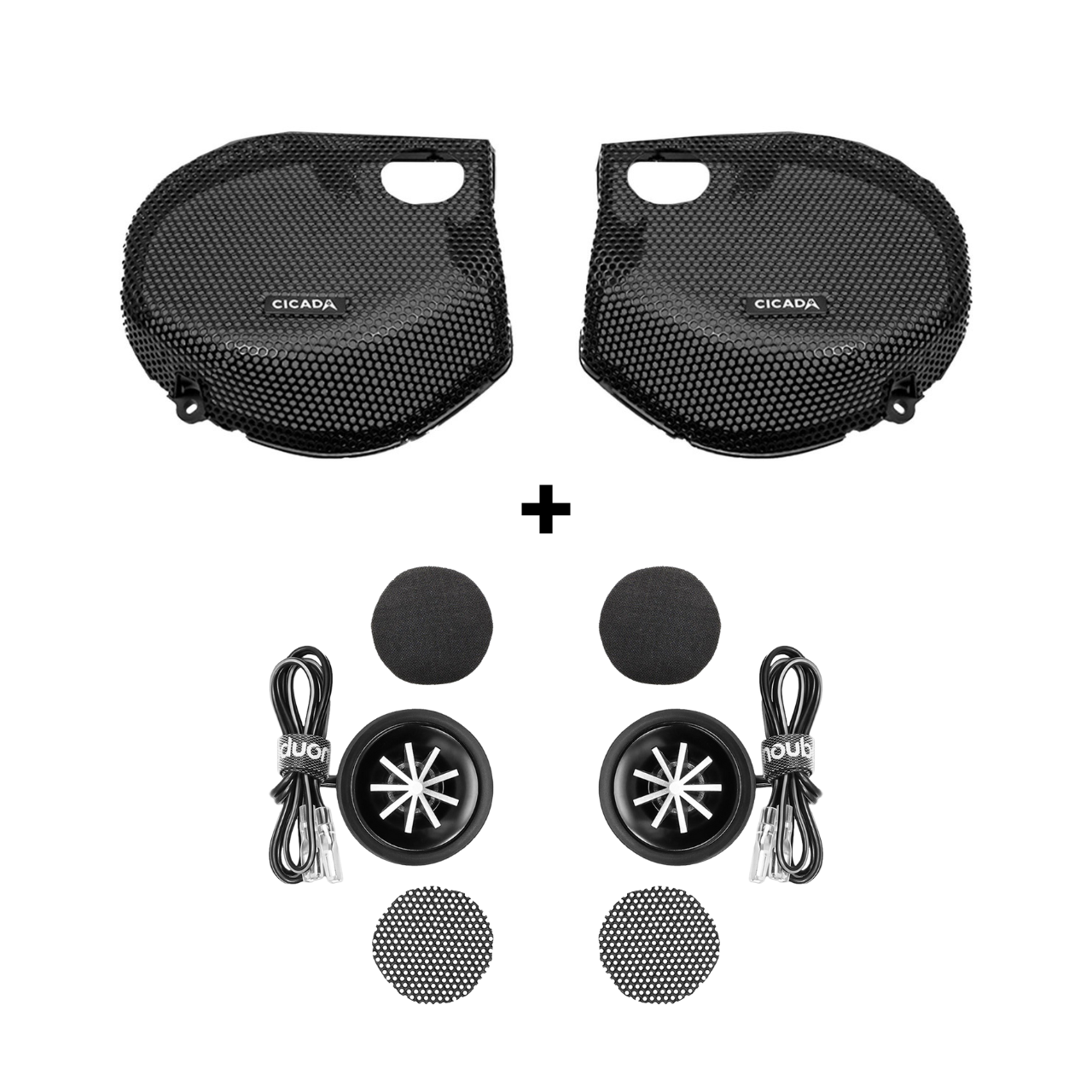

Everything Included

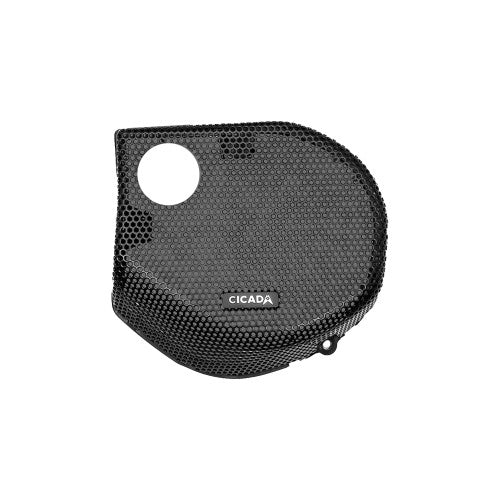

  • Left Street Glide fairing grille: powder-coated steel with an integrated mount for the supplied RR05T tweeter
  • Right Street Glide fairing grille: matching right-side grille

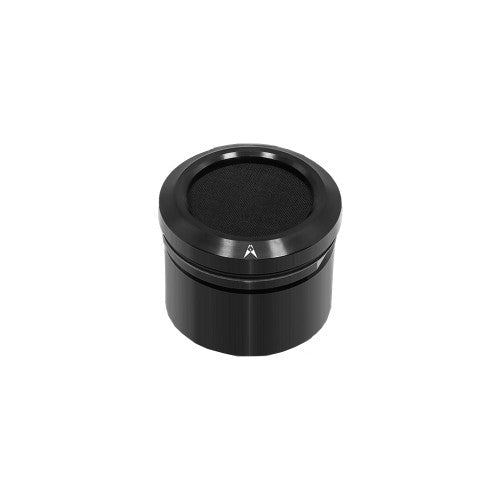

  • Two Cicada RR05T tweeters: a matched pair of 4-ohm horn tweeters with titanium domes and neodymium magnet structures
  • Two custom-tooled, vented 7 kHz / 12 dB external crossover networks that filter and protect the tweeters

Specifications

Tweeter modelCicada Audio RR05T
Nominal impedance4Ω per tweeter
Published power handling40W RMS / 80W maximum
Tweeter domeTitanium
Voice coil19 mm high-temperature design
MagnetNeodymium
Sensitivity99 dB at 1W/1m
Frequency response3 kHz–20 kHz ±3 dB
External crossover7 kHz / 12 dB per octave
Grille materialPowder-coated steel
Flush mounting depth0.85 inch / 21.7 mm
Flush mounting diameter1.75 inches / 38.1 mm
Surface mounting protrusion1.1 inches / 28 mm
Surface mounting diameter1.8 inches / 46.1 mm
WarrantyTwo years through Cicada Audio

Amplifier and Crossover Matching

  • Use one crossover network for each tweeter.
  • Verify positive and negative polarity on both sides.
  • Secure each crossover where it is protected from water and vibration.
  • Match amplifier output to the published tweeter power handling and reduce gain immediately if the tweeters sound harsh or distorted.
  • Confirm that the existing front speakers can blend with a 7 kHz tweeter crossover.

Adding high-frequency output without balancing the mid-bass speakers, amplifier gain and crossover response can leave the front stage overly bright or poorly integrated.

Related Paths

Cicada 24CHDSGGTK-05 FAQ

What is included with the 24CHDSGGTK-05?

A matched pair of Street Glide fairing grilles, two Cicada RR05T tweeters and two external crossover networks.

Does this kit include 6.5-inch speakers?

No. It adds grille-mounted tweeters only. Mid-bass or full-range fairing speakers must already be installed or purchased separately.

What motorcycles does it fit?

It is designed for compatible 2024-Present Harley-Davidson Street Glide fairings, including CVO Street Glide.

Will it fit a Road Glide?

No. The Road Glide uses a different fairing and grille configuration.

How much power do the tweeters handle?

Cicada publishes 40 watts RMS and 80 watts maximum per tweeter, at a nominal 4 ohms.

Can the tweeters be connected directly to an amplifier?

No. The supplied 7 kHz / 12 dB crossover networks must be installed so low frequencies do not reach the tweeters.

Is professional installation recommended?

Yes. Fairing removal, crossover mounting, wiring polarity, amplifier matching and gain setup all affect reliability.
