Beyma CD10Fe & TD8060 - 1" Compression Driver / Horn Bundle (Pair)

Name: Beyma CD10Fe & TD8060 - 1" Compression Driver / Horn Bundle (Pair)
Brand: Beyma
SKU: CD10Fe & TD8060
Price: 225.0 USD
Availability: InStock

TYPE: Compression Drivers/Horn

VENDOR: Beyma

1 6

PRODUCT INFORMATION

Beyma CD10Fe & TD8060 - 1" Compression Driver / Horn Bundle (Pair)

TYPE: Compression Drivers/Horn

VENDOR: Beyma

Type: Compression Drivers/Horn

Vendor: Beyma

{"id":8772885643490,"title":"Beyma CD10Fe \u0026 TD8060 - 1\" Compression Driver \/ Horn Bundle (Pair)","handle":"beyma-cd10fe-compression-driver-pair","description":"\u003ch1 style=\"text-align: center;\"\u003eBeyma CD10Fe \u0026amp; TD8060\u003c\/h1\u003e\n\u003ch2 style=\"text-align: center;\"\u003e1\" 8-ohm Compression Driver with Horn\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\"\u003e(Sold in pairs)\u003c\/h3\u003e\n\u003cp style=\"text-align: left;\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eCD10Fe Compression Driver\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\u003c\/ul\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul class=\"fx-list product-text__list\"\u003e\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli class=\"p1\"\u003e1 in. (25mm) high-frequency compression driver\u003c\/li\u003e\n\u003cli class=\"p1\"\u003e109 dB, 2.83V@1m sensitivity\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eImproved moving assembly mechanical coupling for excellent power handling capabilities\u003c\/li\u003e\n\u003cli class=\"p1\"\u003ePM-4 polymer diaphragm with higher surface tension energy\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eUltra lightweight edge wound aluminum ribbon voice coil\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eAluminum cover\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eFerrite magnet\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eThroat diameter - \u003c\/b\u003e25 mm. 1 in.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eRated impedance - \u003c\/b\u003e8 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eMinimum impedance - \u003c\/b\u003e5 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eD.C. Resistance - \u003c\/b\u003e4.3 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003ePower capacity * - \u003c\/b\u003e70 w AES above 1.2 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eProgram power - \u003c\/b\u003e140 w above 1.2 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eSensitivity ** - \u003c\/b\u003e109 dB 2.83V @ 1m coupled to TD-164 prototype horn\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eFrequency range - \u003c\/b\u003e0.7 - 19 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eRecommended crossover - \u003c\/b\u003e1.2 kHz or higher (12 dB\/oct. min.)\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eVoice coil diameter - \u003c\/b\u003e44.4 mm. 1.75 in.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eMagnetic assembly weight - \u003c\/b\u003e1.2 kg. 2.64 lb.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eFlux density - \u003c\/b\u003e1.65 T\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eBL factor - \u003c\/b\u003e6.6 N\/A\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e \u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eTD-8060 \u003cmeta charset=\"utf-8\"\u003eConstant Directivity Horn\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli class=\"p1\"\u003eDesigned to be used with 1” compression drivers.\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eCoverage angles of 80º in the horizontal plane and 60º in the vertical plane.\u003c\/li\u003e\n\u003cli class=\"p1\"\u003ePrecise directivity control in the pass band\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003ePolycarbonate for lower resonance\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003e2-Bolt on type for 1\" high-frequency drivers\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan style=\"font-family: Trebuchet MS;\"\u003eLightweight 1 \" horn that works well with lightweight neodymium high-frequency drivers\u003c\/span\u003e\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ctable width=\"100%\" cellpadding=\"0\" cellspacing=\"0\" border=\"2\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd bgcolor=\"#DD0000\" colspan=\"2\" width=\"100%\" valign=\"top\"\u003e\n\u003cp align=\"center\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003eSPECIFICATIONS\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eType\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eConstant Directivity\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eThroat Size\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e1\" \/ 25mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eDispersion\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e8\u003c\/span\u003e\u003c\/b\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"color: #000000;\"\u003e0°\u003c\/span\u003ex 6\u003cspan style=\"color: #000000;\"\u003e0°\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eLowest Rec. Crossover\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e15\u003c\/span\u003e\u003c\/span\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003e00\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eHz\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003eConstruction\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003ePolycarbonate\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eNet \u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e.28\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e lbs. \/ .13kg  \u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd bgcolor=\"#DD0000\" colspan=\"2\" width=\"100%\" valign=\"top\"\u003e\n\u003cp align=\"center\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003eMOUNTING INFORMATION\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Width\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.51\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 140mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Height\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.51\" \/ 140mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Depth\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e2.65\" \/ 67.4mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eCutout Width\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e4.45\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 113mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eCutout Height\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.12\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 130mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eMounting Type\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eBolt On\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cb\u003e2 Holes Equally Spaced On Diameter\u003c\/b\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e3.0\"  \/  \u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cb\u003e76.2 mm\u003c\/b\u003e\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e","published_at":"2024-12-17T16:49:54-05:00","created_at":"2024-12-17T13:29:53-05:00","vendor":"Beyma","type":"Compression Drivers\/Horn","tags":["audio parts","Bagger Audio","Beyma Audio","beyma car audio","Beyma CD10Fe","Beyma CD10Fe \u0026 TD8060","beyma compression drivers","beyma horns","Beyma TD8060","car audio upgrade","Compression Driver","compression driver mounts","compression drivers","compression drivers and tweeters","compression horn","Garage Bagger Stereo","harley davidson motorcycle audio","horns","motorcycle horn upgrade","motorcycle upgrade","Speaker Upgrades"],"price":22500,"price_min":22500,"price_max":22500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":46199456989410,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"CD10Fe \u0026 TD8060","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Beyma CD10Fe \u0026 TD8060 - 1\" Compression Driver \/ Horn Bundle (Pair)","public_title":null,"options":["Default Title"],"price":22500,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"8435469044456 \u0026 8435469045422","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE7.jpg?v=1734463315","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE.jpg?v=1734463315","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE6.webp?v=1734463315","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE2.jpg?v=1734463315","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE3.jpg?v=1734463315","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE4.jpg?v=1734463315"],"featured_image":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE7.jpg?v=1734463315","options":["Title"],"media":[{"alt":"Beyma CD10Fe \u0026amp; TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698606306,"position":1,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE7.jpg?v=1734463315"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE7.jpg?v=1734463315","width":300},{"alt":"Beyma CD10Fe TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698442466,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE.jpg?v=1734463315"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE.jpg?v=1734463315","width":600},{"alt":"Beyma CD10Fe TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698573538,"position":3,"preview_image":{"aspect_ratio":1.0,"height":451,"width":451,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE6.webp?v=1734463315"},"aspect_ratio":1.0,"height":451,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE6.webp?v=1734463315","width":451},{"alt":"Beyma CD10Fe TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698475234,"position":4,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE2.jpg?v=1734463315"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE2.jpg?v=1734463315","width":600},{"alt":"Beyma CD10Fe TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698508002,"position":5,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE3.jpg?v=1734463315"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE3.jpg?v=1734463315","width":600},{"alt":"Beyma CD10Fe TD8060\n1\" 8-ohm Compression Driver with Horn","id":35043698540770,"position":6,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE4.jpg?v=1734463315"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BeymaCD10FE4.jpg?v=1734463315","width":600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 style=\"text-align: center;\"\u003eBeyma CD10Fe \u0026amp; TD8060\u003c\/h1\u003e\n\u003ch2 style=\"text-align: center;\"\u003e1\" 8-ohm Compression Driver with Horn\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\"\u003e(Sold in pairs)\u003c\/h3\u003e\n\u003cp style=\"text-align: left;\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eCD10Fe Compression Driver\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\u003c\/ul\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cul class=\"fx-list product-text__list\"\u003e\u003c\/ul\u003e\n\u003cul\u003e\n\u003cli class=\"p1\"\u003e1 in. (25mm) high-frequency compression driver\u003c\/li\u003e\n\u003cli class=\"p1\"\u003e109 dB, 2.83V@1m sensitivity\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eImproved moving assembly mechanical coupling for excellent power handling capabilities\u003c\/li\u003e\n\u003cli class=\"p1\"\u003ePM-4 polymer diaphragm with higher surface tension energy\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eUltra lightweight edge wound aluminum ribbon voice coil\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eAluminum cover\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eFerrite magnet\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eThroat diameter - \u003c\/b\u003e25 mm. 1 in.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eRated impedance - \u003c\/b\u003e8 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eMinimum impedance - \u003c\/b\u003e5 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eD.C. Resistance - \u003c\/b\u003e4.3 ohms.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003ePower capacity * - \u003c\/b\u003e70 w AES above 1.2 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eProgram power - \u003c\/b\u003e140 w above 1.2 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eSensitivity ** - \u003c\/b\u003e109 dB 2.83V @ 1m coupled to TD-164 prototype horn\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eFrequency range - \u003c\/b\u003e0.7 - 19 kHz\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eRecommended crossover - \u003c\/b\u003e1.2 kHz or higher (12 dB\/oct. min.)\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eVoice coil diameter - \u003c\/b\u003e44.4 mm. 1.75 in.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eMagnetic assembly weight - \u003c\/b\u003e1.2 kg. 2.64 lb.\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eFlux density - \u003c\/b\u003e1.65 T\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cb\u003eBL factor - \u003c\/b\u003e6.6 N\/A\u003c\/p\u003e\n\u003cp class=\"p1\"\u003e \u003c\/p\u003e\n\u003cp class=\"p1\"\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eTD-8060 \u003cmeta charset=\"utf-8\"\u003eConstant Directivity Horn\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli class=\"p1\"\u003eDesigned to be used with 1” compression drivers.\u003c\/li\u003e\n\u003cli class=\"p1\"\u003eCoverage angles of 80º in the horizontal plane and 60º in the vertical plane.\u003c\/li\u003e\n\u003cli class=\"p1\"\u003ePrecise directivity control in the pass band\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003ePolycarbonate for lower resonance\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003e2-Bolt on type for 1\" high-frequency drivers\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan style=\"font-family: Trebuchet MS;\"\u003eLightweight 1 \" horn that works well with lightweight neodymium high-frequency drivers\u003c\/span\u003e\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ctable width=\"100%\" cellpadding=\"0\" cellspacing=\"0\" border=\"2\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd bgcolor=\"#DD0000\" colspan=\"2\" width=\"100%\" valign=\"top\"\u003e\n\u003cp align=\"center\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003eSPECIFICATIONS\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eType\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eConstant Directivity\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eThroat Size\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e1\" \/ 25mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eDispersion\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e8\u003c\/span\u003e\u003c\/b\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"color: #000000;\"\u003e0°\u003c\/span\u003ex 6\u003cspan style=\"color: #000000;\"\u003e0°\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eLowest Rec. Crossover\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e15\u003c\/span\u003e\u003c\/span\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003e00\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eHz\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003eConstruction\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cspan\u003ePolycarbonate\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eNet \u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eWeight\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e.28\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e lbs. \/ .13kg  \u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd bgcolor=\"#DD0000\" colspan=\"2\" width=\"100%\" valign=\"top\"\u003e\n\u003cp align=\"center\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS;\"\u003eMOUNTING INFORMATION\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Width\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.51\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 140mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Height\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cp class=\"MsoNormal\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.51\" \/ 140mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eOverall Depth\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e2.65\" \/ 67.4mm\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eCutout Width\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e4.45\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 113mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eCutout Height\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e5.12\u003c\/span\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\" \/ 130mm\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eMounting Type\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003eBolt On\u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd width=\"667\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cb\u003e2 Holes Equally Spaced On Diameter\u003c\/b\u003e\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd width=\"668\" background=\"https:\/\/usspeaker.com\/Light_Grey_BrickA363.gif\" valign=\"top\"\u003e\n\u003cspan\u003e\u003cb\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e3.0\"  \/  \u003c\/span\u003e\u003c\/b\u003e\u003c\/span\u003e\u003cspan\u003e\u003cspan style=\"font-family: Trebuchet MS; font-size: small;\"\u003e\u003cb\u003e76.2 mm\u003c\/b\u003e\u003c\/span\u003e\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e"}

Product variants

$225.00

Sale Sold out

Tax included. Shipping calculated at checkout.

QTY

Additional Payment Info

View full details

Description
Reviews

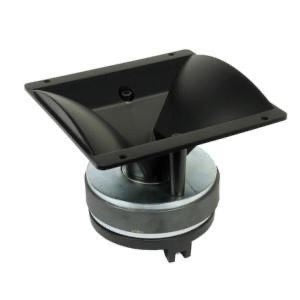

Beyma CD10Fe & TD8060

1" 8-ohm Compression Driver with Horn

(Sold in pairs)

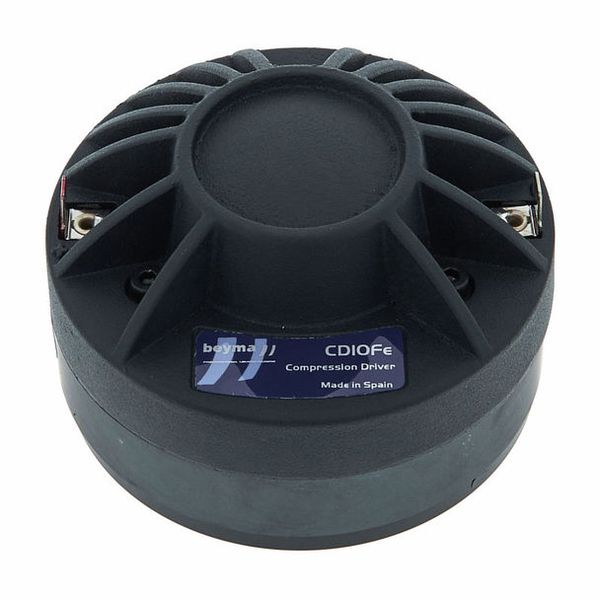

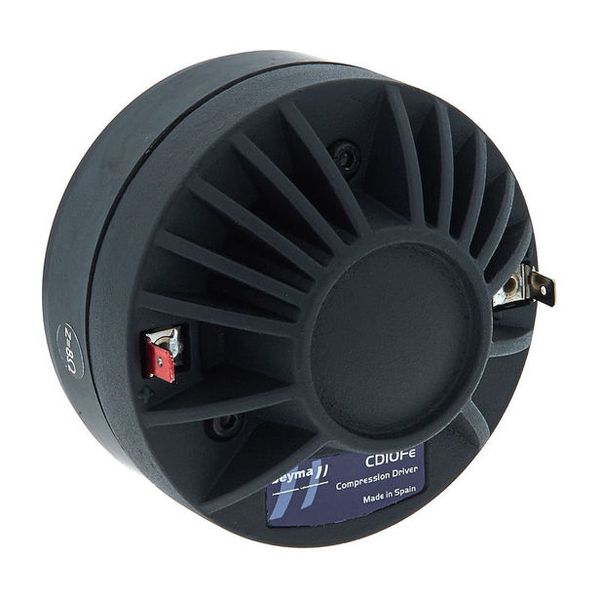

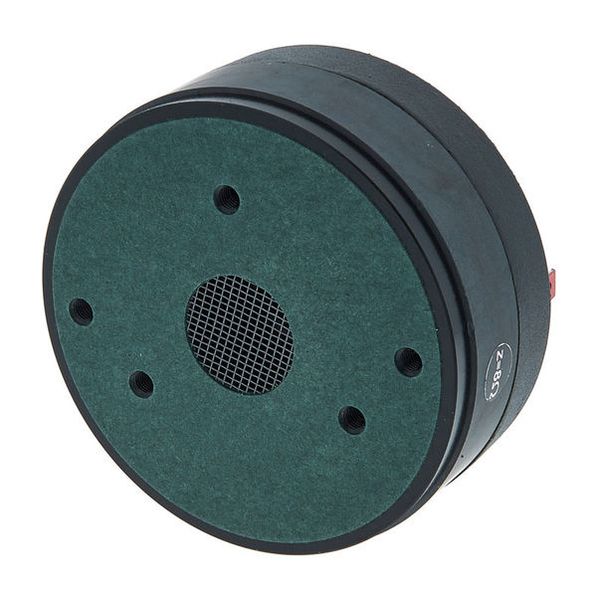

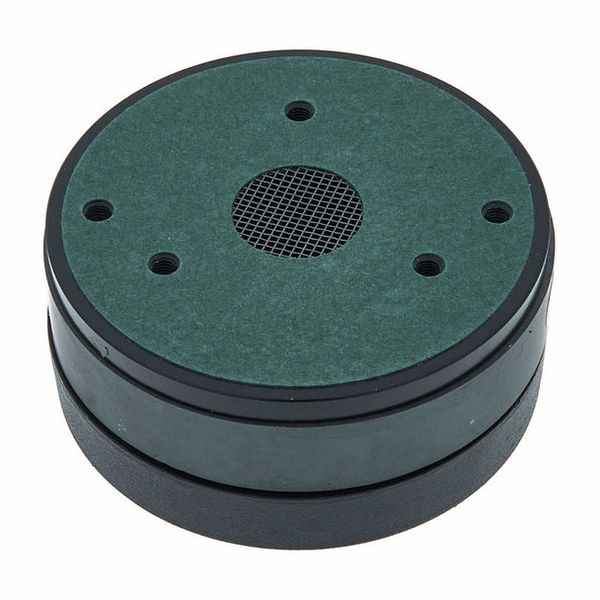

CD10Fe Compression Driver

1 in. (25mm) high-frequency compression driver
109 dB, 2.83V@1m sensitivity
Improved moving assembly mechanical coupling for excellent power handling capabilities
PM-4 polymer diaphragm with higher surface tension energy
Ultra lightweight edge wound aluminum ribbon voice coil
Aluminum cover
Ferrite magnet

Throat diameter - 25 mm. 1 in.

Rated impedance - 8 ohms.

Minimum impedance - 5 ohms.

D.C. Resistance - 4.3 ohms.

Power capacity * - 70 w AES above 1.2 kHz

Program power - 140 w above 1.2 kHz

Sensitivity ** - 109 dB 2.83V @ 1m coupled to TD-164 prototype horn

Frequency range - 0.7 - 19 kHz

Recommended crossover - 1.2 kHz or higher (12 dB/oct. min.)

Voice coil diameter - 44.4 mm. 1.75 in.

Magnetic assembly weight - 1.2 kg. 2.64 lb.

Flux density - 1.65 T

BL factor - 6.6 N/A

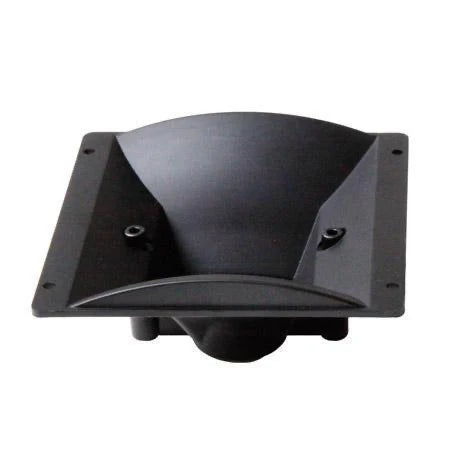

TD-8060 Constant Directivity Horn

Designed to be used with 1” compression drivers.
Coverage angles of 80º in the horizontal plane and 60º in the vertical plane.
Precise directivity control in the pass band
Polycarbonate for lower resonance
2-Bolt on type for 1" high-frequency drivers
Lightweight 1 " horn that works well with lightweight neodymium high-frequency drivers

SPECIFICATIONS
Type	Constant Directivity
Throat Size	1" / 25mm
Dispersion	80°x 60°
Lowest Rec. Crossover	1500Hz
Construction	Polycarbonate
Net Weight	.28 lbs. / .13kg
MOUNTING INFORMATION
Overall Width	5.51" / 140mm
Overall Height	5.51" / 140mm
Overall Depth	2.65" / 67.4mm
Cutout Width	4.45" / 113mm
Cutout Height	5.12" / 130mm
Mounting Type	Bolt On
2 Holes Equally Spaced On Diameter	3.0" / 76.2 mm
