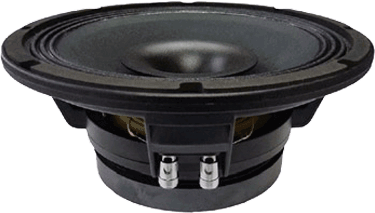

Beyma 10CX300FE - 10" Pro Coaxial Speaker (Single)
TYPE: Speakers 10"
VENDOR: Beyma
PRODUCT INFORMATION
Beyma 10CX300FE - 10" Pro Coaxial Speaker (Single)
TYPE: Speakers 10"
VENDOR: Beyma
Type: Speakers 10"
Vendor: Beyma
$361.50
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Additional Payment Info
$361.50
Motorcycle Audio
Beyma 10CX300FE - 10" Pro Coaxial Speaker (Single)
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews

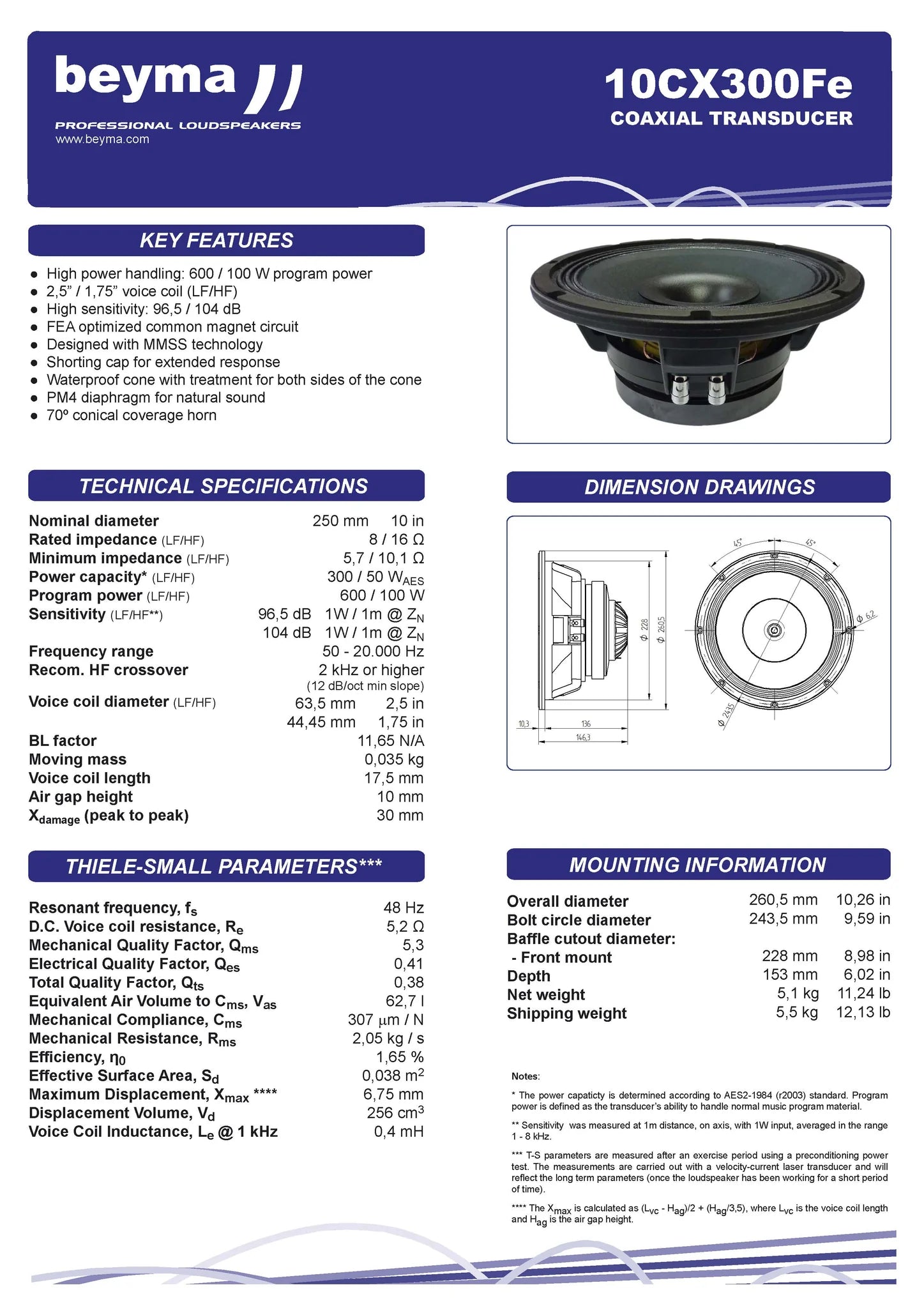

Beyma 10CX300FE
10" Coaxial Speaker
(Sold in Singles)
THE BEYMA 10CX300FE 10" COAXIAL SPEAKER HAS GOOD PROJECTION & HAS A NICE SMOOTH SOUND!
KEY FEATURES
- High power handling: 600 W / 100 W program power
- 2,5” / 1,75” voice coil (LF/HF)
- High sensitivity: 96,5 / 104 dB (1W / 1m) (LF/HF)
- FEA-optimized common magnet circuit
- Shorting cap for extended response
- Weatherproof cone with treatment for both sides of the cone
- PM4 HF diaphragm
- 70º conical coverage horn
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal Basket Diameter |
10" / 250mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
300 Watts |
| Program Power | 600 Watts |
|
Frequency Response |
50Hz - 8.0kHz |
|
Sensitivity (1W/1m) |
96.5dB |
|
Voice Coil Diameter |
2.5" / 63.5mm |
| Voice Coil Length | 17.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 11.65 N/A |
|
High Frequency Driver |
|
| Impedance | 16 ohms |
| AES Power Rating | 50 Watts AES @ 2kHz |
| Frequency Response | 2kHz to 20kHz |
| Sensitivity (1W/1m) | 104dB |
| Dispersion | 70° |
| Voice Coil Diameter | 1.75" / 44.45mm |
|
Mounting Information |
|
| Overall Diameter | 10.26" / 260.5mm |
| Bolt Circle Diameter | 9.59" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.98" / 228mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 6.02" / 153mm |
| Net Weight | 11.24 lb. / 5.1 kg. |
| Shipping Weight | 12.13 lb. / 5.5 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | PM4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 5.3 |
| Electrical Factor (Qes) | .41 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 2.21 ft3 / 62.7 Liters |
| Voice Coil Overhang (Xmax) | 6.75 mm |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Moving Mass (Mms) | 35 Grams |
| Reference Efficiency | 1.65% |
| Displacement Volume (Vd) | 256 cm3 |
