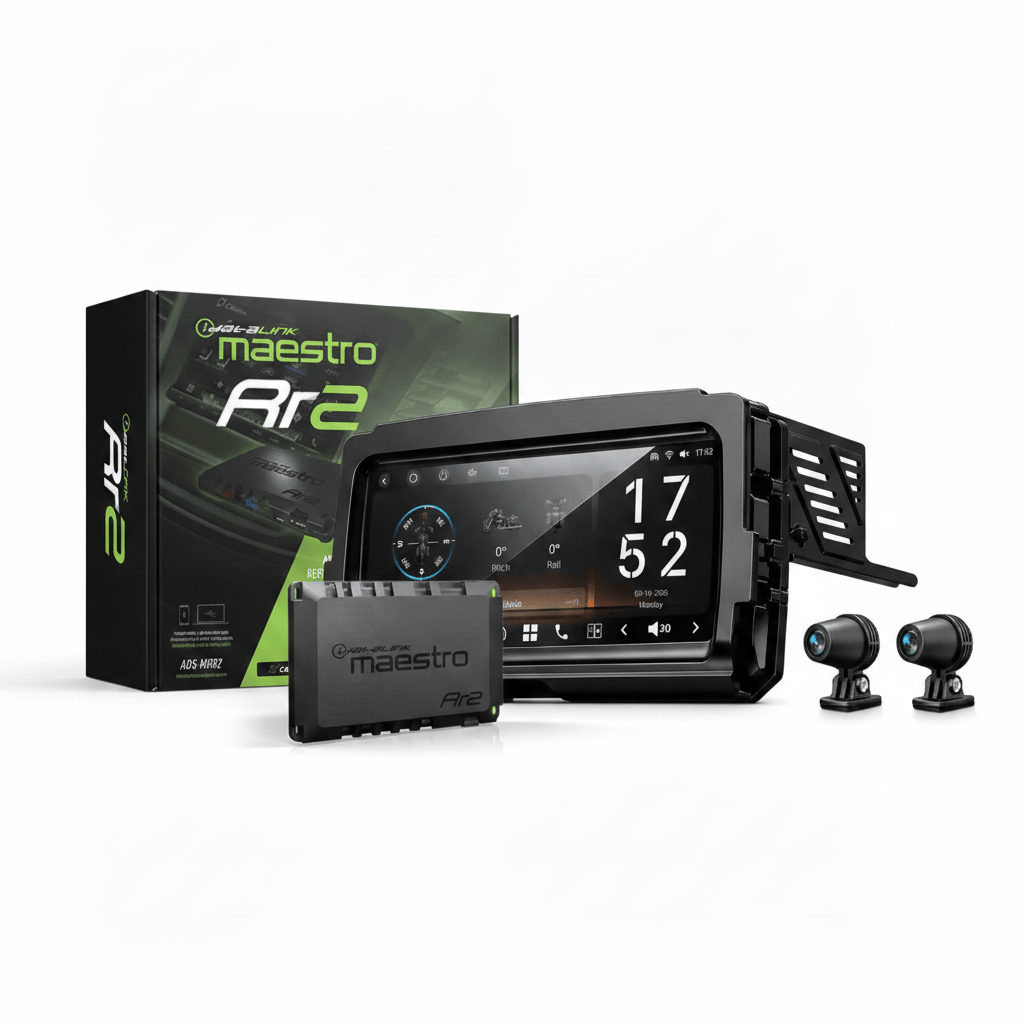

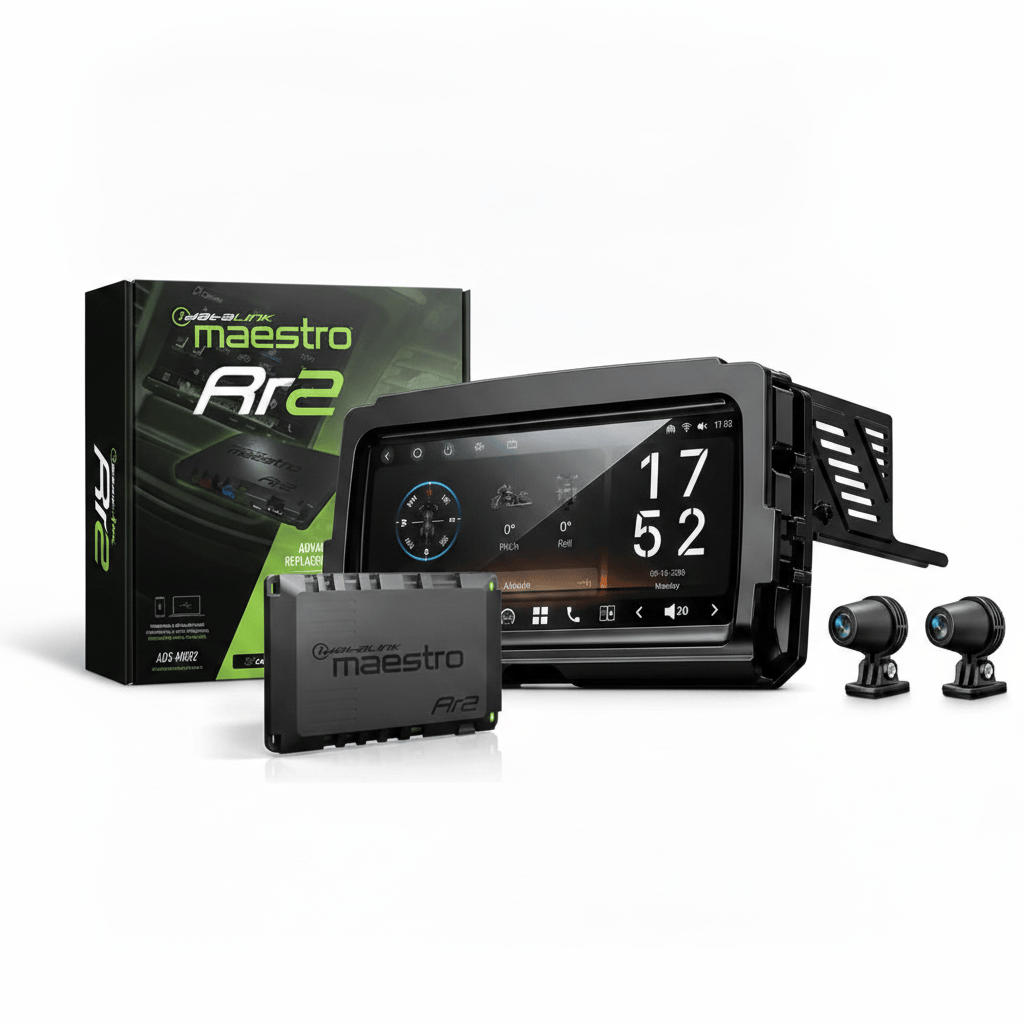

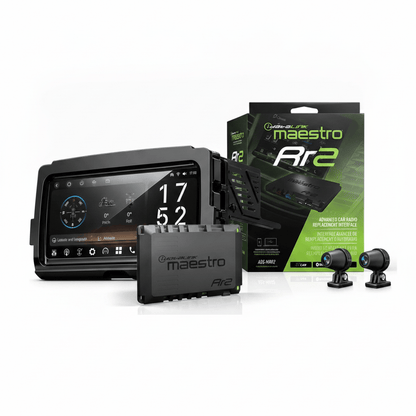

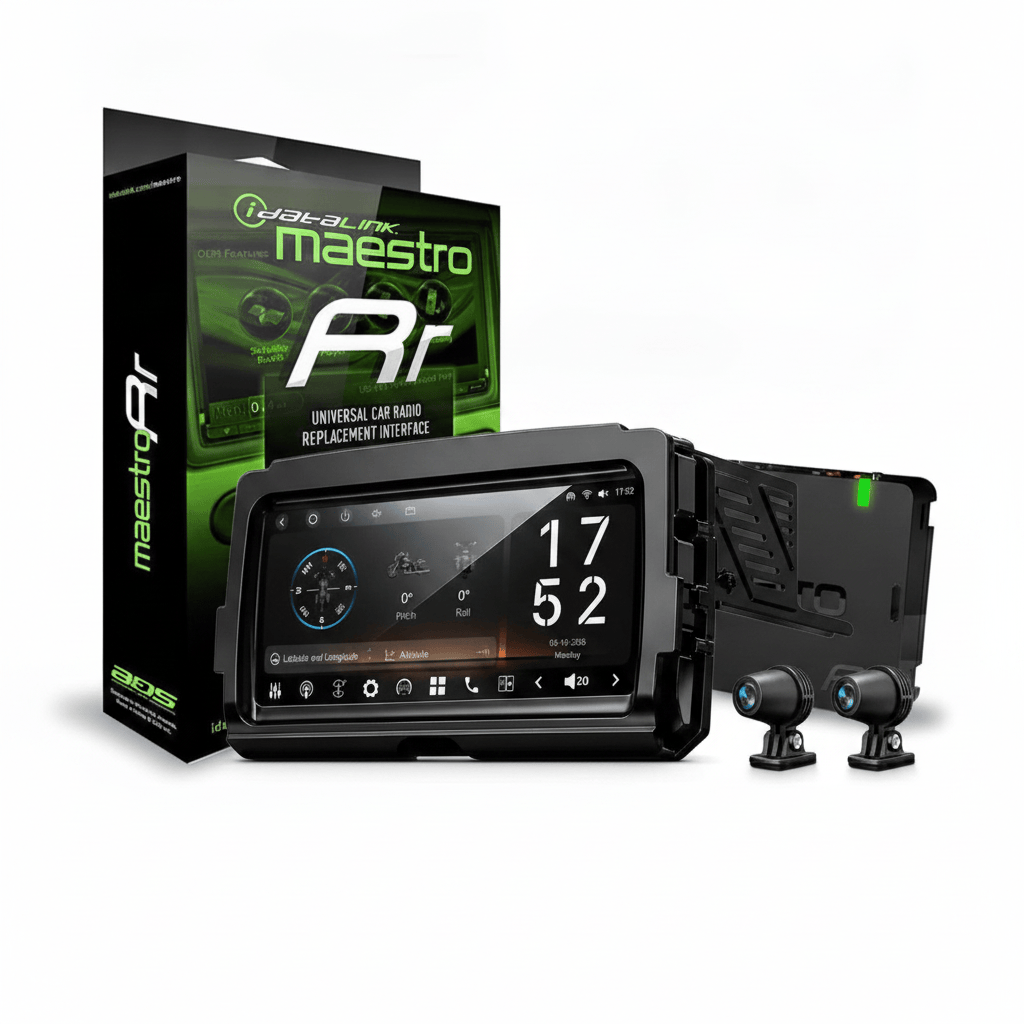

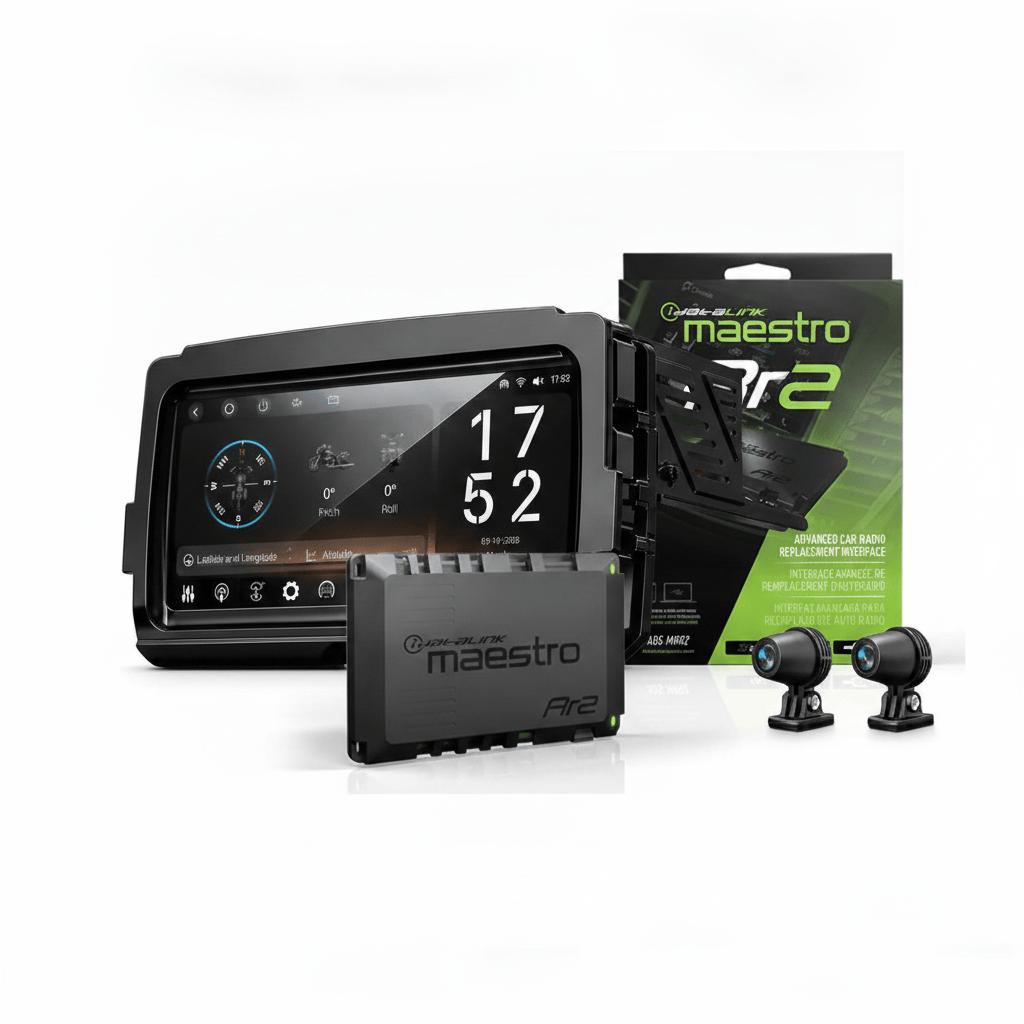

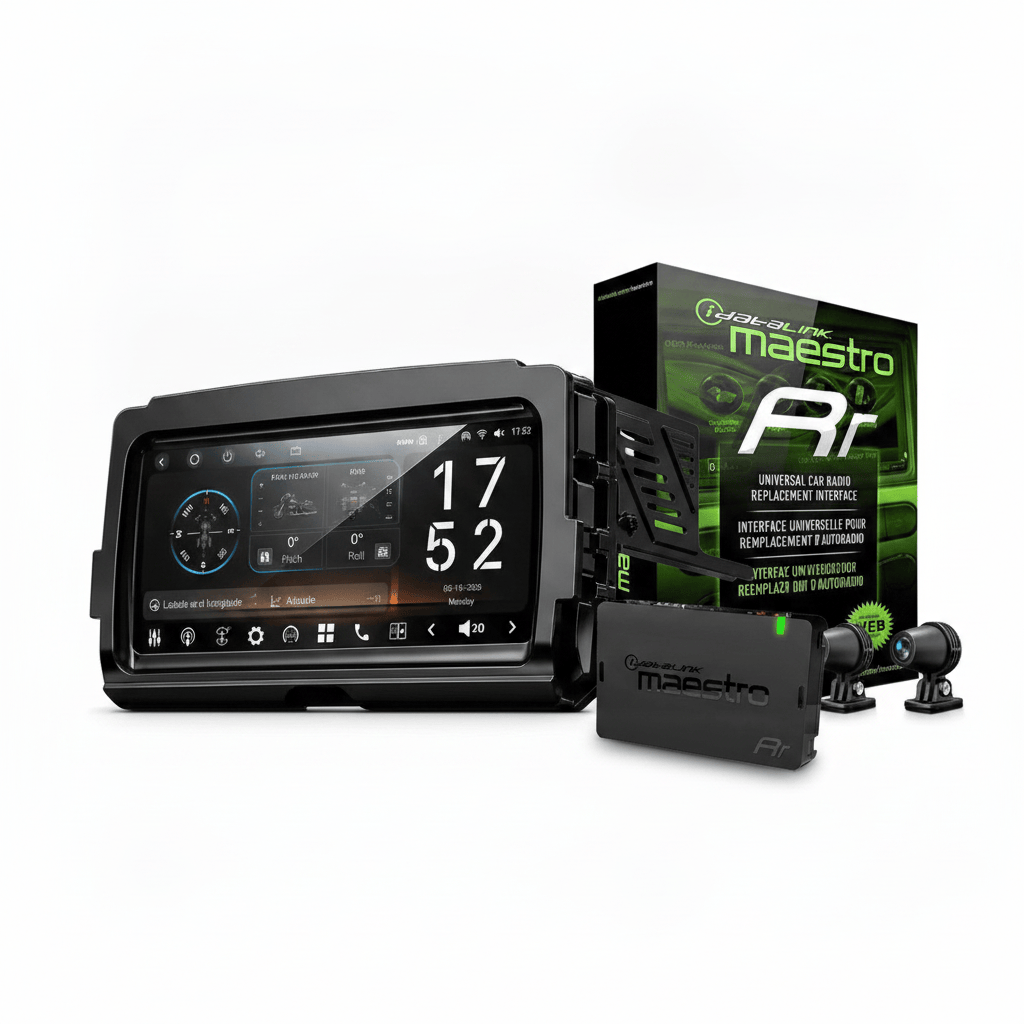

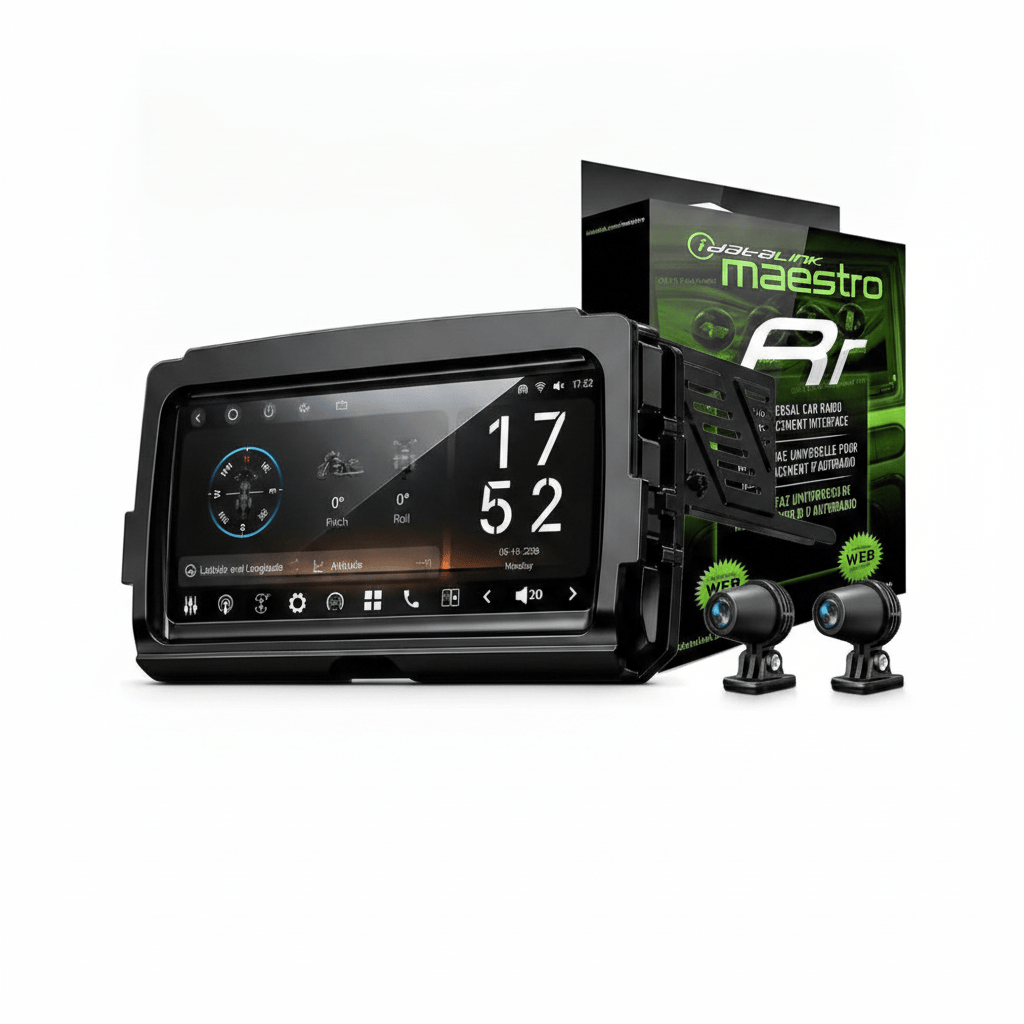

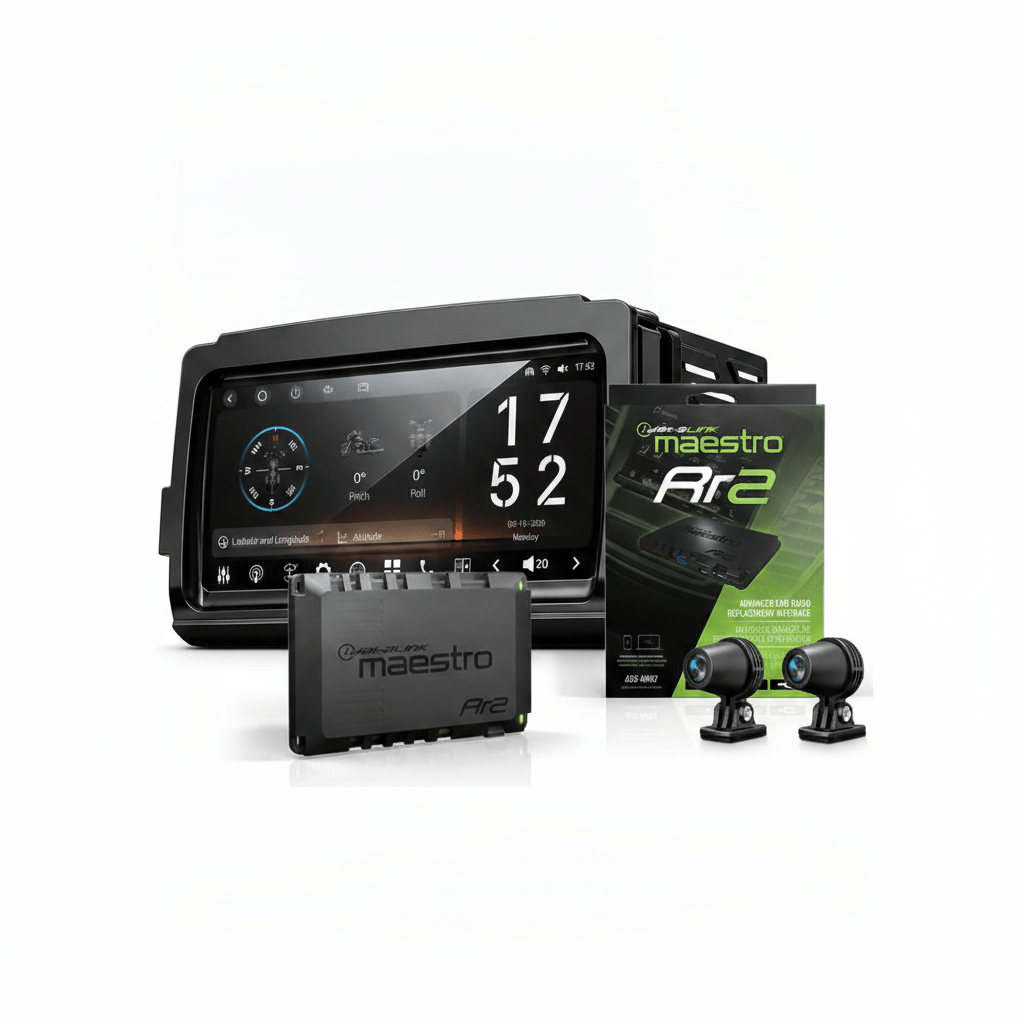

Vinland Rebel RBHT14 8.25" Harley Radio | 2014-2023 Touring
PRODUCT INFORMATION
Vinland Rebel RBHT14 8.25" Harley Radio | 2014-2023 Touring
Add Maestro:
Choose Year:
Choose Motorcycle:
$1,199.99
$1,199.99
Couldn't load pickup availability
Additional Payment Info
Vinland Rebel RBHT14 8.25" Harley Radio | 2014-2023 Touring
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Vinland RBHT14 Videos
Vinland RBHT14 Unboxing & Product Overview
Vinland RBHT14 Harley Radio Install | Start to Finish

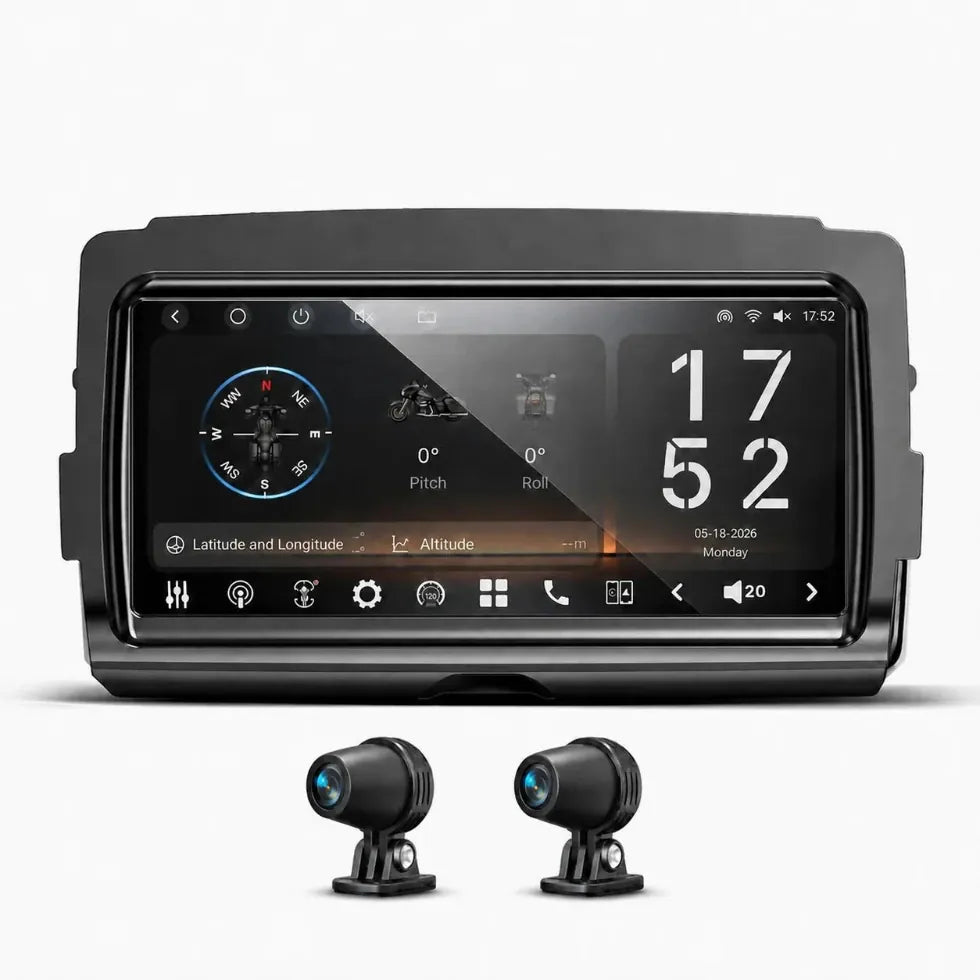

Vinland Rebel RBHT14 8.25" Harley-Davidson Touchscreen Radio
Upgrade a compatible 2014-2023 Harley-Davidson Touring motorcycle with the Vinland Rebel RBHT14. This OEM-fit head unit combines an 8.25-inch QLED touchscreen, wireless Apple CarPlay and Android Auto, Android 13, built-in DSP tuning, six 4-volt RCA pre-outs, and included front and rear DVR cameras.
The shallow chassis leaves additional fairing space for amplifier, processor, interface, and signal wiring. A vehicle-specific plug-and-play harness is included, while a compatible iDatalink Maestro RR or RR2 module is required and sold separately for supported factory-feature retention.
Rebel Series Radio Technology
- Fits compatible 2014-2023 Harley Touring motorcycles
- 8.25-inch QLED touchscreen
- 1440 × 640 resolution
- 1000-nit screen brightness
- Glove-friendly touch operation
- IPX6 water-resistant head unit
- Android 13 operating system
- Qualcomm SM6125 8-core processor
- 8GB RAM and 128GB internal storage
- Wireless Apple CarPlay and Android Auto
- Built-in 36-band DSP
- Six 4-volt RCA pre-outs
- Front and rear DVR cameras included
- 4G LTE ready with compatible SIM card
Vinland RBHT14 Product Overview
The Vinland Rebel RBHT14 is a motorcycle-specific touchscreen radio for compatible 2014-2023 Harley-Davidson Touring models. It replaces the original radio while adding modern smartphone connectivity, downloadable applications, advanced audio tuning, ride recording, accessory controls, and amplifier-ready outputs.
The system runs Android 13 on a Qualcomm SM6125 8-core processor with an Adreno 610 GPU, 8GB of RAM, and 128GB of internal storage. Google Play Store access and Google GMS certification support compatible applications when the radio has an internet connection.
The RBHT14 also includes a front and rear DVR camera system, six programmable AUX triggers, over-the-air software updates, dual Bluetooth 5.0, dual-band Wi-Fi, and 4G LTE capability with a compatible SIM card and data plan.
2014-2023 Harley-Davidson Touring Fitment
Street Glide
Compatible 2014-2023 Harley-Davidson Street Glide applications.
Road Glide
Compatible 2014-2023 Harley-Davidson Road Glide applications.
Electra Glide
Compatible 2014-2023 Harley-Davidson Electra Glide applications.
Ultra Limited
Compatible 2014-2023 Harley-Davidson Ultra Limited applications.
Tri Glide
Compatible 2014-2023 Harley-Davidson Tri Glide applications.
OEM-Fit Integration
The included vehicle-specific harness and mounting components support a clean factory-style installation.

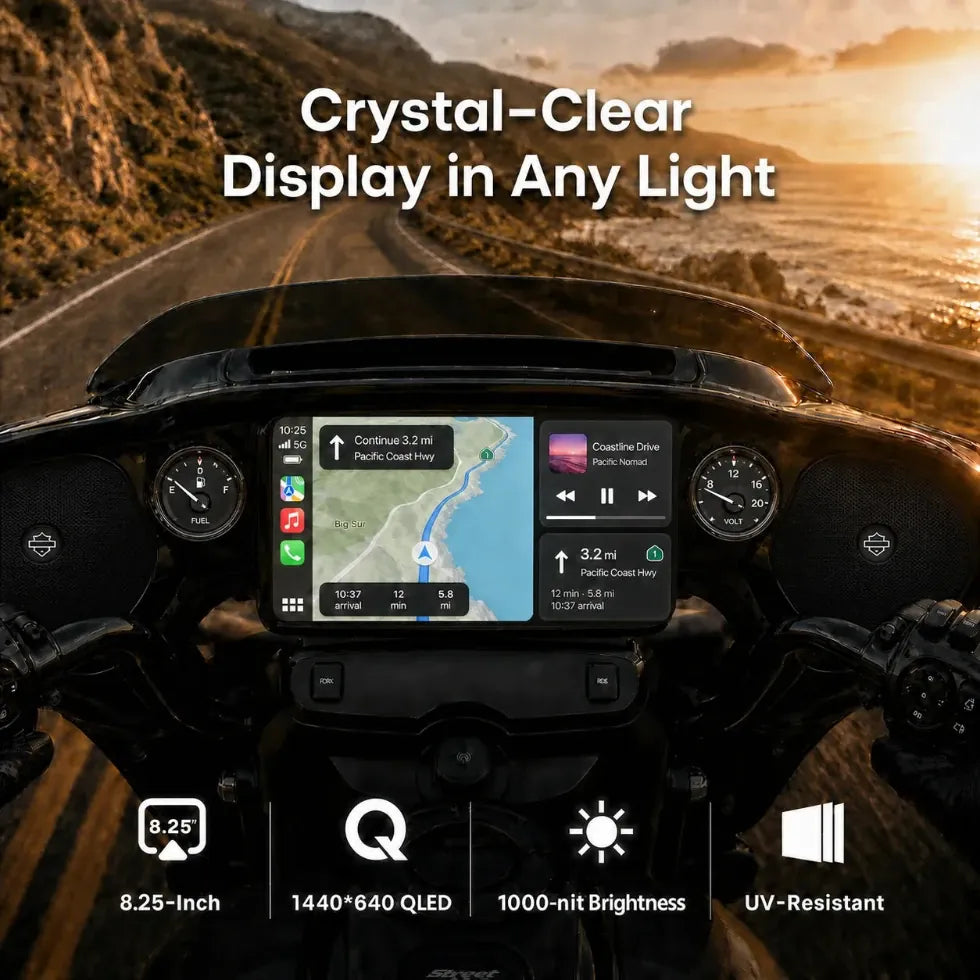

8.25-Inch QLED Touchscreen
1440 × 640 Resolution
The QLED panel provides a wide, detailed interface for navigation, music, cameras, vehicle information, and system settings.
1000-Nit Brightness
The bright display is designed for clearer outdoor viewing in changing sunlight and high-glare riding conditions.

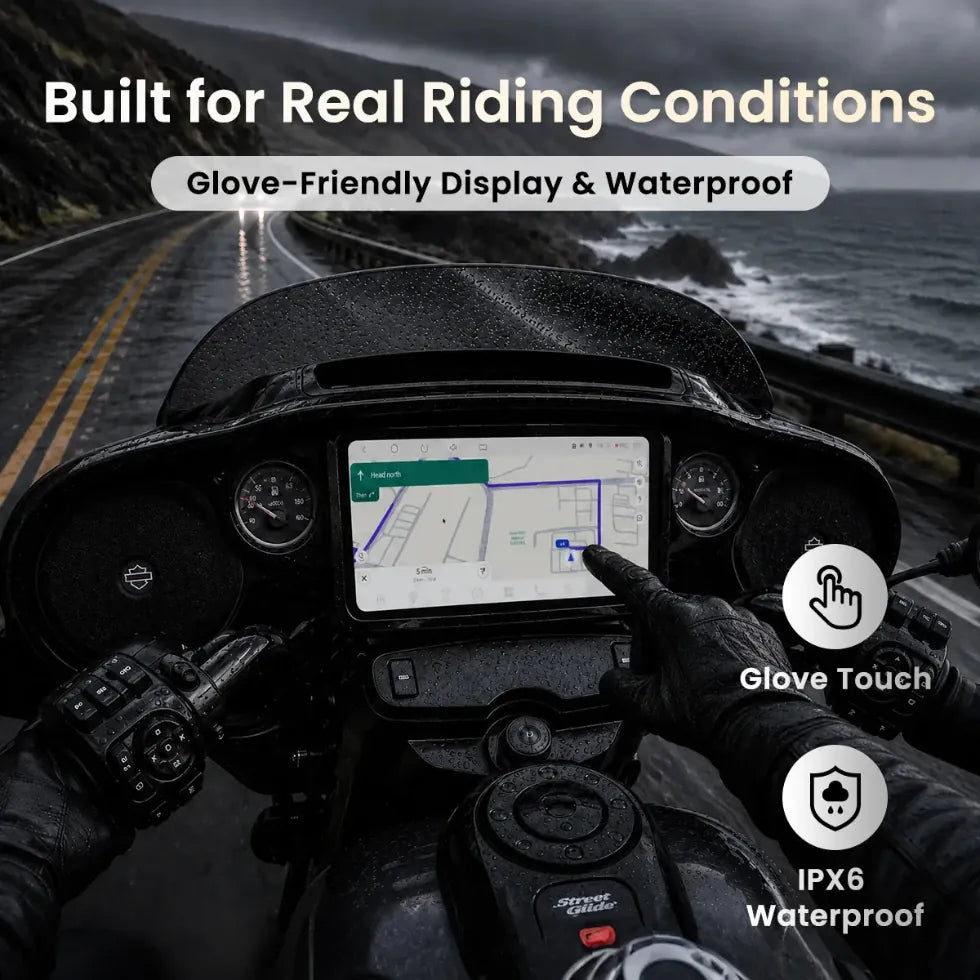

Glove-Friendly Touch
The touchscreen is designed for more practical operation with compatible motorcycle riding gloves.
Android 13, Processing Power, and Storage
Qualcomm SM6125 8-Core CPU
The octa-core processor supports responsive navigation, media, camera, communication, and system-control functions.
8GB RAM
Eight gigabytes of memory supports smoother multitasking between compatible applications and radio functions.
128GB Storage
Internal storage provides space for supported applications, media, settings, and system files.

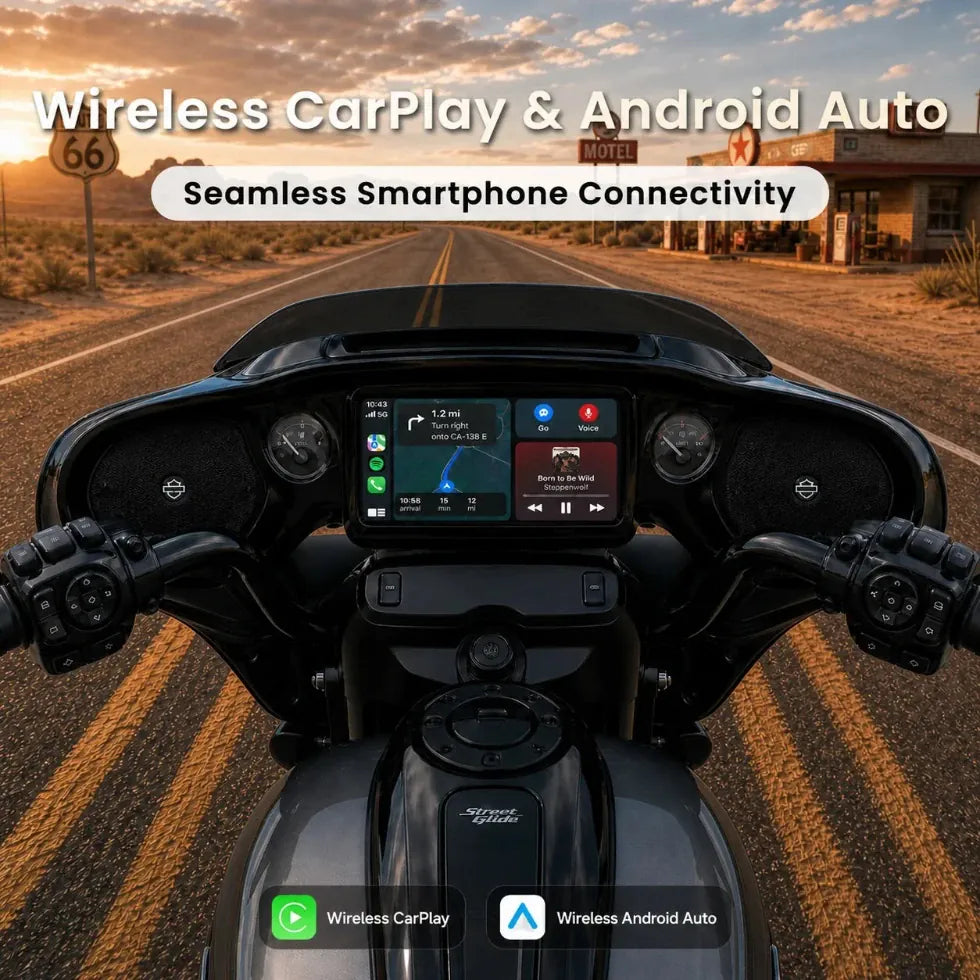

Wireless CarPlay, Android Auto, and Connected Riding
Wireless Apple CarPlay
Connect a compatible iPhone wirelessly for supported navigation, music, calls, messages, and Siri functions.
Wireless Android Auto
Connect a compatible Android phone wirelessly for supported navigation, media, communications, and Google Assistant.
Dual Bluetooth 5.0
Dual Bluetooth supports compatible phones, rider and passenger headsets, media devices, and supported intercom functions.
aptX and aptX HD
Supported Bluetooth audio codecs include aptX and aptX HD for compatible connected devices.
Dual-Band Wi-Fi
Supports 2.4GHz and 5GHz Wi-Fi connections plus compatible Wi-Fi hotspot service.
4G LTE Ready
Add a compatible SIM card and data plan for supported 4G LTE internet access directly through the head unit.

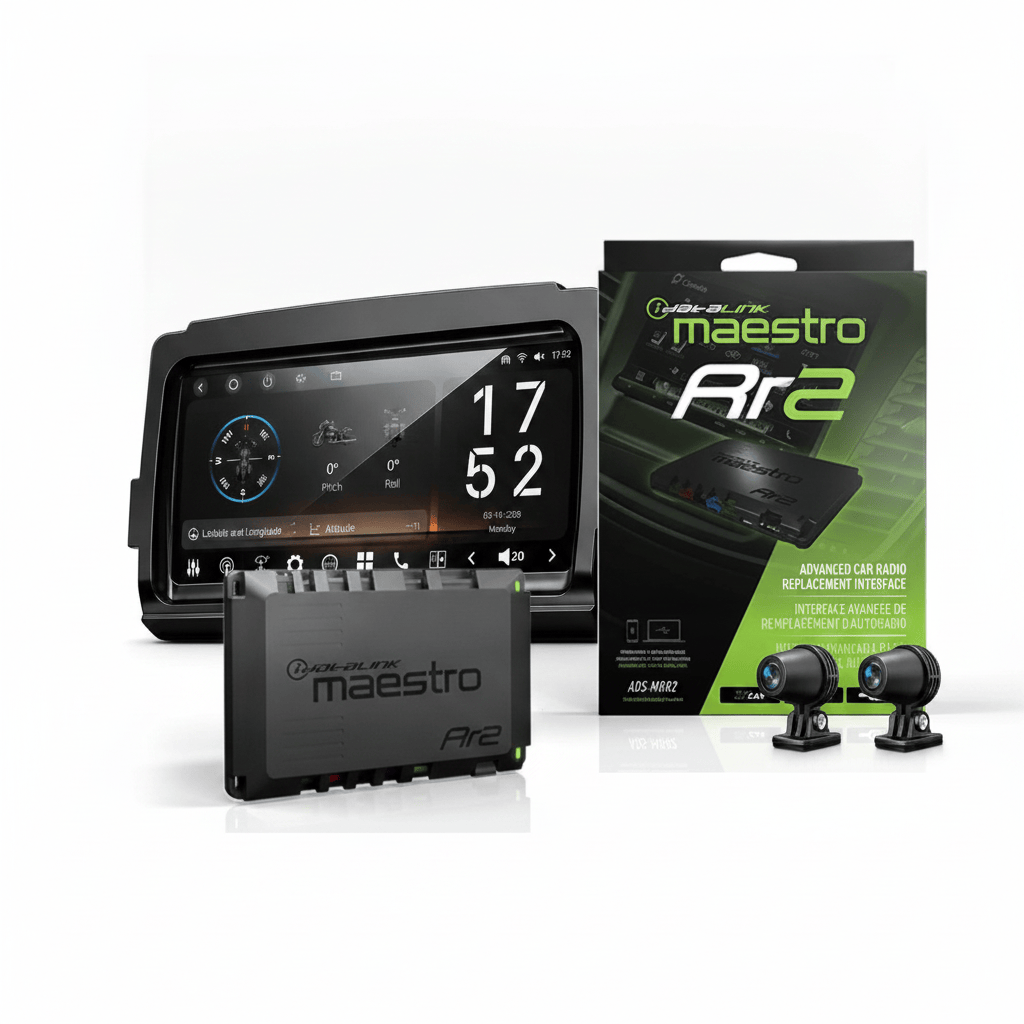

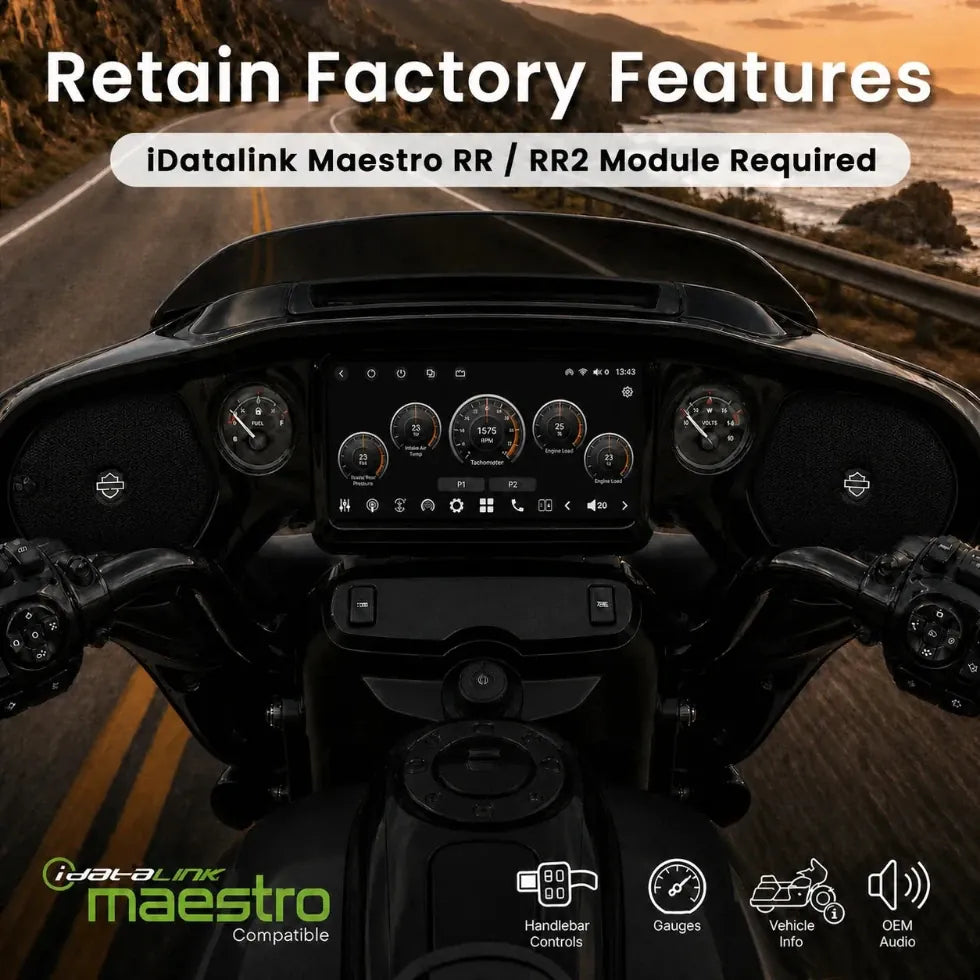

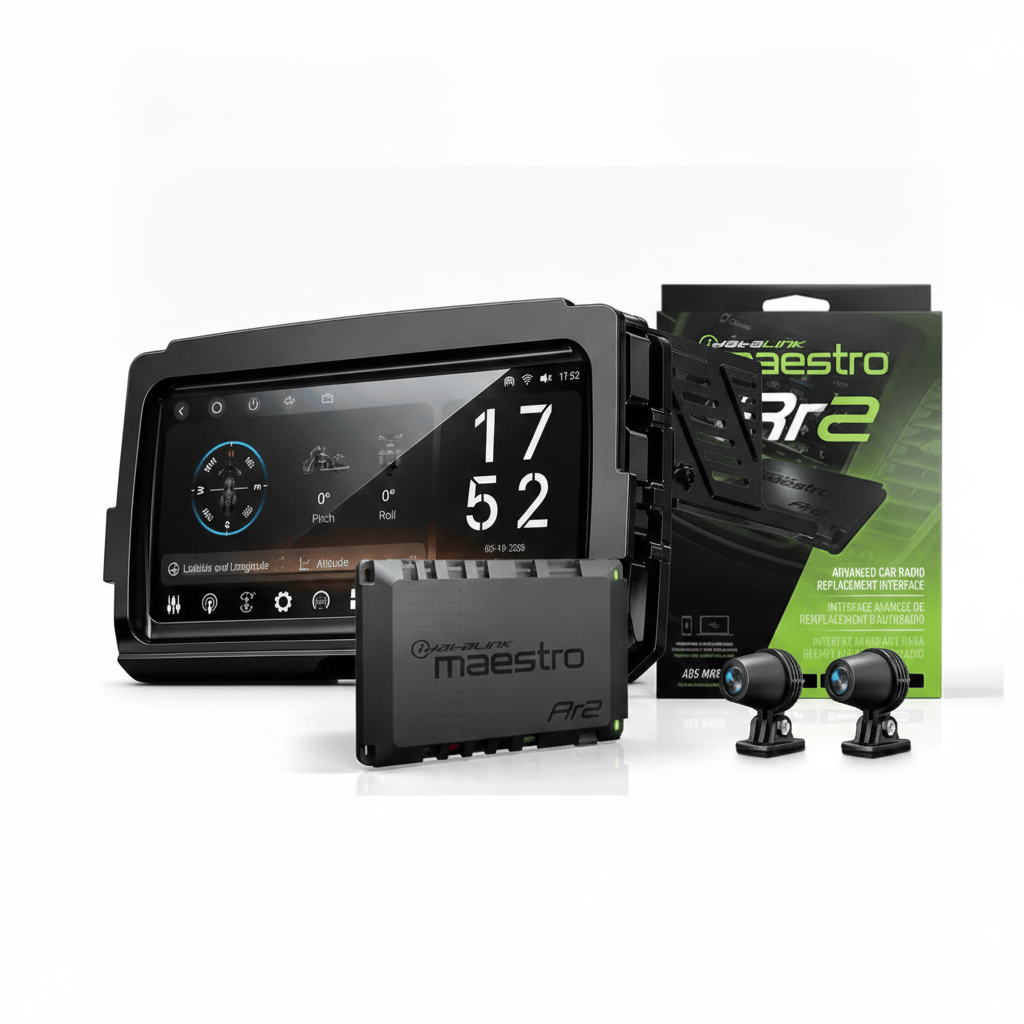

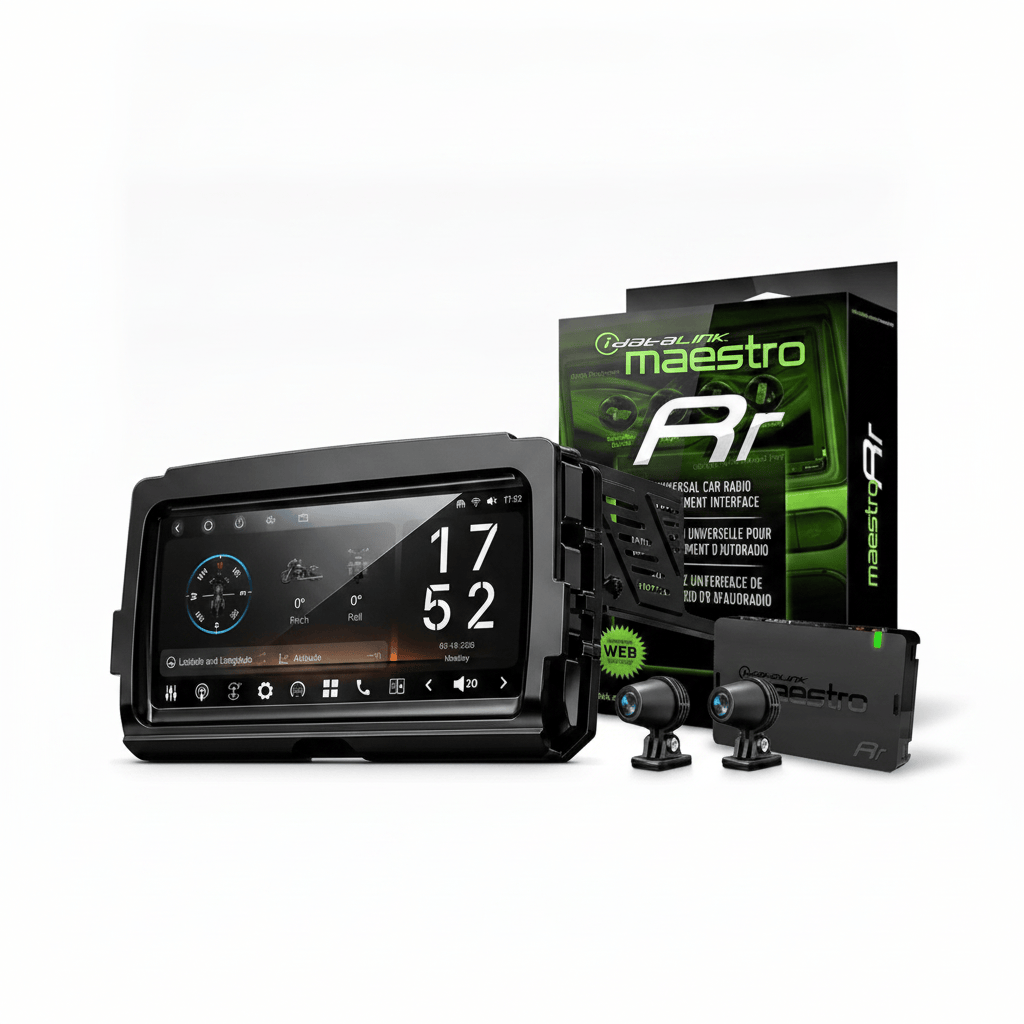

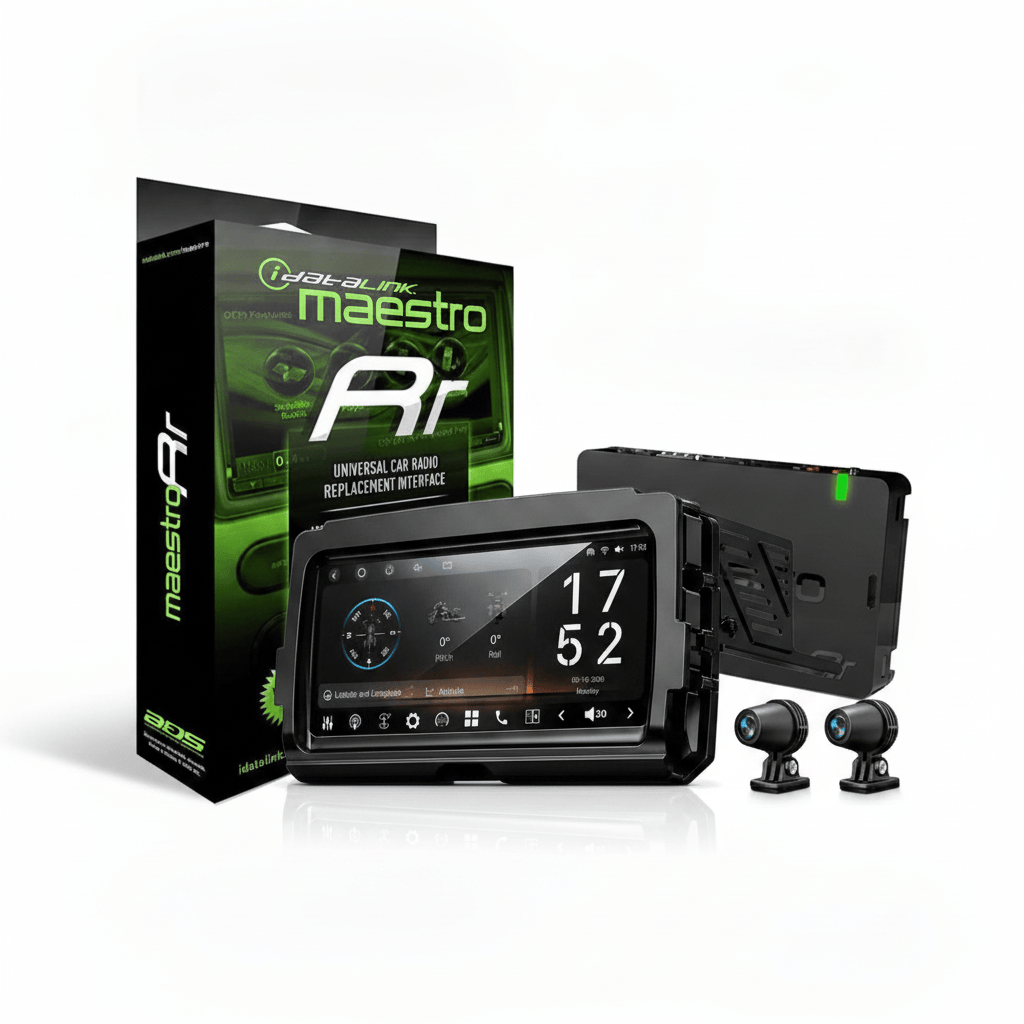

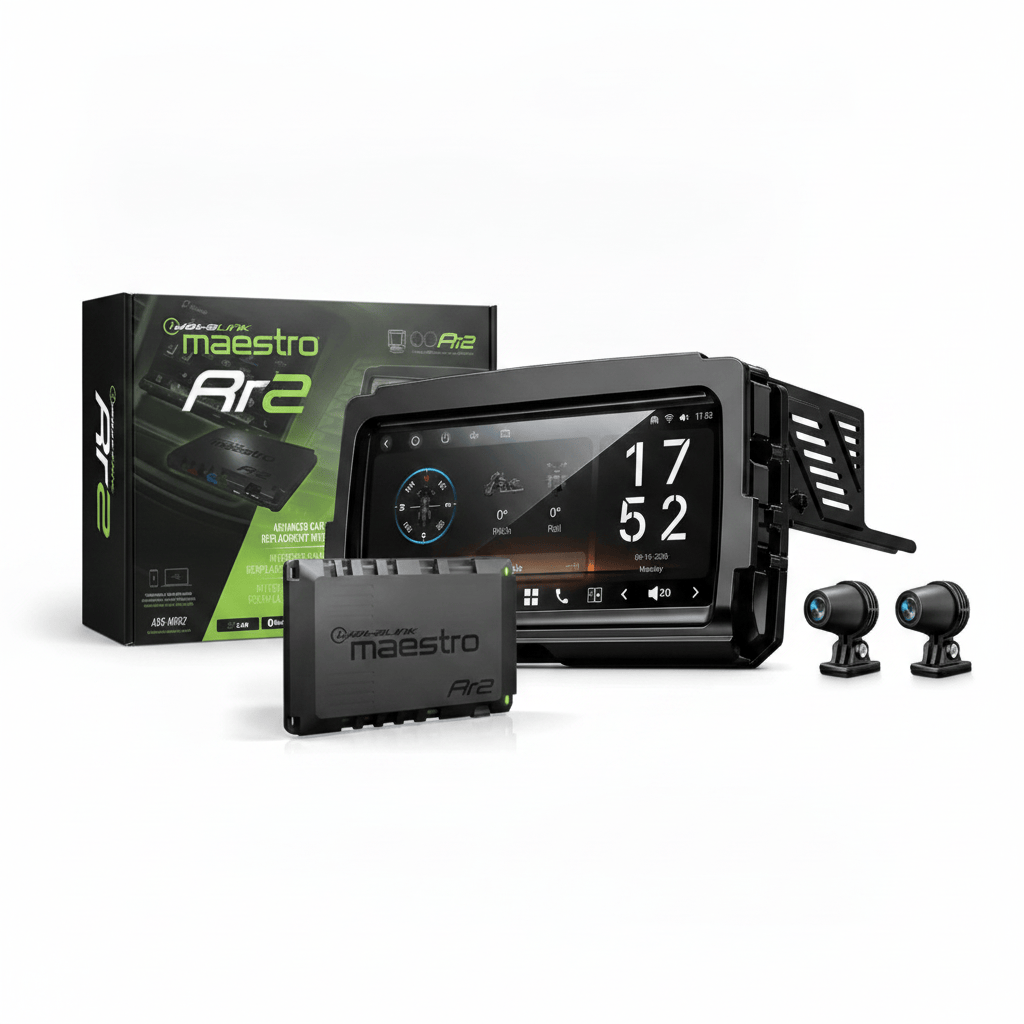

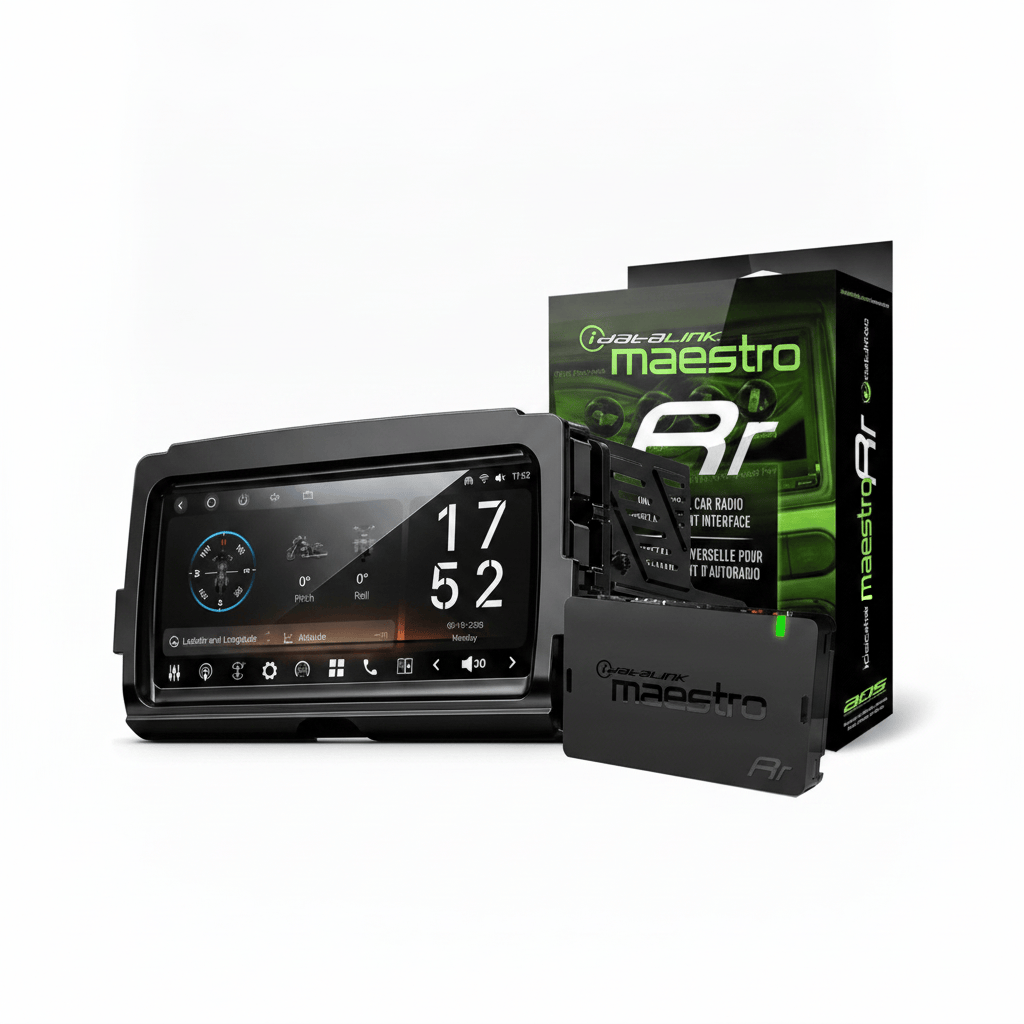

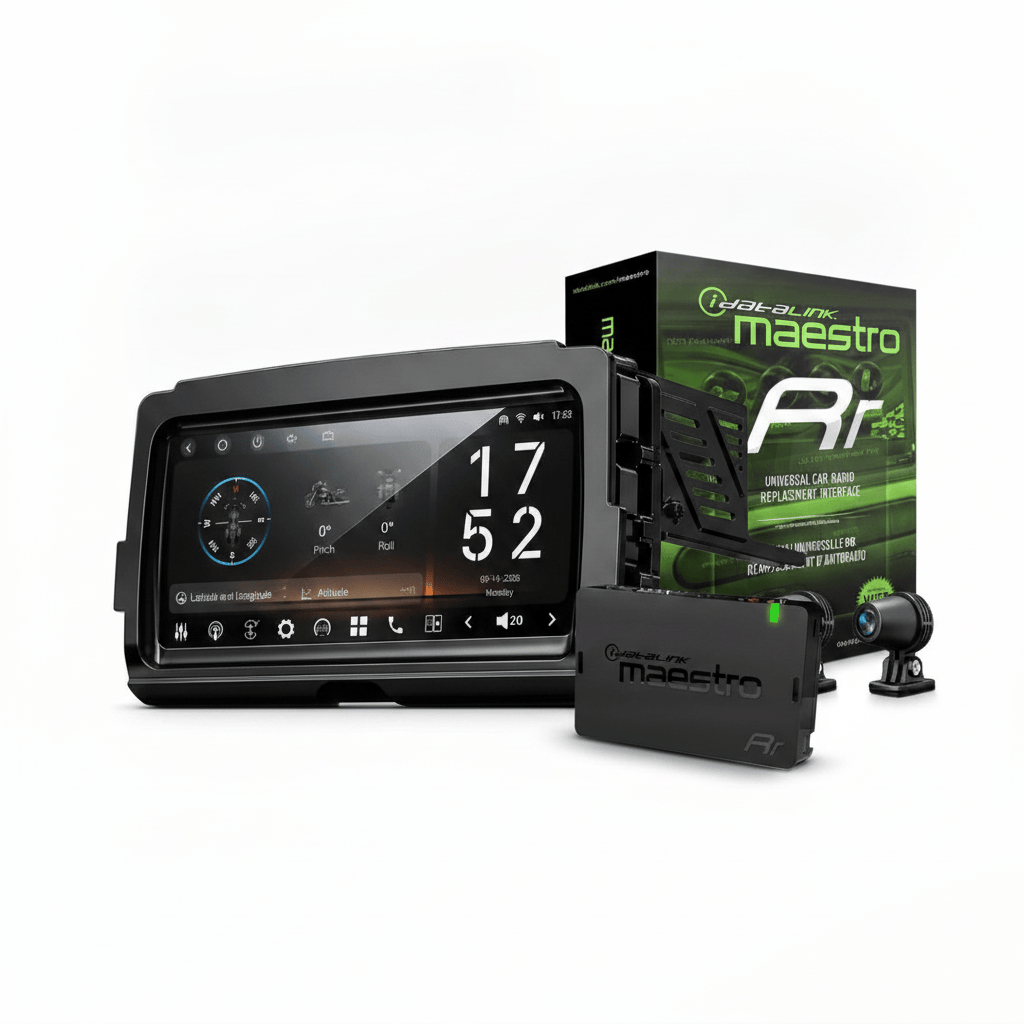

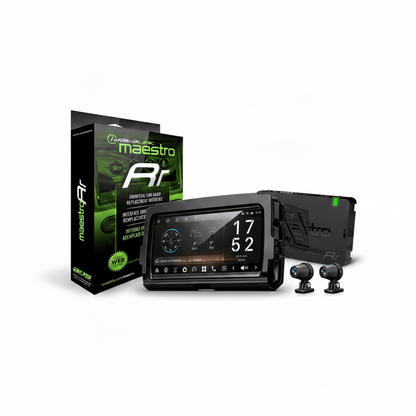

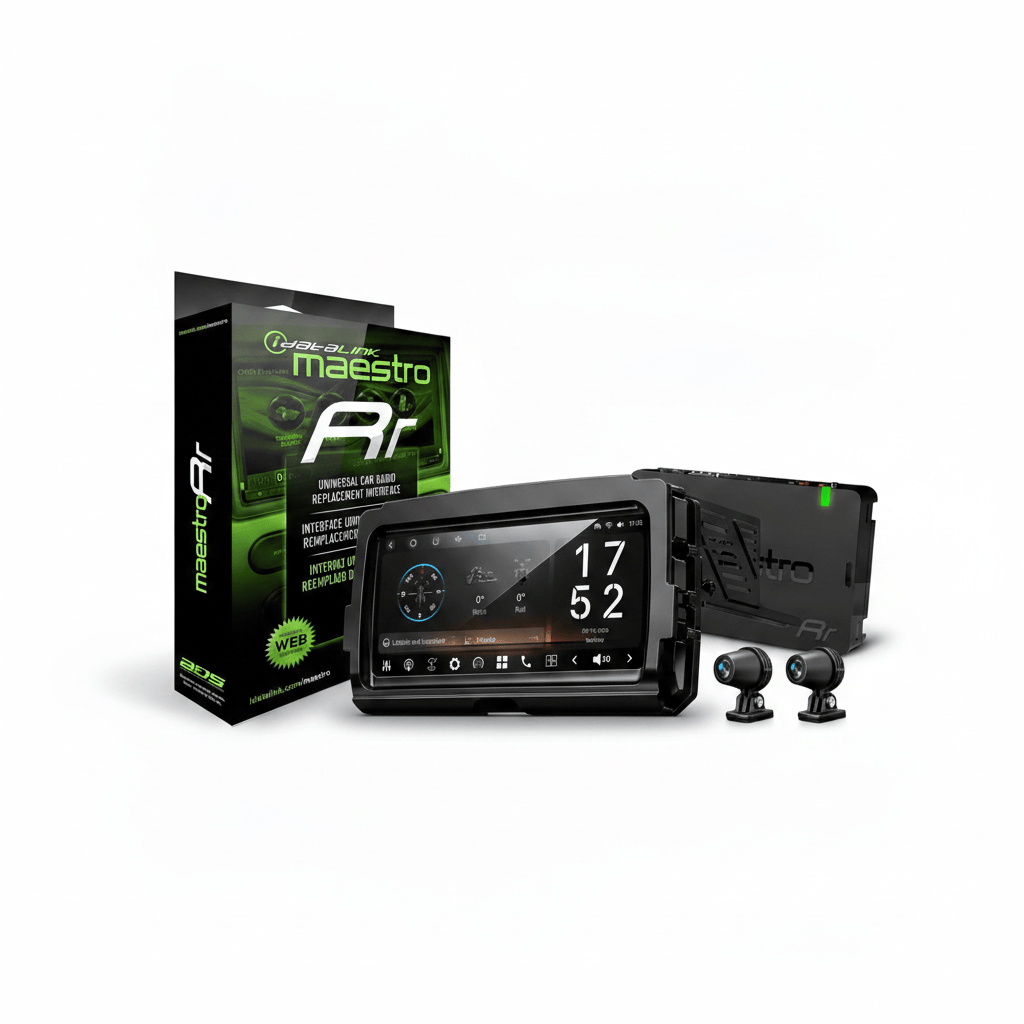

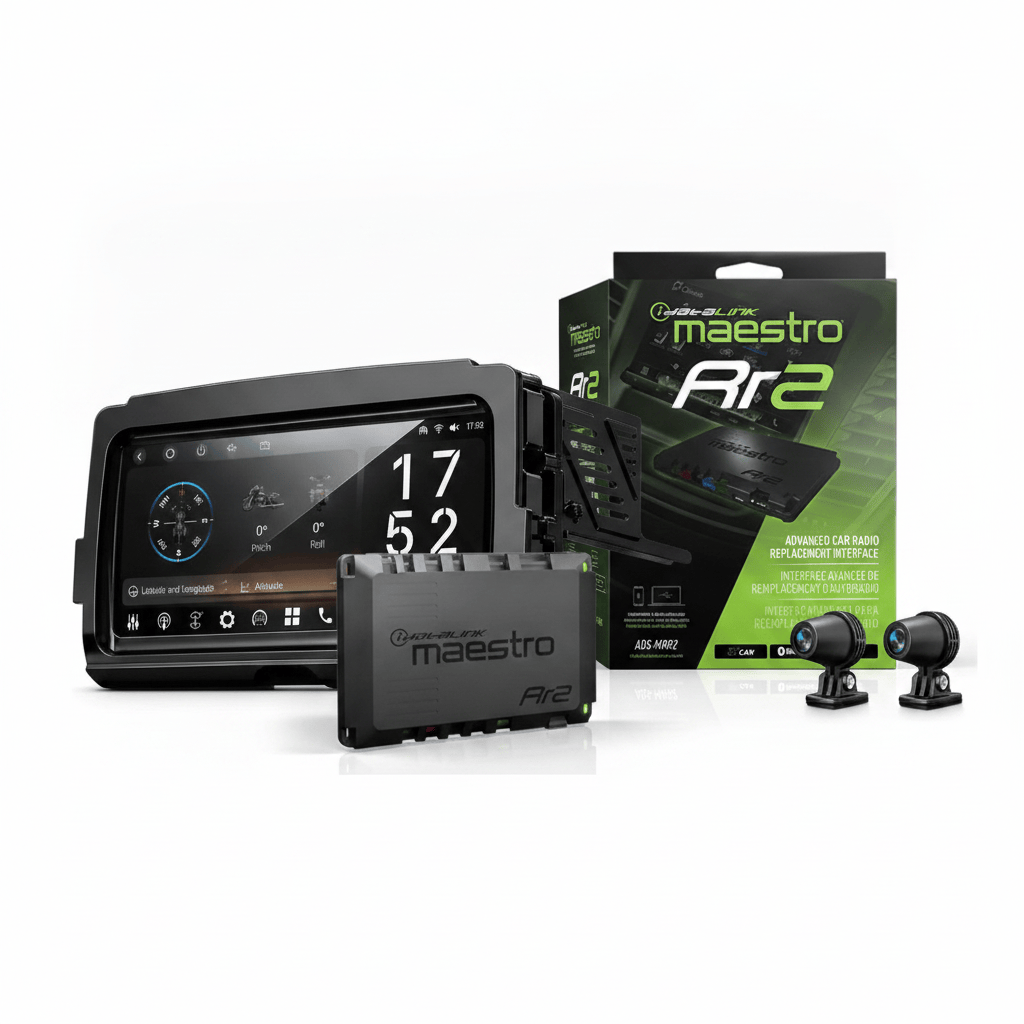

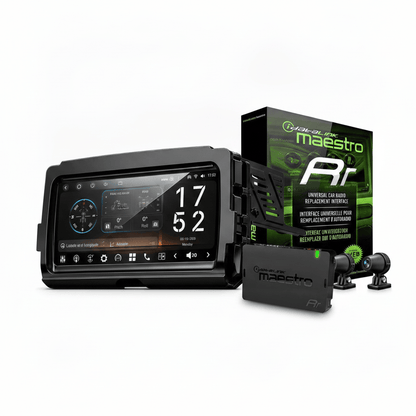

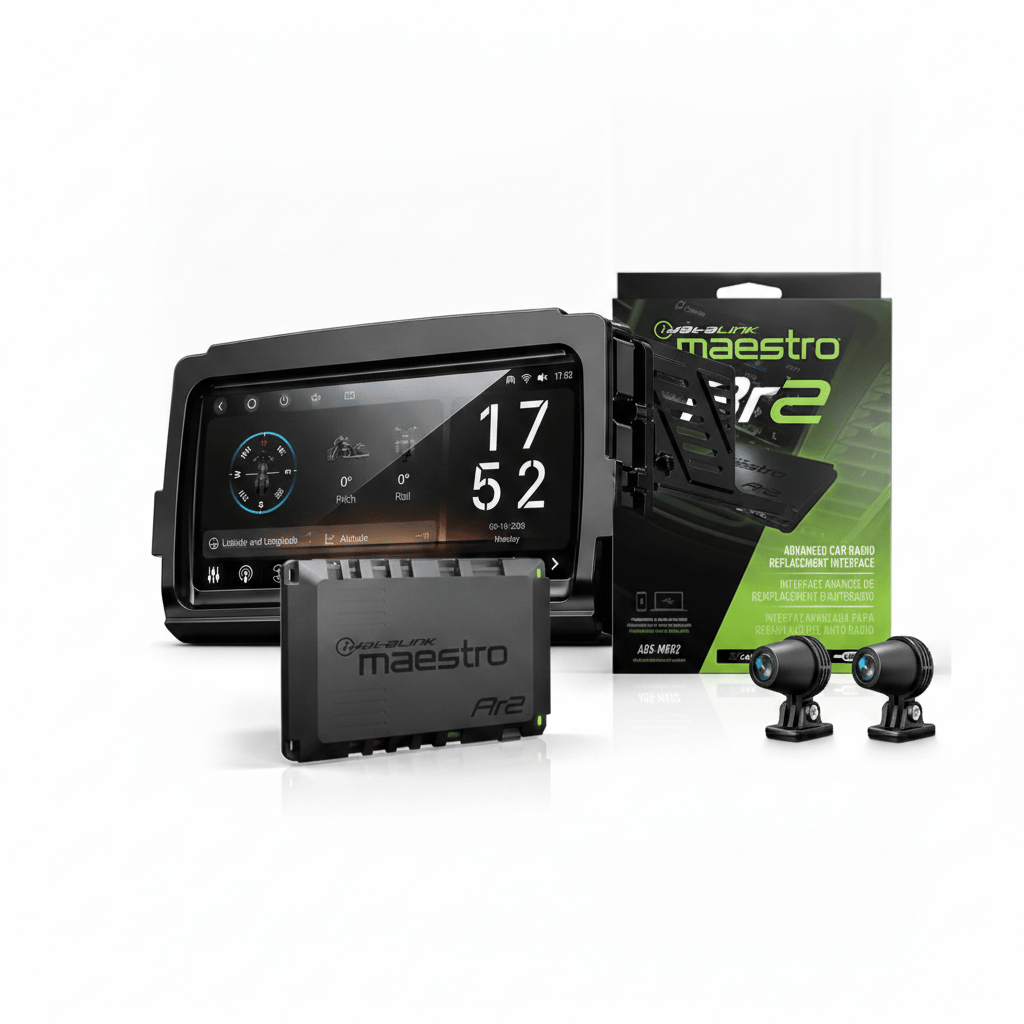

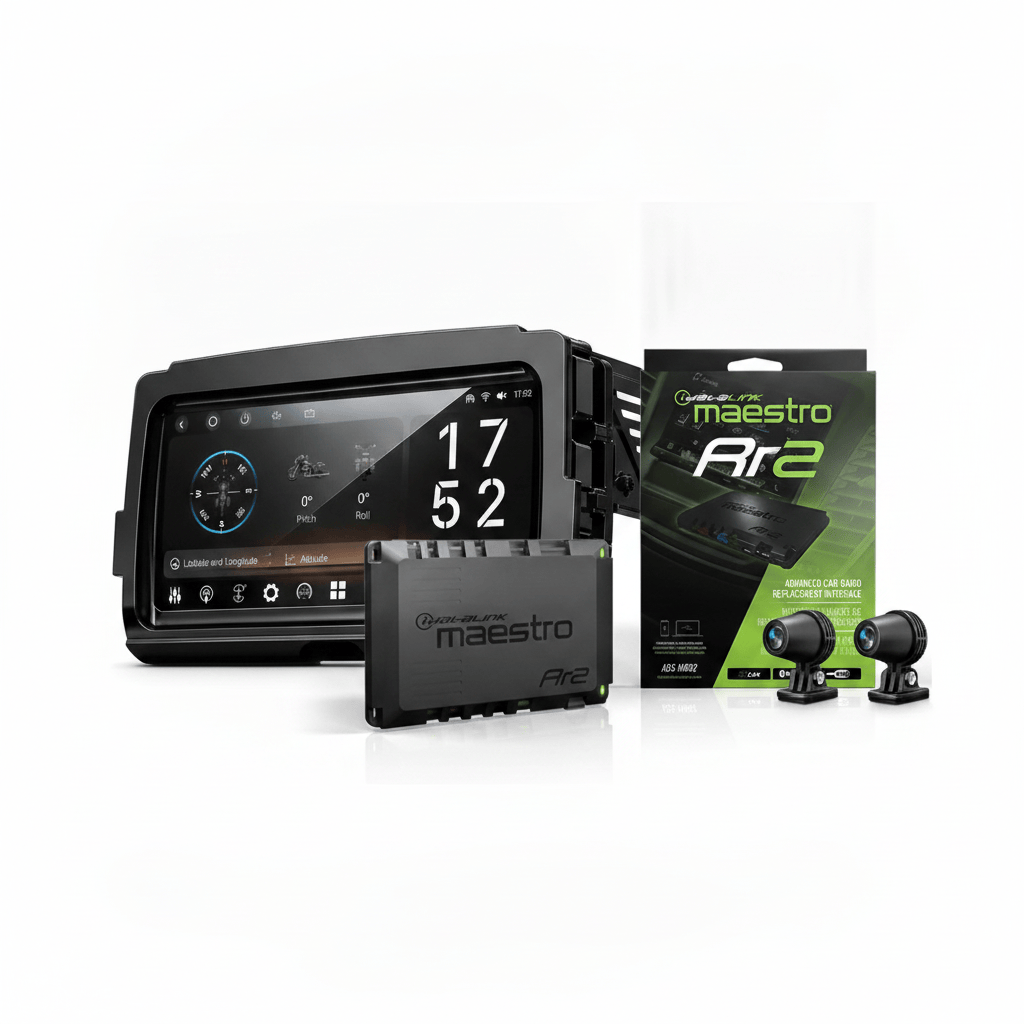

Retain Supported Harley Factory Features With Maestro

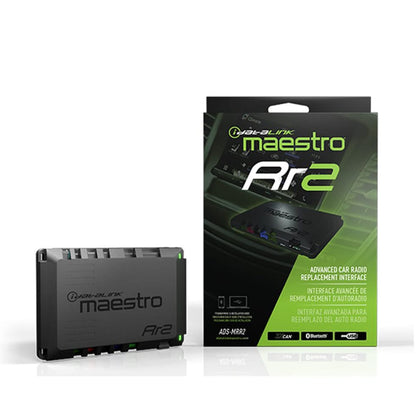

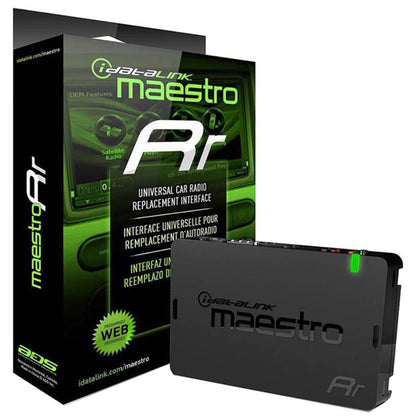

A compatible iDatalink Maestro RR or RR2 module enables supported factory feature retention when correctly programmed and installed with the RBHT14 and its vehicle-specific harness.
Supported Factory Controls
- Compatible handlebar controls
- Supported factory gauge displays
- Compatible motorcycle information
- Supported original BOOM! Audio functions
Maestro Programming
When flashing the Maestro interface, use the UUID printed on the RBHT14 product body as the serial number. An incorrect number can prevent successful programming.

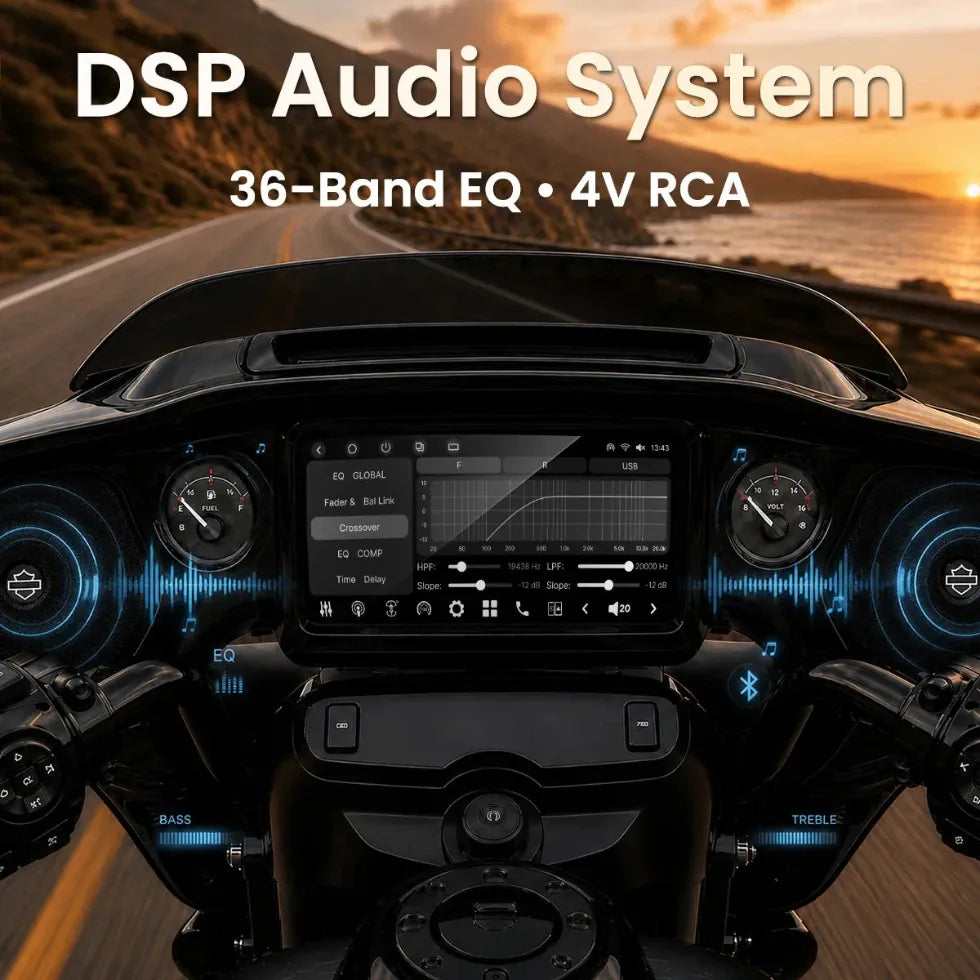

Built-In DSP and Audio Tuning
36-Band Equalizer
Detailed frequency adjustment helps tune the audio system for motorcycle speakers, amplifiers, and open-air riding conditions.
Eight Presets
Eight sound presets provide quick access to compatible stored audio configurations.
Time Alignment
Channel-delay adjustment helps align speaker arrival times and improve the perceived soundstage.
Adjustable Crossovers
Built-in crossover controls support frequency management for front, rear, and subwoofer channels.
Balance and Fader
Left-to-right and front-to-rear output balance can be adjusted from the touchscreen.
Speed-Compensated Volume
Supported speed-compensated volume control can adjust playback level as riding speed and road noise change.
Six 4-Volt RCA Pre-Outs for External Amplifiers
The RBHT14 supports systems ranging from radio-powered speakers to multi-amplifier Harley audio builds. Six 4-volt RCA pre-outs provide dedicated front, rear, and subwoofer signal channels for compatible amplifiers and processors.
Built-In Four-Channel Amplifier
4 × 29W RMS at 4Ω
The internal amplifier is rated for 29 watts RMS on each of four channels into a 4-ohm load.
4 × 49W Maximum at 4Ω
Maximum listed internal-amplifier output is 49 watts on each of four channels into a 4-ohm load.

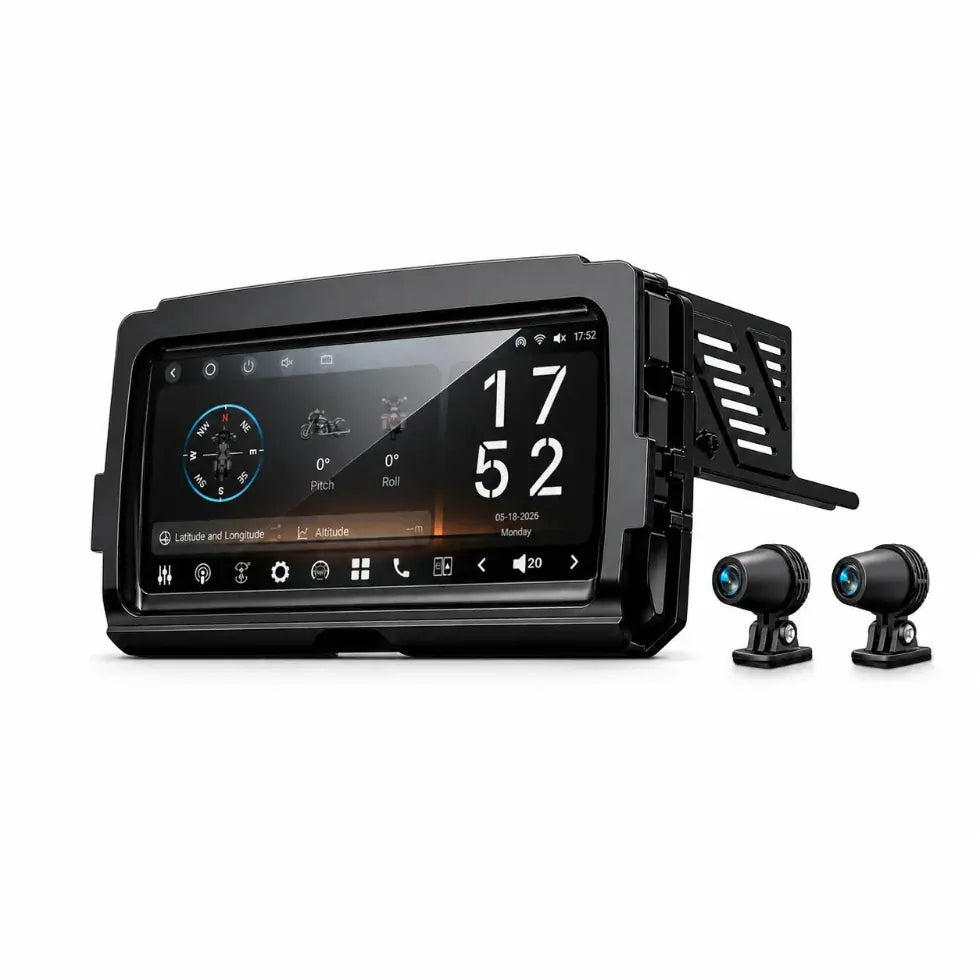

Front and Rear DVR Cameras Included
The RBHT14 includes front and rear DVR cameras for recording ahead of and behind the motorcycle. The system supports GPS track playback, impact detection, and parking protection when installed and powered correctly.
Dual 1080p Recording
Included front and rear cameras record Full HD video with 150-degree wide-angle coverage.
Night Vision and IP67
The cameras feature high-light sensitivity, night-vision support, and IP67-rated weather protection.
GPS Track Playback
Review compatible recorded footage together with available route and location information.
G-Sensor Impact Detection
Sudden-impact detection helps identify and protect relevant video recordings for later review.
Parking Guard
The G-sensor can wake the camera system and begin recording after a detected impact when the system is installed with the required power configuration.
Front and Rear Inputs
The head unit includes one dedicated front DVR input and one dedicated rear DVR input.
Shallow Chassis and Programmable AUX Controls
The shallow chassis creates additional room inside compatible Harley fairings for wiring, compact amplifiers, DSP processors, and interface modules.
More Fairing Space
Reduced chassis depth helps preserve installation space behind the touchscreen assembly.
Cleaner Cable Routing
Additional clearance can simplify power, audio, camera, antenna, and data-cable routing.
Six AUX Triggers
Six programmable AUX triggers support compatible accessory controls directly from the Rebel touchscreen.
Radio, Media, USB, and OTA Update Support

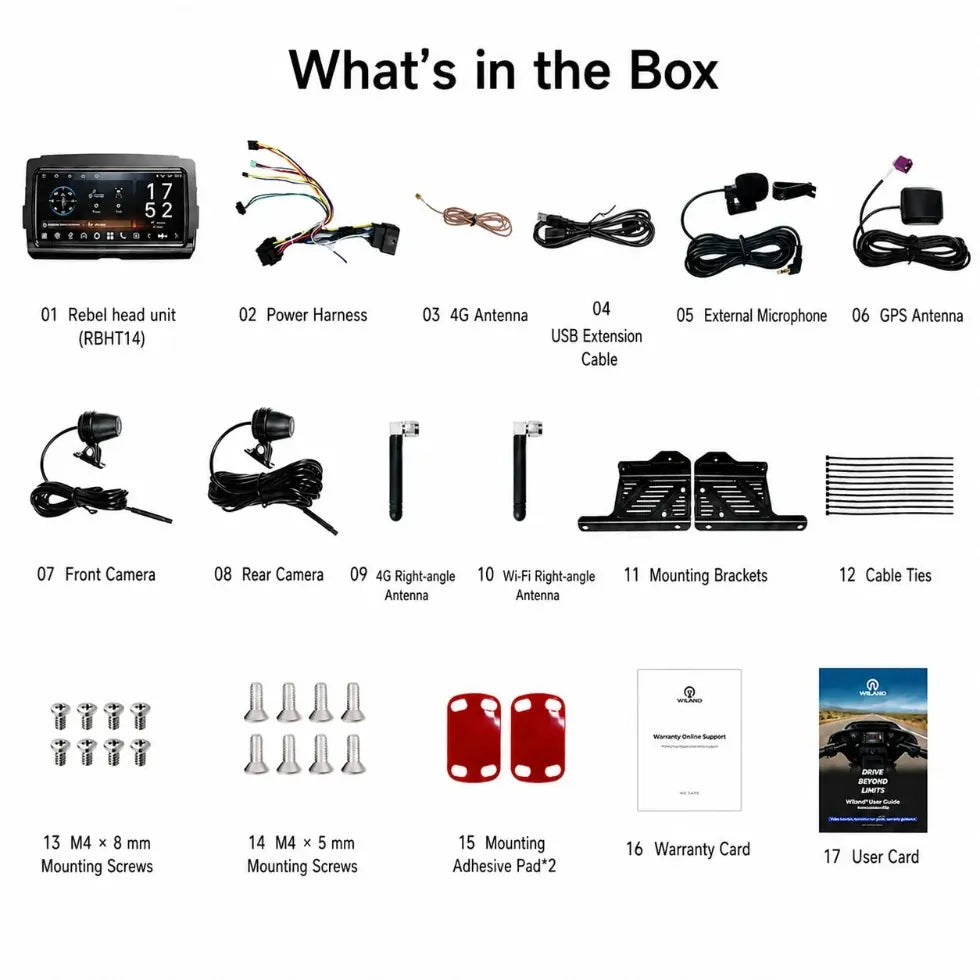

What Is Included
Primary Components
- Vinland Rebel RBHT14 8.25-inch head unit
- Vehicle-specific power and wiring harness
- Front DVR camera
- Rear DVR camera
- External microphone
- GPS antenna
- 4G antenna
- Wi-Fi antenna
Installation Accessories
- USB extension cable
- Motorcycle-specific mounting brackets
- Mounting hardware
- Mounting adhesive pads
- Cable ties
- Warranty information
- User information card
Warranty and Installation Manual
Vinland Warranty
Vinland lists a one-year standard warranty, extended to two years when installed by a Vinland Authorized Dealer. Warranty eligibility remains subject to Vinland terms and installation requirements.
RBHT14 Installation Manual
Review the installation manual before disassembly for harness, mounting, camera, antenna, Maestro, and system-setup requirements.
Download RBHT14 Installation ManualComplete Vinland RBHT14 Specifications
Installation and Ordering Notes
- Confirm the motorcycle is a supported 2014-2023 Touring model.
- Verify the exact factory radio and amplifier configuration.
- Purchase and program a compatible Maestro RR or RR2 when OEM retention is required.
- Use the UUID printed on the RBHT14 as the Maestro programming serial number.
- Identify all factory features that must be retained before disassembly.
- Verify speaker impedance before using the radio's internal amplifier.
- Route camera, USB, antenna, microphone, and data connections before securing the radio.
- Protect all fairing wiring from sharp edges, heat, moisture, and steering movement.
- Use a compatible SIM card and data plan for direct 4G LTE service.
- Install available firmware updates before final system tuning.
- Professional installation and audio-system setup are recommended.
Related Motorcycle Audio Categories
Complete Your Audio System
Signal and Electrical Support
Vinland Rebel RBHT14 FAQ
What motorcycles fit the Vinland RBHT14?
It is designed for compatible 2014-2023 Street Glide, Road Glide, Electra Glide, Ultra Limited, and Tri Glide motorcycles.
What are the correct display specifications?
The RBHT14 uses an 8.25-inch QLED touchscreen with 1440 × 640 resolution and brightness rated at up to 1000 nits.
Does it have wireless Apple CarPlay and Android Auto?
Yes. Vinland currently advertises wireless Apple CarPlay and wireless Android Auto for compatible smartphones.
Does the radio support 4G LTE?
Yes. The radio is 4G LTE ready, but a compatible SIM card, carrier activation, and data plan are required.
Does it have a built-in DSP?
Yes. DSP controls include a 36-band equalizer, eight presets, time alignment, balance, fader, and crossover control.
How many RCA outputs are included?
The radio includes six 4-volt RCA pre-outs for front, rear, and subwoofer channels.
Does the current specification list optical or coaxial outputs?
No. Vinland's current published RBHT14 specification table lists six analog 4-volt RCA pre-outs but does not list optical or coaxial digital audio outputs.
Are the front and rear cameras included?
Yes. Vinland currently lists the front and rear DVR cameras as standard included components.
Does it retain the factory handlebar controls?
Supported factory controls and motorcycle information can be retained with a compatible iDatalink Maestro RR or RR2 module and correct programming.
Is the iDatalink Maestro included?
No. The Maestro RR or RR2 module is required for supported OEM feature retention and is sold separately.
Can the radio receive wireless updates?
Yes. Over-the-air firmware updates are supported when the radio is connected to Wi-Fi.
What warranty does Vinland list?
Vinland lists a one-year standard warranty, extended to two years when installed by a Vinland Authorized Dealer, subject to its warranty terms.
